J.E. ADAMS INDUSTRIES
OWNERS MANUAL
VACUUMS
AIR/VACUUMS
AIR/WATER/VACUUMS
PAGE 1-3 SPECIFICATIONS
PAGE 4-6 INSTALLATION

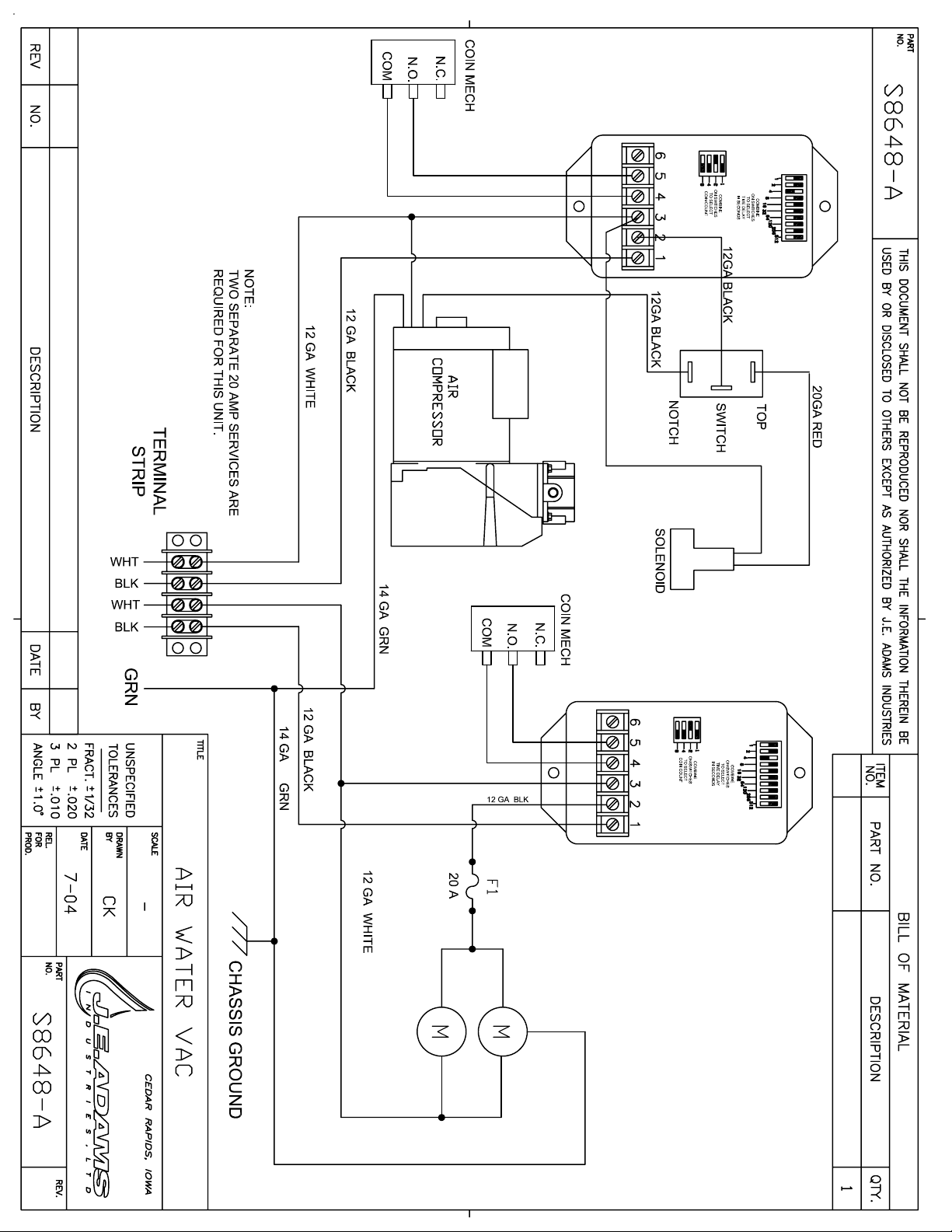

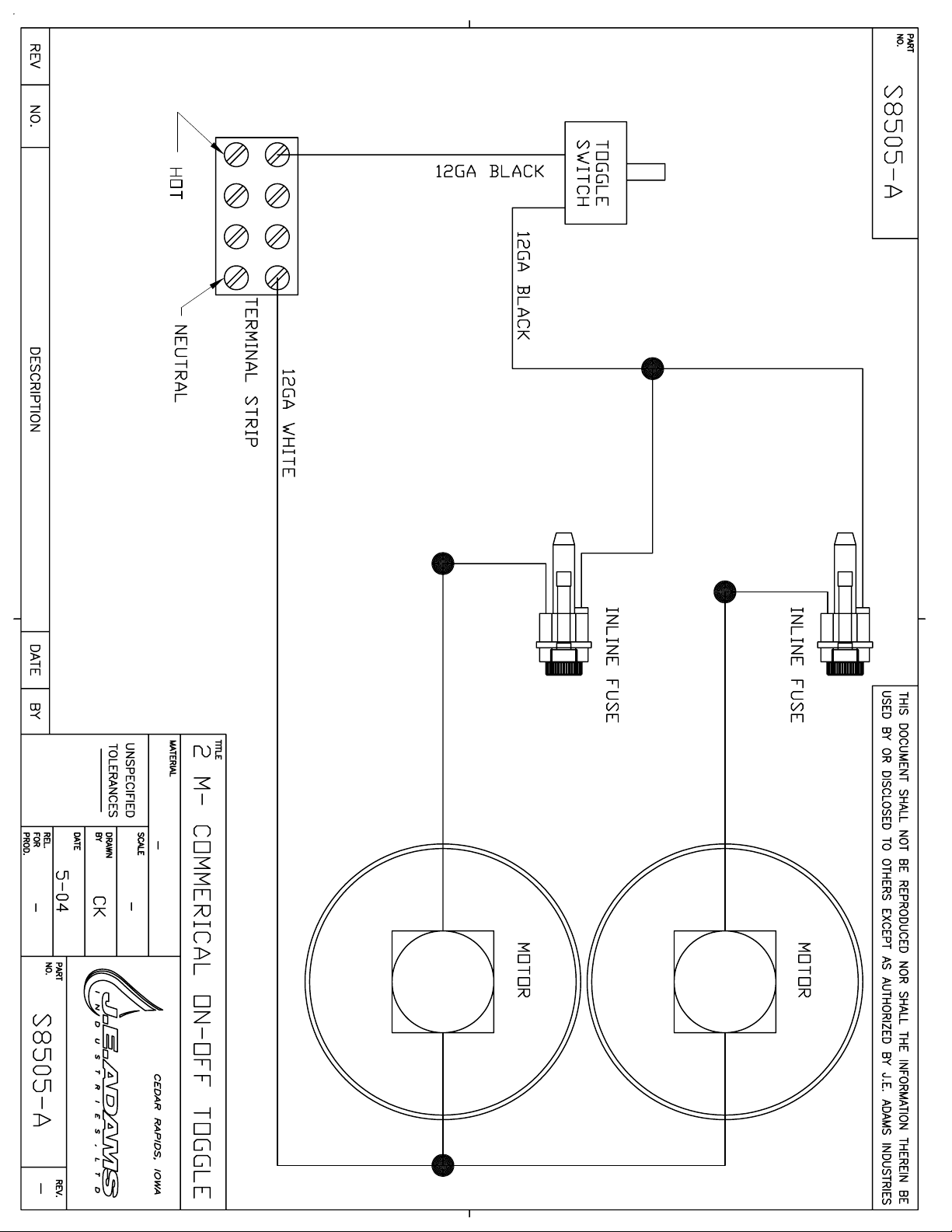

PAGE 7-10 WIRE DIAGRAMS
PAGE 11 TIMER INFORMATION

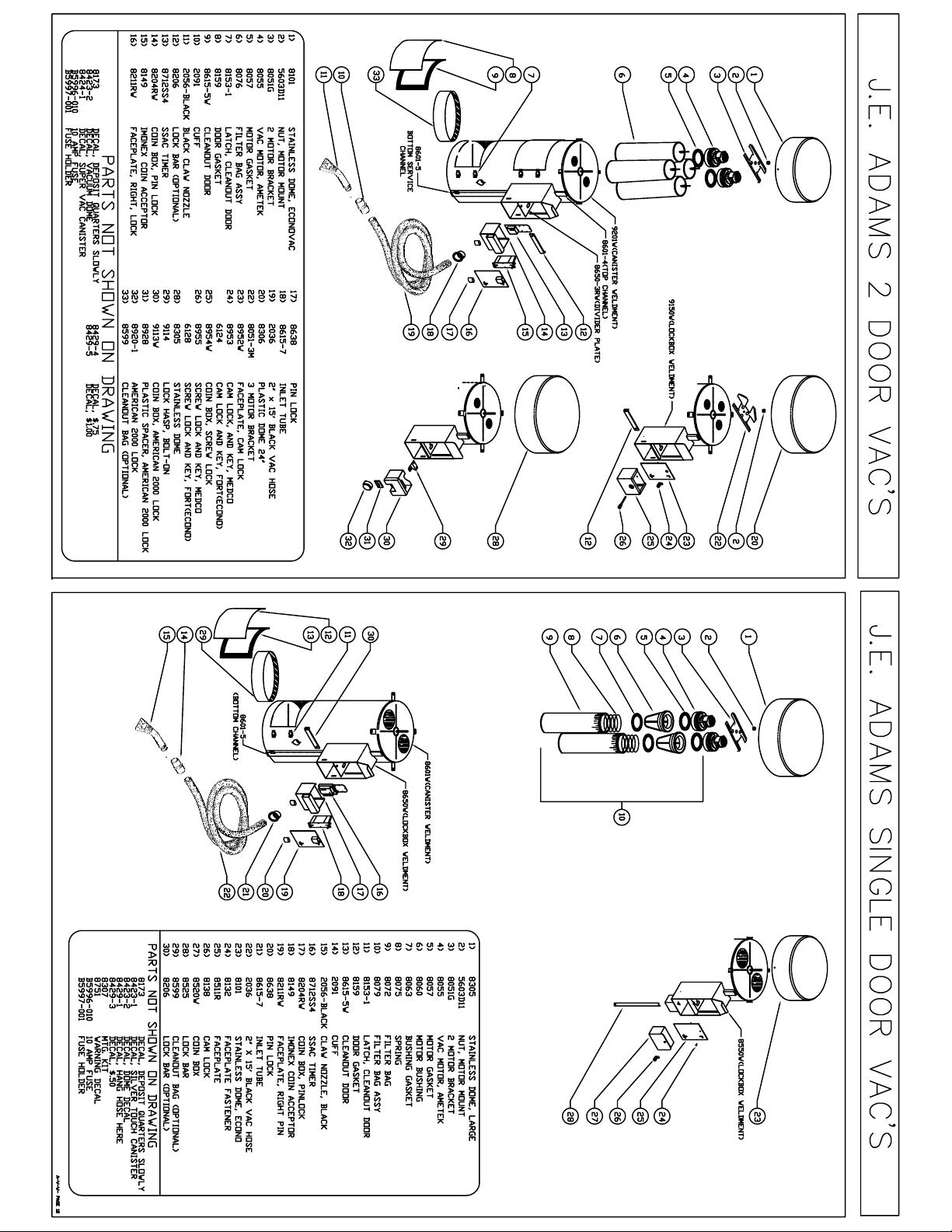

PAGE 12-16 DRAWINGS & PART NUMBERS
PAGE 17 TROUBLESHOOTING
PAGE 17 MAINTENANCE

A-V-W- PAGE 1-3 1
110V SPECIFICATIONS
HEIGHT: 54-1/2”
CANISTER DIAMETER: 19”
DOME DIAMETER: 24”
TOTAL DEPTH –
REAR OF DOME TO
FRONT OF LOCK BOX: 29”
WEIGHT: 140 LB.
VACUUM:
110 VOLTS, (2 MOTOR VACS 20AMP SERVICE RECOMMENDED)
(3 MOTOR VACS 30 AMP SERVICE RECOMMENDED)
188 CFM
2 FILTER BAGS (8072)
MOTORS:
AMETEK UNIVERSAL TYPE, 50/60HZ
2 STAGE PERIPHERAL BYPASS DISCHARGE
UL RECOGNIZED CATEGORY
PRGY2(E47185)
CSA CERTIFIED, CLASS 1611 01(LR31393)
HEIGHT: 54-1/2”
CANISTER DIAMETER: 19”
DOME DIAMETER: 24”
TOTAL DEPTH –
REAR OF DOME TO
FRONT OF LOCK BOX: 29”
WEIGHT: 150 LB.
VACUUM:
110 VOLTS, (2 MOTOR VACS 20AMP SERVICE RECOMMENDED)
(3 MOTOR VACS 30 AMP SERVICE RECOMMENDED)
188 CFM
4 FILTER BAGS (8076)
MOTORS:
AMETEK UNIVERSAL TYPE, 50/60HZ
2 STAGE PERIPHERAL BYPASS DISCHARGE
UL RECOGNIZED CATEGORY
PRGY2(E47185)
CSA CERTIFIED, CLASS 1611 01(LR31393)
HEIGHT: 54-1/2”
CANISTER DIAMETER: 19”
DOME DIAMETER: 24”
TOTAL DEPTH –
REAR OF DOME TO
FRONT OF LOCK BOX: 29”
WEIGHT: 140 LB.
VACUUM:
110 VOLTS, (2 MOTOR VACS 20AMP SERVICE RECOMMENDED)
(3 MOTOR VACS 30 AMP SERVICE RECOMMENDED)
188 CFM
4 FILTER BAGS (8076)
MOTORS:
AMETEK UNIVERSAL TYPE, 50/60HZ
2 STAGE PERIPHERAL BYPASS DISCHARGE
UL RECOGNIZED CATEGORY
PRGY2(E47185)
CSA CERTIFIED, CLASS 1611 01(LR31393)
HEIGHT: 61”
CANISTER DIMS: 15.98” x 26.28”
DOME DIMS: 19.9” x 30”
TOTAL DEPTH –
REAR OF DOME TO
FRONT OF LOCK BOX: 35”
WEIGHT: 223 LB.
VACUUM:
110 VOLTS, (2 MOTOR VACS 20 AMP SERVICE RECOMMENDED)
(3 MOTOR VACS 30 AMP SERVICE RECOMMENDED)
188 CFM
2 OR 3 FILTER BAGS (8072)
MOTORS:
AMETEK UNIVERSAL TYPE, 50/60HZ
2 STAGE PERIPHERAL BYPASS DISCHARGE
UL RECOGNIZED CATEGORY
PRGY2(E47185)
CSA CERTIFIED, CLASS 1611 01(LR31393)
HEIGHT: 59”
CANISTER DIMS: 15.60” x 26.12”
DOME DIMS: 19.9” x 30”
TOTAL DEPTH –
FACE TO FACE: 37”
WEIGHT: 215 LB.
VACUUM:
110 VOLTS, (2 SEPARATE 20 AMPS SERVICE RECOMMENDED)
188 CFM
4 FILTER BAGS (8076)
MOTORS:
AMETEK UNIVERSAL TYPE, 50/60HZ
2 STAGE PERIPHERAL BYPASS DISCHARGE
UL RECOGNIZED CATEGORY
PRGY2(E47185)
CSA CERTIFIED, CLASS 1611 01(LR31393)
HEIGHT: 54-1/2”
CANISTER DIAMETER: 19”
DOME DIAMETER: 24”
TOTAL DEPTH –
REAR OF DOME TO
FRONT OF LOCK BOX: 26”
WEIGHT: 140 LB.
VACUUM:
110 VOLTS, (2 MOTOR VACS 20AMP SERVICE RECOMMENDED)
(3 MOTOR VACS 30 AMP SERVICE RECOMMENDED)
188 CFM
2 FILTER BAGS (8072)
MOTORS:
AMETEK UNIVERSAL TYPE, 50/60HZ
2 STAGE PERIPHERAL BYPASS DISCHARGE
UL RECOGNIZED CATEGORY
PRGY2(E47185)
CSA CERTIFIED, CLASS 1611 01(LR31393)
SINGLE DOOR
VACUUMS
COMMERCIAL
SINGLE DOOR
V
A
CUU
M
S
2 DOOR
VACUUMS
COMMERCIAL
2 DOOR
V
A
CUU
M
S
OVAL
VACUUMS
HEIGHT: 54-1/2”
CANISTER DIMS: 19”
DOME DIMS: 19.9” x 30”
TOTAL DEPTH –
REAR OF DOME TO
FRONT OF LOCK BOX: 29”
WEIGHT: 206 LB.
VACUUM:
110 VOLTS, (2 SEPARATE 20 AMPS SERVICE RECOMMENDED)
188 CFM
2 FILTER BAGS (8072)
MOTORS:
AMETEK UNIVERSAL TYPE, 50/60HZ
2 STAGE PERIPHERAL BYPASS DISCHARGE
UL RECOGNIZED CATEGORY
PRGY2(E47185)
CSA CERTIFIED, CLASS 1611 01(LR31393)
AIR COMPRESSOR:
110V / 60HZ / 10.6 AMPS
¾ HP / ONE CYLINDER / ONE STAGE OIL-LESS
SCFM @ PSI
3.78 @ 0
3.43 @ 20
3.04 @ 40
2.14 @ 90
1.99 @ 100
DUAL
VACUUMS
HEIGHT: 54-1/2”
CANISTER DIMS: 19”
DOME DIMS: 19.9” x 30”
TOTAL DEPTH –
REAR OF DOME TO
FRONT OF LOCK BOX: 29”
WEIGHT: 206 LB.
VACUUM:
110 VOLTS, (2 SEPARATE 20 AMPS SERVICE RECOMMENDED)
188 CFM
2 FILTER BAGS (8072)
MOTORS:
AMETEK UNIVERSAL TYPE, 50/60HZ
2 STAGE PERIPHERAL BYPASS DISCHARGE
UL RECOGNIZED CATEGORY
PRGY2(E47185)
CSA CERTIFIED, CLASS 1611 01(LR31393)
AIR COMPRESSOR:
110V / 60HZ / 14 AMPS
1.5 HP / ONE CYLINDER / ONE STAGE OIL-LESS
SCFM @ PSI
6 @ 0
5 @ 20
4.1 @ 40
3.1 @ 90
2.9 @ 100
2.1 @ 125 (MAX PSI)
SINGLE DOOR
AIR / VACUUMS
W
ITH TH
O
MA
S
SINGLE DOOR
AIR / VACUUMS
WITH DEVILBISS

A-V-W- PAGE 1-3 2
220V SPECIFICATIONS
HEIGHT: 54-1/2”
CANISTER DIMS: 19”
DOME DIMS: 19.9” x 30”
TOTAL DEPTH –
REAR OF DOME TO
FRONT OF LOCK BOX: 29”
WEIGHT: 206 LB.
VACUUM:
110 VOLTS, (2 SEPARATE 20 AMPS SERVICE RECOMMENDED)
188 CFM
4 FILTER BAGS (8076)
MOTORS:
AMETEK UNIVERSAL TYPE, 50/60HZ
2 STAGE PERIPHERAL BYPASS DISCHARGE
UL RECOGNIZED CATEGORY
PRGY2(E47185)
CSA CERTIFIED, CLASS 1611 01(LR31393)
AIR COMPRESSOR:
110V / 60HZ / 10.6 AMPS
¾ HP / ONE CYLINDER / ONE STAGE OIL-LESS
SCFM @ PSI
3.78 @ 0
3.43 @ 20
3.04 @ 40
2.14 @ 90
1.99 @ 100
2 DOOR AIR /
VACUUMS
W
ITH TH
O
MA
S
HEIGHT: 54-1/2”
CANISTER DIMS: 19”
DOME DIMS: 19.9” x 30”
TOTAL DEPTH –
REAR OF DOME TO
FRONT OF LOCK BOX: 29”
WEIGHT: 206 LB.
VACUUM:
110 VOLTS, (2 SEPARATE 20 AMPS SERVICE RECOMMENDED)
188 CFM
4 FILTER BAGS (8076)
MOTORS:
AMETEK UNIVERSAL TYPE, 50/60HZ
2 STAGE PERIPHERAL BYPASS DISCHARGE
UL RECOGNIZED CATEGORY
PRGY2(E47185)
CSA CERTIFIED, CLASS 1611 01(LR31393)
AIR COMPRESSOR:
110V / 60HZ / 14 AMPS
1.5 HP / ONE CYLINDER / ONE STAGE OIL-LESS
SCFM @ PSI
6 @ 0
5 @ 20
4.1 @ 40
3.1 @ 90
2.9 @ 100
2.1 @ 125 (MAX PSI)
2 DOOR AIR /
VACUUMS
WITH DEVILBISS
HEIGHT: 54-1/2”
CANISTER DIMS: 19”
DOME DIMS: 19.9” x 30”
TOTAL DEPTH –
REAR OF DOME TO
FRONT OF LOCK BOX: 29”
WEIGHT: 206 LB.
VACUUM:
110 VOLTS, (2 SEPARATE 20 AMPS SERVICE RECOMMENDED)
188 CFM
4 FILTER BAGS (8076)
MOTORS:
AMETEK UNIVERSAL TYPE, 50/60HZ
2 STAGE PERIPHERAL BYPASS DISCHARGE
UL RECOGNIZED CATEGORY
PRGY2(E47185)
CSA CERTIFIED, CLASS 1611 01(LR31393)
AIR COMPRESSOR:
110V / 60HZ / 10.6 AMPS
¾ HP / ONE CYLINDER / ONE STAGE OIL-LESS
SCFM @ PSI
3.78 @ 0
3.43 @ 20
3.04 @ 40
2.14 @ 90
1.99 @ 100
HEIGHT: 54-1/2”
CANISTER DIMS: 19”
DOME DIMS: 19.9” x 30”
TOTAL DEPTH –
REAR OF DOME TO
FRONT OF LOCK BOX: 29”
WEIGHT: 206 LB.
VACUUM:
110 VOLTS, (2 SEPARATE 20 AMPS SERVICE RECOMMENDED)
188 CFM
4 FILTER BAGS (8076)
MOTORS:
AMETEK UNIVERSAL TYPE, 50/60HZ
2 STAGE PERIPHERAL BYPASS DISCHARGE
UL RECOGNIZED CATEGORY
PRGY2(E47185)
CSA CERTIFIED, CLASS 1611 01(LR31393)
AIR COMPRESSOR:
110V / 60HZ / 14 AMPS
1.5 HP / ONE CYLINDER / ONE STAGE OIL-LESS
SCFM @ PSI
6 @ 0
5 @ 20
4.1 @ 40
3.1 @ 90
2.9 @ 100
2.1 @ 125 (MAX PSI)
1 DOOR AIR /
WATER / VACUUMS
WITH THOMAS
1 DOOR AIR /
WATER / VACUUMS
WITH DEVILBISS
HEIGHT: 54-1/2”
CANISTER DIAMETER: 19”
DOME DIAMETER: 24”
TOTAL DEPTH –
REAR OF DOME TO
FRONT OF LOCK BOX: 29”
WEIGHT: 140 LB.
VACUUM:
220V / 60HZ, (2 MOTOR VACS 10 AMP SERVICE RECOMMENDED)
(3 MOTOR VACS 15 AMP SERVICE RECOMMENDED)
188 CFM
2 FILTER BAGS (8072)
MOTORS:
AMETEK UNIVERSAL TYPE, 50/60HZ
2 STAGE PERIPHERAL BYPASS DISCHARGE
UL RECOGNIZED CATEGORY
PRGY2(E47185)
CSA CERTIFIED, CLASS 1611 01(LR31393)
SINGLE DOOR
VACUUMS
HEIGHT: 54-1/2”
CANISTER DIAMETER: 19”
DOME DIAMETER: 24”
TOTAL DEPTH –
REAR OF DOME TO
FRONT OF LOCK BOX: 29”
WEIGHT: 150 LB.
VACUUM:
220V / 60HZ, (2 MOTOR VACS 10 AMP SERVICE RECOMMENDED)
(3 MOTOR VACS 15 AMP SERVICE RECOMMENDED)
188 CFM
4 FILTER BAGS (8076)
MOTORS:
AMETEK UNIVERSAL TYPE, 50/60HZ
2 STAGE PERIPHERAL BYPASS DISCHARGE
UL RECOGNIZED CATEGORY
PRGY2(E47185)
CSA CERTIFIED, CLASS 1611 01(LR31393)
2 DOOR
VACUUMS

A-V-W- PAGE 1-3 3
HEIGHT: 54-1/2”
CANISTER DIAMETER: 19”
DOME DIAMETER: 24”
TOTAL DEPTH –
REAR OF DOME TO
FRONT OF LOCK BOX: 26”
WEIGHT: 140 LB.
VACUUM:
220V / 60HZ, (2 MOTOR VACS 10 AMP SERVICE RECOMMENDED)
(3 MOTOR VACS 15 AMP SERVICE RECOMMENDED)
188 CFM
2 FILTER BAGS (8072)
MOTORS:
AMETEK UNIVERSAL TYPE, 50/60HZ
2 STAGE PERIPHERAL BYPASS DISCHARGE
UL RECOGNIZED CATEGORY
PRGY2(E47185)
CSA CERTIFIED, CLASS 1611 01(LR31393)
COMMERCIAL
SINGLE DOOR
V
A
CUU
M
S
HEIGHT: 54-1/2”
CANISTER DIAMETER: 19”
DOME DIAMETER: 24”
TOTAL DEPTH –
REAR OF DOME TO
FRONT OF LOCK BOX: 29”
WEIGHT: 140 LB.
VACUUM:
220V / 60HZ, (2 MOTOR VACS 10 AMP SERVICE RECOMMENDED)
(3 MOTOR VACS 15 AMP SERVICE RECOMMENDED)
188 CFM
4 FILTER BAGS (8076)
MOTORS:
AMETEK UNIVERSAL TYPE, 50/60HZ
2 STAGE PERIPHERAL BYPASS DISCHARGE
UL RECOGNIZED CATEGORY
PRGY2(E47185)
CSA CERTIFIED, CLASS 1611 01(LR31393)
COMMERCIAL
2 DOOR
V
A
CUU
M
S
HEIGHT: 61”
CANISTER DIMS: 15.98” x 26.28”
DOME DIMS: 19.9” x 30”
TOTAL DEPTH –
REAR OF DOME TO
FRONT OF LOCK BOX: 35”
WEIGHT: 223 LB.
VACUUM:
220V / 60HZ, (2 MOTOR VACS 10 AMP SERVICE RECOMMENDED)
(3 MOTOR VACS 15 AMP SERVICE RECOMMENDED)
188 CFM
2 OR 3 FILTER BAGS (8072)
MOTORS:
AMETEK UNIVERSAL TYPE, 50/60HZ
2 STAGE PERIPHERAL BYPASS DISCHARGE
UL RECOGNIZED CATEGORY
PRGY2(E47185)
CSA CERTIFIED, CLASS 1611 01(LR31393)
OVAL
VACUUMS
HEIGHT: 59”
CANISTER DIMS: 15.60” x 26.12”
DOME DIMS: 19.9” x 30”
TOTAL DEPTH –
FACE TO FACE: 37”
WEIGHT: 215 LB.
VACUUM:
220V / 60HZ, (2 SEPARATE 10 AMPS SERVICE RECOMMENDED)
188 CFM
4 FILTER BAGS (8076)
MOTORS:
AMETEK UNIVERSAL TYPE, 50/60HZ
2 STAGE PERIPHERAL BYPASS DISCHARGE
UL RECOGNIZED CATEGORY
PRGY2(E47185)
CSA CERTIFIED, CLASS 1611 01(LR31393)
DUAL
VACUUMS

17
TROUBLE SHOOTING
IMPORTANT! TROUBLESHOOTING SHOULD BE DONE WITH POWER DISCONNECTED IF POSSIBLE.
PROCEDURES WITH SIGN REQUIRE THAT POWER BE ON. IF IN DOUBT ABOUT THE SAFETY OF
ANY OF THESE PROCEDURES, CONSULT A QUALIFIED ELECTRICIAN OR TECHNICIAN. PROCEDURES
MARKED MAY INVOLVE DANGEROUS VOLTAGES.
IF PROBLEMS STILL EXIST AFTER RUNNING THRU THE TROUBLE SHOOTING LIST PLEASE CALL YOUR DISTRIBUTOR FOR FURTHER HELP OR CALL
J.E. ADAMS INDUTRIES. WHEN CALLING PLEASE HAVE THE FOLLOWING INFORMATION READY: YOUR MODEL NUMBER, DATE THE UNIT WAS
PURCHASED, DISTRIBUTOR NAME, YOUR COMPANY OR BUSINESS NAME AND A NUMBER YOU CAN BE REACHED AT.
MAINTENANCE
1) SHAKE THE DIRT FROM THE FILTER BAGS. WE RECOMMEND DOING THIS WEEKLY AND IF POSSIBLE MACHINE
WASHING THE BAGS MONTHLY.
2) REMOVE DIRT AND DEBRIS FROM THE CANISTER AS NEEDED.
3) CHECK VAC HOSE FOR SIGNS OF WEAR AND REPLACE AS NEEDEED.
4) CLEAN THE OUTSIDE OF CANISTER WITH A STAINLESS STEEL POLISH. DO NOT USE ANY ABRASIVE CLEANERS,
STEEL WOOL OR ANY KIND OF BRUSH TO CLEAN CANISTER. THIS MAY DAMAGE THE FINISH OF THE
CANISTER.
UNIT WILL NOT START
1) IS THERE POWER TO THE MACHINE? (CHECK VOLTAGE)
2) CHECK SERIAL NUMBER TAG TO VERIFY CORRECT POWER SUPPLY HAS BEEN
HOOKED TO UNIT.
3) IS POWER PRESENT WHEN TIMER IS ACTIVATED? (CHECK VOLTAGE) IF
TIMER DOES NOT ACTIVATE BUT POWER IS PRESENT, TIMER MAY NEED
REPLACED OR COIN ACCEPTOR MAY NEED TO BE CHECKED.
TIMER ACTIVATES BUT UNIT NOT RUNNING. 1) CHECK FUSES. ARE THEY BAD, IF SO REPLACE.
2) CHECK WIRE CONNECTIONS FROM THE TIMER TO THE MOTORS. DO THEY
HAVE A GOOD CONNECTION? ARE THEY CONNECTED?
3) CHECK MOTORS, MOTOR MAY HAVE BURNT OUT. MAY NEED TO REMOVE
MOTOR AND CHECK IT WITH A DIRECT 110V POWER SOURCE TO VERIFY IT
IS WORKING PROPERLY.
FUSE KEEPS BLOWING? 1) CHECK VAC MOTOR. HOW MANY AMPS IS IT PULLING? NORMALLY 1 MOTOR
SHOULD PULL BETWEEN 7-8.5 AMPS ROUGHLY. IF MOTOR PULLS MORE THAN
SPECIFIED THE MOTOR MAY NEED REPLACED.
2) IS THE WIRE CONNECTED TO THE MOTOR MAKING A GOOD CONNECTION?
3) LOOK FOR FRAYED WIRES OR EXPOSED WIRING TO MAKE SURE IT IS NOT
SHORTING OUT.
TIMER NOT GIVING ACCURATE TIME. 1) TURN ALL SWITCHS TO THE OFF POSTION. ONCE THIS HAS BEEN DONE SET
ALL SWITCHS TO THE DESIRED SETTING AND RETRY. TIMER STILL
INACCURATE? REPLACE TIMER.
UNIT RUNS CONTINOUSLY AND WILL NOT TURN OFF. 1) TIMER SHORTED AND MAY NEED REPLACED.
2) DOES YOUR UNIT HAVE A RELAY? IF SO CHECK RELAY, ARE THE CONTACTS
STUCK OPEN. IF SO REPLACE.
COMPRESSOR HUMS BUT WILL NOT START
(AIR-VAC OR AIR-WATER-VAC UNIT)
1) IS THERE PRESSURE IN THE AIR LINE? IF SO BLEED PRESSURE AND RETRY.
IF NOT GO TO (2).
2) REMOVE UNLOADER FROM THE HEAD AND RETRY. DOES UNIT STILL JUST
HUM? IF SO REPLACE COMPRESSOR. IF THIS TAKES CARE OF IT UNLOADER
MAY BE DEFECTIVE AND MAY NEED REPLACED.
UNIT STARTS BUT THERE IS NO AIR PRESSURE
(AIR-VAC OR AIR-WATER-VAC UNIT)
1) REMOVE AIR CHUCK. IS THERE AIR PRESSURE NOW? IF THERE IS REPLACE
AIR CHUCK. IF THERE IS NOT GO TO STEP (2).
2) REMOVE HOSE FROM UNLOADER. IS THERE PRESSURE NOW? IF SO AIR HOSE
MAY BE CLOGGED UP AND MAY NEED REPLACED. IF UNIT STILL HAS NO AIR
PRESSURE GO TO STEP (3).
3) REMOVE UNLOADER. IS THERE AIR PRESSURE NOW? IF SO UNLOADER IS
BAD AND NEEDS REPLACED. IF NO AIR PRESSURE IS PRESENT NOW,
REPLACE COMPRESSOR.
! CAUTION!
! CAUTION!
! CAUTION!
! CAUTION!

18
