Jøtul GF 3 BV ALLAGASH User manual

Installation
and Operation
Instructions
GF 3 BV
ALLAGASH
B-Vent Gas Heater
WARNING:
IF THE INFORMATION IN THESE INSTRUCTIONS
ARE NOT FOLLOWED EXACTLY, A FIRE OR
EXPLOSION MAY RESULT CAUSING PROPERTY
DAMAGE, PERSONAL INJURY OR LOSS OF LIFE.
FOR YOUR SAFETY:
DO NOT STORE OR USE GASOLINE OR OTHER
FLAMMABLE VAPORS AND LIQUIDS IN THE
VICINITY OF THIS OR ANY OTHER APPLIANCE.
INSTALLATION:
INSTALLATION AND SERVICE MUST BE
PERFORMED BY A QUALIFIED INSTALLER,
SERVICE AGENCY OR LICENSED GAS SUPPLIER.
WHAT TO DO IF YOU SMELL GAS:
 DO NOT TRY TO LIGHT ANY APPLIANCE.
 DO NOT TOUCH ANY ELECTRICAL
SWITCHES.
 DO NOT USE THE PHONE IN YOUR
BUILDING. IMMEDIATELY CALL YOUR GAS
SUPPLIER FROM A NEIGHBORS PHONE.
 FOLLOW YOUR GAS SUPPLIERS
INSTRUCTIONS.
 IF YOU CANNOT REACH YOUR GAS
SUPPLIER, CALL THE FIRE DEPARTMENT.
AVERTISSEMENT:
ASSUREZ VOUS DE BIEN SUIVRE LES
INSTRUCTIONS DANS CETTE NOTICE POUR
REDUIRE AU MINIMUM LE RISQUE DINCENDIE
OU POUR EVITER TOUT DOMMAGE MATERIEL,
TOUTE BLESSURE OU MORTALITE.
NE PAS ENTREPOSER NI UTILISER DESSENCE
NI OU LIQUIDES INFLAMMABLES DANS LE
VOISINAGE DE CET APPAREIL OU DE TOUT
AUTRE APPAREIL.
LINSTALLATION LE SERVICE DOIVENT ETRE
EXECUTES PAR UN INSTALLATEUR
QUALIFIE, AGENCE DE SERVICE OU LE
FOURNISSEUR DE GAZ.
QUE FAIRE SI VOUS SENTEZ UNE ODEUR DE GAZ.
 NE PAS TENTER DALLUMER LAPPAREIL
 NE TOUCHEZ A AUCUM NTERRUPTEUR.
 NE PAS VOUS SERVIR DES TELEPHONES SE
TROUVANT DANS LE BATIMENT OU VOUS
VOUS TROUVEZ.
 APPELEZ IMMEDIATEMENT VOTRE
FOURNISSEUR DE GAZ CHEZ UN VOISIN. SUIVEZ
LES INSTRUCTIONS DU FOURNISSEUR.
 SI VOUS NE POUVEZ REJOINDRE LE
FOURNISSEUR DE GAZ, APPELEZ LE SERVICE
DES INCENDIES.
US
Warnock Hersey
C

THIS STOVE IS SHIPPED AS A
NATURAL GAS STOVE ONLY.
IF USE WITH PROPANE IS
DESIRED, THE STOVE MUST BE
CONVERTED TO USE WITH
PROPANE. FOR YOUR
CONVENIENCE THE STOVE IS
SHIPPED WITH A PROPANE
CONVERSION KIT.
Model: Allagash B-Vent
Gas Stove
Manufacture an
Distribute by:
Jøtul A.S.A.
Fre riksta , Norway
Jøtul North America
Portlan , Maine
TABLE OF CONTENTS:
WELCOME TO JØTUL......................3
STANDARDS......................................................4
GENERAL INFORMATION.........................4
LOCATION.....................5
FLOOR PROTECTION........................6
STOVE CLEARANCES....................6
ALCOVE................................................6
PARALLEL INSTALLATION..................6
CORNER INSTALLATION......................6
MANTEL, CEILING AND TRIM.............6
VENTING REQUIREMENTS.................7
HEARTHMOUNT...................................
VENTING GRAPH.................................9
GAS CONVERSION..........................10
GAS CONNECTION.........................12
GAS PRESSURE.........................12
HIGH ALTITUDE INSTALLATIONS..............13
AIR SHUTTER ADJUSTMENTS..................14
INSTALLING THE LOG SET............15
INSTALLING DECORATIVE PIPE BRACKETS....15
INSTALLING THE BLOWER..............................16
REMOTE/THERMOSTAT.................................17
SPILL SWITCH OPERATION.............................17
CHECKING THE SYSTEM...................1
OPERATION OF APPLIANCE...........................19
MAINTENANCE..............................................19
REPLACEMENT PARTS....................................21
ILLUSTRATED PARTS .......................22
LIGHTING INSTRUCTIONS ........Inside Back Cover
THIS OWNERS OPERATING AND INSTRUCTIONS MANUAL IS DESIGNED TO
GIVE YOU A SAFE, EFFICIENT, DEPENDABLE INSTALLATION OF YOUR
ALLAGASH B-VENT GAS STOVE.
PLEASE READ THESE INSTRUCTIONS IN THEIR ENTIRETY AND MAKE THEM
AVAILABLE TO ANYONE USING OR SERVICING THE GAS STOVE.
SUGGESTED TOOL LIST FOR
INSTALLLATION AND SERVICE:
*External regulator (for LPG only)
*Piping which complies with local code
*Manual shutoff valve
*Sediment trap
* ee joint
*Pipe wrench
*Pipe sealant
*10mm open end wrench
*1/2, 7/16 open end wrench
*Phillips head screwdriver
*Flat head screwdriver
*1/4 nut driver
*Gloves
*Safety glasses
* orx 20 screwdriver
*Leak test solution
2

3
28
22 3/4
WELCOME TO JØTUL:
Congratulations on the purchase of your new
Jøtul gas stove.
We at Jøtul are very happy you have made the
decision to warm your hearth with a Jøtul product.
Your new Jøtul Allagash has inherited the benefits
learned from more than 14 years of producing
stoves. Jøtul is the worlds largest manufacturer
of solid fuel burning appliances and has been
making cast iron wood and coal stoves since 1853.
The Allagash incorporates the most advanced gas
technology with the warm traditional style of cast
iron. With proper care and operation, your new
Jøtul will last many, many years.
The Jøtul Allagash gas stove is a gravity vented
gas fireplace heater. The Allagash B-Vent gas
stove can only be vented vertically directly to
the outside, using type B-vent pipe.
The Jøtul Allagash gas stove is designed to operate
on NATURAL GAS or PROPANE only. For
safe and efficient operation the stove is equipped
with a millivolt gas control valve with a piezo
ignitor. Electrical power is only required when
operating the OPTIONAL forced air blower, if
installed on the stove (part # 129161).
Input Rates
The input rate on the Allagash gas stove is 24,
BTU/hr maximum input on the high setting for
both natural gas and propane, adjusted down to
19, BTU/hr minimum on the low setting, for
both natural gas and propane.
Natural gas 24, BTU/hr. maximum input
19, BTU/hr. minimum input
Propane 24, BTU/hr. maximum input
19, BTU/hr. minimum input

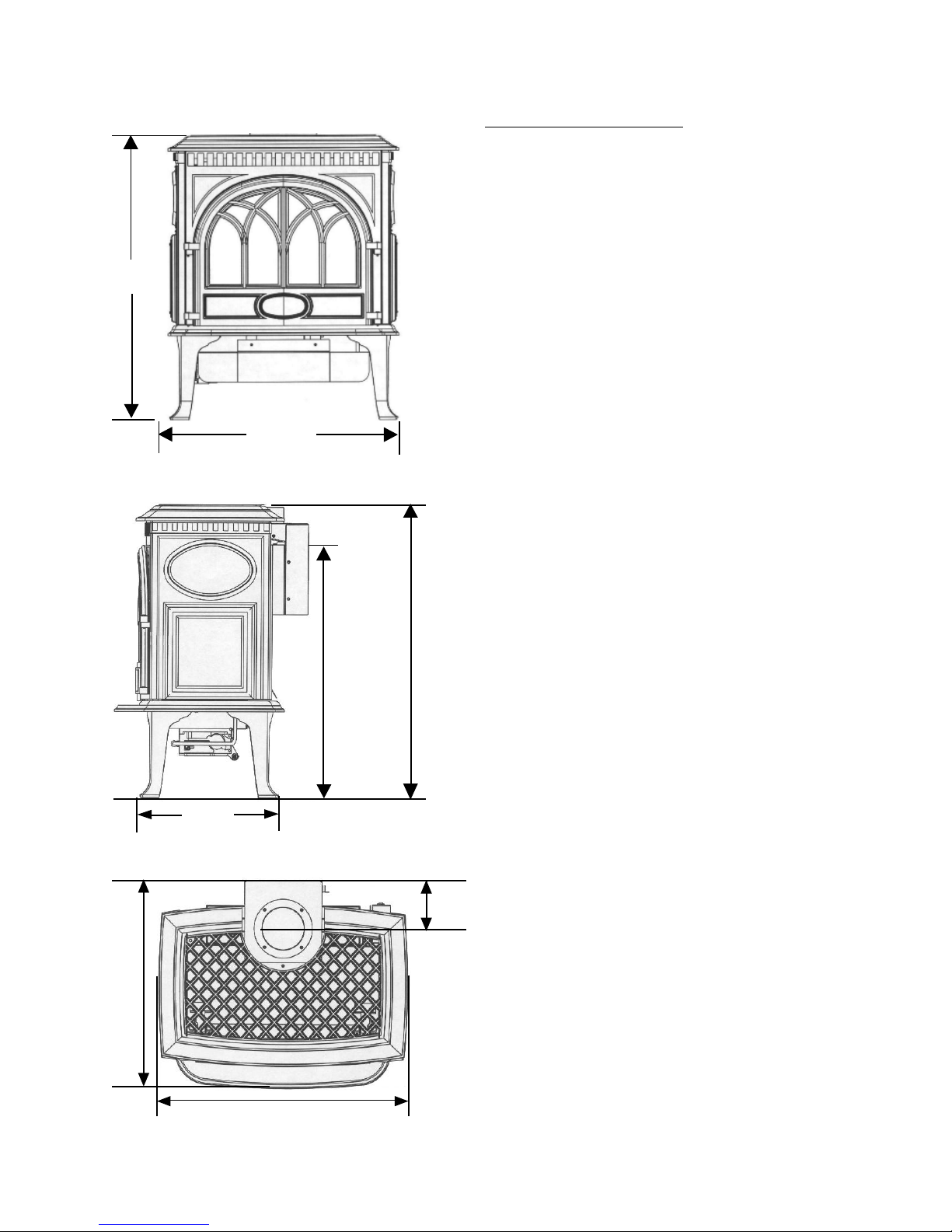

CENTER
OF REAR
EXIT IS
23
HEIGHT
OF TOP
EXIT IS
27 1/2
13 1/4
22 3/4
18 1/2
4

STANDARDS:
This appliance complies with National Safety
standards and is tested and listed by ITS,
Intertek Testing Services
Middleton, WI
In addition, the Allagash gas stove complies with
and has been tested and listed as a gravity vented
gas fieplace heater and listed to:
ANSI Z21.88-1998(NFPA 54)
CSA 2.33-M98 for Canada.
DO NOT ATTEMPT TO ALTER OR
MODIFY THE CONSTRUCTION OF THE
APPLIANCE OR ITS COMPONENTS. ANY
MODIFICATION OR ALTERATION WILL
VOID THE WARRANTY, CERTIFICATION
AND LISTING OF THIS APPLIANCE.
GENERAL INFORMATION:
THIS HEATER MUST BE INSTALLED
AND MAINTAINED BY A QUALIFIED
SER ICE AGENCY.
The installation and repair of this appliance must
be done by a qualified service person. Failure
to properly install and maintain this heater could
result in an unsafe or hazardous installation,
which may result in a fire, explosion, property
damage, personal injury or loss of life.
This appliance should be inspected before use
and at least annually. More frequent cleaning
may be required due to excessive lint from
carpeting, bedding material, etc. It is imperative
that control compartments, burners and
circulating air passageways of the appliance be
kept clean.
Sassurer que le bruleur et le compartiment des
commandes sont propres. oir les instructions
dinstallation et dutilisation qui accompagnent
lappareil.
The installation must conform to local codes. Your
local Jøtul dealer can assist you in determining
what is required in your area for a safe and legal
installation. Some areas require a permit to install
a gas burning appliance. Always consult your local
building inspector or authority having jurisdiction
to determine what regulations apply in your area.
REMEMBER Your local officials have final
authority in determining if a proposed installation
is acceptable. Any requirement that is requested
by the local authority having jurisdiction, that is
not specifically addressed in THIS manual,
defaults to local code. In the absence of local
codes, the installation requirements must comply
with the current National codes. In the U.S. these
requirements are established in the National Fuel
Code, ANSI Z223.1.(NFPA 54). In Canada, the
codes have been established in CAN/CGA B149
Fuel Installation Code.
Installer lappareil selon les codes ou reglements
locaux, ou, en labsence de tels reglements, selon
les Codes dinstallation CAN/CGA-B149.
DO NOT OPERATE THIS STO E IF ANY
PART HAS BEEN UNDER WATER.
Immediately call a qualified service technician
to inspect the heater and to replace any part of
the control system and any gas control which has
been under water.
Ne pas se servir de cet appareil sil a ete plonge
dans leau, completement ou en partie. Appeler
un technicien qualifie pour inspecter lappareil et
remplacer toute partie du systeme de controle et
toute commande qui ont ete plonges dans leau.
Do not operate the Allagash gas stove with the
glass front removed, cracked or broken.
Replacement of the glass should be done by a
licensed or qualified service person. Only remove
glass for routine service. Always handle glass
carefully.
Pour utilisation avec les portes en verre cerifiers
aved lappareil seulemend ou Ne pas utiliser avec
des portes on verre.
4

THIS APPLIANCE MUST NOT BE
CONNECTED TO A CHIMNEY OR FLUE
SERVING ANY OTHER APPLIANCE OF
ANY KIND.
LOCATION:
In selecting the location, the aesthetic and
functional use of the appliance are primary
concerns; However, proper venting systems and
access to the fuel supply are also important issues.
Due to the high surface temperatures of the
Allagash, always consider the proximity of traffic
ways, furniture, draperies, etc.
This appliance may be located on or near
conventional construction materials. HOWEVER,
always maintain the proper clearances to
combustibles, as this provides adequate
ventilation air around the appliance.
The following clearances and hearth requirements
are the minimum requirements when installing
the Allagash gas stove near or on combustible
surfaces. Always provide adequate access around
the appliance for servicing and proper operation.
A combustible surface is anything that can burn
(i.e. sheet rock, wall paper, wood, fabrics etc.).
These surfaces are not limited to those that are
visible and also include materials that are behind
non-combustibles.
If you are not sure of the combustible nature of
a material, consult your local fire officials.
Remember, Fire Resistant materials are
considered combustible: they are difficult to
ignite, but will burn. Also, fire-rated sheet rock
is considered combustible.
The Allagsh B-Vent gas stove is not to be
connected or installed using any warm air duct
system.
Always maintain the proper clearances to the
appliance for the proper flow of combustion and
ventilation air to the stove.
Hot Surfaces
The Allagash gas stove will, during normal
operation, reach high surface temperatures
therefore:
·Due to the high operating temperatures this
appliance should be located out of traffic
and away from furniture and draperies.
·Children and adults should be alerted to the
hazards of high surface temperatures and
should stay away to avoid burns or clothing
ignition.
·Young children should be supervised while
they are in the same room as the Allagash
gas stove.
·Clothing or other flammable materials
should not be placed ON or NEAR the
Allagash gas stove.
·Surveiller les enfants. Garder les vetements,
les meubles, lessence ou autres liquides a
vapeur inflammables loin de lappareil.
·NE ER store or use gasoline or any other
flammable vapors or liquids in the vicinity
of the Allagash gas stove.
·Never burn any other materials in your
Allagash gas stove, it is strictly designed for
use with natural gas or propane fuel ONLY.
·Any safety screen, glass or guard removed
for servicing the appliance must be replaced
prior to operating the appliance.
Blower/Electrical Hazard

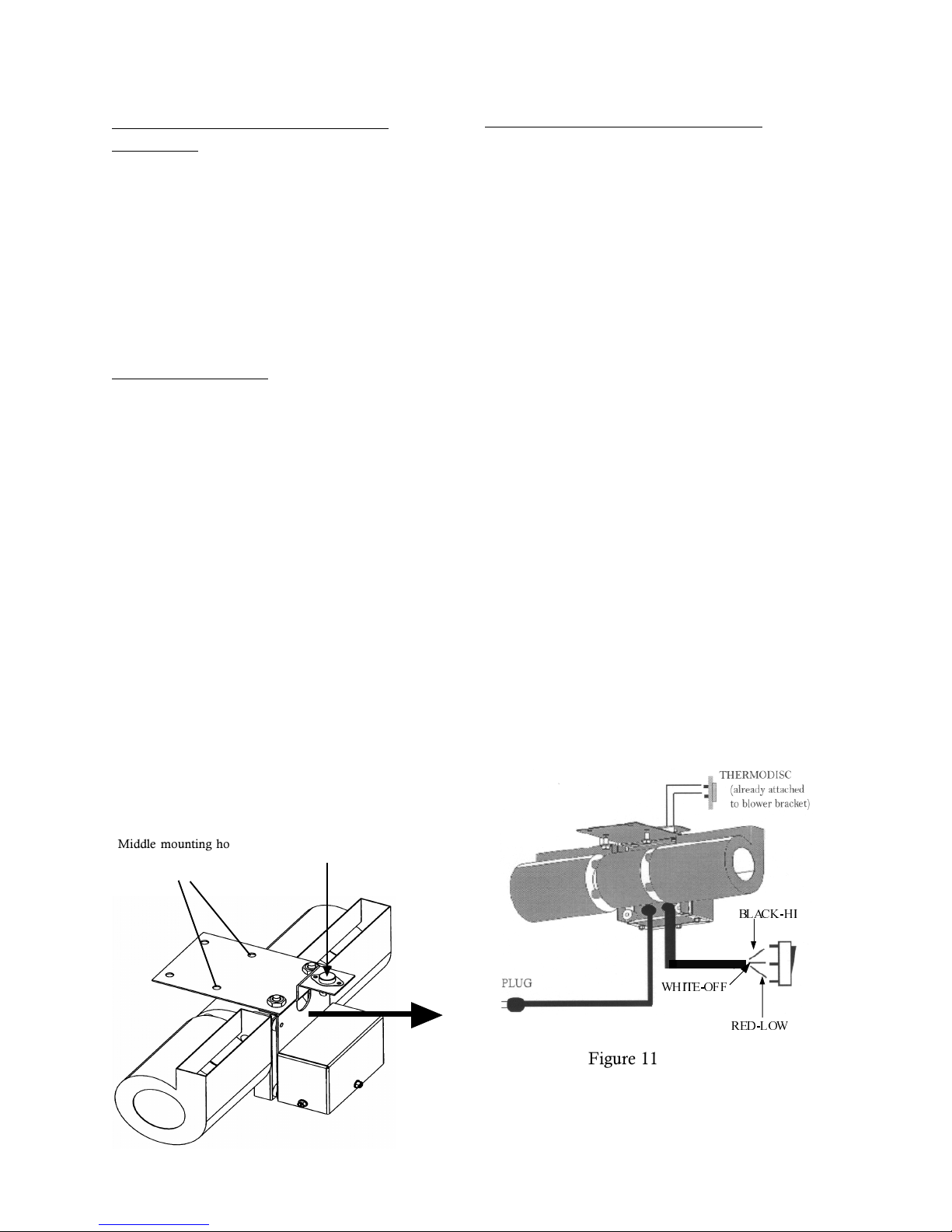

When the Allagash gas stove is installed with the
optional forced air Blower Kit (part #129161) the
stove must be electrically grounded in accordance
with local codes or, in the absence of local codes,
with the current NFPA 7 - National Electrical
Code or CSA C22.1-Canadian Code.
The Allagash Blower Kit is already supplied with
a three-prong (grounding) plug for protection
against shock hazard and should be plugged
directly into a properly grounded three-prong
receptacle.
DO NOT CUT OR REMOVE THE
GROUNDING PRONG FROM THE PLUG.
Always unplug the Blower when performing
routine service to the Allagash gas stove.
5

STOE CLEARANCES:
Minimum clearances for the Allagash B-Vent
gas stove are as follows:
Rear clearance =2(5 mm)
(measured from draft hood)
Ceiling =18(46 mm)
(measured from top of stove)
Corner clearance =3(76mm)
(measured from rear corners)
Right side clearance = 4(1 2mm)
Left side clearance = 1  (255mm)
(for access to the lighting instructions)
All venting components must be installed in
accordance with the terms of their listing and
manufacturers instructions. Refer to the pipe
manufacturers instructions for proper pipe
clearances. Any horizontal venting requires a
2 (50mm) top clearance off top of pipe.
6
FLOOR PROTECTION:
The Allagash gas stove CANNOT be installed
directly on carpeting, vinyl flooring, linoleum or
Pergoã.
If it is desired to install this appliance on any
combustible material OTHER THAN WOOD,
a floor pad must be installed that is either metal,
wood or a listed hearth pad. This floor protection
must extend the full width and depth of the
appliance. It is not necessary to remove the
carpeting, vinyl or linoleum from underneath the
floor protection. Minimum hearth protection
under the Allagash B-Vent gas
stove:
22 3/4 wide X 18 3/4 deep
ALCOVE
Minimum Alcove Width = 41(1042mm)
(minimum side clearance in an alcove becomes 
on right side of stove and 10 on left side of stove).
Maximum Alcove Depth = 24(610mm)
Minimum Alcove Height (off stove)= 18(460mm)
(minimum height off top casting of stove).
Pipe clearances =see manufacturers listing.
Note: the hearth requirements are the same when
using the optional short leg package.
CORNER INSTALLATION
PARALLEL INSTALLATION
4
(102 mm)
10
(2 mm)
left side
wall
right side
wall
2 ( 0mm) from
draft hood
3
76mm
3
76mm
MANTEL OR
TRIM DEPTH
19or greater in depth
6- 1  in depth
2- 5 in depth
MINIMUM
CLEARANCES TO TOP
PLATE OF STOVE
A = 1  (460mm)
B = 12 (30 mm)
C = 5 (127mm)
1 trim = 1 (2 mm)
MANTEL, CEILING AND TRIM
1 trim only
A
B
C

VENTING REQUIREMENTS:
The Allagash is specifically designed to operate
using 4 Type B vent pipe components or a Listed
Flexible gas liner.
FOLLOW THE GUIDELINES LISTED
BELOW FOR THE PROPER ENTING OF
THE ALLAGASH B- ENT STO E!
 All venting components must be installed in
accordance with the terms of their listing and
manufacturers instructions.
 The minimum height of a vertically terminated
system shall be no less than 7', and the
maximum height shall be no more than 35'.
See diagrams page 9.
 With steep roofs, nearby trees, and in
predominant windy conditions, poor draft or
down draft conditions can occur. In these cases,
increasing the height of the vent or high wind
termination caps may improve the situation.
 ELBOWS: If an offset or elbow is necessary
in the vertical rise, it is important to support
the vent pipe every three feet, to avoid excessive
stress on the offsets.
 Whenever possible use 45° elbows opposed to
9 ° elbows. This offers less restrictions for the
flow of flue gases.
Maximum number of 9 ° elbows = three
Maximum number of 45° elbows = four
TOTAL MAXIMUM HORIZONTAL
RUN ANYWHERE IN THE VENTING
CONFIGURATION IS 4 FEET. The distance
between any 45° elbows is considered a
horizontal run. See diagrams page 9.
Any Type B vent passing through a roof must
have a flashing, storm collar, thimble and a
Type B cap is required. See diagrams page 9.
Venting on the Allagash CANNOT be less than
4 in diameter or greater than 4 in diameter.
 Any UNUSED flue or masonry enclosure can be
used as a passage way for venting the Allagash:
PROVIDED the flue is relined using Type B
4 vent or Listed Flexible Gas Liner.
 The remaining space around the liner in a
masonry or zero-clearance flue CANNOT be
used to vent any other appliance.

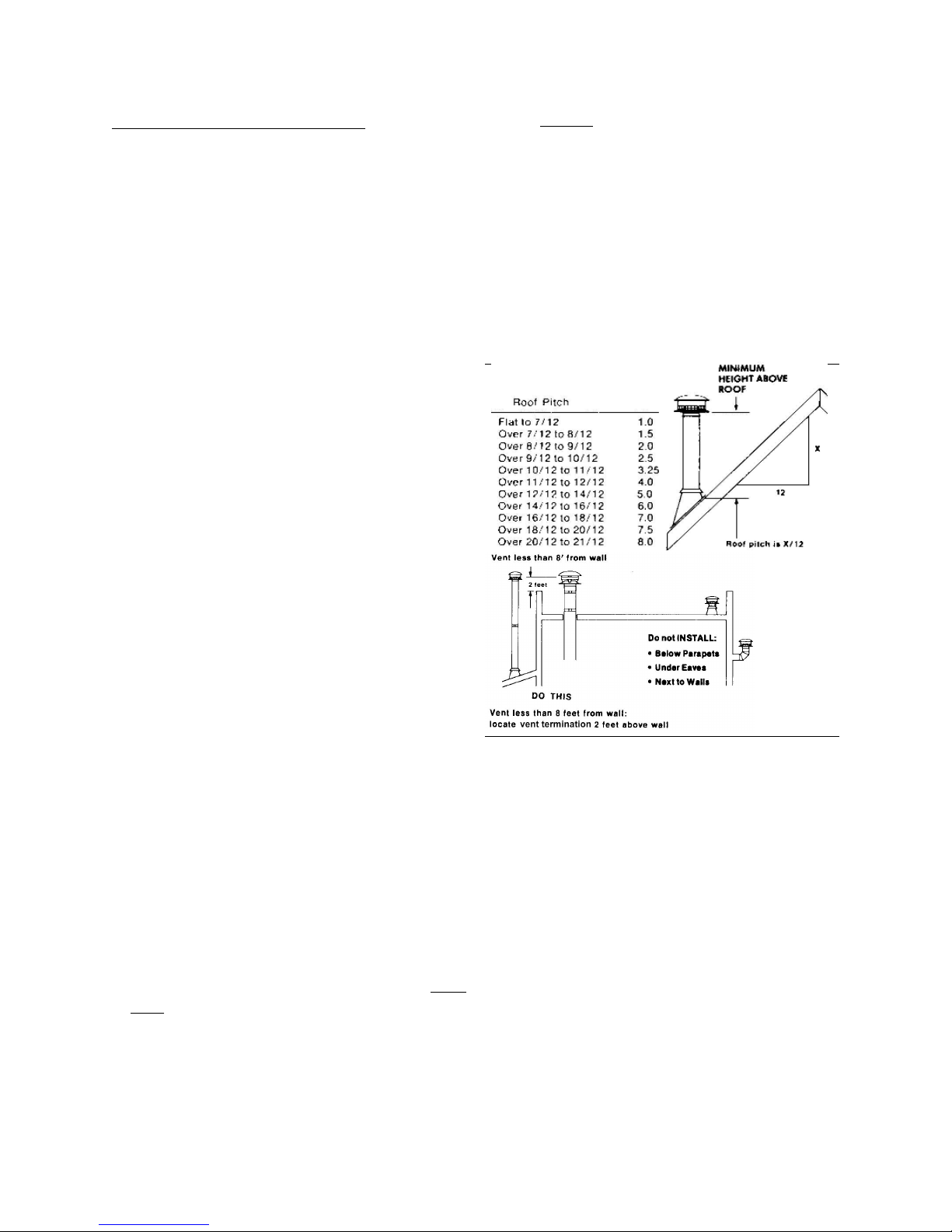

 When terminating through the roof refer to the
Gas Vent Rule for proper vent termination
height. See Figure 1.
NO venting can terminate horizontally or
below roof eaves.
Passage through combustibles (walls, ceilings)
must be with Type B venting and must
maintain listed clearances.
It is recommended that any horizontal runs
have an upward slope of 1/4 per foot toward
the termination cap.
When venting through a thimble into a
masonry flue any venting exposed in the room
must be Type B venting.
Listed Flexible Gas Liners may not be exposed
in any living space.
7
Figure 1

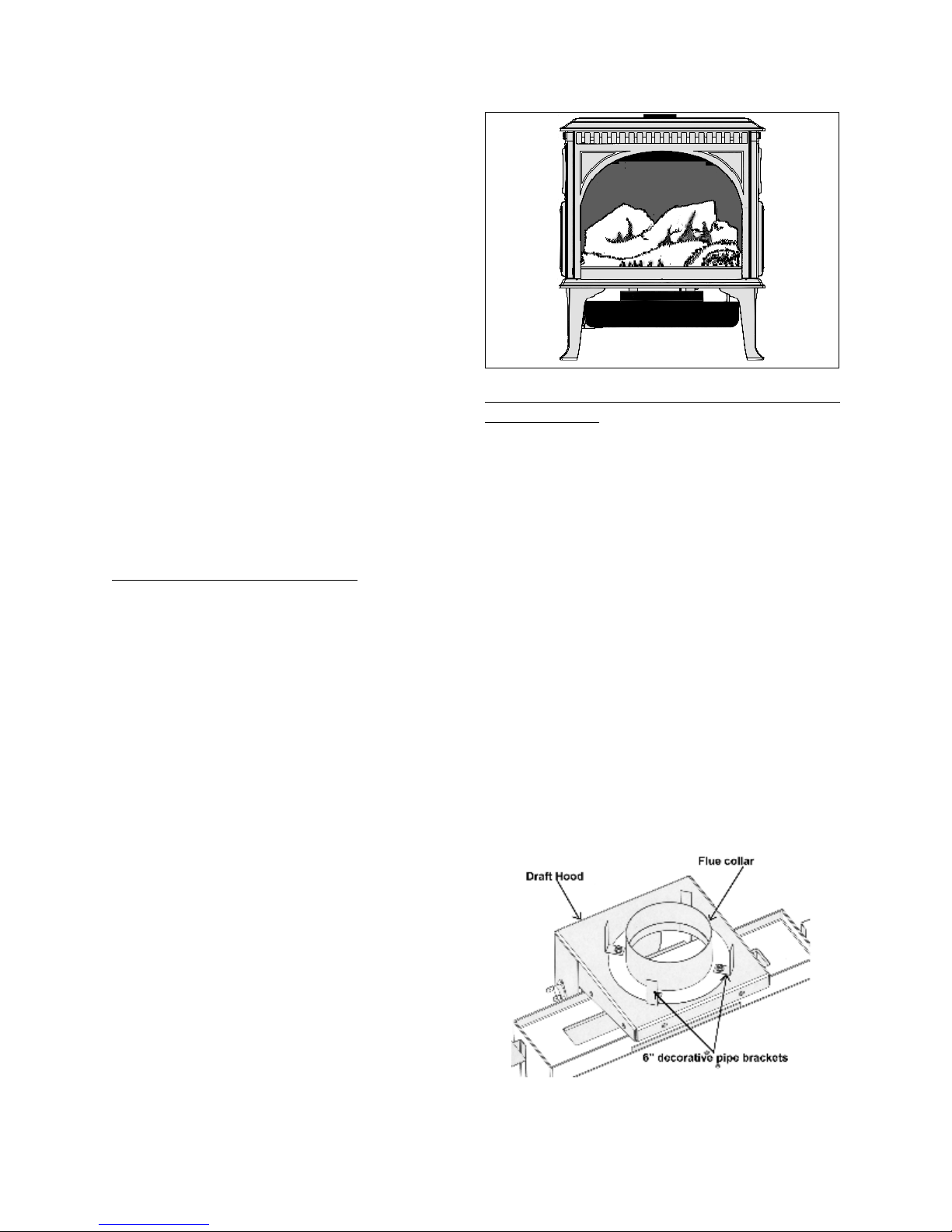

 When decorative 6 pipe is installed to cover
the venting any Listed Flexible Gas liner must
be connected directly to the stoves draft hood.
 Use of single wall connector pipe as a vent is
prohibited for use with the Allagash B-Vent stove.
 A firestop is required at every floor.
 Any venting that is exposed above the first
floor, regardless of attic space or living space,
must be enclosed. Always maintain the
required clearance from all sides of the vertical
vent system according to manufacture.
 Installation of any components not
manufactured or approved by Jøtul or failure
to meet all clearance requirements will void
all warranties and could result in property
damage, bodily injury, or serious fire.
 Never modify any venting component, or use
any damaged venting product.
 THE GAS APPLIANCE AND VENT
SYSTEM MUST BE VENTED DIRECTLY
TO THE OUTSIDE OF THE BUILDING,
AND NEVER ATTACHED TO A
CHIMNEY SERVING A SOLID FUEL OR
GAS BURNING APPLIANCES.
 BE SURE TO MAINTAIN THE PROPER
CLEARANCES TO COMBUSTIBLES AS
DEFINED IN THIS MANUAL AND IN
THE INSTRUCTIONS PROVIDED WITH
EACH VENTING COMPONENT.
When installing at an altitude above 2000 the
minimum vertical rise becomes 12 from the
draft hood.
If more than two feet of venting is exposed to
the outside, the entire exterior vent system
must be enclosed in an insulated chase system.
8
Listed termination
cap required
Storm collar
required
Recommended
damper sealing plate
to seal flue chamber
to prevent heat loss
Allagash B-Vent gas
stove
Always maintain
the proper
clearance to mantel
and trim

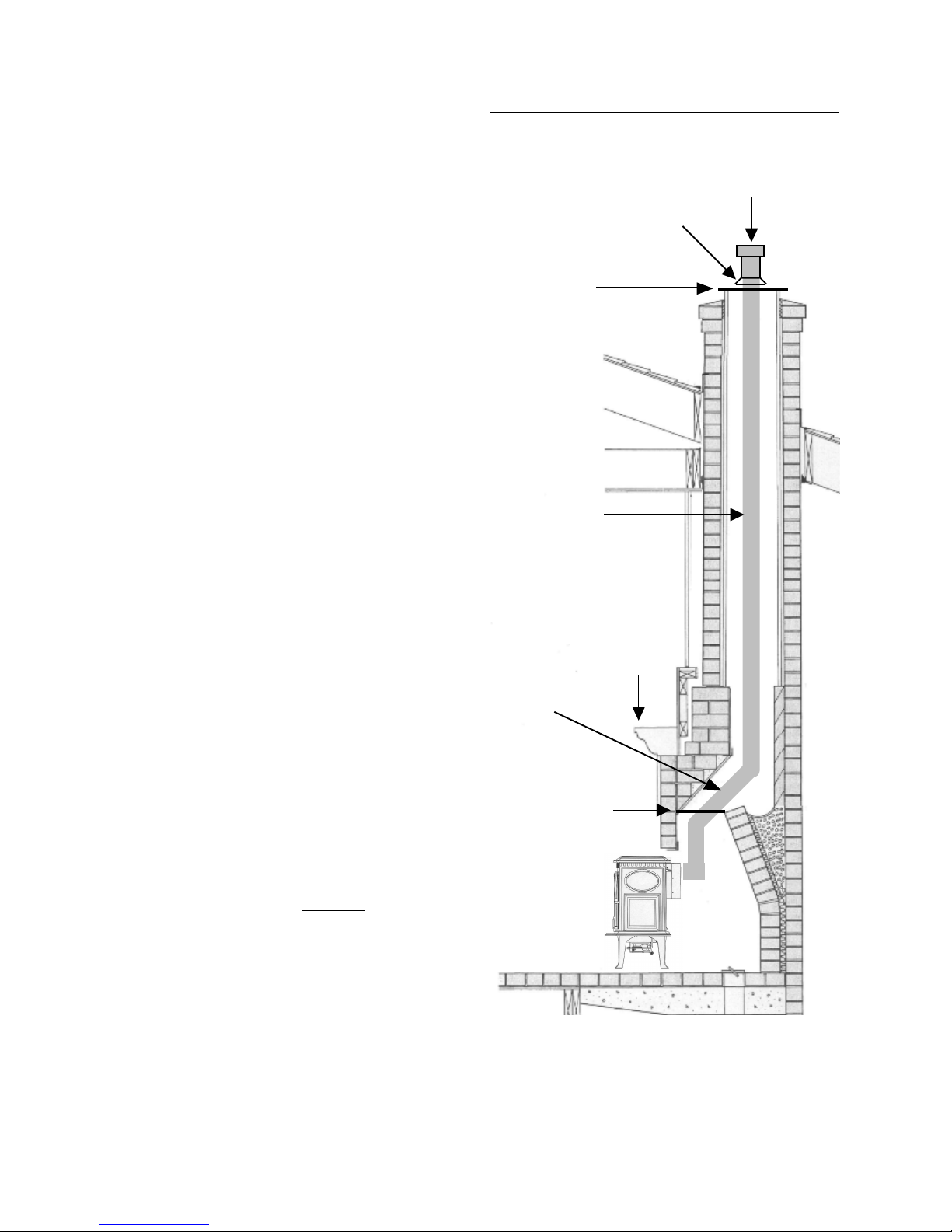

Allagash B- ent gas stove vented into a
masonry or prefabricated fireplace.
Maximum
offset is 4
Type B vent or
Listed Fle ible
Gas Liner. On
outside chimneys
Jøtul recommends
the use of Type B
vent to help keep
the gases warm and
rising.
ma . height 35
min. height 7
Top sealing
achor plate
WARNING: FAILURE TO POSITION THE PA RTS IN
ACCORDANCE WITH THIS DIAGRAM OR FAILURE TO USE
ONLY PARTS SPECIFICALLY APPROVED WITH THIS
APPLIANCE MAY RESULT IN PROPERTY DAMAGE OR
PERSONAL INJURY.

9
Maximum
horizontal
offset
anywhere in
venting
configuration
is 4 feet.
Minimum
chimney height
off draft hood
= 7 feet.
Listed B-Vent
termination cap
required.
Listed B-Vent
termination cap
required.
Minimum
chimney height
off draft hood
= 7 feet.
Maximum total
horizontal offset
anywhere in
venting
configuration is
4 feet.
45° or 90°
elbow
45° or 90°
elbow
45° or 90°
elbow
45° or 90°
elbow
VENTING CONFIGURATIONS FOR THE
ALLAGASH B-VENT
Maximum horizontal offset anywhere in
venting configuration; rear vent or top vent
directly on the stove or further up
45° or 9 ° elbows = 4 feet.
Maximum horizontal offset anywhere in
venting configuration; rear vent or top vent
directly on the stove or further up
45° or 9 ° elbows = 4 feet.
Maximum # of elbows;
9 °= three
45°=four
Listed B-Vent termination cap always required.
NOTE:
When installing
at an altitude
above 2000 the
minimum
vertical rise
becomes 12
from the draft
hood.
NOTE:
When installing
at an altitude
above 2000 the
minimum
vertical rise
becomes 12
from the draft
hood.
Ma imum
chimney height
off draft hood
= 35 feet.
Minimum
chimney height
off draft hood
= 7 feet.
Listed B-Vent
termination cap
required.
Minimum chimney on the Allagash
B-Vent top vent or rear vent = 7 feet.
NOTE:
When installing
at an altitude
above 2000 the
minimum
vertical rise
becomes 12
from the draft
hood.
Maximum total
horizontal
anywhere in
venting
configuration
is 4 feet. Minimum
chimney height
off draft hood
= 7 feet.
Listed B-Vent
termination cap
required.
45° or 90°
elbow
45° or 90°
elbow
NOTE:
When installing
at an altitude
above 2000 the
minimum
vertical rise
becomes 12
from the draft
hood.

GAS CON ERSION:
The Allagash B-Vent gas stove is shipped from
the factory equipped as a NATURAL GAS unit;
However, the stove is shipped with the necessary
gas conversion kit to convert the stove to burn
PROPANE GAS. These kits contain all the
necessary components needed to complete the
task and ensure safe operation, including labeling
that must be affixed to the stove.
WARNING:
THE CONVERSION KIT IS TO BE INSTALLED BY
AN AUTHORIZED JØTUL SERVICE TECHNICIAN
IN ACCORDANCE WITH THE
MANUFACTURERS INSTRUCTION AND ALL
CODES AND REQUIREMENTS OF THE
AUTHORITY HAVING JURISDICTION. FAILURE
TO FOLLOW THESE INSTRUCTIONS COULD
RESULT IN SERIOUS INJURY OR PROPERTY
DAMAGE. THE QUALIFIED AGENCY
PERFORMING THIS WORK ASSUMES
RESPONSIBILTY FOR THIS CONVERSION.
IN CANADA:
THE CONVERSION SHALL BE CARRIED OUT IN
ACCORDANCE WITH THE REQUIREMENTS OF
THE PROVINCIAL AUTHORITIES HAVING
JURISDICTION AND IN ACCORDANCE WITH
THE REQUIREMENTS OF THE CAN1-B149.1 AND
.2 INSTALLATION CODE.
Cet equipement de conversion sera installe par
une agence qualifiee de service conformement aux
instructions du fabricant et toutes exigences et
codes applicables de lautorises avoir la
juridiction. Si linformation dans cette Instruction
nest pas suivie exactement, un fey, explosion ou
production de protoxyde de carbone peut resulter
blessure personnelle de vie. Lagence qualifiee
de service est esponsable de linstallation nest
pas propre et complete jusqua loperation de
lappareil converti est cheque suivant les criteres
etablis dans les instructions de proprietaire
provisionnees avec lequipement.
Tools required:
1/4 Nut driver, 7/16 and 1/2 open end
wrench or deep well socket, 4mm allen
wrench, Torx t2 or slotted screwdriver.
Included in the conversion kit:
1 regulator tower labeled for propane
3 regulator tower screws
1 burner orifice (#54 LPG)
1 pilot orifice ( #3 for LPG, #51 for NG)
Label A - to be completed and adhered to the
back of the stove.
Label B - to adhere to the stoves rating plate.
IMPORTANT:
If the forced air blower kit is installed, be sure
to unplug blower before proceeding with this
conversion. Any gas supply must be turned
off and disconnected from the valve.
Conversion instructions are also shipped in the
stove with the conversion kit.
Gas Conversion Procedure
1. Turn off gas supply to the stove.
2. Lift off top plate (5).
3. Release the glass clips atop the stove and
slowly lift glass panel (1 ) up and out of track.
4. Remove the log set (12) using care not to
scratch or damage logs.
5. Lift out the log support (14). Remove the air
divider (15) by lifting the right side and slowly
rotating forward.
6. Remove burner tube (13): Using a ¼ nut
driver remove the two screws securing the
burner tube (13) to the stove bottom. Lift out
the burner tube.
7. Change the main burner orifice. Using a ½
open end wrench or deep well socket remove
the burner orifice and replace with the
appropriate orifice, supplied in the kit.
10

8. Adjust the air shutter on the burner tube to allow
for the proper mixing of air and gas. See Figure 2.
he correct settings: natural 1/4 open
propane 1/4 open
WHEN RE-INSTALLING THE BURNER TUBE BE SURE
THAT THE TUBE IS PULLED FORWARD IN THE
MOUNTING HOLES, SECURE WITH THE TWO 1/4
SCREWS.

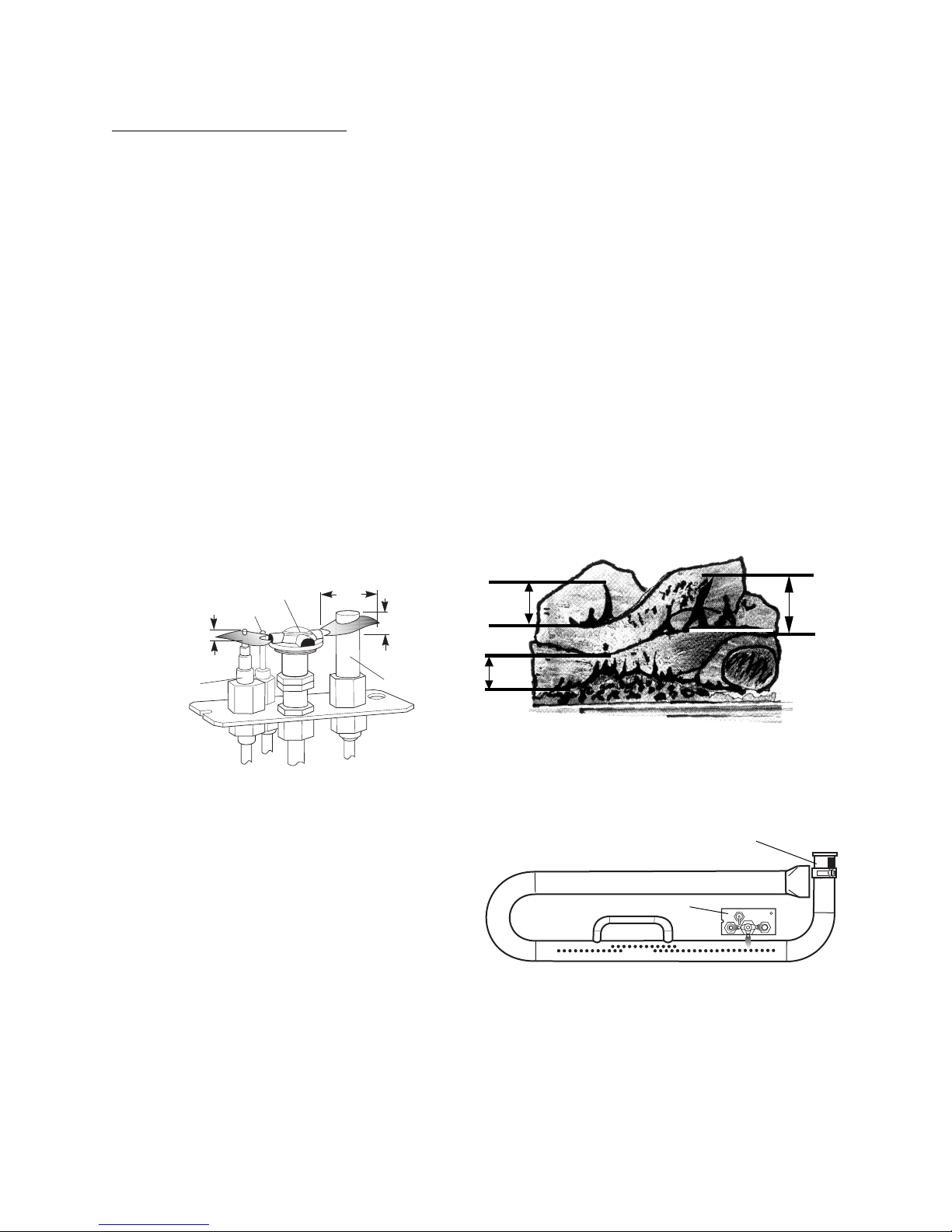

9. Change the pilot orifice. FROM WITHIN
THE FIREBOX, PULL THE PILOT
HOOD OFF THE PILOT ASSEMBLY.
Using a 4mm allen wrench thread out the pilot
orifice (counter clockwise). Replace with the
appropriate orifice: See Figure 3.
#51or natural gas
#3 for propane
Tighten orifice into the base of the pilot
assembly. Be sure the orifice is threaded tightly
and flush with the base.
1 . Replace pilot hood onto pilot assembly.
14. Install the identification labels to the stove so
that they can be seen by any person that may be
servicing the stove.
15. Reassemble the stove, apply gas to the system
and check for gas leaks including all stove lines
before and after the valve.
NEVER USE AN OPEN FLAME TO
CHECK FOR GAS LEAKS.
ATTENTION!! ATTENTION!!
This is very important
Correct gas pressure is essential for efficient and
safe operation of the Allagash B-Vent gas stove.
It is important that the correct gas pressure be
established at the time of the installation. For
more details, see the Gas Pressure section of this
manual on page 13.
ALWAYS REFER TO THE LIGHTING
INSTRUCTIONS ON PAGE 23 OF THIS
MANUAL WHEN LIGHTING YOUR
ALLAGASH.
11
11. Change the variable regulator on the valve (Hi/
Lo knob). Using a orx t-20 screwdriver, remove
the three specialty screws from the front of the
valve regulator. See Figure 4.
12. Remove the regulator tower and the gasket.
BE SURE O REMOVE HE BLACK
RUBBER GASKE S FROM HE VALVE!!!
See Figure 4.
13. Install the new variable regulator tower with
the new rubber gasket.
Thoroughly tighten new
regulator to valve body.
BURNER TUBE
AIR SHUTTER
ATTENTION: Air shutter should never be
LESS than 1/  open.
Figure 2
Figure 4.
BE SURE TO REMOVE
THE BLACK RUBBER
GASKET FROM THE
VALVE!!!
Figure 3.
PILOT HOOD
PILOT ORIFICE
SCREWS INTO
BASE
PILOT
ORIFICE

Secure all joints tightly using appropriate tools
and sealing compounds (for propane units, be sure
to use compounds that are propane resistant).
Turn on gas supply and test for gas leaks using a
soapy water solution. Never use an open flame
to check for leaks.
Leak test:
·Mix a 5 -5 solution of water and dish soap.
·Light appliance- see lighting instructions on
page 23 of this manual or on the stoves rating
plate.
·Brush or spray all joints and connections with
the soapy water solution.
·If bubbles appear at any connection or seam
or a gas odor is detected, immediately turn
gas control knob to the OFF position.
Tighten or reconnect the leaking joint and retest
for any gas leaks.
GAS PRESSURE:
Correct gas pressure is essential for efficient and
safe operation of the Allagash gas stove. It is
important that the correct pressure is established
at the time of the installation.
Proper gas pressure provides a consistent flow of
gas to the appliance and is instrumental in
checking for gas leaks.The gas control valve on
the stove is equipped with pressure test points
for gauge connections. The gauge connections
are located on the front of the valve under the
On/Off/Pilot- knob. Gauge connections are
identified by:
E for inlet or supply pressure (the amount of
gas coming to the valve.)
A for manifold pressure (the amount of gas that
is coming out of the valve to the burner.)
MAKING THE GAS CONNECTION:
NOTE: IF THE OPTIONAL FORCED BLOWER KIT
(PA RT # 129161) IS TO BE INSTALLED ON THE
STOVE AT THE TIME OF THE INSTALLATION
OR IN THE FUTURE, THE GAS SUPPLY LINE
SHOULD BE INSTALLED AS CLOSE TO THE
FLOOR AS POSSIBLE.
USE OF A 90° ELBOW DIRECTLY OFF THE VALVE
WILL ALLOW FOR PROPER CLEARANCE FOR
THE BLOWER.
The gas supply line connection is made to the valve
just inside the left rear leg. The Gas supply line
should be a minimum of 3/8" in diameter, or
the appropriate size to provide sufficient gas
pressure to the valve regardless of the input
setting.
The use of Flexible Gas Appliance Connectors is
acceptable in many areas in the U.S.; However,
Canadian methods vary depending on local code.
ALL INSTALLATIONS MUST COMPLY
WITH LOCAL CODE OR IN THE ABSENCE
OF LOCAL CODE, MUST COMPLY WITH
THE MOST RECENT EDITION OF THE
NATIONAL FUEL GAS CODE ANSI Z223.1/
NFPA 54 OR CAN-B149.
All codes require: a gas shut-off valve (gas cock)
and union, to be installed in the supply line, and
in the same room as the appliance. This allows
for the disconnection of the stove for servicing
and maintenance. See Figure 5.
Figure 5
T-handle gas cocks are required in Massachusetts
in compliance with code 248CMR.
EA
Pressure test point as located on the front of the valve.
12

The appliance must be isolated from the gas supply
line by closing its individual manual gas shut-off
valve (gas cock) during any pressure testing of
the gas supply piping system that is equal to or
exceeds pressures of 1/2 psig (3.5kPa).
NECESSARY INLET GAS PRESSURES
(inches water column)
MIN MAX
NATURAL GAS 5. WC 7. WC
PROPANE 11. WC 13.5 WC
NECESSARY MANIFOLD PRESSURES
(inches water column)
MIN MAX
NATURAL GAS 2.2 WC 3.5 WC
PROPANE 6.5 WC 1 . WC
ALWAYS TEST PRESSURES WITH VALVE
CONTROL KNOB SET ON HIGH
Symptons of incorrect gas pressure include:
Insufficient gas pressure:
 Small pilot flame which can result in
insufficient millivolts.
 Little variation in flame picture between HI
and LO settings.
 Insufficient gas to support more than one
appliance causing nusance outages or gas
surges.
Excessive gas pressure:
 Permanent damage to valve causing complete
appliance shut down.
 Too large a pilot flame resulting in over heating
of the power generator causing shut down.
 Sooting due to impingement and/or incorrect
fuel to air mix.
HIGH ALTITUDE INSTALLATIONS:
When installing the Allagash in high altitude
(above 2 ') situations it becomes necessary to
compensate for the thinner air (less volume of
air per cubic foot). Higher altitudes effect the
atmospheric pressure and heat value of gaseous
fuels. The lower oxygen content in the air and
the lower gas viscosity require the use of a
different orifice to achieve efficient, clean
combustion at the burner tube.
In the U.S.
THE DERATING KIT MUST BE INSTALLED BY
AN AUTHORIZED SERVICE TECHNICIAN IN
ACCORDANCE WITH THE MANUFACTURERS
INSTRUCTIONS AND ALL CODES AND
REQUIREMENTS OF THE AUTHORITY HAVING
JURISDICTION. THE INFORMATION STICKER
MUST BE FILLED OUT BY THE INSTALLER AND
ADHERED TO THE APPLIANCE AT THE TIME
OF THE CONVERSION. THE QUALIFIED SERVICE
AGENCY PERFORMING THIS WORK ASSUMES
RESPONSIBILITY FOR THIS DERATING.
In Canada
THIS UNIT HAS BEEN TESTED FOR
INSTALLATION AT HIGH ALTITUDES IN
ACCORDANCE WITH CANADIAN TEST
STANDARD CAN/CGA-2.17.THE DERATING
SHALL BE CARRIED OUT IN ACCORDANCE
WITH THE REQUIREMENTS OF THE
PROVINCIAL AUTHORITIES HAVING
JURISDICTION AND IN ACCORDANCE WITH
THE REQUIREMENTS OF THE CAN1-B-149.1
AND .2 INSTALLATION CODE.
For installations from 2 ft.(61 m) to
45 ft.(137 m) the orifice size for:
natural gas is a #42
propane gas is a #55
SEE THE HIGH ALTITUDE ORIFICE CHART
on page 14.
For high altitude installations consult the local
gas distributor or the authority having jurisdiction
for proper rating methods. If the installer must
convert the unit to adjust for varying altitudes,
the information sticker must be filled out by the
installer and adhered to the appliance at the time
of the conversion. See Figure 6.
13

Derating procedure
1. o derate this unit, install the appropriate ori-
fice per the High Altitude chart.
2.Remove the two ¼ hex head screws that hold
the burner tube/log support to the bottom of
the stove.
3.Remove the burner tube/log support to expose
the main burner orifice.
4.Remove the orifice and replace with the
appropriate one from the high altitude kit.
5.Be sure to attach the high altitude conversion
sticker provided with the kit to the rating plate
on the appliance.
6. It may be necessary to adjust the air shutter
on the burner tube. See the AIR SHUTTER/
FLAME APPEARANCE section of this
manual for more details.
This sticker (shown below) is included in all high
altitude kits and must be adhered to the stove
whenever it is converted for high altitude
installations.
BURNER TUBE
AIR SHUTTER
ATTENTION: Air shutter should never be
LESS than 1/8 open.
14
EPYTSAG ECIFIRO
EZIS NOITAVELE LUTØJ #TRAP
LARUTAN
SAG 23/3 '0002-0 )m016-0( 411921
ENAPORP
SAG 45# '0002-0 )m016-0( 5416903
LARUTAN
SAG 24# '0054-'1002 )m0711-116(
673451
tik
ENAPORP
SAG 55# '0054-'1002 )m0711-116(
P503057
tik
Figure 6
Figure 7
AIR SHUTTER ADJUSTMENT/FLAME
APPEARANCE:
THE ALLAGASH B-VENT GAS STOVE IS
SHIPPED FROM THE FACTORY EQUIPPED
AS A NATURAL GAS STOVE; THERE-
FORE, IT WILL BE NECESSARY WHEN
USING THE STOVEWITH PROPANE GAS
TO ADJUST THE AIR SHUTTER ON THE
BURNER TUBE TO ACHIEVE THE PROPER
GAS TO AIR MIX. See Figure 6.
The air shutter adjustment can also help achieve
the desired flame appearance. Generally, flame
appearance is a matter of preference, however
most consumers enjoy the warm yellowish flame.
Closing the air shutter - will generate very long
yellow flames resulting in soot. Sooting produces
black deposits on the logs, on the inside walls of
the appliance, and potentially on the exterior
termination cap.
Sooting is caused by incomplete combustion in
the flames and lack of combustion air entering
the air shutter opening.
Opening the air shutter - will generate a flame
that is blue and transparent, or an anemic
flame. This flame is generally more efficient but
not as pretty.
Jøtul recommends the following settings for the
Allagash B-Vent gas stove:
for use with propane 1/4 open
for use with natural 1/4 open
REMEMBER: Run the stove for a minimum of
15 to 2 minutes for an accurate representation
of the flame appearance- this should be done
before and between any air shutter adjustment.

INSTALLING THE LOG SET:
The Allagash is equipped with a one piece log set
and is packaged in bubble wrap inside the firebox.
The log set must be removed from the packaging
and arranged in the unit prior to start up of the
gas stove. Do not handle the log set with your
bare hands. Always wear gloves to prevent skin
irritation from the ceramic fibers.
To install the log set, remove the packaging and
place the log set inside the firebox, centered from
left to right and completely against the rear wall
of the stove. See Figure 8.
Embers: the stove is shipped with a package of
glowing embers. These embers should be pea
size and individually spaced across the burner
tube screen. It is best to equally space these
embers for optimum flame appearance. NOTE:
YOU DO NOT HAVE TO USE ALL OF THE
EMBERS.
THE CERAMIC FIBER LOGS AND
GLOWING EMBERS CAN IRRITATE YOUR
SKIN. IF THIS HAPPENS, GENTLY WASH
HANDS WITH WARM SOAPY WATER.
To adjust the air shutter
1.Remove the burner tube and using a phillips
head screwdriver loosen the screw at the air
shutter and adjust accordingly.
2.Be sure to retighten the screw that holds the
air shutter setting.
3.Reassemble the stove and close the door,
allow stove to burn 3 minutes on the HIGH
setting, observing the flame continuously.
4.If the flame appears weak, slow, or sooty,
repeat the process described above until the
flame is as desired.
WARNING:
AIR SHUTTER ADJUSTMENTS
SHOULD ONLY BE PERFORMED BY A
QUALIFIED PROFESSIONAL SERVICE
TECHNICIAN.
15
Figure 8
INSTALLING DECORATI E PIPE
BRACKETS: (The use of decorative pipe is
optional and not included with the Allagash B-
Vent stove.)
To install the decorative pipe brackets on the
Allagash simply remove the four 1/4 hex head
screws holding the 4 flue collar on the stove.
See Figure 9.
It is not neccessary to remove the flue collar.
Place the L shaped decorative pipe brackets
on the flue collar and align the holes on the
brackets, flue collar, and draft hood and secure
all three with the four 1/4 hex head screws.
Black or enamel stove pipe can now rest on the
the draft hood of the appliance while the brackets
center the stove pipe over the draft hood.
Reminder: single wall stove pipe can never be
used as the vent pipe on the Allagash B- ent
stove.
Figure 9

INSTALLING THE OPTIONAL
BLOWER:
IMPORTANT: IF THE OPTIONAL FORCED AIR
BLOWER KIT (part # 129161) IS TO BE INSTALLED
ON THE STOVE AT THE TIME OF THE
INSTALLATION OR IN THE FUTURE, THE GAS
SUPPLY LINE SHOULD BE INSTALLED AS
CLOSE TO THE FLOOR AS POSSIBLE. USE OF A
90° ELBOW DIRECTLY OFF THE VALVE WILL
ALLOW FOR PROPER CLEARANCE FOR THE
BLOWER.
Mounting the blower:
1. Locate the reflector sheild (28) on the back of
the stove. Remove the cover plate from the
reflector shield to allow the blower bracket to
slide under the stove.
2. Locate the two raised bosses on the bottom plate
(back) of the stove.
3. he blower is mounted to the stove using these
two threaded holes.
4. With the blower bracket and sensor facing upward
align the two middle mounting holes on the bracket
with the two threaded holes on the bottom of the
stove. See Figure 10.
5. Use the two 6mm bolts to attach the blower to
the stove.
6. Be sure to tighten the bolts so that the blower is
drawn upward and tight against the stove bottom.
7. he heat sensor (thermodisc), that is already
attached to the blower bracket, should be inserted
under the stove bottom and make contact with
the firebox! See Figure 10.
16
Connecting the blower wiring harness:
1. Lift off the stove top plate.
2. Loosen (BUT DO NOT REMOVE) the 1 mm bolt
holding the switch box to the side of the stove
(left rear corner of the stove), and lift out the
switch box.
3. Remove the blank switch from the box.
(Hint: break the retaining tabs holding the
switch in the box.)
4. Insert the new HI/OFF/LO switch into the
box.
5. Connect the insulated wires from the blower
to three leads on the HI/OFF/LO switch.
BLACK wire to the HI position, WHITE
wire to the OFF position, and the RED wire
to the LO position. See Figure 11.
6. Retighten the switch box to the side of the
stove. Be sure all wires are unobstructed.
7. Replace top plate.
REMINDER:
The blower will ONLY come on when the
switch is in the Hi or Lo position and ONLY
when the sensor (thermodisc) is heated by the
stove.
(Approximately 1 - 2 minutes after the stove
has been running).
%/$&.+,
5('/2:
:+,7(2))
Figure 11
Middle mounting holes.
Use these holes to mount
blower.
Sensor
(thermodisc)
Direction
under the
stove.
Figure 1

INSTALLING THE OPTIONAL
WALL THERMOSTAT OR REMOTE:
When installing a wall mounted thermostat to
the Allagash, it must be a 750 millivolt DC two-
wire circut thermostat. The thermostat should
be placed in the same room as the heater, typically
5 off the floor. Avoid drafty areas or any area
that may effect the accuracy of the thermostat.
The thermostat should be connected to the
Allagash using a minimum of 16 gauge wire with
a maximum length of 35 feet of wire.

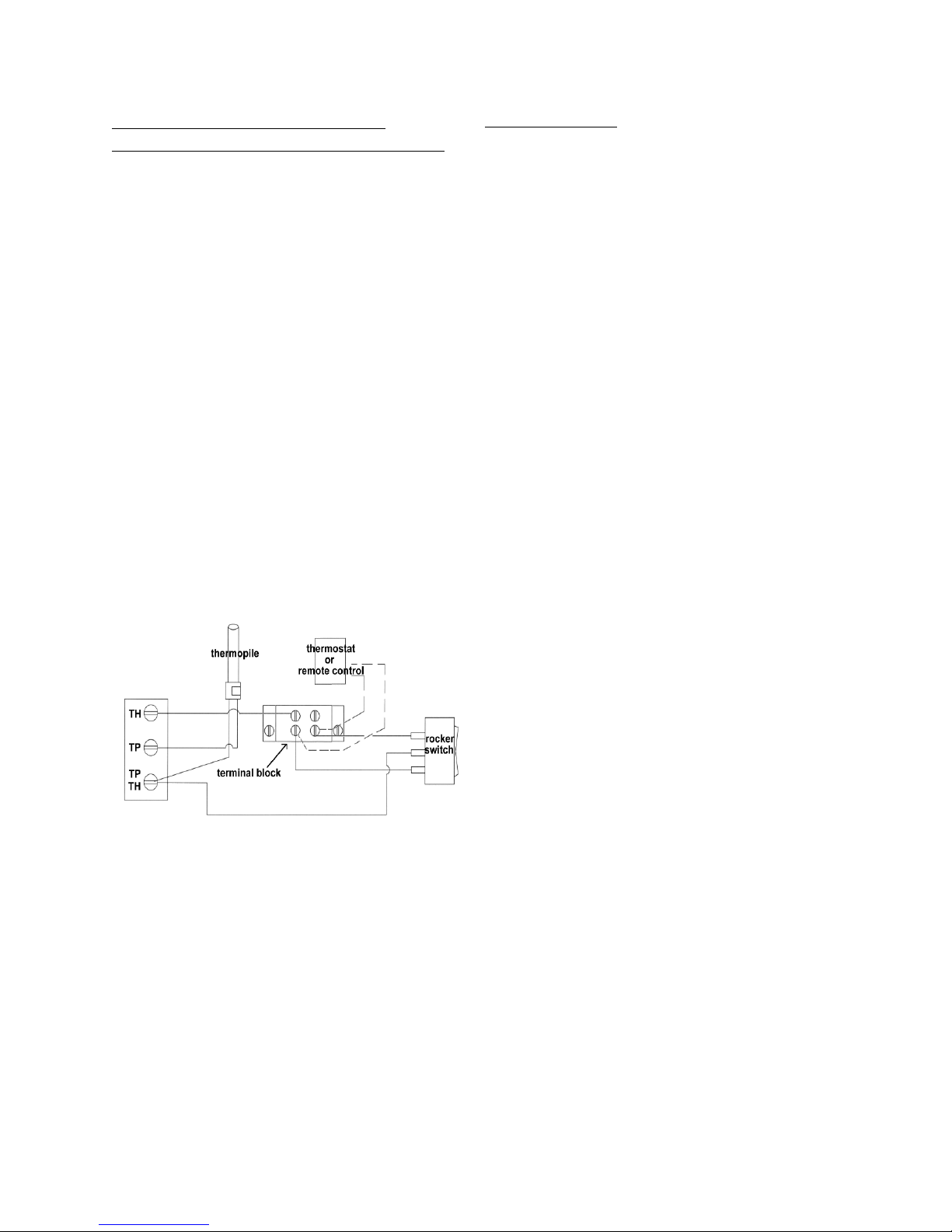

Connect the two thermostat wire leads to the two
lower terminals on the terminal block located
directly above the ignitor button. Do not
overtighten the connections. IT IS NOT
NECESSARY TO DISCONNNECT ANY
OTHER WIRES. See Figure 12.
For the thermostat to work the On/Off/T-Stat
switch on the back of the stove must be in the
T-stat position, and the pilot light must be running,
as it is the power source for the thermostat.
At the thermostat, the two wires should be
connected to the two connections screws on the
thermostat base plate per the manufacturers
instructions.
Remote: When using a remote, the remote
receiver should be wired to the terminal block
the same way the thermostat would be. See the
instructions above.
SPILL SWITCH:
The Allagash B-Vent gas stove is equipped with a
vent SPILL SWITCH. This switch stops gas flow
to the main burner in the event that the appliance
is not vented or if the venting is blocked.
The spill switch is an important safety device
located on the draft hood of the appliance and is
wired directly to the thermocouple (power source
for the stove). The spill switch is a bimetal
sensor that is heat sensitive. In the event that
the venting is not carrying the exhaust up and
out, the heat from the exhaust will trigger the
switch and stop the electrical current to the valve;
thereby stopping gas flow to the main burner.
Spillage: Condition of flue gases failing to exit
the venting system properly and instead flowing
out of the relief opening of the draft hood and
into the dwelling. Condition calls for
immediate examination of the appliance and
venting system and corrective action.
Source: HEARTH- Gas Training Manual
Spillage usually occurs due to incorrct vent size,
or incorrct installation. Be sure to read all of the
installation requirements addressed in this manual
for the proper and safe installation of your
Allagash B-Vent gas stove.
Unexplained outages can be the result of the spill
switch. If you experience unexplained outages,
contact your local Jøtul dealer for assistance.
ANY SERVICE TO THE SAFETY SPILL SWITCH
MUST BE DONE BY A QUALIFIED SERVICE
AGENCY.
CAUTION:
LABEL ALL WIRES PRIOR TO DISCONNECTION
WHEN SERVICING THE CONTROLS. WIRING
ERRORS CAN CAUSE IMPROPER AND
DANGEROUS OPERATION. ALWAYS VERIFY
PROPER OPERATION AFTER SERVICING THE
APPLIANCE.
ATTENTION:
AU MOMENT DE LENTRETIENDES
COMMANDES, ETIQUETEZ TOUS LES FILS
AVANT LE DEBRANCHEMENT. DES ERREURS
DE CABLAGE PEUVENT ENTRAIUN
FONCTIONNEMENT INADEQUAT ET
DAGEREUX.
17
Figure 12

CHECKING THE SYSTEM:
1. PURGING THE GAS LINE: When lighting
the appliance for the first time it will take a few
moments to clear the gas line of air. Once this
purge is complete, the appliance will operate as
described in the lighting instructions located on
the stoves rating plate and the back cover of this
manual. All subsequent lightings of the stove
will not require such purging of the gas line.
2. PILOT FLAME: The pilot flame should be
steady, not lifting or floating. The flame should
be blue in color around the pilot hood, with traces
of yellow toward the outer edges.
It is imperative that the pilot flame engulf the
top 3/8 of the thermopile (power generator) and
the top 1/8 of the quick drop out thermocouple.
The pilot flame should project out of the pilot
hood 1 at all three ports. See Figure 13.
3. BURNER ADJUSTMENT: The Jøtul
Allagash gas stove is equipped with a variable
gas control valve. This valve provides easy
adjustment of the flame height appearance and
heat output. To adjust the flame between the HI
and LO setting, rotate the HI/LO knob, located
in the center of the valve face. Flame height will
adjust approximately 1.  to 1.5 between the
HI and LO settings. See Figure 14.
NO SMOKE OR SOOT SHOULD BE
PRESENT. CHECK LOG PLACEMENT IF
ANY SOOT OR SMOKE IS DETECTED. IF
SOOT OR SMOKE PERSIST, THE AIR
SHUTTER MAY NEED TO BE ADJUSTED.
See Air Shutter/Flame Appearance section of this
manual for proper air shutter settings and
adjustments (page 14). Note: the more offsets
on the vent system, the greater the need for an
air shutter adjustment.
CAUTION:
DO NOT ATTEMPT TO ALTER THE
FLAME APPEARANCE BY
POSITIONING THE GAS VALVE IN
ANY OTHER POSITION OTHER
THAN THE FULL ON POSITION.
Flame appearance on the high setting after
approximately 15 to 2 minutes burning.
5-6
3- 4
3- 4
WARNING:
AIR SHUTTER ADJUSTMENTS
SHOULD ONLY BE PERFORMED BY A
QUALIFIED PROFESSIONAL SERVICE
TECHNICIAN.
Figure 14
18
1
(25mm) 3/8
(8mm)
Min.
1/8
(3mm)
Min.
Thermocouple
Ignitor
Thermopile
Pilot Hood
Figure 13.
Pilot Assembly
Air Inlet Shutter
Burner Tube

OPERATION OF APPLIANCE:
1. The Allagash B-Vent gas stove is equipped
with an On/Off/T-stat rocker switch or can
be controlled using an optional wall-
mounted thermostat. A separate switch is
provided for the optional forced air blower
kit.
2. When lit for the first time, the Allagash will
emit an odor for several hours. This odor is
the burn-off by-products of internal paints
and lubricants used in the manufacturing
process.
3. Condensation may occur on the glass upon
each lighting of the appliance. This fog
will disappear as the appliance heats up.
4. Keep the controls and the area under the
appliance free of debris, vacuum this area
frequently. Always keep the appliance area
clear and free from combustible materials,
gasoline and other flammable liquids.
If and when a vacuum is used on any service
for the stove, ALWAYS be sure the stove is
cold and there are NO hot embers or sparks.
5. Remember, this appliance has a continuous
burning pilot flame. Exercise caution when
using products with combustible vapors.
6. CAUTION: DO NOT OPERATE THIS
APPLIANCE WITH THE GLASS
REMOVED CRACKED OR BROKEN.
REPLACEMENT OF THE GLASS
SHOULD BE DONE BY A LICENSED OR
QUALIFIED SERVICE PERSON. USE
ONLY REPLACEMENT GLASS
PROVIDED BY YOUR AUTHORIZED
JØTUL DEALER. NEVER USE ANY
SUBSTITUTE MATERIALS.
WARNING:
OBSERVE CAUTION NEAR THE DOOR. THE
GLASS PANEL MAY SHATTER UNEXPECTEDLY
IF STRUC WITH AN OBJECT. ALWAYS
HANDLE THE GLASS PANEL WITH CARE. WHEN
SERVICING THE STOVE ALWAYS PULL THE
GLASS ASSEMBLY STRAIGHT UP FOR
REMOVAL.
7. Clean the glass only when necessary. Wipe
surface with a clean, dampened, soft cloth.
Follow with a dry, soft towel as desired.
Take care not to scratch the glass surface.
WARNING:
DO NOT USE ABRASIVE CLEANERS ON THE
GLASS. NEVER CLEAN THE GLASS WHEN IT
IS HOT.
MAINTENANCE:
The Allagash B-Vent gas stove and its venting
system should be inspected before use and at least
annually by a qualified service technician.
IMPORTANT:
ALWAYS TURN OFF THE GAS SUPPLY TO THE
STOVE AND UNPLUG THE OPTIONAL FORCED
AIR BLOWER KIT IF INSTALLED, BEFORE ANY
SERVICE WORK IS PERFORMED ON THE
STOVE.
General cleaning: The firebox should be
vacuumed out annually to remove any surface
build up. Be sure to vacuum or wipe off the pilot
assembly and burner orifice and burner tube. Also,
when vacuuming the log set, be sure to handle it
carefully as it is very fragile.
Gasket inspection: It is important that the glass
gasket be inspected at least annually. Examine
the rope gasket for signs of deterioration and make
sure the gasket has a positive seal. This is
important to prevent combustion gases from
escaping into the room. Replace the gasket if
necessary, refer to the replacement parts list on
page 21.
To remove the glass panel or glass gasket:
1. Lift off the stove top.
2. Release the glass clips atop the firebox.
3. Pull the glass frame assembly straight up and out
of the stove.
4. Lay the asssembly on a flat surface and lift the
metal tabs that secure the glass panel to the frame.
5. Install the new glass panel and gasket in the glass
frame and secure with metal tabs. Do not over
tighten tabs as this could break the glass.
ALWAYS USE JØTUL AUTHORIZED PARTS.
NEVER USE ANY SUBSTITUE PARTS.
19

20
SERVICE LOG:
First Year
Name of Technician__________________
Company Name______________________
Date of service_______________________
Work Performed______________________
__________________________________
SERVICE LOG:
T o Year
Name of Technician__________________
Company Name_____________________
Date of service______________________
Work Performed_____________________
____________________________________
SERVICE LOG:
Third Year
Name of Technician___________________
Company Name______________________
Date of service_______________________
Work Performed______________________
___________________________________
Always replace any damaged or broken parts on
the Allagash with JØTUL AUTHORIZED
PARTS ONLY. These are available through your
Autorized Jøtul dealer. Never use any substitute
parts on your Allagash B-Vent gas stove.
The Allagash and its venting system should be
inspected annually or semi-annually by a qualified
service person or agency.
With proper care and maintenance, your appliance
will provide you with years of enjoyment. If you
experience any problem or inconsistency with
your Jøtul Allagash B-Vent gas stove, contact your
authorized Jøtul dealer for assistance.
To expedite the proper service for your appliance
the following information will help your dealer
determine what you will need for parts and service.
RETAIN THIS MANUAL FOR REFERENCE
AND MAKE IT AVAILABLE TO ANYONE
USING OR SERVICING THE STOVE.
MODEL NAME: Allagash B-Vent Stove
SERIAL NUMBER:__________________________
DATE OF PURCHASE:_______________________
AUTHORIZED DEALER:_____________________
NAME OF INSTALLER:______________________
TYPE OF FUEL:_____________________________
WAS STOVE CONVERTED?___________________
NOTES:
