Jøtul Gf3 dvii allagash User manual

Installation

and

Operation

Instructions

Jøtul GF3 DVII

Allagash

Direct Vent

Gas Heater

WARNING:

IF THE INFORMATION IN THESE INSTRUCTIONS

ARE NOT FOLLOWED EXACTLY, A FIRE OR

EXPLOSION MAY RESULT CAUSING PROPERTY

DAMAGE, PERSONAL INJURY OR LOSS OF LIFE.

FOR YOUR SAFETY:

DO NOT STORE OR USE GASOLINE OR OTHER

FLAMMABLE VAPORS AND LIQUIDS IN THE

VICINITY OF THIS OR ANY OTHER APPLIANCE.

INSTALLATION:

INSTALLATION AND SERVICE MUST BE PER-

FORMED BY A QUALIFIED INSTALLER, SERVICE

AGENCY OR LICENSED GAS SUPPLIER.

WHAT TO DO IF YOU SMELL GAS:

 DO NOT TRY TO LIGHT ANY APPLIANCE.

 DO NOT TOUCH ANY ELECTRICAL SWITCHES.

 DO NOT USE THE PHONE IN YOUR BUILDING.

IMMEDIATELY CALL YOUR GAS SUPPLIER

FROM A NEIGHBORS PHONE.

 FOLLOW YOUR GAS SUPPLIERS

INSTRUCTIONS.

 IF YOU CANNOT REACH YOUR GAS SUPPLIER,

CALL THE FIRE DEPARTMENT.

AVERTISSEMENT:

ASSURE -VOUS DE BIEN SUIVRE LES INSTRUC-

TIONS DANS CETTE NOTICE POUR REDUIRE AU

MINIMUM LE RISQUE DINCENDIE OU POUR

EVITER TOUT DOMMAGE MATERIEL, TOUTE

BLESSURE OU MORTALITE.

NE PAS ENTREPOSER NI UTILISER DESSENCE

NI OU LIQUIDES INFLAMMABLES DANS LE

VOISINAGE DE CET APPAREIL OU DE TOUT

AUTRE APPAREIL.

LINSTALLATION LE SERVICE DOIVENT ETRE

EXECUTES PAR UN INSTALLATEUR

QUALIFIE, AGENCE DE SERVICE OU LE

FOURNISSEUR DE GA .

QUE FAIRE SI VOUS SENTE UNE ODEUR DE GA .

 NE PAS TENTER DALLUMER LAPPAREIL

 NE TOUCHE A AUCUM NTERRUPTEUR.

 NE PAS VOUS SERVIR DES TELEPHONES SE

TROUVANT DANS LE BATIMENT OU VOUS

VOUS TROUVE .

 APPELE IMMEDIATEMENT VOTRE

FOURNISSEUR DE GA CHE UN VOISIN. SUIVE

LES INSTRUCTIONS DU FOURNISSEUR.

 SI VOUS NE POUVE REJOINDRE LE

FOURNISSEUR DE GA , APPELE LE SERVICE

DES INCENDIES.

US

Warnock Hersey

C

Welcome to Jøtul...

Congratulations on the purchase of your new

Jøtul GF3 DVII Allagash gas stove.

We at Jøtul are happy you ve made the decision

to warm your hearth with a Jøtul product. Your

new Allagash benefits from our experience as

the world s largest manufacturer of solid fuel

burning appliances for over 140 years. We ve

been making fine quality cast iron wood and coal

stoves and fireplaces continuously since 1853.

In the Allagash, we ve combined advanced gas

technology with the warm, traditional elements

of cast iron. With proper care and use, your Jøtul

heater will provide you with many years of safe,

dependable, and satisfying service.

The Jøtul Allagash is a direct vented gas heater

designed and approved for installation into a

variety of installation configurations. Please take

a few minutes to familiarize yourself with this

manual and the features of your new stove.

PLEASE READ THESE INSTRUCTIONS IN THEIR ENTIRETY AND MAKE THEM

AVAILABLE TO ANYONE USING OR SERVICING THE APPLIANCE.

KEEP THESE INSTRUCTIONS FOR FUTURE USE.

SUGGESTED TOOL LIST FOR INSTALLATION

AND SERVICE:

 External regulator (for LPG only)

 Piping which complies with local code

 Manual shutoff valve

 Sediment trap

 ee Handle Gas Cock - required for Massachusetts

 Pipe wrench

 Pipe sealant

 10 mm open end wrench

 1/2, 7/16 open end wrench

 Phillips head screwdriver

 Flat head screwdriver

 1/4 nut driver

 Gloves

 Safety glasses

 orx 20 screwdriver

 Leak test solution

Standards............................................3

General Information........................3

Safety Information ..........................4

Location...............................................4

Hearth Requirements ......................4

Stove Clearances...............................5

Mantel and rim ................................5

Venting Requirements ....................6

Vertical Venting.................................6

Horizontal Venting ...........................7

Co-linear Hearthmount ..................8

Mobile Home Installation ..............9

Vent Window .................................. 10

Vent erminal Clearances ............ 11

Fuel Conversion ............................. 12

Gas Connection .............................. 14

Gas Pressures ................................. 14

High Altitude Adjustment .......... 15

Air Shutter Settings ...................... 16

Log Set Installation ....................... 16

Blower Installation........................ 17

Remote Control / hermostat ... 18

System Check ................................. 19

Operation Instructions................. 20

Maintenance ................................... 20

Illustrated Parts List ............... 22, 23

Table of Contents

Jøtul GF3 DVII Allagash

Direct Vent Gas Heater

Manufactured and Distributed by:

Jøtul A.S.A.

Fredrikstad, Norway

Jøtul North America

Portland, Maine

Test Standards

his appliance complies with

National Safety standards and is

tested and listed by Intertek

esting Services of Middleton,

Wisconsin to ANSI Z21.88-1998

(NFPA 54) and CSA 2.33-M98 for Canada.

US

Warnock Hersey

C

THIS STOVE IS CONFIGURED TO BURN NATURA

GAS ON Y. IF USE WITH PROPANE GAS IS DESIRED,

THE BURNER MUST FIRST BE CONVERTED. FOR

YOUR CONVENIENCE, A PROPANE CONVERSION KIT

IS INC UDED WITH THE STOVE.

1

THIS PRODUCT MUST BE INSTA ED BY A

ICENSED MASTER OR JOURNEYMAN P UMBER

OR GAS-FITTER WHEN INSTA ED IN THE COM-

MONWEA TH OF MASSACHUSETTS.

he Jøtul GF3 DVII Allagash is a Direct Vent wall

furnace and is designed as a sealed combustion, air

circulating gas appliance for residential applications.

he following vent components are approved for use

with the Jøtul GF3 DVII, vented directly to the outside

of the house:

 Simpson Dura-Vent 6 5/8" X 4" GS pipe

 Security Direct Vent 6/4 vent pipe

 Amerivent 6/4 vent pipe.

he Jøtul GF3 DVII Allagash gas stove is designed

to operate on NA URAL GAS or PROPANE only. It

manufactured and shipped prepared to burn Natural

Gas. For safe and efficient operation the stove is

equipped with a millivolt gas control valve with a piezo

ignitor. Electrical power is only required when operat-

ing the OP IONAL forced air blower.

Rear Exit

Centerline

24 3/4

629 mm

13 1/4

337 mm

op Exit

27 3/4

705 mm

28

711 mm

22 3/4

578 mm

2

Specifications

Input Rates

Natural Gas

26,000 BTU/hr. maximum input

20,000 BTU/hr. minimum input

Propane

26,000 BTU/hr. maximum input

20,000 BTU/hr. minimum input

Minimum Inlet Pressure:

Natural Gas: 5.0 WC (1.25 k a)

ropane: 11.0 WC (2.75 k a)

Manifold Pressure: MIN MAX

Natural Gas: 2.0 WC (.85 k a) 3.5 WC (.85 k a)

ropane: 6.4 WC (1.60 k a) 10.0 WC (2.50 k a)

Steady State Efficiency: 82%

A.F.U.E.: 73%

iezo Ignitor / Standing ilot

Standards

his appliance complies with National Safety stan-

dards and is tested and listed by Intertek esting

Services of Middleton, WI

In addition, the Jøtul GF3 DVII Allagash gas stove

complies with and has been tested and listed as a

direct vent heater and listed to ANSI Z21.88-1998

(NFPA 54), and CSA 2.33-M98 for Canada.

DO NOT ATTEMPT TO ALTER OR MODIFY

THE CONSTRUCTION OF THE APPLIANCE OR

ITS COMPONENTS. ANY MODIFICATION OR

ALTERATION WILL VOID THE WARRANTY,

CERTIFICATION AND LISTING OF THIS

APPLIANCE.

General Infor ation

 THIS HEATER MUST BE INSTA ED AND MAIN-

TAINED BY A QUA IFIED SERVICE AGENCY.

 The installation and repair of this appliance must be

done by a qualified service person. Failure to

properly install and maintain this heater could

result in an unsafe or hazardous installation, which

may result in a fire, explosion, property damage,

personal injury or loss of life.

 This appliance should be inspected before use and

at least annually. More frequent cleaning may be

required due to excessive lint from carpeting,

bedding material, etc. It is imperative that control

compartments, burners and circulating air passage-

ways of the appliance be kept clean.

 NOTE: THIS APP IANCE MUST NOT BE CONNECTED

TO A CHIMNEY OR F UE SERVING ANY OTHER

APP IANCE.

 he installation must conform to local codes. Your

local Jøtul dealer can assist you in determining

what is required in your area for a safe and legal

installation. Some areas require a permit to install

a gas burning appliance. Always consult your local

building inspector or authority having jurisdiction to

determine what regulations apply in your area.

 Your local officials have final authority in determin-

ing if a proposed installation is acceptable. Any

requirement that is requested by the local author-

ity having jurisdiction, that is not specifically

addressed in HIS manual, defaults to local code. In

the absence of local codes, the installation require-

ments must comply with the current National

codes. In the U.S. these requirements are estab-

lished in the National Fuel Code, ANSI Z223.1.(NFPA

54). In Canada, the codes have been established in

CAN/CGA B149 Fuel Installation Code.

 DO NOT OPERATE THIS STOVE IF ANY PART HAS

BEEN UNDER WATER. Immediately call a qualified

service technician to inspect the heater and to

replace any part of the control system and any gas

control which has been under water.

 Ne pas se servir de cet appareil sil a ete plonge

dans leau, completement ou en partie. Appeler un

technicien qualifie pour inspecter lappareil et

remplacer toute partie du systeme de controle et

toute commande qui ont ete plonges dans leau.

Glass Front

Do not operate this appliance with the glass front

removed, cracked or broken. Replacement of the

glass should be done by a licensed or qualified service

person. Only remove glass for routine service. Always

handle glass carefully.

3

 Installer lappareil selon les codes ou reglements

locaux, ou, en labsence de tels reglements, selon

les Codes dinstallation CAN/CGA-B149.

Electrical Hazard

When the Allagash gas stove is installed with the

optional forced air Blower Kit, the stove must be

electrically grounded in accordance with local codes

or, in the absence of local codes, with the current NFPA

70- National Electrical Code or CSA C22.1-Canadian

Code.

he Allagash Blower Kit is supplied with a three-

prong (grounding) plug for protection against shock

hazard and should be plugged directly into a properly

grounded three-prong receptacle.

DO NOT CUT OR REMOVE THE GROUNDING

PRONG FROM THE PLUG.

Always unplug the Blower Kit when performing

routine service to the Allagash gas stove.

Location

In selecting a location for the stove, consider the

following points:

1) Heat distribution

2) Vent termination requirements

3) Gas supply line routing

4) raffic areas, furniture, draperies, etc.

he GF100 Nordic Q may be located on or near

conventional construction materials, however, proper

clearance to combustibles must be maintained in

order to provide adequate air circulation around the

appliance. Also, it is important to provide adequate

access around the stove for servicing and proper

operation.

he clearance and hearth specifications listed in

this manual are the minimum requirements for

combustible material. A combustible material is

anything that can burn (i.e. sheet rock, wall paper,

wood, fabrics etc.). hese surfaces are not limited to

those that are visible and also include materials that

may be located behind non-combustibles.

If you are not sure of the combustible nature of a

material, consult your local fire officials. Remember,

Fire Resistant materials are considered combustible:

they are difficult to ignite, but will burn. Also, fire-

rated sheet rock is considered combustible.

Hearth Requirements

he Allagash gas stove CAN NO be installed directly

on carpeting, vinyl flooring, linoleum or Pergo®. If you

wish to install this appliance on any combustible

material O HER HAN WOOD, a floor pad must be

installed that is either metal, wood or a listed hearth

pad. his floor protection must extend the full width

and depth of the appliance. It is not necessary to

remove the carpeting, vinyl or linoleum from under-

neath the floor protection.

Note: the hearth requirements are the same when

using the optional short leg package.

Safety Information

his appliance will reach high surface temperatures

during normal operation. Please read the following

notes to help ensure safe operation.

Due to the high operating temperatures this

appliance should be located out of traffic and away

from furniture and draperies.

Children and adults should be alerted to the

hazards of high surface temperatures and should

stay away to avoid burns or clothing ignition.

Young children should be supervised while they are

in the same room as the Allagash gas stove.

Clothing or other flammable materials should not

be placed ON or NEAR the Allagash gas stove.

Surveiller les enfants. Garder les vetements, les

meubles, lessence ou autres liquides a vapeur

inflammables loin de lappareil.

NEVER store or use gasoline or any other flam-

mable vapors or liquids in the vicinity of the

Allagash gas stove.

Never burn any other materials in your Allagash gas

stove, it is strictly designed for use with natural gas

or propane fuel ONLY.

Any safety screen, glass or guard removed for

servicing the appliance must be replaced prior to

operating the appliance.

4

Clearance Require ents

Minimum clearances or the GF3 DVII

Allagash

Rear: 4 / 102 mm

Ceiling: 12 / 305 mm

Corner: 4 / 102 mm

Right Side: 4 / 102 mm

Left Side: 10 / 254 mm (required for complete

access of the lighting instructions)

Minimum Clearance or Vent Pipe

Horizontal Runs:

Off the top of the pipe: 2" (50mm)

Off the sides and bottom: 1" (25 mm)

Vertical Runs, all sides: 1" (25 mm)

Corner Installation

Alcove Installation

Minimum Height off stove top: 40 / 1006 mm

Minimum Width of alcove: 38 / 965 mm

(Assumes 10 off the left side and 4 off the right

side)

Maximum Alcove Depth: 24 / 607 mm

Pipe Clearances:

1 on vertical runs

2 off top of horizontal runs, 1 on other sides.

arallel Installation

Mantel and Trim Clearances

ABC

Mantel or Trim Depth

24 / 607 mm

18 / 457 mm

5 / 127 mm

Minimum

Clearance from

the Top Plate

A = 12

B = 9

C = 4

Figure 1.

5

Figure 3. Top Exit Centerlines and possible hearth

configuration.

4

102 mm

4

102 mm

13 1/2

337 mm

16

406

mm

16

406 mm

27

686 mm

36

910 mm

13 1/2

337 mm

This is not a required

hearth size, although it

is aesthetically

proportional. Assumes

the stove is 4 off the

corners.

4

102 mm

4

102 mm

10

254 mm

Left Side Right

Side

Figure 2. Allow 10 on left side of the appliance for

co plete access to the lighting instructions and

control valve.

NOTE: Vertical termination may result in reduced

flame height and heat output due to the suction

of natural draft.

·Vertical Termination Height: In no case shall any

discharge opening on the cap be less than 2' (610

mm) horizontally from the roof surface. See Figure 4.

·A firestop is required at every floor. he opening

should be framed to 10" X 10" inside dimension.

Jøtul recommends the use of Simpson Dura-Vent

Firestop (#963).

·Any venting that is exposed above the first floor,

regardless of attic space or living space, must be

enclosed. Always maintain the required 1" clear-

ance from all sides of the vertical vent system.

·It may be necessary to add restriction to a vertical

venting installation, so that the draft is not too

strong and creates incomplete combustion.

he Allagash is equipped with sliding restriction

plates that can be adjusted to compensate for

excessive draft. See Figure 5.

Venting Require ents

here are two types of venting configurations ap-

proved for use with the Allagash gas stove - Horizon-

tal ermination and Vertical ermination.

he GF3 DVII Allagash is approved for use with the

following vent components:

Simpson Dura-Vent GS

Secure Vent - Security Chimneys Intl. td.

Amerivent Direct

Installation of any components not manufactured

or approved by Jøtul or failure to meet all clearance

requirements will void all warranties and could result

in property damage, bodily injury, or serious fire. Use

parts from one manufacturer only - DO NO MIX VEN

COMPONEN S FROM DIFFEREN MANUFAC URERS IN

HE SAME SYS EM.

he approved vent configurations described

herein are derived from extensive testing under

controlled laboratory conditions. Gas appliance

performance can be negatively affected by variables

present in the installation environment, i.e: strong

prevailing winds, snow accumulation, etc. hese

conditions should be taken into consideration by the

installer and stove owner.

Vertical Venting Requirements

(Vertical Termination)

·he minimum height of a vertically terminated

system shall be no less than 7'. he maximum

height shall be no more than 35'.

·With steep roofs, nearby trees, and predominant

windy conditions, poor draft or down draft condi-

tions can occur. In these cases, increasing the

height of the vent may improve the situation.

·If an offset or elbow is necessary in the vertical

rise, it is important to support the vent pipe every

three feet, to avoid excessive stress on the offsets.

Jøtul recommends the use of Simpson Dura-Vents

Wall Straps. (#988).

·Whenever possible use 45° elbows opposed to 90°

elbows. his offers less restrictions for the flow of

flue gases and intake air.

6

SEALANT

IMPORTANT

 JOINT SEA ING REQUIREMENT: APPLY A 1/8 BEAD

OF HIGH- EMPERA URE (750°F) SEALAN O HE

MALE SEC ION OF HE INNER VEN PIPE.

HE CEMEN SHOULD FORM A

SEAL BE WEEN HE INNER AND

OU ER PIPES.

 NEVER MODIFY ANY VEN ING

COMPONEN , OR USE ANY

DAMAGED VEN ING

PRODUC .

 FOLLO HE INS ALLA ION

INS RUC IONS PRO-

VIDED BY HE VEN

MANUFAC URER FOR

EACH VEN PAR .

 HE GAS APPLIANCE AND VEN SYS EM MUS BE

VEN ED DIREC LY O HE OU SIDE OF HE BUILD-

ING AND NEVER A ACHED O A CHIMNEY SERVING

A SOLID FUEL OR GAS BURNING APPLIANCE. EACH

DIREC VEN GAS APPLIANCE MUS HAVE I S OWN

SEPARA E VEN SYS EM. COMMON VEN SYS-

EMS ARE PROHIBI ED.

 IF VEN ING SYS EM IS DISASSEMBLED FOR ANY

REASON, REINS ALL PER HE INS RUC IONS PRO-

VIDED FOR HE INI IAL INS ALLA ION.

Figure 4. Vertical Vent Roof Penetration Height.

2 ft.

min.

Horizontal Overhang

Vertical Wall

12 Roof Pitch

is X / 12

X

Termination

Cap

2 ft.

min.

owest

Discharge

Opening

2 ft.

min.

2 ft. = minimum height from

roof to lowest discharge opening

Restrictor Sliders

First Restriction

Setting - install

screw into the

OUTER hole of

sliders.

Second Restriction

Setting - screw

installed into

MIDDLE hole of

slider.

12

Figure 5. Vent restrictor settings.

Horizontal Venting Requirements

Follow these guidelines if any part of the installation

incorporates a horizontal run or terminates horizontally.

 he maximum horizontal run made directly off the rear

of the stove shall be no more than 12" and must then be

connected to a 14" snorkel cap (Simpson Dura-vent #982).

 he horizontal termination cap must maintain a 3"

clearance to any overhead combustible projections

exceeding 2 1/2" or less. Maintain 12" clearance from

projections exceeding 2 1/2". See Figure 8, page for

complete termination clearance information.

 Any horizontal run of vent must be level or have a 1/4"

rise for every foot of run toward the termination cap.

NEVER ALLOW HE VEN ING O SLOPE DOWNWARD,

AS HIGH EMPERA URES MAY RESUL AND CREA E A

HAZARDOUS CONDI ION.

 Vent Pipe Clearance to Combustible Materials: For all

horizontal runs, a 2" top clearance and a 1" side and

bottom clearance must be maintained.

Wall Pass-through: A minimum 10" X 10" square cutout

is required to maintain proper clearances through

combustible wall construction. he opening must be

framed in. Simpson Dura-Vent Wall himble #942 or

Secure Vent Wall Radiation Shield SV4RSM must be

used for the wall pass-through. Optional decorative

plates are available to finish the interior side of the

wall pass-through.

 IMPOR AN : Follow the vent manufacturers installa-

tion instructions provided with each vent component.

 DO NO FILL AIR SPACE WI H ANY YPE OF INSULA ION.

 MAIN AIN HE PROPER CLEARANCES O HE ERMI-

NA ION CAP. SEE FIG. 10.

 Do not recess the termination cap into a wall or siding.

 Install a Vinyl Siding Standoff between the vent cap

and the exterior wall (Simpson Dura-Vent #950). to

protect vinyl siding from overheating.

Figure 6. Mini u Vertical Vent - Si pson Dura-

Vent part nu bers shown.

7

N TE:

SH RT LEGS

REDUCE THE

HEIGHT BY

2 1/4.

24 length

#904B

90° Elbow

#990B

55 3/4

Floor to

centerline of

minimum

vertical rise

123

1

2

3

1

2

3

1

2

3

1

2

3

1

2

3

123

Figure 7. Horizontal ter inal to corner.

Simpson Dura-Vent 45°

Elbow #945B

12 Max.

Horizontal run

into a 14

Snorkel

Simpson Dura-

Vent (#906B)

14 Snorkel

Simpson

Dura-Vent

(#982)

12 Max. Horizontal

run into a 14 Snorkel

Simpson Dura-Vent

(#906B)

Figure 7a. Horizontal ter inal directly off stove

ust use a 14 Snorkel ter ination.

Rear Exit

Centerline

24 3/4

628 mm

Wall himble

#942B

Horizontal Length

12 Max. Wall Plate

#940B

Co-linear Vent Installation

he GF 3 DV Allagash may be vented through a

masonry or Class A prefabricated chimney using a Co-

linear Flexible Vent system approved for use with a

solid-fuel burning fireplace, When installed in the

manner described below, this system can improve the

performance of the appliance in cold climate situa-

tions, as well as simplify the vent installation.

These guidelines must be followed:

1. Prior to the installation the chimney flue must be

thoroughly cleaned and inspected by a qualified

chimney service person.

2. In a masonry chimney, a fireclay liner must be

present the entire length of the chimney.

3. Prefabricated chimneys must be UL 103 or ULC S-

629 listed and have a minimum INSIDE diameter of

6 inches, (150 mm).

4. No appliance can be installed into a chimney flue

serving any other appliance of any kind.

5. THE AIR INTAKE F EX PIPE MUST EXTEND BEYOND

THE DAMPER AREA OF THE FIREP ACE.

6. If the intake flex does not extend the full length of

the chimney and connect to both the unit and the

termination cap, A ME AL BLOCK OFF PLA E MUS

BE CONS RUC ED AND INS ALLED ABOVE HE

UNI PRIOR O HE END OF HE IN AKE FLEX AND

MUS COMPLE ELY SEAL HE CHIMNEY FLUE

FROM HE ROOM.

Consult with the local code authority having

jurisdiction before proceeding with this type of

installation.

Refer to the vent manufacturers instructions for

specific installation requirements.

WARNING: FAI URE TO POSITION THE PARTS AND

STOVE IN ACCORDANCE WITH THESE DIAGRAMS OR

FAI URE TO USE ON Y PARTS SPECIFICA Y APPROVED

FOR USE WITH THIS APP IANCE MAY RESU T IN

PROPERTY DAMAGE OR PERSONA INJURY. BE SURE TO

MAINTAIN THE PROPER C EARANCES TO COMBUS-

TIB ES AS DEFINED IN THIS MANUA AND IN THE

INSTRUCTIONS PROVIDED WITH EACH VENT COMPO-

NENT.

)5(6+$,5

(; +$867

*$6

),5(3/$&(

'$03(5$5($

([KDXVWIOH[SLSH

PXVWH[WHQGWKH

HQWLUHOHQ WKRIWKH

FKLPQH\DQG

FRQQHFWHGWRDGLUHFW

YHQWWHUPLQDWLRQ

$,5,17$.(IOH[

SLSH

PXVWEHD

PLQLPXPRIIW

FP

DQG



H[WHQGEH\RQGWKH

GDPSHUDUHD

$PHWDOEORFN

RIISODWHPXVW

FRPSOHWHO\VHDO

WKHFKLPQH\

IURPWKHURRP

)LUHFOD\OLQHUPXVW

H[LVWWKURX KWKH

HQWLUHOHQ WKRI

WKHFKLPQH\

$',5(&79(17

7(50,1$7,21.,7

$1'&$3,6

5(48,5('72

$//2:)5(6+$,5

,1727+(&+,01(<

Figure 8. Co-linear Vent installed through asonry

chi ney.

Figure 8a. Co-linear Adaptor centerline.

24 3/4

to center

of flue collar

28 3/4

to top of

Co-linear

Adapter.

8

The Air Intake

Flex pipe must

extend beyond

the damper.

Simpson Dura-Vent Chimney

Conversion Kit

he GF3 DVII Allagash is approved for use with

Simpson Dura-vent Chimney Kit as shown in Figure 9.

hese installation requirements must be followed:

1. In masonry chimney a fireclay liner must be

present the entire length of the chimney.

2. he liner must have an inside dimension of 6

round or greater. (USE KI #934)

3. Prefabricated chimneys must be listed for the

specific Simpson Dura-Vent Chimney Conversion

Kit or a UL 103 listing. (USE KI #931, #932, or

#933)

4. When venting immediately off the rear of the

Allagash the maximum horizontal must be less

than 14 (including thimble depth). Any other

horizontal must be less than 24.

5. Restrictor plates, shipped with the stove, should be

installed according to the assembly instructions in

this manual.

IMPORTANT NOTICE

THE USE OF AN EXISTING CHIMNEY AS

AN AIR INTAKE IS NOT COVERED

UNDER THE ANSI 21.88-1999-CSA

2.33-M99 TEST METHODS AND RESULT-

ING ITS/WHI PRODUCT CERTIFICA-

TION. THE CODE AUTHORITY HAVING

JURISDICTION MUST BE CONSULTED

PRIOR TO PROCEEDING WITH THIS

INSTALLATION METHOD.

*)'9

$//$*$6+

6WRYH

9HUWLFDO7HUPLQDWLRQ

&DS

1RWLQFOXGHGLQNLW 

6LPSVRQ'XUD9HQW

7KLPEOH$GDSWHU

,QFOXGHGLQNLW 

$SSURSULDWHOHQJWKRI

6LPSVRQ

'XUD9HQW3LSHIRU

YHUWLFDOULVH

1RWLQFOXGHGLQNLW 

6LPSVRQ'XUD9HQW

(OERZ

1RWLQFOXGHGLQNLW





6LPSVRQ'XUD9HQW

7HUPLQDWLRQ.LW



$

0D[LPXP

KRUL]RQWDOUXQZKHQ

YHQWLQJLPPHGLDWHO\

RIIWKHUHDURIWKH

VWRYH

0867%(/(66

7+$1µPP

727$/



$



)LUHFOD\

OLQHURU8/

OLVWHG

SUHIDEUL

FDWHGFKLP

QH\SLSH

LQFK

PP 

)OH[/LQHU

1RWLQ

FOXGHGLQ

NLW 

Figure 9. GF 3 DVII Allagash vent connection using

Si pson Dura-Vent Chi ney Conversion Kit.

Mobile Home Installation

he Allagash can be installed for use in a mobile home

in the U.S. and Canada provided:

1. he stove is secured to the floor of the mobile

home. Use Floor Mounting Kit #750304.

2. he stove is installed in accordance with itle 24

CFR, Part 3280- Manufactured Home Construction

and Safety Standard, in the U.S. and in Canada,

comply with CSA Z240.4, Gas Equipped Recre-

ational Vehicles and Mobile Housing.

3. Always contact your local officials about installa-

tion restrictions and requirements in your area.

his appliance may be installed as an OEM

Iinstallation in manufactured (mobile)homes and

must be installed according to the manufacturers

instructions and the manufactured home construc-

tion and safety standard, itle 24 CFRAND SAFE Y

S ANDARD, I LE 24 CFR, Part 3280. his appliance is

only for use withthe type of gas that is indicated on

the stove Rating Plate. A gas conversion kit is pro-

vided with the GF3 DVII Allagash gas stove.

his appliance may be installed in an aftermarket

permanently located, manufactured, (mobile) home,

where not prohibited by local codes.

Cet appareil peut etre installe dans un maison

prefabriquee (mobile) deja installee a demeure si les

reglements locaux le permettent. Cet appareil doit etre

utilise uniquement avec les types de gas indiques sur la

plaque signaletique. Ne pas lutiliser avec dautres gas sauf

si un kitde conversion certifie est installe.

9

VEN ING MUS ERMINA E

WI HIN HE SHADED AREAS.

REMINDER #1

Any horizontal runs made directly

off the rear of the stove must be

14 or less and connected

immediately to a Simpson Dura-

Vent 14 snorkel (#982).

REMINDER #2

If more than a 12 horizontal run

is needed, A VER ICAL RISE IS

REQUIRED FIRS . See chart.

REMINDER #3

For each 90° elbow used, after

the first, add 5 to the initial

required vertical rise. See chart.

Maximum 90°

Elbows - 3

Maximum 45° Elbows - 4

Vent Termination

Window

Horizontal

ermination

requires 2 ft.

Min. Rise.

Vertical

ermination

requires 7 ft.

Min. Rise.

1234567890123456789012345678901212345678

1

23456789012345678901234567890121234567

8

1

23456789012345678901234567890121234567

8

1

23456789012345678901234567890121234567

8

1

23456789012345678901234567890121234567

8

1

23456789012345678901234567890121234567

8

1

23456789012345678901234567890121234567

8

1

23456789012345678901234567890121234567

8

1

23456789012345678901234567890121234567

8

1

23456789012345678901234567890121234567

8

1

23456789012345678901234567890121234567

8

1

23456789012345678901234567890121234567

8

1

23456789012345678901234567890121234567

8

1

23456789012345678901234567890121234567

8

1

23456789012345678901234567890121234567

8

1

23456789012345678901234567890121234567

8

1

23456789012345678901234567890121234567

8

1

23456789012345678901234567890121234567

8

1

23456789012345678901234567890121234567

8

1

23456789012345678901234567890121234567

8

1

23456789012345678901234567890121234567

8

1

23456789012345678901234567890121234567

8

1234567890123456789012345678901212345678

12345678901234567890123456789012123456789012345678901234567890

5

10

15

20

30

35

25

10

5

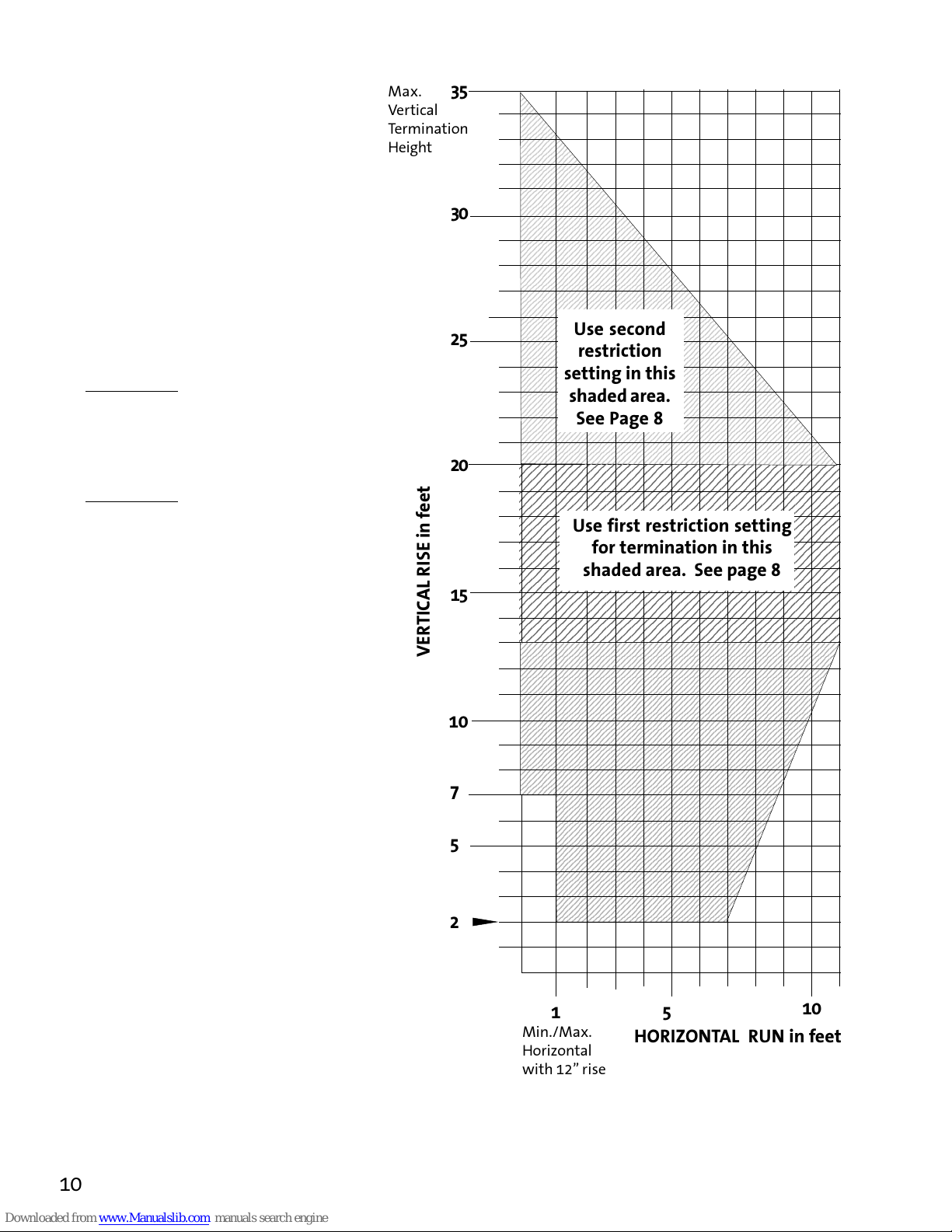

VERTICAL RISE in eet

HORIZONTAL RUN in eet

Min./Max.

Horizontal

with 12 rise

1

Max.

Vertical

ermination

Height

Use second

restriction

setting in this

shaded area.

See Page 8

7

10

Use irst restriction setting

or termination in this

shaded area. See page 8

2

Figure 11. Vent Ter inal / Overhang Clearances

Vent Terminal Clearances

Figure 10. Vent Ter inal Clearances - National Fuel Gas Code.

A = Clearance above grade, veranda, porch , deck, or

balcony : *12 inches (30 cm) minimum.

B = Clearance to window or door that may be opened:

9 inches (23 cm) minimum. 12 inches is recom-

mended to help prevent condensation.

C = Recommended clearance to permanently closed

window: mimimum 12 inches (30 cm) to help

prevent condensation on the window.

D = Vertical clearance to ventilated soffit located above

the terminal within a horizontal distance of 2 feet (60

cm) from the centerline of the terminal: 18 inches

(46 cm) minimum.

E = Clearance to unventilated soffit: 12 inches (46 cm)

minimum.

F = Clearance to outside corner: 9 inches (23 cm) min.

Jøtul N.A. strongly recommends 12 inches (30 cm),

particularly where windy conditions are prevalent.

= Clearance to inside corner: 6 inches (16 cm) min.

Jøtul N.A. strongly recommends 12 inches (30 cm), particu-

larly where windy conditions are prevalent.

H = *Not to be installed above a meter/regulator assembly

within 3 feet (90 cm) horizontally from the center-line

of the regulator.

I = Clearance to service regulator vent outlet: 6 feet (1.8

m) minimum.

J = Clearance to nonmechanical air supply inlet to building

or the combustion air inlet to any other appliance:

*12 inches (30 cm) minimum.

K = Clearance to a mechanical air supply inlet: *6 feet

(1.8 m) minimum.

L = ** Clearance above paved sidewalk or a paved drive-

way located on public property: *7 feet (2.1 m) min.

M = Clearance under veranda, porch, deck, or balcony:

*12 inches (30 cm) minimum. 1

* As specified in CGA B14 Installation Codes. Note: Local

Codes and Regulations may require different clearances.

** A vent shall not terminate directly above a sidewalk or

driveway which is located between two single family dwellings

and serves both dwellings.*

1nly permitted if veranda, porch, deck, or balcony, is fully open

on a minimum of two sides beneath the floor.*

3

76 mm

12 

305

mm

2 1/2

64 mm

11

Fuel Conversion

he Allagash gas stove is shipped from the factory

equipped as a NA URAL GAS unit; However, the stove

is shipped with the necessary gas conversion kit to

convert the stove to burn propane gas. he kit

contains all the necessary components needed to

complete the conversion and ensure safe operation,

including Conversion Notice labels that must be

affixed to the stove and stove Rating Plate.

WARNING:

THE CONVERSION KIT IS TO BE INSTALLED

BY AN AUTHORI ED JØTUL SERVICE TECH-

NICIAN IN ACCORDANCE WITH THE

MANUFACTURERS INSTRUCTION AND ALL

CODES AND REQUIREMENTS OF THE AU-

THORITY HAVING JURISDICTION. FAILURE

TO FOLLOW THESE INSTRUCTIONS COULD

RESULT IN SERIOUS INJURY OR PROPERTY

DAMAGE. THE QUALIFIED AGENCY PER-

FORMING THIS WORK ASSUMES RESPONSI-

BILITY FOR THIS CONVERSION.

IN CANADA: HE CONVERSION SHALL BE CARRIED

OU IN ACCORDANCE WI H HE REQUIREMEN S OF

HE PROVINCIAL AU HORI IES HAVING JURISDIC-

ION AND IN ACCORDANCE WI H HE REQUIRE-

MEN S OF HE CAN1-B149.1 AND .2 INS ALLA ION

CODE.

Gas Conversion Procedure

1. urn off gas supply to the stove.

2. Open the front doors.

3. Remove the stove top plate.

4. Release the glass clips atop the stove and

slowly lift glass panel up and off of the firebox.

5. Carefully remove the logs and set out of the way.

6. Remove burner tube: Lift out the log support plate.

Using a ¼ nut driver remove the two screws secur-

ing the burner tube (17, pg. 22) to the stove bottom.

Lift out the burner tube.

7. Change the main burner orifice (32, pg 22 and Fig.

12). Using a ½ open end wrench, remove the

burner orifice and replace with the appropriate

orifice, supplied in the kit.

Natural gas - #38

Propane - 1.5 mm DMS

8. Adjust the air shutter on the burner tube to allow

for the proper mixing of air and gas. See Fig. 12.

Natural - hree-quarters OPEN.

Propane - FULL OPEN

Tools required:

 1/4 Nut driver  7/16 open end wrench

 1/2 open end wrench  orx -20 or slot head

screwdriver.

Kit Contents:

1, Regulator ower labeled for propane

3, Regulator ower screws

1, Burner Orifice (1.5 mm for LPG, #38 for NG)

1, Pilot Orifice ( #30 for LPG, #51 for NG)

1, 4 mm Hex Key

Label A - to be completed and applied to the back of

the stove.

Label B - apply to the stove Rating Plate.

IMPORTANT: SHUT OFF THE GAS

SUPPLY AT THE MAIN SUPPLY VALVE

BEFORE BEGINNING THE

CONVERSION.

I a blower is installed, be sure to

disconnect the power cord be ore

proceeding with this conversion.

Figure 12. Burner Orifice and Air Shutter. Shutter is

shown in the fully open position.

NOTE: The Air Shutter should never be set ESS

than 1/8 open.

Burner Tube Air

Shutter

Burner Orifice

12

Correct gas pressure is essential for efficient and

safe operation of the Allagash gas stove. It is impor-

tant that the correct gas pressure be established at

the time of the installation. For more details see the

Gas Pressure section of this manual.

ALWAYS REFER TO THE LIGHTING

INSTRUCTIONS ON THE INSIDE BACK

COVER OF THIS MANUAL AND ON THE

BACK OF THE RATING PLATE.

9. Change the pilot orifice. From within the firebox,

pull the spring clip back and remove the Pilot Head

from the Pilot Base. Use the 4 mm hex key to

remove the old Pilot Orifice from the base (coun-

terclockwise). See Fig. 13.

Replace with the appropriate pilot orifice.

#51 for natural gas

#30 for propane

Be certain the orifice is securely tightened.

Replace the Pilot Hood into the base.

12. Replace the Variable Regulator: Using a orx -20

screwdriver, remove the three specialty screws

from the front of the valve regulator. See Fig. 14.

13. Remove the regulator tower and the old black

gasket.

14. Ensure that the new gasket is properly positioned

and install the new variable regulator tower.

ighten screws securely. Apply the small valve

label to the valve body where it will be easily seen.

15. Reinstall the Burner ube (13, pg. 22), Air Divider

(15), Log Support (14), and Log Set. WHEN REIN-

STA ING THE BURNER TUBE, BE SURE THE TUBE

IS PU ED FORWARD IN THE MOUNTING HO ES.

SECURE WITH THE TWO 1/4 SCREWS.

16. Apply the two conversion labels to the stove and

rating plate so that they can be seen by anyone

servicing the stove.

17. Reassemble the stove, open the gas supply and

check for leaks using a 50/50 soapy water solu-

tion. NEVER USE AN OPEN F AME TO CHECK FOR

GAS EAKS.

Pilot Hood

Pilot Base

Pilot Orifice

Figure 13. Removing the ilot Hood and ilot Orifice.

Figure 14. Regulator Tower and gasket.

Screws

Regulator ower

Gasket

13

Leak test:

1. Mix a 50-50 solution of water and dish soap.

2. Light appliance- see lighting instructions on page

22 of this manual or on the stoves rating plate.

3. Brush or spray all joints and connections with the

soapy water solution.

4. If bubbles appear at any connection or seam or a

gas odor is detected immediately turn gas control

knob to the OFF position.

5. ighten or reconnect the leaking joint and retest

for any gas leaks.

Gas Pressure

Correct gas pressure is essential for efficient and

safe operation of the Allagash gas stove. It is impor-

tant that the correct pressure is established at the

time of the installation. Proper gas pressure provides

a consistent flow of gas to the appliance and is

instrumental in checking for gas leaks. he gas

control valve on the stove is equipped with pressure

test points for gauge connections. he gauge connec-

tions are located on the front of the valve under the

On/Off/Pilot- knob. See Fig. 16. Gauge connections

are identified by:

E for inlet or supply pressure ( the amount of gas

coming to the valve.)

A for manifold pressure (the amount of gas that is

coming out of the valve to the burner.)

Gas Connection

NO E: IF HE OP IONAL BLOWER KI (# 129161) IS O

BE INS ALLED ON HE S OVE A HE IME OF HE

INS ALLA ION OR IN HE FU URE, HE GAS SUPPLY

LINE SHOULD BE INS ALLED AS CLOSE O HE FLOOR

AS POSSIBLE. USE OF A 90° ELBOW DIREC LY OFF HE

VALVE O ALLOW FOR ADEQUA E CLEARANCE FOR

HE BLOWER. See Figure 15.

he gas supply line connection is made to the

valve just inside the left rear leg. he Gas supply line

should be 3/8" or 1/2" diameter, or the appropriate

size to provide sufficient gas pressure to the valve

regardless of the input setting.

he use of Flexible Gas Appliance Connectors is

acceptable in many areas in the U.S., however,

Canadian methods vary depending on local code.

ALL INS ALLA IONS MUS COMPLY WI H LOCAL

CODE OR IN HE ABSENCE OF LOCAL CODE, MUS

COMPLY WI H HE MOS RECEN EDI ION OF HE

NA IONAL FUEL GAS CODE ANSI Z223.1/NFPA 54 OR

CAN-B149. HIS APPLIANCE MUS BE INS ALLED BY A

LICENSED MAS ER OR JOURNEYMAN PLUMBER OR

GAS-FI ER WHEN INS ALLED IN HE COMMON-

WEAL H OF MASSACHUSE S.

All codes require: a gas shutoff valve (gas cock)

and union, to be installed in the supply line, and in the

same room as the appliance. his allows for the

disconnection of the stove for servicing and mainte-

nance. See Figure 15.

Secure all joints tightly using appropriate tools

and sealing compounds (for propane units be sure to

use compounds that are propane resistant). urn on

gas supply and test for gas leaks using a soapy water

solution. Never use an open flame to check for leaks.

Figure 15. Gas supply valve types and fittings.

IN ET GAS PRESSURES

(inches water column)

MIN MAX

NA URAL GAS 5.0 WC 7.0 WC

PROPANE 11.0 WC 13.5 WC

EA

Figure 16. Inlet and Manifold pressure test points.

Control Valve

14

A T-HANDLE GAS COCK IS REQUIRED IN

MASSACHUSETTS IN COMPLIANCE

WITH CODE 248 CMR.

High Altitude Adjust ent

Installation at high altitude locations (above 2500'),

makes it necessary to compensate for the thinner air

(less volume of air per cubic foot). Higher altitudes

affect the atmospheric pressure and heat value of

some gaseous fuels. he Allagash DVII requires

adjustment for Propane fuel at high altitude, but not

for Natural gas.

In the U.S.

HE DERA ING KI MUS BE INS ALLED BY AN

AU HORIZED SERVICE ECHNICIAN IN ACCORDANCE

WI H HE MANUFAC URERS INS RUC IONS AND ALL

CODES AND REQUIREMEN S OF HE AU HORI Y

HAVING JURISDIC ION. HE INFORMA ION S ICKER

MUS BE FILLED OU BY HE INS ALLER AND AD-

HERED O HE APPLIANCE A HE IME OF HE

CONVERSION. HE QUALIFIED SERVICE AGENCY

PERFORMING HIS WORK ASSUMES RESPONSIBILI Y

FOR HIS DERA ING.

For installations from 610 - 1370 meters (2000-

4500 ft.) the orifice size for natural gas is #38 and for

propane gas #54.

SEE HE HIGH AL I UDE ORIFICE CHAR ON HIS

PAGE.

See the stove Rating Plate for additional informa-

tion. For high altitude installations consult the local

gas distributor or the authority having jurisdiction for

proper rating methods. If the installer must convert

the unit to adjust for varying altitudes, the informa-

tion sticker must be filled out by the installer and

applied to the appliance at the time of the conversion.

In Canada:

his unit has been tested for installation at high

altitudes in accordance with Canadian test standard

CAN/CGA-2.17.

HE DERA ING SHALL BE CARRIED OU IN ACCOR-

DANCE WI H HE REQUIREMEN S OF HE PROVIN-

CIAL AU HORI IES HAVING JURISDIC ION AND IN

ACCORDANCE WI H HE REQUIREMEN S OF HE

CAN1-B-149.1 AND .2 INS ALLA ION CODE.

A WAYS TEST PRESSURES WITH VA VE CONTRO KNOB

SET ON HIGH.

he appliance must be isolated from the gas

supply line by closing its individual manual gas shutoff

valve (gas cock) during any pressure testing of the gas

supply piping system that is equal to or exceeds

pressures of 1/2 psig. (3.5 kPa).

Derating Procedure

o derate this unit, install the appropriate orifice per

the High Altitude chart.

1. Remove the two ¼ hex head screw that holds the

burner tube/log support to the bottom of the

stove.

2. Remove the burner tube/log support to expose the

main burner orifice.

3. Remove the orifice and replace with the appropri-

ate one from the high altitude kit.

4. Be sure to attach the high altitude conversion

sticker provided with the kit to the rating plate on

the appliance.

Figure 17. High Altitude Conversion Label. This sticker is

included in all high altitude kits and must be applied to

the stove when converted for high altitude .

HIS S OVE HAS BEEN CONVER ED FOR USE A

AN AL I UDE OF: ___________

Orifice Size: __________ Manifold Press. _____

Input Btu/Hr. _________ Fuel ype __________

Date of Conversion ___________

15

High Altitude Ori ice Chart

Elevation Fuel Part No.

0 - 2000 ft. Natural Gas #38 129130

(0 - 610 m) Propane 1.5 mm 129146

2001 - 4500 ft. Natural Gas #38 Do Not Derate

(611 - 1370 m) Propane #54 754517P

Orifice

Size

Figure 18. roper flame picture.

Log Set Installation

he Allagash is equipped a one piece log set and is

packaged in bubble wrap inside the firebox. he log

set must be removed from the packaging and

arranged in the unit prior to start up of the gas

stove. Do not handle the log set with your bare

hands. Always wear gloves to prevent skin irritation

from the ceramic fibers.

o install the log set, remove the packaging and

place the log set inside the firebox, centered from

left to right and completely against the rear wall of

the stove. See Fig. 18.

Also, the stove is shipped with a package of

Glowing Embers. hese are to be individually

sprinkled across the screen above the burner tube. It

is best to equally space these embers for optimum

flame appearance. Note: All of the embers do not

need to be used.

CON AC WI H HE CERAMIC FIBER LOGS AND

GLOWING EMBERS MAY CAUSE SKIN IRRI A ION.

SHOULD HA OCCUR, GEN LY WASH HANDS WI H

WARM SOAPY WA ER.

Air Shutter & Fla e Picture

Adjust ent

he GF3 DVII Allagash is shipped from the factory

equipped to use NA URAL GAS. If the stove is con-

verted to use Propane, it will be necessary to adjust

the air shutter on the burner tube to achieve the

proper gas to air mix. HE AIR SHU ER SHOULD BE

SE FULL OPEN FOR PROPANE USE AND HREE

QUAR ERS OPEN FOR NA URAL GAS USE.

he air shutter can also help achieve the desired

flame appearance. Generally, flame appearance is a

matter of preference, however most people enjoy a

warm, yellowish flame.

Too large a setting: he appliance will generate a

flame that is blue and transparent, or an anemic

flame.

Too small a setting: he appliance will generate

very long yellow flames resulting in soot. Sooting

produces black deposits on the logs, on the inside

walls of the appliance, and potentially on the exterior

termination cap. See Fig. 12 for reference.

Sooting is caused by incomplete combustion in

the flames and lack of combustion air entering the air

shutter opening.

To adjust the air shutter: remove the burner tube

and using a phillips head screwdriver loosen the screw

at the air shutter and adjust accordingly. Be sure to

retighten the screw that holds the air shutter setting.

Reassemble the stove and close the door, allow stove

to burn 30 minutes on the HIGH setting, observing the

flame continuously. If the flame appears weak, slow,

or sooty, repeat the process described above until the

flame is as desired.

WARNING:

AIR SHUTTER ADJUSTMENTS SHOULD

ONLY BE PERFORMED BY A QUALIFIED

PROFESSIONAL SERVICE TECHNICIAN.

16

Blower Kit Contents:

 Blower with mounting bracket

 Snapstat and Wiring Harness

 Hi/Low/Off Switch

 two 6mm bolts

Attach the Blower

1. Locate the two raised bosses on the bottom back

of the stove. See Figure 19. he blower is

mounted to the stove using these two threaded

holes.

2. With the blower bracket and snapstat facing

upward, align the two middle mounting holes on

the bracket with the two threaded holes on the

bottom back of the stove.

3. Use the two 6mm bolts to attach the blower to

the stove. Be sure to tighten the bolts so that the

blower is drawn upward and tight against the

stove bottom.

4. he snapstat (thermodisc), attached to the

blower bracket, should be inserted under the

stove bottom to make contact with the firebox!

Connect the Blower Wiring Harness

1. Lift off the stove top plate.

2. Loosen (BUT DO NOT REMOVE) the 10 mm bolt holding

the switch box to the side of the stove (left rear

corner of the stove), and lift out the switch box.

3. Remove the blank switch from the box. (Hint:

break the retaining tabs holding the switch in the

box.)

4. Insert the new HI/OFF/LO switch into the box.

5. Connect the insulated wires from the blower to

three leads on the HI/OFF/LO switch. B ACK wire

to the HI position, WHITE wire to the OFF position,

and the RED wire to the LO position. See Fig. 22.

6. Reattach the switch box to the side of the stove.

Be sure all wires are unobstructed.

7. Replace top plate.

Figure 19. Blower and gas line installation.

Blower

90° elbow installed

directly off valve to

avoid blower

Gas ine

Figure 20. Blower attachment points.

he blower will ONLY come on when the switch is in

the Hi or ow position and ON Y when the snapstat

(thermodisc) is heated by the operation of the stove.

(Approximately 10- 20 minutes after the stove has

been running).

IMPORTANT: IF THE OPTIONAL FORCED

BLOWER KIT(PART # 129161) IS TO BE

INSTALLED ON THE STOVE AT THE TIME

OF THE INSTALLATION OR IN THE

FUTURE, THE GAS SUPPLY LINE

SHOULD BE INSTALLED AS CLOSE TO

THE FLOOR AS POSSIBLE. USE OF A 90°

DIRECTLY OFF THE VALVE WILL ALLOW

FOR PROPER CLEARANCE FOR THE

BLOWER. SEE FIG. 18.

Optional Blower Installation

Figure 21. Blower position installed.

17

Optional Wall Ther ostat or

Re ote Control

When installing a wall mounted thermostat to the

Allagash it must be 750 millivolt DC two-wire circuit

thermostat. he thermostat should be placed in the

same room as the heater, typically 5 off the floor.

Avoid drafty areas or any area that may effect the

accuracy of the thermostat.

he thermostat should be connected to the

Allagash using a minimum of 16 gauge wire with a

maximum length of 35 feet of wire.

Connect the two thermostat wire leads to the two

lower terminals on the terminal block located directly

above the ignitor button. Do not overtighten the

connections. I IS NO NECESSARY O DISCONNEC

ANY O HER WIRES. See Figure 23.

For the thermostat to work the On/Off/ -Stat

switch on the back of the stove must be in the -stat

position, and the pilot light must be running, for it is

the power source for the thermostat.

At the thermostat the two wires should be

connected to the two connections screws on the

thermostat base plate per the manufacturers

instructions.

Remote Control

he remote receiver should be wired to the terminal

block the same as the thermostat. See the instruc-

tions above.

CAUTION:

LABEL ALL WIRES PRIOR TO

DISCONNECTION WHEN SERVICING

THE CONTROLS. WIRING ERRORS

CAN CAUSE IMPROPER AND

DANGEROUS OPERATION. ALWAYS

VERIFY PROPER OPERATION AFTER

SERVICING THE APPLIANCE.

Figure 22. Attaching the blower wire harness.

Snapstat

(attached to

blower bracket)

Wire Harness

Plug

BLOWER

HI/LO

SWI CH

Figure 23. Wiring Diagram / Remote or Thermostat

TERMINAL

BLOCK

VALVE

THERMOPILE ROCKER

SWITCH

ON

OFF

STAT

OPTIONAL

THERMOSTAT

or

REMOTE

CONTROL

TH

TP

TH

TP

18

Jøtul GF3 DVII Allagash User manual

Popular Gas Heater manuals by other brands
