Instruction Manual
Air Conditioning Unit
Model: EX03018 / EX03019

WARNING
1. Do not use means to accelerate the defrosting process or to clean, other
than those recommended by the manufacturer.
2. The appliance shall be stored in a room without continuously operating
ignition sources (for example: open flames, an operating gas appliance or an
operating electric heater.)
3. Do not pierce or burn.
4. Be aware that refrigerants may not contain an odour.
5. Appliance shall be installed, operated and stored in a room with a floor area
larger than 12m2.
6. Keep any required ventilation openings clear of obstruction;
7. Servicing shall be performed only as recommended by the manufacturer.
8. The appliance shall be stored in a well-ventilated area where the room size
corresponds to the room area as specified for operation.
9. Any person who is involved with working on or breaking into a refrigerant
circuit should hold a current valid certificate from an industry-accredited
assessment authority, which authorises their competence to handle
refrigerants safely in accordance with an industry recognised assessment
specification.
10. Servicing shall only be performed as recommended by the equipment
manufacturer. Maintenance and repair requiring the assistance of other skilled
personnel shall be carried out under the supervision of the person competent
in the use of flammable refrigerants.
11. All working procedure that affects safety means shall only be carried by
competent persons.

Notes:
* The air conditioning is only suitable for indoor use, and is not suitable for
other applications.
* Follow local grid interconnection rules while installing the air conditioning
and ensure that it is properly grounded. If you have any questions on
electrical installation, follow the instructions of the manufacturer, and if
necessary, ask a professional electrician to install it.
* Place the machine in a flat and dry place and keep a distance of over 50cm
between the machine and the surrounding objects or walls.
* After the air conditioning unit is installed, ensure that the power plug is intact
and firmly plugged into the power outlet, and place the power cord orderly to
prevent someone from being tripped or pulling out the plug.
* Do not put any object into the air inlet and outlet of the air conditioning. Keep
the air inlet and outlet free from obstructions.
* When drainage pipes are installed, ensure that the drainage pipes are
properly connected, and are not distorted or bent.
* While adjusting the upper and lower wind grill strips of the air outlet, please
do so gently to avoid damaging the wind grill strips.
* When moving the machine, make sure that it is in an upright position.
* The machine should stay away from gasoline, flammable gas, stoves and
other heat sources.
* Don't disassemble, overhaul and modify the machine, otherwise it will cause
a machine malfunction or even bring harm to persons and properties. To avoid
danger, if a machine failure occurs, ask the manufacturer or professionals to
repair it.
* Do not install and use the air conditioning in the bathroom or other humid
environments.

* Do not pull the plug to turn off the machine.
* Do not place cups or other objects on the body to prevent water or other
liquids from spilling into the air conditioning.
* Do not use insecticide sprays or other flammable substances near the air
conditioning.
* Do not wipe or wash the air conditioning with chemical solvents such as
gasoline and alcohol. When you need to clean the air conditioning, you must
disconnect the power supply, and clean it with a damp soft cloth. If the
machine is really dirty, scrub with a mild detergent.
* The appliance can be used by children aged from 8 years and above and
persons with reduced physical, sensory or mental capabilities if they have
been given supervision or instruction concerning use of the appliance in a
safe way and understand the hazards involved. Children shall not play with
the appliance. Cleaning and maintenance shall not be made by children
without supervision.

Features and Components
Features
Cooling, dehumidification and fan functions
Class A energy rating
Compact design
LED display control panel
Castor wheels for easy movement
Sleep mode (quiet setting)
24 hour timer
Remote control
Water full indicator
Air filtration capacity

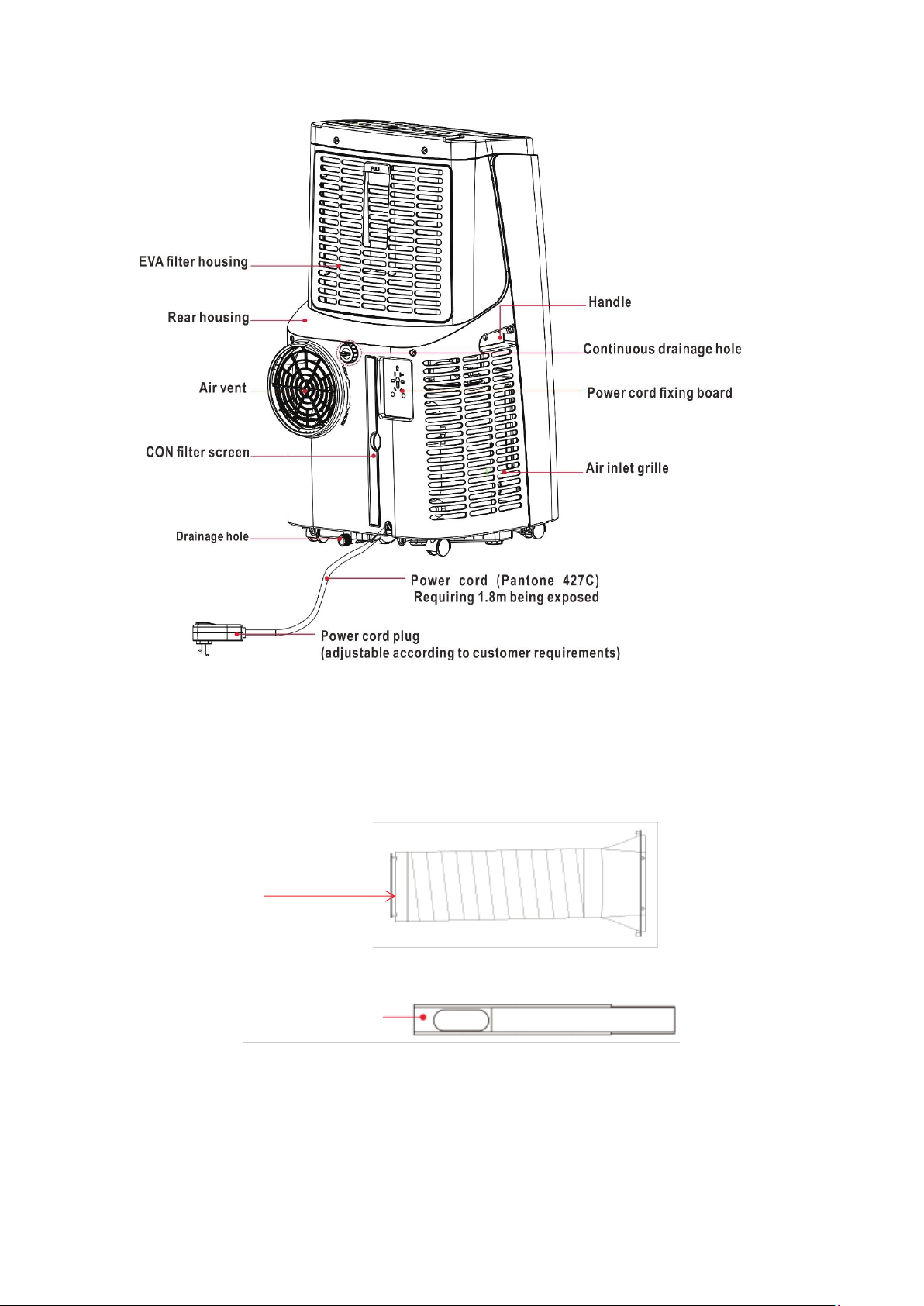

Components

Exhaust Pipe Assembly
Window Sealing Plate Assembly

Fig.3
Installation and Adjustment
Warning: before using the mobile air conditioning, keep it upright for at least
two hours.
The air conditioning unit can be easily moved in the room. When moving the
machine, please ensure that the air conditioning unit is in the upright position
and is placed on a flat surface. Do not install and use the air conditioning unit
in the bathroom or other humid environments.
1.1 Install the heat pipe assembly (as shown in Fig.1): screw the heat pipe
assembly (exhaust fitting end) into the exhaust port on the rear panel.
1.2 Install the window sealing plate assembly
1) Half open the window and mount the window sealing plate assembly to the
window (as shown in Fig.2 and Fig.3); the assembly can be placed in
horizontal and vertical direction.
2) Pull various components of the window sealing plate assembly open, adjust
their opening distance to bring both ends of the assembly into contact with the
window frame, and fix various components of the assembly.1.2 Install the
window sealing plate assembly
Fig.1
Fig.2

1.3 Install the body
1) Move the machine with installed heat pipe and fittings before the window,
and the distance between the body and walls or other objects shall be least
50 cm (as shown in Fig.4).
2) Elongate the exhaust pipe and snap the flat end of the exhaust pipe joints
into the hole of the window sealing plate assembly (as shown in Fig.5 and
Fig.6).
Notes: 1. the flat end of the exhaust pipe joints must be snapped into place.
2. The pipe cannot be distorted nor has substantial turning (greater
than 45 °). Keep the ventilation of the exhaust pipe not blocked.
Fig.4
Fig.6
Fig.5

Important Notice
The length of the exhaust hose shall be 280 - 1,500mm, and this length is
based on the specifications of the air conditioning unit. Do not use extension
tubes or replace it with other different hoses, or this may cause a malfunction.
The exhaust hose must be not blocked; otherwise it could cause overheating
or damage to the machine.
Control Panel Setting
I. Operating instructions:
Control Panel is as follows:

II. Operating Instructions of the Remote Control
The remote control panel is as follows:
Instructions of key operation of the high-quality remote control are as follows:
1. Power: press the key to turn on or turn off the machine.
2. Mode: press the key to switch between cooling, fan and
dehumidifying mode.
3. Up: press +the key to increase temperature and timing set value.
4. Down: press -the key to reduce temperature and timing set value.
5. Fan: press the key to select high, medium and low wind speed.
6. Timer: press the key to set timing value.
7. Cleaning: press the louver will swing up and down.

8. Press the key to switch between Celsius and Fahrenheit.
9. Sleep Mode: Press the key to turn on the sleep mode.
7. Sleep Mode: Press the key to turn on the sleep mode.
III. A Variety of Protection Functions
3.1 - Frost Protection Function:
In cooling, dehumidifying or economic power saving mode, if the
temperature of the exhaust pipe is too low, the machine will automatically
enter protection status; if the temperature of the exhaust pipe rises to a
certain temperature, it can automatically revert to normal operation.
3.2 - Overflow Protection Function:
When water in the water pan exceeds the warning level, the machine will
automatically sound an alarm, and the "FULL" indicator light will flash. At
this point, you need to move the drainage pipe connecting the machine or
the water outlet to sewer or other drainage area to empty the water (details
see Drainage Instructions at the end of this chapter). After the water is
emptied, the machine will automatically return to the original state.
3.3 - Automatic Defrosting (cooling models have this function):
The machine has automatic defrosting function.
3.4 - Protection Function of the Compressor
To increase the service life of the compressor, it has a 3-minute delay
booting protection function after the compressor is turned off.

Drainage Instructions
Manual drainage:
1) When the machine stops after the water is full, turn off the machine power
and unplug the power plug.
Notes: Please move the machine carefully, so as not to spill the water in the
water pan at the bottom of the body.
2) Place the water container below the side water outlet behind the body.
3) Unscrew the drainage cover and unplug the water plug, the water will
automatically flow into the water container.
Notes:
1. Keep the drainage cover and the water plug properly.
2. During drainage, the body can be tilted slightly backwards.
3. If the water container cannot hold all the water, before the water container
is full, stuff the water outlet with the water plug as soon as possible to prevent
water from flowing to the floor or the carpet.
4) When the water is discharged, stuff the water plug, and tighten the
drainage cover.
Notes: 1. Restart the machine after the water plug and drainage cover are

installed, otherwise condensate water of the machine will flow to the floor or
the carpet.
Continuous drainage (optional) (only applicable to cooling and dehumidifying
mode), as shown in figure:
1) Unscrew the drainage cover, and unplug the water plug.
2) Set the drainage pipe into the water outlet.
3) Connect the drainage pipe to the bucket.

Maintenance
Cleaning: before cleaning and maintenance, turn off the machine and unplug
the plug.
1. Clean the surface
Clean with surface of machine with a damp cloth. Don't use chemicals, such as
benzene, alcohol, gasoline, etc.; otherwise, the surface of the air conditioning will
be damaged or even the whole machine will be damaged.
2. Clean the filter screen
If the filter screen is clogged with dust, and the effectiveness of the air
conditioning will be impacted. Be sure to clean the filter screen once every two
weeks.
2.1: Clean the upper filter screen frame
1) Unscrew four screws fixing the EVA filter screen and the rear housing to
remove the EVA filter screen (as shown in the above figure) .
2) Put the EVA filter screen into warm water with neutral detergent, rinse clean
and leave to dry.
Unit Storage:
1: Unscrew the drainage cover, unplug the water plug, and discharge the water in
the water pan into other water containers or directly tilt the body to discharge the
water into other containers.

2: Turn on the machine, adjust it to low-wind ventilation mode, and maintain this
state until the drainage pipe becomes dry, so as to keep the inside of the body in
a dry state and prevent it from mildewing.
3: Turn off the machine, unplug the power plug, and wrap the power cord around
the wrapping post; install the water plug and the drainage cover.
4: Remove the exhaust pipe and keep it properly.
5: Cover the air conditioning with a plastic bag. Put the air conditioning in a dry
place, keep it out of the reach of children, and take dust control measures.
6: Remove batteries of the remote control and keep them properly.
Note: ensure that the body is placed in a dry place and keep all machine
components properly.

Troubleshooting
Do not repair or disassemble the air conditioning by yourself. Unqualified
repair will lead to failure of the warranty card, and may cause damage to
users or their properties.
Problems Reasons Solutions
The air
conditioning
does not
work.
There is no electricity. Turn it on after connecting it to a
socket with electricity.
The overflow indicator
displays "FL". Discharge the water inside.
The ambient temperature is
too low or too high
Recommend to use the machine in
at the temperature of 7-35
℃
(44-95
℉
).
In cooling mode, the room
temperature is lower than the
set temperature; in heating
mode, the room temperature
is higher than the set
temperature.
Change the set temperature.
In dehumidification mode, the
ambient temperature is low.
The machine is placed in a room
with an ambient temperature of
greater than 17
℃
(62
℉
).
The cooling
effect is not
good
There is direct sunlight. Pull the curtain.
Doors or windows are open;
there are a lot of people; or in
cooling mode, there are other
sources of heat.
Close doors and windows, and add
new air conditioning.
The filter screen is dirty. Clean or replace the filter screen.
The air inlet or outlet is
blocked. Clear obstructions.

Big Noise The air conditioning is not
placed on a flat surface.
Put the air conditioning on a flat and
hard place (to reduce noise).
compressor
does not
work.
Overheat protection starts.
Wait for 3 minutes until the
temperature is lowered, and then
restart the machine.
The remote
control does
not work.
The distance between the
machine and the remote
control is too far.
Let the remote control get close to
the air conditioning, and make sure
that the remote control directly
faces to the direction of the remote
control receiver.
The remote control is not
aligned with the direction of
the remote control receiver.
Batteries are dead.
Replace batteries.
Displays 'E1'.
The pipe temperature sensor
is abnormal.
Check the pipe temperature sensor
and related circuitry.
Displays 'E2'
The room temperature sensor
is abnormal.
Check the room temperature sensor
and related circuitry.
Note: If problems not listed in the table occur or recommended solutions do
not work, please contact the professional service organization.

Appendix
X. Addendum
Schematic diagram for air conditioning
（The specific technical parameters of the machine shall be subject to the nameplate on
the product）
Treatment: Don't put the abandoned machine with other unsorted
waste together. Such waste shall be placed separately for other
special use.
Condenser
Compressor Evaporator
Capillary

PHONE
01604 537900
WEBSITE
www.jackstonehouse.com
E-MAIL
[email protected]
ADDRESS
35 Tameside Drive
Birmingham
B35 7AG
For further
information,
additional parts
and accessories
or other queries:
SCAN FOR
WEBSITE
FOLLOW US
