Jack OA-8000 User manual

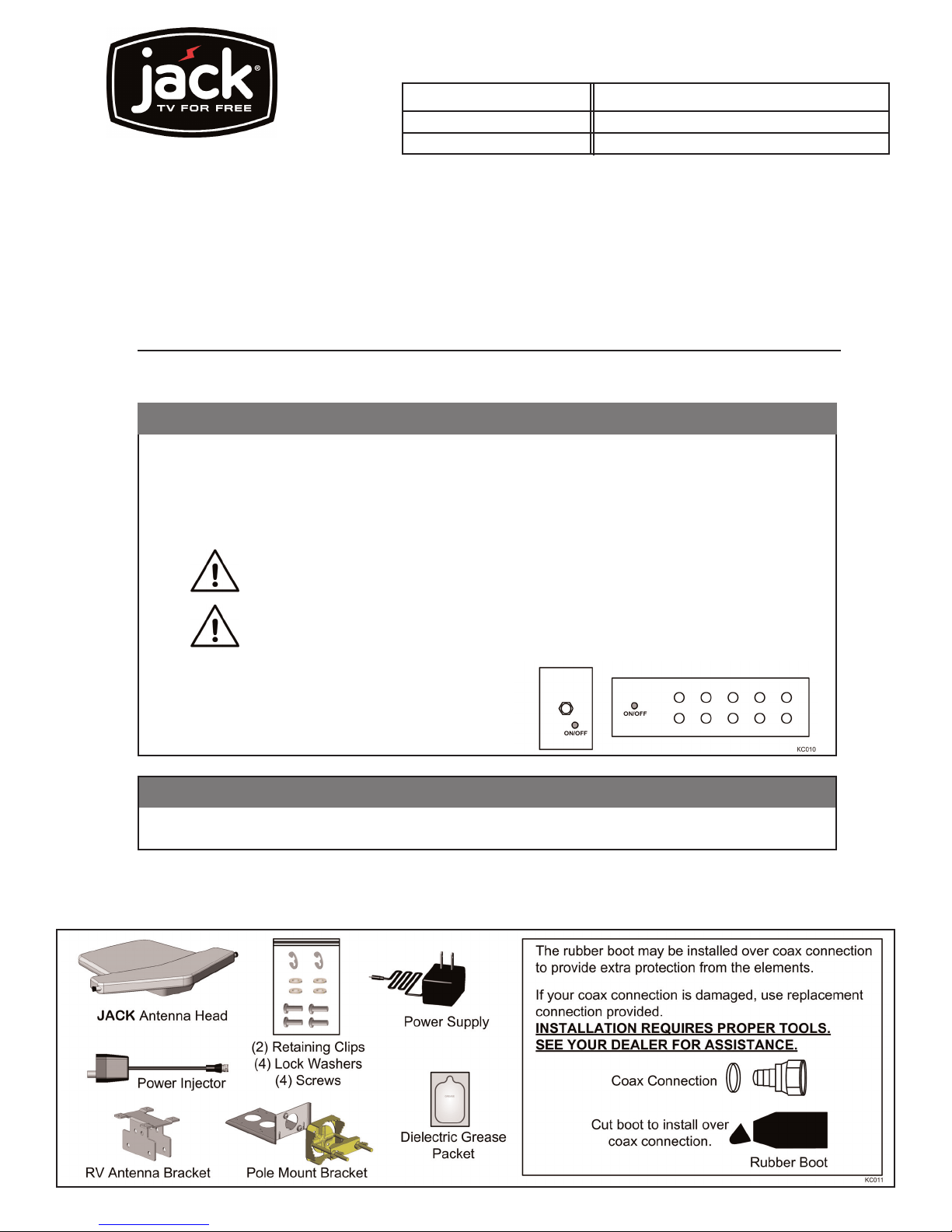

STEP 1: Verify all components and parts are included, using figure at bottom of this page.
STEP 2: Install the JACK Antenna in one of two ways (Page 2):
• RV Mounting: Mount to a Sensar®retractable arm using the supplied RV Antenna Bracket.
• Pole Mounting: Mount to a stationary pole (on a house for example) using the supplied Pole Mount
Bracket. DO NOT MOUNT TO A POLE ON A VEHICLE.
STEP 3: READ THE FOLLOWING INFORMATION CAREFULLY, THEN MAKE CONNECTIONS ON PAGE 3.
The JACK antenna is an amplified antenna that requires +12 volts power.
STEP 4: Read the OPERATING INSTRUCTIONS on page 4 for antenna pointing instructions.
VHF: 47-230 MHz Input: AC110-120V / AC220-240V
Reception Frequencies Voltage
UHF: 470-860 MHz Working: DC12V / 100mA
Page 1
VHF + UHF Amplified HDTV Antenna
Model OA-8000 & OA-8001 Installation Instructions
When replacing an existing amplified antenna that has an existing power injector, just replace
the antenna head assembly and verify that you have power to the JACK antenna when the wall
switch power injector is “ON.” A red LED light on the bottom of the JACK antenna will illuminate
when +12 volts is present and the internal amplifier is powered. Do not use both the existing
power injector and the power injector supplied with the JACK Antenna!
Using two power injectors in the circuit can cause the JACK Antenna
power supply to overheat, possibly causing injury or severe damage.
Use either the existing power injector or the JACK power injector.
WARNING: DO NOT USE BOTH POWER INJECTORS!
Verify that any existing power injector has been disconnected.
When using an existing power injector already in the RV
When using the JACK Antenna with the supplied power injector
A typical power injector for an
existing RV antenna will be a wall
plate or A/V distribution box with an
ON/OFF type switch.

Option 1: SENSAR®REPLACEMENT
1. Turn off antenna power injector at wall switch or A/V switch and raise the existing antenna.
2. Attach the RV antenna bracket to the JACK antenna with the 4 supplied sets of lock washers and screws.
3. Unscrew coax cable and remove existing Sensar®antenna (if present) from the retractable arm (keep retaining pins and clips).
Line up holes in RV antenna bracket with holes in retractable arm and re-insert pins thru assembly. Re-install retaining clips
(use new supplied retaining clips if necessary).
4. Fill end of existing coax cable with supplied dielectric grease and screw to antenna (DO NOT OVER TIGHTEN). If installing
new coax cable (sold separately), connect as stated, and then route properly thru retractable arm and into vehicle. Make
appropriate connections in vehicle.
Page 2
Option 2: POLE MOUNT BRACKET
1. Attach the L-shaped bracket to the JACK antenna with the 4 supplied sets of lock washers and screws.
2. Remove 2 existing screws and 2 existing washers from L-shaped bracket. Attach pole clamp to the L-shaped bracket with the
same screws and washers.
3. Place the clamp around an appropriate pole and tighten wing nuts.
4. Fill end of coax cable (sold separately) with supplied dielectric grease and screw to antenna (DO NOT OVER TIGHTEN).
Route coax cable and make appropriate connections.
5. Position antenna for maximum signal reception and tighten wing nuts to secure the antenna in this position.
Antenna may be mounted in either
direction in order to clear obstacles such
as AC units or roof vents.
POLE MUST BE STATIONARY -
NOT ON A VEHICLE.
This is a directional antenna and
should be rotated on the pole to
the position that provides
maximum signal reception.

Page 3
IMPORTANT!
Your RV may have more than one wall
plate. Do not use the power injector
supplied with the JACK antenna if an
existing power injector is present.
Note: Illustration purposes only. Other configurations exist.

LIMITED ONE YEAR WARRANTY
Every new JACK HDTV Antenna is covered by the following one year parts limited warranty from the date of original purchase:
• One year parts warranty: The customer is not responsible for the cost of replacement parts if the original part is determined to be defective under the terms of the warranty. The customer is responsible for the
cost of replacement parts after one year.
Should any trouble develop during the warranty period, contact King Controls. You must contact King Controls before the warranty period expires. The customer must supply proof of purchase (such as a dated sales
receipt) when requesting warranty service. If customer cannot supply proof of purchase, warranty period shall start 30 days after date of manufacture. Only King Controls will perform warranty evaluations and repairs.
If it is determined that the unit needs to be returned to King Controls, customer must return COMPLETE product, freight prepaid, to:King Controls, 11200 Hampshire Avenue South, Bloomington, MN 55438-2453.
If inspection shows the trouble is caused by defective workmanship or material, King Controls will repair (or at its option, replace) without charge.
When returning product, King Controls will supply an RMA number (Return Merchandise Authorization). This number must be clearly written on the box. Failure to clearly write RMA number on box may result in delays
in processing claim. Along with product, customer should include in the box: his/her name, address, daytime phone number, proof of purchase and description of the problem.
This warranty does not cover installation and external wiring, or remanufactured units. This warranty is not transferable from the original owner.
This warranty also does not apply where:
• The product has been abused, misused, improperly installed or improperly maintained.
• Repairs have been made or attempted by others that are not certified by King Controls to do such repairs.
• Repairs are required because of normal wear and tear.
• Alterations have been made to the product.
• The product enclosure has been opened.
• Damage has been caused by power washing.
• Supplied grease not used in the external coax connection as specified in the instructions.
• Circumstances beyond the control of King Controls cause the product to no longer operate correctly.
• Customer is not the original owner.
In no event shall King Controls be liable for any indirect, incidental, or consequential damages from the sale or use of the product. This disclaimer applies both during and after the term of the warranty.
King Controls disclaims liability for any implied warranties, including implied warranties of “merchantability” and “fitness for a specific purpose,” after the one year term of this warranty.
This warranty gives you specific legal rights, and you may also have other rights, which vary from state to state. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above
limitation or exclusion may not apply to you. Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you.
TROUBLESHOOTING
No TV reception. No power to antenna.
(Red LED on antenna head
is not lit.)
SYMPTOM POSSIBLE REASON COURSE OF ACTION
Make sure power supply is plugged into a known good 110-120 VAC source.
Check for 12 VDC at power supply output. If not present, replace power supply.
Check for 12 VDC at antenna port of power injector. If voltage is not present, replace power
injector.
If voltage is present, the coax to the antenna or the antenna is bad.
Temporarily run a known good coax from the injector to the antenna. If you now have power
(red LED lit), replace the coax. If you don’t, replace the antenna.
Antenna pointed in wrong
direction.
Perform a 4 quadrant search as shown in the operating instructions or use a
SureLockTM Signal Meter to locate TV towers.
Page 4

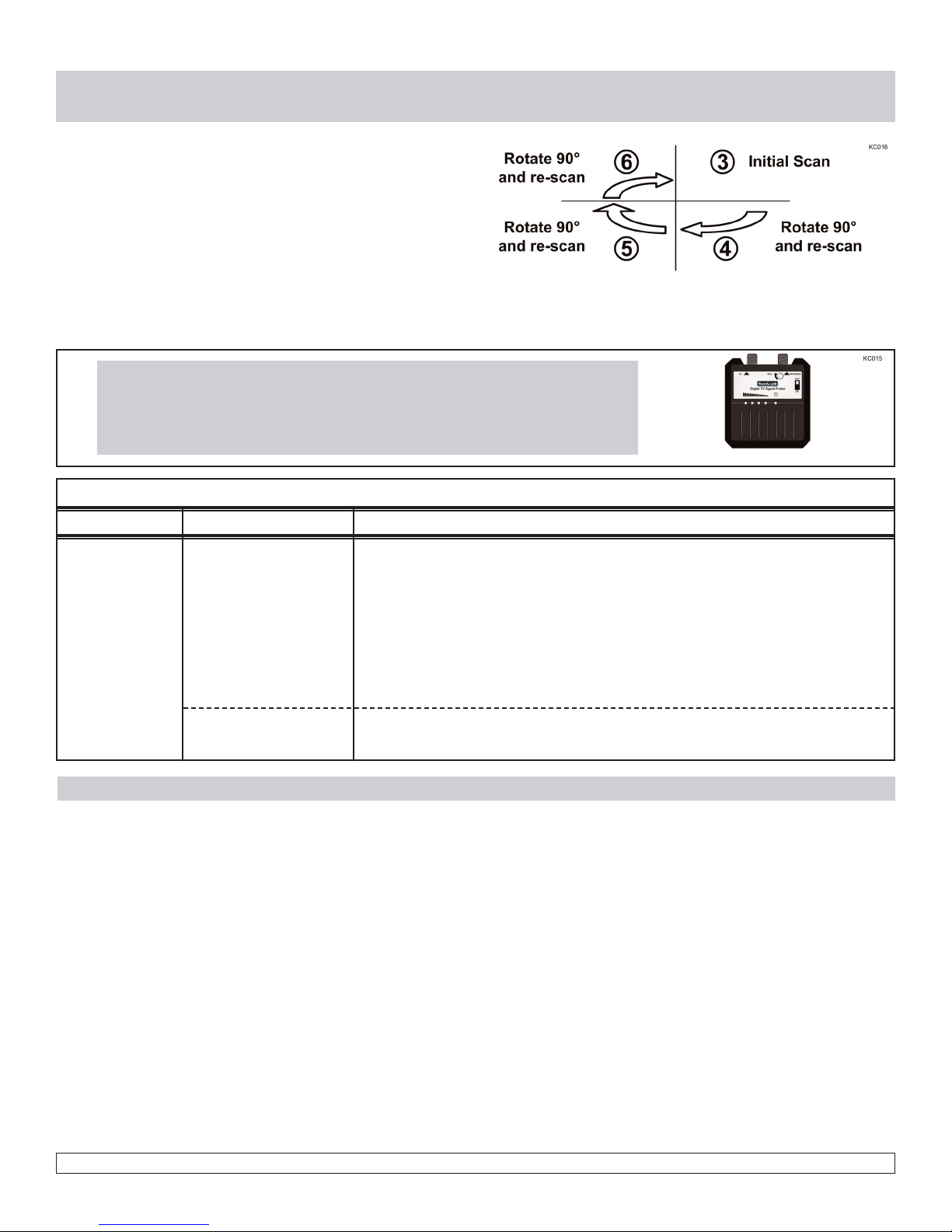

OPERATING INSTRUCTIONS - Scanning for Channels
1. Turn on TV.
2. Turn on power to JACK antenna.
3. Perform a channel scan per the digital TV or digital TV
converter box manufacturer’s instructions.
4. Rotate antenna 90 degrees. Rescan.
5. Rotate antenna 90 degrees. Rescan.
6. Rotate antenna 90 degrees. Rescan.
7. Re-position your JACK antenna to where you received the most channels. Choose one of those channels on your TV.
Now monitor the signal strength screen and fine tune the JACK until the highest signal strength is achieved.
Perform one final re-scan and watch TV!
Note: In stationary applications, you only need to scan for channels one time. In mobile applications, you will need to re-scan
each time you change locations.
SureLockTM Digital TV Signal Finder (Sold separately)
The optional SureLockTM Digital TV Signal Finder allows you to pinpoint the
location of local DTV towers and eliminate the need for multiple channel scans.
Consult your local dealer or visit www.kingcontrols.com for additional information.
SureLockTM SL1000
IMPORTANT! Do not power wash any part of the JACK antenna.
