Jacobs Ladder ROPEFIT User manual

!
!
!
!
!
!
We are sure you will be pleased with your new RopeFit. Please take a few minutes
to familiarize yourself with your new equipment by reading the information
contained in the Owners Manual. We are proud of the quality of each of our
products.
RopeFit is the first commercial rope climber providing a full chain exercise for
every athlete. Self-powered and easy to add in any gym space, the RopeFit
offers the first cleanable rope on the market with a unique two-rope system that
makes it easy to switch exercises. Plus, with five different resistance levels,
RopeFit delivers a serious workout for athletes of all fitness and strength levels.
Contact us:
Jacobs Ladder LLC
6292 Walmore Rd
Niagara Falls, NY 14304
1.866.697.4100(toll free number)
1.716.692.1780(fax)
1.716.930.1285(service)
[email protected]
[email protected]

Jacobs!Ladder!LLC!
2!
Included in your package:
RopeFit
Owners Manual
Concrete Sleeve Anchors(4)
AC Power Adapter (for recharging only)
Product Specifications
Frame: Welded Tubular Steel
Length: 45”
Width: 30.5”
Height: 96”
Weight: 285 lbs
Rope: Pliable Polymer Covered Rope
Case: ABS Plastic
Power: Self-Powered
Ceiling Height Requirement: 8.5 Feet
Digital Readouts: Elapsed Time, Resistance Level, Feet Climbed, Rate(Feet/Min)
Warranty: 4 Years Parts / 1 Year Labor
Table of Contents
Safety………………………………………………………………………….....………4
Proper Use Instructions………………………………………………………………...4
Assembly Instructions…………………………………………………………………..5
Operation…………………………………………………………………………………
Display…………………………………………………………………………....6
Maintenance…………………………………………………………………………..…
Care and Cleaning…………………………………………….…………………7
Troubleshooting……………………….…………………………………………7
Preventative Maintenance……………………………………….…...………...7
How to Obtain Service……………………………………………..……...……8
Product Warranty and Disclaimer…………………………………………..…………9
Maintenance Log………………………………………………………………………11

Jacobs!Ladder!LLC!
3!
Important Safety Information
Warning: Before beginning any fitness program you should have a complete
physical examination by your physician. Exercising on RopeFit may cause rapid
heart rate increase. If you feel faint, develop chest pain, experience severe
musculoskeletal discomfort or have difficulty breathing, terminate the exercise
session immediately and consult a physician. Failure to do so may result in serious
bodily injury or death.
Ropefit is a self-paced workout so the faster you pull, the faster you climb. You
control the intensity of the workout at your desired pace and desired resistance.
The resistance of the unit is controlled using the UP and DOWN arrows on the
display console.
Start out slowly and increase intensity and resistance carefully.
Advanced Exercise: Always read and understand Operating Instructions before
use.
Never allow small children to operate machine. Keep small children away from
machine while in operation.
Never place towels or other objects at the bottom of the machine.
Proper Use Instruction
1.) Press the START button to light the display.
2.) Use the toggle switch on the frame to select a VERTICAL PULL workout
or a HORIZONTAL PULL workout.
3.) Use the UP and DOWN arrows to control the resistance of the rope.
4.) Stop pulling the rope to stop the workout.
5.) Press the RESET button to reset the display.
The AC Adapter is only used in the event that the battery becomes
discharged. You will know that the battery needs to be charged if the display
does not come on.

Jacobs!Ladder!LLC!
4!
Assembly Instructions
Take the following steps to assemble the RopeFit
1.) Remove the packing materials from the unit.
2.) Using a ½” wrench or socket, remove the 4 bolts securing the unit to the
shipping pallet.
CAUTION: To avoid injury and ensure your safety, be sure to get the
appropriate number of people to help you move the climber to its final
location. A fully assembled RopeFit is very heavy and you might injure
yourself if you move the unit improperly.
3.) Slide the unit off the side of the pallet and on to the floor.
4.) Roll the unit on its rear transport wheels to its new location by slowly tipping the
unit back to engage the wheel. Be sure to have assistance as unit is heavy.
5.) Extend the Vertical Rope Pulley arm up and secure it in place with the BOLT
and LOCKNUT provided. You will need a ¾” wrench to tighten the locknut.
6.) Adjust the TWO leveling footpads at the rear of the unit near the transport
wheels to add stability to the unit.
7.) Install the 4 Sleeve Anchors provided in the Owners Packet to secure unit to
the floor.

Jacobs!Ladder!LLC!
5!

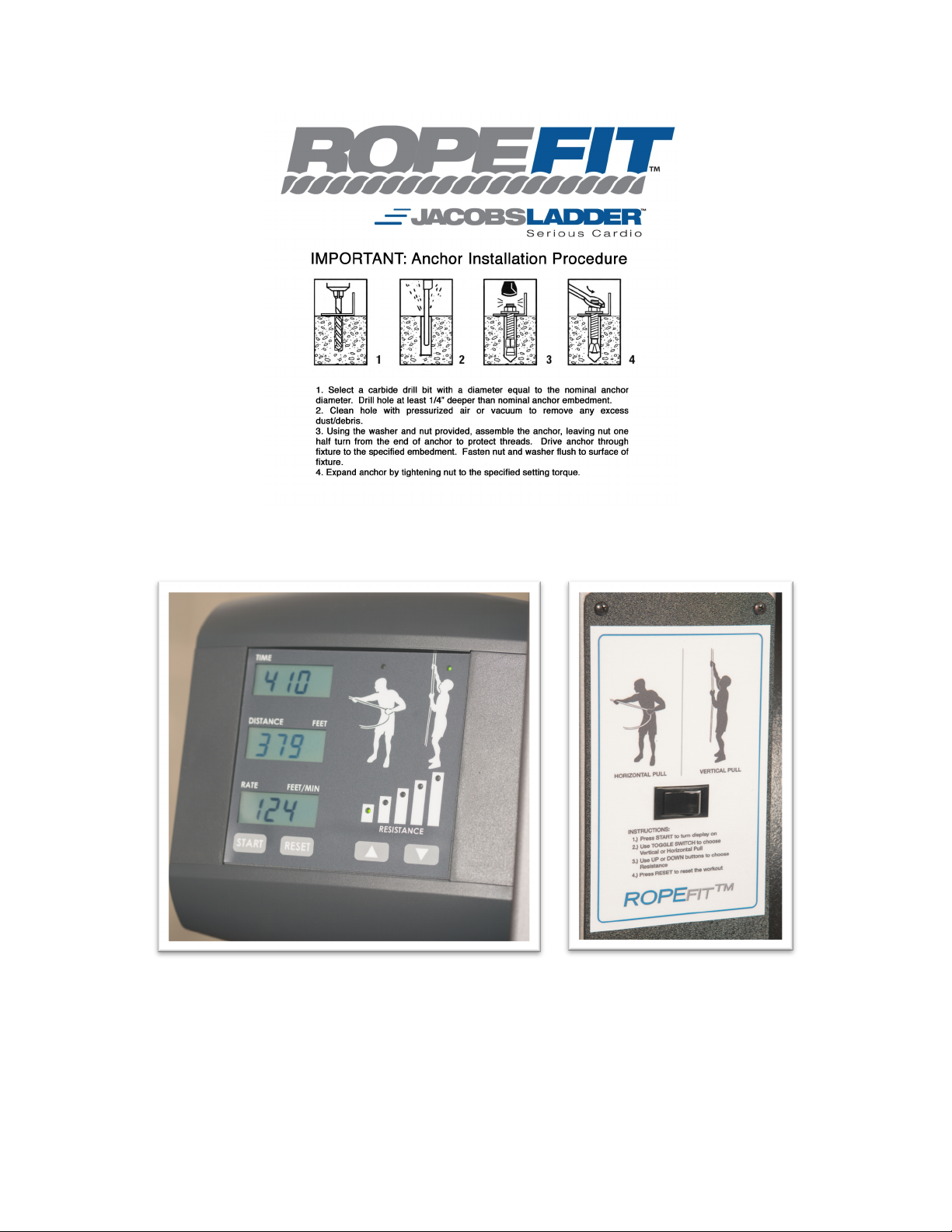

Display
1.) Press the START to turn display on
2.) Use TOGGLE SWITCH to choose Vertical or Horizontal Pull. Indicator light on
display will show which rope is currently selected
3.) Use UP or DOWN buttons to choose resistance

Jacobs!Ladder!LLC!
6!
4.) Pull the selected rope to begin workout
5.) Display will show Workout Duration, Total Distance Climbed(feet) and Current
Rate of Climb(Feet/Minute)
6.) Press Reset to reset the workout
Maintenance
Care & Cleaning
The RopeFit ropes can be cleaned using any mild household cleaner that
you use on other cardio machines.
Wipe down the display with a damp cloth.
Do not use cleaning sprays, large amounts of soap or water, abrasive or
sharp objects on the display.
Please refer to the Preventative Maintenance Section.
Troubleshooting
Problem
Possible Cause
What To Do
Horiz./Vert.
Selector
unresponsive
Low Battery Charge
Use AC Adapter provided to plug
machine in overnight
Preventative Maintenance
Operation
Frequency
Clean Ropes
After use
Re-Charge Battery
As needed

Jacobs!Ladder!LLC!
7!
How to Obtain Service
Do not attempt to service the unit yourself except for the maintenance and
diagnostic tasks described in the PREVENTATIVE MAINTENANCE section of this
manual. The unit does not contain any user-serviceable parts. For information
about the product, contact the following:
Jacobs Ladder LLC
6292 Walmore Rd
Niagara Falls, NY 14304
USA
Tel: [phone]
Fax: [phone]
Email: [email protected]
To help customer service expedite your call, have the serial number of your
unit readily available as well as Customer information and an accurate description
of the state of the unit. The serial number is located on the users right side of the
unit near the ac adapter port.

Jacobs!Ladder!LLC!
8!
Product Warranty
4 YEARS ON ALL PARTS; 1 YEAR ON LABOR FROM THE DATE OF PURCHASER INVOICE.
JACOBS LADDER LLC EXPRESSLY WARRANTS ALL NEW PRODUCTS TO BE FREE FROM
DEFECTS IN MATERIALS AND MANUFACTURE FOR THE WARRANTY PERIODS SET FORTH
ABOVE. THE WARRANTY PERIODS COMMENCE ON THE INVOICE DATE ON THE ORIGINAL
PURCHASE. THIS WARRANTY APPLIES ONLY AGAINST DEFECTS DISCOVERED WITHIN
THE WARRANTY PERIOD AND EXTENDS ONLY TO THE ORIGINAL PURCHASER OF THE
PRODUCT. ONLY PARTS, REPAIRS, MODIFICATION AND/OR MAINTENANCE SUPPLIED BY
JACOBS LADDER LLC REPRESENTATIVE, UNDER THE TERMS OF THIS WARRANTY, WILL
BE WARRANTED FOR THE REMAINDER OF THE ORIGINAL WARRANTY PERIOD. TO
PROCESS A CLAIM UNDER THIS WARRANTY, THE PURCHASER MUST NOTIFY JACOBS
LADDER LLC IN WRITING OR BY FAX WITHIN 30 DAYS AFTER THE DISCOVERY OF THE
ALLEGED DEFECT AND MAKE THE PRODUCT AVAILABLE FOR INSPECTION BY A JACOBS
LADDER LLC REPRESENTATIVE. FAILURE TO TIMELY AND PROPERLY NOTIFY JACOBS
LADDER LLC IN WRITING OR BY FAX WILL RESULT IN NULLIFICATION OF THIS WARRANTY.
ANY PARTS, REPAIRS, MODIFICATION AND/OR MAINTENANCE SUPPLIED BY A NON-
JACOBS LADDER REPRESENTATIVE VOIDS THE ENTIRE WARRANTY FOR THIS EXERCISE
MACHINE.
NO OTHER EXPRESS WARRANTY IS GIVEN WITH THE PURCHASE ORDER AND JACOBS
LADDER LLC DISCLAIMS ANY AUTHORITY FOR ANY EMPLOYEE TO PROVIDE OR MAKE
ANY OTHER WARRANTY OF ANY KIND WHETHER IN WRITING OR ORALLY.
This warranty is valid only in accordance with the conditions set forth below:
1. The warranty applies to the Jacobs Ladder LLC product only while
a. Title and possession remain in the original purchaser and proof of purchase is demonstrated,
b. It has not been subjected to casualty, misuse, abuse, service or modification performed and not
authorized by Jacobs Ladder LLC representative,
c. Claims are made timely and properly within the warranty period by written notice or fax (30 days
notice).
2. This warranty does not cover damage or equipment failure caused by any type of electrical surge
and/or failure to adhere Jacobs Ladder LLC Operating Instructions and Care and Cleaning
Instructions.
3. Except in Canada, Jacobs Ladder LLC does not pay labor outside of the United States.
4. Warranties outside the United States and Canada may vary. Please contact your local Dealer
for details
This limited warranty shall not apply to:
1. Software version upgrades
2. Cosmetic items, including, but not limited to the following: transport wheels, seats, and labels.
3. Repairs performed on Jacobs Ladder LLC equipment missing a serial number or with a serial
tag that has been altered or defaced.
4. Service calls to correct installation of the equipment or instruct the owners on how to use the
equipment
5. Pickup, delivery, or freight charges involved with repairs
6. Any labor costs incurred beyond the applicable labor warranty period.

Jacobs!Ladder!LLC!
9!
DISCLAIMER:
The express warranties provided herein are the exclusive warranties given by Jacobs Ladder LLC
and supersede any prior, contrary or additional representation/warranties, written or oral. ANY
IMPLIED WARRANTIES, INCLUDING THE WARRANTY OF MERCHANTABILITY AND/OR
FITNESS FOR A PARTICULAR PURPOSE THAT APPLY TO ANY PARTS DESCRIBED ABOVE
ARE LIMITED IN DURATION TO THE PERIODS OF EXPRESS WARRANTIES GIVEN ABOVE
FOR THOSE SAME PARTS. JACOBS LADDER HEREBY DISCLAIMS AND EXCLUDES THOSE
WARRANTIES THEREAFTER. SOME STATES DO NOT ALLOW LIMITATION ON HOW LONG
AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU.
JACOBS LADDER LLC ALSO HEREBY DISCLAIMS AND EXCLUDES ALL OTHER
OBLIGATIONS OR LIABILITIES, EXPRESS OR IMPLIED ARISING BY LAW OR OTHERWISE
WITH REGARD TO ANY NONCONFORMANCE OR DEFECT IN ANY PRODUCT, INCLUDING
BUT NOT LIMITED TO: (A) ANY OBLIGATION, LIABILITY, RIGHT, CLAIM, OR REMEDY IN
TORT, WHETHER OR NOT ARISING FROM THE NEGLIGENCE OF JACOBS LADDER LLC OR
ITS SUPPLIERS (WHETHER ACTIVE, PASSIVE OR IMPUTED) AND (B) ANY OBLIGATION,
LIABILITY, RIGHT, CLAIM OR REMEDY FOR LOSS OF OR DAMAGE TO ANY EQUIPMENT.
THIS DISCLAIMER AND RELEASE SHALL APPLY EVEN IF THE EXPRESS WARRANTY SET
FORTH ABOVE FAILS IN ITS ESSENTIAL PURPOSE.
JACOBS LADDER LLC DISCLAIMS AND DOES NOT PROVIDE ANY EXPRESS WARRANTIES
OR IMPLIED WARRANTIES OF MERCHANTABILITY AND/OR WARRANTY OF FITNESS FOR
A PARTICULAR PURPOSE of the Power Supply Cord.
EXCLUSIVE REMEDIES:
For any product described above that fails to conform to its warranty, Jacobs Ladder LLC
Representative will exclusively provide repairs provided the equipment has not been subject to
casualty, misuse, abuse, service or modification performed and not authorized by Jacobs Ladder
LLC representative. Service must be obtained by calling Jacobs Ladder LLC at
1 [phone]. THESE SHALL BE THE SOLE AND EXCLUSIVE REMEDIES OF THE BUYER
FOR ANY BREACH OF WARRANTY.
JACOBS LADDER LLC AND/OR ITS SUPPLIERS SHALL HAVE NO OBLIGATION OR LIABILITY,
WHETHER ARISING IN CONTRACT (INCLUDING WARRANTY), TORT (INCLUDING ACTIVE,
PASSIVE, OR IMPUTED NEGLIGENCE AND STRICT LIABILITY), OR OTHERWISE, FOR
DAMAGE TO THE EQUIPMENT, PROPERTY DAMAGE, LOSS OF USE, REVENUE OR PROFIT,
COST OF CAPITAL, COST OF SUBSTITUTE EQUIPMENT, ADDITIONAL COSTS INCURRED
BY BUYER (BY WAY OF CORRECTION OR OTHERWISE) OR ANY OTHER INCIDENTAL,
SPECIAL, INDIRECT, OR CONSEQUENTIAL DAMAGES, WHETHER RESULTING FROM
NONDELIVERY OR FROM THE USE, MISUSE OR INABILITY TO USE THE PRODUCT. THIS
EXCLUSION APPLIES EVEN IF THE ABOVE WARRANTY FAILS OF ITS ESSENTIAL PURPOSE
AND REGARDLESS OF WHETHER SUCH DAMAGES ARE SOUGHT FOR BREACH OF
WARRANTY, BREACH OF CONTRACT, NEGLIGENCE, OR STRICT LIABILITY IN TORT OR
UNDER ANY OTHER LEGAL THEORY.

Jacobs!Ladder!LLC!
10!
Maintenance Log
Date
Procedure
Notes
