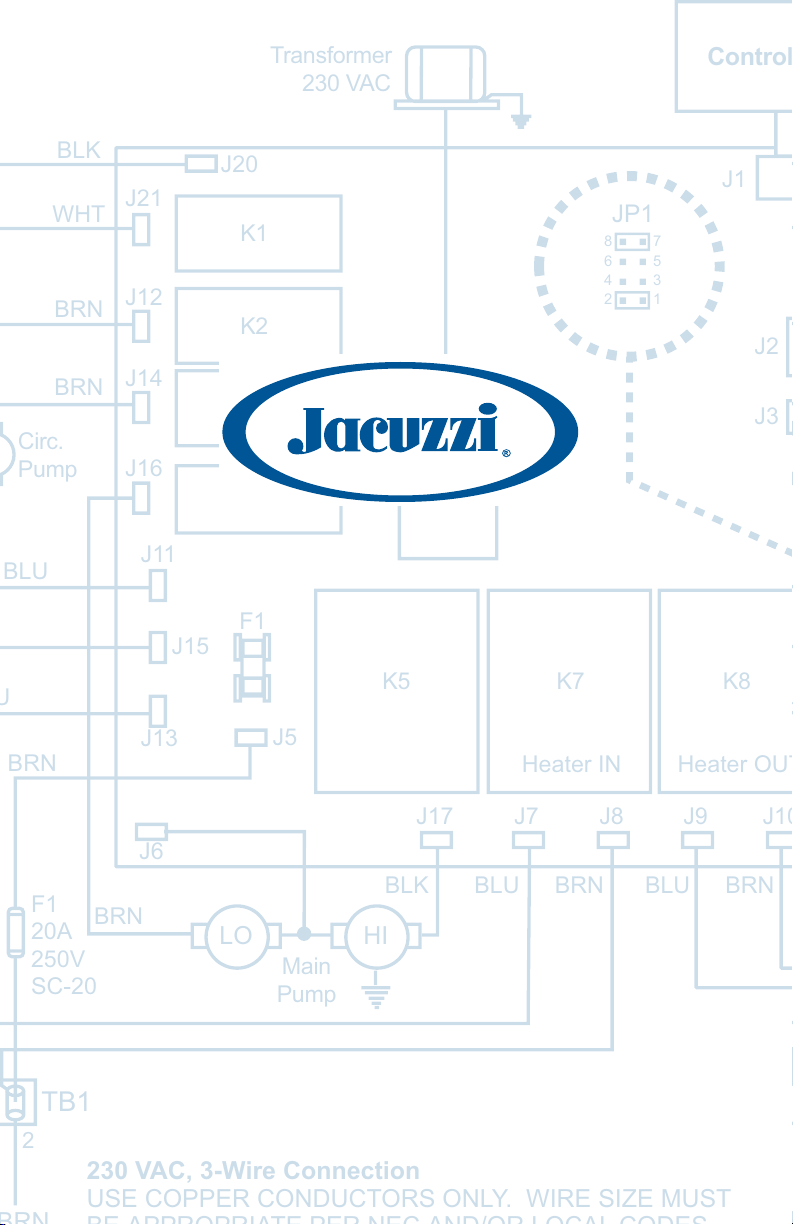

Jacuzzi Premium J-315 User manual

Ozonator
O3
TB1
230 VAC, 3-Wire Connection
USE COPPER CONDUCTORS ONLY. WIRE SIZE MUST
BE APPROPRIATE PER NEC AND/OR LOCAL CODES
21
Flow Switch
Hi-limit/Freeze Sensor
Temperature Sensor
J2
J3
F1
20A
250V
SC-20
Circ.
Pump
Main
Pump
Spa
Light
Transformer
230 VAC
J4
HILO
GRN
Logic Jumper Settings
All Export 50 Hz Models:
JP1 1-2 ON = 20A Logic*
JP1 1-2 OFF = 30A Logic
*Factory Jumper Setting
Temp. Jumper Settings (All Models):
JP1 7-8 ON = Celsius Temp Display
JP1 7-8 OFF = Fahrenheit Temp Display
BLU BRN
JP1
4
2
3
1
6 5
8 7
Heater Specifications
• Export 50 Hz Model:
2.7 kW @ 230 VAC
J20
J21
J12
J14
J16
J11
J15
J13
J17 J7 J8 J9 J10
J5
J6
Heater IN Heater OUT
F1
K1
K2
K3
K4
K5 K7 K8
BLK
WHT
BRN
BRN
BLU
BLU
BLU
BRN
BRN
BLK BLU BRN BLU BRN
J1
Control Panel
LED Series Hot Tub Owner’s Manual
J-315, J-325, J-335, J-345 Models
6530-377, Rev. A

Attention New Spa Owner!
Congratulations on the purchase of your new Jacuzzi® spa! The following is a list
of automated functions performed by your spa. These functions are listed below
in an attempt to suppress any operational concerns you may have during the rst
24-hours of ownership! Also listed below are important maintenance recommen-
dations you should observe on a regular basis to protect your new investment.
Automated Operations
Approximately two minutes after power is applied to the spa, the rst skimming/
heating cycle turns on pump 1. In J-335 and J-345 models, an automatic ve
minute “blow-out” function also activates pump 2 for a period of ve minutes to
ush all lines. Then, after ve minutes, pump 2 turns off and pump 1 continues
to operate for the duration of the cycle. Note: this function only occurs during the
rst ltration/heating cycle each day.
Maintain Healthy Spa Water
Always maintain your spa’s water chemistry within the following parameters as
dened by the Association of Pool And Spa Professionals/USA:
Always maintain your spas lter as outlined below to ensure healthy spa water.
Refer to page 33 “Water Quality Maintenance” for additional information.
Required Filter Maintenance
Your new spa is equipped with an advanced water ltration system that provides
unsurpassed water quality! To ensure maximum water quality at all times, you
should clean the lter cartridge every three months, or earlier as necessary. See
page 27-29 for detailed lter cartridge cleaning/replacement instructions.
Required Water Replacement
You should replace the spa’s water every 3 months. The frequency
depends on a number of variables including frequency of use, number of users,
and attention paid to water quality maintenance. You will know it is time for a
change when you cannot control sudsing and/or you can no longer get the normal
feel or sparkle to the water, even though the key water balance measurements
are all within the proper parameters. See page 33 for additional information.
pH 7.2 - 7.4
Free Chlorine 3-5 ppm
Free Bromine 4-6 ppm
Total Alkalinity 100-120 ppm
Calcium Hardness 150-250 ppm

Table of Contents
1.0 Important Spa Owner Information.................................. 1
2.0 Important Safety Instructions......................................... 2
3.0 Choosing A Location....................................................... 7
3.1 Outdoor Location ............................................................... 7
3.2 Indoor Location .................................................................. 8
4.0 General Electrical Safety Instructions........................... 8
5.0 Power Requirements ....................................................... 9
6.0 Electrical Wiring Instructions ....................................... 11
7.0 Spa Fill Up Procedure ................................................... 13
8.0 Control Functions .......................................................... 18
8.1 Control Panel ................................................................... 18
8.2 Spa Features And Controls.............................................. 19
8.3 Jet/Air Controls Diagram (J-315 & J-325)........................ 20
8.4 Jet/Air Controls Diagram (J-335 & J-345)........................ 21
9.0 Operating Instructions .................................................. 22
9.1 Setting Water Temperature .............................................. 22
9.2 Activate Pumps ................................................................ 22
9.3 Light Button...................................................................... 22
9.4 Selecting Desired Massage Action .................................. 23
9.5 Adjusting Individual Jet Flow ........................................... 23
9.6 Adjusting PowerPro Jets.................................................. 23
9.7 Waterfall Feature ............................................................. 24
9.8 Air Controls ...................................................................... 24
9.9 Optional Jacuzzi Audio System ....................................... 24
10.0 Automatic Filtration Cycles .......................................... 25
10.1 Standard Skimming/Heating Modes ................................ 25
10.2 Economy Skimming/Heating Modes................................ 25
10.3 Lock Modes...................................................................... 25
10.4 Selecting The Skimmer/Heating Mode ............................ 26
11.0 Spa Maintenance............................................................ 27
11.1 Cleaning The Filters......................................................... 27
11.2 Draining And Refilling ...................................................... 29
11.3 Cleaning The Spa Interior................................................ 30
11.4 Pillow Care....................................................................... 31
11.5 Maintaining The Cover..................................................... 31
11.6 Maintaining The Synthetic Cabinet.................................. 31

11.7 Winterizing ....................................................................... 32
11.8 Restarting Your Spa in Cold Weather.............................. 33
12.0 Water Quality Maintenance ........................................... 33
12.1 pH Control........................................................................ 33
12.2 Sanitizing ......................................................................... 34
12.3 Optional CD Ozone Water Maintenance System ............ 34
13.0 Error Conditions/Error Messages ................................ 34
13.1 Summer Logic.................................................................. 34
13.2 Overheat Condition .......................................................... 35
13.3 Panel Displays (SN1)....................................................... 35
13.4 Panel Displays (SN2)....................................................... 35
13.5 Panel Displays (FL1 or FL2)............................................ 35
13.6 Panel Displays (COL) ...................................................... 36
13.7 Panel Displays (ICE)........................................................ 36
13.8 Panel Displays (- - -)........................................................ 36
14.0 Troubleshooting Procedures ........................................ 36
14.1 None Of The Components Operate................................. 37
14.2 Pump Does Not Operate but Light Does......................... 37
14.3 Poor Jet Action................................................................. 37
14.4 Water Is Too Hot .............................................................. 38
14.5 No Heat............................................................................ 38
15.0 J-315 Convertible Circuit Diagram (60Hz) ..................... 39
16.0 J-325/J-335/J-345 Circuit Diagram (60Hz)...................... 40
17.0 J-315 Export Circuit Diagram (50Hz) ............................. 41
18.0 J-325/J-335/J-345 Export Circuit Diagram (50Hz) ......... 42
19.0 Optional Stereo Receiver Functions.............................. 43

Page 1
1.0 Important Spa Owner Information
Your Jacuzzi® spa is constructed to the highest standards and is capa-
ble of providing many years of trouble-free use. However, because heat
retentive materials are utilized to insulate the spa for efficient opera-
tion, an uncovered spa surface directly exposed to sunlight and high
temperatures for an extended period is subject to permanent damage.
Damage caused by exposing the spa to this abuse is not covered by
warranty. We recommend that you always keep the spa full of water
when it is exposed to direct sunlight and that you keep the Jacuzzi insu-
lating cover in place at all times when the spa is not in use. Read and
carefully follow the requirements for your spa’s support base found in
the section 3.0 titled, “Choosing A Location” (page 7) or as prescribed
by your authorized Jacuzzi dealer.
Jacuzzi spas constantly strives to offer the finest spas available,
therefore, modifications and enhancements may be made which
affect the specifications, illustrations and/or instructions contained
herein.
FCC Notice
This equipment has been tested and found to comply with the limits for
a Class B Digital Device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used
in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be deter-
mined by turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following measures:
1. Rearrange or relocate the receiving antenna;
2. Increase the separation between the equipment and receiver;
3. Connect the equipment into an outlet on a circuit different from the
circuit connected;
4. Consult the dealer or an experienced radio/TV technician for help.
(Changes or modifications not expressly approved by the party
responsible for FCC compliance could void the user’s authority to
operate this equipment.)

Page 2
2.0 IMPORTANT SAFETY INSTRUCTIONS
READ AND FOLLOW ALL INSTRUCTIONS CAREFULLY
When installing and using this electrical equipment, basic safety precau-
tions should always be followed, including:
1. WARNING: To reduce the risk of injury, do not permit children to use
this product unless they are closely supervised at all times.
2. WARNING: A grounding wire connector is provided on this unit to
connect a minimum No. 8 AWG (8.4mm2) solid copper conduc-
tor between this unit and any metal equipment, metal enclosures
of electrical equipment, metal water pipe, or conduit within 5 feet
(1.5m) of the unit.
3. DANGER: Risk of Accidental Drowning. Extreme caution must be
exercised to prevent unauthorized access by children. To avoid
accidents, ensure that children cannot use this spa unless they are
supervised at all times.
4. DANGER: Risk of Injury. The suction fittings in this spa are sized to
match the specific water flow created by the pump. Should the need
arise to replace the suction fittings or the pump, be sure that the
flow rates are compatible. Never operate the spa if the suction fit-
tings are broken or missing. Never replace a suction fitting with one
rated less than the flow rate marked on the original suction fitting.
5. DANGER: Risk of Electric Shock. Install at least 5 feet (1.5m), from
all metal surfaces. As an alternative, a spa may be installed within
5 feet of metal surfaces if each metal surface is permanently con-
nected (bonded) by a minimum No. 8 AWG (8.4 mm2) solid copper
conductor attached to the wire connector on the grounding lug,
inside the equipment compartment on the equipment box.
6. DANGER: Risk of Electric Shock. Do not permit any electrical appli-
ance, such as a light, telephone, radio, television, etc. within 5 feet
(1.5m) of a spa unless such appliances are built-in by the manufac-
turer.
7. ELECTRICAL SUPPLY: The electrical supply for this product
must include a suitably rated switch or circuit breaker to open all
ungrounded supply conductors to comply with section 422-20 of the

Page 3
National Electrical Code/USA, ANSI/NFPA 70. The disconnect must
be readily accessible and visible to the spa occupant but installed at
least 5 feet (1.5m), from the spa water.
8. WARNING: To Reduce the Risk of Injury:
9. The water in the spa should never exceed 104°F (40°C). Water
temperatures between 100°F (38°C) and 104°F (40°C) are consid-
ered safe for a healthy adult. Lower water temperatures are recom-
mended for young children and when spa use may exceed 10 min-
utes.
10. Since excessive water temperatures have a high potential for caus-
ing fetal damage during the early months of pregnancy, pregnant or
possibly pregnant women should limit spa water temperatures to
100°F (38°C). If pregnant, please consult your physician before
using a spa.
11. Before entering the spa, the user should measure the water
temperature with an accurate thermometer since the tolerance of
water temperature-regulating devices may vary as much as +/- 5°F
(2°C).
12. The use of alcohol, drugs, or medication before or during spa use
may lead to unconsciousness with the possibility of drowning.
13. Persons suffering from obesity or a medical history of heart disease,
low or high blood pressure, circulatory system problems, diabetes,
infectious diseases or immune deficiency syndromes should consult
a physician before using a spa. If you experience breathing dif-
ficulties in association with using or operating your spa, discontinue
use and consult your physician.
14. Persons using medication should consult a physician before using
a spa since some medication may induce drowsiness, while other
medication may affect heart rate, blood pressure, and circulation.
15. Always shower before and after using your spa. To reduce the pos-
sibility of contracting a waterborne illness, always maintain water
chemistry within the parameters listed on the inside cover of this
manual. If you or other bathers experience such a condition, dis-
continue use and seek medical attention.

Page 4
IMPORTANT CSA SAFETY INSTRUCTIONS (CANADA ONLY)
When using this electrical equipment, basic safety precautions should
always be followed, including the following:
1. READ AND FOLLOW ALL INSTRUCTIONS.
2. A green colored terminal or a terminal marked G, Gr, Ground,
Grounding or the symbol* is located inside the supply terminal
box or compartment. To reduce the risk of electric shock, this
terminal must be connected to the grounding means provided in the
electric supply service panel with a continuous copper wire equiva-
lent in size to the circuit conductors that supply this equipment.
*IEC Publication 417, Symbol 5019.
3. At least two lugs marked “Bonding Lugs” are provided on the exter-
nal surface or on the inside of the supply terminal box/compartment.
To reduce the risk of electric shock, connect the local common
bonding grid in the area of the spa to these terminals with an insu-
lated or bare copper conductor not smaller than No. 6 AWG.
4. All field installed metal components such as rails, ladders, drains
or other similar hardware within 10 feet (3m) of the spa shall be
bonded to the equipment grounding buss with copper conductors
not smaller than No. 6 AWG.
5. SAVE THESE INSTRUCTIONS.
WARNING: Children should not use spas without adult supervision.
WARNING: Do not use spas unless all suction guards are installed to
prevent body and hair entrapment.
WARNING: People with infectious diseases should not use a spa.
WARNING: To avoid injury, exercise care when entering or exiting the
spa.
WARNING: Do not use drugs or alcohol before or during the use of a
spa to avoid unconsciousness and possible drowning.
WARNING: Pregnant or possibly pregnant women should consult a
physician before using a spa.

Page 5
WARNING: Water temperature in excess of 40°C (104°F) may be injuri-
ous to your health.
WARNING: Before entering the spa, measure the water temperature
with an accurate thermometer.
WARNING: Do not use a spa immediately following strenuous exercise.
WARNING: Prolonged immersion in a spa may be injurious to your
health.
WARNING: Do not permit electric appliances (such as lights, telephone,
radio, television, etc.) within 5 feet (1.5m) of this spa unless such appli-
ances are built-in by the manufacturer.
CAUTION: Maintain water chemistry in accordance with manufacturer’s
instructions.
WARNING: The use of alcohol or drugs can greatly increase the risk of
fatal hyperthermia in spas.
SAVE THESE INSTRUCTIONS
HYPERTHERMIA
Prolonged immersion in hot water may induce hyperthermia. A descrip-
tion of the causes, symptoms, and effects of hyperthermia are as fol-
lows:
Hyperthermia occurs when the internal temperature of the body reaches
a level several degrees above the normal body temperature of 98.6°F
(37°C). The symptoms of hyperthermia include drowsiness, lethargy,
and an increase in the internal temperature of the body. The effects of
hyperthermia include:
1. Unawareness of impending hazard;
2. Failure to perceive heat;
3. Failure to recognize the need to exit spa;
4. Physical inability to exit spa;
5. Fetal damage in pregnant women; and
6. Unconsciousness and danger of drowning.

Page 6
A warning sign is provided in your warranty packet. Please
install it at a location near your spa, where it is visible to the
user of the spa. For additional or replacement signs please con-
tact your local Jacuzzi dealer and reference item number #6530-
082.
CAUTIONS
1. Persons suffering from heart disease, diabetes, high or low blood
pressure, and any condition requiring medical treatment, pregnant
women, the elderly, or infants should consult with a physician before
using a spa.
2. The Consumer Products Safety Commission/USA has stated that
the water temperature in a spa should not exceed 104°F (40°C).
Immersion in water in excess of 104°F (40°C) can be hazardous to
your health.
3. Observe a reasonable time limit when using the spa. Long expo-
sures at higher temperatures can cause high body temperature.
Symptoms may include dizziness, nausea, fainting, drowsiness, and
reduced awareness. These effects could possibly result in drown-
ing.
4. Do not use the spa under the influence of alcohol, narcotics, or
other drugs. Use of the spa under these conditions may lead to seri-
ous consequences.
5. Always test the spa water temperature before entering the spa.
Enter and exit the spa slowly. Wet surfaces can be very slippery.
6. Never bring any electrical appliances into or near the spa. Never
operate any electrical appliances from inside the spa or when you
are wet unless such appliances are built-in by the manufacturer.
7. Proper chemical maintenance of spa water is necessary to
maintain safe water and prevent possible damage to spa
components.
8. Use the straps and clip tie downs to secure the cover when not in
use. This will help to discourage unsupervised children from enter-
ing the spa and keep the spa cover secure in high-wind conditions.
There is no representation that the cover, clip tie-downs, or actual
locks will prevent access to the spa.

Page 7
3.0 Choosing A Location
IMPORTANT: Because of the combined weight of the spa, water and
users, it is extremely important that the base upon which the spa rests
be smooth, flat, level and capable of uniformly supporting this weight,
without shifting or settling, for the entire time the spa is in place. If the
spa is placed on a surface which does not meet these requirements,
damage to the skirt and/or the spa shell may result. Damage caused by
improper support is not covered under the manufacturers warranty. It is
the responsibility of the spa owner to assure the integrity of the support
over time.
We recommend a poured, reinforced concrete slab with a minimum
thickness of 4 inches (10cm). Wood decking is also acceptable provided
it is constructed so that it meets the requirements outlined above. The
spa must be installed in such a manner as to provide drainage away
from the spa. Placing the spa in a depression without provisions for
proper drainage could allow rain, overflow and other casual water to
flood the equipment and create a wet condition in which it would sit.
For spas which will be recessed into a floor or deck, install so as to
permit access to the equipment, either from above or below, for servic-
ing. Make certain that there are no obstructions which would prevent
removal of the cabinet side panels and access to the jets components,
especially on the side with the equipment bay doors.
3.1 Outdoor Location
In selecting the ideal outdoor location for your spa, we suggest that you
take into consideration:
1. The proximity to changing area and shelter (especially in colder
weather).
2. The pathway to and from your spa (this should be free of debris so
that dirt and leaves are not easily tracked into the spa).
3. The closeness to trees and shrubbery (remember that leaves and
birds could create extra work in keeping the spa clean).
4. A sheltered environment (less wind and weather exposure can
result in lowered operation and maintenance costs).
5. The overall enhancement of your environment. It is preferable not
to place the spa under an unguttered roof overhang since run-off
water will shorten the life expectancy of the spa cover.

Page 8
3.2 Indoor Location
For indoor installations, be certain to make provisions for proper ven-
tilation. When the spa is in use, considerable amounts of moisture will
escape. This can damage certain surfaces over time. If you have any
questions regarding the placement or installation of your spa, consult
your authorized Jacuzzi dealer.
WARNING: In addition to maintenance of filters and water
chemistry, proper ventilation is recommended to reduce
the risk of exposure to viruses and bacteria that could be
present in the air or water. Consult a licensed architect
or building contractor to determine your specific needs if
installing your spa indoors.
4.0 General Electrical Safety Instructions
Your new Jacuzzi® spa is equipped with a “state-of-the-art” equipment
system. It contains the most advanced safety and self-protective equip-
ment in the industry. Nonetheless, this spa must be installed properly to
insure dependable usage. Please contact your dealer or local building
department should you have any questions regarding your installation.
Proper grounding is extremely important. Jacuzzi spas are equipped

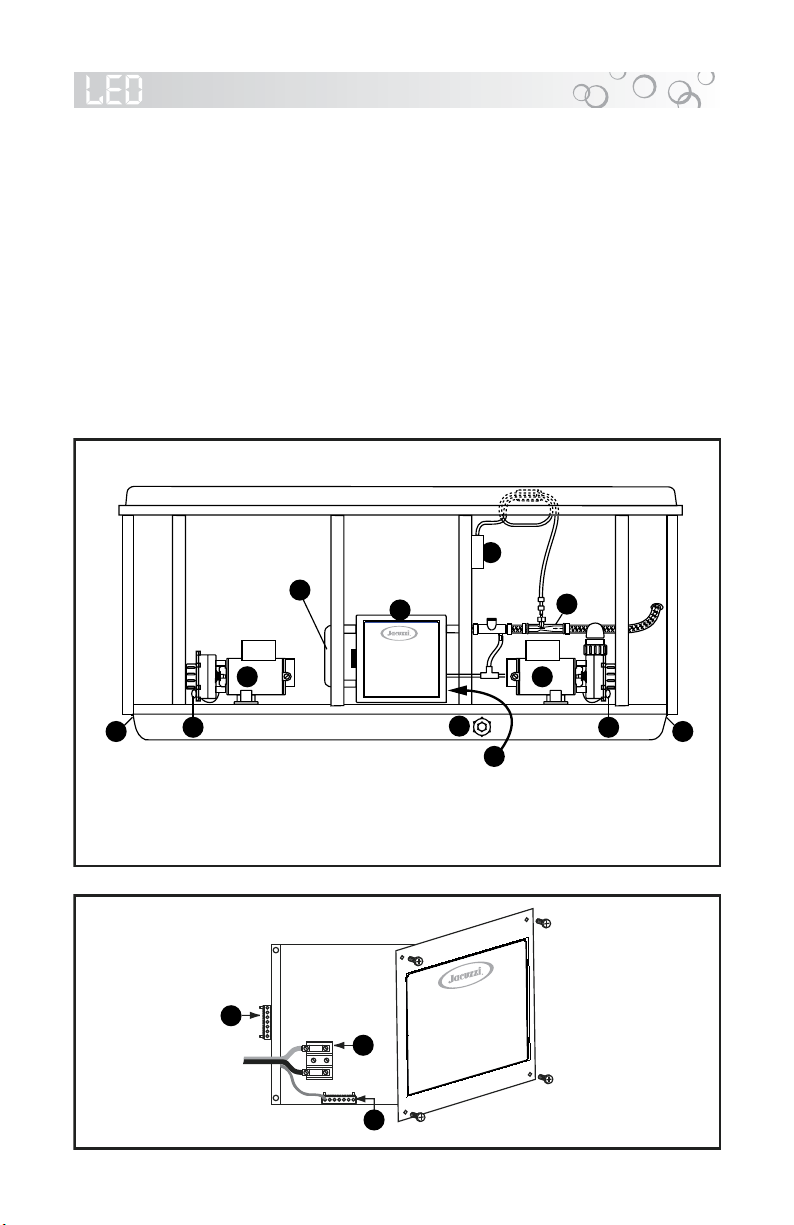

with a current collector system. A pressure wire connector is provided
on the surface of the control box, located outside the equipment door
(Figure-B, page 12) to permit connection of a bonding wire between
this point and any ground metal equipment, metal water pipe or conduit
within 5 feet (1.5m) of the spa, or copper clad grounding rod buried with-
in 5 feet (1.5m) of the spa. Bonding wire must be at least No. 8 AWG
(8.4mm2) solid copper wire. This is a most important safety assurance
feature. Before installing this spa, check with the local building depart-
ment to insure installation conforms to local building codes.
120/240 Volt J-315 Convertible Models
A spa connected to a 120 VAC electrical service must be located close
enough to a grounded, grounding-type electrical outlet so that the
included power cord can be plugged directly into it. DO NOT USE AN
EXTENSION CORD as this could cause damage to the spa’s equip-
ment due to insufficient voltage. The power supplied to this spa must be
a dedicated circuit with no other appliances or lights sharing the power
provided by the circuit.

Page 9
5.0 Power Requirements
Jacuzzi® spas are designed to provide optimum performance and flex-
ibility of use when connected to the maximum electrical service listed in
the tables below. If you prefer, your dealer can perform a minor circuit
board modification to allow your spa to accept an electrical service other
than the factory setting. The operational considerations of these modifi-
cations are listed in the footnotes below.
US / Canada J-325 1-Pump Models (60Hz)
240V/50A* 240V/40A**
Voltage: 240 VAC 240 VAC
# of Wires: 3 3
Frequency: 60Hz 60Hz
Current Draw: 36A 26A
Circuit Breaker: 50A, 2-Pole 40A, 2-Pole
*In the 50A configuration, the heater will operate at the same time as
the high-speed jets pump. This is the factory setting.
** In the 40A configuration, the heater will not operate at the same time
as the high-speed jets pump.
US / Canada J-315 1-Pump Convertible Models (60Hz)
120V/15A* 240V/30A* 240V/40A**
Voltage: 120 VAC 240 VAC 240 VAC
# of Wires: 3 (15A GFCI Cord, 4 4
US Only)
Frequency: 60Hz 60Hz 60Hz
Current Draw: 12A 21A 30A
Circuit Breaker: 15A, 1-Pole 30A, 2-Pole 40A, 2-Pole
For 240 VAC Heater Operation: Move the red wire on the main terminal
strip (TB1) from position #1 to position #3. Make certain wires are con-
nected exactly as shown in Figure-D (page 13) before applying power.
Failure to do so will result in damage to the circuit board and/or related
components and void the manufacturer’s warranty.
* In the 15A and 30A configuration, the heater will not operate at the
same time as the high-speed jets pump. The factory setting is
120V/15A. Note: All Canadian spas must be hard wired (120 VAC
or 240 VAC) per CSA Canadian standards see page 4 for details.
** If the spa is to be operated on 40A service, remove the jumper JP1
#1-2 on the circuit board to allow the heater to operate at the same
time as the high-speed jets pump (Page 39).

Page 10
230V/20A* 230V/30A**
Voltage: 230 VAC 230 VAC
# of Wires: 3 3
Frequency: 50Hz 50Hz
Current Draw: 15A 23A
Circuit Breaker: 20A 30A
* In 20A configuration, the heater will not operate at the same time as
the main jets pump. This is the factory setting.
** In 30A configuration, the heater will not operate at the same time as
the main jets pump.
Export J-315 / J-325 1-Pump Models (50Hz)
US / Canada J-335 / J-345 2-Pump Models (60Hz)
240V/50A* 240V/40A** 240V/60A***
Voltage: 240 VAC 240 VAC 240 VAC
# of Wires: 3 3 3
Frequency: 60Hz 60Hz 60Hz
Current Draw: 36A 26A 45A
Circuit Breaker: 50A, 2-Pole 40A, 2-Pole 60A, 2-Pole
* In 50A configuration, the heater will not operate while both jets
pumps are running in high speed. Note: pump 2 runs only in high
speed. This is the factory setting.
** In 40A configuration, the heater will not operate while either jets
pump is running in high speed. Note: pump 2 runs only in high speed.
*** In 60A configuration, the heater will operate while both jets pumps
are running in high speed. Note: pump 2 runs only in high speed.
Export J-335 / J-345 2-Pump Models (50Hz)
230V/20A* 230V/30A** 230V/40A***
Voltage: 230 VAC 230 VAC 230 VAC
# of Wires: 3 3 3
Frequency: 50Hz 50Hz 50Hz
Current Draw: 15A 23A 29A
Circuit Breaker: 20A 30A 40A
* In 20A configuration, the heater will not operate while either jets
pump is running in high speed. This is the factory setting.
Note: jets pump 2 runs only in high speed.
** In 30A configuration, the heater will not operate while both jets
pumps are running in high speed. Note: pump 2 runs only in high
speed.
*** In 40A configuration, the heater will operate while either jets pump
is running in high speed. Note: Jets pump 2 runs only in high speed.

Page 11
6.0 Electrical Wiring Instructions
IMPORTANT NOTICE: The electrical wiring of this spa must
meet the requirements of the National Electrical Code/USA
(NEC) and any applicable state or local codes. The electrical
circuit must be installed by a qualified electrician and approved
by a local building/electrical inspection authority.
1. Convertible J-315 120/240V 60Hz Power Models
A. 120V “Plug-in” Operation: This spa must operate on the supplied
120V GFCI cord at its original length or must be hard-wired for lon-
ger runs. Never use an extension cord for any reason!
B. Convertible 120/240V Operation: The included 120V GFCI cord
must be discarded for 240V operation. This spa must be hard-wired.
Supplying power to either configuration above which is not in accor-
dance with these instructions will void both the independent testing
agency listing and the manufacturer’s warranty.
2. Dedicated 230-240V Power Models: This spa must be permanently
connected (hard-wired) to the power supply. No plug-in connec-
tions or extension cords are to be used in conjunction with the
operation of this spa. Supplying power to the spa which is not in
accordance with these instructions will void both the independent
testing agency listing and the manufacturer’s warranty.
3. The power supplied to this spa must be a dedicated circuit with no
other appliances or lights sharing the power provided by the circuit.
4. To determine the current, voltage and wire size required, refer to
section 5.0 “Power Requirements” (page 9-10).
• Wire size must be appropriate per NEC/USA and/or local codes.
• We recommend type THHN wire.
• All wiring must be copper to ensure proper connections. Do not use
aluminum wire.
• When using wire larger than #6 (10mm2), add a junction box near
the spa and reduce to short lengths of #6 (10mm2) wire to connect
to the spa.
5. The electrical supply for this product must include a suitably rated
switch or circuit breaker to open all ungrounded supply conductors
to comply with Section 422-20 of the National Electrical Code/USA,
ANSI/NFPA 70. The disconnecting means must be readily acces-
sible to the spa’s occupant but installed at least 5 feet (1.5m) from
spa water.
6. The electrical circuit supplied for the spa must include a suitable
ground fault circuit interrupter (GFCI) as required by NEC/USA
Article 680-42.

Page 12
7. To gain access to the spa’s power terminal block, remove the
screws securing the cabinet panel on the side of the spa under the
controls. Then remove the four control box door screws and door
(Figure-B).
8. Select the power supply inlet you want to use (Figure-A). Feed
power cable to control box, then install it through the large opening
provided in the bottom side of the box.
9. Connect wires, color to color, on terminal blocks TB1 and TB3
(Figure C-F, page 13). TIGHTEN SECURELY! All wires must be
hooked up securely or damage could result.
10. Install control box door and screws and reinstall the cabinet side
panels.
Figure-B - Control Box
1. Terminal Block
2. Bonding Lug
3. Grounding Terminal
TB1
3
2
1
9
10
4
37
1
2 2
Figure-A
Equipment Area
1. Control Box
2. Power Supply Inlet(s)
3. 2-Speed Jets Pump #1
4. Heater
5. Spa Drain Valve
6. Pump Drain Plug(s)
7. 1-Speed Jets Pump #2
8. Circulation Pump
9. Optional CD Ozonator (Purchased Separately)
10.Ozone Injector
Flow
Note: Pump Locations Vary by Model
Circulation Pump
Behind Load Box
8
5
6 6

Page 13
7.0 Spa Fill Up Procedure
FOR BEST RESULTS, read each step in its entirety before proceeding
with that step:
1. Prepare The Spa For Filling
• Clear all debris from the spa. (Although the spa shell has been
polished at the factory, you may want to treat it with a specially for-
mulated spa cleaner. Consult your authorized Jacuzzi dealer for
additional information prior to filling spa.
• Remove filter lid then remove filter cartridges from filter bucket.
2. Fill Spa
• Place the end of your garden hose into the empty filter bucket.
CAUTION: Never fill with water from a water softener. If your
water is extremely “hard”, it is preferable to fill half-way with
hard water and the rest of the way with softened water. Or, you
may fill entirely with hard water if you use a special water addi-
tive available from your authorized Jacuzzi dealer.

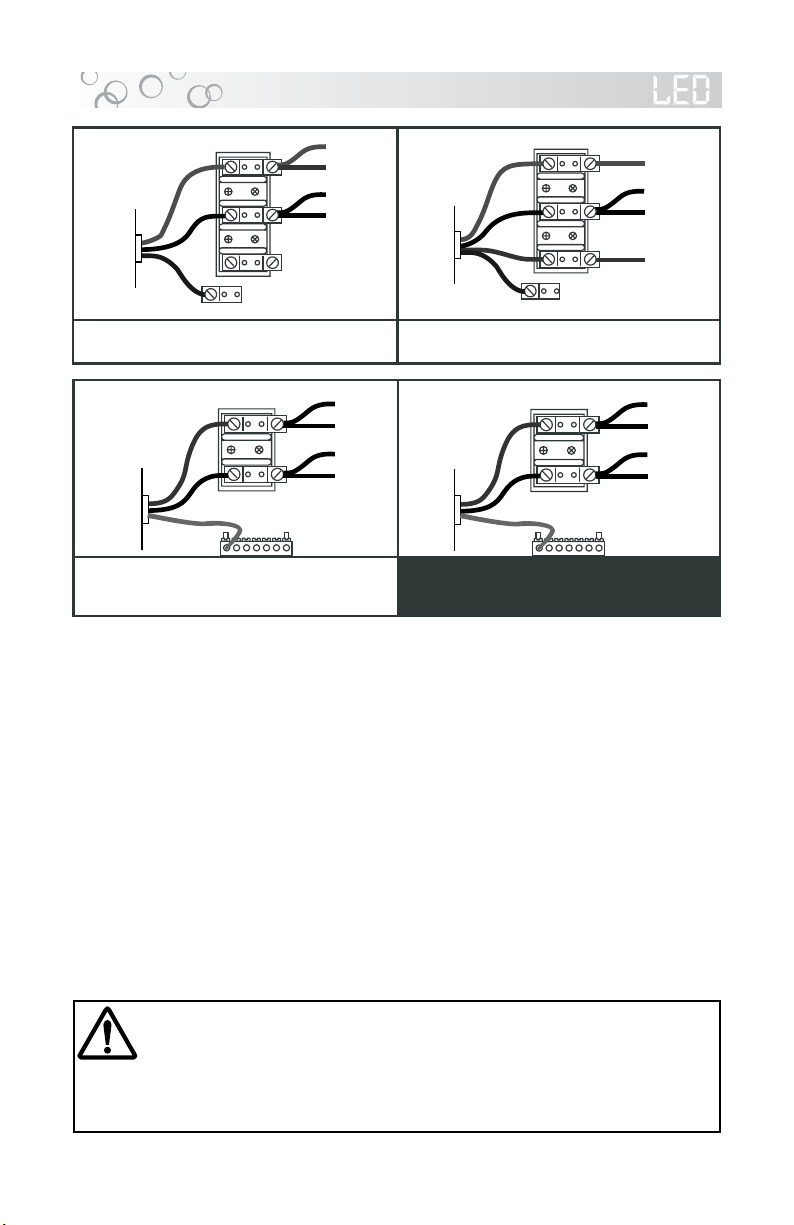

BLUE
BLUE
BROWN
BROWN
1
2
US/Canada J-325 / J-335 / J-345 Models:
240 VAC, 3-Wire Connection (60Hz)
Figure-F
TB1
All Export J-315 / J-325 / J-335 / J-345 Models:
230 VAC, 3-Wire (50Hz)
to Circuit
Board
BLK
RED
Power In
RED
RED
BLK
BLK
1
2
Figure-E
TB1
to Circuit
Board
Power In
Green
TB3
Green
TB3
GRN
WHT
WHT
BLK
BLK
BLK
RED
1
2
3
Figure-C
TB1
to Circuit
Board
Power In
GRN
WHT WHT
BLK
BLK
BLK
RED RED
1
2
3
All US/Canada J-315 Convertible
Models: 120/240 VAC, 4-Wire Connection (60Hz)
Figure-D
TB1
to Circuit
Board
Power In
All US/Canada J-315 Convertible
Models: 120 VAC, 3-Wire Connection (60Hz)

Page 14
• Fill spa until water covers all jets but does not touch the bottom of
the lowest headrest. DO NOT OVERFILL.
IMPORTANT: Always fill your spa through the filter bucket after drain-
ing. Failure to do so may cause air to be trapped in either pump, pre-
venting the pump from circulating water. Remove the hose and replace
both filter cartridges.
3. Turn On Power
Turn on power to spa at the home’s circuit breaker. The heater and
filter/circulation pump will automatically activate. If the control panel
LCD flashes water temperature and “COL” or “ICE”, refer to page
36 for additional information.
4. Activate Jets Pump 1
Depress the JETS 1 button on the control panel once to
activate jets pump #1.
5. Add Start-Up Chemicals
Add the spa water chemicals as recommended by your authorized
Jacuzzi dealer. See section 12.0 “Water Quality Maintenance” (page
33) for general guidance.
6. Establish A Stable Sanitizer Reading
Establish a stable sanitizer reading between 3 ppm and 5 ppm. To
ensure healthy water conditions, always maintain a constant sani-
tizer reading within the levels recommended by the Association of
Pool And Spa Professionals/USA printed on the inside cover of this
manual. If sanitizer levels cannot be stabilized, perform the decon-
tamination procedure steps 9-15 on page 15-17. Note: the “decon-
tamination procedure” steps 9-15 should also be used after the spa
has been “Winterized” (section 11.7, page 32 ) or has been sitting
without power for an extended period.
7. Set Spa To Heat
To warm spa water to a comfortable temperature, follow these
steps:
• The LCD display on the control panel displays the actual tempera-
ture of the spa water. Press either the COOLER (-) or WARMER (+)
button once to display the “set” temperature for 5 seconds. If you
want the water to heat to a different temperature,

Page 15
simply press COOLER (-) or WARMER (+) within 5 seconds. The
set temperature increases or decreases by one degree each time
one of these buttons is pressed.
• The heater will turn off when the temperature corresponding to the
thermostat setting is achieved.
Important Heater Details:
• The maximum temperature for which the spa can be set is
104°F (40°C) and the minimum is 80°F (27°C).
• Setting the thermostat at maximum will not accelerate the heating
process. This will only result in a higher ultimate temperature.
• The heater operates until the water reaches the programmed “set
temperature”, then turns off. The heater will reactivate after the
water cools to approximately 1.5° below the “set temperature.”
8.Place Cover On Spa
• Keeping the insulating cover in place anytime the spa is not in use
will reduce the time required for heating, thereby minimizing operat-
ing costs.
• The time required for initial heat-up will vary depending on the start-
ing water temperature.
DANGER: Risk of injury, always check water temperature care-
fully before entering spa!
Decontamination Procedure (Steps 9-15)
Steps 9-15 below are only required when sanitizer levels are unstable
after performing steps 1-6 above. Disregard steps 9-15 below if sani-
tizer levels remain stable at 3 ppm to 5 ppm after performing steps 1-6.
9. Add 2.5 ounces of sodium dichlor for every 100 gallons of water.
Refer to the table on page 16 for approximate water ll volume by
model.
CAUTION: Never add chlorine tablets (trichlor) to your spa for
any reason! This chemical may damage your spa and void the
manufacturer warranty.

Page 16
Water Fill Volume by Model
Spa Model Approximate Fill Volume
J315.......................................200 US Gallons (757 Liters)
J325.......................................320 US Gallons (1,211 Liters)
J335.......................................358 US Gallons (1,355 Liters)
J345.......................................336 US Gallons (1,272 Liters)
10. Leave spa cover open during this step to allow excessive chemical
vapors to exit spa, protecting pillows and plastic knobs from chemical
attack. If spa is indoors, open doors and windows for proper ventila-
tion. Turn on all spa jets pumps for one hour, open all air controls,
and place all massage selector knob(s) in their center “combo”
position as shown (right). Note: You will need to press the
jets pump button(s) every 20 minutes since these functions
have an automatic 20 minute time-out function that turns
them off.
CAUTION: never leave your spa unattended for any reason
while the cover is open and accessible to small children and
animals!
11. Turn off power to the spa at the circuit breaker, then drain tub as
outlined in section 11.2 “Draining And Relling” (page 29-30).
12. Fill spa until water covers all jets but does not touch the bottom of
the lowest headrest. DO NOT OVERFILL.
CAUTION: Never fill with water from a water softener. If your
water is extremely “hard”, it is preferable to fill half-way with
hard water and the rest of the way with softened water. Or, you
may fill entirely with hard water if you use a special water addi-
tive available from your authorized Jacuzzi dealer.
13. Consult your authorized Jacuzzi dealer for chemical recommenda-
tions, then add chemicals to spa water to achieve a constant sani-
tizer reading within the levels recommended by the Association of
Pool And Spa Professionals/USA printed on the inside cover of this
manual.
14. Turn on all jet(s) pumps when adding chemicals to ensure proper
mixing and leave your spa cover open until the sanitizer level falls
below 5 ppm to protect pillows and plastic knobs from chemical at-
tack.
