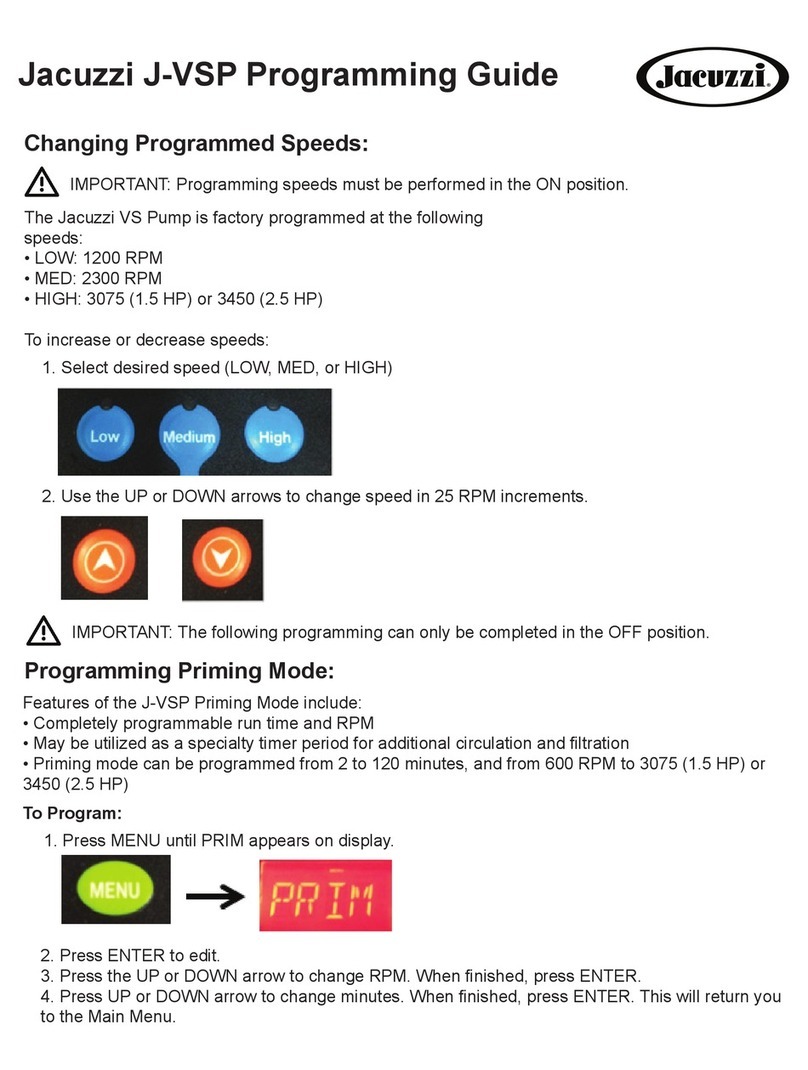

Jacuzzi J-VSP Series Operating instructions

Changing Programmed Speeds:
The Jacuzzi VS Pump is factory programmed at the following speeds:
LOW: 1200 RPM
MED: 2300 RPM
HIGH: 3075 (1.5 HP) or 3450 (2.5 HP)
To increase or decrease speeds:
1. Select the desired speed (LOW, MED, or HIGH)
2. Use the Up or Down arrows to change speed in 25 RPM increments.
Programming Priming Mode:
Features of the J-VSP Priming Mode include:
Completely programmable run time and RPM
May be utilized as a specialty timer period for additional circulation and filtration
Priming mode can be programmed from 2 to 120 minutes, and from 600 RPM to 3075
(1.5 HP) or 3450 (2.5 HP)
To Program:
1. Press MENU until PRIM appears on display
2. Press ENTER to edit.
3. Press the UP or DOWN arrow to change RPM. When finished, press ENTER.
4. Press UP or DOWN arrow to change minutes. When finished, press ENTER. This will
return you to the Main Menu.
JACUZZI®J-VSP QUICK PROGRAMMING GUIDE
IMPORTANT: J-VSP PROGRAMMING CAN ONLY BE PERFORMED IN THE OFF POSITION

Setting Your Clock:
To set your clock:
1. Press MENU twice until CLK appears on the screen. Press ENTER to set time.
2. Use UP or DOWN arrow to set hour. Press ENTER.
3. Use UP or DOWN arrow to set minutes. Press ENTER again and select AM or PM.
4. Press ENTER to accept. The LCD screen will then flash 3 times to indicate the new
setting has been saved. Press MENU to exit to Main Menu.
Setting Timer Periods:
To set timer periods:
1. Press MENU to go to TMRS (timer settings) and press ENTER to change.
2. Timer 1 is preset to begin at 8 am. Use the UP or DOWN arrow to change to desired
time. Press HIGH, MED, or LOW to select desired speed during Timer 1. On the
screen, HIGH is represented by “1”, MED by “2”, and LOW by “3”.
3. Press ENTER to move to the end time of Timer 1. Use the UP or DOWN arrow to
change to desired end time.
4. Timer 2 will now appear on the LCD screen. Repeat steps 1-3.
5. Timer 3 and Timer 4 are preset to OFF. Moving any timer to midnight will turn that
timer period off. Use the UP or DOWN arrow to activate the time and repeat steps 2-3
to set timer periods.
Configuration Menu:
To enter the Configuration Menu, press and hold ENTER for five seconds.
TMRS: This menu enables and disables all J-VSP timers and comes
preset in the ON position.
SYS: This menu enables and disables the J-VSP pumps ability to
communicate with any Jacuzzi equipment, such as HS interface
adapter. This comes preset in the OFF position.
DIM: This menu controls the brightness of LCD display and can be
adjusted using the UP and DOWN arrows to desired brightness.
FOR ADDITIONAL QUESTIONS, PLEASE CONTACT THE JACUZZI HOTLINE AT 1-844-615-8994 OR JACUZZI
SUPPORT AT [email protected].
