Jade JTRH Series Manual

P/N 24-132 REV A 7/00 Page 1

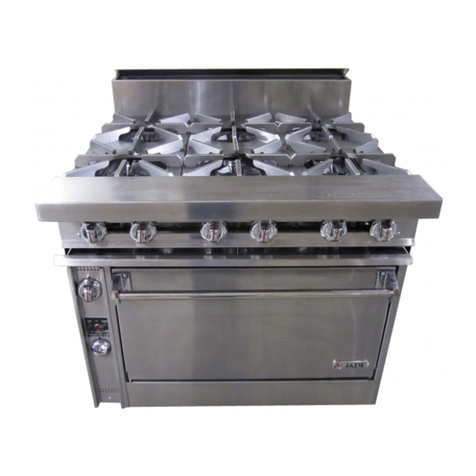

TITAN HEAVY DUTY RANGES
TITAN BAKING AND ROASTING OVENS
MODELS: JTRH and JTRHE Series
INSTALLATION, OPERATION AND MAINTENANCE INSTRUCTIONS
NOTE: Instructions must be posted in a prominent location, which will instruct the user in the event that
he/she detects the smell of gas. This information shall be obtained from your local gas company.
Adequate clearances must be provided in front, rear and at sides of appliance for servicing. The
appliance area must be kept free and clear from combustibles. There must be no material or obstacles
obstruction the flow of combustion and ventilation air.
FOR YOUR SAFETY
Do not store or use gasoline or
other flammable vapors or liquids
in the vicinity of this or any other
appliance.
WHAT TO DO IF YOU SMELL GAS
•Open windows
•Do not touch electric switches
•Extinguish any open flame
•Immediately call your gas company
WARNING
Improper installation, adjustment, alteration, service or
maintenance can cause property damage, injury or death.
Read the installation, operating and maintenance instructions
thoroughly before installing or serving this equipment.
RETAIN THIS MANUAL FOR FUTURE REFERENCE
Jade Range
LLC, A Middleby Company
2650 Orbiter Ave.
Brea, CA 92821
Telephone [phone]
FAX [phone]

P/N 24-132 REV A 7/00 Page 2
CLEARANCES and VENTILATION
This appliance is design-certified for installation with the following conditions:
MINIMUM CONSTRUCTION CLEARANCES FROM COMBUSTIBLE MATERIALS:
Side Rear Floor
With 6” High Legs 4 inches 2 inches 6 inches
Without 6” High Legs 4 inches 2 inches 0 inch
Without 6” High Legs – Range must be installed on a noncombustible kerb or platform
with the front of the range projection 3-inch minimum over the kerb or platform. Range
may be installed flush against noncombustible rear wall.
NOTE: APPLIANCE INTENDED FOR OTHER THAN HOUSEHOLD USE.
The area in front of and above the appliance must be clear to avoid any obstruction of flow of
combustion and ventilation air. Means must be provided for adequate air supply and adequate
clearance for air openings into the combustion chamber. Keep appliance area free and clear
from combustibles.
IMPORTANT REMINDER: It is the responsibility of the installing contractor to provide a
regulator of sufficient capacity to accommodate the total BTUs required for all the appliances
within the battery that have connecting manifolds. The regulators are to be set at 5” W.C. for
natural gas regulators and 10” W.C. for propane gas regulators.
Insert: Drawing of Model JTRH, JTRHE Series

P/N 24-132 REV A 7/00 Page 3
PREPARATION FOR INSTALLATION
Safe and satisfactory operation of your equipment depends to a great extent upon its proper
installation. Installation must conform with local codes, or in the absence of local, with the
National fuel code, ANSI Z233.1-1988 or later. Electrical installation must conform with all
applicable state and local codes and be in compliance with the National Electrical Code,
ANSI/NFPA 70-1990.
NOTE: AFTER ELECTRICAL INSTALLATION TO THE CONVECTION OVEN MASTER
SWITCH (TOGGLE SWITCH) SHOULD BE TURNED OFF UNTIL OVEN POLOT IS IGNITED
AND APPLIANCE READY FOR USE.
Refer to rating plate for gas-orifice type. If orifices are converted in the field, the rating plate
must be corrected by an experienced and responsible service person. Gas regulator must be
changed to suit gas to be used. Check with appliance manufacturer.
INSTALLATION AND GAS PIPING
♦Appliances battery-mounted (minimum of two appliances) must be lined up, leveled, and
have manifolds leveled and connected. Plate shelves are adjustable and holes are provided
to take 3/8-16T.P.I. bolts for securely locking plate shelves together. Similar provisions are
provided when appliances are equipped with high shelves.
♦Adjusting legs that are provided can adequately level floor-mounted appliances. Kerb or
platform-mounted appliances (legs removed) have adjustable leveling bolts located within
the body (Front and rear on bottom of control box area, and within combustion area bottom
on right side of inner body. Remove oven bottom.)
♦Connect appliances to gas supply line. Under no circumstances should the gas supply line
be smaller than the inlet pipe on the appliance. Use pipe compound on all pipe joints.
Compound must be resistant to the action of liquefied petroleum gases.
♦Check all gas connections for leaks using soap and water solution. DO NOT USE AN
OPEN FLAME FOR CHECKING PURPOSES.
♦The appliance and its individual shutoff valve must be disconnected from the gas supply
piping system during any pressure testing of that system at test pressures in excess of ½
psig (3.45 kPa).
♦The appliance must be isolated from the gas supply piping system by closing its individual
manual shutoff valve during any pressure testing of the gas supply piping system at test
pressures equal to or less than ½ psig (3.5 kPa).
♦Licensed or approved experienced personnel should do all installation and service work.

P/N 24-132 REV A 7/00 Page 4
LIGHTING AND RELIGHTING INSTRUCTIONS
TOP SECTION:
The top sections of your appliance are equipped with constant burning lighters. Lighters and
burners should be manually lighted immediately after the gas is turned on. Adjustments can be
make through the observation openings in front valve cover. Using a screwdriver, lighter flames
can be adjusted by turning the lighter adjustment screw* clockwise or counterclockwise. Pilots
should be checked periodically to insure pilot ignition.
OVEN SECTION: STANDARD OVEN GAS CONTROLS
1. Turn oven ON-OFF valve to “ON.”
2. Turn thermostat dial to “OFF.” Wait 5 minutes.
3. Remove oven kick plate.
4. Push red button of safety pilot valve and light pilot. Continue to push red button until pilot
flame remains on (minimum of 30 seconds). Release button.
5. Turn thermostat dial to desired temperature.
6. CHECK IF PILOT IS EXTINGUISHED. IF EXTINGUISHED, REPEAT STEPS 1 THRU 4
ABOVE.
7. Replace oven kick plate.
8. Turn thermostat dial to “OFF” to shut down oven.
OVEN SECTION-CONVECTION OVEN-GAS CONTROLS
NOTE: THIS CONVECTION OVEN IS EQUIPPED WITH A SIMPLE TROUBLE-FREE
RELIGHT FEATURE. THIS FEATURE RUNS ON A 120V SYSTEM AND IS IN ADDITION TO
THE STANDARD GAS VALVE SAFETY FEATURE.
TO LIGHT CONVECTION OVEN
With gas turned “ON” to appliance and all top section (range) pilots ignited, turn appliance
master switch to “ON” position – ‘light’ between switches (toggle types) will glow, indicating
power to re-igniter is “ON.”
1. Turn thermostat dial “OFF.” Wait 5 minutes.
2. Remove oven kick plate.
3. Push red button of safety pilot valve and light pilot. Continue to push red button of safety
valve until pilot flame remains on (minimum of 30 seconds). Release button.
4. Turn thermostat dial to desired temperature.
5. When satisfied oven pilot is holding, turn thermostat to desired temperature.
6. Turn off thermostat.

P/N 24-132 REV A 7/00 Page 5
7. Check pilot flame (still ignition).
8. Replace oven kick plate.
9. To operate – set thermostat to desired temperature.
10. Push rocker switch to “AUTO” position to turn on oven blower.
CAUTION:
TO OPERATE THE PILOT REIGNITOR, THE MASTER ELECTRIC SWITCH (TOGGLE
SWITCH LOCATED AT THE TOP OF THE PANEL) MUST BE IN THE ‘ON’ POSITION.
IF THE PILOT FLAME IS EXTINGUISHED BY DRAFTS OR TEMPORARY LOSS OF GAS
AFTER THE INITIAL LIGHTING OF THE PLIOT BURNER AND OPERATION OF THE MAIN
BURNER THROUGH THE USE OF THE THEMOSTAT, IT IS ADVISABLE TO TURN THE
THERMOSTAT TO “OFF” POSITION. NO ATTEMPT SHOULD BE MADE TO RELIGHT THE
PILOT BURNER FOR A MINIMUM OF FIVE MINUTES. THEN PROCEED AS DESCRIBED IN
STEPS 2 THRU 5 TO LIGHT CONVECTION OVEN. THE SPARKING DEVICE (RE-IGNITOR)
WILL ATTEMPT TO RELIGHT THE PILOT (THIS SHOULD OCCUR WITHIN 30 SECONDS.)
IF THE PILOT BURNER FAILS TO LIGHT, THE THERMOCOUPLE WILL COOL AND CAUSE
THE MAIN BURNER GAS TO STOP FLOWING THROUGH THE SAFETY VALVE.
TO OPERATED TITAN CONVECTION OVEN – GAS CONTROLS
1. Turn thermostat to desired temperature.
2. Push rocker switch to “AUTO” position to turn fan “ON.”
3. Preheat oven to desired temperature – usually 12 to 16 minutes.
4. When ready – open oven door (blower will stop).
5. Place product in oven – try and leave space all around product.
6. Close oven door – blower will come back “ON” and product will commence to bake!
GENERAL INFORMATION
If it is necessary to lower oven temperature very rapidly to accommodate a different product,
simply adjust thermostat to the lower selected temperature. Open oven door and place rocker
switch to manual. This will allow blower to operated and disperse excess heat rapidly from oven
cavity (usually seconds). When ready, place new product in oven, close door and place blower
switch in the “AUTO” position.
TITAN-CONVECTION OVEN – ELECRIC IGNITION OVEN
TO LIGHT CONVECTION OVEN:

P/N 24-132 REV A 7/00 Page 6
With gas connections and necessary piping correctly installed to and at the appliance according
to the latest National Fuel Code and with the wiring correctly installed to the latest electrical
codes – proceed as follows:
1. Turn on main electrical power to the appliance (circuit breakers).
2. With main gas valve to appliance turned on immediately light all freestanding top burners
pilots. Adjust flame if necessary.
3. Turn appliance electrical “ON-OFF” toggle switch to “ON” position. (Power “ON” light –
Amber color – will come on.)
4. Turn electric thermostat to desired temperature. (This will allow the oven burner lighter
circuit to commence functioning.) GREEN light will come on. Within a few seconds oven
burner will ignite and oven is ready for use.
5. Turn on oven Blower toggle switch to “AUTO.” This turns on oven fan.
6. With oven fan in operation, pre-heat oven. It usually takes 12 to16 minutes.
7. When ready, open oven door. Fan will stop automatically.
8. Quickly place product into oven.
9. Close oven door. Fan will re-commence operating and product will start to be processed.
GENERAL INFORMATION
If it if necessary to lower oven temperature very rapidly to accommodate a different product,
simply adjust thermostat to the lowest selected temperature. Open oven door and place rocker
switch to manual. This will allow blower to operate and disperse excess heart rapidly from oven
cavity (usually seconds). When ready, place new product in oven, close door and place blower
switch in the AUTO position. With the blower switch in this position the fan will operate only with
the door closed. Opening the door will stop blower preventing hot air from blowing in the Chef’s
face.
To turn blower off place rocker switch in “OFF” position.
When the oven is no longer needed turn, off the blower switch and thermostat.
It is sometimes advisable to turn off blower to allow certain products to set, e.g. milk products,
meringues, etc. The blower should not be disengaged for more than 2 to 3 minutes at a time.
The use of the convection oven without running the blower does not cause damage to the
appliance, but it reduces the efficiency of the oven, cooking time and heat distribution.
Therefore, we recommend that the blower be used constantly whenever the oven is in
operation.

P/N 24-132 REV A 7/00 Page 7
The Jade Convection Oven described within these instruction sheets under the “Titan
Convection Oven-Gas Controls” can also be equipped with electric ignition.
SERVICE AND MAINTENANCE
Contact the factory, factory representative or a local service company to perform maintenance
and repairs.
For daily cleaning, turn “ON” burner valves on top sections for 2 to 3 minutes and then turn
“OFF.” Use warm water and mild cleanser on fry top plates and open top grates. On hot top
plates, use a rough cloth to clean plates. DO NOT use water to clean hot top plates.
Once a month, clean all burners with water and steel brush ensuring that all burner ports are
free of debris. Clean pilots in same manner. Once cleaned and dried, re-light pilots and check
for blockage. As frequently as necessary, remove grease tray, empty and clean with mild
detergent.
SERVICE INTERVALS
The need for servicing will, to a great extent, be determined by the appliance usage. The
following chart outlines our suggestion for service intervals:
DAYS PER WEEK SERVICE INTERVALS
Normal Use
(5 Hrs./Day)
Heavy Use
(12 Hrs./Day)
7 60 Days 30 Days
5 to 6 120 Days 60 Days
1 to 4 180 Days 120 Days
It is strongly suggested that a trained gas appliance service company examine the appliance at
least yearly.
REPAIR GUIDELINES
All repair work must be completed by a licensed, trained service person experienced in
commercial gas food service equipment.
If it becomes necessary to replace any gas control device, such as a main burner valve or
thermostat, the replacement part should be ordered from the factory only, unless it has been
determined that the EXACT part is available from your local parts supplier.
CAUTION: Before servicing this appliance, turn OFF gas to the appliance.

P/N 24-132 REV A 7/00 Page 8
This appliance is serviceable to the front. It is suggested to provide at least 36 inches to the
front of the appliance for servicing and for proper operation.
When the appliance is equipped with casters, the installation shall be made with a connector
that complies with the standard for Connectors for Movable Gas Appliances, ANSIZ21.69-1987,
and Addenda, Z21.691989, and a quick-disconnect device that complies with the Standard for
Quick-Disconnect Devices for Use With Gas Fuel, ANSIZ21.41-1989. Adequate means must
be provided to limit the movement of the appliance without depending on the connector and the
quick-disconnect device or its associated piping to limit the appliance movement.
The connector or restraining device must always be installed when the appliance is in use.
Should it become necessary to remove this device for cleaning or servicing the appliance, be
sure to reconnect this restraining device after the appliance is returned to its originally installed
position.

P/N 24-132 REV A 7/00 Page 9
INSERT -- Restraining device picture.

P/N 24-132 REV A 7/00 Page 10
INSERT -- ELECTRIC DIAGRAM CONVECTION OVEN
NOTE: A WIRING DIAGRAM CAN BE FOUND ON THE INSIDE OF THE OVEN KICK
PLATE.
CAUTION
: In the event of prolonged power failure, DO NOT attempt
to operate appliance.

P/N 24-132 REV A 7/00 Page 11
