JAEWONCNC IROAD IONE-900HD User manual

Read user’s manual carefully in order to protect the user’s safety and ensure the accurate use of the product.
Please visit the website(www.navinc.co.kr) to get information of latest firmware and dedicated viewer.
Product specification and function can be changed in order to improve performance of the product without notice.
User’s Manual

Product Features
Name of Each Part
Buttons
Optional Product
Product Specification
Dedicated Viewer
2
3
5
7
8
10
11
19
Storage / Capacity
13
How to install
14
SD Card Format
15
Third-Party Video Player
17
Main Functions
18
Additional Functions
12
Product Package
9
22
Product Warranty Card
Contents
Precaution
Before using this product
Warranty and Limitation of Liability

Before using this product .2
Please read this manual carefully before you use the product. This manual contains
product description and operating methods
The product specification and function could be changed in order to improve the performance
of the product without notice
JAEWONCNC Inc. is not liable for any problems caused by violating the statements written in the
this manual
- JAEWONCNC is not liable for the product malfunction, loss of data and any damages incurred
when using the product
- A consistent care and attention is essential to handle SD card which saves the recorded data
- IROAD IONE-290V is the product developed to utilize recording and saving the images of vehicle
accidents or its impact on vehicle. But IONE-290V shall not be liable to record and save every
stream of recordings
The power supply should use the legal voltage, otherwise it may cause damage of product and fires
- Use the recommended stable voltage otherwise, it can cause malfunction of the product or fires
Precaution
Warranty and Limitation of Liability
- Do not arbitrarily disassemble and modify the product, otherwise it might cause damage of the
product and the electric shock. It should be considered user’s fault and void the warranty
- Make sure that the power cable is not cut or damaged when attaching other electronic gadgets
on the vehicle, otherwise it can cause product failure or danger of electric shock
- It is highly recommended not to connect the uninterrupted power cable to vehicle because it can
cause malfunction of the product by different conditions of vehicle and srrounding environments
(JAEWONCNC is not liable for vehicle battery discharges or fires caused by the uninterrupted power cable)

3. Precaution
How to remove SD card
SD CARD
IONE-290V will be shutdown in less than 3 minutes by switching off the ignition or disconnecting
the power cable from the product
Make sure to follow the order below when you insert or remove the SD card then plug off the power
cable from the product
1. Remove SD card
- Switch off the ignition of vehicle
(SD card will come out by a light press, removing the SD card by force can cause a damage of the
product)
- Make sure that the LED is turned off
- Remove the SD card when the LED is completely turned off
2. Insert SD card
- Insert SD card into the slot on the main unit
- Switch on the ignition after product is connected with cigar power supply
ÚInsert or remove SD card when the power cable is disconnected
Make sure that the power cable should be plugged off and LED should be turned off before
inserting or removing the SD memory card in order to check the saved data in the SD card
- Do not disassemble the SD card by force, it can cause the damage to the product
- Do not disconnect the SD card while the product activates, it can cause data corruption and
damage of the SD card
- It is highly recommended to store the important data in HDD, CD or other external storage device
- It is highly recommended to check the recorded data at least once a week and do regular format
the SD card once a month
- SD card is expendable item which is highly recommended to have regular check and backup. The
lifetime of SD card can be shorten by a long time use and it causes the product malfunction and
being unable to save any more recording in the SD card
If SD card is to be inserted to the product after format, folders will be automatically created
and recorded also
- Be advised to keep the SD card with the card case when you keep or move it, otherwise data can
be corrupted by static electricity or external power voltage
(Do not use the product at the place under high-temperature humidity and possible corrosion)

Precaution .4
Safety Instruction
ÚIt is highly recommended to use the SD card which is designated by JAEWONCNC
Do not try to control the product while driving. Please make sure to control the product in safe
environment
Make sure to prevent IONE-290V from malfunctioning by staying under the shelter to escape
direct light as the interal temperature of vehicle can jump up in summer season
Do not touch the SD card or the product with oily or wet hands
Do not insert impurities into the SD card slot
Do not use water or volatile chemicals when you clean the product but use the soft and dry cloth
If the product is physically damaged or disconnected to power supply, the product cannot record
and save data at all
Do not use dark tinting films on the vehicle windscreen and remove impurities, otherwise it can
disturb recording and result in degrade recording quality
Check video recordings to ensure if the camera angle is properly adjusted when you change
location of the product
Contact your sales representatives or A/S center immediately if there is any product malfunctions
Do not give the product violent forces, otherwise it can cause damage of the product
Do not use other SD cards rather than those are recognized authentic or recommended SD card.
The use of other SD cards can cause the product or the SD card malfunction
Do not disconnect the SD card from the product or ignition off the vehicle during firmware
upgrade, otherwise it can cause the SD card malfunction or a serious loss of data
Please make sure follow guidelines below, otherwise it can cause damage of the SD card or fires
Even though the product is operated normal at the point of installation, the change of location
can cause the product malfunction. Fix the product firmly on the spot and do not give it violent
force to change the location of product

5. Product Features
Support efficient saving service with limited memory space. but it is possible
to set it manually The impact sensor works when it change into Auto Parking Mode
Turn it back to normal recording mode when it gets impact or starts drive again
PARKING Automatic Parking Mode
The parking mode is changed into the Motion Detection Mode in 20 minutes if
no movement is detected by the sensor. Recorded data files are saved
in the park directory Recording 10 seconds before and 20 seconds
after motion detect This function can be operated with using the uninterrupted
power cable
MOTiON Automatic Motion Detection
Built-in 3G-Sensor can detect and record impact and acceleration,
deceleration(3 Axis, XYZ)
G-Sensor Built-in 3 dimensional G-sensor
FORMAT One-touch Format function support
Format the SD card by the one-touch format function on the backside of device
(Please format the SD card regularly)
Saved video files are overwritten from the oldest recording file
LED Front High Brightness Security LED
The security LED indicator ensures your car is protected whilst parked with
the parking mode and motion detecting function enabled
GPS(optional) Speed,Map Support
High quality external GPS records speed and location whenever the device is
in progress

SMART Simple Smartphone Playback
Wherever simply check the recordings from smartphone(Android).
there are also various ways to check the video file
- Continuous Recording : Every 60 seconds recording
- Event Recording : Separately save video recordings in the event folder when
it detects
Uninterrupted Recording and Event Recording
Voice Recording
Playback video recordings and sound at the same time
Firmware Update
Possibly the performance could be upgraded and changed additional features
of product by updating firmware
Easily check GPS information and impacted recording at the same screen
It also playbacks on smartphone and 3rd party players (without GPS information)
Dedicated PC Viewer
Product Features .6

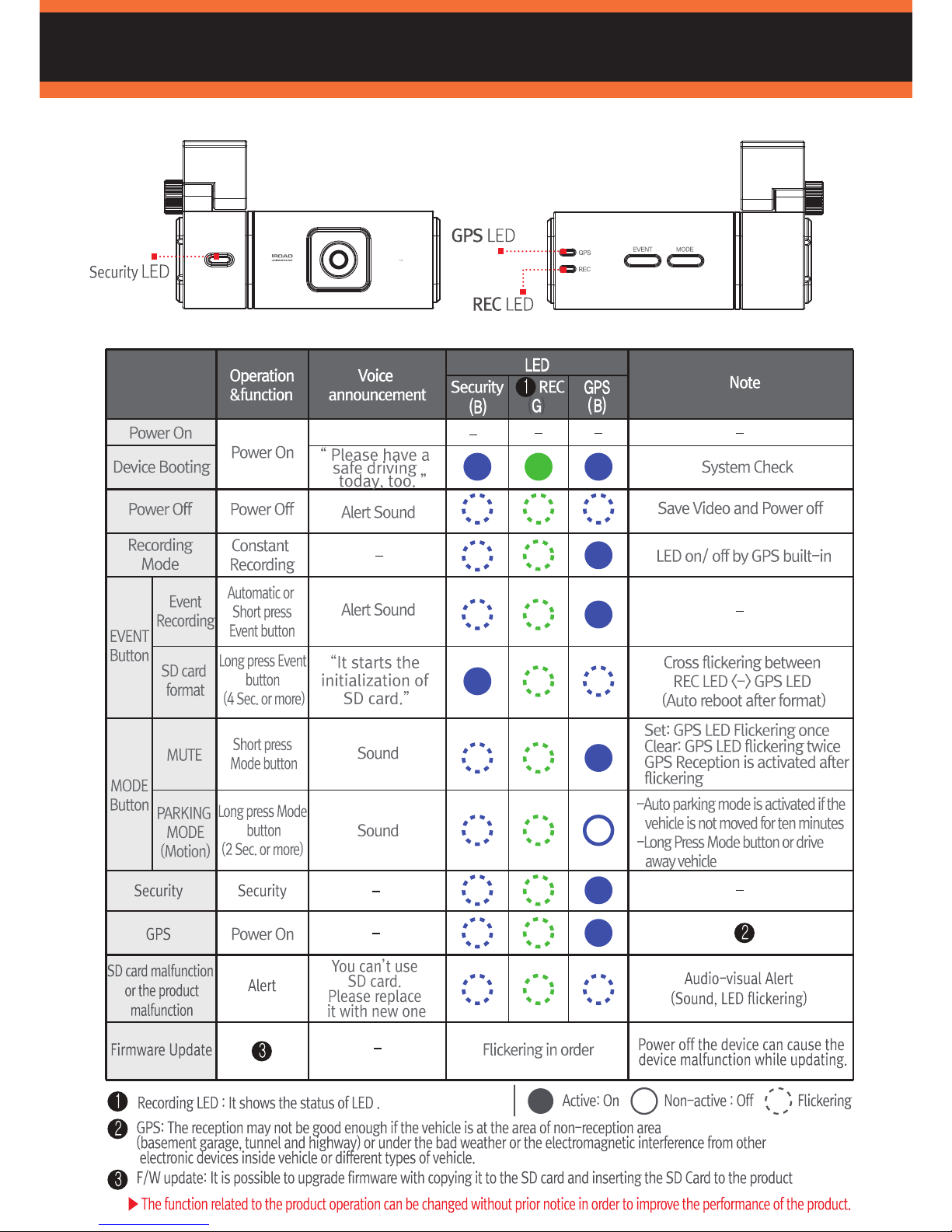

7. Name of Each Part
Camera
Security LED
Cradle/
Adhesive Tape
Power
SD Card Slot
V-Out
GPS(Option)
MODE Button
EVENT Button
REC LED
GPS LED

Button/LED .8

$GDSWHU
Main Unit and Mount Cradle MicroSD Card Cigar Power Cable
(12V~24V)
Manual
9. Product Package
Basic Component
Optional Accessories
External GPS Dedicated uninterrupted
Power Cable
SD Card Reader AV Cable
ÚApart from the Main unit, MicroSD, SD card reader are contained that JAEWONCNC is not liable for After-Service
(SD card and Micro SD card Reader could be exchanged within 14days of purchase in case of malfunctioning)
ÚThe images of components can be different from the real and some of components can be changed by
the situation of company

11. Specification
640 X 480 (VGA)
20~30 Frame/sec (VFR)
MPEG4
Micro SD 4GB~32GB(Class 4 or higher)
Event 30 seconds(Impact before 10 sec/ after 20sec)
/Continuous variable format rate recording
EVENT(Manual recording/SD format), MODE(Mute/Parking)
View angle 130˚
3 Axis acceleration sensor (X,Y,Z)
Location, Time, Speed
Voice Recording(ON/OFF)/MUTE
Normal, Manual, Event, Parking, Motion Detect
Over Writing
Built-in RTC
Security LED(High Intensity)
NTSC
Date, Hour, Minutes, Second
PC or Automatic
12 ~24V
12V(120mAh)
-15 ~ 80 degrees
-20 ~ 85 degrees
Obove 0.5 LUX
Microsoft Windows XP, VISTA, 7, 8
Dedicated Viewer, Third-Party Media Player
Built-in Format function
Automatically get into parking mode
Built-in Lithium
86 x 32 x 32 (mm)
Resolution
Video Frames
Video Format
Support Memory
Recording Time
Buttons
Video Angle
Acceleration Sensor
GPS
Voice Record
Recording
Saving
Time
LED
Video Out
Time Stamp
Video Remove
Voltage
Power Consumption
Operating Temp
Storage Temp
Illumination
OS Support
Player
SIZE
Battery
Motion Sensor
SD Format

A/V OUT
Simple Buttons
Watch the real-time recording video by connecting with external device
The size of AV input port could be different by different models of navigation system

MODE Button
EVENT Button
EVENT (EVENT / SD Card Format)
- Short press the “EVENT “ button that records manually as event happened
- Press ”EVENT“ button over 5 seconds long that starts quick format the SD card
(There will be voice guidance)
MODE (MUTE / PARKING)
- Short press the “MODE” button that starts audio recording to MUTE
- Press “MODE” button over 5 seconds long, PARKING mode is activated
Additional Functions .12

 The maximum capacity might be different by the difference of the user’s environment
 Obove 8G ~32G class 10 SD card is recommended
 Battery discharge prevention device can make the lifetime of SD Card shorten, Please periodically change the SD Card every 3 Months
Video Recording Length on each Micro SD Card
Micro SD Card Capacity
- Time to use the memory card might be changed by firmware upgrade
13. Storage / Capacity
Connect the microSD Card which saves the recorded Video files into Smart Phone or PC.
There are three different folders and the explanations for each folder follow as below
240 seconds
*
**
120 seconds
60 seconds *60 seconds
*
**
*
3hours
~ 3hours 20mins
6hours
~ 6hours 30mins
13hours
~ 13hours 20mins
26hours
~ 26hours 40mins

The right way to maintain SD Card .14
The right way to maintain SD Card
prevent errors on the SD Card, it's also the way to use SD Card longer
1. Format SD Card regularly
By the particular feature of SD Memory,
It highly recommend to format regularly per every 1 week in order to
prevent memory errors and it makes the lifetime of SD Card longer
Simply format SD Card when you press "EVENT" button of
the backside of product for 5 seconds
2. Check recordings regularly
Please confirm and backup the recorded files regularly, it might be
able to happen loss of important data by rewriting function
3. Upgrade latest firmware
Please maintain latest firmware to confirm regularly,
it will prevent possible memory errors

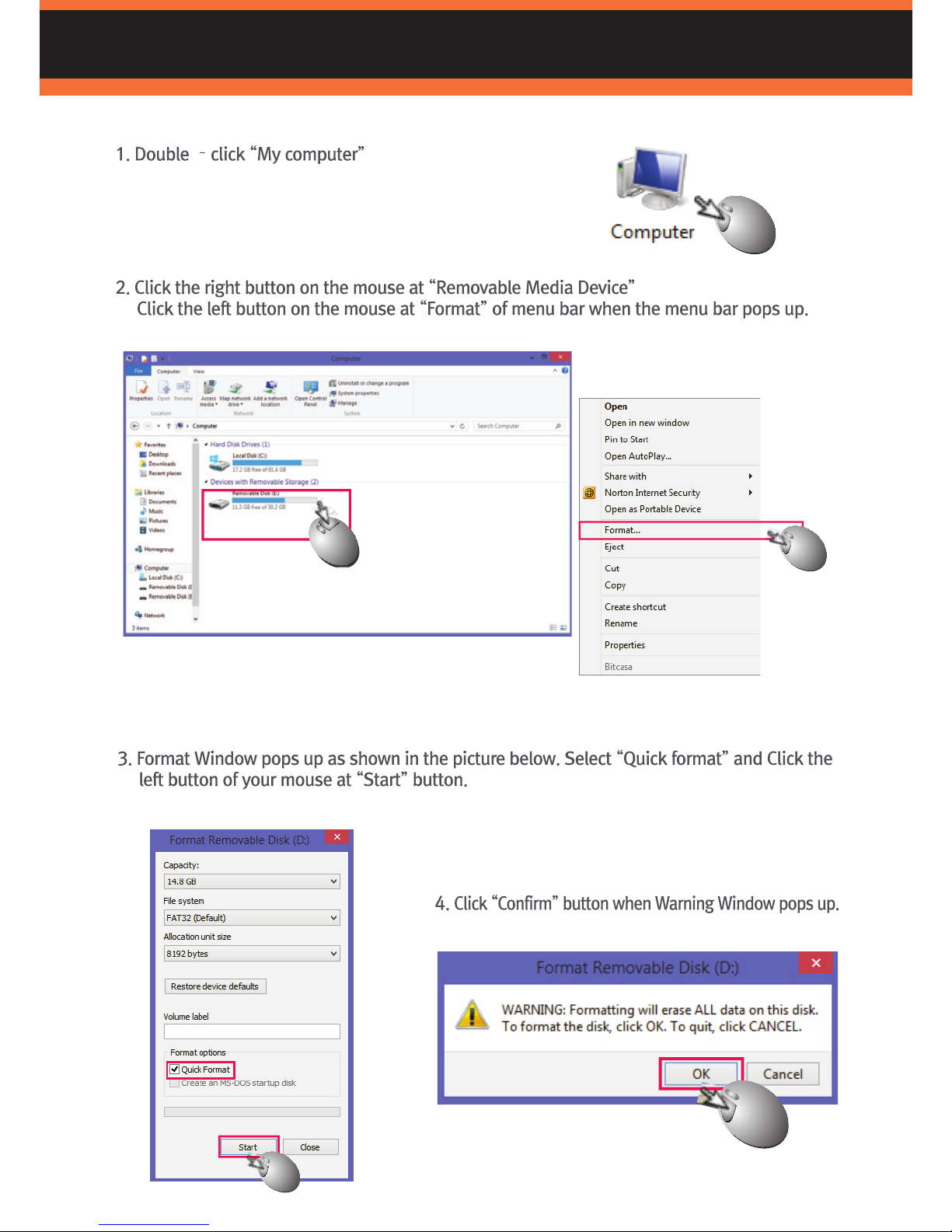

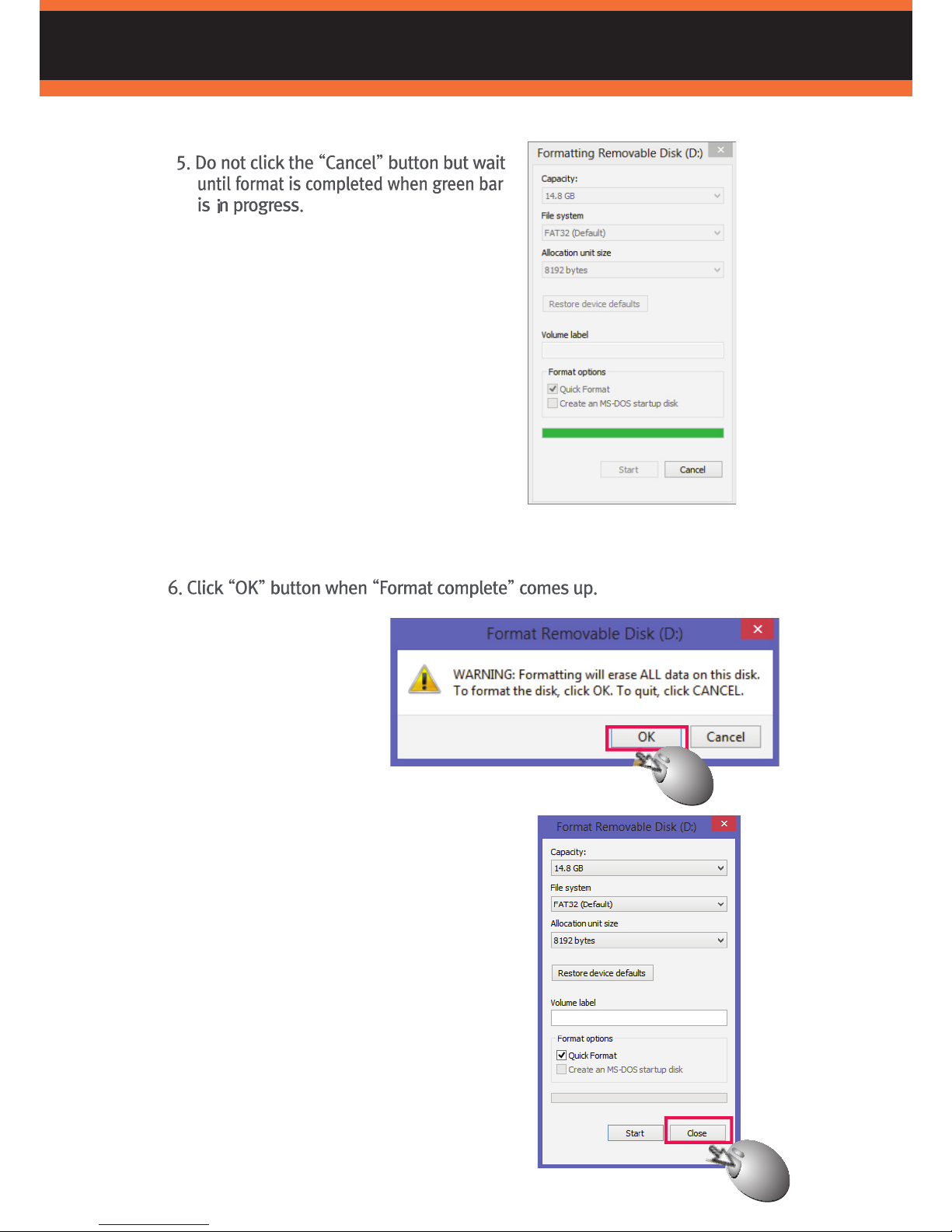

15. SD Card Format

SD Card Format .16
&OLFN㼭&ORVH㼮EXWWRQLQWKHVWDWXVEDU
)RUPDWLVFRPSOHWHG

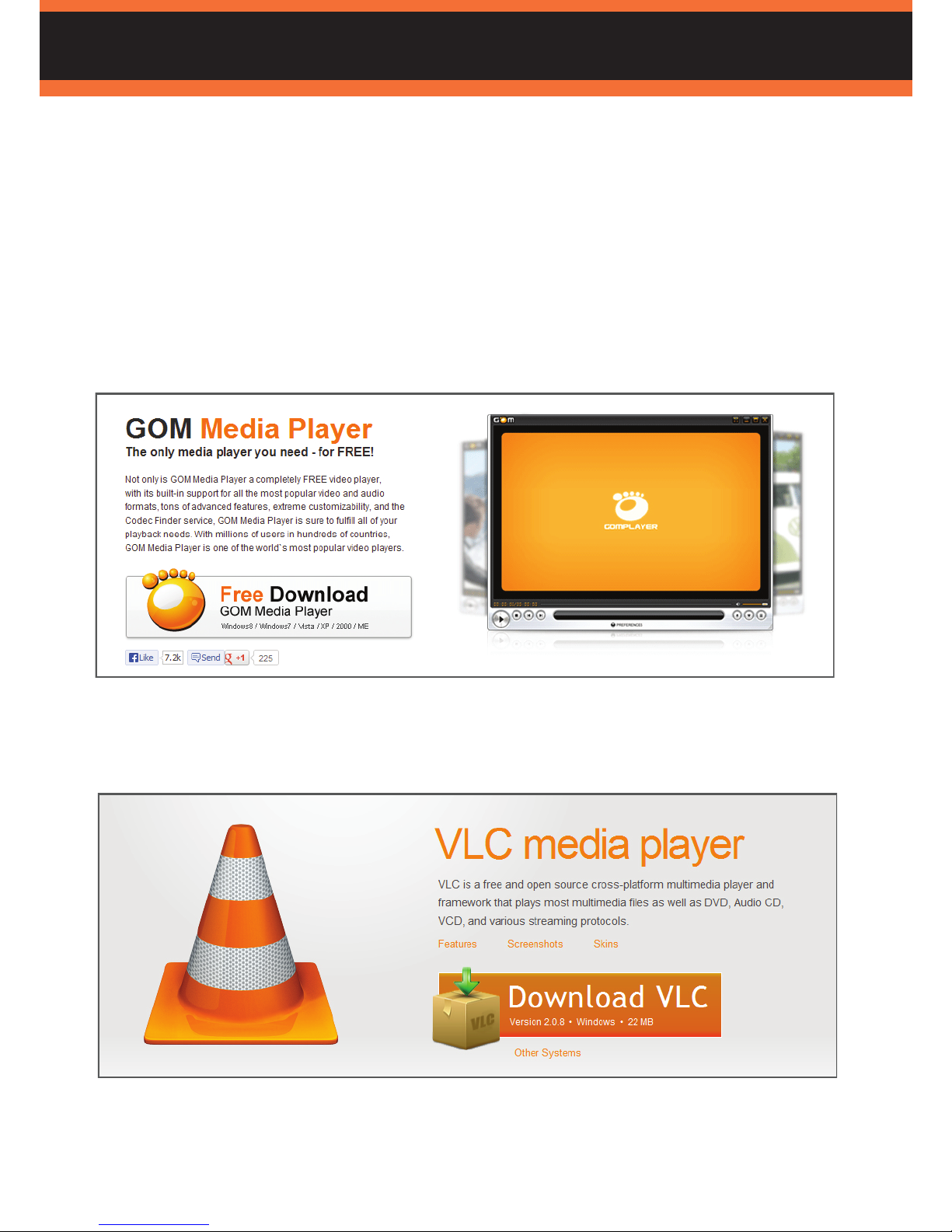

 Player and Codec installation
Visity Gom player or VLC player download website, you can free download
- Gom Player download : http://player.gomlab.com/eng/download
- VLC Player download : http://www.videolan.org/vlc/index.html
ÚYou might need to download integrated codec after installing video player
ÚYou can also playback with other video player like Quick time Player
17. Third-Party Video Player
GOM PLAYER
Gom Player download : http://player.gomlab.com/eng/download
VLC PLAYER
VLC Player download : http://www.videolan.org/vlc/index.html

Main Functions .18
One-Touch Format
Easy format the SD card by the one-touch format function without remove SD car from the device
- Press “EVENT” button for about 4 seconds long, it starts easy format function manually
Motion Detect Sensor
The impact sensor works if there is any movement. The device works same as detect a impact
in normal recording mode
- Press “MODE” button for about 2 seconds long, it changes into Parking mode manually
(It automatically change into automatic parking mode in 20 minutes while parking)
㽕,f the format function starts, it will be removed all of recorded data. Please carefully run this function
Smartphone Playback
Easy playback the recorded files on the SD card with smartphone or various digital media devices

19. Dedicated Viewer
PLAYBACK
(1) Map On/Off, Screen Capture, Print, Video Convert, Setting, Program Information, Minimize, Exit
(2) Folder : Select the path Where video data recorded
(3) Recording order : Asending or Descending
(4) Recording list: List up recording files
(5) Memo function : Create new memo and update
(This function is only activated while playback)
(9) Volume : Adjust volume / Mute
(6) Speedmeter : Display driving speed
(8) Impact trend graph : Green - Speed graph, RED - Impact graph
(7) Click (1) setting menu : Impact sensor, Parking mode sensitivity, Voice recording On/Off,
Effect sound On/Off, Security Flickering interval, Factory initialization
2

Dedicated Viewer .20
(1) Playback Speed : [-] Slow/ [1X] Normal/ [+] Fast
(2) Playback Searching Bar : Display playback section mark
Previous/Previous bookmark/5 Seconds back/Play or Pause/5 Seconds forward/Next bookmark/Next
(3) Bookmark : Set or Delete bookmark
(5) Play / Total time : Current playback time / Total playback time
(6) Recording Name : Name of current video file
(4) Playback Control Panel :
- Previous : Playback the previous recording from the recording list
- Previous bookmark : Go to previous bookmark if there is previous bookmark
- 5 Seconds back : Go to 5 seconds back from current playback time
- Playback/Pause : Playback video / Pause - Using “space bar” is the same function
- 5 Seconds forward : Go to 5 seconds forward from current playback time
- Next bookmark : Go to next bookmark if there is next bookmark
- Next : Playback next recording from the recording list
PLAYBACK
