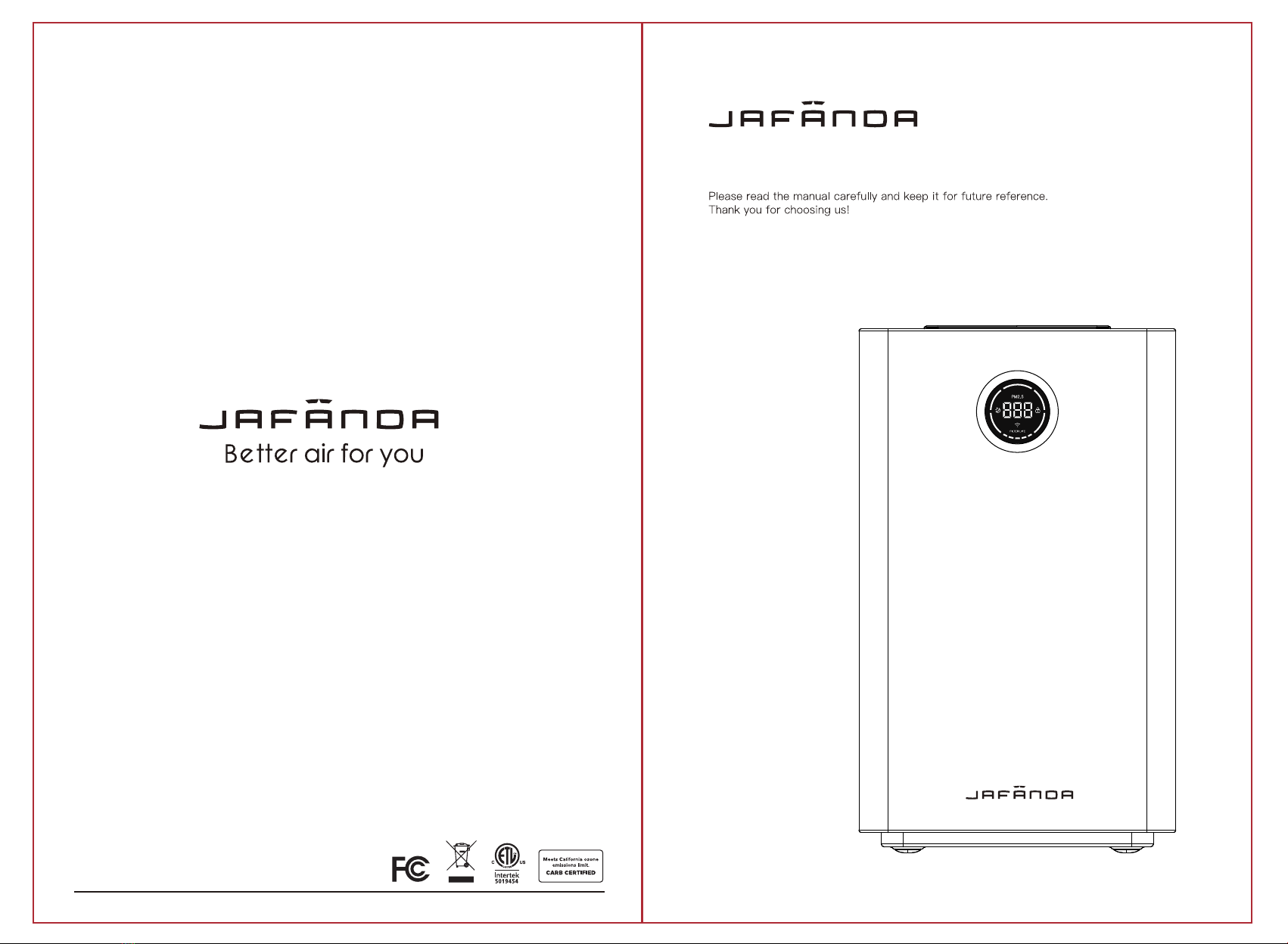

Jafanda JF260 User manual

JF260-
EPA Est.NO.98581-CHN-1
Made In China
1309 Coffeen Avenue STE 4304
Sheridan,Wyoming 82801
[email protected]
Jafanda LLC.
Air Purifier User Manual

TABLE OF CONTENTS
JAFANDA US
THANK YOU FOR YOUR PURCHASE!
Contact our support team by Email:
[email protected]
Join the jafanda Community on Social Media
Package content
Specifications
Safety information
Getting to know your air purifier
Touch panel controls
Product features
Operating instructions
Using your air purifier
Care & maintenance
Replacement filters
Troubleshooting
Warranty information
1
1
2
3
4
5
6
8
9
10
11
12

SAFETY INFORMATION
JF260 air purifier X 1
Composite filter X 2 (pre-installed)
Power adaptor X 1 (DC 24V)
User manual X 1
PRODUCT TECHNICAL PARAMETERS
PRODUCT TECHNICAL PARAMETERS
Prohibitory sign
Warning sign
Caution sign
Any content with this logo must be avoided to prevent damages to the product
and personal safety hazard.
All contents with this logo should be operated in strict accordance with the
requirements, to prevent damages to the product or personal safety hazard.
Any content with this logo requires users’ attention, otherwise it may
cause product damage or other losses due to improper operation.
Do not handle the the power plug when your hands are wet.
Do not block the air inlet/outlet.
Do not use the unit in places with heavy humidity such as lampblack or bathroom.
Do not clean or reuse the high-efficiency composite filter.
Avoid unsupervised use by children, people with perceptual impairment,physical or
intellectual disabilities. Make sure a safety person is present to supervise, provide
guidance and assist in operating the machine.
PACKAGE CONTENTS
SPECIFICATIONS
Read the instructions carefully and follow the following safety precautions
when using this product!
Remove dust from the air purifier and power plug regularly.
Use only the power adapter included with this product.
Be careful when cleaning the air purifier. Strong corrosive cleaners may damage the
unit's surface.
Do not approach the device, nor place it on heat sources (such as fireplaces, heaters
or places that may come into contact with flammable gases).
Unplug the adapter from the power socket when cleaning the unit or when it’s not in
use. Otherwise, it may lead to electric shock or fire caused by short circuit due to poor
insulation.
Product name Model JF260
Rated Power
CADR
(Clean Air Delivery Rate)
Standby Power
Power Adapter
(Input)
Power Adapter
(Output)
Air Purifier
Filter life
Product size
N.W.
G.W.
6.6lb/3.0kg
8.6lb/3.9kg
8.66x 8.66 x 14.41 in
22 x 22 x 36.6 cm
Package Size 11.42 x 10.24 x 16.06 in
29 x 26 x 40.8 cm
3000H
32W
153CFM (260m³/h)
Noise Level 23-54dB
Operating
Conditions Humidity:
Temperature:
14℉-104 ℉/-10 ℃-40 ℃
20%-95% RH 238 2
ft (5 Times/h)
< 0.5W
100-240V~ 50/60Hz
24V 1.5A
1
2
Room Area Served

5
8
9
Base knob
Sleep Child lock
Filter life display
PM 2.5 display
Air quality warning light
Foot pad
Composite filter
1
2
Air outlet
3
4
5
Display screen
Touch - control panel
6
Ambient lighting
7
Air inlet
8
9Power adapter
2
1
4
6
7
3
PRODUCT COMPONENT STRUCTURE AND NAME
DISPLAY SCREEN
If the product picture is different from the
real one, the real one shall prevail.
GETTING TO KNOW YOUR AIR PURIFIER
TOUCH PANEL
POWER
SPEED
SLEEP | FILTER
TIMER
LIGHT
AUTO
Child lock
Power the air purifier ON and OFF.
Adjust fan speed (1-5).
Press the SLEEP button to enter the sleep mode when the
purifier is working; If the icon becomes red, replace the
filter screen.
Press this button to realize
automatic switching on/off.
Adjust the ambient light mode.
Press this key to enter automatic mode when working.
Press and hold the “ ”+ “ ” for more
than 3 seconds in the working state to enter the
child lock mode.
The fan speed changes from 1 to 4 according to the
PM2.5 concentration change.
ICON NAME DESCRIPTION
3
4

PRODUCT FEATURES
A VARIETY OF FUNCTIONS IN ONE
Efficient purification of PM2.5, smoke, pollen
and VOC, pet odor and other pollutants
5- speed wind
Timer
Filter replacement reminder
Manual mode/Auto mode/Sleep mode
Built-in PM2.5 sensor, digital display
Ambient light
All filters are included inside the air purifier.
Before use, make sure the plastic bag outside the filter is
removed and properly installed.
Precautions
for use
Remove the filter from the air purifier.
OPERATING INSTRUCTIONS
Make the product stand upside down
and turn the knob on the base to open
position according to the product’s label.
Remove the base.
Remove the bags from the filter.
3-Stage Filtration
Pre-filter
activated
carbon filter
HEPA Filter
Note:
activated carbon fiter, HEPA filter and
Pre-filters are compounded in the same filter.
HEPA Filter
Intercepts hair, dander, fibers and particles of all sizes.
Can be vacuumed regularly.
H13 HEPA filter for high-efficiency filtration of particles as small as 0.3 micron,
such as PM2.5, smoke, pollen, dust and other pollutants.
High iodine value activated carbon, effective adsorption of VOC, cigarette odor,
lampblack odor, pet odor and other harmful gases.
Pre-filter
activated
carbon filter
5
6

GETTING STARTED
3. When the screen lights up, touch
the relevant function keys and the
machine will enter the working
mode.
Put the filter without the bag back
into the air purifier
USING YOUR AIR PURIFIER
OPERATING INSTRUCTIONS
Cover the base and tighten the knob
to the LOCK position in the marked
direction.
1. Plug in the power adapter. When the
device is fully charged, the buzzer will emit a
"ding" sound.
2. Touch the POWER switch key to start the
purifier.
Power ON / OFF
Sleep | filter
When the machine is in SLEEP mode,it will
continue to operate silently, with all indicators
and ambient lights turned OFF.
Press “ ”in the working state, and it will enter
in SLEEP mode. Once in sleep mode,
the SLEEP button and icon will remain ON,
while all other icons and indicators are OFF.
After 10 seconds, the SLEEP button and the
SLEEP icon will go OFF, and the wind speed will
adjust to the SLEEP mode.
When in SLEEP mode, press any button once to
wake up the screen. The SLEEP button and icon
will go ON. Press it within 10 seconds to exit the
SLEEP mode.
Auto
Press “ ”in the working state to enter
the Smart mode. The Auto button will
be fully lit, the wind speed will adjust to the
PM2.5 concentration values, and the wind
speed gear will be set between 1 and 4.
The color of the air quality indicator will
change according to the PM2.5
concentration values.
Light
Touch “ ”to adjust the light brightness. Each
touch will change the ambient light mode.
5 modes to choose:
1. 25% brightness
2. 50% brightness
3. 100% brightness
4. shut off button, display screen and ambient
light. 10s later, the sleep icon light off
5. lit button and display screen , ambient light
stays off
When the touch panel is completely black, press
any key to wake up “ ”
Child lock
This feature is designed to prevent misuse or
accidental manipulation by pets or children. You
cannot change the air purifier settings in this
mode.
Press and hold the “ ”+ “ ” for more
than 3 seconds in the working state to enter the
child lock mode. The child lock icon will light up
on the display screen. All other buttons will remain
OFF.
In the Child Lock mode, press and hold “ ”+
“ ” for more than 3 seconds to exit the child
lock function. Then the child lock icon on the
display screen will go OFF.
With the device powered ON, the machine will
remember the previous wind speed and light
settings each time it is turned on. But when the
adapter is plugged back in, it will go back to its
default state. Upon start, the machine will
default to auto mode.
Speed
In the working state, press “ ”when the
wind speed button is fully lit, the machine will
enter the manual mode, to manually set the
fan running speed. Press “ ”, and select the
machine speed (1-2-3-4-5 cycle).
Timer
Press “ ”, the timer button light will turn ON to
set the timer. The screen will display the timer's
set time. Each touch, will increase the timer by 1
hour, the value range is 0-12. When the value is
0, the timing can be canceled. Release the button
and after 3 seconds the timer will be set. The timer
will then start counting down.
press “ ”in the working state to set timed shutdown;
press “ ”in the standby state to set timed start.
PM2.5 Value
0-12
13-35
36-55
＞55
Excellent
Good
severe
Poor
Green
Blue
Yellow
Red
1
2
3
4
Air quality PM2.5 air quality indicator Wind
speed gear
Press “ ”in the standby mode, the machine is
ON, and the button is bright white.
Press “ ”again to shut down. The button will
become bright red, and enter the standby mode.
Memory function
7
8

THE ADAPTER MUST BE UNPLUGGED BEFORE ANY MACHINE MAINTENANCE OPERATION.
CARE & MAINTENANCE REPLACEMENT FILTERS
1. CLEANING THE BODY OF THE DEVICE (RECOMMENDED ONCE A MONTH):
1) Use a soft cloth to remove stains.
2) Stubborn stains that are not easy to clean can be wiped off with a soft cloth dipped in an
appropriate amount of neutral detergent.
Note: do not use hard objects to scratch the machine shell. When removing the base,
follow the instructions to avoid damaging machine parts.
2. FILTER CLEANING AND REPLACEMENT (RECOMMENDED ONCE EVERY 3-6 MONTHS):
1) Filter replacement will be reminded by the built-in program, which can be replaced
according to the service life of the machine, or can be replaced in real time by the
filter‘s mandatory service life reset function.
* The filter's life is is about 3000 hours, and the 5 indicator lights will decrease by one every
600 hours. When the filter’s remaining life is lower than 150 hours, the filter button will turn
red, and the last indicator light will start flashing (1Hz) to warn the filter screen needs to be
replaced.
When this happens, replace the filter and press the filter button to reset the filter's life
indicator.
Filter life reset:
When the filter life is ≥150 hours, touching the filter’s life reset button (3s) will not reset the
filter’s life, but only a emit a"ding" sound. When the filter life is <150 hours, the filter’s life reset
button will turn red: long press the filter’s life reset button (3s).A "ding" sound will confirm the
filter’s life is reset, . The filter’s life reset is completed, and the indicator light of the filter
life is fully on.
Mandatory reset of filter life:
Within 30 seconds after power-on, in the standby mode, long press the filter reset button
(more than 3s). A a "ding" sound will indicate that the filter life is forced to reset, , and the
screen will flash 6 times (2 times/second), indicating that the mandatory reset action has
been completed. Reboot, and the filter’s life indicator light turn back on.
2) when dust accumulates on the surface of the composite filter, you can use a vacuum
cleaner to clean the surface dust, in order to extend the service life of the filter (it is
recommended to clean once a month. Do not wash).
* Depending on the machine’s environment, the filter’s life will be different. For example, in
places where people smoke and pets are present, the life of the screen is shorter. When the
purification effect is not good, replace the filter in time.
* Please dispose the used waste filters according to the relevant regulations of solid waste.
123
456
789
1. When the filter button
has a red light and the
remaining light of the
filter’s life indicator on the
display screen starts
flashing, the filter needs to
be replaced.
2. Touch the POWER
button to turn off the
machine and unplug the
adapter.
3. Turn the product
upside down and open
the knob on the base to
the open position
according to the
product label.
4. Remove the base. 5. Remove the used
filter screen from the
machine.
6. Remove the packing
plastic bags of the new
filters.
7. Put the new filters into the
machine.
8. Cover the base and
tighten the knob to the
locking position in the
marked direction.
9. Plug in the adapter and
touch the POWER button
to restart it.
9
10

WARRANTY INFORMATION
Jafanda products have a 1-year warranty from the date of purchase. Jafanda guarantees
that all products conform to the highest quality materials, workmanship and services from
the date of purchase until the end of the warranty period.
Jafanda will replace any product found defective due to manufacturer defects based on
qualification. Refunds are available within 30 days of purchase. The limited warranty
applies only to air purifiers installed, used and maintained in accordance with this
instruction manual.
EXTENDED ONE-YEAR WARRANTY:
Register your product at www.jafanda.com/pages/warranty to extend your warranty for
an additional year.
Please fill out all required fields and include your order ID, place of purchase, and purchase
date if applicable.
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE POSSIBLE SOLUTION
Product is not working
properly
1. The connection is faulty.
2. The base is not properly
installed.
1. Check whether the plug is inserted
into the socket and whether the
POWER ON/OFF button is turned on.
2. Reinstall the base.
Fresh air doesn’t flow
smoothly out of the
outlet
1. The plastic package of the new
air filter has not been removed.
2. The air outlet of the purifier is
blocked by foreign objects.
1. Remove the packing plastic
bag first.
2. Remove foreign bodies.
The machine makes an
abnormal sound during
operation
1. The air intake vent or air exhaust
vent is blocked by foreign bodies.
2. Foreign objects fall into the air
duct of the machine.
1. Please move the obstructing
object.
2. Remove the foreign body.
After replacing the filter,
the filter replacement
indicator is still blinking
1. The filter’s reset button was not
pressed.
1. Long press the filter button for
more than 3 seconds. The filter
reset is completed after the “ding”.
Feel the wind weakening 1. The life of the filter has expired,
or the filter is blocked by hair.
1. Use a vacuum cleaner to clean dust
and hair on the surface of the filter;
Replace the expired filter screen.
The air purifier gives off
a bad smell
1. The concentration of
environmental pollutants may be
too high, and the filter screen may
suffer early saturation.
1. The filter needs to be replaced
to avoid secondary pollution.
The most Frequently Asked Questions about this product are listed here.
If you cannot find the answer to your question, please contact our
after-sales service department.
11
12
Warranty
