J&m corporation Hswr-7252-xtc User manual

ROKKER™XT Series

Dual 7.25” Sub-Woofer Speaker

Kit for Harley Saddlebags

HSWR-7252-XTC

Installation

Instructions

Installation Instructions

1. Remove both left and right saddlebag lids and latch

assemblies from the saddlebags.

2. Remove both saddlebags, side covers, seat and fuel

tank.

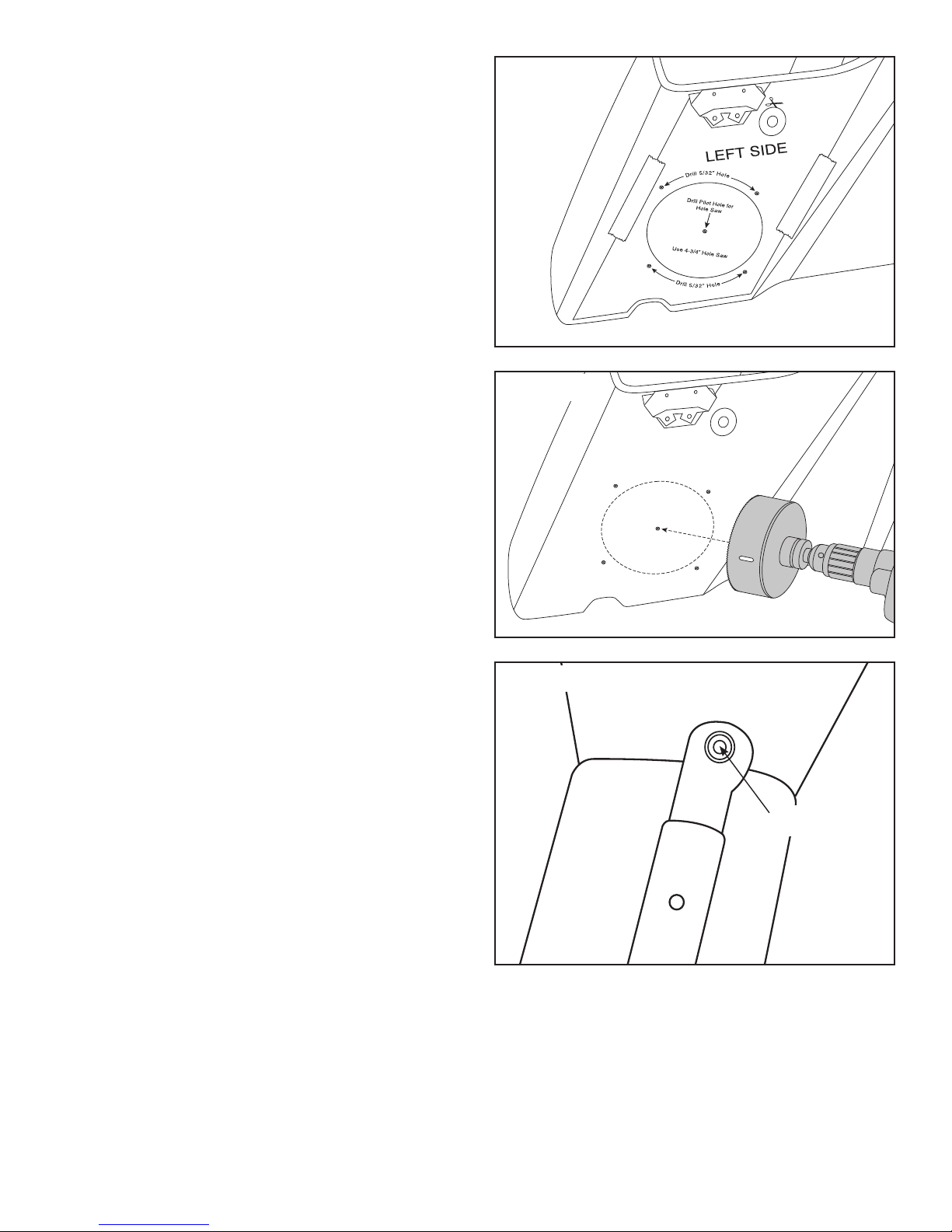

3. Carefully position the provided drill template onto the

left saddlebag and tape it down securely. Diagram A

4. Using a sharp awl or center-punch, carefully punch

mark the saddlebag in the locations indicated on the

template.

5. Remove the template and using a 5/32” drill bit,

carefully drill holes in the indicated locations.

6. Using the previously drilled 5/32” center hole as a

pilot hole, cut a hole in the saddlebag using a 4 3/4” hole

saw. Diagram B

7. Carefully drill a 5/16” diameter hole in the bottom of

the left saddlebag in the location shown. Diagram C

8. Install the provided rubber grommet into the hole.

Then, from the inside of the saddlebag, route the left

side speaker harness (brown/white-brown) through the

grommet and install the provided plastic connector onto

the speaker harness. IMPORTANT: BE SURE TO INSERT

THE CORRECT WIRES INTO THE CORRECT LOCATION IN

THE PLASTIC CONNECTOR. Diagram D

9. Using the hardware provided, install the speaker grill

and the speaker adapter into the saddlebag. Note: The

speaker ring adapter should be installed with the word

“TOP” facing up. Diagram E

10. Connect the wire terminal spades to the correct

terminals of the J&M 7.25 subwoofer speaker.

11. Install the J&M subwoofer speaker and the protective

cowl onto the speaker adapter using the (4) provided self

threading screws. Note: The speaker terminals should

be facing down and the open area of the protective cowl

should face the bottom rear corner of the saddlebag.

Diagram C

Drill 5/16” hole

Diagram A

Diagram B

Inside front

floor of

saddlebag

green/brown

green

green/brown

green

white/brown

brown

white/brown

brown

Right

Left

Diagram D

Diagram E

12. Re-install the saddlebag lid and install the saddlebag

assembly onto the motorcycle.

13. Connect the forward section of the speaker harness

to the completed saddlebag assembly and route the

harness along the frame, under the fuel tank, and into

the fairing. Secure the harness using the provided tie-

straps.

14. Repeat the entire process for the right side

saddlebag assembly.

15. Reinstall the fuel tank, seat, and side covers.

16. Refer to your amplifier installation manual for proper

adjustments for Low Frequency Subwoofer speakers.

17. Excessively high Gain and/or Bass-Boost settings

can overheat or cause permanent damage to your J&M

ROKKER Subwoofers. This type of damage is not covered

under the J&M speaker warranty.

WARRANTY AND REPAIR INFORMATION

TWO YEAR LIMITED WARRANTY In order to facilitate the servicing of this warranty, the Warranty Registration Form should be filled out and

returned within 10 days of the date of purchase. However, return of the Warranty Registration Form is not a precondition of this warranty,

and this Warranty will be observed by J&M CORPORATION whether or not the Warranty Registration Form is returned,

on the condition that other satisfactory evidence of the date of the original purchase is provided to J&M CORPORATION.

WHO PROVIDES THE WARRANTY? This warranty is provided by J&M CORPORATION.

WHO IS PROTECTED? This warranty is extended only to the original owner of this J&M CORPORATION product and may not be

transferred or assigned.

WHAT IS COVERED AND HOW LONG? This warranty covers all defects in material or workmanship of our product for a period of

2 years from date of original retail purchase. At its option, J&M CORPORATION will repair or replace any defective part(s) or

equipment.

The provisions of the warranty shall not apply to any unit which has been subjected to misuse, neglect, incorrect mechanical or

electrical installation, unauthorized modifications, accident, nor to units which have been repaired or altered outside of our factory.

PROCEDURE FOR OBTAINING PERFORMANCE OF WARRANTY In the event that the product does not conform to this warranty, the product

should be shipped prepaid to the J&M CORPORATION service facility. Transportation charges, insurance fees, and labor costs for shipment,

removal, or reinstallation of our product are not covered by this warranty. Loss or damage in shipment is the sole responsibility of the freight

carrier.

FOR YOUR INFORMATION Repair as provided under this warranty is the exclusive remedy of the consumer. J&M CORPORATION shall

not be liable for any incidental or consequential damages or for breach of any express or implied warranty on this product. Except to the

extent prohibited by applicable law, any implied warranty of merchantability or fitness for a particular purpose on this product is limited

in duration to the duration of the warranty. Some states do not allow the exclusion or limitation of incidental or consequential damages,

or allow limitations on how long an implied warranty lasts, so the above limitations or exclusion may not apply to you. This warranty gives

you specific legal rights which vary from state to state.

J&M CORPORATION reserves the right to make changes in design and to make improvements in its products without the obligation to

incorporate the changes or improvements in any of its previously manufactured products.

J&M CORPORATION has not authorized anyone to make representations or warranties other than the warranty contained herein.

The above warranty is effective for all products manufactured after 10/01/86.

NON-WARRANTY REPAIR RATES J&M CORPORATION reserves the right to change the labor repair rates without prior notice. At the time

of this printing the out-of- warranty repair is $40 per hour for labor only. However, the customer is advised to verify the

current rate when he/she calls customer service to obtain the return authorization number.

FACTORY SERVICE ADDRESS J&M Corporation, 1415 S. Cherry Avenue, Tucson, Arizona, 85713, U.S.A. Tel: 1-800-358-0881 audio@

jmcorp.com www.jmcorp.com

CUSTOMER SERVICE NUMBER 1-800-358-0881
