Janz Tec emPC-X1600 User manual

PROPRIETARY NOTICE
All rights reserved by Janz Tec AG.
No parts of this technical manual may be modified, copied or reproduced
in any form or by any means for commercial use without the prior written
permission of Janz Tec AG, Germany.
All instructions, information and specification contained in this manual
are for reference only and remain subject to change without
announcement.
emPC-X1600
emPC-X1100
Fanless Embedded PC System Intel ATOM Processor
(Hardware Manual)
Version 1.1
refers to product revision no.
V 1.4/1.1

Title:
File: j:\as\entwicklung\projekte\hw\empc\empc_x1600\doc\manual\manual_empc-
x1600_hardware.doc
Pattern: z:\text\vorlagen\normal.dot
Created: Stefan Althöfer, 21.06.2011
Last Update: Stefan Althöfer, 22.03.2013
© Janz Tec AG 2013
Im Dörener Feld 8
D-33 100 Paderborn, Germany
Tel.: [phone]
FAX: [phone]
email: [e-mail]
Internet: www.janztec.com

emPC-X1600 (Hardware Manual) •Contents i
Rev. 1.1 © Janz Tec AG
Contents
1 Introduction 5
1.1 Features...............................................................................................................................5
1.1.1 Standard Products..........................................................................................................5
1.1.2 Hardware Customization ................................................................................................6
1.1.3 Software..........................................................................................................................6
2 Safety Instructions 7
2.1 Installation and Maintenance...............................................................................................7
2.2 Ambient and Environmental Conditions...............................................................................7
3 Installation/Maintenance 8
3.1 cFast Card Removal............................................................................................................8
3.2 Battery replacement.............................................................................................................8
4 Interfaces 9
4.1 Power Supply, Reset and Power LED.............................................................................. 10
4.2 RS232 (Console) .............................................................................................................. 10
4.3 RS232............................................................................................................................... 10
4.4 RS485............................................................................................................................... 11
4.5 CAN................................................................................................................................... 11
4.6 DVI-D connector ............................................................................................................... 11
4.7 USB type A receptacle USB0, USB1 and USB2 .............................................................. 12
4.8 Ethernet Interface ETH0................................................................................................... 12
4.9 Ethernet Interface ETH1................................................................................................... 12
5 System Internals 13
6 Appendices 14
6.1 Technical Data.................................................................................................................. 14
6.2 References........................................................................................................................ 16
6.3 Product History.................................................................................................................. 17
6.3.1 emPC-X1600 (/0, /1, /2)............................................................................................... 17
6.3.2 emPC-X1100 ............................................................................................................... 17
6.4 Manual History.................................................................................................................. 18

ii emPC-X1600 (Hardware Manual) •Contents
© Janz Tec AG Rev. 1.1
List of Figures

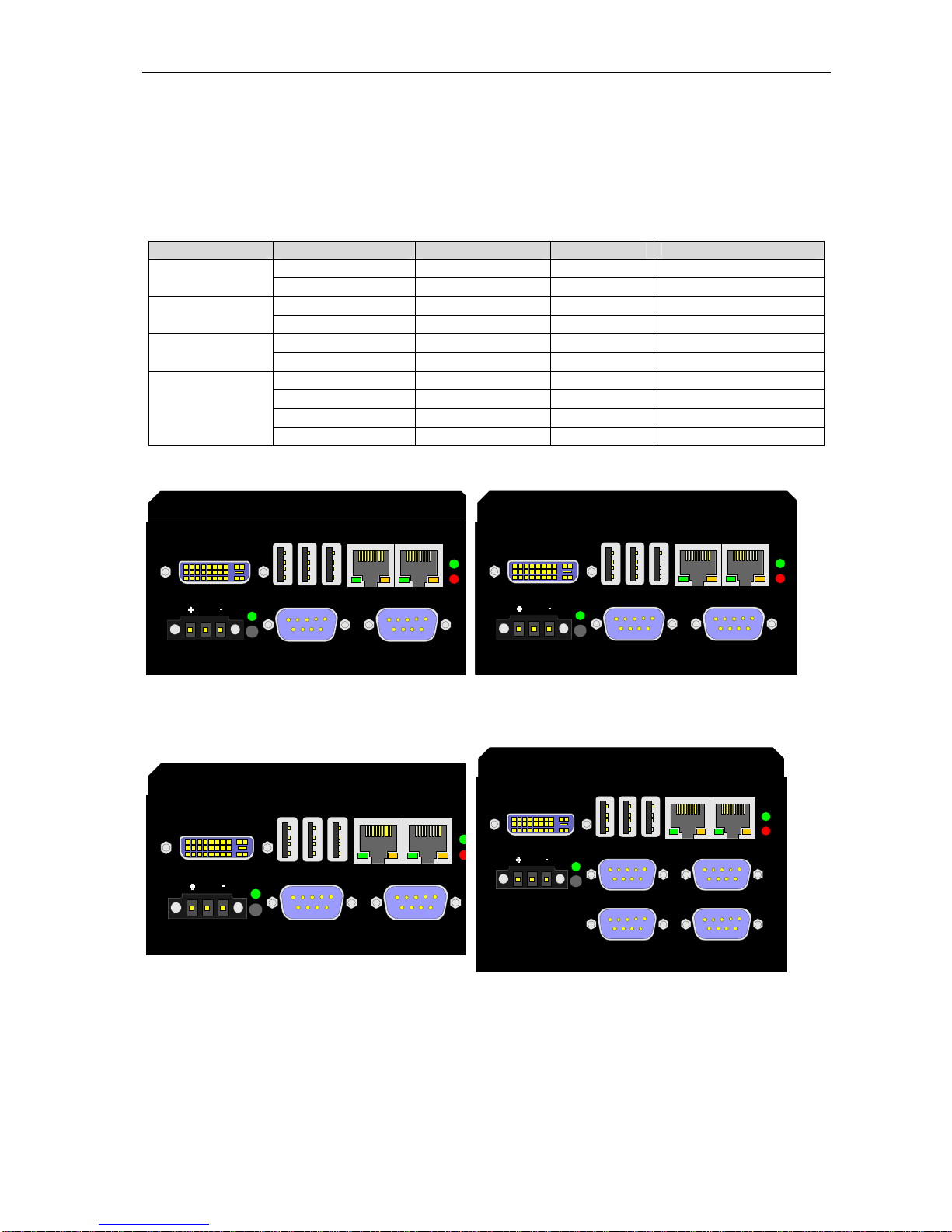

Figure 1: emPC-X1600/0 interfaces.........................................................................................................9
Figure 2: emPC-X1600/1 interfaces.........................................................................................................9
Figure 3: emPC-X1600/2 interfaces.........................................................................................................9
Figure 4: emPC-X1600/4 interfaces.........................................................................................................9
Figure 5: Power connector .................................................................................................................... 10
figure 6: System Block diagram............................................................................................................. 13
List of Tables
Table 1: emPC-X1600 standard products................................................................................................5
Table 2: Interfaces connected to D-SUB..................................................................................................9
Table 3: Power connector assignment.................................................................................................. 10

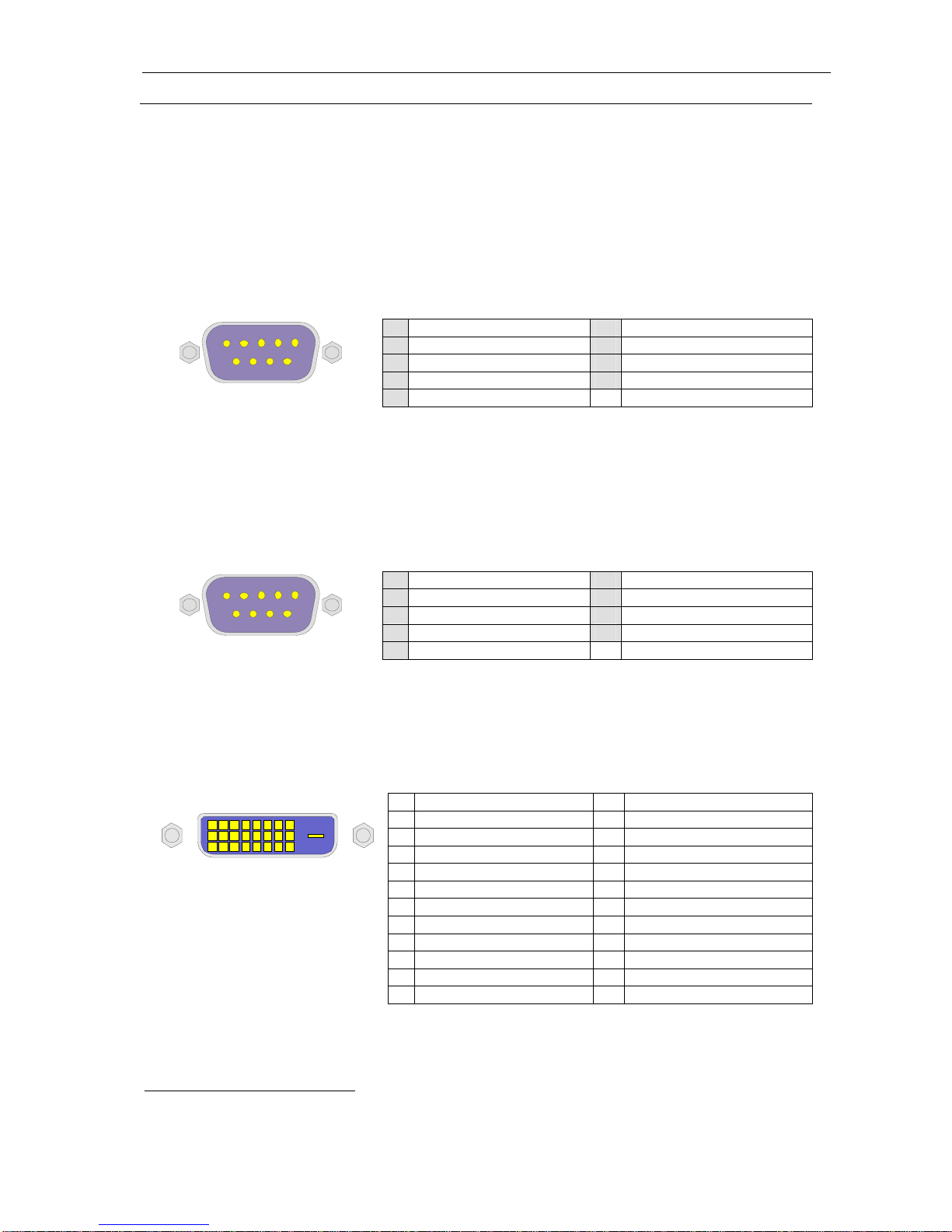

table 4: RS232 (Console) connector..................................................................................................... 10
table 5: RS232 connector...................................................................................................................... 11
table 6: RS232 connector...................................................................................................................... 11
table 7: CAN connector ......................................................................................................................... 11
table 8: DVI-D connector....................................................................................................................... 11

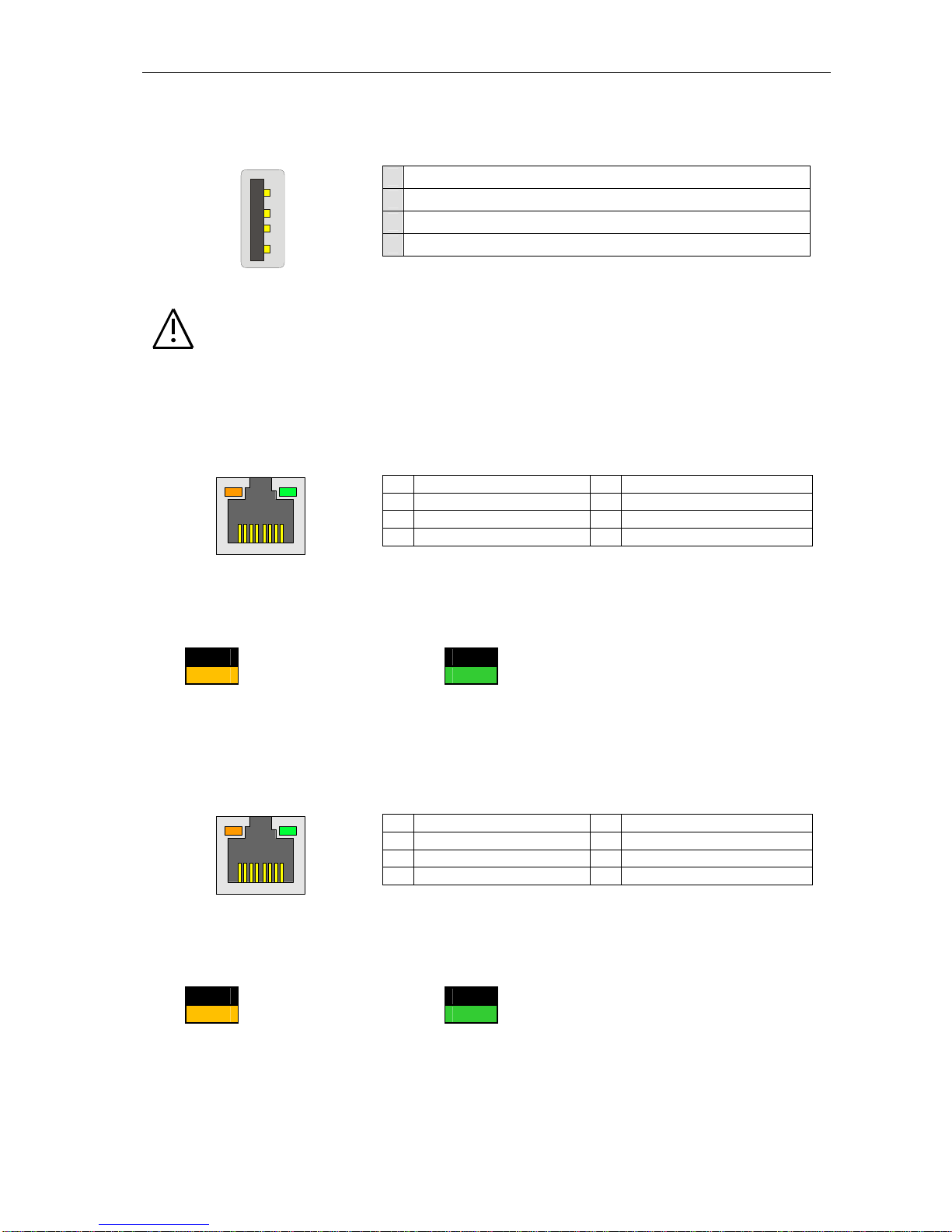

table 9: USB connector.......................................................................................................................... 12
table 10: Ethernet connector 0.............................................................................................................. 12
table 11: Ethernet connector 1.............................................................................................................. 12

emPC-X1600 (Hardware Manual) •Contents iii
About this Manual
This is the hardware manual for the emPC-X1600 embedded PC. It starts with an introduction to the
emPC-X1600. After that it discusses some topics about installation of the product. The rest of the
manual then covers technical details about the emPC-X1600.
Throughout this manual the term emPC-X1600 also refers to emPC-X1100 when not otherwise
noticed. Both products only differ in the CPU option.
More in depth technical information will be found in secondary manuals, e.g. the ixBus system
reference manual.
Conventions
If numbers are specified in this manual, they will be either decimal or hexadecimal. We use C-notation
to identify hexadecimal numbers (the 0x prefix).
If we refer to low active signal names, they will suffixed by a “#” character.
Some parts of the manual contains notices you have to observe to ensure your personal safety, or to
prevent damage to property. These are visually marked with the following alert symbols:
DANGER
indicates that death or severe personal injury will result if proper precautions are not
taken.
WARNING
indicates that death or severe personal injury may result if proper precautions are not
taken.
CAUTION
indicates that minor personal injury can result if proper precautions are not taken.
NOTICE
indicates that damage to equipment can result if proper precautions are not taken.
indicates information that we think you should have read to save your time by avoiding
common problems. Important suggestions that should be followed will also be marked
with this sign.
Acronyms and Abbreviations
EMC Electromagnetic capability.
ESD Electrostatic discharge.
FLASH Electrically erasable PROM. Capable of in-circuit re-programming with the capability of
erasing considerably large blocks (in contrast to EEPROM).
NVRAM Non volatile RAM. Storage is ensured by a battery.
Rev. 1.1 © Janz Tec AG

emPC-X1600 (Hardware Manual) •Introduction 1 - 5
Rev. 1.1 © Janz Tec AG
1 Introduction
The emPC-X1600-Platform is a flexible computer system. It consists of one CPU board and can be
expanded with a variety of IO expansion boards. The boards are stacked together and are inserted into a
rail mounted housing. This allows flexible system building. Internal busses are documented, so users can
build application specific IO expansion boards.
Order-No.: Product Interfaces
SY-EPC-70001 emPC-X1600/0 ATOM Z530, 1 GB DDR2,
DVI, 3 x USB 2.0, 2 x Ethernet,
2 x RS232 (console)
SY-EPC-70000 emPC-X1600/1 ATOM Z530, 1 GB DDR2,
DVI, 3 x USB 2.0, 2 x Ethernet,
1 x RS232 (console). 1 x CAN/CANopen
SY-EPC-70002 emPC-X1600/0 ATOM Z530, 1 GB DDR2, DVI, 3 x USB 2.0, 2 x Ethernet,
2 x CAN/CANopen
SY-EPC-70004 emPC-X1600/4 ATOM Z530, 1 GB DDR2,
DVI, 3 x USB 2.0, 2 x Ethernet,
4 x CAN/CANopen
SY-EPC-71001 emPC-X1100/0 ATOM Z510, 1 GB DDR2,
DVI, 3 x USB 2.0, 2 x Ethernet,
2 x RS232 (console)
SY-EPC-71000 emPC-X1100/1 ATOM Z510, 1 GB DDR2, DVI, 3 x USB 2.0, 2 x Ethernet,
1 x RS232 (console). 1 x CAN/CANopen
SY-EPC-71002 emPC-X1100/0 ATOM Z510, 1 GB DDR2,
DVI, 3 x USB 2.0, 2 x Ethernet,
2 x CAN/CANopen
SY-EPC-71004 emPC-X1100/4 ATOM Z510, 1 GB DDR2,
DVI, 3 x USB 2.0, 2 x Ethernet,
4 x CAN/CANopen
Table 1: emPC-X1600 standard products
1.1 Features
1.1.1 Standard Products
•1.6 GHz Intel®Atom™(Z530 series)
•1 GB DDR2
•Internal cFAST Socket for SATA based SSD modules
•1 x 10/100/1000 Mbit/s Ethernet
•1x 10/100 Mbit/s Ethernet
•3 x USB 2.0 interface (480Mbit/s), with 500mA power supply capability
•2 x user programmable front panel LEDs
•128 kB of nvSRAM which does not require battery backup
•Battery backed up RTC
•Internal watchdog function
•Internal temperature monitoring
•Video controller (Intel GMA 500) with up to 256 Mbyte of video memory
•DVI-D display connector
•internal LVDS display interface

1 - 6 emPC-X1600 (Hardware Manual) •Introduction
© Janz Tec AG Rev. 1.1
•Internal expansion bus (iX-Bus)
•System Power supply 9..32 VDC
•Reset Push Button and Power LED
•2 male 9pin D-SUB connectors, utilized by serial ports or CAN (see table above)
•Power supply monitor
1.1.2 Hardware Customization
Due to it’s flexible system architecture, the emPC-X1600 can be easily customized if the standard
products do not provide optimum features or price. Customization is possible even at moderate
quantities. Ask sales department for details.
Following you find a (non-complete) list of possible customization:
•Internal SSD with up to 4 GByte MLC Flash. Soldered to PCB for improved mechanical reliability.
•Without nvSRAM for price reduction.
•Serial ports can be modified for RS485 physical layer (optionally isolated)
•More CAN ports are possible by using expansion cards (in a larger housing)
•More serial ports are possible (but not currently supported for WindowsXP)
•Digital/Analog-IO expansion card
•Customer specific expansion cards
•Power supply monitor to supervise power supply voltage and one external control voltage. The
monitor can be configured to turn system on/off upon configurable thresholds and with
configurable timeouts.
1.1.3 Software
Supported by
•Windows XP
•Windows XP embedded
•Windows-CE 6.0
•Linux, QNX.
Contact Janz Tec for more information about the available software packages.

emPC-X1600 (Hardware Manual) •Safety Instructions 2 - 7
2 Safety Instructions
Refer to page iii for explanation of the warning notice system.
The product described in this documentation may be operated only by personnel qualified for the specific
task in accordance with the relevant documentation for the specific task, in particular its warning notices
and safety instructions. Qualified personnel are those who, based on their training and experience, are
capable of identifying risks and avoiding potential hazards when working with these products.
2.1 Installation and Maintenance
NOTICE
The product is intended to be used in industrial environments. Typical applications are
process virtualization or as a controller for industrial automation.
DANGER: Electrical Shock
Danger to life.
This product operates with 14..32 V DC SELV power supply. Do not connect this product to
an improper power supply.
WARNING: Unauthorized Opening
Improper opening of the device may result in substantial damage to the equipment.
Remove power before you open the housing of the product. Do not connect power or
operate the product until you have closed the housing and tightened all screws.
WARNING: Electrical Shock
The IO interfaces (connectors) of the product are only suited to be connected to SELV
circuits. Use interfaces (connectors) for their intended use only.
CAUTION: Explosive Risk
Danger of explosion when replacing with wrong type of battery.
The product equipped with a Lithium battery. Replace only with battery of the same or
equivalent type.
2.2 Ambient and Environmental Conditions
DANGER: Explosive Risk
This product is NOT designed to be used in potentially explosive atmosphere.
Do not operate this product in potentially explosive atmosphere.
WARNING
This product does NOT fulfil the requirements for a fire enclosure according to EN
60950-1 in all possible mounting positions. In these mounting positions, installation is
only permitted above concrete or other non inflammable materials.
NOTICE: Damage
Do not operate the product beyond the specified ambient conditions. Do not cover the
vent slots of the product.
NOTICE: EMI
This product is a class A device. This product may cause radio interference. In this case
the user must take adequate measures.
Rev. 1.1 © Janz Tec AG

3 - 8 emPC-X1600 (Hardware Manual) •Installation/Maintenance
3 Installation/Maintenance
WARNING
The emPC-X1600 is designed as a fan less computer system. Nevertheless a certain
amount of heat is generated inside the housing. The housing transports this heat to the
environment. Caution when touching the housing, burns hazard!
The external power supply has to be connected to “+” and “-“. The additional input “S” is the sense input
of an optional power supply monitor (Leave open if the power supply monitor is not available).
If the Power LED does not lit after power is applied, the input polarity might be reversed. Swap the wires
and try again.
Once during power-on, the BIOS detects which type of monitor is connected to the
emPC-X1600 and configures the video system accordingly. Therefore:
•If you have no monitor connected to the DVI connector during power-on, you will
not see any video output, even if you connect a monitor later on.
•If the monitor you have connected during power-on is not supported, then you
will not see any video output, even if you connect a proper monitor later. Note
that the BIOS rejects to operate with monitors that have a larger physical
resolution than supported. E.g your UXGA monitor will not work as 1600x1200 is
rejected by BIOS.
3.1 cFast Card Removal
Due to space limitations for the emPC-X1600, there is no opening in the housing for the
internal cFast Flash card on the CPU module. For removing the cFast Flash card the
housing of the emPC-X1600 must be opened. Therefore the back panel of the housing
must be removed by removing the two screws – the back is the one with which the
emPC-X1600
is mounted on the DIN rail.
NOTICE
Power must be turned off before removing or inserting the compact flash card. When
installing the Compact Flash Card, precautions against electrostatic discharge (ESD)
must be taken.
3.2 Battery replacement
The battery is needed for keeping the RTC alive. To replace the battery the housing must be opened by
removing the four screws at the front.
CAUTION
Explosion risk in case of improper replacement of the battery. Disposal of used batteries
according to local regulations. Replace only with the same or equivalent type. When
installing the battery, precautions against electrostatic discharge (ESD) must be taken.
© Janz Tec AG Rev. 1.1
