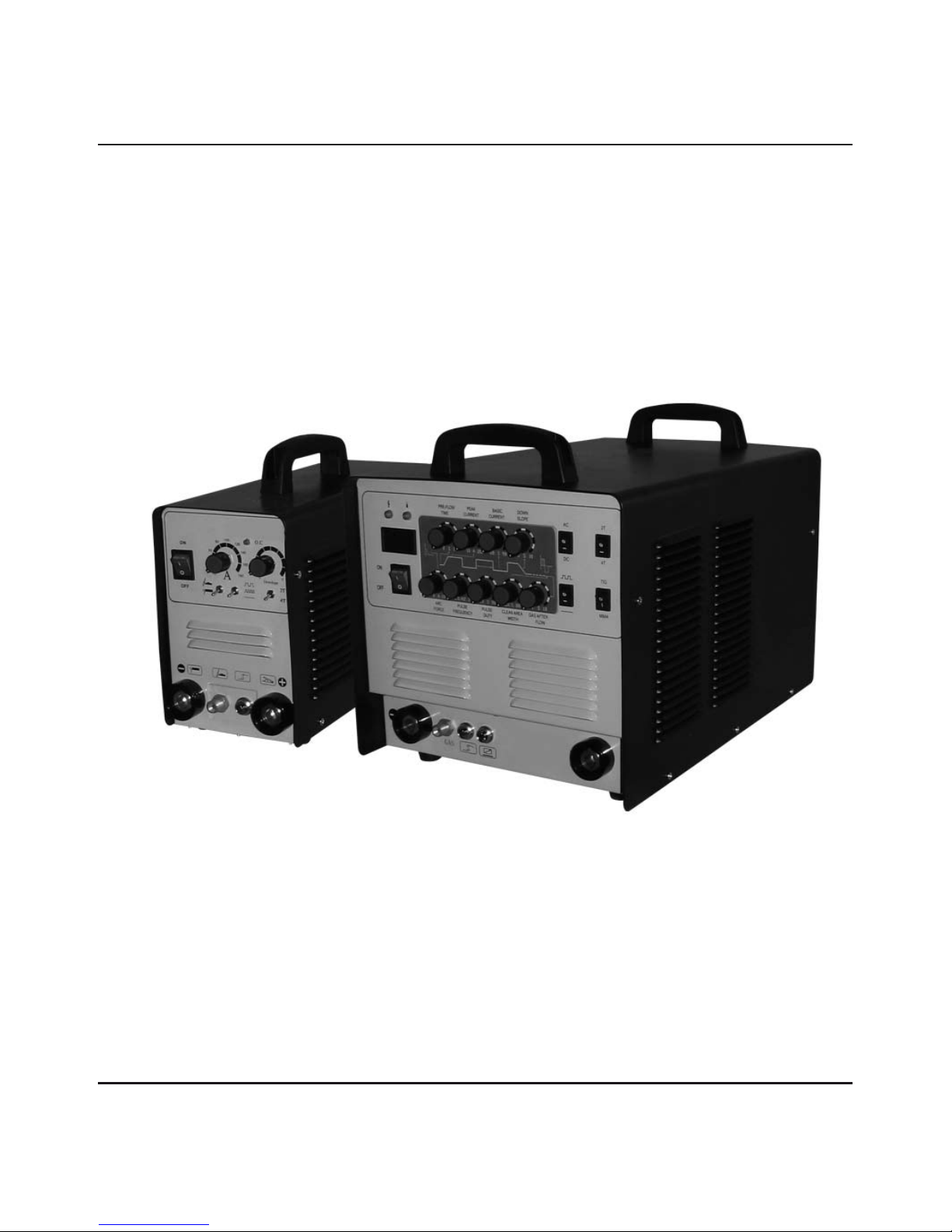

Jasic TIG180P User manual

TIG INVERTER
INSTRUCTION MANUAL

2
Contents
Warning
General Description
Block Diagram
Main Parameters
Circuit Diagram
Installation and Operation
Caution
Maintenance
Spare Parts List
Troubleshooting
3
4
4
5
6
6
8
9
10
11
EC DECLARATION OF CONFORMITY
We hereby declare that the following machines:
TIG180P Dual Voltage / TIG200P AC/DC
correspond to the following edicts and standards:
EMC Directives: 73/23/EEC and 89/336/EEC
European Standard: EN/IEC60974

3
TIG Inverter Instruction Manual
Welding and cutting is dangerous to the operator, people in or near the working area, and the
surrounding environment. Therefore, the performance of welding and cutting must only be done
under the strict and comprehensive observance of all relevant safety regulations. Please read and
understand this instruction manual carefully before installation and operation.
•Switching function modes during welding could potentially damage the equipment.
•Disconnect the electrode-holder cable from the equipment before welding.
•A safety switch is necessary to prevent the equipment from electric-leakage.
•Use only high quality welding tools and equipment with this Inverter.
•Operators should be suitably trained to use this equipment.
Warning
Electric Shock
•Connect the earth cable according to standard regulation.
•Avoid any contact with live components of the welding circuit, electrodes
and wires with bare hands. The operator should wear suitable welding
gloves while using this machine.
•The operator should keep the work piece insulated from himself/
herself.
Smoke and Gas generated while welding or cutting
•Avoid breathing in smoke and gas from welding or cutting.
•Make sure you are working in a well ventilated area.
Arc light-emission
•Always wear a welding helmet and appropriate work clothes while
welding.
•Measures should also be taken to protect people in or near the area
you are working.
Fire hazard
•Sparks from welding may cause re. Remove any ammable items from
the immediate area before welding.
•Have a re extinguisher nearby.
Noise
•Surface noise is generated while welding and cutting. Use suitable
hearing protection.
Machine Fault
•Consult this instruction manual in the case of a fault.
•Contact your local dealer or supplier for further advice.

4
This welding machine is manufactured with advanced inverter technology. With power component
MOSFET and PWM technology, the inverter converts DC voltage, which is rectied from input
AC voltage, to high 100KHz frequency AC voltage; as a consequence, the voltage is transformed
and rectied. Therefore, it results in a smaller transformer and lighter inverter machine, which
increases welding performance by 30%. The high frequency oscillation, which enables the output
of high frequency DC, is employed in the arc-starting system. The features of this product are as
follows: stable current, reliable, fully portable, ecient and quiet in operation.
When MMA welding, this welding machine features stable output and the option of arc force.
In case of normal arc input voltage, the stability of welding current output is not compromised
with variation of arc length, therefore it results in a stable performance of welding operation. In
the case of low input voltage, welding output current increases while arc voltage decreases, as
a consequence, the length of arc, which is not sucient, will automatically compensate and the
modulation of arc force is accessible. In case of the input arc voltage being too low to maintain
arc, the output of this welding equipment descends steeply, which avoids the splash generated
due to over current input.
When TIG welding, this welding equipment features stable output current and that the welding
current output does not change with the variation of the length of arc. In case of short circuit of
electrode, the voltage automatically decreases to 0V, which limits the impairment of electrode
and pollution to environment.
Warranty of maintenance for main components is one years.
During the warranty maintenance period, all maintenance is free of charge, not including any
deliberate damage or alteration to this welding equipment.
In the case of a fault with the inverter machine, only qualied electricians are authorized to carry
out repairs.
General Description
INPUT
PWM
CONTROL
Block Diagram

5
TIG Inverter Instruction Manual
Main Parameters
TIG180P TIG200P
Fuse Rating 16 amp 20 amp
Generator
Friendly + / − 15% + / − 15%
Input Power
Voltage
110 / 220 volt
(single phase)
AC 230 volt
(single Phase)
Rate Input
Power Capacity 3.9 KVA 4.5 KVA
Input Voltage
Frequency 50 / 60 Hz ———
Output Current
Range
MMA 10 − 180 amps
TIG 5 − 180 amps
AC TIG 17 − 200 amps
DC TIG 10 − 200 amps
Duty Cycle
(25°C)
110 volt 140 amps @ 60%
240 volt 180 amps @ 60%
AC TIG 200 amps @ 60%
DC TIG 185 amps @ 60%
ARC − Starting HF HF
Weight 8.8 kg 25 kg
Overall
Dimensions 371 x 155 x 295 mm 493 x 330 x 320 mm
Protection
Class Ip23 Ip23
Pulse Frequency MH 50 − 200 Hz
LH 0.5 − 2 Hz
MH 0.5 − 300 Hz
LH 0.5 − 2 Hz
Welding Thickness DC 0.3 − 6 mm AC 0.5 − 8 mm
Slope In 2 − 10 seconds variable 0 − 1 seconds varible
Slope Out 0 − 5 seconds variable 0 − 10 seconds variable
Clean Width ——— 20 − 80%

6
Installation and Operation
Circuit Diagram (single phase input)
INPUT
PWM
CONTROL
Please note: Any extension of mains cables or torch cables may aect the performance of this
welding equipment. Input voltage is decided by the length of the cable, therefore longer than
standard cables will reduce the amount of resistance. It is recommended to maintain the standard
length of main cables and torch cables.
TIG180P
1 : Mains Lead
2 : Arc / Torch Lead Connection (35/50 Dinze)
3 : Torch Gas Connection
4 : HF Torch Connection Socket
5 : Earth Socket Connection
6 : Pulse Frequency Switch
1
2
13
9
12
8
53 4
10
6
7
11

7
TIG Inverter Instruction Manual
7 : Slope Out Timer Control
8 : MMA / TIG Mode Switch
9 : Mains On/O Switch
10 : Current Output Control
11 : Slope In Control Timer
12 : O.C. Warning Light
13 : 2 Pole / 4 Pole Switch (Continuous weld / Non continuous weld)
TIG 200P AC/DC
1 : Mains Lead
2 : Arc / Torch Lead Connection (35/50 Dinze)
3 : Torch Gas Connection
4 : HF Torch Connection
5 : Footswitch Connection
6 : Earth Socket COnnection
7 : AC / DC Switch
8 : 2 Pole / 4 Pole Switch (Continuous weld / Non continuous weld)
9 : MMA / TIG Mode Switch
10 : Pulse Frequency Switch
11 : Mains On/O Switch
12 : Digital Indicator Display (Welding Current)
13 : Supply Failure Warning Light
14 : O.C. Warning Light
1
11
14
13
2 63 4 5
9
8
10
7
12

8
1
5 6 7 8 9
234

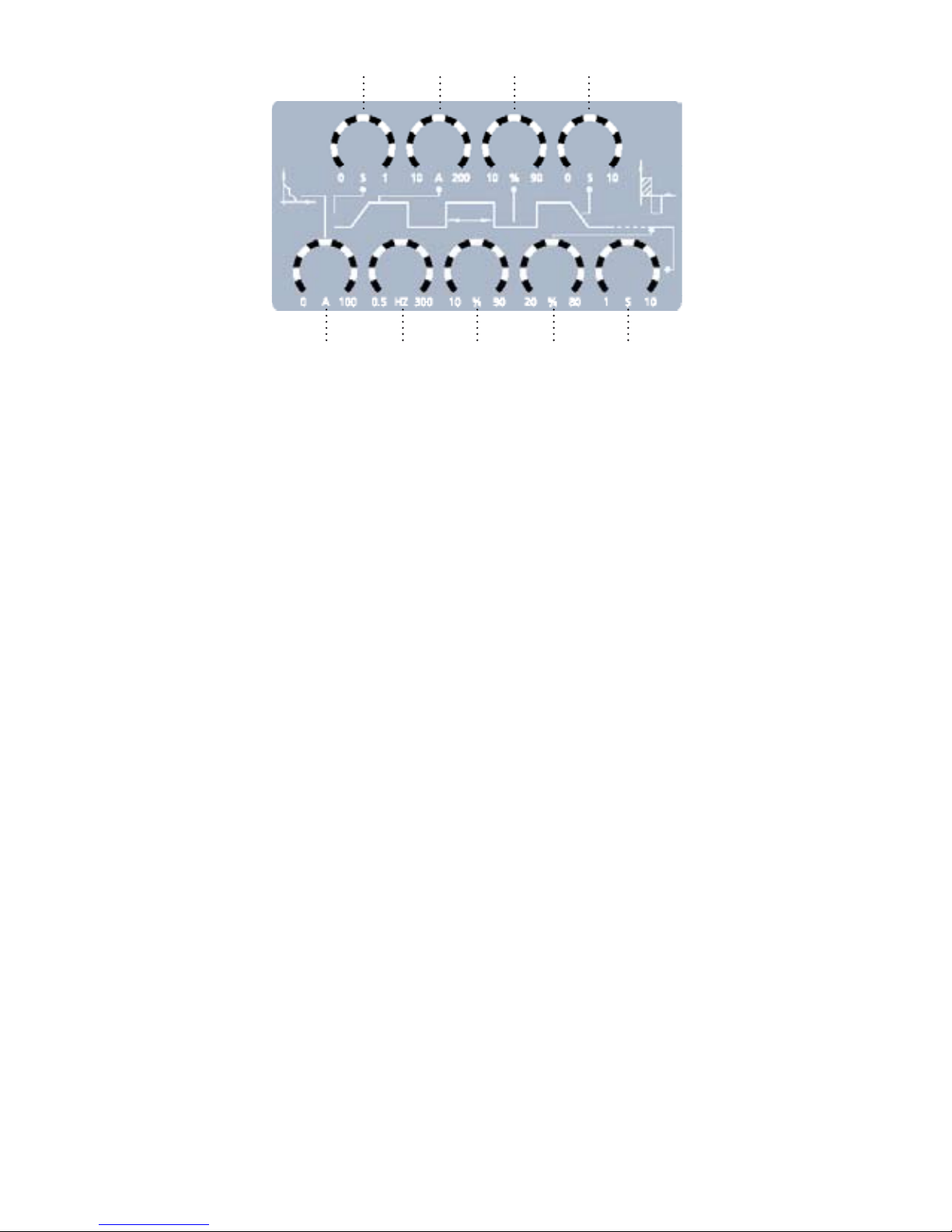

1 : Gas Pre Flow Timer
2 : Output Current Control (Main)
3 : Base CUrrent Setting
4 : Slope Out Timer
5 : Arc Force Adjustment
6 : Pulse Frequency Control
7 : Pulse Duty Control
8 : Clean Area / Width Adjustment
9 : Post Flow Adjustment
Caution
1. Working Environment
1.1 The location in which this welding equipment is installed should be free from dust, corrosive
chemical gas, ammable gas or materials, and a maximum of 80% humidity.
1.2 Avoid the operation of welding in the open air unless the working area sheltered is from the
elements. The ambient temperature of the working environment should be maintained within
–10°C to +40°C.
1.3 Allow a distance of at least 300mm (12”) between this machine and any walls.
1.4 Make sure the area you are working in is well ventilated.
2. Safety Tips
2.1 Ventilation: Good ventilation is of critical importance for the performance and service life of
this inverter welding machine. Maintain a minimum distance of 30cm (12”) between the inverter
machine and any other objects in or near the working area.
2.2 Do not operate this machine when the O.C. Light is lit.
A sudden halt may occur while the welding operation is carried out while this welding machine is
in over-load status. Under this circumstance, it is unnecessary to restart this welding equipment.
Keep the built-in fan working to bring down the temperature inside this welding equipment.
2.3 This welding equipment uses automatic voltage compensation, which enables the
maintaining of the voltage range within the given range. In case the voltage of input power

9
TIG Inverter Instruction Manual
supply current exceeds the stipulated value, it is possibly damaging to the components of this
welding equipment.
2.4 An earth terminal is available for this welding equipment. Connect with the earth cable to
avoid static and electric shock.
2.5 DO NOT contact the output terminal when the welding operation is performed. An electric
shock will occur.
Maintenance
Exposure to extremely dusty, damp, or corrosive air is damaging to this machine. In order to
prevent any possible failure or fault of the inverter, clean any dust at regular intervals with
compressed air.
Please note: Proper maintenance should be carried out by a skilled and qualied electrician on
a regular basis. Any attempts by an unauthorised or unskilled individual to remove the outer
casing, or conduct repairs or modications to the machine will void the warranty.

10

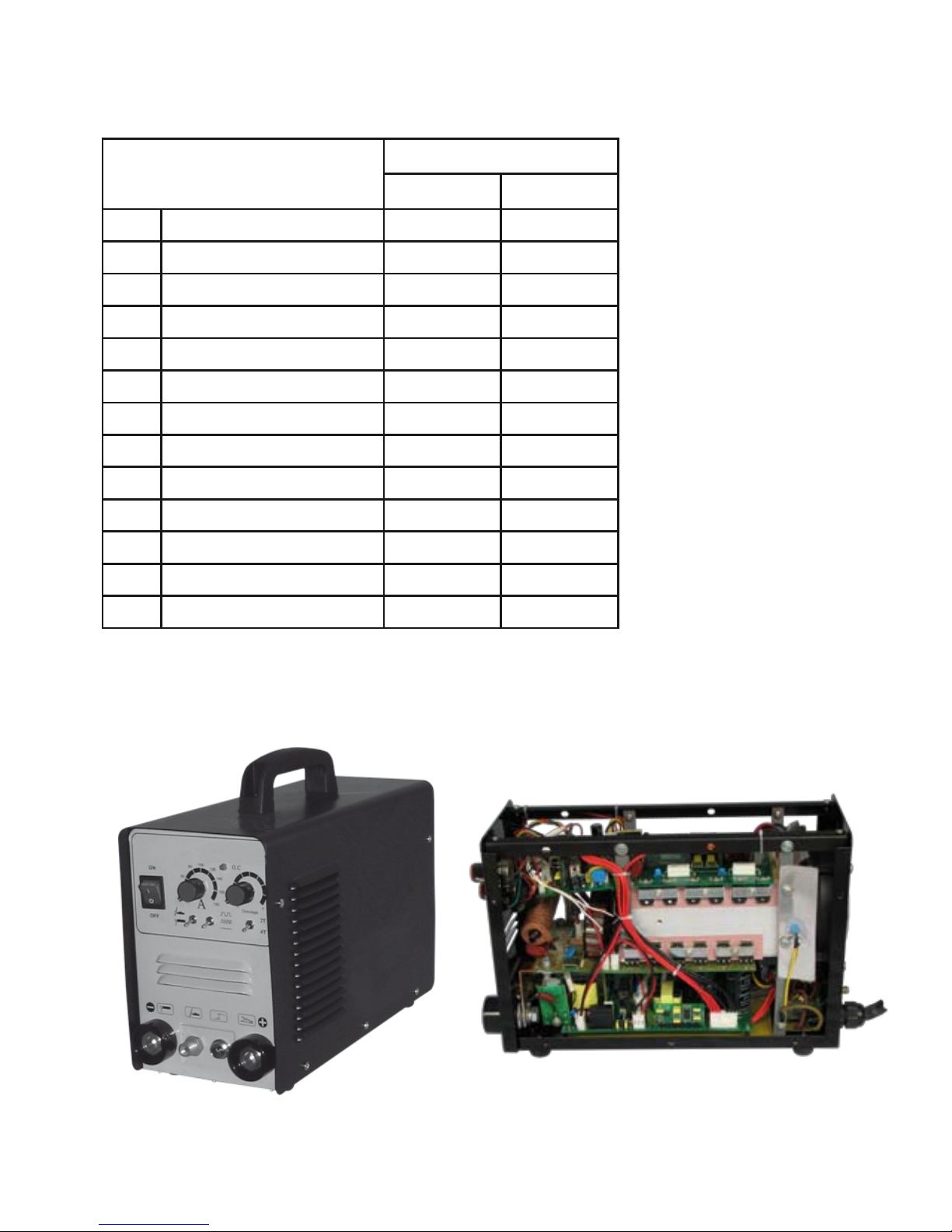

Description
Part Number
TIG180P TIG200P
A Front Panel
BCover
CCarrying Strap / Handle
D Dial
E Dinze Socket
FOn / O Switch
G Power Cable
HInternal Fan
I Bottom PCB
JHeat Sink
K Center PCB
L Rubber Feet
M Top PCB
Spare Parts List
TIG180p

11
TIG Inverter Instruction Manual
TIG200p

12
Please note: In the event of a fault with this inverter welding machine, only qualied electricians
are authorised to undertake repairs.
Troubleshooting
Fault Symptoms Reason
No output from machine, O.C. Light not lit, internal fan
not working
1. Possible failure of voltage input. Consult an authorised
technician.
2. Possible failure of power supply. Check plug and power
cable for damage.
No output from machine, O.C. Light not lit, internal fan
not working, machine suddenly halts operation
1. Possible failure of power supply. Check plug and power
cable for damage.
2. The machine is in temporary shut down mode due to
over heating. Wait a few minutes for machine to cool
down and it will automatically re-start.
3. Power supply input is faulty. Check plug and power
cable for damage.
4. The machine is in temporary shut down mode due to
constantly being switched on and o. Unplug the machine
and wait 5 minutes before re-starting.
5. 24 volt relay board may be defective. Consult an
authorised technician for a replacement.
6. The top PCB is not receiving power. Consult an
authorised technician.
No output from machine, O.C. Light not lit, internal fan
is working
1. Possible loose connection in machine. Consult an
authorised technician.
2. Possible failure of Control Module / Drive Circuit /
Drive Module. Consult an authorised technician for a
replacement if necessary.
3. Possible failure of MOSFET / Transformers / Rectier
Diode / Internal connections. Consult an authorised
technician for a replacement if necessary.
No output from machine, O.C. Light is lit
1. The machine is in temporary shut down mode due to
over heating. Wait a few minutes for machine to cool
down and it will automatically re-start.
2. The machine is in temporary shut down mode due to
excess current.
3. Possible function failure of inverter machine. Unplug the
machine and perform the following checks:
a) If the fault indicator is on MOSFET the top PCB is
possibly faulty.
b) If the fault indicator is o there could be damage to
center PCB / possible damage to secondary rectier of
transformer.
c) Possible damage to feedback circuit.
Consult an authorised technician.
