Jasic MIG SERIES User manual

2
Your new product
Thank you for selecng this Jasic product.
This product manual has been designed to ensure that you get the most from your new product. Please
ensure that you are fully conversant with the informaon provided paying parcular aenon to the
safety precauons. The informaon will help protect yourself and others against the potenal hazards
that you may come across.
Please ensure that you carry out daily and periodic maintenance checks to ensure years of reliable and
trouble free operaon.
Please call your Jasic distributor in the unlikely event of a problem occurring.
Please record below the details from your product as these will be required for warranty purposes and to
ensure you get the correct informaon should you require assistance or spare parts.
Date purchased ________________________________________
From where ________________________________________
Serial number ________________________________________
(The serial number is normally located on the top or underside of the machine and will begin with AA)
For further informaon on your Jasic product warranty registraon please visit:
www.jasic-warranty.co.uk
Disclaimer
Whilst every eort has been made to ensure that the informaon contained within this manual is
complete and accurate, no liability can be accepted for any errors or omissions.
Please note:
Products are subject to connual development and may be subject to change without noce.
Regularly check our product pages at www.Jasic.co.uk for revision updated operang manuals.
No part of this manual may be copied or reproduced by any means without the wrien permission of
Wilkinson Star Limited.

3
CONTENTS
Index Page
Your New Product 2
Index 3
Safety Instrucon 4
General electrical safety 4
General operang safety 4
PPE 5
Welding processes lens shade selector guide 5
Fume and welding gases 6
Fire risks 6
The working environment 7
Protecon from moving parts 7
Magnec elds 7
Compressed gas cylinders and regulators 7
RF declaraon 8
LF declaraon 8
Materials and their disposal 8
Product Overview 9
Technical Specicaons 10
Descripon of Controls 11
Mulfunconal Display Window 15
Installaon 16
Operaon MMA 18
Operaon MIG/MAG 19
Operaon TIG 20
Guide to MMA Welding 21
MMA Welding Problems 25
Guide to MIG/MAG Welding 26
MIG Set-Up Guide 30
MIG Welding Problems 31
MIG Welding Torch 33
Guide to TIG Welding 34
TIG Welding Torch 38
TIG Welding Problems 39
Maintenance 41
Service Schedule Record 41
Troubleshoong 42
EC Declaraon of Conformity 43
WEEE Disposal 43
RoHS Compliance Declaraon 43
Statement of Warranty 44
Schemac 45
Opons and Accessories 46
Note 47
Jasic Contact Details 48

4
SAFETY INSTRUCTION
These general safety norms cover both arc welding machines and plasma cung machines unless
otherwise noted.
It is important that users of this equipment protect yourselves and others from harm or even death.
The equipment must only be used for the purpose it was designed for. Using it in any other way could
result in damage or injury and in breach of the safety rules.
Only suitably trained and competent persons should use the equipment.
Pacemaker wearers should consult your doctor prior to using this equipment.
PPE and workplace safety equipment must be compable for the applicaon of work involved.
Always carry out a risk assessment before undertaking any welding or cung acvity
General electrical safety
The equipment should be installed by a qualied person and in accordance with current
standards in accordance with current standards in operaon. It is the users responsibility
to ensure that the equipment is connected to a suitable power supply. Consult with your
ulity supplier if required. Do not use the equipment with the covers removed.
Do not touch live electrical parts or parts which are electrically charged.
Turn o all equipment when not in use.
In the case of abnormal behaviour of the equipment, the equipment should be checked by a suitably
qualied service engineer.
If earth bonding of the work piece is required, bond it directly with a separate cable with a current
carrying capacity capable of carrying the maximum capacity of the machine current.
Cables (both primary supply and welding) should be regularly checked for damage and overheang.
Never use worn, damaged, under sized or poorly jointed cables.
Insulate yourself from work and earth using dry insulang mats or covers big enough to prevent any
physical contact.
Never touch the electrode if you are in contact with the work piece return.
Do not wrap cables over your body.
Ensure that you take addional safety precauons when you are welding in electrically hazardous
condions such as damp environments, wearing wet clothing and metal structures.
Try to avoid welding in cramped or restricted posions.
Ensure that the equipment is well maintained. Repair or replace damaged or defecve parts immediately.
Carry out any regular maintenance in accordance with the manufacturers instrucons.
The EMC classicaon of this product is class A in accordance with electromagnec compability
standards CISPR 11 and IEC 60974-10 and therefore the product is designed to be used in industrial
environment only.
WARNING: This class A equipment is not intended for use in residenal locaons where the electrical
power is provided by a public low-voltage supply system. In those locaons it may be dicult to ensure
the electromagnec compability due to conducted and radiated disturbances.
General operang safety
Never carry the equipment or suspend it by the carrying strap or handles during welding.
Never pull or li the machine by the welding torch or other cables. Always use the correct li points or
handles. Always use the transport under gear as recommended by the manufacturer.
Never li a machine with the gas cylinder mounted on it.
If the operang environment is classied as dangerous, only use S-marked welding equipment with a safe
idle voltage level. Such environments may be for example: humid, hot or restricted accessibility spaces.

5
SAFETY INSTRUCTION
Use of Personal Protecve Equipment (PPE)
Welding arc rays from all welding processes produce intense, visible and invisible (ultraviolet and
infrared) rays that can burn eyes and skin.
• Wear an approved welding helmet ed with an appropriate shade of
lter lens to protect your face and eyes when welding or watching.
• Wear approved safety glasses with side shields under your helmet.
• Never use broken or faulty welding helmets.
• Always ensure there are adequate protecve screens or barriers to
protect others from ash, glare and sparks from the welding area.
• Ensure that there are adequate warnings that welding or cung is
taking place.
• Wear suitable protecve ame resistant clothing, gloves and footwear.
• Check and be sure the area is safe and clear of inammable material
before carrying out any welding.
Some welding and cung operaons may produce noise. Wear safety ear
protecon to protect your hearing if the ambient noise level exceeds the
local allowable limit (e.g: 85 dB).

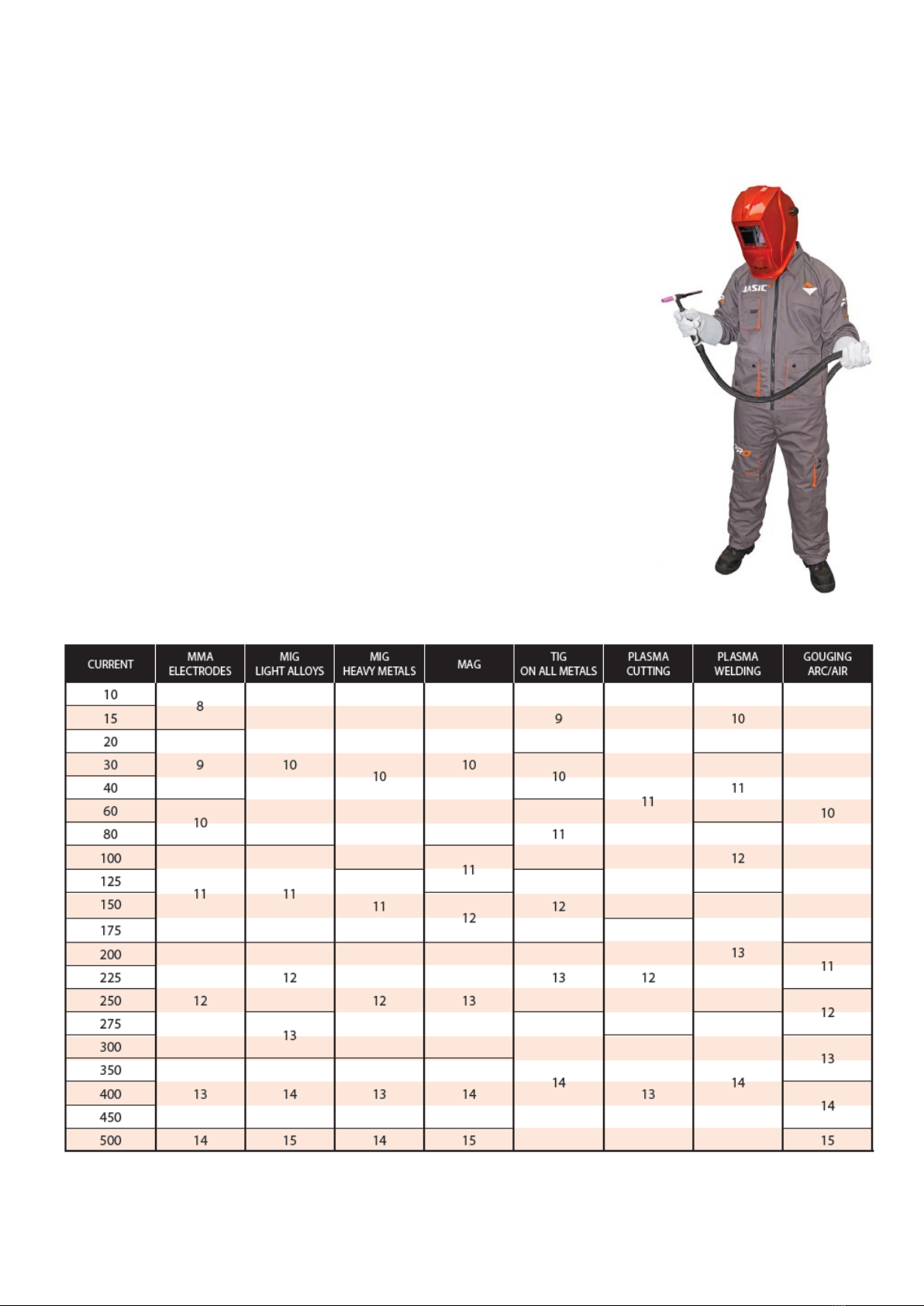

Welding and Cung Lens Shade Selector Guide

6
SAFETY INSTRUCTION
Safety against fumes and welding gases
The HSE have idened welders as being an ‘at risk’ group for occupaonal diseases arising
from exposure to dusts, gases, vapours and welding fumes. The main idened health eects
are pneumonia, asthma, chronic obstrucve pulmonary disease (COPD), lung and kidney
cancer, metal fume fever (MFF) and lung funcon changes.
During welding and hot cung ‘hot work’ operaons, fumes are produced which are
collecvely known as welding fume. Depending upon the type of welding process being performed, the
resultant fume generated is a complex and highly variable mixture of gases and parculates.
Regardless of the length of welding being carried out, all welding fume, including mild steel welding
requires suitable engineering controls to be in place which is
usually Local Exhaust Venlaon (LEV) extracon to reduce the
exposure to welding fume indoors and where LEV does not
adequately control exposure it should also be enhanced by using
suitable respiratory protecve equipment (RPE) to assist with
protecng against residual fume.
When welding outdoors appropriate RPE should be used.
Prior to undertaking any welding tasks an appropriate risk
assessment should be carried out to ensure expected control
measures are in place.
Locate the equipment in a well-venlated posion and keep
your head out of the welding fume.
Do not breathe the welding fume.
Ensure the welding zone is well-venlated and provision should be made for suitable local fume
extracon system to be in place.
If venlaon is poor, wear an approved airfed welding helmet or respirator.
Read and understand the Material Safety Data Sheets (MSDS’s) and the manufacturer’s instrucons for
metals, consumable, coangs, cleaners and de-greasers.
Do not weld in locaons near any de-greasing, cleaning or spraying operaons.
Be aware that heat and rays of the arc can react with vapours to form highly toxic and irritang gases.
For further informaon please refer to the HSE website www.hse.gov.uk for related documentaon.
Precauons against re and explosion
Avoid causing res due to sparks and hot waste or molten metal.
Ensure that appropriate re safety devices are available near the
welding and cung area.
Remove all ammable and combusble materials from the welding,
cung and surrounding areas.
Do not weld or cut fuel and lubricant containers, even if empty. These must be
carefully cleaned before they can be welded or cut.
Always allow the welded or cut material to cool before touching it or placing it in
contact with combusble or ammable material.
Do not work in atmospheres with high concentraons of combusble fumes, ammable gases and dust.
Always check the work area half an hour aer cung to make sure that no res have begun.
Take care to avoid accidental contact of electrode to metal objects. This could cause arcs, explosion,
overheang or re.
Understand your re exnguishers
An example of personal fume protection

7
SAFETY INSTRUCTION
The working environment
Ensure the machine is mounted in a safe and stable posion allowing for cooling air circulaon.
Do not operate equipment in an environment outside the laid down operang parameters.
The welding power source is not suitable for use in rain or snow.
Always store the machine in a clean, dry space.
Ensure the equipment is kept clean from dust build up.
Always use the machine in an upright posion.
Protecon from moving parts
When the machine is in operaon keep away from moving parts such as motors and fans.
Moving parts, such as the fan, may cut ngers and hands and snag garments.
Protecons and coverings may be removed for maintenance and controls only by qualied personnel
aer rst disconnecng the power supply cable.
Replace the coverings and protecons and close all doors when the intervenon is nished and before
starng the equipment.
Take care to avoid geng ngers trapped when loading and feeding wire during set up and operaon.
When feeding wire be careful to avoid poinng it at other people or towards your body.
Always ensure machine covers and protecve devices are in operaon.
Risks due to magnec elds
The magnec elds created by high currents may aect the operaon of pacemakers or
electronically controlled medical equipment.
Wearers of vital electronic equipment should consult their physician before beginning any arc
welding, cung, gouging or spot welding operaons.
Do not go near welding equipment with any sensive electronic equipment as the magnec
elds may cause damage.
Keep the torch cable and work return cable as close to each other as possible throughout their length.
This can help minimise your exposure to harmful magnec elds.
Do not wrap the cables around the body.
Handling of compressed gas cylinders and regulators
Mishandling gas cylinders can lead to rupture and the release of high pressure gas.
Always check the gas cylinder is the correct type for the welding to be carried out.
Always store and use cylinders in an upright and secure posion.
All cylinders and pressure regulators used in welding operaons should be handled with care.
Never allow the electrode, electrode holder or any other electrically “hot” parts to touch a cylinder.
Keep your head and face away from the cylinder valve outlet when opening the cylinder valve.
Always secure the cylinder safely and never move with regulator and hoses connected.
Use a suitable trolley for moving cylinders.
Regularly check all connecons and joints for leaks.
Full and empty cylinders should be stored separately.
Never deface or alter any cylinder

8
SAFETY INSTRUCTION
RF Declaraon
Equipment that complies with direcve 2014/30/EU concerning electromagnec compability (EMC)
and the technical requirements of EN60974-10 is designed for use in industrial buildings and not those
for domesc use where electricity is provided via the low voltage public distribuon system.
Dicules may arise in assuring class A electromagnec compability for systems installed in domesc
locaons due to conducted and radiated emissions.
In the case of electromagnec problems, it is the responsibility of the user to resolve the situaon.
It may be necessary to shield the equipment and t suitable lters on the mains supply.
LF Declaraon
Consult the data plate on the equipment for the power supply requirements.
Due to the elevated absorbance of the primary current from the power supply network, high power
systems aect the quality of power provided by the network. Consequently, connecon restricons or
maximum impedance requirements permied by the network at the public network connecon point
must be applied to these systems.
In this case, the installer or the user is responsible for ensuring the equipment can be connected,
consulng the electricity provider if necessary.
Materials and their disposal
Welding equipment is manufactured with BSI published standards meeng CE requirements materials
which do not contain any toxic or poisonous materials dangerous to the operator.
Do not dispose of the equipment with normal waste. The European Direcve 2012/19/EU on Waste
Electrical and Electronic Equipment states the electrical equipment that has reached its end of life must
be collected separately and returned to an environmentally compable recycling facility for disposal.
For more detailed informaon please refer to the HSE website www.hse.gov.uk

9
PRODUCT OVERVIEW
The Jasic Compact MIG inverter range of welding machines have been designed as integrated and
portable welding power supplies units incorporang the most advanced IGBT inverter technology in
power electronics with easy operaon and adjustment due to friendly user interface.
Unique electric structure and air channel design in this series of machines can speed up the heat
dissipaon of the power device as well as improving the duty cycles of the machines. The unique heat
rejecon eciency of the air channel can eecvely prevent the power devices and control circuits from
being damaged by the dust absorbed by the fan and thereby, the reliability of the machine is greatly
improved.
The whole machine is in form of coherent streamline, the front and rear panels are naturally integrated
via large-radian transion manner. The front panel and the rear panel of the machine and the handle are
coated with rubber oil, so the machine has so texture, good hand feeling that feels warm and
comfortable to hold.
Jasic MIG 200CS Product Features:
• Advanced Synergic Control (Pulse parameters are selected
automacally)
• Compact size, lightweight and
modern 40kHz advanced IGBT
design inverter
• Mul process MIG/MAG, MMA and Li TIG
welding funcons are available
• The JM-200CS is a single phase 230V +/- 15%
AC input machine
• Designed for gas & gasless MIG welding wires
with addional features as wire inch and gas purge
• Suitable for 0.6/0.8/1.0mm MIG welding wire
• Self adapve burnback control
• 2T/4T torch trigger facility
• Built in hot start arc ignion funcon which ensures excellent arc ignion in MMA for easier and
more reliable arc starng
• Built in self adapve arc force technology which maintains the opmum MMA arc condions
during operaon even with long welding cables
• DC MMA suitable for a wide range of electrodes in MMA
• Advanced Li arc ignion in TIG welding mode (Euro style TIG torch can be used)
• Excellent weld characteriscs
• Auto compensaon for mains voltage uctuaon
• Easy arc starng, low spaer, stable current which oers good weld bead shape
• High quality tacle nish to mouldings and handle
• Supplied with MIG Torch model T150-3, Gas regulator, Gas hose, Work return lead and clamp

10
TECHNICAL SPECIFICATIONS
Please Note
Due to variaons in manufactured products all claimed performance rangs, capacies, measurements,
dimensions and weights quoted are approximate only. Achievable performance and rangs when in use
can depend upon correct installaon, applicaons and use along with regular maintenance and service.
Parameter Unit Jasic MIG 200 Synergic (JM-200CS)
Rated input voltage VAC230V±15% 50/60Hz
Rated input power kVA 9.4
Rated input current Imax A35.6
Rated input current Ie A21
Welding current range
AMIG 30 ~ 200
MMA 10 ~ 200
TIG 10 ~ 200
No-load voltage V53
Rated duty cycle (40°C)
%MIG 200A @ 35%
MMA 200A @ 35%
TIG 200A @ 35%
Eciency %85
Power factor cosφ0.7
Standard - EN60974-1
Protecon class IP IP21S
Insulaon class - F
Noise db <70
Operang temperature range °C -10 ~ +40
Storage temperature °C -25 ~ +55
MIG recommended wire size mm 0.6/0.8/1.0
Wire spool size mm 200mm
MMA recommended electrode size mm 1.6 ~ 5.0
Overall size mm 485 X 185 X 370
Weight Kg 12.8

11
CONTROLS

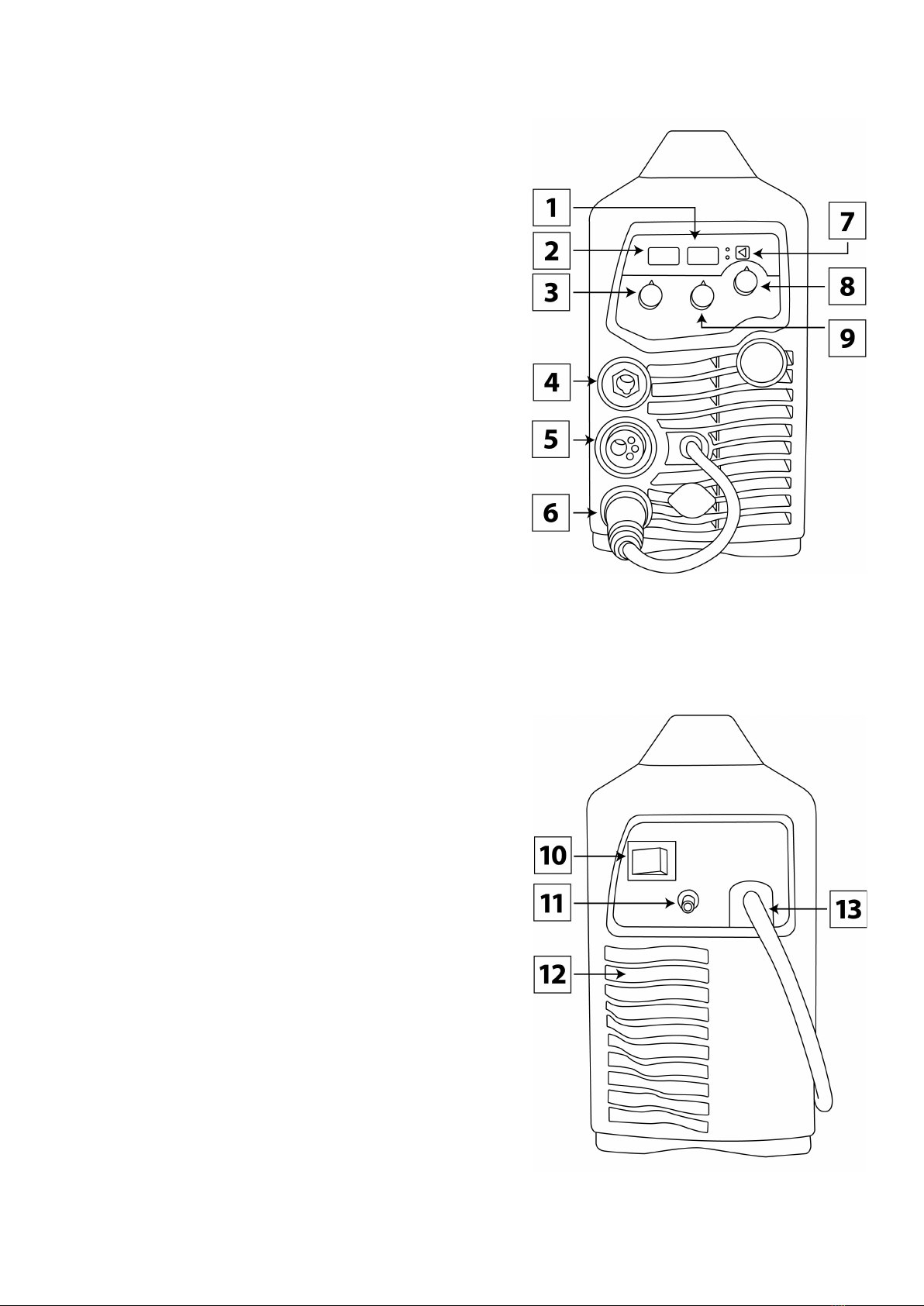

Front view Jasic MIG 200CS
1. Voltage digital display
2. Current digital display
3. MMA current and wire feed speed control dial
4. "-" Output terminal
5. Euro outlet for MIG torch
6. "+" Output terminal
7. 2T/4T torch trigger mode switch
8. Welding mode control switch
9. Voltage/arc force and downslope me control dial
Rear view Jasic MIG 200CS
10. Power switch: The ON/OFF mains switch for the machine
11. Gas inlet connecon: The gas inlet that allows you to
connect the gas supply from the gas regulator
12. Cooling fans: The entry for the air to access the cooling
fans
13. Input cable gland: The entry for the mains power cable

12
CONTROLS

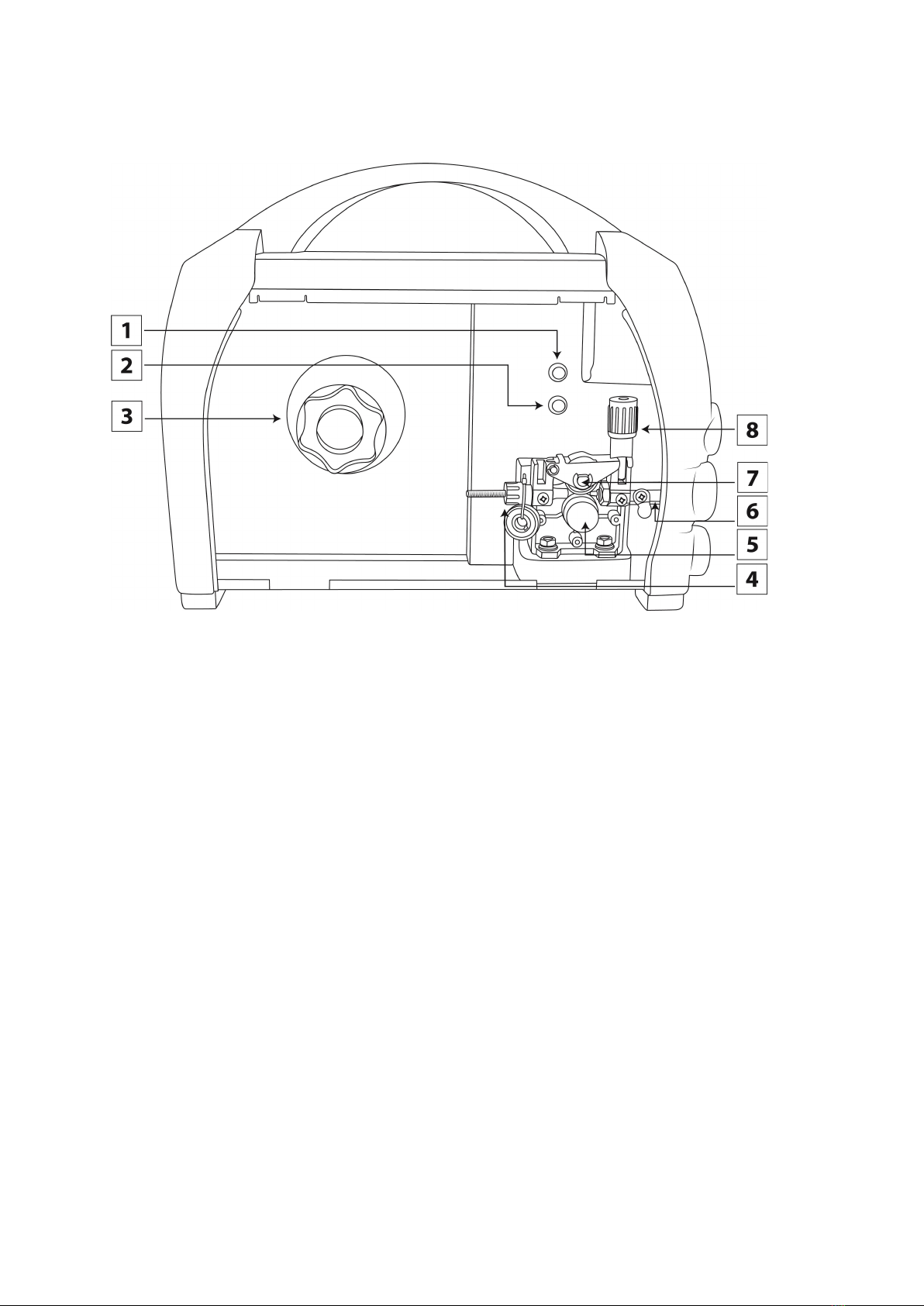

Side view Jasic MIG 200CS
1. Wire inch buon: Pressing this buon acvates the feed motor which in turn pushes the welding wire
through the MIG torch and p
2. Gas purge buon: Pressing this buon acvates the gas solenoid which in turn acvates the gas ow
allowing you to correctly set the gas ow on the gas regulator
3. Wire spool holder and tensioner: Allows a 5Kg (200mm dia) reel of wire to be located in place via an
alignment pin and then locked in place with the locking nut. The spool holder also has a brake
arrangement to ensure correct tension of the wire, this is done by turning the central bolt with an
Allen key clockwise (to ghten) or an clockwise (to loosen)
4. Inlet wire guide: The welding wire is fed through the inlet guide prior to feeding through the drive
rollers
5. Wire feed roller and retaining nut: Secures and holds the grooved drive roller in place
6. Outlet feed adaptor: Part of the Euro outlet connector which contains the inner outlet guide which
ensures smooth wire feed from the drive assembly through to the MIG torch
7. Pressure roll assembly: Holds the upper drive roll in place which applies pressure to the welding wire
onto the grooved drive roller
8. Drive roll tensioner: Allows the correct amount of tension to be applied to the top roller to ensure
good feed of the wire through the MIG torch

13
CONTROLS

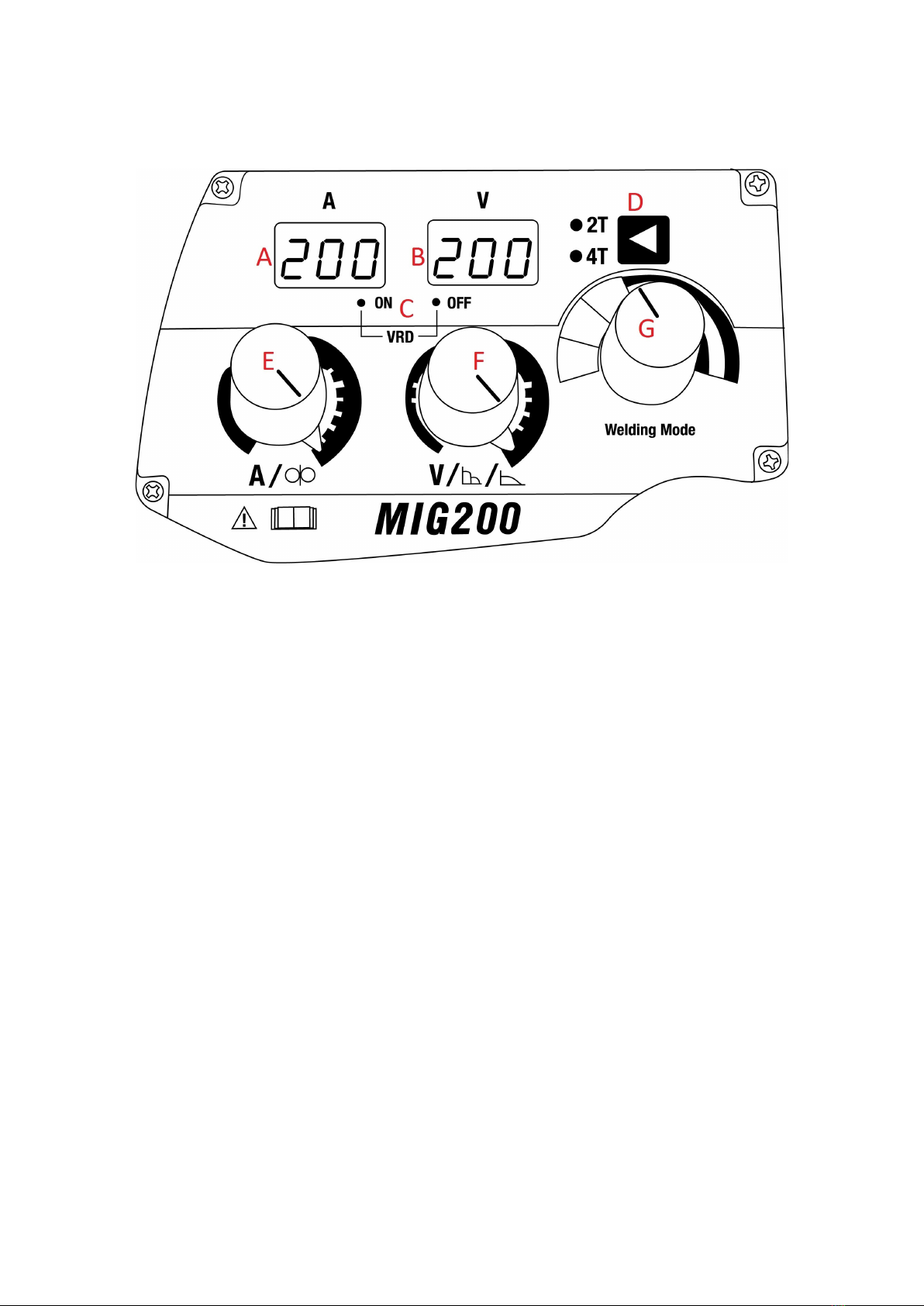

Front control panel view Jasic MIG 200CS
A. Amperage digital display: Displays current when welding in either MIG and MMA mode. Please note,
in MIG mode it will show the preset wire feed speed and then welding it will display amperage.
B. Voltage digital display: Displays MIG and MMA voltage when welding. Please note that these displays
are also used to show error codes, See page 42 for further details.
C. VRD indicator: VRD is an oponal facility on the MIG 200CS, please speak to your supplier for further
details.
D. 2T/4T selecon switch: This opon allows the user to switch between 2T (2 stroke) 4T (4 stroke/latch).
In 2T mode the weld will start and connue while the trigger is pressed. In 4T mode once the welding
arc has started can you then release the trigger and welding will connue unl the trigger is acvated
again.
E. Amperage and wire feed speed control: This dial has 2 funcons, when in MMA mode it adjusts the
amount of welding current delivered by the power source and in MIG mode it adjusts the rate of
speed (metre per minute) at which the ller metal is fed and consumed in the weld, which in turn
adjusts the output current by varying the amount of MIG wire delivered to the welding arc. See set up
chart on page 29 for further informaon.
F. Voltage, arc force and downslope me control dial: Welding voltage can be adjusted in MIG mode
only and will increase or decrease the output voltage to assist in nding the opmum voltage level
required dependent on the wire feed, wire size and applicaon being undertaken, see set up chart on
page 29.
Arc force: Funcons during welding, when the machine senses a short circuit it will oer more current
to help stabilize the welding arc, this will prevent the arc from cung out while welding as well as
prevenng the electrode from scking.
Downslope me: Used in the TIG mode and indicates the me spent on current dropping from the
preset value to 10 amps and is set according to users’ welding requirements.
G. Welding mode selector switch: This 7 posion switch allows the user to switch between MMA, TIG,
MIG and synergic MIG welding modes. See page 14 for further informaon.

14
CONTROLS
Welding mode funcon switch explained Jasic MIG 200CS
The welding mode dial is a 7 posion switch which allows the users to select the dierent weld processes.
1. MMA - MMA welding process posion
2. TIG - Li TIG welding process posion
3. MIG - Standard MIG welding process posion
Synergic MIG Mode:
4. C0² / 0.8 - In this posion you have entered synergic MIG mode for 0.8mm dia welding wire when
being used with C0² gas
5. C0² / 1.0 - In this posion you have entered synergic MIG mode for 1.0mm dia welding wire when
being used with C0² gas
5. 98% Ar + 2% C0² / 0.8 - In this posion you have entered synergic MIG mode for 0.8mm dia welding
wire when being used with gas mixture of 98% Argon and 2% C0²
6. 98% Ar + 2% C0² / 1.0 - In this posion you have entered synergic MIG mode for 1.0mm dia welding
wire when being used with gas mixture of 98% Argon and 2% C0²
The inbuilt synergic control is used in this Jasic MIG 200CS in which the voltage is adjusted in relaon to
the wire feed speed, so when in synergic mode the volts and wire feed speed are linked and altering the
wire feed speed dial will alter each characterisc in-keeping with the welding curve.
Adjusng the voltage dial will trim the voltage but also adjust the wire feed speed accordingly.
3 4 5
2 6
1 7

15
MULTIFUNCTIONAL DISPLAY WINDOW
The digital displays on the Jasic MIG 200CS have mulple purposes as described below:
A - Current display window
B - Voltage display window
During welding, the current display window displays the praccal welding current value, and the voltage
display window displays the praccal welding voltage value. In standby mode, the windows display as
follows.
* It displays VRD voltage when not turning the voltage control knob, and displays the arc force when
turning the voltage control knob.
System parameters seng
This machine uses a group of welding parameters in common use as default. If the user wants to alter
these parameters, he or she can realize this by altering the system parameters.
The method to alter the system parameter is as follows:
1) Press the 2T/4T switch key on the panel and do not release it. Then, turn on the power switch of the
welding machine.
2) When the display window displays “--- ---“, release the 2T/4T switch key to enter into the system
parameter adjusng interface.
3) Select the welding mode which needs adjusng by turning the welding mode select switch, select the
parameter number through the current control knob, and select the parameter value through the voltage
control knob.
Please refer to the table below for the contents of system parameters.
4) Aer the parameter adjustment is done, press the 2T/4T switch key again to store the system
parameters. Then, the machine enters into standby mode.
Welding Mode Current display window Voltage display window
MMA Preset Current (A) VRD voltage (V) / arc force (A/MS) *
MIG Preset wire feed speed (m/min) Preset voltage (V)
TIG Preset current (A) Downslope me (S)
MMA MIG TIG
P1 Ignion current (A) Crater ll speed (m/min) Inial current (A)
P2 Ignion me (S) Crater ll voltage (V) Pilot arc current (A)
P3 Capacity seng (A) Downslope me (S) Upslope me (S)
P4 Reset to default sengs (0:No; 1:Yes) Pre-ow me (S) Pre-ow me (S)
P5 Post-ow me (S) Post-ow me (S)

16
INSTALLATION
Unpacking
Check the packaging for any signs of damage.
Carefully remove the machine and retain the packaging unl the installaon is complete.
Locaon
The machine should be located in a suitable posion and environment. Care should be taken to avoid
moisture, dust, steam, oil or corrosive gases.
Place on a secure level surface and ensure that there is adequate clearance around the machine to ensure
natural airow.
Input connecon
Before connecng the machine you should ensure that the correct supply is available. Details of the
machine requirements can be found on the data plate of the machine or in the technical parameters
shown in the manual.
The equipment should be connected by a suitably qualied competent person. Always ensure the
equipment has a proper grounding.
Never connect the machine to the mains supply with the panels removed.
Output connecons
Electrode polarity
In general when using manual arc welding electrodes the electrode holder is connected to the posive
terminal and the work return to the negave terminal. Always consult the electrode manufacturer’s data
sheet if you have any doubts.
MMA welding
Insert the cable plug with electrode holder into the “+” socket on the front panel of the welding machine
and ghten it clockwise.
Insert the cable plug of the work return lead into the “-” socket on the front panel of the welding
machine and ghten it clockwise.

17
INSTALLATION
MIG welding
Insert the welding torch into the “Euro connector for
torch in MIG” output socket on the front panel of
the machine and ghten it.
Insert the trailing cable plug (A) into the “+” output
terminal of the welding machine, and ghten it
clockwise.
Insert the work return lead cable plug (B) into the
“-” output terminal on the front panel of the
welding machine and ghten it clockwise.
Install the welding wire on the spindle adapter.
Connect the cylinder equipped with the gas
regulator to the gas inlet on the back panel of the
machine with a gas hose.
Ensure that the groove size in the feeding posion
on the drive roll matches the contact p size of the welding torch and the wire size being used.
Release the pressure arm of the wire feeder to thread the wire through the guide tube and into the drive
roll groove and then adjust the pressure arm, ensuring no sliding of the wire. (too much pressure will lead
to wire distoron which will aect wire feeding).
Place the welding mode switch into the MIG posion.
Press the wire inch buon to thread the wire out of the torch through the contact p.
You are now ready to start MIG welding.
Gasless self shielded MIG welding
Insert the welding torch into the “Euro connector for torch in MIG” output socket on the front panel of
the machine and ghten it.
Insert the work return cable plug (C) into the “+”
output terminal of the welding machine and ghten
it clockwise.
Insert the trailing cable plug (D) into the “-” output
terminal on the front panel of the welding machine
and ghten it clockwise.
Install the wire spool on the spindle adapter,
ensuring that the groove size in the feeding
posion on the drive roll matches the contact p
size of the welding torch and the wire size being
used.
Release the pressure arm of the wire feeder to
thread the wire through the guide tube and into the
drive roll groove.
Adjust the pressure arm ensuring no sliding of the
wire (too much pressure will lead to wire distoron which will aect wire feeding).
Place the welding mode switch into the MIG posion.
Press the wire inch buon to thread the wire out of the torch through the contact p.
You are now ready to start gasless MIG welding.
A
B
C
D

18
OPERATION - MMA
Before starng any welding acvity ensure that you have suitable eye protecon and
protecve clothing. Also take the necessary steps to protect any persons within the welding
area.
MMA welding mode
MMA (Manual Metal Arc), SMAW (Shielded Metal Arc
Welding) or just Sck Welding.
Sck welding is an arc welding process which melts
and joins metals by heang them with an arc
between a covered metal electrode and the work.
Shielding is obtained from the electrode outer
coang, oen called ux. Filler metal is primarily
obtained from the electrode core.
The electrodes outer coang called ux assists in
creang the arc and provides a shielding gas and on
cooling forms a slag covering to protect the weld from
contaminaon.
When the electrode is moved along the work piece at the correct speed the metal core deposits a
uniformed layer called the weld bead.
Aer connecng the welding leads as detailed you will need to switch the power switch on the back
panel to “ON”.
Using the welding mode switch, select MMA by
switching to the MMA posion. There is now open
circuit voltage output at both output terminals.
Ensure you check that you have the electrode
polarity correct.
Set the amperage on the machine suitable for the
electrode being used.
Please see a guide to amperages required, although
This MMA welding electrode guide can vary
depending on material, work piece thickness,
welding posion and joint form.
Electrode Diameter (mm) Recommended Welding Current (A)
1.6 25 ~ 45
2.0 35 ~ 65
2.5 50 ~ 90
3.2 60 ~ 130
4.0 100 ~ 180
5.0 150 ~ 250
6.0 200 ~ 310

19
OPERATION - MIG/MAG
Before starng any welding acvity ensure that you have suitable eye protecon and
protecve clothing. Also take the necessary steps to protect any persons within the welding
area.
MIG/MAG welding mode
MIG - Metal Inert Gas Welding, MAG - Metal Acve Gas Welding, GMAW - Gas Metal Arc Welding
MIG welding was developed to help meet producon demands of the
war and post war economy which is an arc welding process in which a
connuous solid wire electrode is fed through a MIG welding gun and
into the weld pool, joining the two base materials together.
A shielding gas is also sent through the MIG welding gun and
protects the weld pool from contaminaon which also enhances the
arc.
Connect the MIG torch leads as detailed on
page 17. Work return lead to ‘-’ (B) and the
torch trailing lead to ‘+’ (A)
Ensure that a suitable inert gas supply is
connected.
Switch the power switch on the back panel
to “ON” the machine is started with the
power LED on and the fans are running.
Using the welding mode switch, select MIG
by switching to the MIG posion.
Open the gas valve of the cylinder and adjust the gas regulator to obtain the desired ow rate.
Adjust the “voltage control knob in MIG” and “wire feed speed control knob in MIG” on the front panel
of the machine to get the correct welding voltage and welding current.
Operate the torch trigger and welding can be carried out.
The below MIG wire guide can vary depending on material used, work piece thickness, welding posion
and joint form.
MIG - Gasless
The operaon method is the same as the above MIG operaon except there are no gas opons and the
output polarity is reversed (see page 17).
Wire Diameter DIP Transfer Spray Transfer
(mm) Current (A) Voltage (V) Current (A) Voltage (V)
0.6 30 ~ 80 15 ~ 18 n/a n/a
0.8 45 ~ 180 16 ~ 21 150 ~ 250 25 ~ 33
1.0 70 ~ 180 17 ~ 22 230 ~ 300 26 ~ 35
1.2 60 ~ 200 17 ~ 22 250 ~ 400 27 ~ 35
1.6 100 ~ 280 18 ~ 22 250 ~ 500 30 ~ 40
A
B

20
OPERATION - TIG
Before starng any welding acvity ensure that you have suitable eye protecon and
protecve clothing. Also take the necessary steps to protect any persons within the welding
area.
TIG welding mode
Terms used: TIG – Tungsten Inert Gas, GTAW – Gas Tungsten Arc Welding.
TIG welding is an arc welding process that uses a non-consumable tungsten
electrode to produce the heat for welding.
The weld area is protected from atmospheric contaminaon by a shielding gas
(usually an inert gas such as argon or helium) and a ller rod matching the
base material is normally used, though some welds, known as autogenous
welds, are carried out without the need for ller wire.
The Jasic 200CS when used in Li TIG mode can accommodate the use of a Euro style TIG torch.
Connect the TIG torch to the (MIG) Euro connector.
Ensure the trailing lead is connected into the “-”
socket on the front panel of the machine and fully
ghtened clockwise.
Insert the cable plug for the work clamp into the “+”
socket on the front panel of the welding machine
and fully ghtened clockwise.
Connect the gas hose to the regulator/owmeter
located on the shield gas cylinder and connect the
other end to the machine.
Before starng any welding acvity ensure that you have suitable eye protecon and protecve
clothing. Also take the necessary steps to protect any persons within the area.
Now you will need to switch the power switch on the back panel to “ON” and then select TIG mode by
switching the welding mode dial to TIG.
Set the amperage on the machine suitable for the applicaon and tungsten being used. (see below guide).
Ensure you have adequate welding current according to
the thickness of the work and weld prep being carried
out and ller wire being used.
Open the gas valve of the cylinder, press the torch trigger and adjust the gas regulator to obtain the
desired ow rate.
Once welding is complete release the torch trigger switch which will stop the welding arc but ensure you
leave the torch in place to shield the weld with gas for a few seconds unl the preset post ow gas turns
o.
Tungsten Size DC – Electrode Negave
1.0mm 15 – 80A
1.6mm 70 – 150A
2.4mm 150 – 250A
3.2mm 250A – 400A
