JÄSPI Inverter Nordic
8, 12, 16, 20
Air/water heat pump
IHB EN 1817-3
331841

Table of Contents
41 Important information
4Safety information
6Symbols
6Marking
6Serial number
6Recovery
6Environmental information
7Inspection of the installation
8Indoor modules
8Control modules
92 Delivery and handling
9Transport and storage
9Assembly
10Compressor heater
10Condensation
13Installation area
13Supplied components
14Removing the side cover and top panel
153 The heat pump design
15General
19Distribution box
204 Pipe connections
20General
20Pipe coupling heating medium circuit
20Pressure drop, heating medium side
20Heat insulation
21Installing flex hoses
225 Electrical connections
22General
23Accessibility, electrical connection
24Configuration using DIP switch
25Connections
28Optional connections
31Connecting accessories
326 Commissioning and adjusting
32Preparations
32Balance temperature
32Filling and venting
32Start-up and inspection
32Readjusting, heating medium side
33Adjustment, charge flow
347 Control - Introduction
34General
34LED status
34Master control
35Control conditions
36Control - Heat pump EB101
378 Disturbances in comfort
37Troubleshooting
389 Alarm list
4010 Accessories
4111 Technical data
41Dimensions
42Sound pressure levels
43Technical specifications
45Working area
46Heating
48Cooling
49Energy labelling
54Electrical circuit diagram
62Item register
3Table of Contents |JÄSPI Inverter Nordic

Safety information
This manual describes installation and service procedures
for implementation by specialists.
The manual must be left with the customer.
This appliance can be used by children
aged from 8 years and above and per-
sons with reduced physical, sensory or
mental capabilities or lack of experience
and knowledge if they have been given
supervision or instruction concerning use
of the appliance in a safe way and under-
stand the hazards involved. The product
is intended for use by experts or trained
users in shops, hotels, light industry,
farming and similar environments.
Children must be instructed/supervised
to ensure that they do not play with the
appliance.
Do not allow children to clean or main-
tain the appliance unsupervised.
This is an original manual. It may not be
translated without the approval of
Kaukora.
Rights to make any design or technical
modifications are reserved.
Safety precautions
Caution
Install the system in full accordance with this installation
manual.
Incorrect installation can cause bursts, personal injury, water leaks,
refrigerant leaks, electric shocks and fire.
Pay attention to the measurement values before working on
the cooling system, especially when servicing in small rooms,
so that the limit for the refrigerant’s concentration is not ex-
ceeded.
Consult an expert to interpret the measurement values. If the refri-
gerant concentration exceeds the limit, there may be a shortage
of oxygen in the event of any leak, which can cause serious injury.
Use original accessories and the stated components for the
installation.
If parts other than those stated by us are used, water leaks, electric
shocks, fire and personal injury may occur as the unit may not work
properly.
Ventilate the working area well – refrigerant leakage may occur
during service work.
If the refrigerant comes into contact with naked flames, poisonous
gas is created.
Install the unit in a location with good support.
Unsuitable installation locations can cause the unit to fall and cause
material damage and personal injury. Installation without sufficient
support can also cause vibrations and noise.
Ensure that the unit is stable when installed, so that it can
withstand earthquakes and strong winds.
Unsuitable installation locations can cause the unit to fall and cause
material damage and personal injury.
The electrical installation must be carried out by a qualified
electrician and the system must be connected as a separate
circuit.
Power supply with insufficient capacity and incorrect function can
cause electric shocks and fire.
Use the stated cables for the electrical connection, tighten the
cables securely in the terminal blocks and relieve the wiring
correctly to prevent overloading the terminal blocks.
Loose connections or cable mountings can cause abnormal heat
production or fire.
Check, after completed installation or service, that no refriger-
ant leaks from the system in gas form.
If refrigerant gas leaks into the house and comes into contact with
an aerotemp, an oven or other hot surface, poisonous gases are
produced.
Switch off the compressor before opening/breaching the refri-
gerant circuit.
If the refrigerant circuit is breached /opened whilst the compressor
is running, air can enter the process circuit. This can cause unusually
high pressure in the process circuit, which can cause bursts and
personal injury.
Switch off the power supply in the event of a service or inspec-
tion.
If the power supply is not shut off, there is a risk of electric shocks
and damage due to the rotating fan.
Do not run the unit with removed panels or protection.
Touching rotating equipment, hot surfaces or high voltage parts
can cause personal injury due to entrapment, burns or electric
shocks.
Cut the power before starting electrical work.
Failure to cut the power can cause electric shocks, damage and in-
correct function of the equipment.
Care
Carry out the electrical installation with care.
Do not connect the ground lead to the gas line, water line, lightning
conductor or telephone line's ground lead. Incorrect grounding
can cause unit faults such as electric shocks due to short-circuiting.
Use main switch with sufficient breaking capacity.
If the switch does not have sufficient breaking capacity, malfunc-
tions and fire can occur.
Always use a fuse with the correct rating in the locations where
fuses are to be used.
Connecting the unit with copper wire or other metal thread can
cause unit breakdown and fire.
Cables must be routed so that they are not damaged by metal
edges or trapped by panels.
Incorrect installation can cause electric shocks, heat generation
and fire.
Do not install the unit in close proximity to locations where
leakage of combustible gases can occur.
If leaking gases collect around the unit, fire may occur.
Do not install the unit where corrosive gas (for example nitrous
fumes) or combustible gas or steam (for example thinner and
petroleum gases) can build up or collect, or where volatile
combustible substances are handled.
Corrosive gas can cause corrosion to the heat exchanger, breaks
in plastic parts etc. and combustible gas or steam can cause fire.
Do not use the unit where water splashes may occur, for ex-
ample in laundries.
The indoor section is not waterproof and electric shocks and fire
can therefore occur.
Do not use the unit for specialist purposes such as for storing
food, cooling precision instruments, freeze-conservation of
animals, plants or art.
This can damage the items.
JÄSPI Inverter NordicChapter 1 | Important information4
1 Important information

Do not install and use the system close to equipment that
generates electromagnetic fields or high frequency harmonics.
Equipment such as inverters, standby sets, medical high frequency
equipment and telecommunications equipment can affect the unit
and cause malfunctions and breakdowns. The unit can also affect
medical equipment and telecommunications equipment, so that
it functions incorrectly or not at all.
Do not install the outdoor unit in the locations stated below.
- Locations where leakage of combustible gas can occur.
- Locations where carbon fibre, metal powder or other powder
that can enter the air.
- Locations where substances that can affect the unit, for example,
sulphide gas, chlorine, acid or alkaline substances can occur.
- Locations with direct exposure to oil mist or steam.
- Vehicles and ships.
- Locations where machines that generate high frequency harmon-
ics are used.
- Locations where cosmetic or special sprays are often used.
- Locations that can be subjected to direct salty atmospheres. In
this case, the outdoor unit must be protected against direct intakes
of salty air.
- Locations where large amounts of snow occur.
- Locations where the system is exposed to chimney smoke.
If the bottom frame of the outdoor section is corroded, or in
any other way damaged, due to long periods of operation, it
must not be used.
Using an old and damaged frame can cause the unit to fall and
cause personal injury.
If soldering near the unit, ensure that solder residue does not
damage the drip tray.
If solder residue enters the unit during soldering, small holes can
appear in the tray resulting in water leakage. To prevent damage,
keep the indoor unit in its packing or cover it.
Do not allow the drainage pipe to exit into channels where
poisonous gases, containing sulphides for example, can occur.
If the pipe exits into such a channel, any poisonous gases will flow
into the room and seriously affect the user's health and safety.
Insulate the unit's connection pipes so that the ambient air
moisture does not condense on them.
Insufficient insulation can cause condensation, which can lead to
moisture damage on the roof, floor, furniture and valuable personal
property.
Do not install the outdoor unit in a location where insects and
small animals can inhabit.
Insects and small animals can enter the electronic parts and cause
damage and fire. Instruct the user to keep the surrounding equip-
ment clean.
Take care when carrying the unit by hand.
If the unit weights more than 20 kg, it must be carried by two
people. Use gloves to minimize the risk of cuts.
Dispose of any packaging material correctly.
Any remaining packaging material can cause personal injury as it
may contain nails and wood.
Do not touch any buttons with wet hands.
This can cause electric shocks.
Do not touch any refrigerant pipes with your hands when the
system is in operation.
During operation the pipes become extremely hot or extremely
cold, depending on the method of operation. This can cause burn
injuries or frost injuries.
Do not shut off the power supply immediately after operation
has start.
Wait at least 5 minutes, otherwise there is a risk of water leakage
or breakdown.
Do not control the system with the main switch.
This can cause fire or water leakage. In addition, the fan can start
unexpectedly, which can cause personal injury.
5Chapter 1 | Important informationJÄSPI Inverter Nordic

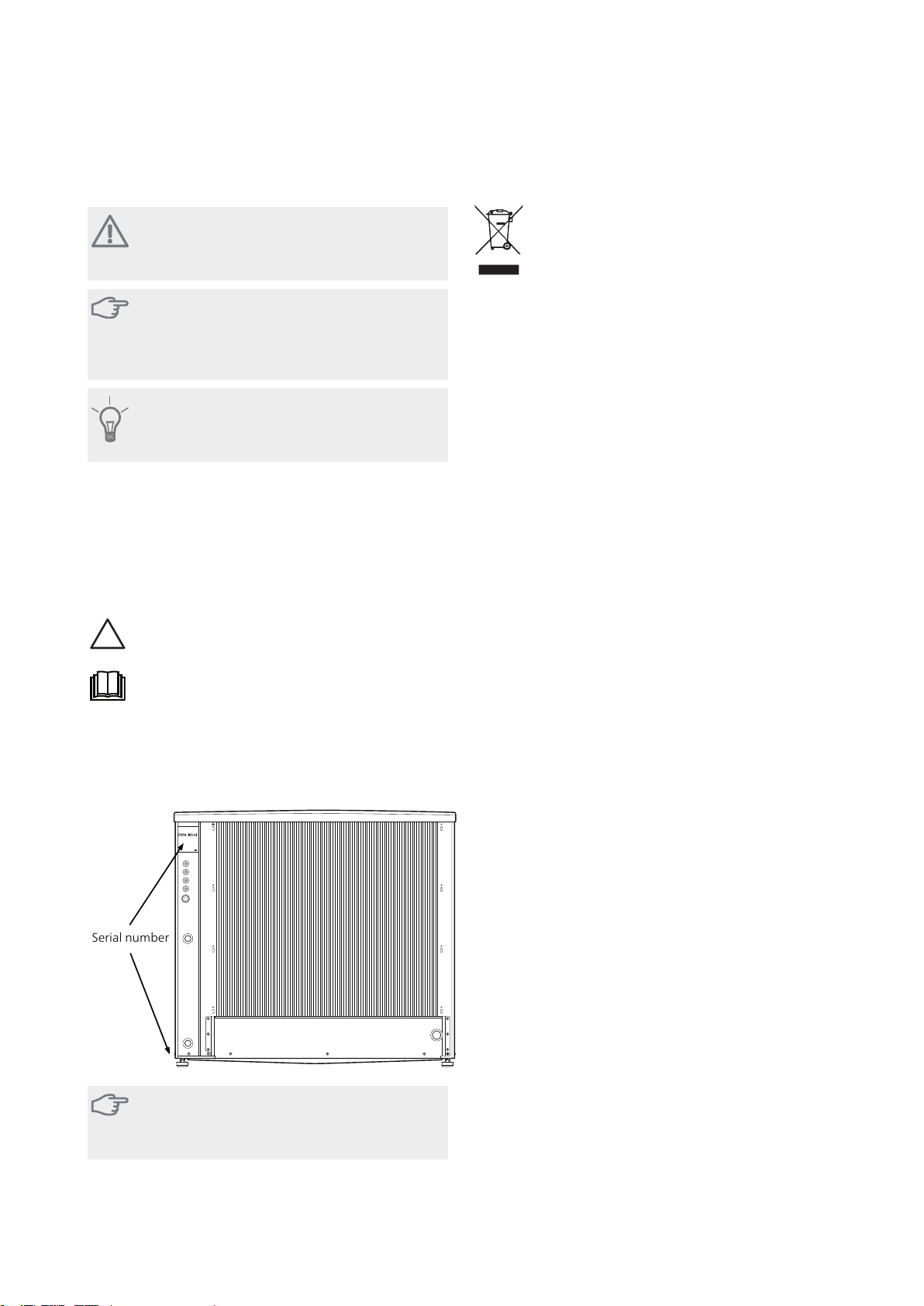

Symbols
NOTE
This symbol indicates danger to person or ma-
chine .
Caution
This symbol indicates important information
about what you should consider when in-
stalling or servicing the installation.
TIP
This symbol indicates tips on how to facilitate
using the product.
Marking
The CE mark is obligatory for most products sold
in the EU, regardless of where they are made.
CE
Classification of enclosure of electro-technical
equipment.
IP24
Danger to person or machine.
!
Read the User Manual.
Serial number
The serial number can be found at the top left on the
rear cover and at the bottom on the side.
F2120
Serial number
Caution
You need the product's (14 digit) serial number
for servicing and support.
Recovery
Leave the disposal of the packaging to the in-
staller who installed the product or to special
waste stations.
Do not dispose of used products with normal
household waste. It must be disposed of at a
special waste station or dealer who provides this type of
service.
Improper disposal of the product by the user results in
administrative penalties in accordance with current legis-
lation.
Environmental information
The equipment contains R410A, a fluorinated green-
house gas with a GWP value (Global Warming Potential)
of 2088. Do not release R410A into the atmosphere.
JÄSPI Inverter NordicChapter 1 | Important information6

Inspection of the installation
Current regulations require the heating installation to be inspected before it is commissioned. The inspection must
be carried out by a suitably qualified person. Fill in the page for information about installation data in the User
manual.
DateSignatureNotesDescription
✔
Heating medium (page 20)
System flushed
System vented
Particle filter
Shut-off and drain valve
Charge flow set
Electricity (page 22)
Fuses property
Safety breaker
Earth circuit-breaker
Heating cable type/effect
Fuse size, heating cable (F3)
Communication cable connected
JÄSPI Inverter Nordic addressed (only
when cascade connection)
Connections
Main voltage
Phase voltage
Miscellaneous
Condensation water pipe
Insulation condensation water pipe,
thickness (if KVR 10 is not used)
NOTE
Check the connections, main voltage and phase voltage before the machine is started, to prevent damage
to the heat pump electronics.
7Chapter 1 | Important informationJÄSPI Inverter Nordic

Indoor modules
JÄSPI Tehowatti Air
Stainless Steel, 3 x 400 V
LVI Code 505 85 28
Control modules
JÄSPI MCU40
Control module
LVI Code 526 01 53
JÄSPI Inverter NordicChapter 1 | Important information8

Transport and storage
JÄSPI Inverter Nordic must be transported and stored
vertically.
NOTE
Ensure that the heat pump cannot fall over
during transport.
Ensure that the heat pump cannot be damaged during
transportation.
Assembly
■Place JÄSPI Inverter Nordic outdoors on a solid level
base that can take the weight, preferably a concrete
foundation. If concrete slabs are used they must rest
on asphalt or shingle.
■The lower edge of the evaporator must be at the level
of the average local snow depth. The concrete found-
ation or concrete plinths must therefore be at least 70
mm high.
■JÄSPI Inverter Nordic should not be positioned next
to noise sensitive walls, for example, next to a bed-
room.
■Also ensure that the placement does not inconveni-
ence the neighbours.
■JÄSPI Inverter Nordic must not be placed so that recir-
culation of the outdoor air can occur. This causes lower
output and impaired efficiency.
■The evaporator must be sheltered from direct wind / ,
which negatively affects the defrosting function. Place
JÄSPI Inverter Nordic protected from wind / against
the evaporator.
■Some water may drip from the drainage hole below
JÄSPI Inverter Nordic. Make sure that water can run
off by selecting a suitable material underneath
JÄSPI Inverter Nordic (see page 10).
■Care must be exercised so that the heat pump is not
scratched during installation.
LEK
F2120
min 300 mm
LEK
F2120
LEK
min
70 mm

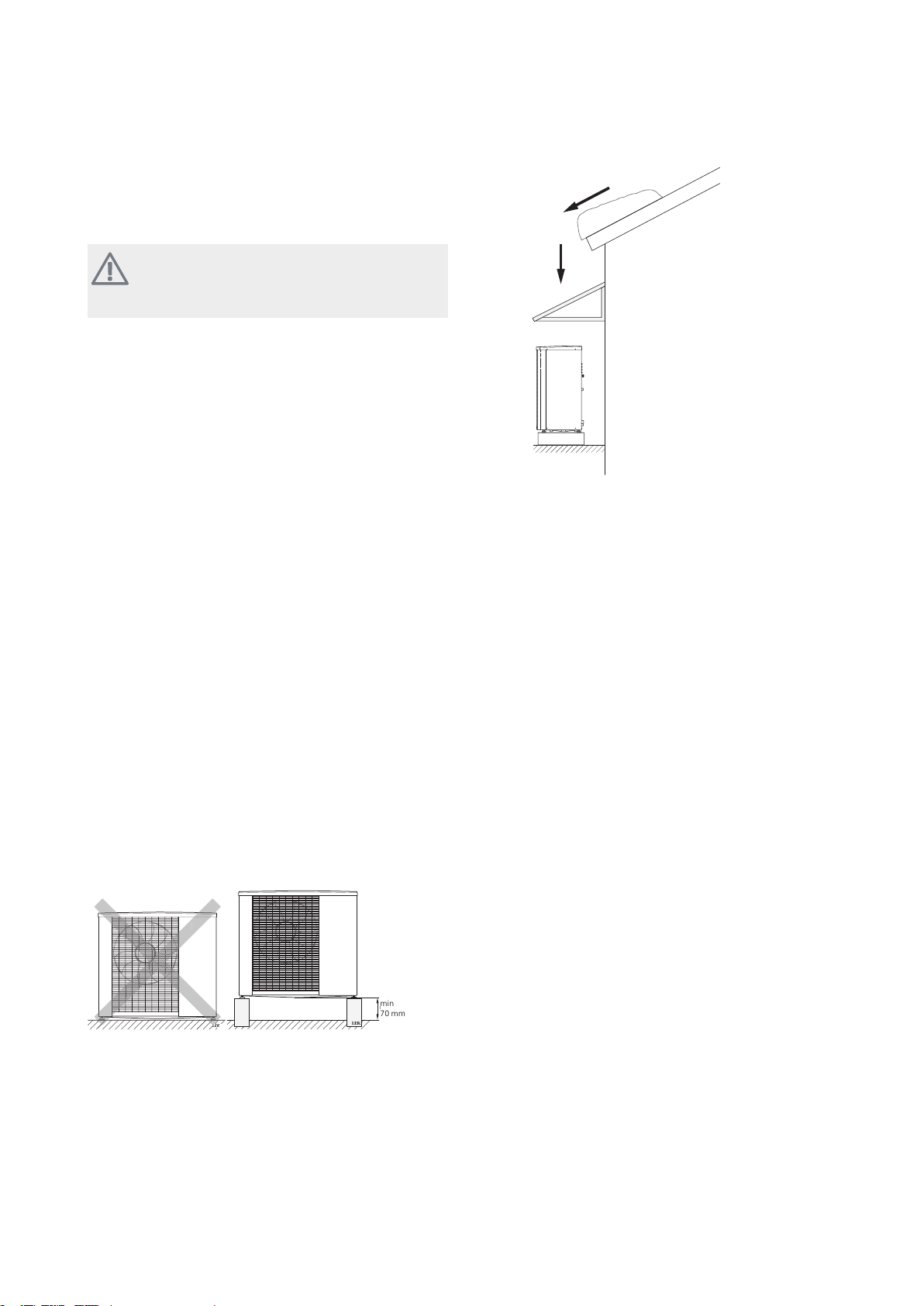

Do not place JÄSPI Inverter Nordic directly on the lawn
or other non solid surface.
If there is a risk of snow slip from roof, a protective roof
or cover must be erected to protect the heat pump, pipes
and wiring.
9Chapter 2 | Delivery and handlingJÄSPI Inverter Nordic
2 Delivery and handling

Lift from the street to the set up location
If the base allows, the simplest thing is to use a pallet
truck to move the JÄSPI Inverter Nordic to the set up
location.
NOTE
The centre of gravity is offset to one side (see
print on the packaging).
LEK
C:a 180 kg
Approx. 180 kg
If JÄSPI Inverter Nordic needs to be transported across
soft ground, such as a lawn, we recommend that a crane
is used that can lift the unit to the installation location.
When JÄSPI Inverter Nordic is lifted with a crane, the
packaging must be undisturbed, see the illustration
above.
If a crane vehicle cannot be used the JÄSPI Inverter Nor-
dic can be transported on an extended sack truck.
JÄSPI Inverter Nordic must be taken from its heaviest
side and two people are required to lift JÄSPI Inverter Nor-
dic.
Lift from the pallet to final positioning
Before lifting remove the packaging and the securing
strap to the pallet.
Place lifting straps around each machine foot. Lifting
from the pallet to the base requires four persons, one
for each lifting strap.
Scrapping
When scrapping, the product is removed in reverse order.
Lift by the bottom panel instead of a pallet!
Compressor heater
JÄSPI Inverter Nordic is equipped with two compressor
heaters that heat the compressor before start-up and
when the compressor is cold.
NOTE
The compressor heater must have been active
for approx. 3 hours before the first start, see
section “Start-up and inspection” on page 32.
Condensation
The condensation water trough collects and leads away
most of the condensation water from the heat pump.
NOTE
It is important to the heat pump function that
condensation water is led away and that the
drain for the condensation water run off is not
positioned so that it can cause damage to the
house.
Condensation runoff should be checked regu-
larly, especially during the autumn. Clean if
necessary.
NOTE
The electrical installation and wiring must be
carried out under the supervision of an author-
ised electrician.
TIP
Pipe with heating cable for draining the con-
densation water trough is not included.
To ensure this function the accessory KVR 10
should be used.
■The condensation water (up to 50 litres/24 hrs) that
collects in the trough should be routed away by a pipe
to an appropriate drain, it is recommended that the
shortest outdoor stretch possible is used.
■The section of the pipe that can be affected by frost
must be heated by the heating cable to prevent
freezing.
■Route the pipe downward from JÄSPI Inverter Nordic.
■The outlet of the condensation water pipe must be at
a depth that is frost free or alternatively indoors (with
reservation for local ordinances and regulations).
■Use a water trap for installations where air circulation
may occur in the condensation water pipe.
■The insulation must seal against the bottom of the
condensation water trough.
JÄSPI Inverter NordicChapter 2 | Delivery and handling10

Recommended alternative for leading off
condensation water
Stone caisson
LEK
Frostfritt djup
F2120
Frost proof
depth
If the house has a cellar the stone caisson must be posi-
tioned so that condensation water does not affect the
house. Otherwise the stone caisson can be positioned
directly under the heat pump.
The outlet of the condensation water pipe must be at
frost free depth.
Drain indoors
Water seal
Joint
The condensation water is lead to an indoor drain (sub-
ject to local rules and regulations).
Route the pipe downward from JÄSPI Inverter Nordic.
The condensation water pipe must have a water seal to
prevent air circulation in the pipe.
KVR 10 spliced as illustrated. Pipe routing inside house
not included.
Gutter drainage
LEK
F2120
Frostfritt
djup
Frost free
depth
Water seal
The outlet of the condensation water pipe must be at
frost free depth.
Route the pipe downward from JÄSPI Inverter Nordic.
The condensation water pipe must have a water seal to
prevent air circulation in the pipe.
11Chapter 2 | Delivery and handlingJÄSPI Inverter Nordic

Caution
If none of the recommended alternatives is
used good lead off of condensation water must
be assured.
JÄSPI Inverter NordicChapter 2 | Delivery and handling12

Installation area
The distance between JÄSPI Inverter Nordic and the
house wall must be at least 350 mm. The free space
above JÄSPI Inverter Nordic must be at least 1,000 mm.
The free space in front must be at least 1,000 mm for
future servicing.
350 mm
Fritt utrymme bakom
Fritt utrymme framför
dock 1000 mm för ev. framtida service
Min. avstånd
vid användning
av flera F2300
600 mm
1000 mm
400 mm
Minimalt
fritt utrymme
600mm
Minimalt
fritt utrymme
Minimum free
space
However, free space in front must be
1000 mm for future servicing
Minimum free space
Minimum distance during use
of several JÄSPIInverterNordic
600 mm
600 mm
At least 1000
mm
Free space behind
350 mm
400 mm
Supplied components
JÄSPI Inverter Nordic-8,
JÄSPI Inverter Nordic-12
LEK
LEK
Filterball (G1").
2 x flexible pipes (DN25, G1")
with 4 x gaskets.
JÄSPI Inverter Nordic-16,
JÄSPI Inverter Nordic-20
LEK
LEK
Filterball (G1 1/4").
2 x flexible pipes (DN25, G1
1/4") with 4 x gaskets.
13Chapter 2 | Delivery and handlingJÄSPI Inverter Nordic

Removing the side cover and top panel
LEK
JÄSPI Inverter NordicChapter 2 | Delivery and handling14

General
JÄSPI Inverter Nordic (1x230V)
LEK
GQ1
AA2
UB1
BT12
EP2
XL1
BT3
XL2
HS1
XL21
BT84
QN1
QN4
RM1
QN2
BP11
QN34
BT15
BT14 EB10
QA40 GQ10
BT17
RA1
BP9
BP1
BP2
BP8
XL20
BT81
HQ9
CA1
X6
15Chapter 3 | The heat pump designJÄSPI Inverter Nordic
3 The heat pump design

JÄSPI Inverter Nordic (3x400V)
LEK
GQ1
AA2
UB1
BT12
EP2
XL1
BT3
XL2
HS1
XL21
BT84
QN1
QN4
RM1
QN2
BP11
QN34
BT15
BT14 EB10
QA40 GQ10
BT17
RF2RA1
BP9
BP1
BP2
BP8
XL20
BT81
HQ9
JÄSPI Inverter NordicChapter 3 | The heat pump design16

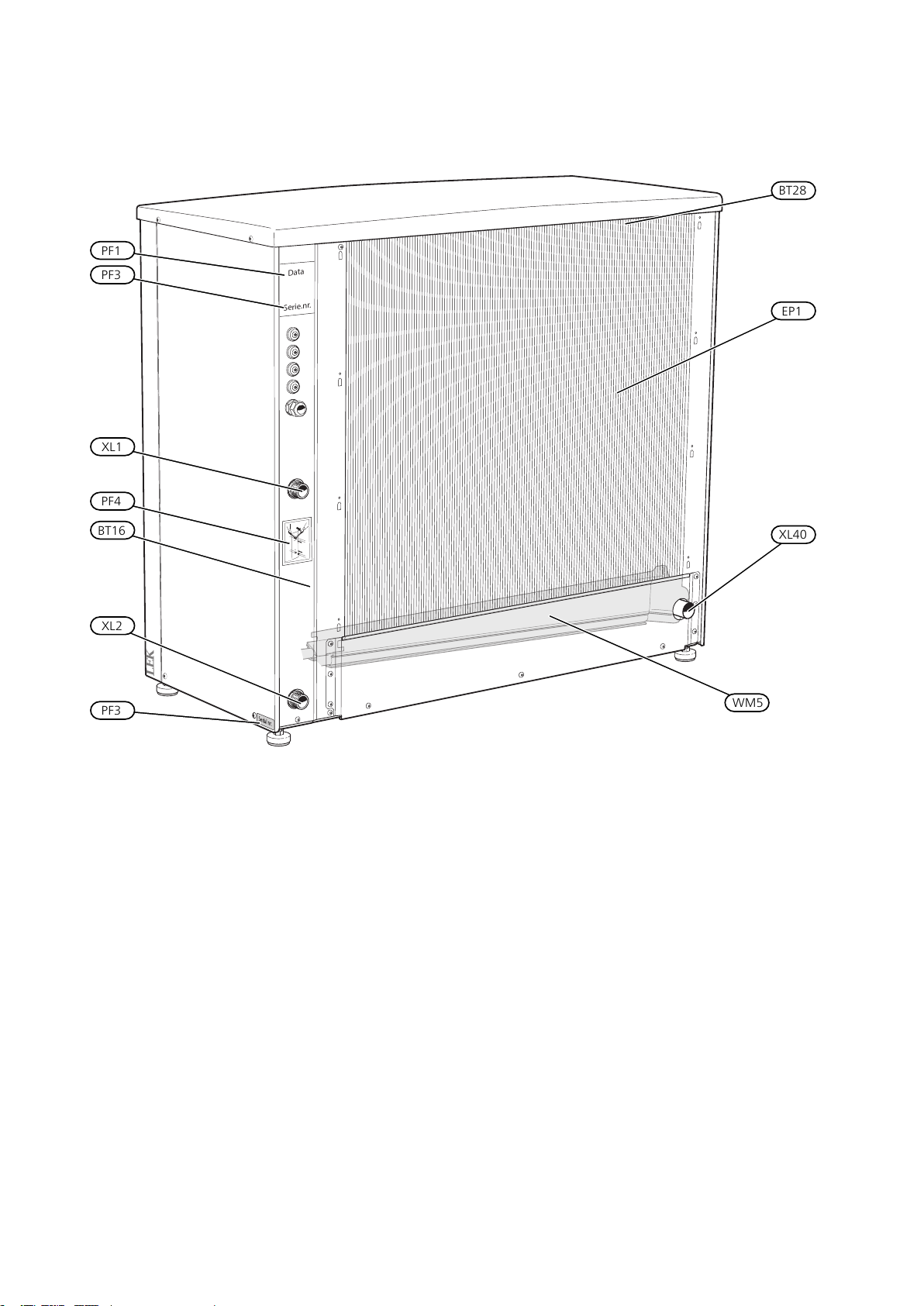

LEK
Data
Serie.nr.
Art.nr.711453
OUT
IN
PF4
BT16
PF1
BT28
EP1
WM5
XL40
XL1
XL2
PF3
PF3
17Chapter 3 | The heat pump designJÄSPI Inverter Nordic

Pipe connections
Connection, heating medium out of JÄSPI Invert-
er Nordic
XL1
Connection, heating medium in to JÄSPI Invert-
er Nordic,
XL2
Service connection, high pressureXL20
Service connection, low pressureXL21
Connection, drain condensation water troughXL40
Sensors etc.
High pressure pressostatBP1
Low pressure pressostatBP2
Low pressure transmitterBP8
High pressure sensorBP9
Pressure sensor, injectionBP11
Temperature sensor, returnBT3
Temperature sensor, condenser supply lineBT12
Temperature sensor, hot gasBT14
Temperature sensor, fluid pipeBT15
Temperature sensor, evaporatorBT16
Temperature sensor, suction gasBT17
Temperature sensor, ambientBT28
Temperature sensor, injection, EVI compressorBT81
Temperature sensor, suction gas evaporatorBT84
Electrical components
Base cardAA2
Capacitor (1x230V)CA1
Compressor heaterEB10
FanGQ1
InverterQA40
Harmonic filter (3x400V)RA1
Choke (1x230V)RA1
EMC filter (3x400V)RF2
Terminal block (1x230V)X6
Cooling components
EvaporatorEP1
CondenserEP2
CompressorGQ10
Particle filterHQ9
Drying filterHS1
Expansion valveQN1
Bypass valveQN4
4-way valveQN2
Expansion valve, subcoolingQN34
Non-return valveRM1
Miscellaneous
Type platePF1
Serial numberPF3
Sign, pipe connectionsPF4
Cable gland, incoming supplyUB1
Condensation water troughWM5
Designations in component locations according to standard IEC 81346-2.
JÄSPI Inverter NordicChapter 3 | The heat pump design18

Distribution box
LEK
AA2 FC1
X24 F5 F4 X7 F2 F1
S2
S1
X23
X22
X21
X28 X27 F3 X2 X1 X5
X9
S3
Electrical components
Base cardAA2
Terminal block, incoming supplyX1
Terminal block, compressor supplyX2
Terminal block, external control voltageX5
Terminal block, 230V~X7
Terminal block, connection KVRX9
Terminal block, Compressor blocking,
Tariff
X21
Terminal block, communicationsX22
Terminal block, communicationsX23
Terminal block, fanX24
Terminal block, expansion valve QN1X27
Terminal block, subcooling QN34X28
Fuse, operating 230V~F1
Fuse, operating 230V~F2
Fuse for external heating cable KVRF3
Fuse, fanF4
Fuse, fanF5
Miniature circuit breaker (Replaced with automat-
ic protection (FB1) when installing accessory
KVR 10.)
FC1
DIP switch, addressing heat pump during multi
operation
S1
DIP switch, different optionsS2
Reset buttonS3
Designations in component locations according to
standard IEC 81346-2.
19Chapter 3 | The heat pump designJÄSPI Inverter Nordic

General
Pipe installation must be carried out in accordance with
current norms and directives.
JÄSPI Inverter Nordic can only operate up to a return
temperature of about 55 °C and an outgoing temperat-
ure of about 65 °C from the heat pump.
JÄSPI Inverter Nordic is not equipped with external shut
off valves on the water side; these must be installed to
facilitate any future servicing. The return temperature is
limited by the return line sensor.
Water volumes
Depending on the size of JÄSPI Inverter Nordic, an
available water volume is required to prevent short op-
erating times and to enable defrosting. For optimal op-
eration of JÄSPI Inverter Nordic, a minimum available
water volume of 10 litres times the size number is recom-
mended. E.g. JÄSPI Inverter Nordic-12: 10 litres x 12 =
120 litres.
NOTE
The pipe work must be flushed before the heat
pump is connected, so that any contaminants
do not damage the components.
Pipe coupling heating medium
circuit
■The heat pump must be vented by the upper connec-
tion (XL1) using the venting nipple on the enclosed
flexible hose.
■Install the enclosed particle filter before the inlet, i.e.
the lower connection (XL2) on JÄSPI Inverter Nordic.
■All outdoor pipes must be thermally insulated with at
least 19 mm thick pipe insulation.
■Install shutoff and drain valves so that JÄSPI Invert-
er Nordic can be emptied in the event of prolonged
power failures.
■The supplied flexible hoses act as vibration dampers.
The flexible pipes are fitted so an elbow is created,
thus acting as vibration damping.
Charge pump
The charge pump (not included in the product) is
powered and controlled from the indoor module/control
module. It has a built-in anti-freezing function and must
therefore not be switched off when there is a risk of
freezing.
At temperatures below +2 °C the charge pump runs
periodically, to prevent the water from freezing in the
charge circuit. The function also protects against excess
temperatures in the charge circuit.
Pressure drop, heating medium
side
JÄSPI Inverter Nordic-8, -12, -16, -20
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
00,05 0,1 0,15 0,2 0,25 0,3 0,35 0,4 0,45 0,5 0,55 0,6 0,65 0,7 0,75 0,8 0,85 0,9
Tryckfall
[kPa]
Flöde [l/s]
Tryckfall F2120
Pressure drop
(kPa)
Flow
(l/s)
-12/-16/-20
-8
Heat insulation
LEK
Heat insulation
JÄSPI Inverter NordicChapter 4 | Pipe connections20
4 Pipe connections
