Jaspi Inverter Nordic 8 User manual

User manual
LEK
JÄSPI Inverter Nordic
8, 12, 16, 20
Air/water heat pump
UHB EN 2214-4
331844

Table of Contents
41 Important information
4Installation data
5Safety information
6Symbols
6Serial number
7JÄSPI Inverter Nordic – An excellent choice
82 Installation function
103 Control of JÄSPI Inverter Nordic
114 Maintenance of JÄSPI Inverter Nordic
11Regular checks
13In event of long power cuts
13Silent mode
13Updating the software
145 Disturbances in comfort
14Troubleshooting
15Item register
19Contact information
3JÄSPI Inverter NordicTable of Contents |

1 Important information
Installation data
JÄSPI Inverter NordicProduct
Serial number
Installation date
Installer
Serial number must always be given.
Certification that the installation is carried out according to instructions in the accompa-
nying installer manual and applicable regulations.
_________________________Signed__________________Date
JÄSPI Inverter NordicChapter 1 | Important information4

Safety information
This appliance is designed for use in a home environ-
ment and not intended to be used by persons (includ-
ing children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction
concerning use of the appliance by a person respons-
ible for their safety. This in accordance to applicable
parts of the low-voltage directive 2006/95/EC, LVD.
The appliance is also intended for use by experts or
trained users in shops, hotels, light industry, on farms
and in similar environments. This in accordance to ap-
plicable parts of the machinery directive 2006/42/EC.
Children should be supervised to ensure that they do
not play with the appliance.
This is an original instruction manual. Translation is
not allowed without approval from Kaukora.
Rights to make any design or technical modifications
are reserved.
JÄSPI Inverter Nordic must be installed via an isolator
switch. The cable area has to be dimensioned based on
the fuse rating used.
If the supply cable is damaged, only Kaukora, its service
representative or similar authorised person may replace
it to prevent any danger and damage.
5JÄSPI Inverter NordicChapter 1 | Important information

Symbols
Explanation of symbols that may be present in this manual.
NOTE
This symbol indicates danger to person or machine.
Caution
This symbol indicates important information about what you should
observe when maintaining your installation.
TIP
This symbol indicates tips on how to facilitate using the product.
Serial number
The serial number can be found at the top left on the rear cover and at
the bottom on the side.
F2120
Serial number
Caution
You need the product's (14 digit) serial number for servicing and support.
JÄSPI Inverter NordicChapter 1 | Important information6

JÄSPI Inverter Nordic – An excellent
choice
JÄSPI Inverter Nordic is an air/water heat pump, specially designed for the
Nordic climate, which uses the outdoor air as its energy source.
The heat pump is intended for connection to water borne heating systems
and can both heat hot water effectively at high outdoor temperatures
and give a high output to the heating system at low outdoor temperatures.
If the outdoor temperature drops to a level below the stop temperature
all heating must then occur with external additional heat.
Excellent properties for JÄSPI Inverter Nordic:
■Efficient speed-controlled scroll compressor
Efficient speed-controlled scroll compressor that operates at temperat-
ures down to -25 °C.
■Intelligent control
JÄSPI Inverter Nordic connected to intelligent control for optimum
control of the heat pump.
■Fan
JÄSPI Inverter Nordic has automatic capacity regulation of the fan.
■Long service life
The material has been chosen for a long service life and is designed to
withstand the Nordic outdoor conditions.
■Many possibilities
JÄSPI Inverter Nordic is intended for combination with the indoor
module JÄSPI Theowatti Air / control module JÄSPI_MCU40. There is a
wide range of system solutions and accessories for indoor modules and
control modules.
■Silent operation
JÄSPI Inverter Nordic has a silent mode function that allows scheduling
when JÄSPI Inverter Nordic must operate at an even quieter noise level.
7JÄSPI Inverter NordicChapter 1 | Important information

2 Installation function
An air/water heat pump installation uses the outdoor air to heat up a
home. The conversion of the outdoor air’s energy into residential heating
occurs in three different circuits. From the outdoor air, (1) , free heat energy
is retrieved and transported to the heat pump. The heat pump increases
the retrieved heat’s low temperature to a high temperature in the refriger-
ant circuit, (2) . The heat is distributed around the building in the heating
medium circuit, (3) .
45 ºC
55 ºC
80 ºC 5 ºC
6 ºC
1 ºC
0 ºC
A
BC
F
EG
H
ID
123
Heating medium
Refrigerant
Outdoor air
Compressor
Condenser
Evaporator
Expansion valve
The temperatures are only examples and may vary between different in-
stallations and time of year.
JÄSPI Inverter NordicChapter 2 | Installation function8

Outdoor air
The outdoor air is sucked into the heat pump.
A
The fan then routes the air to the heat pump’s evaporator. Here,
the air releases the heating energy to the refrigerant and the air's
temperature drops. The cold air is then blown out of the heat
pump.
B
Refrigerant circuit
A gas circulates in a closed system in the heat pump, a refrigerant,
which also passes the evaporator. The refrigerant has a very low
boiling point. In the evaporator the refrigerant receives the heat
energy from the outdoor air and starts to boil.
C
The gas that is produced during boiling is routed into an electrically
powered compressor. When the gas is compressed, the pressure
increases and the gas's temperature increases considerably, from
0 °C to approx 80 °C.
D
From the compressor, gas is forced into a heat exchanger, condens-
er, where it releases heat energy to the indoor module, whereupon
the gas is cooled and condenses to a liquid form again.
E
As the pressure is still high, the refrigerant can pass an expansion
valve, where the pressure drops so that the refrigerant returns to
its original temperature. The refrigerant has now completed a full
cycle. It is routed to the evaporator again and the process is re-
peated.
F
Heat medium circuit
The heat energy that the refrigerant produces in the condenser is
retrieved by the indoor module's water, the heating medium,
which is heated to 55 °C (supply temperature).
G
The heating medium circulates in a closed system and transports
the heated water's heat energy to the house radiators/heating
coils.
H
The indoor module’s integrated charge coil is placed in the boiler
section. The water in the coil heats up the surrounding domestic
hot water.
I
9JÄSPI Inverter NordicChapter 2 | Installation function

3 Control of JÄSPI Inverter
Nordic
The heat pump is controlled in various ways, depending on your system.
You control the heat pump via your indoor module JÄSPI Theowatti Air
or control module JÄSPI_MCU40.
See the Installer Manual for the indoor module/control module.
During installation, the installation engineer adjusts the necessary settings
for the heat pump in the indoor module or control module, so that the
heat pump works optimally in your system.
JÄSPI Inverter NordicChapter 3 | Control of JÄSPI Inverter Nordic10

4Maintenance of JÄSPI Inverter
Nordic
Regular checks
When your heat pump is located outdoors some external maintenance is
required.
NOTE
Insufficient maintenance can cause serious damage to JÄSPI Inverter
Nordic, which is not covered by the guarantee.
Checking grilles and bottom panel on JÄSPI Inverter Nordic
Check regularly throughout the year that the grille is not clogged by leaves,
snow or anything else.
You should be particularly vigilant during windy conditions and/or in the
event of snow, as the grille can become blocked.
Also check that the drain holes in the bottom panel are free from dirt and
leaves.
Regularly check that condensation is routed away correctly through the
condensation pipe. Ask your installer for assistance if required.
11JÄSPI Inverter NordicChapter 4 | Maintenance of JÄSPI Inverter Nordic

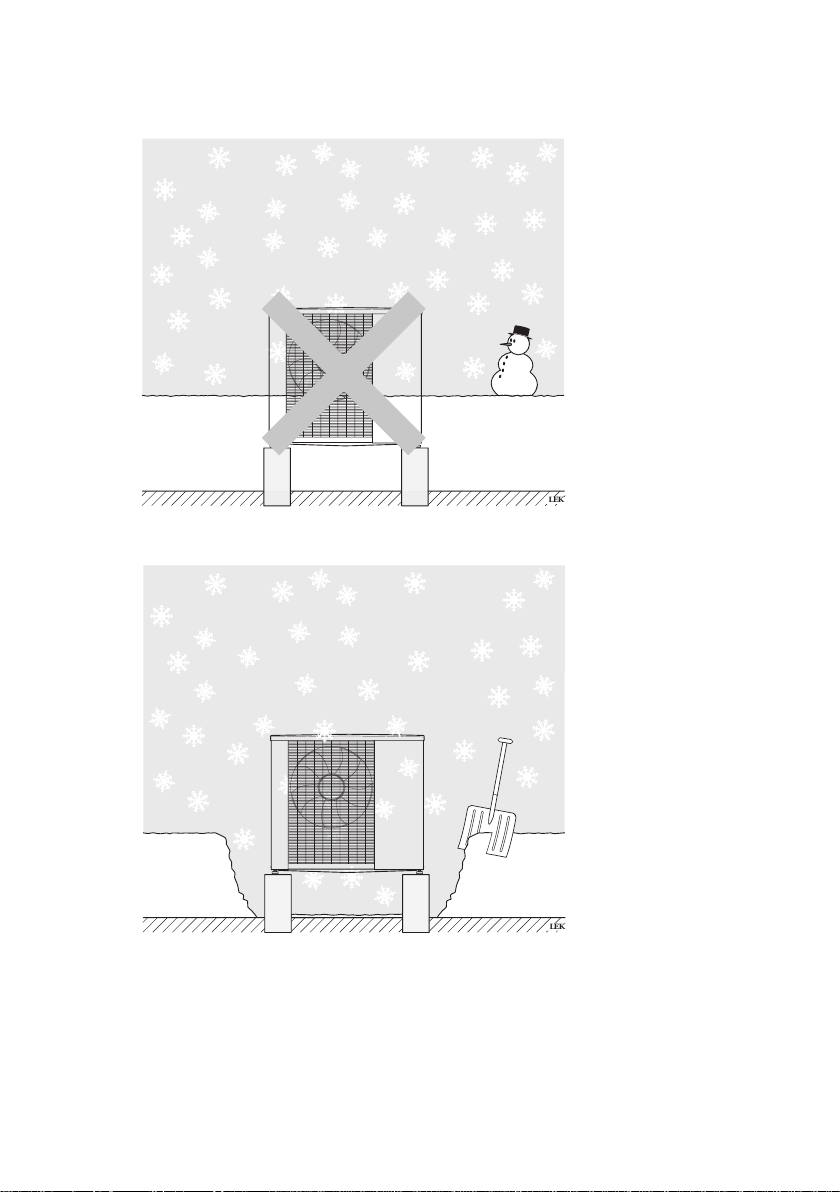

Keep free of snow and ice
F2120 F2120
F2120 F2120
LEK
LEK
LEK
LEK
Prevent snow from building up and covering the grilles and drain holes on JÄSPI Inverter
Nordic.
F2120 F2120
F2120 F2120
LEK
LEK
LEK
LEK
Keep free of snow and/or ice.
JÄSPI Inverter NordicChapter 4 | Maintenance of JÄSPI Inverter Nordic12

Cleaning the outer casing
If necessary the outer casing can be cleaned using a damp cloth.
Care must be exercised so that the heat pump is not scratched when
cleaning. Avoid spraying water into the grilles or the sides so that water
penetrates into JÄSPI Inverter Nordic. Prevent JÄSPI Inverter Nordic coming
into contact with alkaline cleaning agents.
In event of long power cuts
In the event of prolonged power failures it is recommended that the part
of the heating system located outdoors is drained. Your installer has in-
stalled a shut off and drain valve to facilitate this. Call and ask your installer
if you are unsure.
Silent mode
The heat pump can be set to "Silent mode", which reduces the heat pump’s
noise level. This function is useful when JÄSPI Inverter Nordic must be
placed in noise-sensitive areas. The function should only be used for limited
periods, because JÄSPI Inverter Nordic might not reach its dimensioned
power.
Updating the software
Information about updating software can be found in the Installer
Manual for your indoor module or control module.
13JÄSPI Inverter NordicChapter 4 | Maintenance of JÄSPI Inverter Nordic

5 Disturbances in comfort
In most cases, the indoor module/control module notes a malfunction (a
malfunction can lead to disturbance in comfort) and indicates this with
alarms and action instructions in the display.
NOTE
Work behind covers secured by screws may only be carried out by, or
under the supervision of, a qualified installation engineer.
Troubleshooting
If the operational interference is not shown in the display the following
tips can be used:
Basic actions
■Group and main fuses of the accommodation.
■The property's earth circuit breaker.
■Make sure that the air flow to JÄSPI Inverter Nordic is not blocked by
foreign objects.
■Check that JÄSPI Inverter Nordic does not have any external damage.
Ice build-up in the fan, grille and/or fan cone
Set the "Fan de-icing" function in the indoor module/control module. For
more information, see the section "Control – Heat pump EB101" in the
Installer Manual.
If problems arise, contact your installer.
Water below JÄSPI Inverter Nordic (larger amount)
■Fit an accessory KVR 11 to divert condensation from the air/water heat
pump.
■Check that the water drainage via the condensation pipe (KVR 11) is
working.
JÄSPI Inverter NordicChapter 5 | Disturbances in comfort14

Item register
B
Basic actions, 14
C
Control of JÄSPI Inverter Nordic, 10
D
Disruptions to comfort
Basic actions, 14
Disturbances in comfort, 14
Troubleshooting, 14
I
Ice build-up in the fan, grille and/or fan
cone, 14
Important information, 4
Installation data, 4
JÄSPI Inverter Nordic – An excellent
choice, 7
Safety information, 5
Serial number, 6
Symbols, 6
In event of long power cuts, 13
Installation data, 4
Installation function, 8
J
JÄSPI Inverter Nordic – An excellent
choice, 7
M
Maintenance of JÄSPI Inverter Nord-
ic, 11
In event of long power cuts, 13
Regular checks, 11
Silent mode, 13
Updating the software, 13
R
Regular checks, 11
S
Safety information, 5
Serial number, 6
Silent mode, 13
Symbols, 6
T
Troubleshooting, 14
Ice build-up in the fan, grille and/or
fan cone, 14
Water below JÄSPI Inverter Nordic
(larger amount), 14
U
Updating the software, 13
W
Water below JÄSPI Inverter Nordic (lar-
ger amount), 14
15JÄSPI Inverter NordicChapter 6 | Item register
6

WS name: -Gemensamt
WS version: a954
WS release date: 2022-02-10 09:35
Publish date: 2022-04-06 11:34
Kaukora Oy
PL 21, Tuotekatu 11
212 01 Raisio
[phone]
E-mail: kaukora@kaukora.fi
www.jaspi.fi
331844
