1 Important information
Installation data
JÄSPI Inverter NordicProduct
Serial number
Installation date
Installer
Serial number must always be given.
Certification that the installation is carried out according to instructions
in Kaukora's installer manual and applicable regulations.
_________________________Signed__________________Date
JÄSPI Inverter NordicChapter 1 | Important information4

Safety information
This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe
way and understand the hazards involved. The product
is intended for use by experts or trained users in shops,
hotels, light industry, farming and similar environ-
ments.
Children must be instructed/supervised to ensure that
they do not play with the appliance.
Do not allow children to clean or maintain the appli-
ance unsupervised.
This is an original manual. It may not be translated
without the approval of Kaukora.
Rights to make any design or technical modifications
are reserved.
JÄSPI Inverter Nordic must be installed via an isolator switch with a minim-
um breaking gap of 3 mm.
If the supply cable is damaged, only Kaukora, its service representative or
similar authorised person may replace it to prevent any danger and dam-
age.
5JÄSPI Inverter NordicChapter 1 | Important information

Symbols
NOTE
This symbol indicates danger to person or machine .
Caution
This symbol indicates important information about what you should
observe when maintaining your installation.
TIP
This symbol indicates tips on how to facilitate using the product.
Marking
The CE mark is obligatory for most products sold in the EU, regardless
of where they are made.
CE
Classification of enclosure of electro-technical equipment.IP24
Danger to person or machine.
!
Read the User Manual.
JÄSPI Inverter NordicChapter 1 | Important information6

Serial number
The serial number can be found at the top left on the rear cover and at
the bottom on the side.
F2120
Serial number
Caution
You need the product's (14 digit) serial number for servicing and support.
JÄSPI Inverter Nordic – An excellent
choice
JÄSPI Inverter Nordic is an air/water heat pump, specially designed for the
Nordic climate, which uses the outdoor air as its energy source.
The heat pump is intended for connection to water borne heating systems
and can both heat hot water effectively at high outdoor temperatures
and give a high output to the heating system at low outdoor temperatures.
If the outdoor temperature drops to a level below the stop temperature
all heating must then occur with external additional heat.
Excellent properties for JÄSPI Inverter Nordic:
■Efficient speed-controlled scroll compressor
Efficient speed-controlled scroll compressor that operates at temperat-
ures down to -25 °C.
■Intelligent control
JÄSPI Inverter Nordic connected to intelligent control for optimum
control of the heat pump.
7JÄSPI Inverter NordicChapter 1 | Important information

■Fan
JÄSPI Inverter Nordic has automatic capacity regulation of the fan.
■Long service life
The material has been chosen for a long service life and is designed to
withstand the Nordic outdoor conditions.
■Many possibilities
JÄSPI Inverter Nordic is intended for combination with the indoor
module JÄSPI Theowatti Air / control module JÄSPI_MCU40. There is a
wide range of system solutions and accessories for indoor modules and
control modules.
■Silent operation
JÄSPI Inverter Nordic has a silent operation function that allows
scheduling when JÄSPI Inverter Nordic must operate at an even quieter
noise level.
JÄSPI Inverter NordicChapter 1 | Important information8

2 The heat pump – the heart of
the house
Heat pump function
Värmebärare
Köldmedium
Uteluft
Förångare
Kondensor 80 °C
2 °C-3 °C
5 °C0 °C
55 °C45 °C
Expansionsventil Kompressor
A
D
F
H
I
B
C
E
G
Heating medium
Värmebärare
Köldmedium
Köldbärare
Värmekälla
Förångare
Kondensor 100 °C
0 °C-3 °C
-2 °C
50 °C40 °C
Expansionsventil Kompressor
A
D
F
H
B
C
E
G
Brine
Refrigerant
Evaporator
Condenser
Expansion valve Compressor
Heat source 1
2
3
The temperatures are only examples and may vary between different installations and
time of year.
9JÄSPI Inverter NordicChapter 2 | The heat pump – the heart of the house

An air/water heat pump can use the outdoor air to heat up a home. The
conversion of the outdoor air’s energy to residential heating occurs in
three different circuits. In the brine circuit (1), free heat energy is retrieved
from the surroundings and transported to the heat pump. The heat pump
increases the retrieved heat’s low temperature to a high temperature in
the refrigerant circuit, (2). The heat is distributed around the building by
the heating medium circuit (3).
Outdoor air
The outdoor air is sucked into the heat pump.
A
The fan then routes the air to the heat pump’s evaporator. Here, the air
releases the heating energy to the refrigerant and the air's temperature
drops. The cold air is then blown out of the heat pump.
B
Refrigerant circuit
A gas circulates in a closed system in the heat pump, a refrigerant, which
also passes the evaporator. The refrigerant has a very low boiling point. In
the evaporator the refrigerant receives the heat energy from the outdoor
air and starts to boil.
C
The gas that is produced during boiling is routed into an electrically
powered compressor. When the gas is compressed, the pressure increases
and the gas's temperature increases considerably, from 5 °C to approx.
80 °C.
D
From the compressor, gas is forced into a heat exchanger, condenser,
where it releases heat energy to the heating system in the house,
whereupon the gas is cooled and condenses to a liquid form again.
E
As the pressure is still high, the refrigerant can pass an expansion valve,
where the pressure drops so that the refrigerant returns to its original
temperature. The refrigerant has now completed a full cycle. It is routed
to the evaporator again and the process is repeated.
F
Heat medium circuit
The heat energy that the refrigerant produces in the condenser is retrieved
by the climate system's water, heating medium, which is heated to 55 °C
(supply temperature).
G
The heating medium circulates in a closed system and transports the heated
water's heating energy to the house water heater and radiators/heating
coils.
H
The temperatures are only examples and may vary between different installations and
time of year.
JÄSPI Inverter NordicChapter 2 | The heat pump – the heart of the house10

Control of JÄSPI Inverter Nordic
The heat pump is controlled in various ways depending on your system.
You control the heat pump via your indoor module JÄSPI Theowatti Air
or control module JÄSPI_MCU40. See the relevant manual for more inform-
ation.
During installation, the installation engineer adjusts the necessary settings
for the heat pump in the indoor module or control module, so that the
heat pump works optimally in your system.
11JÄSPI Inverter NordicChapter 2 | The heat pump – the heart of the house

Maintenance of JÄSPI Inverter Nordic
Regular checks
When your heat pump is located outdoors some external maintenance is
required.
NOTE
Insufficient maintenance can cause serious damage to JÄSPI Inverter
Nordic, which is not covered by the guarantee.
Checking grilles and bottom panel on JÄSPI Inverter Nordic
Regularly check throughout the year that the grille is not clogged by leaves,
snow or anything else.
You should be vigilant during windy conditions and/or in the event of
snow as the grille can become blocked.
Regularly check that condensation is routed away correctly through the
condensation pipe. Ask your installer for assistance if required.
JÄSPI Inverter NordicChapter 2 | The heat pump – the heart of the house12

Keep free of snow and ice
F2120 F2120
F2120 F2120
LEK
LEK
LEK
LEK
Prevent snow from building up and covering the grilles and drain holes on JÄSPI Inverter
Nordic.
F2120 F2120
F2120 F2120
LEK
LEK
LEK
LEK
Keep free of snow and/or ice.
13JÄSPI Inverter NordicChapter 2 | The heat pump – the heart of the house

Cleaning the outer casing
If necessary the outer casing can be cleaned using a damp cloth.
Care must be exercised so that the heat pump is not scratched when
cleaning. Avoid spraying water into the grilles or the sides so that water
penetrates into JÄSPI Inverter Nordic. Prevent JÄSPI Inverter Nordic coming
into contact with alkaline cleaning agents.
In event of long power cuts
In the event of prolonged power failures it is recommended that the part
of the heating system located outdoors is drained. Your installer has in-
stalled a shut off and drain valve to facilitate this. Call and ask your installer
if you are unsure.
Silent mode
The heat pump can be set to "silent mode", which reduces the heat pump's
noise level. The function is useful when JÄSPI Inverter Nordic must be
placed in noise sensitive areas. The function should only be used for limited
periods as JÄSPI Inverter Nordic may not reach its dimensioned output.
JÄSPI Inverter NordicChapter 2 | The heat pump – the heart of the house14

Updating the software in JÄSPI Inverter Nordic via the
control module or indoor module
The latest software for both JÄSPI Inverter Nordic and the indoor mod-
ule/control module can be found at www.myupway.com.
Click the "Software" tab to download the latest software for your installa-
tion.
Save the files to a USB memory. Update JÄSPI Inverter Nordic and the in-
door module/control module at the same time.
SERVICE
update firmware
USB 7
logging
manage settings

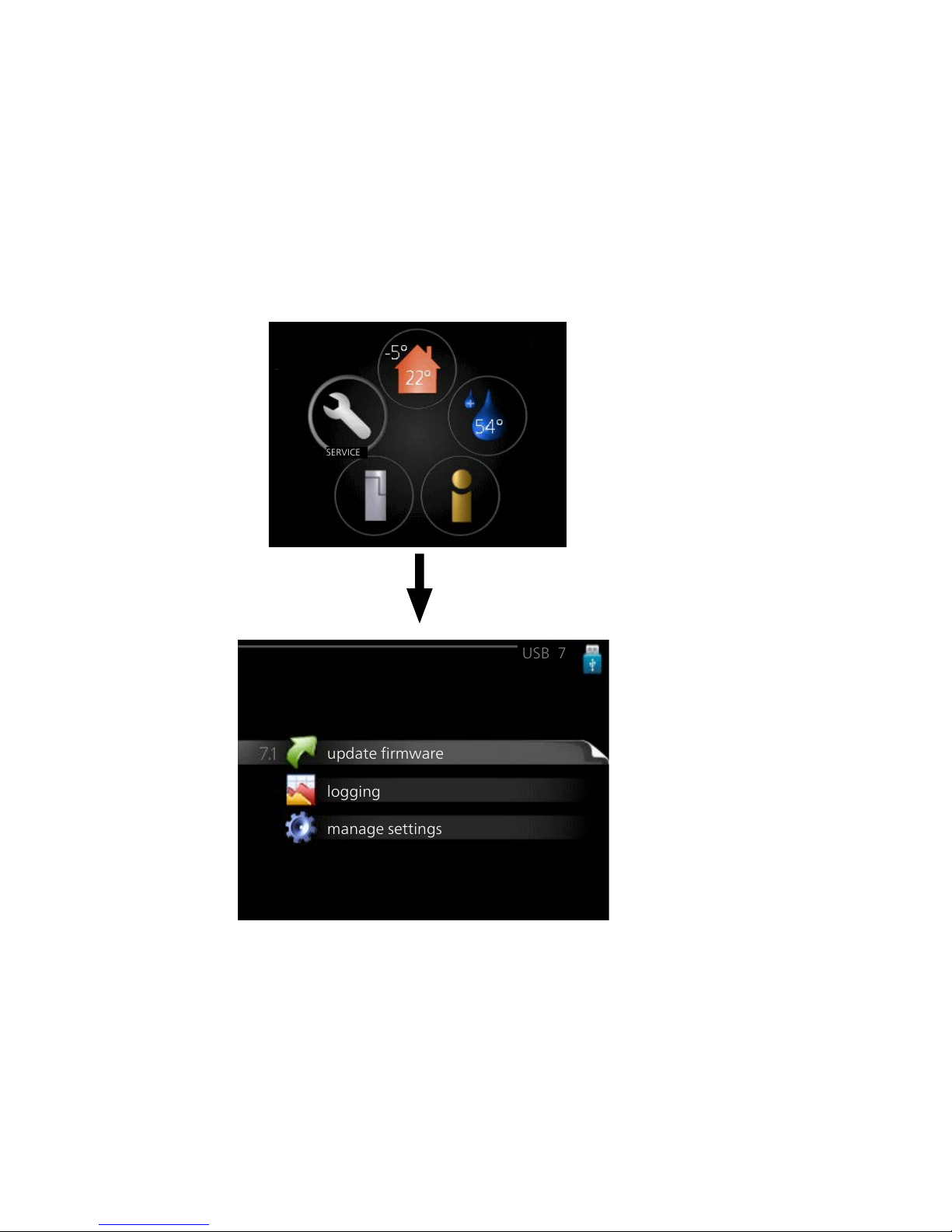

In menu 7.1 on the indoor module/control module, the following software
updates can be performed:
■Software for the indoor module (JÄSPI Tehowatti Air) or control module
(JÄSPI MCU40)
■Software for outdoor module JÄSPI Inverter Nordic
15JÄSPI Inverter NordicChapter 2 | The heat pump – the heart of the house

Caution
Software for the indoor/control module must be updated when software
for outdoor module JÄSPI Inverter Nordic is updated.
Caution
It can take up to 30 minutes to update the software for JÄSPI Inverter
Nordic.
Caution
Restart the indoor module/control module to see the correct version
number of the software.
For cascade installation, together with JÄSPI MCU40, all JÄSPI Inverter
Nordic will be updated in the address order. Deactivate the JÄSPI Inverter
Nordic that are not to be updated.
More detailed information about updating software via USB can be found
in the installer manual for your indoor module or control module.
Saving tips
Your heat pump installation produces heat and cooling and/or hot water.
This occurs via the control settings you made.
Factors that affect the energy consumption are, for example, indoor tem-
perature, hot water consumption, the insulation level of the house and
whether the house has many large window surfaces. The position of the
house, e.g. wind exposure is also an affecting factor.
Also remember:
■Open the thermostat valves completely (except in the rooms that are to
be kept cooler for various reasons, e.g. bedrooms). The thermostats slow
the flow in the heating system, which the heat pump wants to com-
pensate with increased temperatures. It then works harder and consumes
more electrical energy.
■Reduce or adjust the settings for heating in any external control systems.
JÄSPI Inverter NordicChapter 2 | The heat pump – the heart of the house16

Power consumption
Energiförbrukning fördelat över året
jan feb mars april maj juni juli aug sep okt nov dec
Månad
% av årsförbrukningen
0%
5%
10%
15%
20%
25%
The air/water heat pump's energy distribution spread across the year
Month
Jan Feb Mar April May June July Aug Sep Oct Nov Dec
% of annual
consumption
Increasing the indoor temperature one degree increases power consump-
tion by approx. 5%.
Domestic electricity
In the past it has been calculated that an average Swedish household has
an approximate annual consumption of 5000 kWh domestic electri-
city/year. In today's society it is usually between 6000-12000 kWh/year.
Appr.
ann.
con-
sump
(kWh)
Normal Output
(W)
Equipment
StandbyOpera-
tion
3802200TV (Operation: 5 h/day, Standby: 19 h/day)
901011Digital box (Operation: 5 h/day, Standby:
19 h/day)
45515DVD (Operation: 2 h/week)
672160TV games console (Operation: 6 h/week)
50140Radio/stereo (Operation: 3 h/day)
1202100Computer incl. screen (Operation: 3 h/day,
standby 21 h/day)
175-60Bulb (Operation 8 h/day)
58-20Spot light, Halogen (Operation 8 h/day)
165-100Cooling (Operation: 24 h/day)
17JÄSPI Inverter NordicChapter 2 | The heat pump – the heart of the house

Appr.
ann.
con-
sump
(kWh)
Normal Output
(W)
Equipment
380-120Freezer (Operation: 24 h/day)
365-1500Stove, hob (Operation: 40 min/day)
310-3000Stove, oven (Operation: 2 h/week)
730-2000Dishwasher, cold water connection (Opera-
tion 1 time/day)
730-2000Washing machine (Operation: 1 times/day)
730-2000Tumble drier (Operation: 1 times/day)
100-1000Vacuum cleaner (Operation: 2 h/week)
50-400Engine block heater (Operation: 1 h/day, 4
months a year)
100-800Passenger compartment heater (Operation:
1 h/day, 4 months a year)
These values are approximate example values.
Example: A family with 2 children live in a house with 1 flat-screen TV, 1
digital box, 1 DVD player, 1 TV games console, 2 computers, 3 stereos, 2
bulbs in the WC, 2 bulbs in the bathroom, 4 bulbs in the kitchen, 3 bulbs
outside, a washing machine, tumble drier, fridge, freezer, oven, vacuum
cleaner, engine block heater = 6240 kWh domestic electricity/year
Energy meter
Check the accommodation's energy meter regularly, preferably once a
month. This will indicate any changes in power consumption.
Newly built houses usually have twin energy meters, use the difference to
calculate your domestic electricity.
New builds
Newly built houses undergo a drying out process for a year. The house
can then consume significantly more energy than it would thereafter.
After 1-2 years the heating curve should be adjusted again, as well as the
offset heating curve and the building's thermostat valves, because the
heating system, as a rule, requires a lower temperature once the drying
process is complete.
JÄSPI Inverter NordicChapter 2 | The heat pump – the heart of the house18

3 Disturbances in comfort
Troubleshooting
NOTE
Work behind covers secured by screws may only be carried out by, or
under the supervision of, a qualified installation engineer.
TIP
JÄSPI Inverter Nordic communicates all alarms to the indoor module/con-
trol module (JÄSPI Tehowatti Air / JÄSPI MCU40).
Basic actions
■Make sure that the air flow to JÄSPI Inverter Nordic is not blocked by
foreign objects.
■Check that JÄSPI Inverter Nordic does not have any external damage.
Ice build-up in the fan, grille and/or fan cone on JÄSPI
Inverter Nordic
Contact your installer!
Water below JÄSPI Inverter Nordic (larger amount)
Check that the water drainage via the condensation pipe (KVR 10) is
working.
19JÄSPI Inverter NordicChapter 3 | Disturbances in comfort

4 Technical data
Detailed technical specifications for this product can be found in the in-
stallation manual (www.kaukora.fi).
JÄSPI Inverter NordicChapter 4 | Technical data20
