Jatco J-5000 SM-P 200 ABV User manual

Installation Instructions
JATCOEnvironmental Protection Tank
J-5000 SM-P 200 ABV
*INSTRUMENTATION GAS IS MANDATORY FOR SUPPLY GAS*
The JATCO EnvironmentalTank must be installed at a level which will allow the waste
liquids to be disposed of to gravity flow into the tank.
IMPORTANT: The top of thetank must be below the level of waste liquids tobe
received.
Inlet and the outlet check valves are both teed from the same port near the bottom of the tank
(end opposite the sight glass). When facing this end the inlet check valve is on the left (A)
and the outlet check valve is on the right (B).
The discharge should be piped directly to the storage tank that is to receive the waste liquid.
The discharge may be teed into an existing flow line, provided that a check valve is installed
to prevent high pressure from returning to the discharge check valve on the JATCO tank.
The tank supply gas must have adequate volume and pressure. For best operation use 1” pipe
for the tank supply gas plumed as close to the tank as possible. Then reduce down to the
tubing connections (C) and (J) on the JATCO tank.
Supply gas pressure is connected to the inlet of the level control valve (C) this
gas pressure must meet 70 PSI and not exceed 75 PSI. A separate supply gas pressure
is connected to the 3-way ball valve (J) this gas pressure must not exceed 200 PSI
for normal operation. No pressure regulator is provided as most applications for this
device have pre-regulated gas pressure supplied.
Depressing the manual dump plunger (F) allows the operator to check function of the float
control valve actuator. When the plunger is depressed, the tank will cycle once and return
to the automatic operation when the plunger released. The plunger button should be returned
to the extended position.
Listed below are a series of steps to follow if the JATCO tank fails to dump properly.
Be sure there is an adequate supply of gas pressure (70-75 psi), to the inlet connection at
the level control valve. If there is enough pressure at the inlet connection, press down
manual dump plunger (F) to empty tank, then vent when the cycle is complete. If the
JATCO tank fails to dump manually, remove connector tubing to actuator (G) to test for
pilot pressure from level control valve (D). If level control valve is not sending pressure
to the actuator (G) when depressing manual dump plunger (F), removal and or inspection
of level control valve will be necessary. If pressure is present but actuator fails to
operate, remove inspect and or replacement may be necessary.
244 N.W. 111th St. •Oklahoma City, Oklahoma 73114 • 405/755-4100 •405/755-4101 Fax

Service Guide
JATCO Environmental Protection Tanks
J-5000 SM-P 200 ABV
*INSTRUMENTATION GAS IS MANDATORY FOR SUPPLY GAS*
Listed below are aseries of steps to follow if the JATCO tank fails to dump properly.
The tank supply gas must have adequate volume and pressure. For best operation use 1” pipe for
the tank supply gas plumed as close to the tank as possible. Then reduce down to the tubing
connections (C) and (J) on the JATCO tank.
Be sure there is an adequate supply of volume and gas pressure (70-75 psi), to the inlet
connection on the level controller (C), and (200psi max) to the 3-way ball valve supply (J). If
there is enough pressure at the supply connections, press down on the manual dump plunger
(F). This should cause the tank to manually dump, then vent through (H) when the cycle is
complete. If the JATCO tank fails to dump manually, remove pilot signal connector tubing to 3-
way ball valve’s actuator (G) to test for pilot signal from level control (D). If the level control is
not sending a pilot signal to the actuator when depressing manual dump plunger, removal and or
inspection of level control will be necessary and proceed to next step. If pilot signal pressure is
present but actuator fails to operate, usually the pilot signal will escape from the actuator vent
orifice. This indicates O-ring failure in the actuator and replacement may be necessary. The
actuator does have a repair kit mainly consisting of O-rings.
Step #2 the side mount level controller hasvery few moving parts. Ifthe valve is not operating
properly, remove and inspect travel of float arm. If noobstruction is visually present but the
float arm does not travel freely then removal of float arm is necessary. To remove float arm
carefully drive float arm retaining pin out with ahammer andpunch. Then inspect magnet and
chamber for debris. Ifthere is no obstruction with float arm assembly or tubing connections,
replacement may be necessary.
244 NW 111th • Oklahoma City, Ok. 73114 • 405/755-4100 • 405/755-4101 Fax
244 NW 111th • Oklahoma City, Ok. 73114 • 405/755-4100 • 405/755-4101 Fax

244 NW 111th • Oklahoma City, Ok. 73114 • 405/755-4100 • 405/755-4101 Fax
B
G
E
G
F
B
H
E
I
D
I
B
J
C
A
J-5000 SM-P 200 ABV
30”
9 ¼”
C
13”
21 ½”

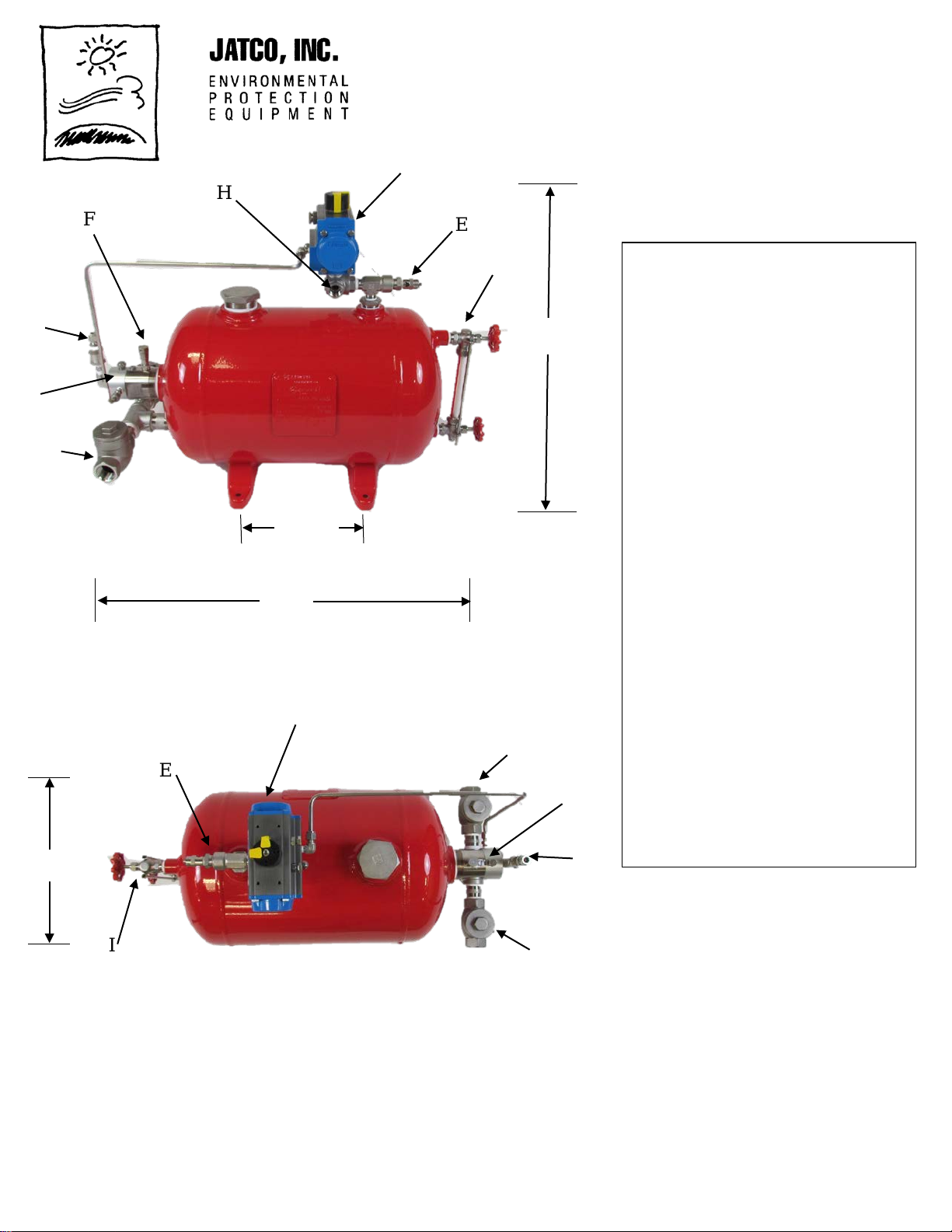

A. Inlet Check Valve 1" NPT
JM5005
B. Discharge Check Valve 1" NPT
JM5005
C. Supply Gas Inlet ½” NPT
Compression (70-75 psi)
D. Liquid Level Control Valve
JM5011 SM-P
E. Pressure Relief Valve
JM5002-200
F. Manual Dump Plunger Assembly
JM5003
G. 3-Way Actuated Ball Valve
JM5008x-ABV
H. Vessel Vent ½"NPT
I. Gauge Cocks & Sight Glass
JM5009 & JM5010
J. Tank Motive Gas Supply ½" NPT
Compression (200 psi Max)
J
J

244 NW 111th • Oklahoma City, Ok. 73114 • 405/755-4100 • 405/755-4101 Fax
