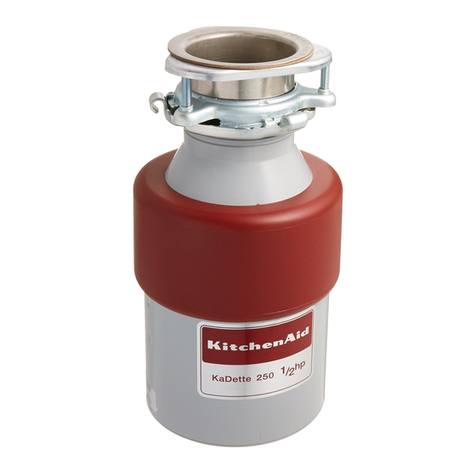

KitchenAid KCDB250S0 User manual

1 4211300 Stopper Assembly
2 4211301 Flange, Strainer
3 4211302 Seal, Sink Flange (2)
4 4211303 Flange, Backup
5 4211304 Flange, Mounting
6 4211305 Screw, Backup (3)
7 4211306 Ring, Retaining
8 4211307 Gasket, Mounting
9 4211308 Flange, Body
10 4211309 Container, Body Assembly
11 4211310 O-Ring
12 4211311 Kit, Sleeve And Seal (Includes Nut, Slinger & Sleeve)
13 4211312 Shredder Assembly, Rotating

1 4211313 End Bell Assembly, Upper
2 4211314 Seal, Water & Oil
3 4211315 Washer, Thrust
4 4211320 Rotor & Shaft Assembly
5 4211321 Washer
6 4211322 Actuator Assembly, Centrifugal
7 4211323 Stator Assembly
8 4211324 Switch Assembly, Start
9 4211325 Protector, Overload
10 4211327 End Frame Assembly, Lower
11 4211331 Bolt, Thru (4)
12 4211316 Gasket, Tailpipe
13 4211317 Tailpipe
14 4211318 Flange, Tailpipe
15 4211319 Screw, Tailpipe (2)
16 4211326 Shield, Wire
17 4211328 Cover, Terminal
18 4211329 Screw
19 4211330 Screw, Ground
20 4211397 Emergency, Wrench Assembly
21 4211396 Adapter, Sink Assembly
22 4211564 Kit, Installation (Includes Nos. 12, 13, 14, 15, 20,
Instructions and Use and Care Guide)
Following Parts Not Illustrated
LIT4171071 Guide, Use And Care
LIT4171069 Instructions, Installation
LIT4211437 Repair Parts List
