JB-Lighting P9 Beamspot User manual

Operating instructions
Version 1.04
Software >= 1.0.0
P9 Beamspot

- 02 -
P9

- 03 -
P9
Content
1. Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .05
1.1 P9 Beamspot models . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 05
2. Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .06
3. Product overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .07
4. Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .08
5. Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
5.1 Unpacking the device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
5.2 Fitting the plug to the connection cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
5.3 Mains connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
5.4 Wiring the power feed-through . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
5.5 Signal connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
5.5.1 DMX cabling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
5.5.2 Ethernet cabling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
5.5.3 Wireless reception .... . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
5.6 Mounting the devices. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
6. Control panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
6.1 Menu overview P9 Beamspot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
6.2 FACTORY DEFAULTS - Factory settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
6.3 USER DEFAULTS - User settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
6.4 DMX / NET ADDRESS - DMX addressing / Artnet addressing / sACN addressing . . . . . . . . . . . . . . . 18
6.5 PERSONALITY - Personal settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
6.6 STANDALONE operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
6.7 INFO-menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
6.8 Shortcuts - quick access . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
7. Control options. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
7.1 DMX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
7.1.1 Operating modes P9 Beamspot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
7.1.2 DMX channel functions P9 Beamspot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
7.1.3 Control channel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
7.1.4 Sparkle effect, sparkle speed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
7.1.5 Auto focus. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
7.2 Artnet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
7.3 Streaming ACN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
7.4 Wireless-DMX .......... . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
7.5 RDM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
7.5.1 RDM-UID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
7.5.2 RDM-PIDs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
7.5.3 Standard RDM parameter IDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
7.5.4 Manufacturer specific RDM parameter IDs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
7.5.5 RDM sensor IDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
8. Service. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33
8.1 Service menu. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
8.2 Changing gobos . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
8.3 Gobo size . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
8.4 Software update . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
8.5 Testing of electrical equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
8.6 Cleaning the device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
8.7 Service and maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
9. Overview of error codes for all fixtures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37
10. Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39
11. Declaration of Conformity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40

- 04 -
P9

- 05 -
P9
Specication HP - High Power with High CRI lter with CTO lter
Color temperature 6800 K 5800 K 3200 K
Luminosity 25.000 lm
(15.000 lm output) 10.000 lm output 7.500 lm output
CRI >= 70 >= 90 >= 85
1. Introduction
1.1 P9 Beamspot models
The P9 beam spot is available in the light color HP (High Power). It can also be operated without
any problems in the light colors 5800K (CRI> 90) and 3200K.

- 06 -
P9
2. Dimensions
Name
Erstellt
Art.-Nr.:
Datum
Prisma
Fax.: 07304 / 9617-99
Tel.: 07304 / 9617-0
P9
kuehngruen
Allgemeintoleranzen
ISO 2768-m
Blechdicke:
Material:
Farbe:
Oberfläche:
Abmessung:
Lichtanlagentechnik GmbH
Sallersteig 15, 89134 Blaustein
397
398
199
412
140
140
223,6
Name
Erstellt
Art.-Nr.:
Datum
Prisma
Fax.: 07304 / 9617-99
Tel.: 07304 / 9617-0
P9
kuehngruen
Allgemeintoleranzen
ISO 2768-m
Blechdicke:
Material:
Farbe:
Oberfläche:
Abmessung:
Lichtanlagentechnik GmbH
Sallersteig 15, 89134 Blaustein
397
398
199
412
140
140
223,6
Name
Erstellt
Art.-Nr.:
Datum
Prisma
Fax.: 07304 / 9617-99
Tel.: 07304 / 9617-0
P9
kuehngruen
Allgemeintoleranzen
ISO 2768-m
Blechdicke:
Material:
Farbe:
Oberfläche:
Abmessung:
Lichtanlagentechnik GmbH
Sallersteig 15, 89134 Blaustein
265
609
398
397
140
140
223,6
Name
Erstellt
Art.-Nr.:
Datum
Prisma
Fax.: 07304 / 9617-99
Tel.: 07304 / 9617-0
P9
kuehngruen
Allgemeintoleranzen
ISO 2768-m
Blechdicke:
Material:
Farbe:
Oberfläche:
Abmessung:
Lichtanlagentechnik GmbH
Sallersteig 15, 89134 Blaustein
397
398
199
412
140
140
223,6
Name
Erstellt
Art.-Nr.:
Datum
Prisma
Fax.: 07304 / 9617-99
Tel.: 07304 / 9617-0
P9
kuehngruen
Allgemeintoleranzen
ISO 2768-m
Blechdicke:
Material:
Farbe:
Oberfläche:
Abmessung:
Lichtanlagentechnik GmbH
Sallersteig 15, 89134 Blaustein
265
609
398
397
140
140
223,6

- 07 -
P9
3. Product overview
Head
Front lens
Tilt lock
Yoke
PowerCON TRUE1 Output
Pan lock
DMX/Ethernet/USB ports
Base
PowerCON TRUE1 Input
Bottom cover
Top cover
Arm cover
Handles
LCD display
Function keys
Name
Erstellt
Art.-Nr.:
Datum
Prisma
Fax.: 07304 / 9617-99
Tel.: 07304 / 9617-0
P9
kuehngruen
Allgemeintoleranzen
ISO 2768-m
Blechdicke:
Material:
Farbe:
Oberfläche:
Abmessung:
Lichtanlagentechnik GmbH
Sallersteig 15, 89134 Blaustein
397
398
199
412
140
140
223,6
Name
Erstellt
Art.-Nr.:
Datum
Prisma
Fax.: 07304 / 9617-99
Tel.: 07304 / 9617-0
P9
kuehngruen
Allgemeintoleranzen
ISO 2768-m
Blechdicke:
Material:
Farbe:
Oberfläche:
Abmessung:
Lichtanlagentechnik GmbH
Sallersteig 15, 89134 Blaustein
265
609
398
397
140
140
223,6

- 08 -
P9
ATTENTION: For your own safety, please read these operating instructions carefully
before rst use.
!
4. Safety instructions
This spotlight has left our company in excellent condition. To maintain this condition and to
ensure safe operation, it is absolutely essential to observe the following safety instructions and
warnings which are described in this operating manual.
The manufacturer accepts no liability for damage caused to the device by disregard of these
operating instructions or unauthorised modications.
Please note that damage caused by manual modications to this unit is not covered bythewarranty.
Ensure that the mains voltage to be connected is not higher than that indicated on the type plate.
Thisdevice should only be operated with the power source indicated on the type plate. If you are
not sure what type of power supply you have, contact your dealer or power supplier.
Always disconnect the device from the power supply before carrying out cleaning work or before
replacing fuses or parts.
The mains plug must always be accessible after the spotlight has been installed. Do not overload
the sockets or extension cables as this could result in re or electric shock. Do not place any
objects on the power cable. Do not install the spotlight in such a way that people can trip over
or step on the power cable. Make sure that the power cable can never be crushed or damaged
by sharp edges. Check the unit and the power cable from time to time.
Leave maintenance work to a qualied technician!
ATTENTION: This device is only suitable for professional use! Protection class IP 20
- only for use in dry environments (indoors)!
ATTENTION: JB-Lighting Lichtanlagentechnik GmbH does not authorise the use
of its devices in life support systems. Life-supporting systems are systems whose
purpose is to maintain or stabilise life and whose defect or malfunction may result
indeath or injury to persons.
The product in this manual complies with the following EU directives:
- Low Voltage Directive 2014/35/EU
- EMC Directive 2014/30/EU
ATTENTION: Disconnect the device from the power supply before opening thedevice.
You can suffer an electrical shock from touching live parts (high voltage).
!
!

- 09 -
P9
Never connect this device to a dimmer pack.
During rst use, some smoke and odour may occur. This is normal and does not necessarily
mean that the device is defective.
The device becomes hot during operation. Never touch the device with bare hands during
operation!
When replacing fuses, only use the same types with identical values! Only have fuse replacement
carried out by a qualied technician
If the device has been exposed to strong temperature uctuations (e.g. after transport), thedevice
must not be switched on immediately. The resulting condensation can damage your device.
Leave the device switched off until it has reached room temperature.
If the P9 Beamspot is operated below 0°, gobo/prism swapping and gobo/prism rotation
are reduced in speed. This is a protective mechanism of the P9 Beamspot, as at low
temperatures the lubricant is relatively viscous in the rotational mechanism and can
therefore cause the effect to be slurred. From indoor temperatures of 1° and upwards, the
spotlight runs normally! Thistemperature is quickly reached under normal operation (LED
engine on).
Do not shake or knock the device. Avoid brute force during installation or operation.
This light was designed for indoor use only. Do not expose this device to rain or moisture.
When choosing a mounting location, make sure that the device is not exposed to extreme heat,
moisture or dust.
Ventilation openings and slots in the head and foot of the spotlight are used for ventilation
toensure reliable operation of the device and to protect it from overheating, these openings must
not be covered.
Never cover the front lens when the spotlight is in use.
The openings should never be covered with substances or other objects so that the airways are
blocked.
This device must not be operated in an environment without adequate ventilation.
The device may only be operated when the housing is closed and all screws/Camlocs are rmly
tightened.
The device must always be secured with an additional safety device.
Ensure that the area below the spotlight is clear during installation, alteration and removal.
ATTENTION: This xture corresponds to protection class I. For this reason, this
spotlight must be connected to a mains socket with earthing contact.
!
ATTENTION: DAMAGE TO EYES! Do not look into the light source for long periods
during operation. This can be harmful to the eyes. Attention: potentially hazardous
radiation - Risk group 2 based on DIN EN 62471

- 10 -
P9
5. Installation
5.1 Unpacking the device
Contents of the packaging: This spotlight, two Omega brackets with original Camloc fasteners,
powerCON-TRUE1 cable and a safety note. These instructions are included in the shipment.
Open the packaging at the top and remove the powerCON TRUE1 cable, the inlay and the safety
instructions. The Omega brackets are located under the spotlight. Check the P9 Beamspot for
possible transport damage. This should be communicated immediately to the transport company.
The maximum ambient temperature of 45°C must not be exceeded.
Do not operate the device until you have become familiar with its functions. Prevent operation by
persons who are not qualied to use the device. Most damage is the result of improper operation!
Please use the original packaging or specially adapted ight cases if the device is to betransported.
When using the original packaging, the locks must not be closed!
ATTENTION: Only have plugs installed by a specialist!
!
The P9 Beamspot is supplied with an assembled Schuko power cable with the powerCON-
TRUE1 plug (only the powerCON-TRUE1 plug is included in the US version). The installation of
thepower connection of the P9 Beamspot to the power supply (100-240 Volt, 50 - 60 Hertz)
must becarried out by an authorised specialist.
Connection in Germany/Europe:
Wire colour Function Symbol
Brown Phase “L”
Blue Neutral wire “N”
Green/Yellow Protective earth “PE”
5.2 Fitting the plug to the connection cable
ATTENTION: The distance between the light emission and the surface to be
illuminated must be at least 2.0 metres.
ATTENTION: The front lens must be replaced if it is visibly damaged to the extent
that itsfunction is impaired, e.g. by cracks or deep scratches!
ATTENTION: To avoid damaging the internal parts of the light head, never let sunlight
shine directly into the front lens.
!
!
!

- 11 -
P9
Connected loads: Voltage 100-240 V, frequency 50 - 60 Hz, power max. 460 VA
The electrical safety and function of the device can only be guaranteed if it is connected to a properly
installed protective conductor system. It is very important that this basic safety requirement
is met. If in doubt, have the electrical installation checked by a specialist. The manufacturer
cannot be held responsible for damage caused by a missing or interrupted protective conductor
(e.g. electric shock)! Only use the device when it is completely assembled so that no electrical
components can be touched. (Danger 100-240 V)
If you have observed the listed points, you can plug in the devices or have them connected
tothe mains by a specialist.
5.3 Mains connection
ATTENTION: The P9 Beamspot can light up immediately if standalone operation is
activated oraDMX signal is present!
!
Connection outside Europe:
The P9 Beamspot may only be operated on the following power supply systems:
Mains P9
2 wires, 1 phase L
N
L
N
PE
3 wires, 1 phase L
N
L
L
N
4 wires, 3 phases L1
L2
L3
N
L
N
PE
ATTENTION:
In Canada, the P9 Beamspot may
only be operated in a 2-wire, 1 phase
network with a maximum voltage of
120V!
!
The P9 Beamspot has a powerCON-TRUE1 out power output. Depending on the local
conditions several devices can be linked by powerCON-TRUE1 in and powerCON-TRUE1 out.
Connect a maximum of six (when using 230V/16A) P9 Beamspots in a row.
Use an approved three-core cable with a cross-section of at least 1.5 mm². Cabling must be
done with the original Neutrik coded plugs. The installation instructions of the manufacturer
(www.neutrik.com) and the colour coding of the cable must be observed.
5.4 Wiring the power feed-through
ATTENTION: Only have it carried out by a specialist!
!
Wire colour Function Symbol
Brown Phase “L”
Blue Neutral wire “N”
Green/Yellow Protective earth “PE”

- 12 -
P9
The P9 Beamspot has a DMX-in and DMX-out connector. Now connect the DMX output of your
controller to the 1st P9 Beamspot (Controller DMX-Out -> P9 Beamspot DMX-In). Then the 1st
P9 Beamspot with the 2nd P9 Beamspot (P9 BeamspotDMX-Out -> P9 Beamspot DMX-In)
and so on. In some cases it is advisable to insert a so-called end connector (XLR connector
with a 120 Ohm resistor between pin 2 and pin 3). Whether an end connector is required
depends on various factors, including the cable lengths used and the number of devices.
However, as long as no problems occur in the DMX line, this is not necessary.
5.5 Signal connections
The DMX cabling (signal lines) should be done with a 4-pin cable with shielding. We recommend
a DMX cable (110 Ohm, 2x0.22mm2or 4x0.22mm2). The plugs and sockets are 5-pin XLR
connectors, which can be purchased in specialist shops.
Pin assignment:
Pin1 = Ground/Shielding
Pin2 = DMX -
Pin3 = DMX +
Pin4 = not connected
Pin5 = not connected
1
2
3
45
12
3
4
5
Cable with shielding
5.5.1 DMX cabling
5.5.2 Ethernet cabling
Ethernet cabling can be done with standard network lines. The sockets on the device are Neutrik
etherCON sockets. Special cables with etherCON connectors are recommended by Neutrik. The
two sockets on the P9 Beamspot are connected to each other via a switch. Up to 10 devices
can be connected in series without any delay. Of course, the spotlights can also be supplied in a
star conguration via an external switch. The received signal can be output via DMX. To do this,
set the DMX OUTPUT CONFIG setting to ON in the PERSONALITY menu. After conrming with
ENTER, the spotlight emits the entire universe received via DMX.
5.5.3 Wireless reception
The P9 Beamspot is equipped as standard with a LumenRadio CRMX receiver for wireless DMX.
The receiver can process both DMX and RDM. If a cable and wireless connection are connected
to the P9 Beamspot, the cable connection has priority! The received signal can be output via
DMX. To do this, set the DMX OUTPUT CONFIG setting to ON in the PERSONALITY menu. After
conrming with ENTER, the spotlight emits the entire universe received via DMX.
ATTENTION: Make sure that there is no signal at the DMX input at the same time !!
!
ATTENTION: Make sure that there is no signal at the DMX input at the same time !!
!

- 13 -
P9
5.6 Mounting the devices
ATTENTION: Allow a xture distance of at least 0.5 metres from easily ammable
material and the distance between the light emission and the surface to be illuminat-
ed must be at least 2.0 meters.
!

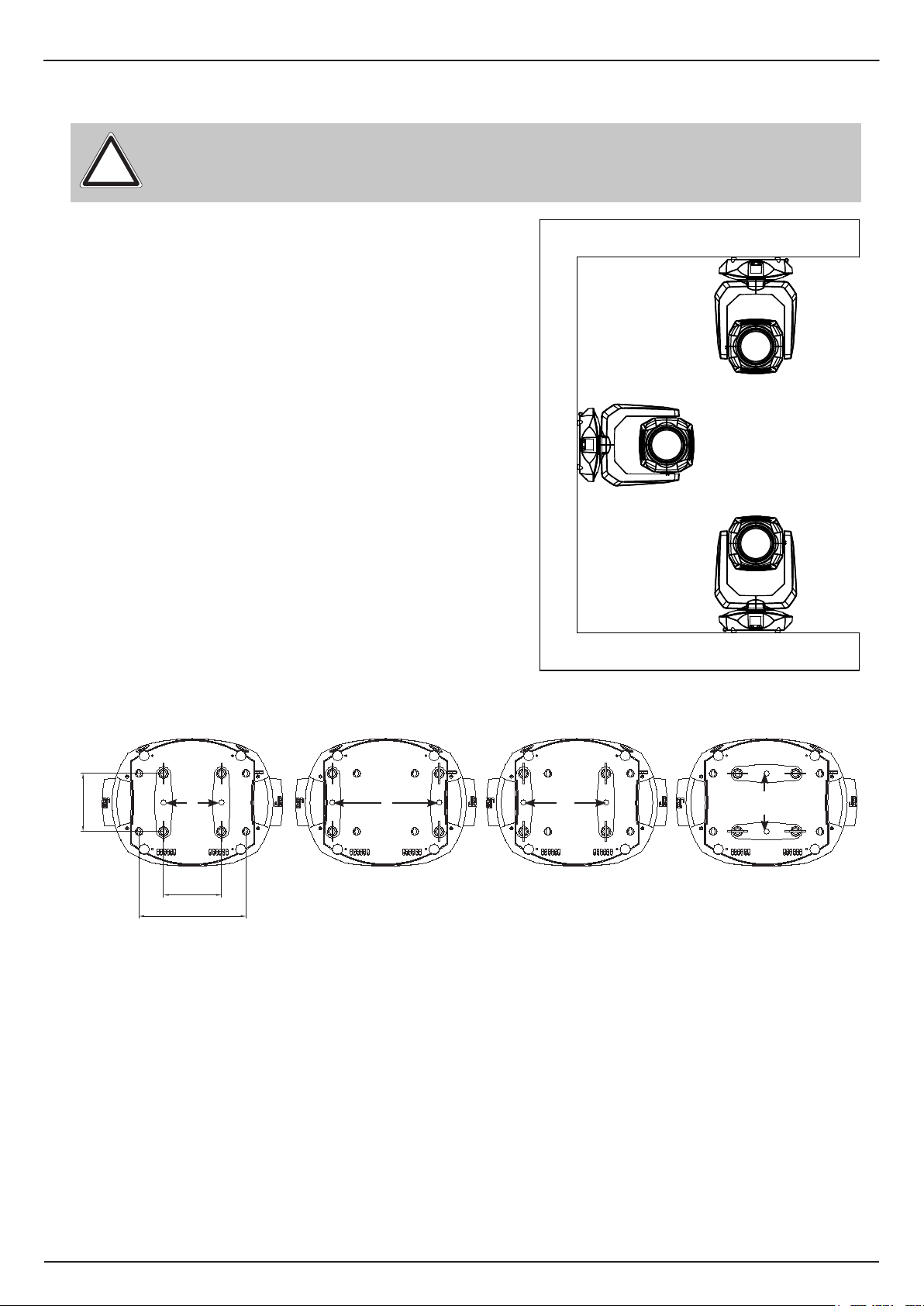

The P9 Beamspot can be placed on the oor or hang
on a trussing system. Also a mounting horizontally to
a truss system like in the picture is only allowed if the
omega brackets are attached to the outer camlocks.
(distance 223.65mm)
When placing the unit on the oor make sure that it
stands on rigid ground, because the air inlets in the
base must not be covered with anything!
140
223,65
140
1 2 43
To mount the unit on a trussing system use two of the original JB-Lighting omega brackets with
original Camloc-connectors. You have following four possibilities to mount the omega brackets.
The Camlocs must snap in to be locked properly. Ensure that the structure (truss) to which you
are attaching the xture is secure. If you install the xture to a truss always attach a safety cable,
that can hold at least 10 times the weight of the xture.
✔
✔
!
Name
Erstellt
Art.-Nr.:
Datum
Prisma
Fax.: 07304 / 9617-99
Tel.: 07304 / 9617-0
Montage
06.11.2018 Kuehngruen
Allgemeintoleranzen
ISO 2768-m
Blechdicke:
Material:
Farbe:
Oberfläche:
Abmessung:
Lichtanlagentechnik GmbH
Sallersteig 15, 89134 Blaustein
Omegabracket distance
223,65 mm

- 14 -
P9
6. Control panel
The P9 Beamspot has a graphic colour touch display that can be rotated 180° when installed in
a suspended position. The display can be rotated in the PERSONALITY MENU or via shortcut
ENTER + UP in the main screen.
All parameters of the P9 Beamspot can be set on the control panel (see menu overview page
16).
Function and operation of the display
The main menu provides information regarding the set DMX mode and, when the wireless mode
is switched on, the eld strength of the associated transmitter module. "ENTER" calls up a sub-
menu or conrms an input. "ESC" is used to exit a function or a menu item. "UP" and "DOWN"
are used to navigate within the menu and to enter values.
Special areas can only be called up using a specic key combination. To do this, press and hold
the "ENTER" key and then use the opposite "ESC" key to access the menu. To exit the function,
proceed in reverse order.
This applies in the SERVICE area for the FINE ADJUST function and in the STANDALONE area
for the MODIFY, RUN and REMOTE functions.
The main menu can also be locked to prevent unintentional access. It is also locked by pressing
the "ENTER" key (keep it pressed) and then additionally locking it with the opposite "ESC" key.
From software 1.5 onwards, all functions can also be operated via the touch display.

- 15 -
P9
Display illumination as function display
The display illumination remains switched off during the reset. Slowly ashing display illumination
when "JB-Lighting" is displayed means no DMX signal is present.
A very rapidly ashing display illumination when "JB-Lighting" is displayed means that a new
error has been stored in the "ERROR LIST", also an error message in the display (e.g. *PAN
TIMEOUT) indicates this current error. This error occurs during this reset or in the operation
before. This error is now automatically set to "read", but remains in the "ERROR LIST".
A rapidly ashing display illumination shows an error in the "ERROR LIST" is still in it but has
already been conrmed or was automatically conrmed. Only when the error has been deleted
from the ERROR LIST does the P9 Beamspot start again without error signalling.
If errors occur again and again contact the dealer / distributor or our service department.
If the P9 Beamspot receives a DMX signal, the display illumination goes out after 30 seconds.
Further settings for the display illumination see page 20 BACKLIGHT MODE.
DMX addressing
In the main menu, the DMX address can be set directly by pressing the up/down keys.
Display operation via battery backup
By pressing the left button below the display, the conguration battery operation of the headlamp
is activated, so the headlamp can be congured without power. It is possible to congure all the
settings displayed by the menu, for example the DMX address can be set.

- 16 -
P9
6.1 Menu overview P9 Beamspot
STANDARDMAIN SCREEN MO
USER ID
FAST
SQUARE
CURVES DIMMER CURVE
FACTORY DEF. LOAD DEFAULTS SURE?
DMX / NET ADDR ADDRESS +/-
ENTER ENTER ENTER
PERSONALITY DMX INPUT CONFIG ON/OFF
UNLINK
NETWORK
UP
USER DEFAULTS LOAD DEFAULTS SURE?
SAVE DEFAULTS SURE? PASSWORD
COOLING MODE
STANDARD
BOOST
CAMERA MODE
60 HZ
FLEX
50 HZ
LINEAR
LONGLIFE
THEATRE WHISPER
THEATRE SILENT
FLEX FAST
DMX ADDRESS
ADDRESS +/-ARTNET ADDRESS
DMX MODE MODE 1
MODE 2
ON
OFF
DEFAULT IP NETWORK 10
NETWORK 2
USER IP BYTE 1
BYTE 2
BYTE 3
BYTE 4
ADDRESS +/-
ADDRESS +/-
ADDRESS +/-
ADDRESS +/-
SURE?
WIRELESS
IP ADDRESS
SQUARE INV.
PAN TILT SPEED
MEDIUM
WHISPER
SILENT
FAST
EFFECT SPEED
MEDIUM
WHISPER
SILENT
FAST
BACKLIGHT MODE OFF
ON
STANDARDDISPLAY ORIENTA.
FLIP
ON
SAFE MODE SWIT OFF
ID +/-USER FIXTURE ID
STANDARDLED FADE OUT
SOFT
LINEARFROST CURVE
SQUARE INV.
grey - corresponds to the default setting
DMX OUTPUT CONF OFF
ON
ADDRESS +/-SACN ADDRESS
MODE ARTNET
SACN
LINEAR
RGB CURVE SQUARE INV. LEG.
SQUARE INV.

- 17 -
P9
SURE?
SERVICE RESET FIXTURE
ERROR LIST LIST
CLEAR
FUNCTION TEST START TEST
INIT PAN/TILT
TEST RUNNING
SURE?
PAN TIMEOUT COUNT: 1 CLEAR?
SURE?
DMX TEST DMX CHANNEL CH 001: --- +/-
DISPLAY CONTR. D. CONTR: +000 +/-
STANDALONE EDIT STEP NR. +/-
RUN
TIMEBASE 1 SEC
1/10 SEC
MODIFY
REMOTE
CAPT DMX
INSERT
DELETE
RESET STEP
CLEAR ALL
FADE TIME FADE TIME +/-
NEXT TIME NEXT TIME +/-
PAN PAN +/-
TILT TILT +/-
CONTROL CONTROL +/-
SHUTTER SHUTTER +/-
DIMMER DIMMER +/-
FOCUS FOCUS +/-
ZOOM ZOOM +/-
IRIS IRIS +/-
GOBO1 GOBO1 +/-
GOBO2 GOBO2 +/-
GOBO2 ROT GOBO2 ROT +/-
COLOR
CYAN
MAGENTA
COLOR +/-
CYAN +/-
MAGENTA +/-
FINE ADJUST
OFS FOCUS
YELLOW
CTO
SPARKLE
SPARKLE SP
PRISM
PRISM ROT
FROST
MACRO
SPEED P/T
SPEED EFF
MOVE B-OUT
YELLOW +/-
CTO +/-
SPARKLE +/-
SPARKLE SP +/-
PRISM +/-
PRISM ROT +/-
FROST +/-
MACRO +/-
SPEED P/T +/-
SPEED EFF +/-
MOVE B-OUT +/-
AUTOFOCUS DIS. AUTOFO DIS +/-
RESERVE RESERVE
OFS FOCUS +/-
OFS TILT OFS TILT +/-
OFS PAN OFS PAN +/-
IDENTIVY DEVICE SURE?

- 18 -
P9
6.2 FACTORY DEFAULTS - Factory settings
To reset P9 Beamspot to the factory settings, go to the menu item FACTORY DEFAULTS, LOAD
DEFAULTS. After conrming the security prompt SURE? with pressing “ENTER” for 2 seconds,
all parameters are reset to the factory settings.
6.3 USER DEFAULTS - User settings
If the user has set the P9 Beamspot in the PERSONALITY menu to their personal settings,
these can besaved and loaded in the USER DEFAULTS menu. In order to prevent unintentional
alteration of the data, you must enter the following password during the saving process: Buttons
"ESC DOWN UP ENTER".
6.4 DMX / NET ADDRESS - DMX addressing / Artnet addressing / sACN addressing
The DMX addressing can be done either directly in the display. Press the "UP" or "DOWN"
button to set the desired DMX address. The value is conrmed with the "ENTER" key. However,
the DMX addressing can also be done within the menu item DMX / NET ADDR, and there under
DMX ADDRESS.
To set the Artnet address, the menu item ARTNET ADDRESS must be selected in the DMX /
NET ADDR menu. The Artnet address can now be set using the UP / DOWN buttons. The Artnet
address is displayed in the form 000.00.00. This display corresponds to: Net.Subnet.Universum.
The sACN address can then be selected in the DMX / NET ADDR -> sACN ADDRESS menu. The
address can now be set using the UP / DOWN buttons. The sACN address is displayed in the
form 00000.
6.5 PERSONALITY - Personal settings
DMX INPUT CONFIG
In this menu item the options WIRELESS and NETWORK are available.
Under WIRELESS -> ON / OFF the factory-installed radio DMX receiver module of Lumen-Radio
can be activated or deactivated and via WIRELESS -> UNLINK the connection to the connected
transmitter can be deleted. In order to connect the xture to a transmitter, wireless must be
set to ON on the xture and the connection button must be pressed briey on the transmitter.
The transmitter is now looking for all xtures where wireless is enabled and xtures that are not
connected to a transmitter. If the P9 Beamspot has successfully connected to the transmitter, the
display shows a level indication of the current reception quality. If the P9 Beamspot is additionally
connected via the DMX / etherCON connection sockets, these signals have priority over the
radio link. Using the key shortcut ESC and DOWN, pressed in the main menu, the headlamp can
be booked out of the booked transmitter (see page 22).
Under NETWORK -> MODE you can toggle between Artnet operation and sACN operation.
For network operation, the IP address of the spotlight must be selected or set under NETWORK
-> IP ADDRESS. Each headlight has a unique standard IP address.
INFO SOFTWARE VER.
FIXTURE ID
TOT OP. TIME
TEMP BASE LCD ACTUAL
MAX RESET?
TEMP HEAD MAIN ACTUAL
MAX RESET?
TEMP HEAD DRV ACTUAL
MAX RESET?
TEMP BASE PS ACTUAL
MAX RESET?
TEMP HEAD LED ACTUAL
MAX RESET?
TEMP HEAD AMB. ACTUAL
MAX RESET?
TOT BAT CHARGE T.
TOT LAMP TIME

- 19 -
P9
DMX MODE - setting the operation mode
The P9 Beamspot has 2 operating modes (see channel assignment for P9 Beamspot on page
24). All parameters of P9 Beamspot can be operated via mode 1. However, all channels (except
pan/tilt) are controlled with 8 bits. Byselecting Mode 2 - 16 Bit the gobo, prism rotation, CMY/
CTO(CTB), dimmer, focus, zoom, thecomplete shutter slide unit as well as pan/tilt are controlled
via 16 Bit.
CAMERA MODE - setting the repetition frequency of the LEDs
To avoid ickering during TV recordings, the P9 Beamspot can be adjusted from 50 HZ (PAL,
Secam, repetition rate 100Hz) to 60 HZ (NTSC, repetition rate 100Hz) for different camera
systems. Flex mode (repetition rate 600Hz is set when using different camera systems or when
shooting with mobile phone cameras or similar non-professional cameras. AHighFlex mode is
also available. In this mode, the repetition frequencies are set to 3 kHz, which is necessary to
ensure smooth movements in dimmed lighting scenes. The factory setting oftheP9 Beamspot is
60 Hertz. The changeover is also possible with the light mixing console via thecontrol channel.
COOLING MODE - adjustment of brightness and fan volume
In the COOLING MODE menu item you can set the fan control and thebrightness of the P9
Beamspot. The following settings are available.
THEATRE WHISPER: volume 29dB(a). In this mode, the spotlight runs at the same brightness up
to an ambient temperature of 40°C. It is not necessary to speed up the fans in this mode.
THEATRE SILENT: from 40°C ambient temperature the spotlight regulates thefans a little up thus
remains that the brightness is always the same level.
STANDARD: from an ambient temperature of approx. 36°C the fans run to cool the LED accord-
ingly. The brightness remains constant.
BOOST: Brightness 15000 lm, the fans run a little stronger in this mode, from approx. 40° ambi-
ent temperature the fans run again accordingly.
LONGLIFE: the fans run a little stronger in this mode, from approx. 40° ambient temperature the
fans run again accordingly. We would recommend this mode for permanent installations, as the
LED module runs cooler and thus more “stress-free”.
CURVES - setting dimmer, RGB/CMY, frost curve
Dimmer curve:
The dimmer curve can be changed from SQUARE to LINEAR and to SQUARE INV.. The
“exponential” dimmer curve (factory setting) causes the dimmer to fade in and out more smoothly.
RGB/CMY curve:
3 different curves can be set for the RGB / CMY curve. SQUARE INV. LEGACY is the original
curve of the P9 Beamspot. The SQUARE-INV.LEGACY curve causes a visually more uniform
retraction. LINEAR and SQUARE INV., Are the two adapted curves on the P18 MK2.
Frost curve:
The frost curves can be changed from linear to invers exponential (square inv.). The “invers
exponential” frost curve causes the frost to fade in and out more smoothly.
DMX OUTPUT CONFIG - configuration of the DMX output
Under this menu item, the DMX output of the headlamp can be activated, that is a received Art-
net, or wireless DMX signal can be output by activating this menu item -> ON via the DMX socket
again. Make sure that there is no signal at the DMX input at the same time !!
Under IP ADDRESS -> DEFAULT IP this can be changed from the network 10.xxx.xxx.xxx to a
network 2.xxx.xxx.xxx. For your own self-denable IP address, you can set your own desired IP
address under IP ADDRESS -> USER-IP. This address is divided into BYTE1 to BYTE 4 and can
be set one after the other.

- 20 -
P9
PAN TILT SPEED - setting pan/tilt speed
In the PAN TILT SPEED menu you can set the maximum speed, the acceleration and thus also
the movement volume of the P9 Beamspot. The following setting options are available.
WHISPER: The speed of Pan / Tilt is reduced so much that a volume of 29dB (A) is not exceeded.
SILENT: The speed of Pan / Tilt is slightly faster and thus louder as compared to the Whisper
setting.
MEDIUM: The acceleration and deceleration ramps are set very soft so that the headlamp brakes
softly and starts.
FAST: The acceleration and deceleration ramps are set very hard so that the headlamp moves
very fast and directly at maximum speed.
EFFECT SPEED - setting effect speed
In the menu item EFFECT SPEED you can set the maximum speed, the effects and thus also the
volume of the effects of the P9 Beamspot. The following setting options are available.
WHISPER: The speed of the effects is reduced so much that a volume of 29dB (A) is not exceed-
ed.
SILENT: The speed of the effects is slightly faster and thus a bit louder than with the Whisper
setting.
MEDIUM: The acceleration and deceleration ramps of the effects are set very soft, so that the
effects are very soft and thus cause little noise.
FAST: The acceleration and deceleration ramp effects are set to maximum speed. Very fast gobo
and color changes are possible!
BACKLIGHT MODE - setting the display backlight
This menu item controls the backlight of the display.
OFF: The backlight of the display is always off. The lighting only switches on when a button is
pressed. Errors that are indicated by ashing are not displayed in this mode.
ON: The backlight of the display is always on.
AUTO: The backlight is switched on / off due to the action.
DISPLAY ORIENTATION - setting the display orientation
This menu item turns the display orientation. The display can also be rotated when the shortcut
ENTER and UP is pressed in the main screen.
MAIN SCREEN MODE - view of the main screen
With this menu item the display of the main screen can be changed. Either the standard (STAND-
ARD) screen is displayed with DMX address and DMX mode or the USER FIXTURE ID. This ID is
used to number the headlights and to display this number in the display.
SAFE MODE SWITCH - setting of the safe mode switch
This setting can be used to decide whether switching the menu item COOLING MODE can be
done directly "OFF" or whether for safety the dimmer and the shutter of the xture must be
closed before switching. -> "ON"
USER FIXTURE ID - adjustment of the user fixture ID
Used to set the USER FIXTURE ID (0-65535). This can be displayed via MAIN SCREEN MODE
and serves as an info display of the headlight number.
There is no danger to the life of the device in any mode, as the P9 Beamspot has a temperature
safety shutdown. In addition, the LED module is switched off from an ambient temperature of
60°C!
