jbc FAE2-5A User manual

Fume Extractor
Ref. FAE2-5A
www.jbctools.com

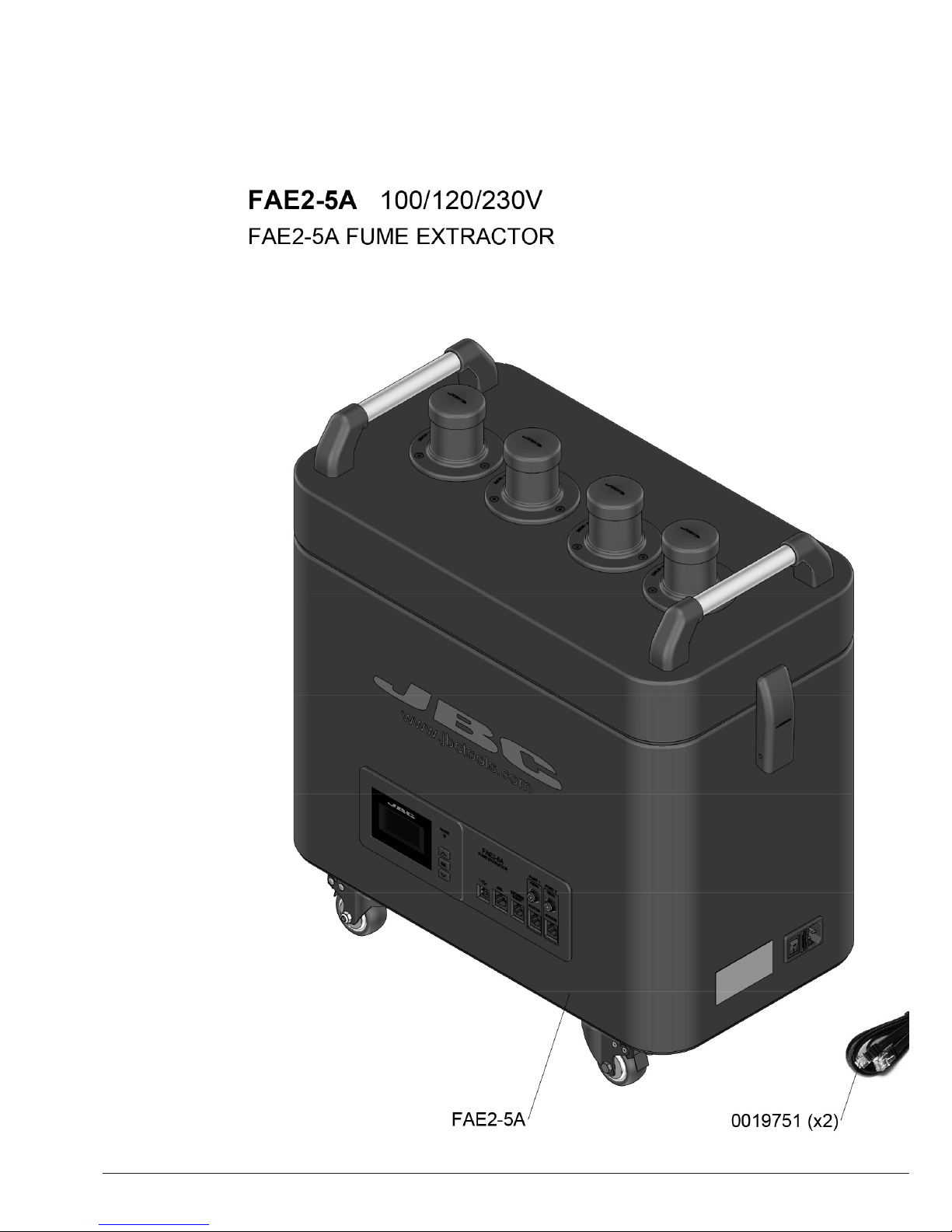

Packing List

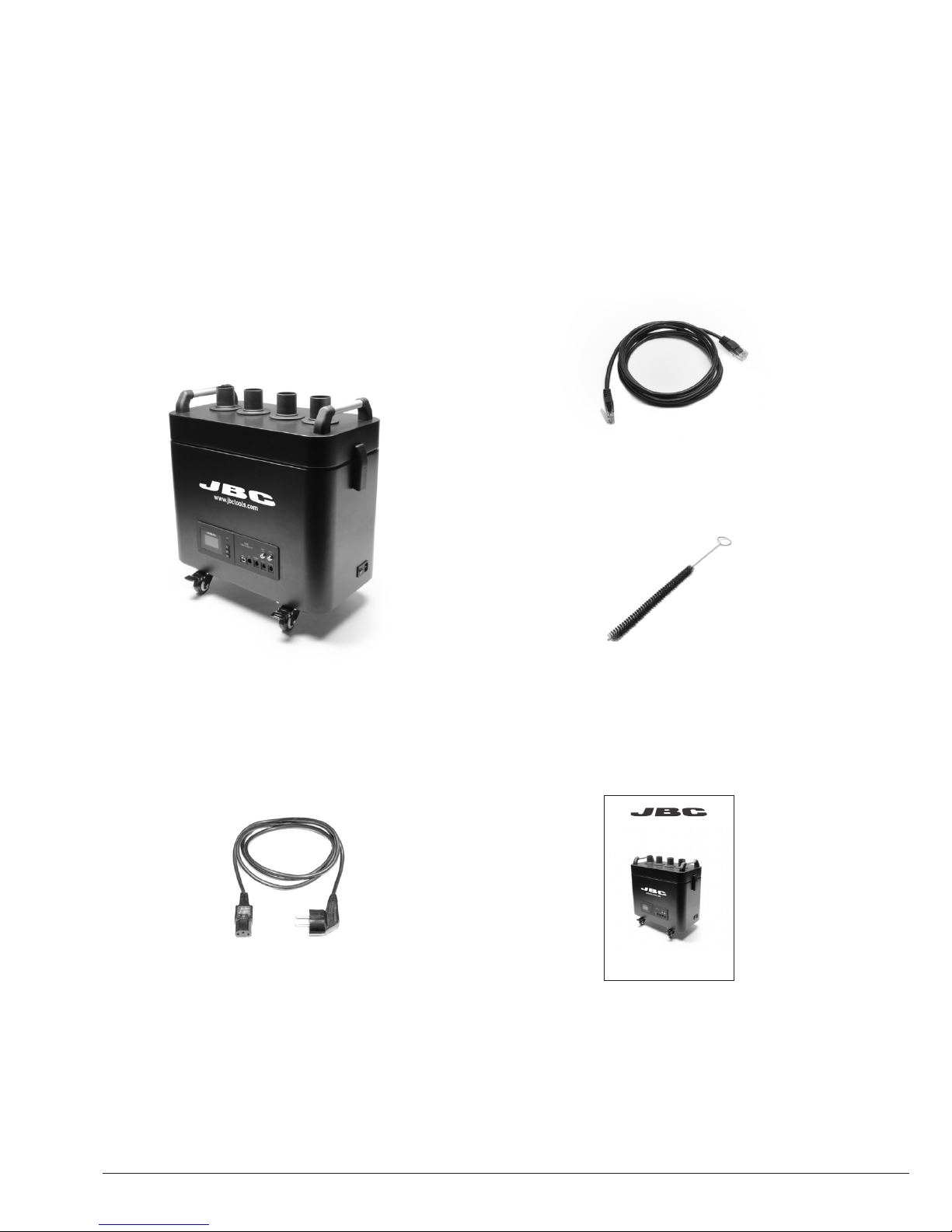

The following items should be included:
Fume Extractor .......................................... 1 unit
Ref. FAE2-5A
Includes FAE2-100
Cleaning stick ............................................ 1 unit
Ref. 0004009
Manual ........................................................... 1 unit
Ref. 0018826
Fume Extractor
Ref. FAE2-5A
Power cable ................................................ 1 unit
Ref. 0009417 (100V / 120V)
0009401 (230V)
RJ12 direct cable .................................... 2 units
Ref. 0019755
2
www.jbctools.com

Features
Aspiration
tube for up
to 4 stands
Aspiration
tube for up
to 4 stands
Aspiration
tubes for
workbenchs
Wheels and brake
system to move
around easily
Filter saturation
indicator
Connections ports
Air flow valve
Side closure for
filter change
Power socket
Main switch
Process screen
www.jbctools.com
3

Assembly
Flexible Hose Ø50
Ref. FAE010
Lenght: 1,5 m
(59.05 in)
Connect the Fume
Extractor to the flexible
arm or to the accessory
for stand aspiration
For a basic working system you need:
Visit www.jbctools.com
for further details.
Fume Extractor
Ref. FAE2-5A
Accessory for
stand aspiration
(up to 4 stands)
Ref. FAE030
To be assembled directly
on your workbench (hole
drilling required)
Ref. FAE040
To be assembled on
your workbench with
the included clamp
Stand
Aspiration Ducts
Ref. FAE050
For modular stands
(SD versions)
Ref. FAE060
For compact stations
(From B versions on)
Flexible arm Ø50
Ref. FAE020
Lenght: 1 m (39.37 in)
To be assembled directly
on your workbench
(hole drilling required)
Ref. FAE070
To be assembled on
your workbench with
the included clamp
4

Connection with Excellence range

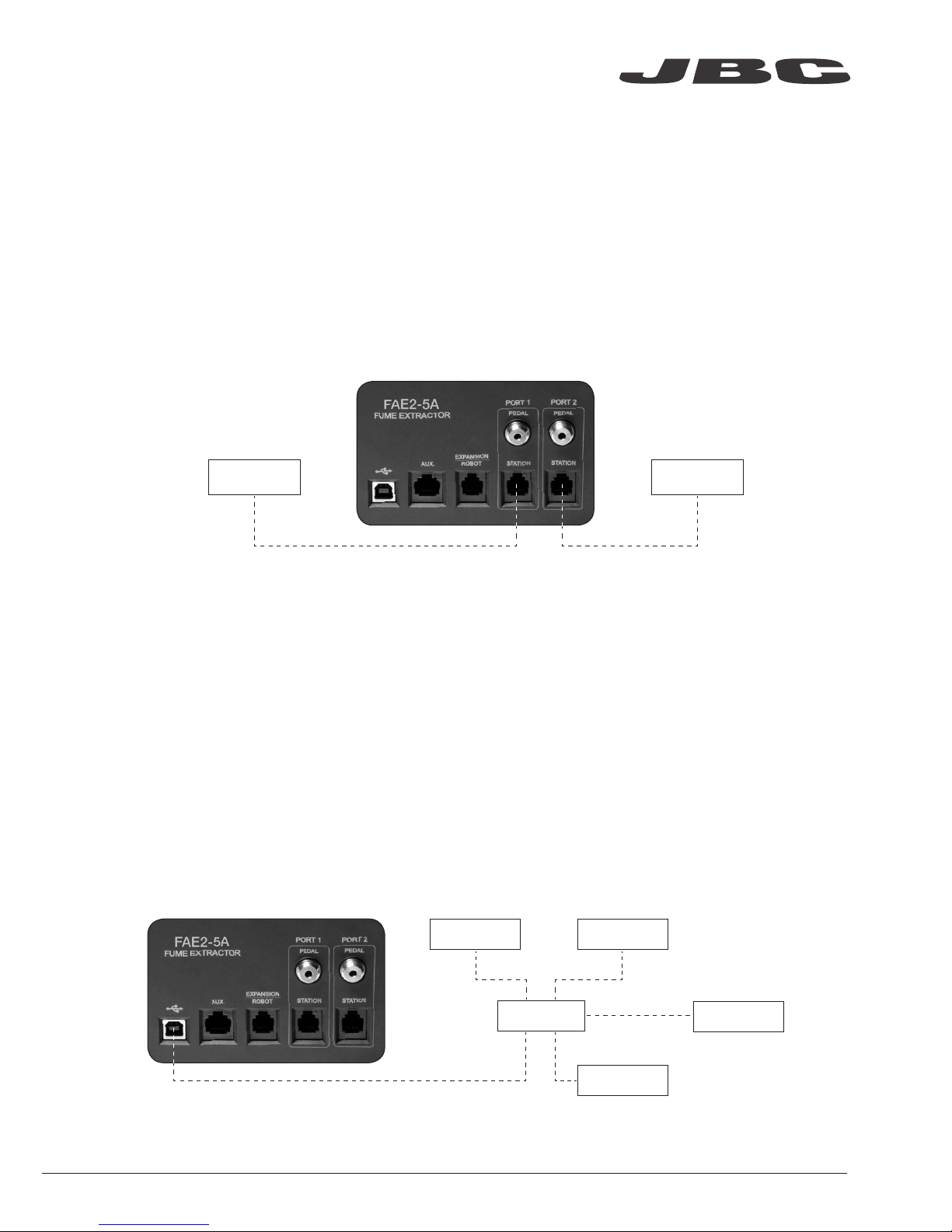

Connect up to 2 stations directly to the fume extractor.
- For a correct operation always update the latest software version. The minimum required version is
number 8886160 for DDE, HDE & NAE stations and number 8886162 for DME stations.
- Connectable to stations through the RJ12 ports.
- Each station controls a port and each tool must be assigned to a port through the peripherals menu.
station 1 station 2
Connection with QSC-A
Connect many stations to a port of the fume extractor.
- The minimum required version is number 8886164 for JTSE stations.
- Connectable to stations with USB connector except JT-D, TE-D stations and their previous versions.
- If you need more USB connections, join a HUB-USB to the QSC-A. This option allows any tool of
any station connected to the QSC-A to activate the fume extractor.
QSC-A
station 1
station 3
station 2
station 4
www.jbctools.com
5

Autonomous
Pedal
Activate the vacuum system with the pedal without being connected to a JBC station.
Continuous mode
The fume extractor works in continuous mode with the four valves opened.
Remote
Robot
Manage the fume extractor using a robotic system by means of the RJ12 connector.
Station
The valve in the working area opens when the tool is lifted from the stand. Once the tool is
returned to the stand and enters sleep mode, the valve in the work area closes and the stand
valve opens. After a period of inactivity on both ports, the unit stops.
Working modes
Aspiration ports control
The pedal connection takes precendence
over the RJ12 connection, the equipment
will only attend the Pedal port.
If an Excellence station is
connected via RJ12 Station Port 2
it is only able to control the Work 2
and Stand 2 aspiration tubes.
If an Excellence station is
connected by the RJ12
Station Port 1 it can control
all the aspiration tubes.
6

4 Filter
5 Counters
6 Program version
Main menu
Exit
1 Reset
2 Unit
3 Port
Unit
1 Continuous mode OFF
2 Robot OFF
3 Beep ON
4 PIN OFF
Back
5 Change PIN
6 Unit lock ON
Back
5 Pedal pt 2
Port 1 W 0:05 S 1:00
Port 2 W ON S OFF
Filter Custom
80% 90%
Port 1 W 0:05 S 1:00
Port 2 W ON S OFF
Filter Preset
80% H ML
Port
1 Program Ctm - 100%
2 Delay pt 1
3 Delay pt 2
4 Pedal pt 1
Filter
1 Status 80%
2 Reset
Back
Counters
1 Total
2 Partial
Back
Control Process
Main Menu
Original Pin: 0105
Main Screen
Aspiration ports
inlets status
Remaining
filter lifetime
Aspiration
program
Stand Inlets status
Work Inlets status
High, medium
and low
www.jbctools.com
7

Robot
1 Robot OFF
2 Address OFF
3 Address number 0
4 Speed 19200bps
Unit
1 Continuous mode OFF
2 Robot OFF
3 Beep ON
4 PIN OFF
Back
5 Change PIN
6 Unit lock ON
Back
5 Data bits 8 bits
6 Stop bits 1 bit
7 Parity Odd
Control Process
It opens all aspiration inlets
with the selected program
(high, medium, low or custom).
Enables station address to
identify within a network with
multiple devices.
Selects the station address
for RS-485 communication
(Range 0-99).
Size of protocol data bits.
It is a non-modifiable
parameter with 8 bits.
Selects the error
control method.
Selects the communication
transmission speed.
Selects the number of bits
that the line remains without
activity before sending a
new data.
Unit Screen
8

Delay to stop port 1
1 Work area 5 sec
2 Stand 30 sec
Back
Pedal port 1
1 Activation One-touch
2 Mode Pressed
Back
Delay to stop port 1
1 Work area 5 sec
2 Stand 30 sec
Back
Pedal port 1
1 Activation One-touch
2 Mode Pressed
Back
Port
1 Program Ctm - 100%
2 Delay pt 1
3 Delay pt 2
4 Pedal pt 1
Custom
Port
1 Program Ctm - 100%
2 Delay pt 1
3 Delay pt 2
4 Pedal pt 1
Back
5 Pedal pt 2
Back
Custom program
1 Work area flow 90%
2 Stand intakes pt 1 2
3 Stand intakes pt 2 3
Set the time the valve in the
work area remains opened
once the tool is returned to
stand (Range 0-300 seconds).
Selects the pedal action
mode (Options Pressed and
One-touch).
Set the time the stand valve
remains opened once the tool
is lifted from the stand (Range
0-900 seconds).
Selects how to detect the
pedal action (Options Pressed
and Released).
Control Process
Selects between a Preset (High,
Medium, Low) and Custom
aspiration program.
Selects the suction flow rate
(Range %). Parameter available in
the Custom program. It can also
be changed from the main screen.
Port Screen
www.jbctools.com
9

Maintenance
Filter replacement
- The unit notifies through both the display and
the LED when filters need maintenance.
- To replace the filters, first turn the fume
extractor off. Then remove the cover by
opening the side closures of the casing.
- If once the pre-filter has been changed the
saturation indicator is on, it means that the
compact filter is already saturated and must
be replaced too.
-The duration of the compact filter is 1 year
maximum once its packaging is opened.
- Once the compact filter has been replaced,
the filter counter must be reset.
(Main Menu > Filter > Reset)
- If the display shows an error when the
equipment is switched on, it is probable that
the cover and casing connectors are dirty
and making false contact. Remove the cover
again and clean both connectors.
Pre filter
Ref. FAE 2-110
Compact filter + Pre filter
Ref. FAE2-100
