JBL Marine MR-18.3 User manual

Revised 23 / February / 08
MARINE
This product is sold and serviced exclusively by Prospec Electronics Inc. and must be returned
to Prospec for in and out of warranty repairs. It can not be serviced under warranty by other JBL
service centers. All products sold and serviced exclusively by Prospec Electronics Inc.
For service contact us : 3325 South Morgans Point Road Mt Pleasant SC 29466
Tel [phone] Fax [phone]
COMPACT
DIGITAL AUDIO
Operation Manual
Model No.: MR-18.3
MARINE

¦Ì
Quick Reference Guide for Sirius
13
1. To Access Satellite Radio (perform one of the following)
-Press MODE button until SIRIUS appears on the LCD.
- While in any mode other than SIRIUS, simply press SH.SR to enter SIRIUS mode.
2. For Direct Channel Entry
While in SIRIUS mode, press MODE button for over 1.5 seconds to enter Direct Mode. At that
point, the display will show "Channel_ _ _". Simply enter the desired number to go directly to
the channel (example: 123).
3. To Access SIRIUS ID number
In SIRIUS mode, press MODE button for over 1.5 seconds, "Channel_ _ _" will display on LCD,
enter "000" to display your SIRIUS ID number. "SID" followed by 12 digits will appear on the
LCD. Or simply navigate to channel "000" using the TUNE knob (15).
4. To Enter Category Mode
While in SIRIUS mode, press BD/FN button for over 1.5 seconds to enter Category mode.
The Category icon will appear on the LCD. Momentarily rotate Tune up/down button to switch
between category channel. To change categories, rotate and hold Tune up/down button for 1.5
seconds. To return to Direct mode, press and hold BD/FN button until the display says DIRECT.
5. To Preset Channels (up to 20 presets):
You can save up to 20 channels in the memory for direct mode and up to 10 channels in
category mode. There are two possible ways to preset:
- Press MODE button for over 1.5 seconds until "Channel_ _ _" displays on LCD. Then use
the numeral key to directly enter what ever channel you would like to store (example:104).
Press the preset button where you would like to store the channel for over 1.5 seconds to
save it to memory.
2. Use TUNE UP/DN button to find a channel you would like to store. Press the preset button
where you would like to store the channel for over 1.5 seconds to save it to memory.
6. To Display Song Title or Artist
In SIRIUS mode, press and hold SH.SR button for 1.5 seconds to switch between song title,
artist and composer on the display.
7. For Parental Lock Out Programming
- In SIRIUS mode, select the channel that you want to lock out. Press SH.SR to show SHIFT
icon, then simply press numeral 5 button. It has been locked when "Locked Channel" appears
on the display.
- To temporarily unlock a channel, manually tune to the channel. When prompted, the display
will read CHANNEL LOCKED, then it will display CODE. Enter your password and the channel
will be unlocked until you change to another channel.
- To permanently unlock a channel, after temporarily unlocking the channel press SH.SR
button to show SHIFT icon on LCD, then simply press numeral 5 button. Then enter your
password again, the channel becomes totally unlocked when "LOCK RELEASE" displays.
8. To Change the Password (CODE)
In SIRIUS mode, press and hold SEL button, then momentarily press SEL repeatedly until
CODE displays on LCD. Enter your current password first, once you see NEW CODE displays,
enter your new 4-digit password. Now display will show UPDATE which means the system
accepted your new password.
Note: If power is completely removed from stereo, the password will revert back to 0000.

1
Contents
Contents
Wiring
Opening and closing the front panel
Important Notes
Identification of Controls and Functions
Remote Control(Option)
Station Tuning
Operating the CD
Precautions and Maintenance
Trouble Shooting Guide & Specifications
Quick Reference Guide for SIRIUS

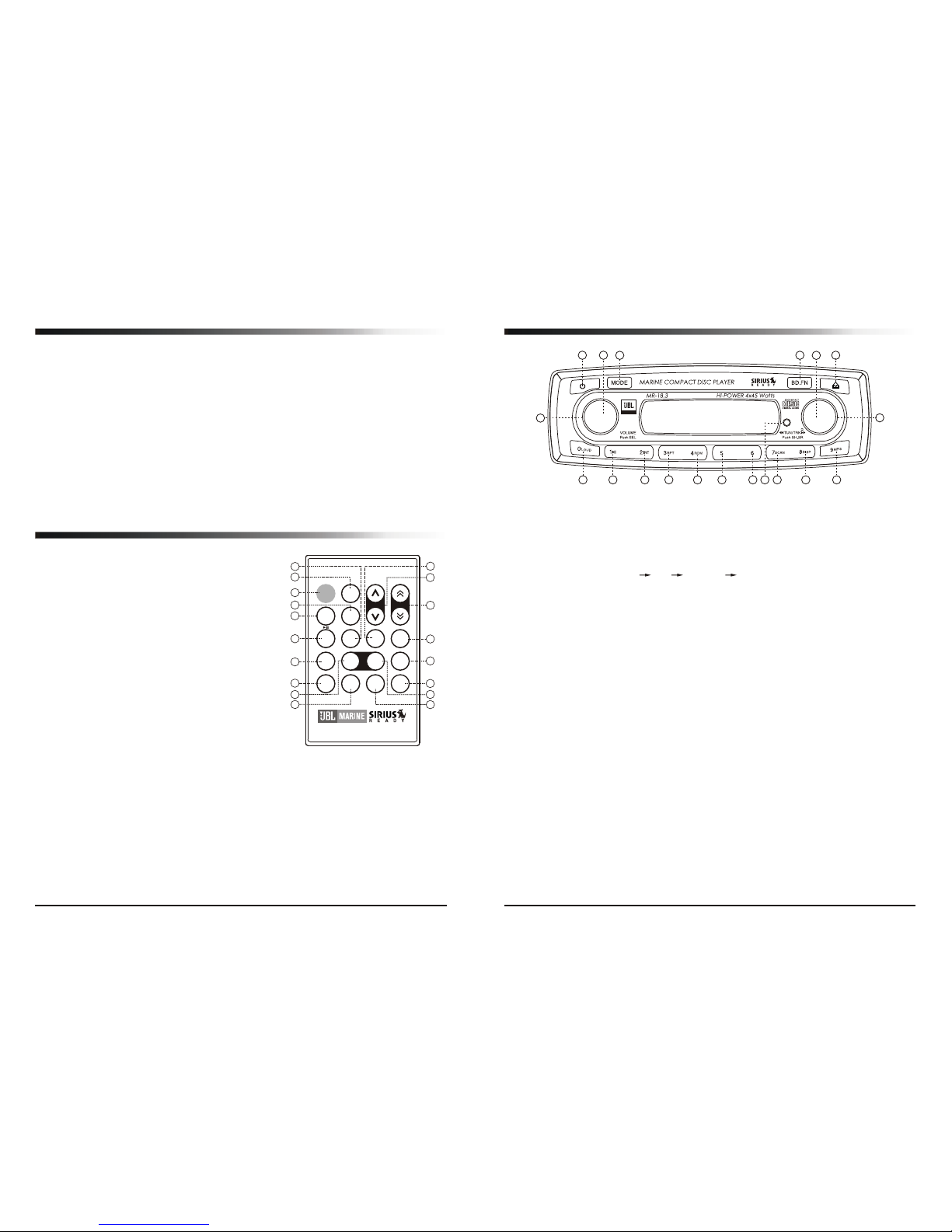

Identification
1
2
3
4
5-8
8
9
10
11
12
What is SIRIUS Satellite Radio?
SIRIUS, headquartered in New York, offers over 120 channels of digital quality radio
transmitted across the continental US from three high-tech satellites. Along with offering
a full spectrum of music genres, users can also listen to popular news, entertainment
and sports channels. SIRIUS currently offers 65 music channels, 24 news channels
(including traffic and weather), 7 sports channels (including two dedicated play-by-play
channels) and 24 talk / entertainment channels.
For more information on SIRIUS, visit siriusradio.com.
PLEASE NOTE: In order to receive Sirius Satellite Radio broadcast, you must install
SCC-1ML as well as a satellite antenna (both sold separately).
12
INTERFERENCE ON RADIO
Poor atmospheric conditions - Try again later in the day
Antenna / lead broken or damaged
Power Output : 4 x 45 watts
Power Supply : DC + 12V
Negative Ground
Speaker Impedance: 4 ohm
Tuning Range : 530 ~ 1710KHz(USA)
522 ~ 1620KHz(EUR)
Sensitivity : 35dB / uV
Tuning Range : 87.5 ~ 107.9MHz(USA)
87.5 ~ 108MHz(EUR)
Sensitivity : 10dB / uV
Separation : 30dB
¦Ì
FM TUNER AM TUNER (OPTION)
COMPACT DISC AUDIO AMP & GENERAL
Freq. Response : 20 Hz ~ 20 KHz
Total Harmonic Distortion : 0.8%
Signal - Noise Ratio : 65 dB
Dynamic Range : 90 dB
DISTORTED AUDIO
Trouble shooting guide
Specifications
Check loudspeaker wiring
This product contains a biamp. It is important not to connect the front
loudspeaker ground to the rear speaker ground.
Faulty loudspeaker
Distortion at highest volume levels may be normal, as amplifier has reached
maximum power output. Otherwise the power and ground wire might be too
small of a gauge. Use 10amp cable or more.
Reduce the bass effect or switch off the loudness mode
Boat battery and or charging circuit may be faulty

2
Wiring identification
Installation Notes
Applicable to both 2 and 4-speaker connection:
A. Connections
B. Din cable connection for remote control
C. Din cable connection for SIRIUS control
D. AUX-IN
E. Antenna socket
This radio contains four separate power amplifiers. To prevent possible damage to
these amplifiers please ensure the following:
i) The boat chassis is not used as a loudspeaker ground(-).
ii) Front and rear speaker connecting wires are not joined together.
iii) Any wires not used when completing a two speaker installation are fully insulated.
iv) The memory wire (yellow) is connected to a permanent + 12V supply.
v) The power wire (red) is connected via the ignition switch of the boat.
CONNECTOR
(AUTO ANT)
( BACK-UP B+ )
FUSE
1A
( GROUND )
FUSE
( IGNITION B+ )
Blue
Yellow
Black
Red
Gray
Gray/Black
Violet
Violet/Black
( Front Right )
( Rear Right )
Green
Green/Black
White
White/Black
( Front Left )
( Rear Left )
10A
Red
White
Black
White
(ANT. socket)
A
Red
Gray
Rear Line out
Front Line out
B
C
D
E
( Remote control )
( SIRIUS control )
( AUX-IN )
11
Precautions and maintenance
1. Reset function
A microprocessor reset button has been provided to facilitate manual resetting of
the internal microprocessor. In the unlikely event that the player fails to operate
correctly refer to step 3 below.
Note: It will be necessary to re-enter the radio preset memories as these will have
been erased when the microprocessor is reset. After resetting the player,
ensure that all functions are operating correctly.
2. General Precautions
If the unit has become extremely hot we strongly recommend that you allow it to cool
down before using. Take care of your CDs to preserve the quality of the recording.
Do not allow them to be exposed to direct sunlight. Store them in a place protected
from dirt and dust and avoid handling them with oily, greasy or wet hands.
Be sure the CD is put into the CD slot label side up.
3. Caution
RESET :
- Simply press the reset button.
- Pressing BD/FN and MODE buttons at the same time for about 3 seconds will also
reset the unit.
CONNECTOR PINS : Always keep connector pins clean.
If the PIN connector looks dirty, use cotton tips to clean it, so as to avoid any
unexpected malfunction caused by dirt.
Connector pin
Reset button
CD slot
Front panel
CD eject button
1
2

3

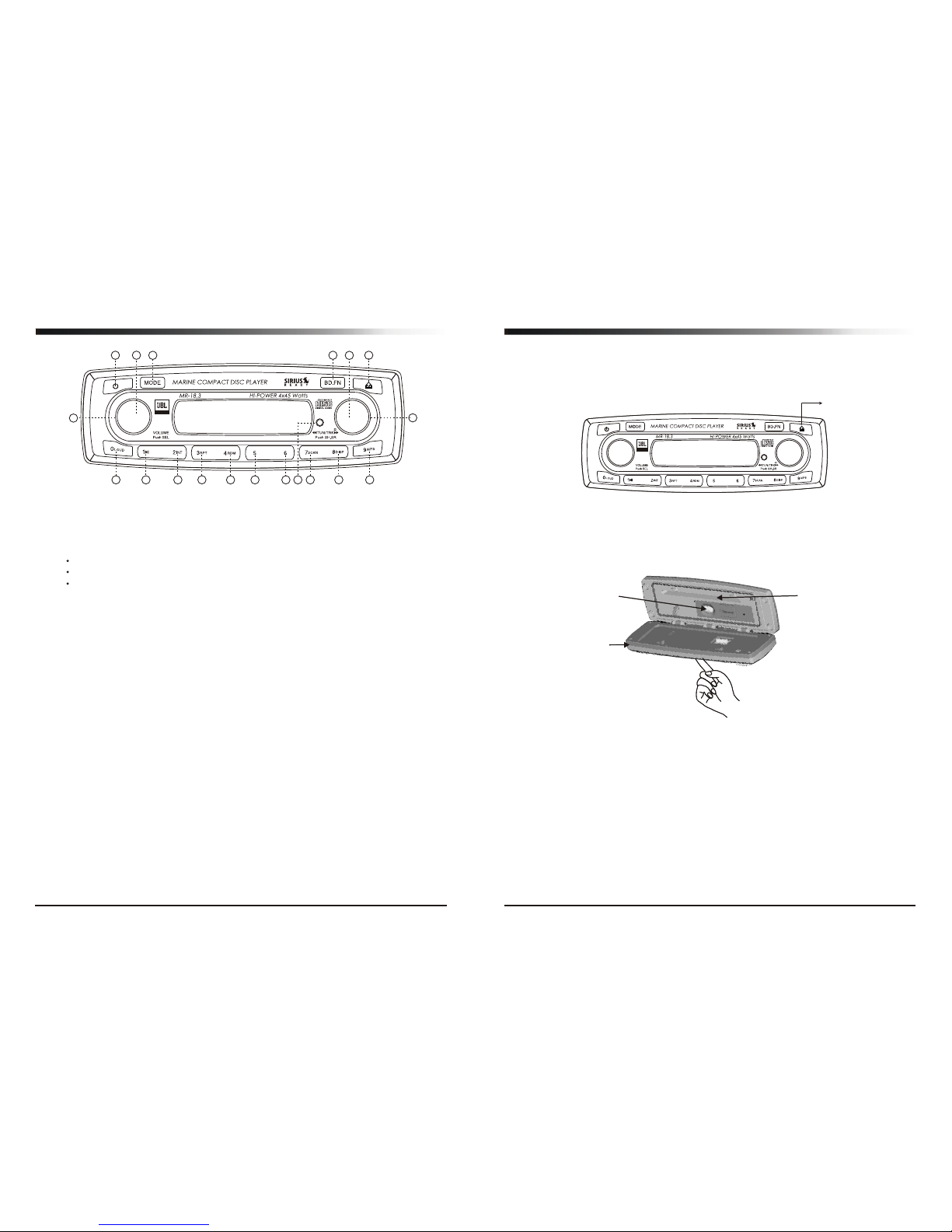

Opening and Closing the front panel
To change or replace the CD, press release button the front panel will open (flip down),
then press the EJ button to eject the CD.
After inserting the DISC into the CD slot, push the front panel backward to the front
plate. A noticeable "click" sound will be heard, resulting in a properly closed unit.
Release button
CD slot
Front panel
CD eject button
10
1. Loading a CD
Open the door by pushing button (14).
Insert a CD label side up into the slot opening, then close the door.
The CD will begin playing automatically after it is loaded.
2. Select the RADIO / CD by pressing the "MODE" button (4)in sequence.
3. Play / Pause (7)
Push to pause and push again to resume play.
4. Intro Scan (8)
Press this button to hear the first 10 seconds of each track on the disc.
Press this button again to restore the player to its normal play mode.
5. Repeat play button (9)
While playing a desired track, press the RPT button to play the track repeatedly.
Press the RPT button again to return to normal play mode.
6. Random play button (10)
Press the RDM button to play all tracks on a CD disc in a random sequence.
Press the RDM button again to return the player to normal mode.
7. Track Tuning (15)
Search the tracks on the DISC with the TUNE (15) knob clockwise or counter-clockwise.
To fast-forward or fast-rewind rotate and hold the TUNE knob continuously.
Operating the CD
Notes:
NEVER insert foreign objects into the CD slot opening.
If a CD is difficult to insert, there may already be a CD loaded in the unit.
Some recorded CD-Rs or CD-RWs may not be usable with this CD player.
12
45
36
1
13
14
17
15
18
78910 11 16
2
MARINE
19
MUTEMUTE
MARINE
MUTEMUTE

4
Important notes
Prior to the final installation, carry out a sound check. If high distortion or intermittent
sound is experienced, it is possible that the wiring from the CD receiver to the boat's
electrical system is poor or that the battery needs recharging.
If the battery and its charging circuit are OK, then rewire the yellow fused wire of the
CD player directly to the positive terminal (+) of the boat battery.
Marine accessory shops stock the connector blocks and the 10 Amp cable that may
be necessary for extending the fuse wire connection.
Grounding
Make sure that the black wire on the wiring harness is connected to a good ground
point on the boat. If the chassis of the boat is used as a grounding point, make sure
that the surface is scraped clean of paint before attaching the wire to it.
It is preferable to connect the black ground wire directly to negative terminal (-) of
the boat battery.
Warning: polarity...
This model is only suitable for use in boats which have a Negative ground system,
e. g. : the negative terminal of the boat battery is connected to the chassis.
Connecting the Speakers and Power Cables
Before you wire your system, disconnect your boat battery's positive (+) cable.
This helps prevent damage in case of a short. When you complete the wiring,
reconnect the battery cable and test your marine stereo. When connecting your
marine stereo's black ground wire, be sure to connect the wire to a metal part of
your boat or preferably to the negative (-) terminal of the boat battery.
POSITIVE
CHASSIS
NEGATIVE
CHASSIS
9
1. Manual/Seek tuning buttons (15): Rotate this button quickly to activate the Seek
mode. The Seek mode will automatically seek and stop at the next station of sufficient
signal strength. Rotate and hold tuning buttons for 2 seconds to enter manual tuning
mode. The unit will revert back to Seek mode after 10 seconds without use.
2. Manual Station store: Select the desired band and tune to a radio station or Sirius
Channel to be memorized. Choose the preset button memory location into which the
station is to be stored, then press and hold that preset button for 2 seconds. The station
will now be storeded into the preset memory. 6 stations can be memorized on each of
the FM1, FM2, FM3, AM1, AM2 on 0-6 preset buttons, and 10 channels can be
memorized on each of SSR1, SSR2 on 0-9 preset buttons.
3. A/PS - Auto store function (18)
Press and hold button (18) for approximately 2 seconds until you hear a beep which
confirms the memory function is engaged. The unit will "SEARCH" for six strong
stations and automatically store them on buttons 1 - 6.
You can override the preset station on any button by manually setting a new frequency.
4. Scan (16)
Press this key (SCAN 16) to scan strong stations for previewing. At the desired station
press the "SCAN (16)" button again to stop scanning.
5. Program Memory Scan
Momentarily press A.PS and unit will scan for stored stations.
Momentarily press it again to stop scanning.
Station Tuning
12
45
36
1
13
14
17
15
18
78910 11 16
2
MARINE
19
MUTEMUTE

5
Identification of controls and functions
1. POWER ON / OFF, MUTE button
2. Spindle knob (adjustment-audio control knob)
3. Electronic function SELECT button
4. MODE button <Radio CD SIRIUS AUX-IN>
5. SH. SR (SHIFT / SCROLL) button (SIRIUS only)
6. BAND selection button
7. CD play / pause button, Radio/Sirius preset 1 button
8. CD intro scan button, Radio/Sirius preset 2 button
9. CD repeat track button, Radio/Sirius preset 3 button
10. CD random play button, Radio/Sirius preset 4 button
11. Radio/Sirius preset 5 button
12. Radio/Sirius preset 6 button
13. LOUD (loudness) button (#0 preset button, SIRIUS only)
14. Front panel release button
15. Radio/Sirius tune UP / DOWN button, CD track UP / DOWN button
16. SCAN button (#7 preset button, SIRIUS only)
17. DISP (display) button (#8 preset button, SIRIUS only)
18. A/PS - FM/AM Auto Preset Scan button (#9 preset button, SIRIUS only)
19. IR Remote Sensor
Remote Control (Sold separately)
A. Function and Name
1. Power on/off button, MUTE button
2. MODE button
< Radio -> CD -> SIRIUS -> AUX-IN >
3. CD Play/Pause / preset 1 button
4. CD Intro Scan button / preset 2 button
5. CD Repeat Track button / preset 3 button
6. CD Random play button / preset 4 button
7. Preset 5 button
8. Preset 6 button
9. SCAN button (# 7 preset button, SIRIUS only)
10. DISP button (# 8 preset button, SIRIUS only)
11. A.PS (Auto Preset Scan) button
(# 9 preset button, SIRIUS only)
12. LOUD (loudness) button
(# 0 preset button, SIRIUS only)
13. SEL (Select) button
14. BD/FN button
15. VOLUME UP/DOWN button
16. Radio/Sirius Tune UP/DOWN,CD Track UP/DOWN
17. SH.SR (SHIFT / SCROLL) button
18. MUTE button
B. How to exchange the battery
Open the cover of the back of remote marked Battery.
Place battery as indicated on the back of the remote noting polarity.
* Replacement Battery : Cr2025
MODEPWR
SEL
BD/FN
SH.SR
123
456
7890
MUTE
VOL SEEK
INT RPT
RDM
SCAN DISP A.PS LD
5
1
11
8
9
10
222
3
4
7
6
12
13
14
15
17
16
18
8
12
45
36
1
13
14
17
15
18
78910 11 16
2
MARINE
19
MUTEMUTE
8.DISP (17)
1) Press once to see clock , press again to turn back to the radio frequency.
On the SIRIUS mode , it works as preset #8.
2) Adjust the clock / time
a. Press and hold the DISP (17) button until the time flashes on the display
b. Turn volume knob clockwise to set hour
c. Turn volume knob counter clockwise to set minutes
d. Press the DISP (17) button again quickly to accept the adjusted time.
If no button is pressed within 5 seconds, then it automatically accepts the
adjusted time without further intervention from the user.
Note: If in Sirius mode, first press the SH.SR (5) button before performing the above
steps.
Controls

67
1. POWER ON/OFF, MUTE button (1)
Press PWR button (1) to turn the unit on. Press and hold it for over 3 seconds to turn
the unit off. To mute audio, quickly press the MUTE (1) button; press the button again
to restore audio.
2. SELECT button (3)
1) Audio control ( VOLUME / BASS / TREBLE / BALANCE / FADER )
Press key quickly to select the following features:
"VOL" display - volume control > press key (3)>
"BAS" display - bass tone control >press key (3)>
Turn spindle knob left to lower bass, turn right to increase bass.
"TRB" display - treble tone control > press key (3)>
Turn spindle knob left to lower treble, turn right to increase treble.
"BAL" display - balance control > press key (3)>
Turn spindle knob left to decrease right speaker volume.
Turn right to increase left speaker volume.
"FAD" display - fader control > press key (3)>
Turn spindle knob left to decrease the volume level of any speakers
connected to the front channel.
Turn right to decrease the volume level of any speakers connected
to the rear channel.
If another selection or adjustment is not made within 5 seconds, the radio automatically
switches into volume control mode.
These settings are indicated on the display window.
2) Beep 2nd , I-Vol , Area and DSP Selection
When the SEL button (3) is pressed over 2 seconds, the unit will be operated as below:
VOLUME Select BASS Select TREBLE
Select FADER Select BALANCE Select
Controls
a. Beep 2nd
On the beep 2nd, you can control the Beep on or Beep 2nd by turning the spindle knob.
- Beep on: You can hear beep sound when you press all buttons.
- Beep 2nd: You can hear beep sound when you press the button over 1.5 seconds.
b. I-VOL
By pressing the SEL button again, the unit will display in I-VOL (Initial Volume Level
Adjustment). You can adjust the I-Vol to the setting you want by turning the spindle
knob. This feature control the max volume level desired upon powering the radio on.
c. Area Selection
By pressing SEL button again, the unit will be in Area Selection mode. Use the
spindle knob to choose USA or EUR (Europe). Press and hold the BAND button for
1-2 seconds to accept the desired setting.
d. DSP
Choose from flat, classic, pop or rock by pressing the SEL button again. Adjust with
spindle knob and wait approximately 5 seconds for the setting to be accepted; then
the radio will automatically return to normal operation.
e. CODE
See page 13 section 8 “To Change the Password”.
3.Volume control
Turn the spindle knob (2) left or right to decrease or increase the volume level.
The radio will automatically default to volume mode when powered up.
4."MODE" button (4)
Press this button to select Radio CD SIRIUS AUX-IN.
5. SHIFT / SCROLL ( SH.SR) button (5)
SIRIUS function button only.
6. BD.FN button (6)
Pressing the BD.FN button will shift FM/AM bands in radio mode as:
FM1 FM2 FM3 AM1 AM2.
And in Sirius mode, press BD.FN will shift between SSR1 and SSR2.
7. Loudness function (13)
In order to emphasize the bass and the treble at low volume, press the LOUD (13)
button. To turn off loudness press the LOUD button again. If in Sirius mode, first press
SH.SR (5) button; then press the LOUD (13) button.
Controls
12
45
36
1
13
14
17
15
18
78910 11 16
2
MARINE
19
MUTEMUTE
Beep 2nd I-Vol Area
(FM/AM only)
Press Press Press DSP Press
CODE
(Sirius only)
