JBL 4319 User manual
www.jbl.com
English
1
min
HF
max
0dB0dB
max
MF
min

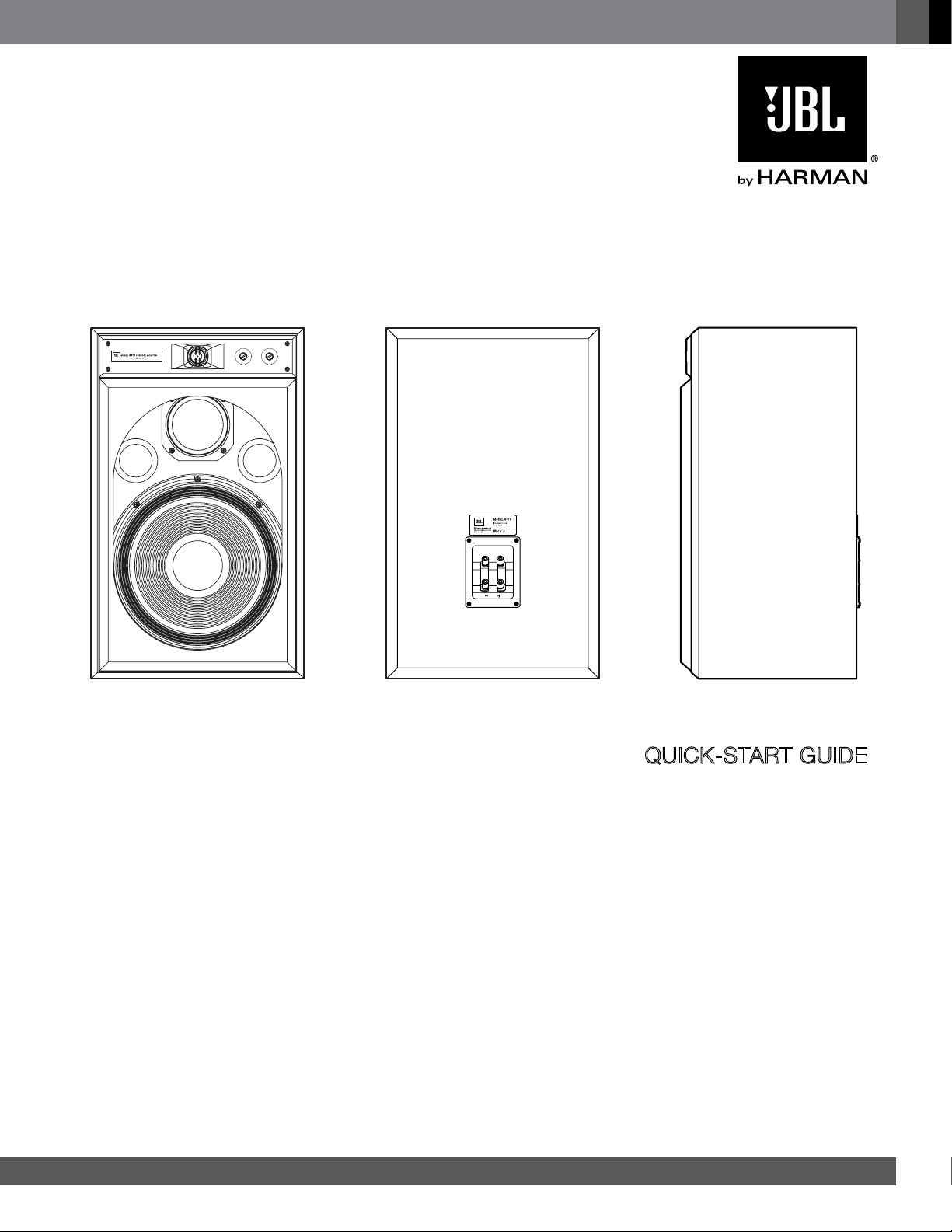

MODEL 4319
12-inch, 3-way studio monitor
QUICK-START GUIDE
THANK YOU FOR CHOOSING THIS
JBL®PRODUCT
Thank you for purchasing the JBL®three-way studio
monitor 4319.
For more than 60 years, JBL engineers have been
providing audio equipment for concert halls, recording
studios and movie theatres around the world, and
JBL products have become the hands-down choice
of leading recording artists and sound engineers. The
4319 is a new member of the family of JBL bookshelf
studio-monitor speakers that dates back to 1968
with the original model 4310 control monitor. To get
the best performance from your new studio monitor,
please read these instructions thoroughly.
2
PACKAGE CONTENTS
Each JBL 4319 box contains one (1) JBL 4319 studio-monitor speaker. If
you suspect that there has been shipping damage, report it immediately to
your dealer. We recommend that you keep the box and packing materials
for future use.
PLACEMENT
CAUTION: The 4319 weighs 35.9 lb (16.3kg). Before placing the
speaker on a shelf or platform, be sure that it is sturdy enough to
support the speaker’s weight.
Before deciding where to place your speakers, survey your room and think
about placement, using the illustration below as a guide.
or other objects that generate large amounts of heat.
or distortion if placed close to some types of TVs. If this occurs, move
the speakers away from the TV until the discolouration or distortion
disappears.
If you place the speakers farther apart than this, angle them toward the
listening position.
the angle between the listener and the speakers is between 40 and 60
degrees.
wall or corner. For best performance, we recommend that you place the
CONNECTIONS
CAUTION: Make sure that all of the system’s electrical components
are turned OFF (and preferably unplugged from their AC outlets)
before making any connections.
illustration on the right.
cause the speaker drivers to move outward (toward the room).
We recommend using a high-quality speaker wire with polarity coding. The
side of the wire with a ridge or other coding is usually considered positive
BASIC SINGLE-WIRE CONNECTION
right. You can use either set of terminals on the speaker. NOTE: Do not
remove the metal jumpers from between the two sets of terminals when
connecting the speaker wires.
when making connections. Doing so will cause poor stereo imaging and
diminished bass performance.
connector types: bare wire, spade connectors, pin connectors
and banana connectors.
Listening Position
40° – 60°
20"
(50cm)
5' – 8'
(1.5m – 2.5m)
Positive (+)
Terminals
Negative (–)
Terminals
+ –
Speaker
Connector Panel
Receiver or Amplifier
(one channel shown)
www.jbl.com
English
3

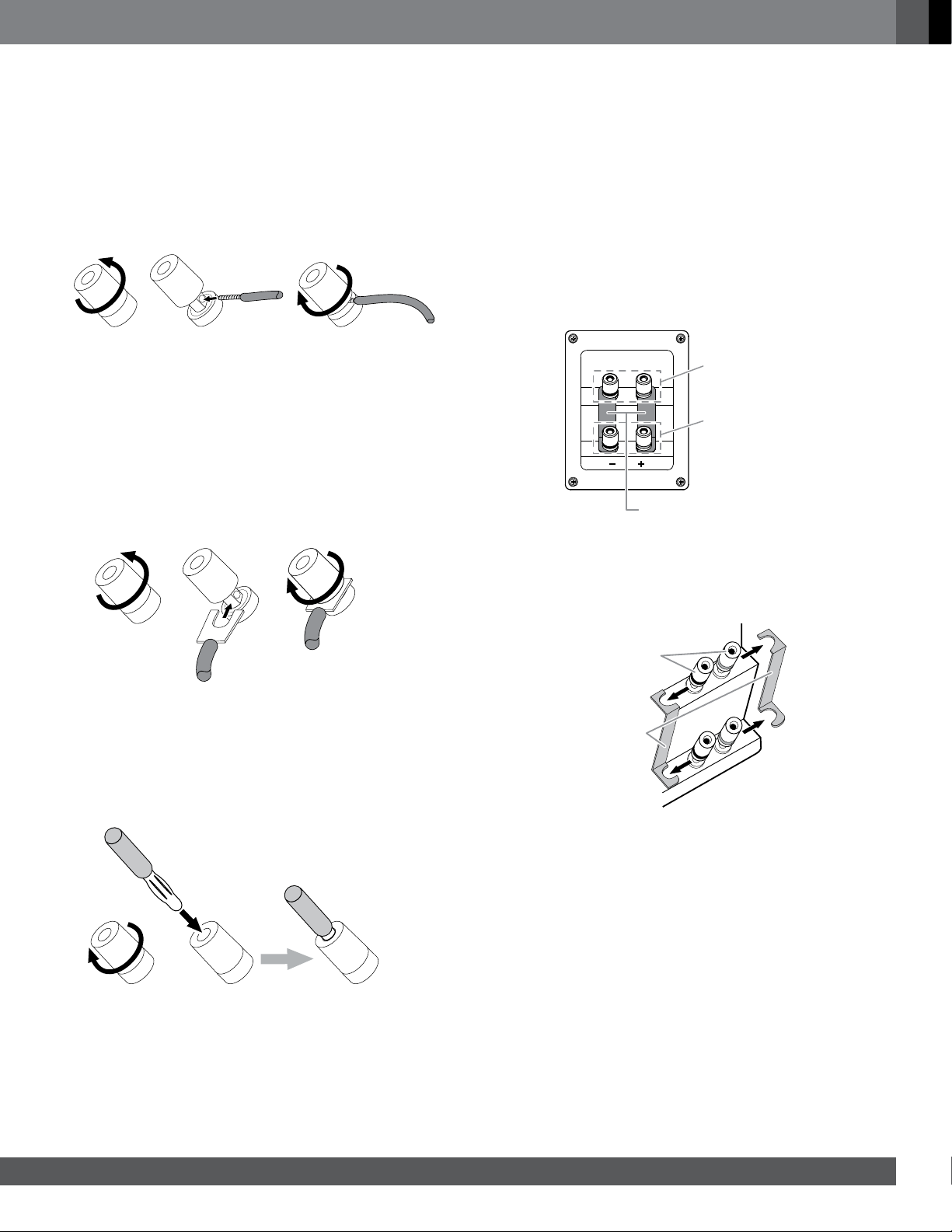

Using Bare Wire or Pin Connectors
each other or the other terminal. Touching wires can cause a short circuit
Using Spade Connectors
touch each other or the other terminal. Touching blades can cause a short
Using Banana Connectors
Bi-Wire Connection
The 4319 connection assembly has two sets of input terminals that are
connected by metal jumper bars. The upper set of terminals is for the
midrange/tweeter, and the lower set of terminals is for the woofer.
This arrangement allows you to bi-wire the speakers using a single stereo
single-wire connection.
illustration on the right.
A. Unscrew
Cap
B. Insert Bare Wire or
Pin Connector
through Hole in Post
C. Tighten Cap
to Secure
A. Unscrew
Cap
B. Insert Spade-Connector
Blades around Post
C. Tighten
Cap
A. Tighten
Cap
B. Insert Banana Connector
into Hole in Cap
Jumper
Bars
Midrange/Tweeter
Terminals
Woofer
Terminals
A. Unscrew All Four Caps
B. Remove Jumpers
4

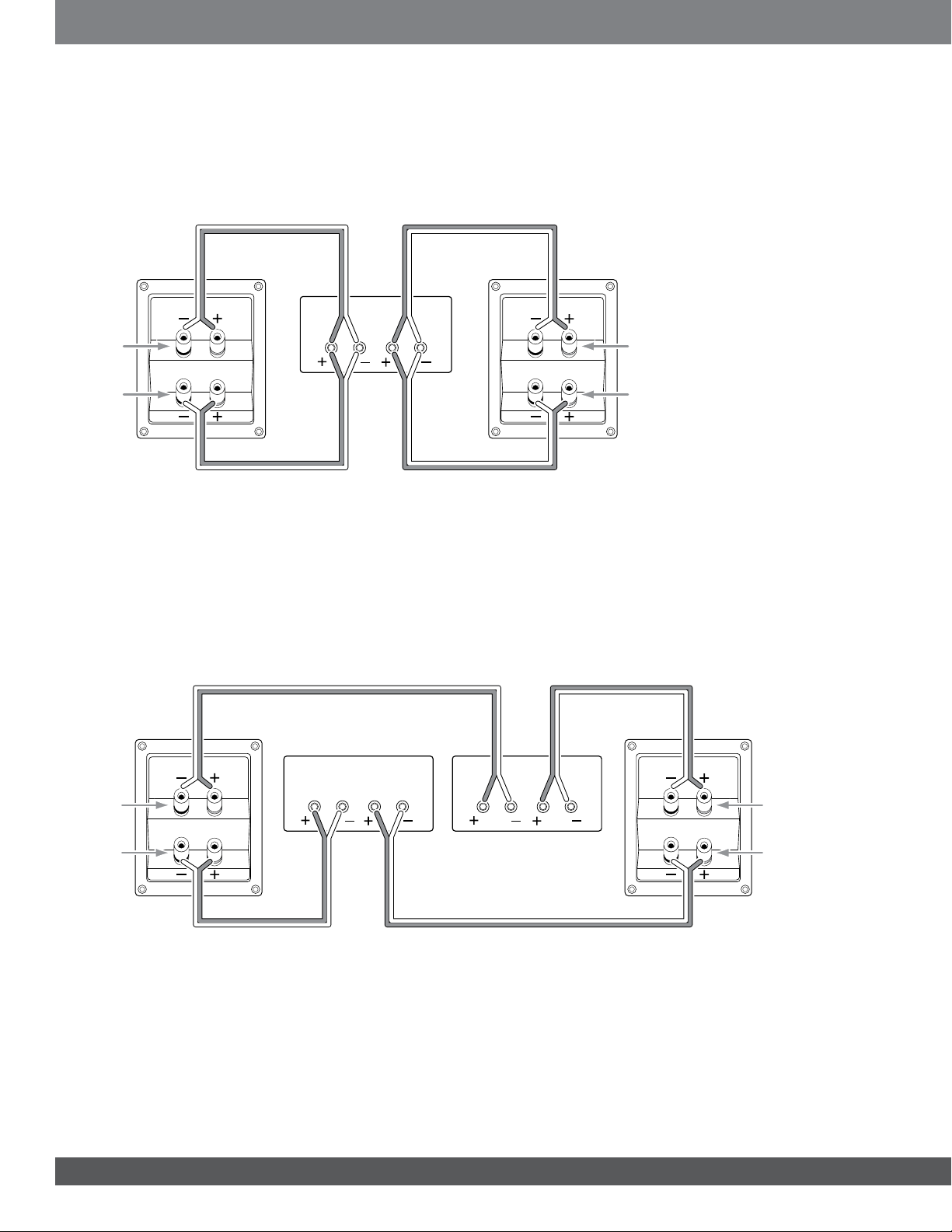

the speakers according to the following illustration.
the speakers according to the following illustration.
In either case, follow the instructions for the different connector types in
Basic Single-Wire Connection, on the previous page. NOTE: For more
information about various speaker-wire and connection options, contact
your local JBL dealer.
If you’re bi-wiring with two stereo power ampliers, connect
the speakers according to the following illustration.
In either case, follow the instructions for the different connector types in Basic Single-Wire Connection, on the previous
page. NOTE: For more information about various speaker wire and connection options, contact your local JBL dealer.
7. Controls/Adjustments
The 4319 has front-panel adjustments that let you balance the levels of the midrange driver (MF) and tweeter (HF)
against the woofer.
You can use these controls to adjust the speaker’s sound according to your room’s acoustics, or your personal taste. The
0dB positions are indicated.
As with most speakers, after you start playing the 4319 it will take the drivers’ suspensions several weeks to “break
in” and achieve optimum performance. During this period, the balance between the woofer, midrange and tweeter may
change, so we recommend that you adjust the midrange and tweeter controls accordingly.
8. Caring for Your Speakers
• Wipe the cabinet with a clean, dry cloth to remove dust. Damp cloths or cleaning paper may dull the cabinet’s nish.
Do not use volatile liquids such as benzene, paint thinner, alcohol, etc., on the cabinet.
• Do not spray insecticide near the cabinet.
• To remove dust from the grille fabric, use a vacuum cleaner set to low suction.
• Do not wash the grille in water, as this may fade the color or make it uneven.
• If the surfaces of the woofer and midrange cones become dusty, you can carefully sweep them clean with a soft, dry
calligraphy brush or paint brush. Do not use a damp cloth.
• NEVER touch anything to the tweeter dome.
9. Specications
Right
Ch.
Left
Ch.
Amplifier
Mid/Tweeter
Connection
Woofer
Connection
Right
Speaker
Left
Speaker
Mid/Tweeter
Connection
Woofer
Connection
Right
Ch.
Left
Ch.
Amplifier 1
Right
Ch.
Left
Ch.
Amplifier 2
Mid/Tweeter
Connection
Woofer
Connection
Right
Speaker
Left
Speaker
Mid/Tweeter
Connection
Woofer
Connection
www.jbl.com
English

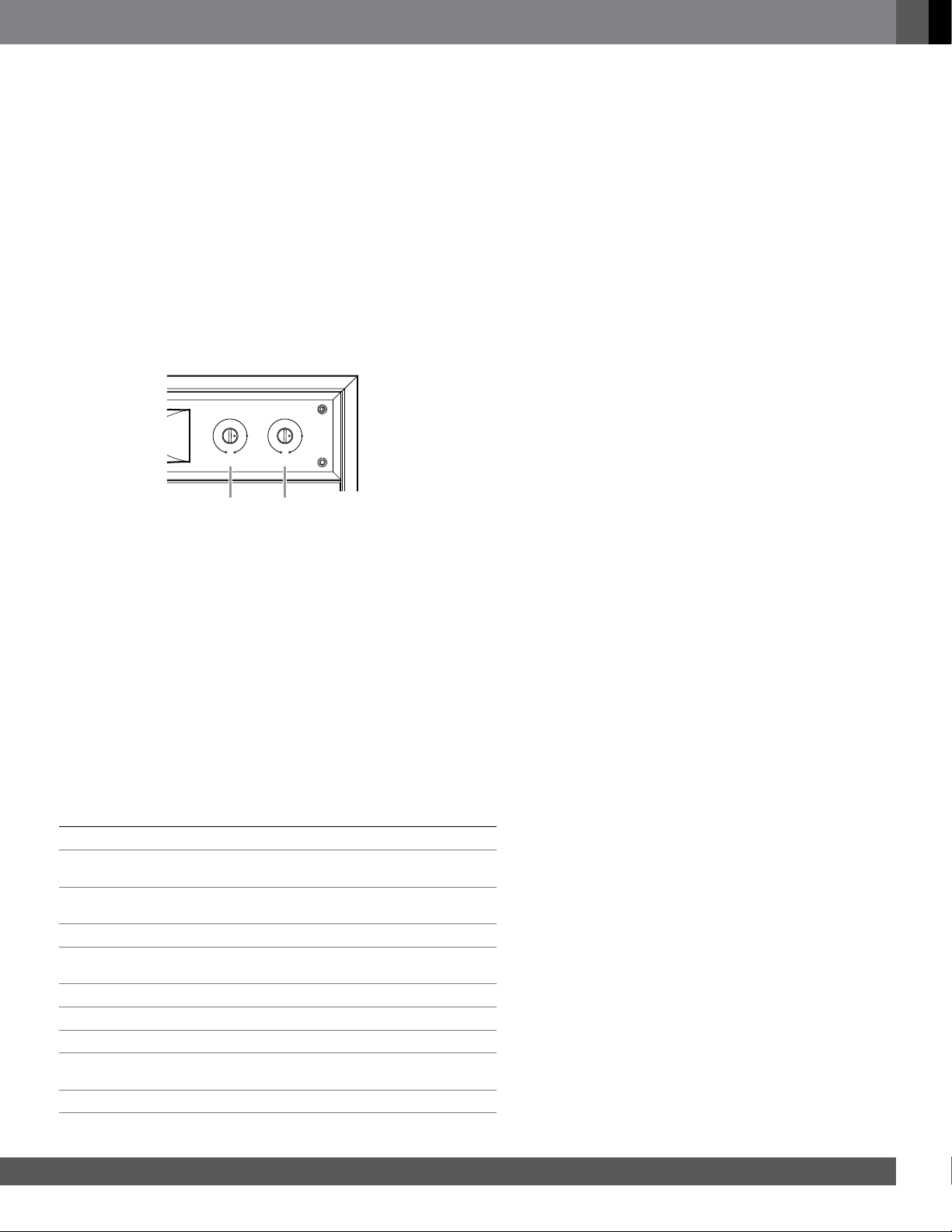

Controls/Adjustments
The 4319 has front-panel adjustments that let you balance the levels of the
midrange driver (labeled MF) and tweeter (HF) against the woofer.
-
cated on the unit.
As with most speakers, after you start playing the 4319 it will take the
performance. During this period, the balance among the woofer, midrange
and tweeter may change, so we recommend that you adjust the
midrange and tweeter controls accordingly.
Caring for Your Speakers
such as benzene, thinner or alcohol on the cabinet.
to low suction.
it uneven.
can carefully sweep them clean with a soft, dry calligraphy brush or paint
brush. Do not use a damp cloth.
0dB
MF
maxmin
0dB
HF
maxmin
Midrange
Control
Tweeter
Control
Woofer 30mm pure pulp cone (model 2213Nd-1)
Midrange
Tweeter
Impedance 6 ohms
Maximum recommended
amplifier power 200 watts RMS
Sensitivity (2.83V/1m) 92dB
Frequency response
Crossover frequencies
Dimensions (H x W x D)
Weight
6
HARMAN Consumer, Inc.
© 2011 HARMAN International Industries, Incorporated. All rights reserved.
JBL is a trademark of HARMAN International Industries, Incorporated, registered in the
United States and/or other countries.
Features, specifications and appearance are subject to change without notice.
