JBL NORTHRIDGE E80 User manual

Harman International SNC - Harman Consumer International 2, route de Tours 72500 Château du Loir 1
Technical Manual
JBL NORTHRIDGE E80
Acoustic & Electrical specification:
•Nominal Impedance: 8 ohm
•Recommended amp power max: 200W
•Frequency response: 38Hz -20KHz - 3dB
•Sensitivity 91 dB at 2.8volt,1 metre
•Crossover frequency 300Hz,4000Hz
Physical Specifications:
•Enclosure Dimension: H927mm, W: 213mm, D:349mm
•Speaker Weight 19.1Kg each
•Woofer: Dual 6” 170mm PolyPlas Shielded
•Midrange: 4” 100mm PolyPlas shielded
•Tweeter: ¾” 19mm titanium-laminate dome shielded
•Terminal: gold plated, Bi wireable
Specification
E80 BK 350117-001 CTN,OUTER,MASTER,E80 1
E80 BE 350117-002 CTN,OUTER,MASTER,E80B 1
E80 CH 350117-003 CTN,OUTER,MATER-E80CH 1
E80
BK/BE/CH 350119-001 PAD,END-E80 SERIES 2
E80
BK/BE/CH 315953-001 BAG,ZIPLOCK,9X12 1
E80
BK/BE/CH 49790P MICROFOAM,.062x20x18" 2
E80
BK/BE/CH 338836-001 LBL, COUNTRY OF ORIGI 2
E80
BK/BE/CH 350038-001 MNL,OWNER-NE SERIES 1
E80
BK/BE/CH 338322-001 WARRANTY CARD,JBL PAS 1
E80
BK/BE/CH 338076-001 KIT,SPIKE FT-S310II/ 1
Capacitors C1 102uF/100V
C2 30uF/100V
C3 50uF/100V
C4 10uF/100V
C5 5.1uF/100V
Resistor R1 10ohm/5W
R2 1.5ohm/5W
R3 1.5ohm/5W
Coil L1 4.8mH/ø1.2mm
L2 0.1mH/ø0.7mm
L3 0.6mH/ø0.9mm
L4 0.12mH/ø0.7mm
Wire IN1+ Red
IN1- Blk
IN2+ Red
IN2- Blk
W1+ Grn
W1- Grn/Blk
W2+ Grn
W2- Grn/Blk
M+ Wht
M- Wht/blk
T+ Yel
T- Yel/Blk
Packa
g
e Schematic

Harman International SNC - Harman Consumer International 2, route de Tours 72500 Château du Loir 2
Technical Manual
JBL NORTHRIDGE E80

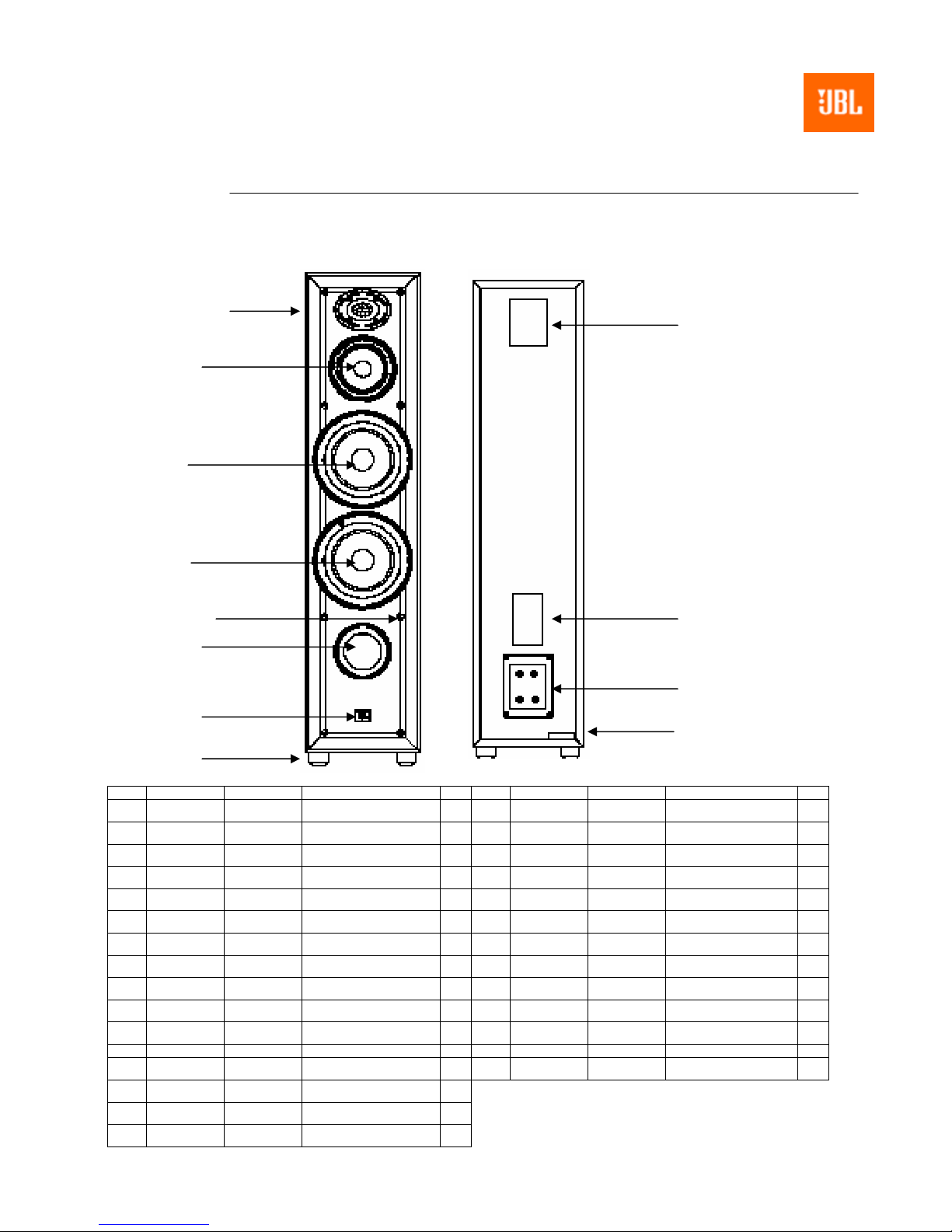

Part list
ITEM Model/color Part number Description qty ITEM Model/color Part number Description qty
1
E80
BK/BE/CH 338035-001 ASY,TWTR,3/4 1 10
E80
BK/BE/CH 338037-001 FT,RUBBER-ASSY/THD IN 4
2
E80
BK/BE/CH 350354-001 GSKT,TWTR PL-NE SER 1 11
E80
BK/BE/CH 350542-001 ASY.LOGO-NE-SER 1
3
E80
BK/BE/CH 338059-001
BAR,HOLD DOWN-
NRTHDGE 1 12 E80 BK 333249-001 CUP,GRL-HLS retainer 8
4
E80
BK/BE/CH 350130-001 PL,FACE,TWTR-NE SER 1 13 E80 BE/CH 333249-003
CUP,GRL-INTRMZO
retainer 8
E80
BK/BE/CH 350124-001 ASY,GRL,FRNT,E80 SERI 1
5
E80
BK/BE/CH 335588-002 ASY,MIDRNG-N38II/ND31 1 15
E80
BK/BE/CH 350066-001 ASY,PTB-E80 Port tupe 1
6
E80
BK/BE/CH 350144-001 RING,TRIM,4",MDRNG,E 1
17
E80
BK/BE/CH 339097-001 CAUTION STICKER 1
7
E80
BK/BE/CH 350540-001 ASY,WFR,6"-NS-W6SH 2 18
E80
BK/BE/CH 350125-001 FOILCAL,E80 SERIES 1
E80
BK/BE/CH 350123-001 ASY,XOVER-E80 SERIES 1 19
E80
BK/BE/CH 350161-001 LBL,JBL"Assem. in Mex 1
9
E80
BK/BE/CH 351317-001 T-CUP,BI-WIRE,PLSTC-N 1
E80
BK/BE/CH 39106S NAIL,FNSHG,1" 4
E80
BK/BE/CH 903401-012 SCR,PB,PPH,#6x.75,BLK 8
E80
BK/BE/CH 903802-012 SCR,PB,HXS,#8x.75,ZIN 12
E80
BK/BE/CH 905402-010 SCR,MS,PPH,H/L,6-19X5 2
E80
BK/BE/CH 908302-012 SCR,PB,HXS,#6x.75,ZIN 8
1
,
2
,
3
,
4
5
,
6
7
7
12/13
15
11
10
9
19
18
17
