JBL TS6000 User manual

ACOUSTIC & ELECTRICAL SPECIFICATIONS:
• Nominal Impedance 6 Ohms
•Max Amp Power 200 Watts*
• Frequency Response 33Hz – 40kHz (–10dB)
42Hz – 38kHz (–3dB)
• Sensitivity 88dB (2.83V @ 1 meter)
• Crossover Frequency 600Hz, 12dB/Octave,
3.2kHz, 18dB/Octave
SYSTEM COMPONENTS:
• Cabinet TS6000 (Not for Sale)
• Grille Ass’y 364502-001
• Low-Frequency Transducer Dual 6-1/2" (165mm), shielded;
364528-002
DC Resistance 12.0 Ohms, ±10%
• Mid-Frequency Transducer 4" (101mm) Neodymium,
shielded; 364450-001
DC Resistance 4.1 Ohms, ±10%
•High-Frequency Transducer 1" (25mm) shielded; 364450-001
DC Resistance 3.4 Ohms, ±10%
• Crossover Network 013-7600-05584-E
AURAL SWEEP TEST SPECIFICATIONS:
• System Aural Sweep Test 6.0V Input 33Hz to 20kHz
• L.F. Aural Sweep Test 5.0V Input 33Hz to 1kHz
• M.F. Aural Sweep Test 4.0V Input 500Hz to 4kHz
• H.F. Aural Sweep Test 2.83V Input 3kHz to 10kHz
PHYSICAL SPECIFICATIONS:
• Dimensions 42" x 12-3/4" x 8-7/8"
(HxWxD) (1067mm x 324mm x 225mm)
• Dimensions (with feet pad) 43" x 12-3/4" x 8-7/8"
(H x W x D) (1092mm x 324mm x 225mm)
• Weight 56 lb/25.4kg (each)
WARRANTY:
• Refer to Warranty Statement packed with each product.
* The maximum recommended amplifier power rating will ensure
proper system headroom to allow for occasional peaks. We do not
recommend sustained operation at these maximum power levels.
8
15
16
17
17
23
21
24
PACKAGING
WIRING DIAGRAM
TS6000 SCHEMATIC
Technical Manual
TS6000
TS6000
3/09
Harman Consumer Group, Inc., 8500 Balboa Blvd., Northridge, CA 91329
Release Date 2008
Discontinued Date XXXX
Legend on Page 2
M.F.
L.F.
H.F.
H.F. / M.F.
INPUT
L.F. INPUT
Yellow 12"
Green/Black 9"
White/Black 11"
White 11"
Green 9"
Orange 12"
Orange/Black 12"
Yellow/Black 12"
L3
0.14mH
C2
3.9mF
100v
C1
20.0mF
100v
L1
.65mH
C3
12mF
100v
R3
27Ω
10W
L2
1.5mH
R1
8.2Ω
10W
R2
8.2Ω
15W
C5
0.01mF
100v
C4
2.4mF
100v
C7
0.01mF
100v
C6
12mF
100v
.250
.250
.205
.205
R4
1.0Ω
5W
C1
3.9mF
100v
C2
51mF
100v
R1
5.1Ω
5W
L1
3.5mH
LOW-FREQUENCY
TRANSDUCER 2
364528-002
LOW-FREQUENCY
TRANSDUCER 1
364528-002
HIGH/MID-
FREQUENCY
TRANSDUCER
364450-001
HF and LF
CROSSOVER NETWORKS
013-7600-05584-E
Red +
Black -
Red +
Black -
Green/Black -
Green +
White/Black -
White +
Yellow/Black -
Yellow +
Orange/Black -
Orange +
M.F.
L.F.
H.F.
H.F. / M.F.
INPUT
L.F. INPUT
Yellow 12"
Green/Black 9"
White/Black 11"
White 11"
Green 9"
Orange 12"
Orange/Black 12"
Yellow/Black 12"
L3
0.14mH
C2
3.9mF
100v
C1
20.0mF
100v
L1
.65mH
C3
12mF
100v
R3
27Ω
10W
L2
1.5mH
R1
8.2Ω
10W
R2
8.2Ω
15W
C5
0.01mF
100v
C4
2.4mF
100v
C7
0.01mF
100v
C6
12mF
100v
.250
.250
.205
.205
R4
1.0Ω
5W
C1
3.9mF
100v
C2
51mF
100v
R1
5.1Ω
5W
L1
3.5mH
LOW-FREQUENCY
TRANSDUCER 2
364528-002
LOW-FREQUENCY
TRANSDUCER 1
364528-002
HIGH/MID-
FREQUENCY
TRANSDUCER
364450-001
HF and LF
CROSSOVER NETWORKS
013-7600-05584-E
Red +
Black -
Red +
Black -
Green/Black -
Green +
White/Black -
White +
Yellow/Black -
Yellow +
Orange/Black -
Orange +

9
11
6
10
18 14
20
4
14
4
14
13
19
23
22
2
12
7
1
3
5
8

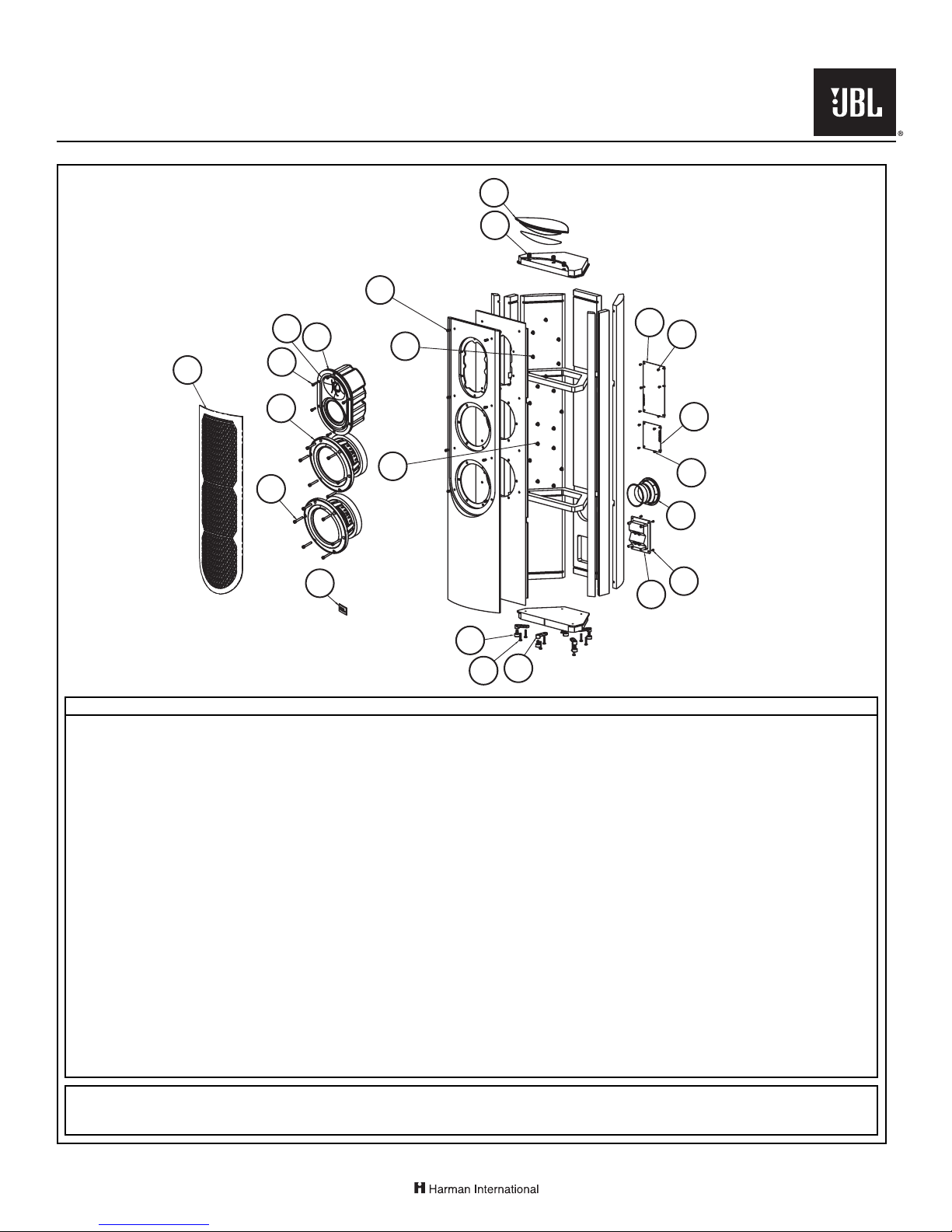

EXPLODED VIEW
Technical Manual
TS6000
TS6000
3/09
Harman Consumer Group, Inc., 8500 Balboa Blvd., Northridge, CA 91329
SERVICE NOTES
Note the midrange and tweeter cannot be ordered separately; order #364450-001 Pod ass’y.
Shorting straps and binding posts from the terminal cup cannot be ordered separately; order #317-ABS-05154-0BAE terminal cup.
ITEM PART NO. DESCRIPTION QTY.
1 364528-002 61/2" Woofer 1
2 364450-001 Pod Ass’y Containing Tweeter, Midrange, Wiring, Cup, Gaskets 1
3 874-33114-16 SCR, 10-32 x 1 SCKT, CAP, HEX, BLK ZINC, WFR 12
4 013-7600-05584-E HF and LF Crossover Networks 1 set
5365021-001 Logo, JBL, AL, 16.3mm x 20mm 1
6 61860 Insert, 8-32x4mm, HXS HF MODULE 6
7364011-001 Ring, Trim, Oval, Mid/Twt Faceplate 1
8 364502-001 Front Grille 1
9 315-BMC-05190-0BBE Top Bezel 1
10 337538-001 Grille Cup, Grille 8
11 333249-001 Grille Cup, Bezel 3
12 873-33114-12 SCR, 8-32 x 3/4, SCKT, CAP, HEX, BLK ZINC HF MODULE 6
13 317-ABS-05154-0BAE Assy, Terminal Cup 1
14 882-41110-10 SCR, 6 x 5/8" PAN, PH, PB, BLK ZINC, LCS NETWORK 14
15 364505-001 Outer Carton 1
16 Visit www.jbl.com Owner’s Manual 1
17 364506-001 Top & Bottom End Pad 2
18 61861 T-nut 10-32, Woofer 12
19 373-000-05102-E Foot, Cast Base 5
20 Not for Sale Port Tube Ass’y 1
21 321-AL-05117-0BAE Spike Feet (5 pcs.) 1 set
22 804-41110-16 SCR, 10 x 1" PAN, PH, BLK ZINC, LCS FOOT 10
23 320-RUB-05160-0BAE Foot, Rubber 5
24 373-000-05101-E Coaster,Foot 5
THE TS6000 CABINET (NOT FOR SALE) DOES NOT COME APART
AND IS DEPICTED THIS WAY FOR ILLUSTRATIVE PURPOSES ONLY.
