JBL Party Box 200 User manual

CONTENTS
2
3
17
20
Technical Specifications
Safety Instruction, Warning & Notes
Software Upgrade Procedure
Set Block Diagram
Schematic & Layout Diagrams
Set Mechanical Exploded View
Packaging Exploded View
Spare Parts List
Revision List 52
9
6

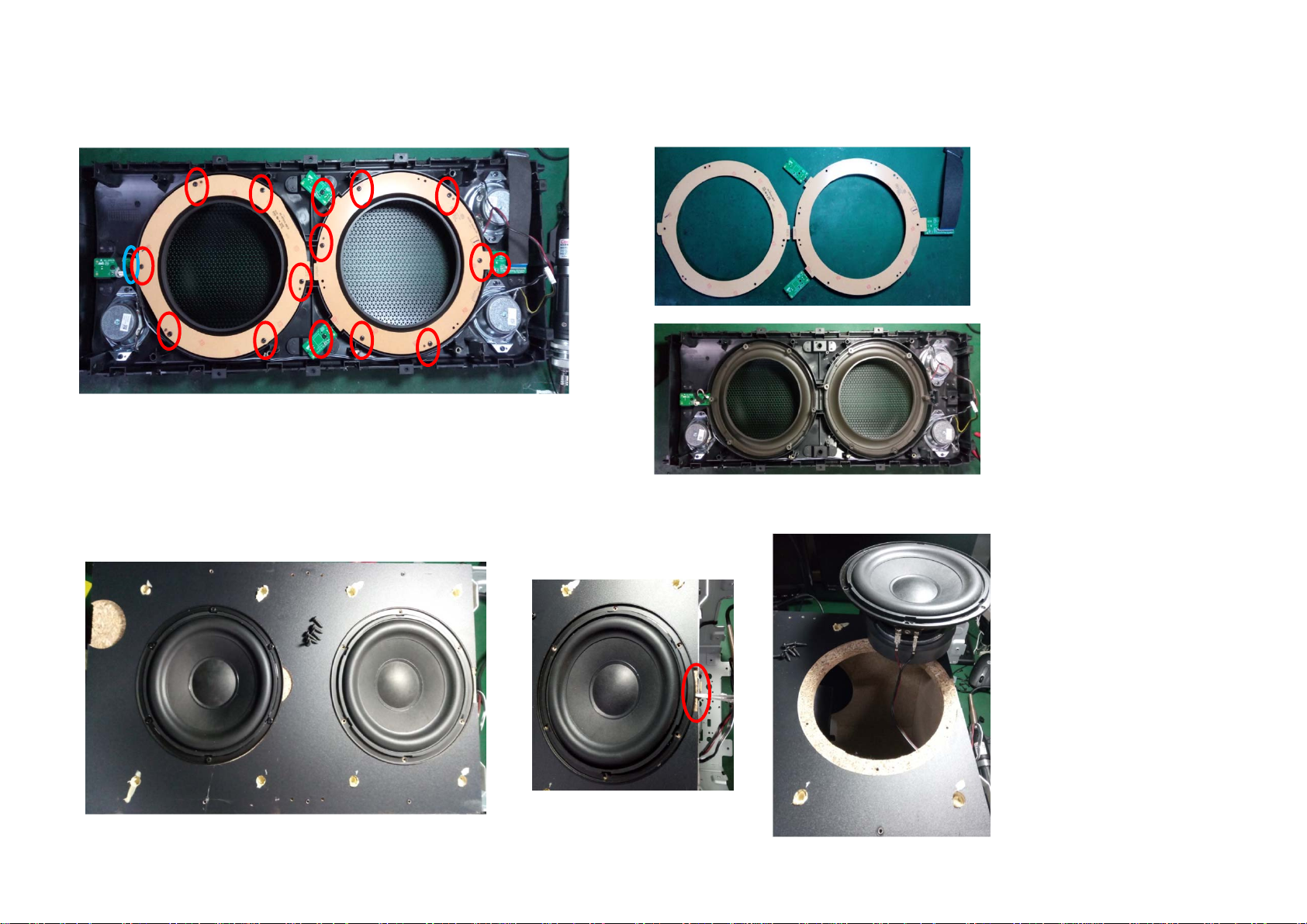

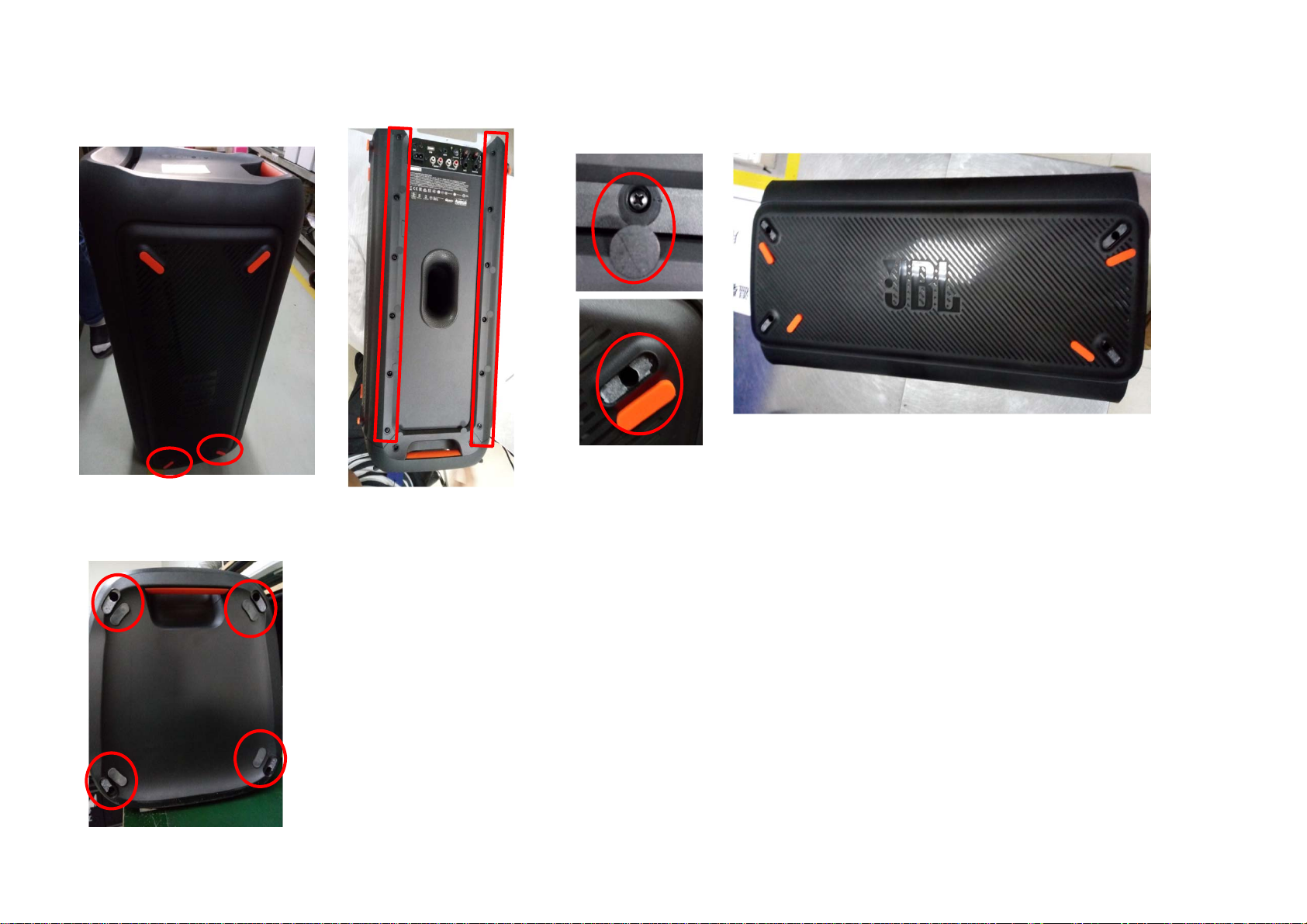

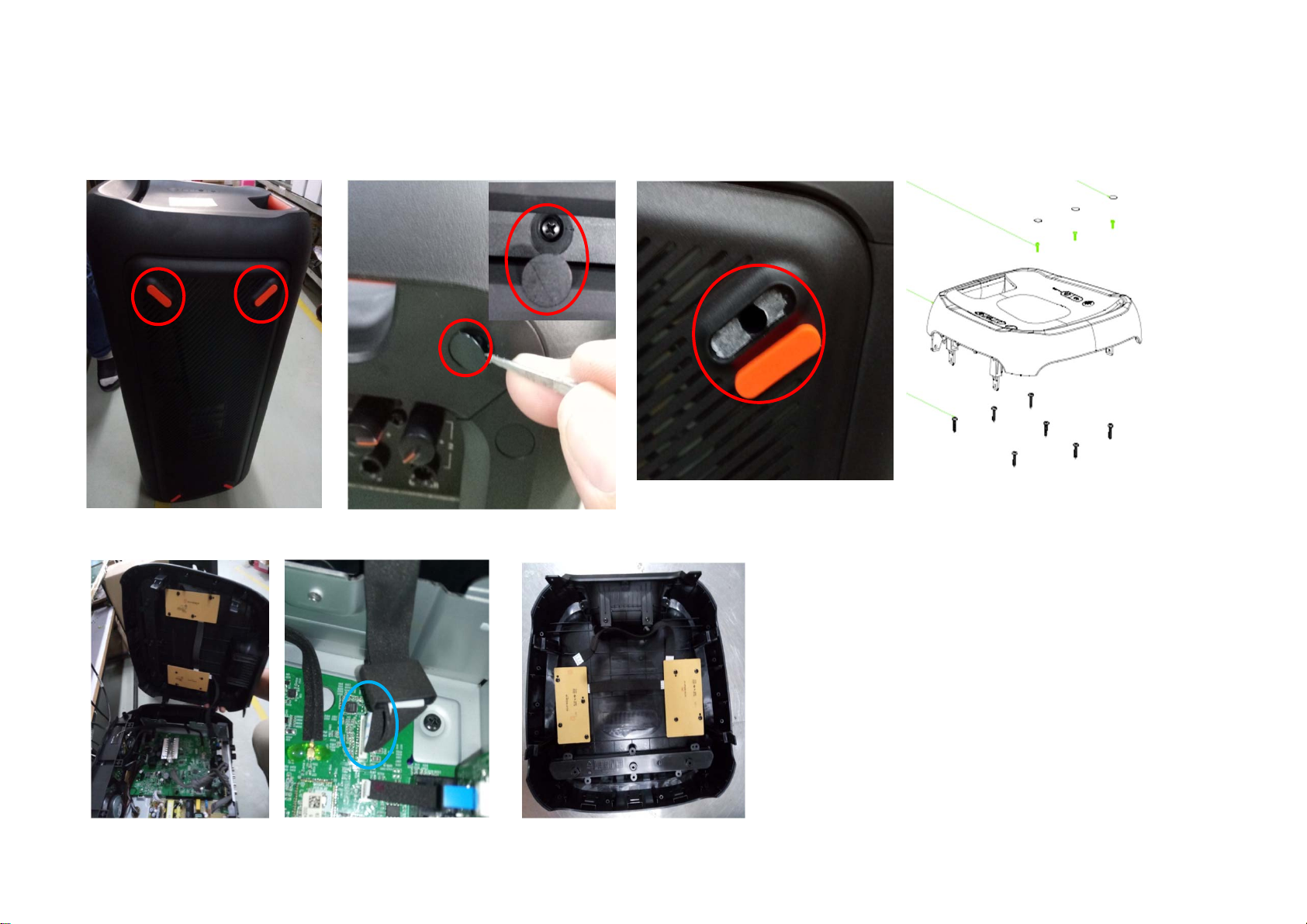

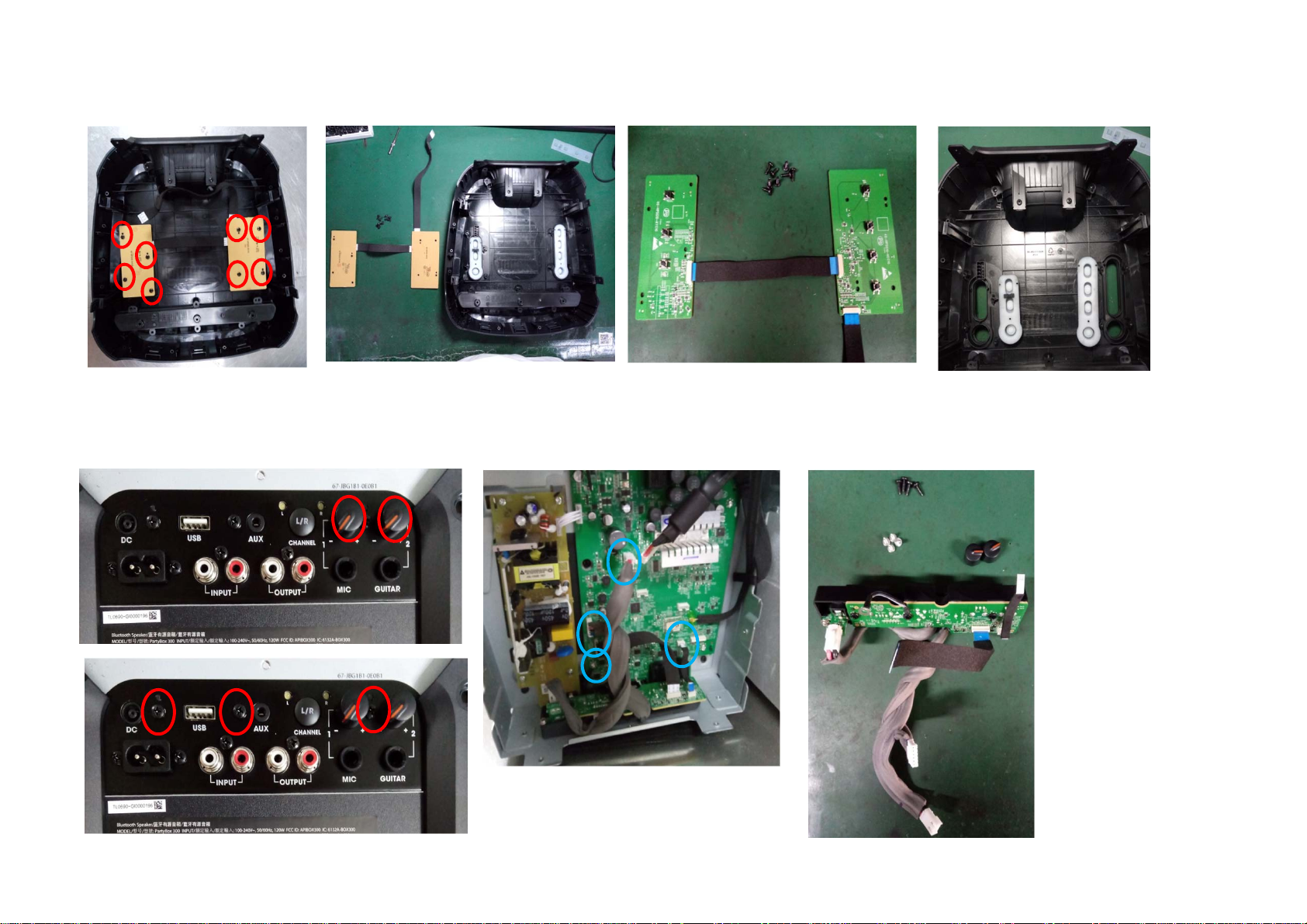

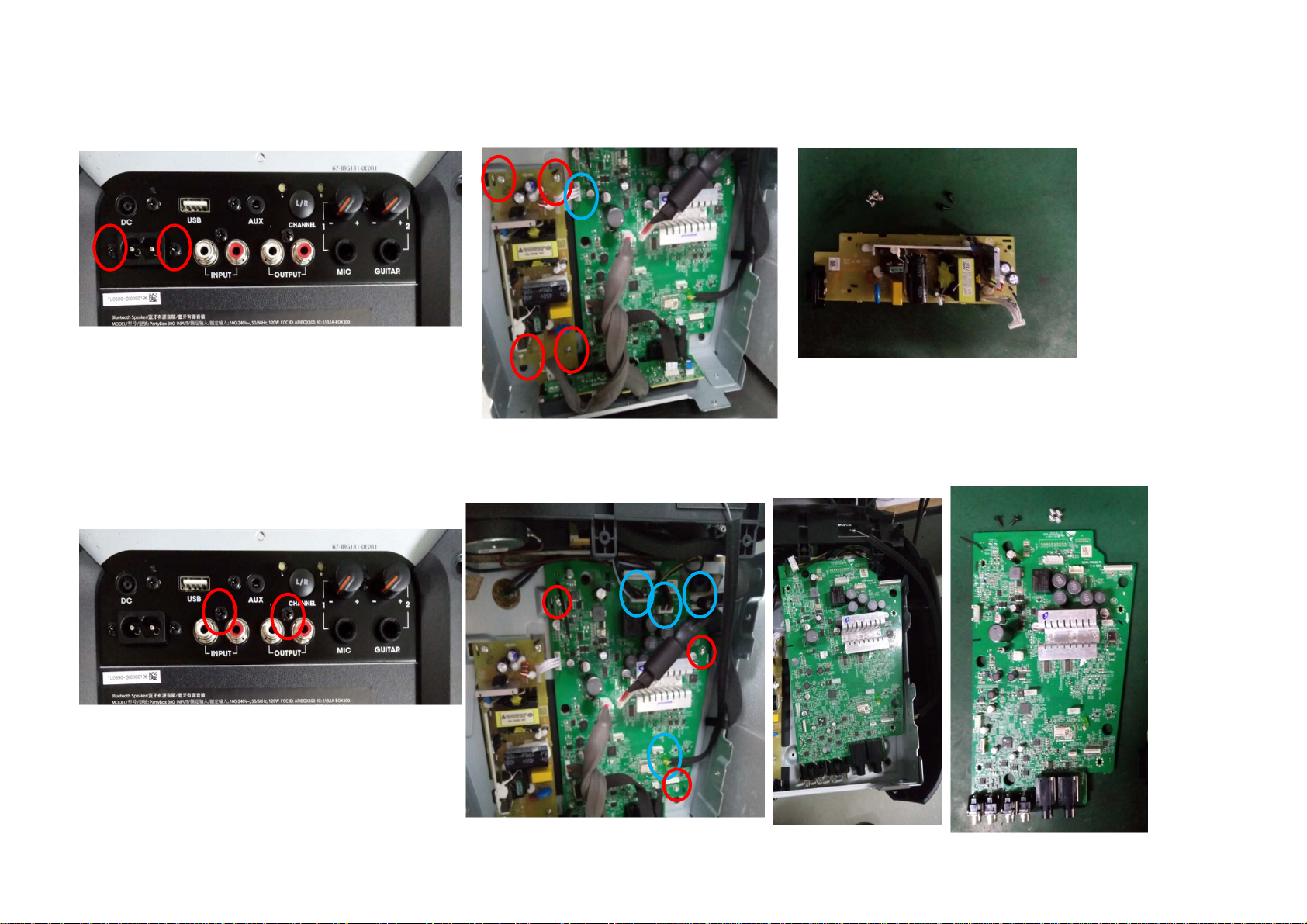

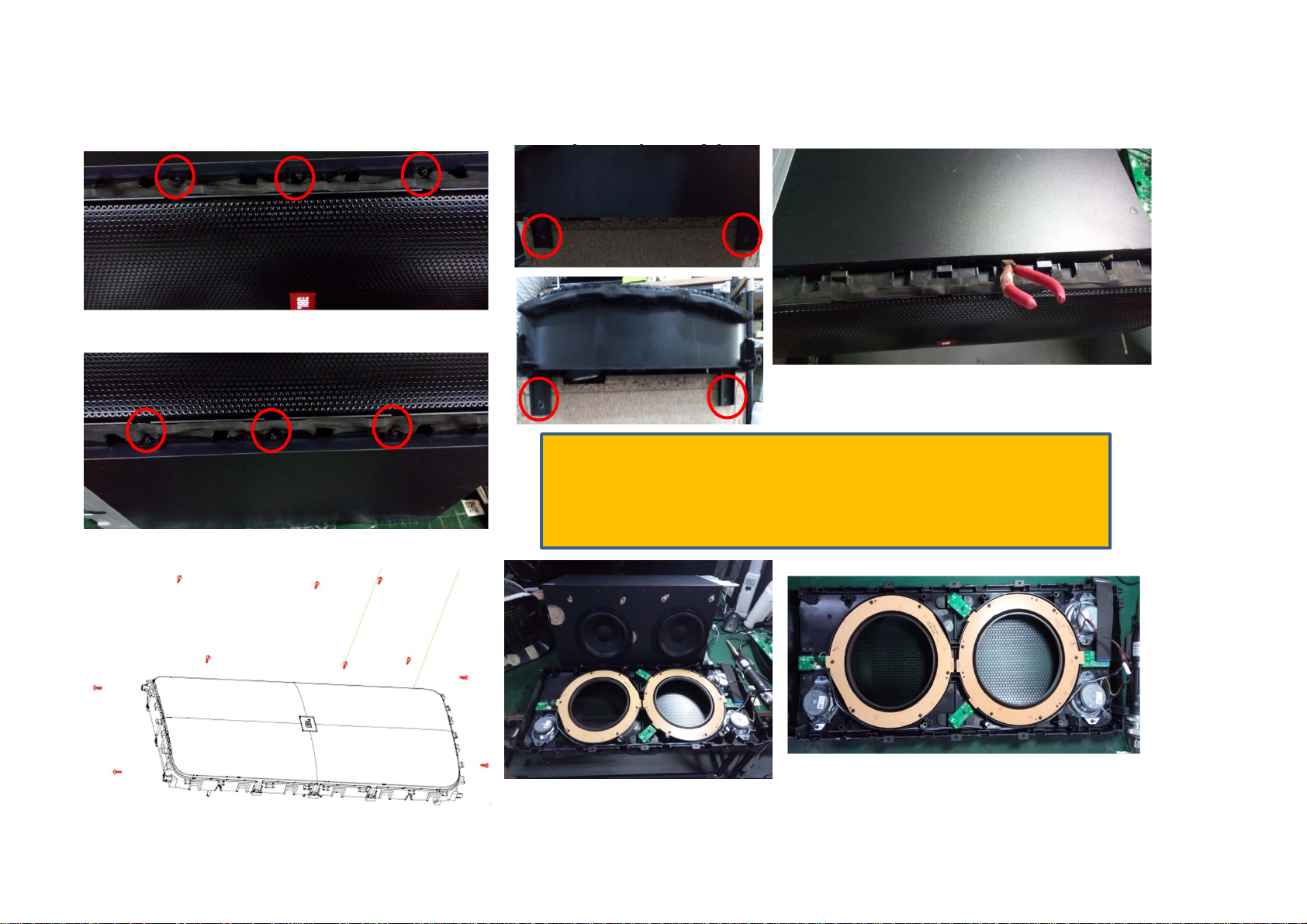

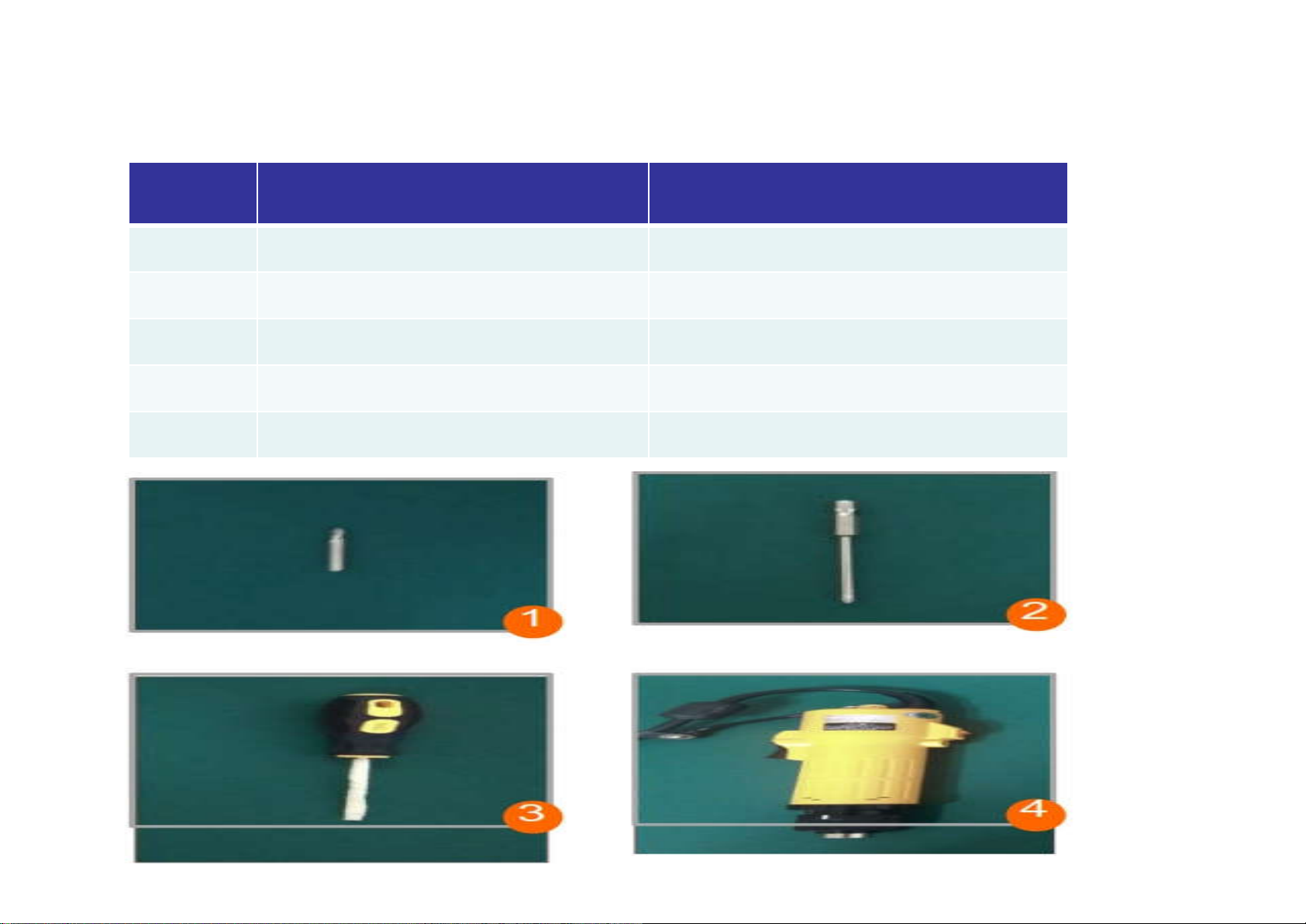

Dismantling Instruction
47
48
49
3DUW\BR[ & Party Box 
Service Manual
SKU: JBLPARTYBOX200AS, JBLPARTYBOX200BR, JBLPARTYBOX200CN, JBLPARTYBOX200EU, JBLPARTYBOX200IN,
JBLPARTYBOX200JN, JBLPARTYBOX200RU, JBLPARTYBOX200AM
JBLPARTYBOX300AS, JBLPARTYBOX300BR, JBLPARTYBOX300CN, JBLPARTYBOX300EU, JBLPARTYBOX300IN,
JBLPARTYBOX300JN, JBLPARTYBOX300RU, JBLPARTYBOX300AM
Released by Global Quality SL harman/kardon, Inc. Ver. 1.5 May 2019
Trouble shooting 7

TECHNICAL SPECIFICATIONS
• AC power input: 100-240V ~ 50/60Hz
• DC power input: 12V 8A
• Built-in battery: Li-ion 10.4Ah, 7.2V (PartyBox 300)
• Power consumption: 60W
• Standby power consumption: <2W with BT connecting;<0.5W without BT
connecting
• USB output: 5V 2.1A
• Speaker drivers: 2 woofer + 3 tweeter
• Speaker impedance: 4 ohm
• Total output power: 120 W RMS
• Frequency response: 45 Hz - 18 KHz (-6dB)
• Signal-to-noise (S/N) ratio: 65 dBA
• Input sensitivity:
• AUX in: 500mV rms (RCA connector);250mV rms (3.5mm connector)
• Digital input: Bluetooth/USB -12dBFS
• Bluetooth version: 4.2
• Bluetooth profile: A2DP, AVRCP
• Bluetooth transmitter frequency range: 2402-2480MHz
• Bluetooth maximum transmitter power: 8dBm (EIRP)
• Bluetooth transmitter modulation: GFSK, π/4 DQPSK,8DPSK
• Bluetooth range: Approx. 10 m (33 feet)
• USB file system: FAT16, FAT32
• USB file format: .mp3, .wma, .wav
• Dimensions (W x H x D): 330 x 688 x 323 mm /13 x 27 x 12.7 in
• Net weight:
• PartyBox 300: 15.4 kg ( 34 lbs);

1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.
7. Do not block any ventilation openings.Install in accordance with the manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves or other apparatus (including
amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one
wider than the other. A grounding-type plug has two blades and a third grounding prong. The wide blade or the
third prong is provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for
replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles and the
point where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket or table specified by the manufacturer or sold with the
apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid
injury from tip-over.
13. Unplug this apparatus during lightning storms or when unused for long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged
in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the
apparatus, or the apparatus has been exposed to rain or moisture, does not operate normally or has been dropped.
15. Do not expose this apparatus to dripping or splashing and ensure that no objects filled with liquids, such as vases,
are placed on the apparatus.
16. To completely disconnect this apparatus from the AC Mains, disconnect the power supply cord plug from the AC
receptacle.
17. The mains plug of the power supply cord shall remain readily operable.
18. Do not expose batteries to excessive heat such as sunshine, fire or the like.
For Products That Transmit and
Receive RF Energy:
FCC Regulations (USA Only)
FCC Information For Users
This device complies with Part 15 of the FCC Rules. Operation
is subject to the following two conditions: (1) This device
may not cause harmful interference; and (2) this device must
accept any interference received, including interference that
may cause undesired operation.
Radio and Television Interference
This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to Part 15
of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no
guarantee that interference will not occur in a particular
installation. If this equipment does cause interference to radio
or television reception, which can be determined by turning
the equipment off and then on, the user is encouraged to try
to correct the interference by one or more of the following
measures:
•Increase the separation between the equipment and
receiver.
•Connect the equipment to a different outlet so that the
equipment and receiver are on different branch circuits.
•Consult the dealer or an experienced radio/TV technician
for help.
NOTE: Changes or modifications not expressly approved
by Harman could void the user’s authority to operate the
equipment.
IC Statement and Warning (Canada Only)
This Class B digital apparatus complies with Canadian ICES-
003. Cet appareil numérique de la classe B est conforme à la
norme NMB-003 du Canada.
For Canadian Model
This Class B digital apparatus complies with Canadian
ICES-003.
Modèle pour les Canadien
Cet appareil numérique de la classe B est conforme à la
norme NMB-003 du Canada.
For Products with Radio Receivers
That Can Use an External Antenna:
CATV or Antenna Grounding
If an outside antenna or cable system is connected to this
product, be certain that it is grounded so as to provide some
protection against voltage surges and static charges. Section
810 of the National Electrical Code, ANSI/NFPA No. 70-1984,
provides information with respect to proper grounding of the
mast and supporting structure, grounding of the lead-in wire
to an antenna discharge unit, size of grounding conductors,
location of antenna discharge unit, connection to grounding
electrodes and requirements of the grounding electrode.
Note to CATV System Installer:
This reminder is provided to call the CATV (cable TV) system
installer’s attention to article 820-40 of the NEC, which
provides guidelines for proper grounding and, in particular,
specifies that the cable ground shall be connected to the
grounding system of the building, as close to the point of
cable entry as possible.
For CD/DVD/Blu-ray Disc™Players:
Caution:
This product uses a laser system. To prevent direct exposure
to the laser beam, do not open the cabinet enclosure or defeat
any of the safety mechanisms provided for your protection.
DO NOT STARE INTO THE LASER BEAM. To ensure proper use
of this product, please read the owner’s manual carefully and
retain it for future use. Should the unit require maintenance
or repair, please contact your local Harman Kardon service
center. Refer servicing to qualified personnel only.
For Products That Include Batteries:
Instructions for Users on Removal and Disposal of
Used Batteries.
CAUTION
Risk of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type.
Alkaline batteries are considered nonhazardous.
Rechargeable batteries (i.e., nickel cadmium, nickel metal-
hydride, lithium and lithium-ion) are considered hazardous
household materials and may pose an unnecessary health
and safety risk.
In the European Union and other locations, it is illegal to
dispose of any battery with household trash. All batteries
must be disposed of in an environmentally sound manner.
Contact your local waste management officials for information
regarding the environmentally sound collection, recycling and
disposal of used batteries.
To remove the batteries from your equipment or remote
control, reverse the procedure described for inserting
batteries in the owner’s manual.
For products with a built-in battery that lasts for the lifetime of
the product, removal may not be possible for the user. In this
case, recycling or recovery centers handle the dismantling of
the product and the removal of the battery. If, for any reason, it
becomes necessary to replace such a battery, this procedure
must be performed by authorized service centers.
Important Safety Instructions
CAUTION
RISK OF ELECTRIC SHOCK. DO NOT OPEN.
THE LIGHTNING FLASH WITH AN ARROWHEAD SYMBOL,
WITHIN AN EQUILATERAL TRIANGLE, IS INTENDED TO
ALERT THE USER TO THE PRESENCE OF UNINSULATED
“DANGEROUS VOLTAGE” WITHIN THE PRODUCT’S
ENCLOSURE THAT MAY BE OF SUFFICIENT MAGNITUDE TO
CONSTITUTE A RISK OF ELECTRIC SHOCK TO PERSONS.
THE EXCLAMATION POINT WITHIN AN EQUILATERAL
TRIANGLE IS INTENDED TO ALERT THE USER TO
THE PRESENCE OF IMPORTANT OPERATING AND
MAINTENANCE (SERVICING) INSTRUCTIONS IN THE
LITERATURE ACCOMPANYING THE PRODUCT.
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC
SHOCK, DO NOT EXPOSE THIS APPARATUS TO RAIN OR
MOISTURE.
BDS 270 / BDS 570 harman/kardon
2 of 86
3-1

Each precaution in this manual should be followed during servicing.
Components identified with the IEC symbol in the parts list are special significance to safety. When replacing a component identified with
, use only the replacement parts designated, or parts with the same ratings or resistance, wattage, or voltage that are designated in the
parts list in this manual. Leakage-current or resistance measurements must be made to determine that exposed parts are acceptably
insulated from the supply circuit before retuming the product to the customer.
Some semiconductor (solid state) devices can be damaged easily by static electricity. Such components commonly are called
Electrostatically Sensitive (ES) Devices. Examples of typical ES devices are integrated circuits and some field effect transistors and
semiconductor "chip" components.
The following techniques should be used to help reduce the incidence of component damage caused by static electricity.
1. Immediately before handling any semiconductor component or semiconductor-equipped assembly, drain off any electrostatic charge on
your body by touching a known earth ground. Alternatively, obtain and wear a commercially available discharging wrist strap device,
which should be removed for potential shock reasons prior to applying power to the unit under test.
2. After removing an electrical assembly equipped with ES devices, place the assembly on a conductive surface such as aluminum foil, to
prevent electrostatic charge build-up or exposure of the assembly.
3. Use only a grounded-tip soldering iron to solder or unsolder ES devices.
4. Use only an anti-static solder removal device. Some solder removal devices not classified as "anti-static" can generate electrical charges
sufficient to damage ES devices.
5. Do not use freon-propelled chemicals. These can generate electrical change sufficient to damage ES devices.
6. Do not remove a replacement ES device from its protective package until immediately before you are ready to install it. (Most replacement
ES devices are packaged with leads electrically shorted together by conductive foam, aluminum foil or comparable conductive material.)
7. Immediately before removing the protective material from the leads of a replacement ES device, touch the protective material to the
chassis or circuit assembly into which the device will be installed.
Be sure no power is applied to the chassis or circuit, and observe all other safety precautions.
8. Minimize bodily motions when handling unpackaged replacement ES devices. (Otherwise harmless motion such as the brushing together
or your clothes fabric or the lifting of your foot from a carpeted floor can generate static electricity sufficient to damage an ES devices.
CAUTION :
-2

SAFETY PRECAUTIONS
The following check should be performed for the continued
protection of the customer and service technician.
LEAKAGE CURRENT CHECK
Measure leakage current to a known earth ground (water
pipe, conduit, etc.) by connecting a leakage current tester
between the earth ground and all exposed metal parts of the
appliance (input/output terminals, screwheads, metal
overlays, control shaft, etc.). Plug the AC line cord of the
appliance directly into a 120V AC 60Hz outlet and turn the
AC power switch on. Any current measured must not exceed
o.5mA.
ANY MEASUREMENTS NOT WITHIN THE LIMITS
OUTLINED ABOVE ARE INDICATIVE OF A
POTENTIAL SHOCK HAZARD AND MUST BE
CORRECTED BEFORE RETURNING THE APPLIANCE
TO THE CUSTOMER.
Device
under
test
Test all
exposed metal
surfaces
Also test with
plug reversed
(Using AC adapter
plug as required)
AC Leakage Test
Leakage
current
tester
Reading should
not be above
0.5mA
Earth
ground
3-3

Software Upgrade Procedure
1. Put the "Harman_G1.HUI" to the root directory of U disk, and plug the U disk into
USB port of machine.
2. Turn on the machine, make sure it is working.
3. Press and hold the "BT" key and "Vol+" key for 10s until the LED show white.
4. It is updating when the machine front LED show white. If it failed to upgrade, the
front LED will show red. You need to restart from the step 1.
5. The machine front LED will show green after upgrade successfully and restart
automatically.
6. Please press and hold the "BASS BOOST" key and "Vol-" key for 2s,to check the
version number.
Button Pattern Action Indicator
Volume + &Bluetooth Long press > 10sEnter DFU mode in On Mode
Volume + &Play Long press> 10s Reset to factory default in On Mode.
Volume -&Bluetooth Long press > 10s Enter by-pass mode in On Mode.
Volume -& Bass boost Long press > 2s Show SW version in On Mode.
Play &Bass boost Long press > 5s Enter Demo mode in On Mode.
Volume +&Volume -Short press < 2s at same time Mute unit output
In Mute status, press any button of
Volume+ or Volume-to release mute
Key Combination / Button Function Mapping

GO
NO
YES
  YES
NO
 YES
NO
 YES
NO
Do notwork
Check24pinFFCcable(XP25)
tomainboardofconnectyes
ornot?
Checkfrompowerboardthe
24Vpowersupplyisnormal?
Yesornot?
Insteadofnew24pinFFCcable
Replacethemainboard
Doyouhaveapluginthe
powerline?Replacethepowerboard
CheckBatterycable(XP3)to
mainboardofconnectyesor
not?
Replacethemainboard
Pluginthebatteryline
TROUBLE SHOOTING

Thelightringisnotbright





GO

NO



YES

NO



YES








BTCANNOTWORK





GO


NO


YES

Thelightringisnotbright
Check24pinFFCcable(XP24)
tomainboardofconnectyes
ornot?
CheckfrommainboardFB40
5Visnormal?Yesornot?


Insteadofnew24pinFFCcable

Replacethemainboard

Replacethelightboard
BTcannotwork
CheckJ1tomainboardof
connectyesornot?

Replacethemainboard


InsteadofnewJ1cable
TROUBLE SHOOTING

Tool list
Item Description Remark
1 Screw driver
2 Screw driver
3 Knife “-”type knife(wrapped by tape)
4 Elcetrical screw driver
5Needle
DISMANTLING INSTRUCTION

1.Dismantling top cover assy:remove the screw cover sheet 5pcs/silicone seal 1pcs/top side foot pad 4pcs by a needle.
Dismantle the screw accordingly.
Pull out the top cover and unplug the connecting cable of main board,
DISMANTLING INSTRUCTION

2.Dismantling top cover assy:
Dismantle 8pcs screw of the key board,and take out the key baord and key button.
3.Dismantling terminal board:
Unplug 2pcs turn-knob and dismantle 3pcs screw on the back panel.
Unplug 4pcs cable and dismantle 1pcs screw on main board,then take out the terminal board.
DISMANTLING INSTRUCTION

4.Dismantling power board:
Dismantle 2pcs screw on AC cord socket,unplug a cable on main board and dismantle 4pcs screw on power board.
Take out the power board.
5.Dismantling main board:
Dismantle 2pcs screw on back panel,unplug 4pcs connecting cable on main board,dismantle 3pcs screw on main board.
Take out the main board.
DISMANTLING INSTRUCTION

6.Dismantling side cover assy:
Remove the bottom of side foot pad and screw cover sheet,dismantle the screw accordingly then take out side cover.
7.Dismantling bottom cover assy:
Remove 4pcs foot pad and dismantle the screw accordingly,then take out the bottom cover assy.
DISMANTLING INSTRUCTION

8.Dismantling front panel assy:
Dismantle 10pcs screw on front panel assy,use a straight screwdriver to separate front panel and wooden box carefully.
It's better to wrap screwdriver with fabric to avoid damage in separating process.
Before assemble front panel assy back with wooden
box,need to clean the old glue first and replace with new
39&glue,make sure locating point matching well then
assemble the front panel assy with wooden box.
DISMANTLING INSTRUCTION

9.Dismantling front panel assy:
Unplug a cable,dismantle the screw on lamp board,then take out the board.
10.Dsimantling speaker on wooden box:
Dismantle the screw on speaker and pry speaker by a needle then take out the speaker.
DISMANTLING INSTRUCTION

Process step Material Part Number
Step1/6/7 Screw cover sheet,foot pad,silicone seal,front panel Please refer to
the SBOM
Step 2/3 Rubber button,turn-knob
Potential scrap risk on materials
Please refer to
the SBOM
DISMANTLING INSTRUCTION

1
HARMAN INTERNATIONAL. CONFIDENTIAL. COPYRIGHT 2013.
Mic/Guitar latency
MIC
Sunplus
SPHE8107C
ClassD
Amp
ClassD
Amp
L_W
USBA
2.1A
L&Rlineout
I2S_usb
Tweeter1
Tweeter2
LWoofer
RWoofer
Vol
knob
Guitar
Tweeter3
relay
BTModule
BES2000IK
60*RGBLED
I2S‐1
Vol
knob
delay
PlayUSB
L&R Linein(RCA)
6chADC
AK5536
Auxin(3.5mm)
L_T
G‐sensor
DAC&uDSP
PCM5121
I2Sx2
LR
I2Sx1
Mic/Guitar
I2S_SDI1/2/3
I2S_DO
DSP
AK7755
Echo
PT2399
R_W
R_T
DAC
PCM
5121
I2S‐2
MCU
FLASH
512KB
I2C
UA
RT
SET BLOCK DIAGRAM

AC PCBA
input 24V
6A
DC input
12V 8A
Batt input 7.4V
10000mAH
Charge
BQ24610
MOS1
DCDC
SY7901
24V/19V
for PWR
Power for SYS
24V/7.4V/12V
19V
SY82
13
SY82
13
SY82
13
STB3.3V 2A
SYS5V 2A for LED
USB 5V 3A
TPS2546
USB 2.1/1A
charge out
MOS2
STB3.3V LDO
STB1.2V
24V
Audio signal
Control signal
Power signal
New module
MP standard module
MP non standard module
SET BLOCK DIAGRAM

A
A
B
B
C
C
D
D
E
E
1 1
2 2
3 3
4 4
DC IN
12V_A
12V_A
C1099
1F/50V/X7R
P3
DC-022BCYZ6
1
3
2
4 5
XP29
2pin/3.96mm
1
1
2
2
C993
0.1uF/50V/X5R
CIRCUIT DIAGRAM-MAIN BOARD
DC IN CIRCUIT

A
A
B
B
C
C
D
D
E
E
1 1
2 2
3 3
4 4
2.1A
0.8*(8.2K+15K)/15K=1.23V
VOUT=0.596*(1+150/20)=5.07V
Vout= 0.6*(200+7.5+27)/27=5.21V
Vout= 0.6*(200+27)/27=5.04V
Vout= 0.6*(100+22)/22=3.32V
CHG_OUT_ENN
FAULT
USB_5VOUT USB_5V
STATUS
D+ D-
USBD+
USBD-
USBD-
USBD+
STB_3V3
5V/3A
5V/3A
STB_1V2
STB_3V3
STB_3V3
STB_3V3
SYS_3V3
5V/2A
DC_24V/12V/7.4V 5V/3A
SYS_5V
DC_24V/12V/7.4V
24V
5V_SYS
DC_24V/12V/7.4V
DC_24V/12V/7.4V
DC_24V/12V/7.4V
CHG_OUT_ENN
STATUS
7
USBD+ 8,9
USBD- 8,9
Power_ON
Power_ON
KEY_RESET
Power_ON
R3 22
C51
0.1uF/50V/X7R
L1 10uH/3A
R28
14K/1%
R11 22K/1%
D28
1N4148WS
C32
0.1uF/50V/X7R
C929
0.1uF/50V/X5R
C86
1F/50V/X7R
C20
0.1uF/16V/X7R
Q1
P_AP2305
G
DS
R21 110K/1
U58
SY8213
BS 1
SS
4
LX 2
FB 5
VCC
6
EN
3SVIN
7PVIN
8
GND 9
R6
1K
C18
10UF/6.3V/X5R
C107
1F/50V/X7R
R15 0
R26
300KΩ/1%
R131
27K/1%
C59
22UF/10V/X5R
R1024
68K
C104
0.1uF/50V/X7R
H3
R19
10K
R1177 0
C24 0.1uF/16V/X7R
R1085 200K/1 C14 10uF/50V/X5R R1090 22
R2
100K/1%
C930 1 F/50V/X7R
C10 10uF/50V/X5R
U6
SGM2036-ADJ
VIN
1
ADJ/SENSE 4 EN
3
VOUT 5
GND
2
H5
R32
1K
C4
0.1uF/50V/X5R
R1088
1K
C6 10uF/50V/X5R
C23
0.1uF/16V/X7R
R4
22K/1%
C91 1 F/50V/X7R
C105 0.1uF/16V/X7R
+
100uF/16V
C933
C19
10UF/6.3V/X5R
R13 10K
R29
8.2K/1%
C2 4700pF/50V/X7R
Q2
NPN_3DG3904M
C11
0.1uF/50V/X7R
C100 1 F/50V/X7R
U2
SY8213
BS 1
SS
4
LX 2
FB 5
VCC
6
EN
3SVIN
7PVIN
8
GND 9
R30 10K
C102
1F/50V/X7R
C8
0.1uF/16V/X7R
L2 10uH/3A
R7 22
R8
10K
R1089 0
C12
22UF/10V/X5R
R9
4.7K
R10
10K
C9
22uF/25V/X5R
R33
220K
R12 1M/1%
R1093 7.5K/1%
R23
1K
C21 0.1uF/16V/X7R
R31
15K/1%
L18 10uH/3A
D20
1N4148WS
C927
0.1uF/50V/X7R
C98
0.1uF/50V/X7R
+
100uF/16V
CE5
C110
22uF/25V/X5R
C66 0.1uF/16V/X7R
R14 33
C1
0.1uF/50V/X5R
D19
SS56B/60V/5A
R1020
10K
C33 1 F/50V/X7R
R17
1M
C22
22UF/10V/X5R
C103 1 F/50V/X7R
R36
10K
U3 TPS2546
IN
1
DM_OUT
2
DP_OUT
3
ILIM_SEL
4
EN
5
CTL1
6
CTL2
7
CTL3
8
ILIM_HI 16
ILIM_LO 15
GND 14
FAULT 13
OUT 12
DM_IN 11
DP_IN 10
STATUS 9
PGND
17
C7
1000pF/50V/X7R
R914 0
C995 10uF/50V/X5R
R16 0
U1
SY8213
BS 1
SS
4
LX 2
FB 5
VCC
6
EN
3SVIN
7PVIN
8
GND 9
R1021
10K
C17
0.01uF/50V/X7R
R35
4.7K
C106 1 F/50V/X7R
C9314700pF/50V/X7R
C5 4700pF/50V/X7R
XP1
6PIN/2.0mm
1
1
2
2
3
3
4
4
5
5
6
6
Long press POWER key for 8~10s will reset Main chip SPHE8107
CIRCUIT DIAGRAM-MAIN BOARD
DC-DC CIRCUIT
