JBL JSR655 User manual

JSR655(230V)
Audio andVideo Receiver
OWNER'S MANUAL
JSR655om (a) qx 7/28/98 9:54 AM Page 2

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE
COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING
TO QUALIFIED SERVICE PERSONNEL.
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT
EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
The lightning flash with arrowhead
symbol, within an equilateral triangle, is
intended to alert the user to the
presence of uninsulated “dangerous voltage”
within the product’s enclosure that may be of
sufficient magnitude to constitute a risk of electric
shock to persons.
The exclamation point within an
equilateral triangle is intended to
alert the user to the presence of
important operating and maintenance
(servicing) instructions in the literature
accompanying the appliance.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
JBL JSR655
Date of purchase
Purchased from
Address of business purchased from
Installed by
Date installed
Serial no.
Thank you for choosing a JBL
Audio/Video Receiver.
Your new unit is an exceptionally well-
engineered product that will give you
years of superb performance.
Save all packing material.
It is essential for shipping should you
move, or in the event the unit ever
needs repair.
1
JSR655om (a) qx 7/28/98 9:54 AM Page 3

2
Handle the Power Cord
Gently.
■To disconnect the plug from the
AC outlet, pull on the plug itself,
not on the cord.
■Disconnect the plug from the AC
outlet whenever the unit is to be
left unused for an extended
period of time.
■Do not place furniture or other
heavy objects on the cord, and
avoid dropping heavy objects on
it. Also do not make a knot in the
cord.
Place the unit on a firm
and level surface.
Avoid installing it:
■In moist or humid places;
■Close to heating equipment or in
places exposed to direct sunlight;
■In a direct draft from an air
conditioner or in other very cold
locations;
■In places subject to excessive
vibration or dust;
■In poorly ventilated places.
Moving the Unit.
Before moving the unit, be sure to
unplug the power cord from the AC
outlet and disconnect all wires to
antennas and other components.
Do Not Open the Cabinet.
Do not attempt to service this unit.
Tampering with internal components
can cause fire or shock, and may
void your guarantee. If water or small
objects enter the unit, unplug the
power cord immediately and consult
an authorized JBL service center.
Using the unit under such conditions
may cause a fire or shock hazard.
Cleaning.
Remove dust by wiping the unit with a
soft, dry cloth. If necessary, use a soft
cloth lightly dampened with mild
soapy water; then wipe with a dry
cloth. Never use benzene, thinner,
alcohol or other volatile agents, and
avoid spraying insecticides near
the unit.
TABLE OF CONTENTS
Front Panel Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Rear Panel Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Optional Multi-Room Control Adapter Connection . . . . . . . . . . . . . . . . . .10
Surround-Sound Effects . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
JSR655 System Remote Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
JSR655om (a) qx 7/28/98 9:54 AM Page 4

3
Volume
Speakers
12
FM Mode Search
AM FM
Tuning
Loudness
12 3 4 5 P. Scan
0-30
Memory67 8 9 0
Surround Input
VCR2 VCR1 VCR2
Delay
Surround
Center
Test
Tape 2 Mon
Tape 1
VCR2
VCR1
TV/Aux
Tuner
Phono
CD
Power Headphones SelRecSel
Bass Treble Balance
DOLBY SURROUND
PRO•LOGIC
JSR655 DOLBY SURROUND RECEIVER
PRO-LOGIC
DOLBY SURROUND
MHz
FM
AM
MONO
SEARCH TAPE MONITOR
PRESETMEMORY
MS
MIN
DELAY
TIME
SLEEP
CENTER MODE
PHANTOM
NORM WIDE
VCR 1 DUBBING
KHz
3 STEREO
HALL
TUNED
TUNED STEREO STEREO
25
17 11 14 13 15 16 12 24 23 22
21654191898710
20
231
Front Panel Controls
JSR655om (a) qx 7/28/98 9:54 AM Page 5

4
1. POWER BUTTON
Press this button to turn the power
on. Press again to turn the power off.
It can also be used as a system
power button, if you connect the
other components to the switched
outlets.
NOTE: In POWER OFF state, the
POWER indicator will light up orange
and power is partially supplied to the
infrared remote control receiver and
the memory circuitry.
2. 1/2 SPEAKER SWITCHES
These switches allow you to select
various combinations of speakers as
follows:
■To play 1 pair of speakers, push
only the speaker 1 switch in.
■To play a second pair of speakers,
push only the speaker 2 switch in.
■To play both pairs of speakers,
push both 1 and 2 switches in.
■To use headphones for private lis-
tening or monitoring, leave both
1 and 2 switches pushed out.
NOTE: If both speaker switches
are pushed in and only one set of
speakers is connected to the
receiver, no sound will be heard.
3. HEADPHONE JACK
Stereo headphones can be plugged
into this jack for private listening.
Headphone impedance should be
between 8 and 2K ohms. Best results
will be between 200 and 400 ohms.
4. BASS CONTROL
Modifies the low-frequency sound of
the left and right channels as much
as ±10dB. Set this control at a suit-
able position for your taste and room
acoustics.
5. TREBLE CONTROL
Modifies the high-frequency sound of
the left and right channels as much
as ±10dB. Set this control at a suit-
able position for your taste and room
acoustics.
6. BALANCE CONTROL
This control is used for balancing the
relative sound volume of the left and
right channel speakers. Clockwise
rotation reduces the volume from the
left speaker, counterclockwise rotation
reduces the volume from the right
speaker.
7. SURROUND MODE
SELECTOR
Press this switch to select the de-
sired surround mode. The mode is
changed as below, when it is pressed
in succession.
The mode indicator, flon the display
window, indicates the selected mode.
In the OFF mode, the indicator disap-
pears.
Delay Time (see page 16)
8. CENTER MODE SELEC-
TOR
This button operates only in DOLBY*
PRO LOGIC* and DOLBY 3 STEREO
mode. The mode changes as below
when the button is pressed in
succession.
DOLBY PRO LOGIC MODE
DOLBY 3 STEREO MODE
NORM WIDE
NORM WIDE PHANTOM
DOLBY PRO LOGIC DOLBY 3 STEREO HALL OFF
The display window shows each
mode.
NORM: Select this mode if you use a
small center speaker. The bass
sound of the center channel is repro-
duced from the front speakers,
because the small speaker cannot
produce enough bass.
WIDE: Select this mode if you use a
medium-to-large center speaker. The
bass sound is reproduced from the
center speaker.
PHANTOM: Select this mode if you
don’t use a center speaker. The cen-
ter speaker’s sound is reproduced
from the front speakers.
9. TEST TONE BUTTON
This button operates only in DOLBY
PRO LOGIC and DOLBY 3 STEREO
mode. When the button is pressed, a
2-second test tone is generated in all
channels (Left, Center, Right, and
Surround) in succession. The display
window shows TEST L, C, R and S in
succession.
The letter L, C, R or S (in DOLBY
PRO LOGIC mode) or L, C or R (in
DOLBY 3 STEREO mode) blinks 2
Front Panel Controls
JSR655om (a) qx 7/28/98 9:54 AM Page 6

5
times in succession. Use this button
to test speaker connections.
10. VCR 1 REC
Press the VCR 2 button and VCR 1
DUBBING button. Set the recording
VCR (VCR 1) to recording mode. Set
the playback VCR (VCR 2) to play-
back mode.
Dubbing will start.
■To hear another input source dur-
ing videotape dubbing: Press the
input function you want to hear,
and play the input source.
NOTE: If you press the TEST TONE
button during VCR 1 DUBBING, the
audio signal is not recorded.
11. PRESET SCAN BUTTON
Press this button to scan the preset
station frequencies. The receiver stops
at each preset location that contains a
frequency for about 4 seconds, so you
can hear a station. The preset location
indicator blinks 4 times. Press this
button again to stop scanning.
12. SEARCH SELECTOR
Press this button to select AUTO or
MANUAL tuning.
■In AUTO mode, scanning is auto-
matically continued up or down
until the next station is picked up
by pressing the UP/DOWN tuning
button. The display window shows
SEARCH. Use this mode to quickly
find strong AM or FM stations.
■In MANUAL mode, the frequency
is changed by a step with the
UP/DOWN button. If you keep
pressing the UP/DOWN tuning
button, scanning is continued until
the button is released.
NOTE: Tuning Intervals:
BAND EUROPE/AUSTRALIA
FM 50 kHz
AM 9 kHz
13. FM MODE BUTTON
Press this button to select stereo or
mono mode.
■STEREO: Provides stereophonic
reception of an FM stereo broad-
cast. The display window shows
STEREO.
■MONO: The left and right channel
signals detected from an FM
stereo broadcast are mixed and
reproduced through both chan-
nels. If you want to find a weak FM
station, select this mode. The dis-
play window shows MONO.
14. STATION MEMORY
BUTTON
Use this button to store an AM or FM
frequency. Press this button and
select one of 30 preset locations to
store the frequency with the STATION
PRESET buttons while the memory
indicator blinks MEMORY.
NOTE: When you store a frequency
in a memory location that already
contains a frequency, you replace the
previous frequency. If your receiver is
disconnected from AC power for
more than about 10 days, it loses all
stored frequencies.
15. UP/DOWN TUNING
BUTTONS
Press the DOWN button ▼to tune in
lower frequency stations, the UP
button ▲to tune in higher frequency
stations. If you press the DOWN
button when the display is at the
bottom of the frequency range, the
display returns to the top of the
range. If you press the UP button
when the display is at the top of the
frequency range, the display returns
to the bottom of the range. When the
receiver finds a strong frequency, the
display window shows TUNED.
16. FM/AM BAND SELEC-
TOR
Press these buttons to select the FM
or AM radio band. When you select
the AM or FM radio band, the receiver
displays the last frequency selected
on that band.
17. STATION PRESET
BUTTONS
Select one of 30 preset locations to
recall the station stored in memory. The
input function is automatically changed
JSR655om (a) qx 7/28/98 9:54 AM Page 7

6
to TUNER when the button is pressed.
When you select numbers from 10
through 29, you must select the
second digit within about 2 seconds.
To select preset 30, simply press 0.
18. TAPE 2 MON BUTTON
Set TAPE 2 MONITOR button to the “off”
position when you want to hear the other
input functions. Press this button to monitor
the cassette deck connected to the TAPE
2 MON input jacks.
19. INPUT FUNCTION
SELECTOR
Press the button to select the desired input
function: VCR 1, VCR 2, TAPE 1, TV/Aux,
Tuner, CD or Phono.
20. VCR 2 SELECTOR
Push in this button to select the VCR 2
jacks on the front, rather than the VCR 2
jacks on the rear.
21. VCR 2/CAMCORDER
INPUT JACKS
VIDEO IN:
Connect to the VIDEO OUTPUT jack or a
VCR (Yellow jack).
AUDIO IN:
Connect to the AUDIO OUTPUT jacks of a
VCR (Red and White jacks).
22. LOUDNESS BUTTON
Press this button to compensate for the
response of the human ear at low listening
levels (known as the Fletcher-Munson
hearing curve). The high and low frequen-
cies are automatically boosted when this
button is pushed in. In the OFF position,
the frequency response is flat at all
volume levels. This button does not work
at high volume levels.
23. VOLUME CONTROL
Turn the VOLUME clockwise to increase
the volume and counterclockwise to
decrease it. The volume of the front,
center, and rear channels is changed at
the same time.
24. VOLUME LEVEL
INDICATOR
This indicator moves in accordance
with the volume level. The indicator
blinks when the mute button on the
remote commander is pressed.
25. DISPLAY WINDOW
This window shows the state of
operation for easier control of the
receiver. It also contains the IR
Remote Sensor.
JSR655om (a) qx 7/28/98 9:54 AM Page 8

7
Rear Panel Connections
FM OUTDOOR ANTENNA
REC
IN
1
SUBWOOFER
OUT
FM INDOOR ANTENNA AM LOOP ANTENNA TV MONITOR 1 TV MONITOR 2
CENTER
SPEAKER
1 FRONT SPEAKERS
RIGHT LEFT POWER AMPLIFIER
SUBWOOFER
TO WALL
OUTLET
PLAY ONLY VCR or VDP
REMOTE
CASSET TE DECK 2
TO WALL OUTLET
2 FRONT SPEAKERS
REAR SPEAKERS
VCR
COMPACT DISC PLAYER
CASSET TE DECK 1
TO WALL OUTLET
TURNTABLE
300Ω/75Ω
ADAPTOR 300Ω/75Ω ADAPTOR
23
4
18
57
6
8910
11
12 13 14 20 17
15
21
19
-1
-2
16
14
PLAY
OUT REC
IN PLAY
OUT
IN
AUDIO VIDEO
OUT OUT
IN
OUT
AUDIOVIDEO
OUT
L
R
OUT
PLAY
VCR-2
IN
- +
- + - +
- +
- + - +
- +
ANTENNA
FRONT CENTER VIDEO MONITORS
REAR SPEAKERS REMOTE CONTROL
FRONT SPEAKERS
SERIAL NO.
MODEL NO.: JSR655
JBL INCORPORATED
NORTHRIDGE
CALIFORNIA, USA
MADE IN KOREA
AM
LOOP
FM
75Ω
LEFT
RIGHT
PRE OUT MAIN IN PRE OUT PRE OUT
IN OUT IN
VCR 1
VCR 1
VCR 2
VCR 2
MONITOR
1
MONITOR
2
GND
TV/AUX
LEFT
RIGHT
TAPE 1
PLAY PLAY PLAY PLAY RIGHT
8ΩLEFT 8Ω
REC RECREC
TAPE 2 MONPHONO CD
REMOTE
IN OUT
CENTER
SPEAKERS
8Ω19A
RIGHT LEFT
RIGHT LEFT
USE 8 OHM MIN. SPEAKERS
LEFT
RIGHT
22
JSR655om (a) qx 7/28/98 9:54 AM Page 9

8
1. FM INDOOR ANTENNA
Connect the supplied antenna (the
wire lead) to a 300Ω/75Ωadapter
and connect the adapter to the 75Ω
T-shaped FM antenna terminal, as
shown in the Rear Panel Connection
Diagram. Change the position of the
antenna until you get the best recep-
tion of your favorite stations.
2. FM OUTDOOR
ANTENNA
An outdoor FM antenna may be used
to further improve the quality of
reception. Disconnect the indoor
antenna before replacing it with the
outdoor one. A 75Ω/300Ωadapter
must be used.
3. AM LOOP ANTENNA
Tune in your favorite AM station and
position the loop antenna for best
reception. Try other stations and find
the position that gives the best overall
reception. When this unit is mounted
in a rack or placed on a shelf with
insufficient space behind, hang the
antenna on a wall in the direction
which gives the best reception.
NOTE: If noise is heard during AM
reception, move the antenna for bet-
ter reception. To prevent undesired
noise, the AM LOOP ANTENNA
should be located at least 30cm
away from the remote control wiring.
4. SYSTEM GROUND
TERMINAL
To reduce hum to a minimum, con-
nect the ground lead from your
turntable to this terminal.
5. PHONO INPUT JACKS
Input for TURNTABLE with an MM
cartridge having 47K ohms of load
impedance. Connect shielded cables
from your phono to the LEFT and
RIGHT input jacks.
NOTE: Do not place your
TURNTABLE on a speaker enclosure.
This will avoid howling caused by
transmission of the speaker vibration
to the TURNTABLE.
6. TV/AUX INPUT JACKS
This extra stereo input is provided for
any source you want to hear. An
additional compact disc player, a
tape recorder, a video cassette
recorder (VCR) etc., can be plugged
into these jacks.
7. CD INPUT JACKS
Connect the output cables of a com-
pact disc player to these jacks.
8. TAPE 1 PLAY JACKS
Connect the line output of your
CASSETTE DECK to these jacks.
9. TAPE 1 REC JACKS
Connect the line input of your
CASSETTE DECK to these jacks.
10. TAPE 2 MONITOR
PLAY JACKS
Connect the line output of your
CASSETTE DECK to these jacks. This
input may be connected to the line
output of the audio processor like an
optional graphic equalizer or a Digital
Signal Processor.
11. TAPE 2 MONITOR REC
JACKS
Connect the line input of your
CASSETTE DECK to these jacks. EQ
controls, loudness and volume set-
tings have no effect on the signal
from this output for recording. To
monitor this input source while
recording, press the TAPE 2 MONI-
TOR button (MONITOR ON position).
These REC jacks may be used for the
line input of the audio processor like
an optional graphic equalizer or a
Digital Signal Processor.
AM LOOP ANTENNA SETTING
Stand and place it on a shelf
or hang it on a wall.
LEG
Rear Panel Connections
JSR655om (a) qx 7/28/98 9:54 AM Page 10

9
12. VIDEO/AUDIO INPUT
(PLAY) JACKS OF VCR 1
Connect these jacks to the corre-
sponding AUDIO OUTPUT jacks of
your VCR.
13. VIDEO/AUDIO OUTPUT
(REC) JACKS OF VCR 1
Connect these jacks to the corre-
sponding INPUT jacks of a VCR.
VIDEO OUTPUT jack: Connect this
jack to the VIDEO INPUT jack of the
VCR. AUDIO REC jack: Connect
these jacks to the AUDIO INPUT
jacks of the VCR.
14. VIDEO/AUDIO INPUT
(PLAY) JACKS OF VCR 2
Connect these jacks to the corre-
sponding OUTPUT jacks of your VCR
or VDP.
15. VIDEO MONITOR JACK
Connect this jack to the VIDEO
INPUT jack of a TV/MONITOR.
16. REMOTE CONTROL
OUT JACK
Connect this jack to the “REMOTE IN”
jack on a Harman Kardon component.
Use one of the accessory mini-plug
cables.
You can control some Harman Kardon
components in your system using the
JSR655 remote commander.
17. MULTI-ROOM REMOTE
IN JACK
Connect a remote IR sensor to this
jack. You can operate the unit by
remote commander through the
adapter. It is convenient when the unit
is located in a separate room. (See
page 10)
18. FRONT, CENTER,
REAR PRE OUT AND MAIN
IN JACKS
FRONT PRE OUT
When a separate power amplifier is
used to drive the front speakers, con-
nect the power amplifier input to
these jacks.
FRONT MAIN IN
When a separate pre-amplifier is con-
nected and this unit is used as a
power amplifier, connect the pre-
amplifier output to these jacks.
NOTE: When you do not use the
PRE OUT and MAIN IN separately,
always connect the PRE OUT and
MAIN IN jacks with a jumper plug.
CENTER PRE OUT
When a separate power amplifier is
used to drive the center speaker,
connect the power amplifier input to
these jacks.
REAR PRE OUT
When a separate power amplifier is
used to drive the rear speaker, con-
nect the power amplifier input to
these jacks.
19. 1/2 SPEAKER
TERMINALS
Connect the main left (L) and right
(R) speakers to the corresponding A
and B speaker terminals. Make sure
that the positive (+) and negative (-)
terminals on the speaker are con-
nected to the corresponding termi-
nals on the receiver.
19A. CENTER SPEAKER
TERMINALS
Connect the corresponding positive
and negative terminals on the center
speaker to the positive (+) and nega-
tive (-) terminals on the receiver.
20. REAR SPEAKER
TERMINALS
Connect rear speakers to the corre-
sponding terminals. When you con-
nect the rear speakers, connect both
L and R speakers.
21. AC INPUT CORD
Plug this cord in the AC outlet on
a wall.
22. SUBWOOFER OUT
When a separate power amplifier is
used to drive a subwoofer, connect
the power amplifier inputs to these
jacks.
JSR655om (a) qx 7/28/98 9:54 AM Page 11

10
REAR SPEAKERS
RIGHT
8Ω
LEFT
8Ω
REMOTE CONTROL
REMOTE
REMOTE IR SENSOR
REMOTE ROOMMAIN ROOM
REMOTE
COMMANDER
2 SPKR
LEFT
1 SPKR
LEFT 1 SPKR RIGHT 2 SPKR RIGHT
REMOTE IR SENSOR
RECEIVER
Volume
Speakers
12
FMMode Search
AM FM
Tuning
Loudness
12 3 4 5 P.Scan
0-30
Memory67890
Surround Input
VCR2 VCR1 VCR2
Delay
Surround
Center
Test
Tape2 Mon
Tape1
VCR2
VCR1
TV/Aux
Tuner
Phono
CD
Power Headphones SetRecSet
Bass Treble Balance
DOLBYSURROUND
PRO•LOGIC
JSR655DOLBY
®
SURROUND RECEIVER
PRO-LOGIC
DOLBYSURROUND
MHz
FM
AM
MONO SEARCH TAPEMONITOR
PRESETMEMORY
MS
MIN
DELAY
TIME
SLEEP
CENTERMODE
PHANTOM
NORM WIDE
VCR1DUBBING
KHz
3STEREO
HALL
CD
Tape1 Tape2
TV/Aux
VCR1 VCR2
CassDeck
Skip
Intro
Search
Phono
Tuner A-B
A/B
Select
Delay
Off Hall
Surround
3-Stereo
Pro-Logic
Display Sleep Mute
RearLevel MasterVolume
CenterLevel CentMode Test
Power Tuning PScan
Tuner
CD
12345
67890
Disc
IN OUT
Optional Multi-Room Control
Adapter Connection
JSR655om (a) qx 7/28/98 9:54 AM Page 12

11
LINE-IN
PRE OUT PRE OUT PRE OUTMAIN IN
LEFT
RIGHT
FRONT CENTER REAR
L
R
CENTER
SPEAKER
(Remove PRE OUT/MAIN IN jumpers when the front speakers are connected to external amplifier.)
FRONT(left)
FRONT(right)
Power
LEFT
RIGHT
RIGHT
USE 8 OHM MIN SPEAKERS
FRONT SPEAKERS
-1
-2
Power Amplifier
CENTER
SPEAKERS SUBWOOFER
OUT
8 Ω
LEFT
RIGHT LEFT
REAR SPEAKERS
RIGHT
8 ΩLEFT
8 Ω
When you drive the front speakers with another amplifier
JSR655om (a) qx 7/28/98 9:54 AM Page 13

12
FRONT SPEAKER
PRE OUT PRE OUT PRE OUTMAIN IN
LEFT
RIGHT
FRONT CENTER REAR
REAR SPEAKERS
RIGHT
8 ΩLEFT
8 Ω
CENTER
SPEAKER
CENTER
SPEAKERS
8 ΩLEFT
RIGHT
SUBWOOFER
OUT
RIGHT
USE 8 OHM MIN SPEAKERS
FRONT SPEAKERS
-1
-2
LEFT
RIGHT LEFT
LINE-IN
L
R
FRONT(left)
FRONT(right)
Power
Power Amplifier
JUMPER PLUG
When you drive the rear speakers with another amplifier
JSR655om (a) qx 7/28/98 9:54 AM Page 14

13

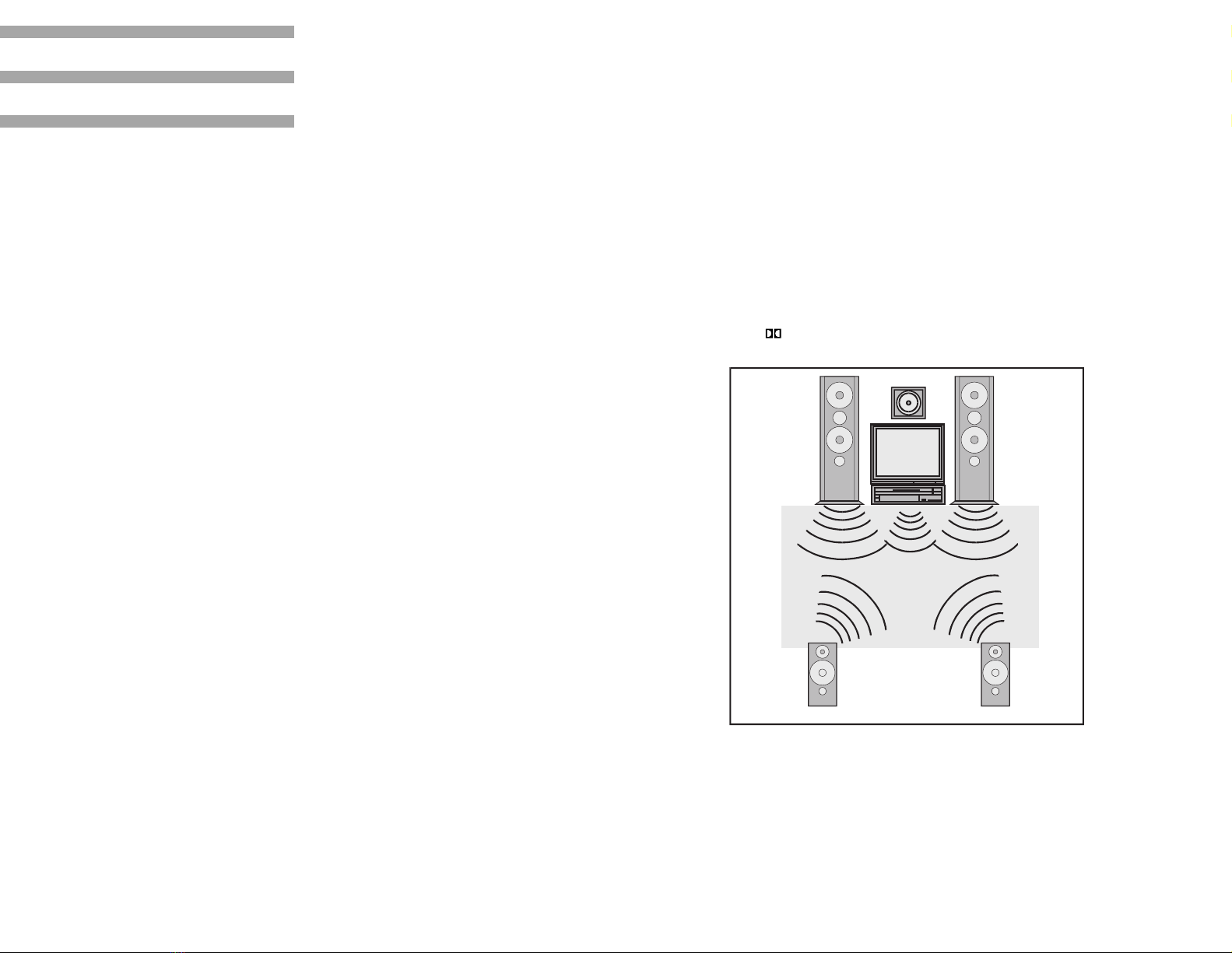

Surround Sound
The JSR655 is equipped with 3 types
of surround processors (DOLBY PRO
LOGIC, DOLBY 3 STEREO and
HALL) which provide a sense of
presence and expansion and let you
enjoy surround-sound in your home.
Every day, we are exposed to sounds
coming from our surroundings. Some
sounds reach our ears directly from
the source, some indirectly reflected
by walls or ceilings. Sounds of voices
reach us from behind, sounds of cars
reach us from the side. Sounds com-
ing from all around us are called
surround-sounds.
In order to recreate with as much
precision as possible that special
sound in movie theaters, speakers
are placed both in front of and
behind the listeners. One reason that
sound from the television in our
homes is so different from sound in
movie theaters is because usually
sound from a television only comes
from in front of the viewer. With a
surround system, the sounds of
applause and cheers from the stands
during a baseball game on TV come
from in front and in back, from left
and right.
The sound from a TV equipped with
a single speaker (or 2 speakers with
stereo televisions) sounds very differ-
ent from the actual, “live” sound.
Surround Processors
- HALL
Hall mode works best for recorded
concerts and other music programs.
In this mode, the front speakers pro-
vide a normal stereo effect while the
rear speakers provide a reverberated
sound. This reverberation helps simu-
late the sound you might hear at a
live concert.
- DOLBY 3 STEREO
Combining the front and rear signals
so that you can enjoy a regenerated
sound field which has comparatively
more presence and a more expansive
feeling from the front 3 channels (front
L, front R, center speakers) than that
of ordinary stereo regeneration.
- DOLBY PRO LOGIC SURROUND
A great number of movies made in
recent times have the soundtrack
specially encoded with the Dolby
Surround mode (carrying the Dolby
Stereo or Dolby Surround trademark).
The front speakers provide the dia-
logue and the normal stereo effect,
while the rear speakers reproduce the
surround signals. This position pro-
vides excellent results when watching
television programs, video software,
video discs or videotapes of stereo
television broadcasts encoded with
Dolby Surround. Dolby Stereo films
have dramatically changed the role of
the moviegoer from that of observer to
that of participant. Clearer dialogue,
richer music, enveloping ambience
on-screen, and making high-fidelity
multidimensional sound are essential
parts of cinematic presentations.
Imagine recreating the same sort of
audio-visual experience right in your
own home.
*Manufactured under license from Dolby Laboratories
Licensing Corporation.
DOLBY, the double-D symbol and PRO LOGIC are
trademarks of Dolby Laboratories Licensing Corporation.
Speaker Installation
The JSR655 incorporates a decoder
which reproduces the specially
encoded surround-sound of Dolby
Surround video programs. In Dolby
Surround mode, select the speaker
operation mode according to your
speaker system.
NORMAL mode
Select this mode if you use a small center speaker. The bass
sound of the center channel is output from the front speakers,
as a small speaker can’t produce enough bass.
CENTER
FRONT
(left) FRONT (right)
REAR
(right)
REAR
(left)
Surround-Sound Effects
JSR655om (a) qx 7/28/98 9:54 AM Page 15

14
FRONT
(right)
FRONT
(left)
FRONT
(left)
CENTER
FRONT
(right)
REAR
(right)
REAR
(left)
FRONT
(left) FRONT (right)
CENTER
REAR
(right)
REAR
(left)
WIDE mode
Select this mode if you use a medium to big center speaker. PHANTOM mode
Select this mode when you play back a Dolby surround
program source without using a center speaker. The
sound of the center channel is output from the front
(L and R) speakers.
3 STEREO mode
Select this mode when you play back a Dolby surround
program source only with the front and center speak-
ers. The sound of the rear channel is output from the
front (L and R) speakers.
JSR655om (a) qx 7/28/98 9:54 AM Page 16

15
TUNER SECTION
- Press the FM/AM SELECTOR on the
front panel.
- Three different ways can be selected
for tuning.
A. SEARCH TUNING
If signals are strong and there is no
interference, quick auto search
tuning is possible.
1. Press the SEARCH selector so
that the indicator, SEARCH lights
up.
2. Press the TUNING button (DOWN
or UP) to tune. Tuning will start
automatically and stop at a broad-
cast station frequency with suffi-
cient signal strength.
B. MANUAL TUNING
Auto tuning may be impossible if the
station signal is weak. If so, use man-
ual searching.
1. Press the SEARCH selector so that
the indicator SEARCH goes off.
2. Press the TUNING button (DOWN
or UP) to tune. The frequency will
change rapidly if the TUNING
button is kept pressed. Release it
slightly before reaching the desired
frequency, and press it intermittently
until the desired frequency is
reached.
C. PRESET TUNING
STATIONS
PRESET buttons can be used to
select any desired station which has
been preset. To preset a station in
memory:
1. Tune to the station to be memorized.
2. Press the MEMORY button and
press the desired preset station but-
ton while the memory indicator blinks
(it will blink for about 4 seconds). To
recall the preset station, press the
desired PRESET STATION buttons. If
pressing only one numeral, there will
be a 4-second delay until the preset
is recalled.
AMPLIFIER SECTION
1. Set the VOLUME CONTROL to the
extreme counterclockwise position.
2. Turn the power on.
3. Select the desired input function.
4. Play the input source.
5. Turn the VOLUME clockwise until
you reach the desired sound level.
TAPE RECORDING
1. Insert a blank tape in a cassette
deck (TAPE1 or TAPE 2).
2. Select the desired input function.
3. Set the cassette deck to recording
mode.
4. Play the input source. Recording will
start.
TAPE DUBBING
1. Insert a blank tape in cassette deck 2
(TAPE 2).
2. Insert a recorded tape in cassette
deck 1 (TAPE1).
3. Select the input function of TAPE 2
MON to monitor the sound (see #10
on page 8).
4. Set cassette deck 2 to recording
mode.
5. Set cassette deck 1 to playback
mode. Dubbing will start. NOTE: If
you press the TEST TONE button
during TAPE RECORDING or TAPE
DUBBING, the audio signal is not
recorded.
PROTECTION CIRCUITS
This receiver has special protection
circuits.
■The thermal overload protection
circuit automatically turns off the
power if it begins to overheat.
■The overdrive protection circuit
automatically turns off the power if
the speaker terminals are shorted.
■The short protection circuit auto-
matically turns off the power if the
speaker terminals are shorted.
If the receiver shuts off, check to be
sure that the ventilation holes on the top
of the receiver are clear of obstructions,
and check the speaker connections
and impedance.
Operation
JSR655om (a) qx 7/28/98 9:54 AM Page 17

16
1. INFRARED TRANSMITTER
WINDOW
The internal beam is emitted forward from
this window when you press any button
on the commander. For the remote con-
trols to function properly, always face this
window toward the remote sensor window
on the receiver and do not obstruct this
window with any material.
2. POWER BUTTON
Press this button to turn the power on and
off. Automatic power on: When you press
the input function buttons (CD, TUNER,
TAPE 1, TAPE 2, TV/AUX, VCR 1, VCR 2,
PHONO) in STANDBY mode, the power is
automatically turned on and the function is
selected.
3. TUNING UP/DOWN
Press these buttons to tune the receiver
up or down.
1
12
4
5
6
16
14
11
2
3
7
13
15 17
8
CD
Tape1 Tape2
TV/Aux
VCR1 VCR2
CassDeck
Skip
Intro
Search
Phono
Tuner A-B
A/B
Select
Delay
Off Hall
Surround
3-Stereo
Pro-Logic
Display Sleep Mute
RearLevel MasterVolume
CenterLevel CentMode Test
Power Tuning PScan
Tuner
CD
12345
67890
Disc
18
9
10
REMOTE CONTROL
OPERATION RANGE
Volume
Speakers
12
FM Mode Search
AM FM
Tuning
Loudness
12 3 4 5 P.Scan
0-30
Memory67890
Surround Input
VCR2 VCR1 VCR2
Delay
Surround
Center
Test
Tape 2 Mon
Tape 1
VCR2
VCR1
TV/Aux
Tuner
Phono
CD
Power Headphones SetRecSet
Bass Treble Balance
DOLBY SURROUND
PRO•LOGIC
JSR655 DOLBY
®
SURROUND RECEIVER
8m
30
0
30
0
CD
Tape1 Tape2
TV/Aux
VCR1 VCR2
CassDeck
Skip
Intro
Search
Phono
Tuner A-B
A/B
Select
Delay
Off Hall
Surround
3-Stereo
Pro-Logic
Display Sleep Mute
RearLevel MasterVolume
CenterLevel CentMode Test
Power Tuning PScan
Tuner
CD
12345
67890
Disc
PRO-LOGIC
DOLBYSURROUND
MHz
FM
AM
MONO SEARCH TAPEMONITOR
PRESETMEMORY
MS
MIN
DELAY
TIME
SLEEP
CENTER MODE
PHANTOM
NORM WIDE
VCR1 DUBBING
KHz
3 STEREO
HALL
JSR655 System Remote Control
JSR655om (a) qx 7/28/98 9:54 AM Page 18

17
4. PRESET SCAN BUTTON
Button for scanning preset station
frequencies (see page 15).
5. NUMERIC BUTTONS
These buttons can be used for preset
tuning in TUNER mode. Preset tuning:
Press the TUNER button to change the
input function of the receiver to TUNER
and then select one of the 30 preset
locations. Selection of CD track number:
Press the CD button to change the input
function of the receiver to CD and press
the desired track number (1, 2, ... 98, 99),
then the CD player starts to play.
6. CD FUNCTION BUTTONS
For a CD PLAYER: DISC (DISC SKIP, this
is available for Harman Kardon CD
changers), (play), (pause), (stop), (back-
ward skip), (forward skip), A-B and INTRO
buttons are available. The A-B button is
used to repeat a specific passage.
7. CASSETTE DECK
FUNCTION
BUTTONS - For a cassette deck:
(pause/record), (stop), (record),
(reverse play), (forward play), (rewind),
(fast forward) buttons are available.
This will only work with some Harman
Kardon cassette decks.
8. DELAY TIME BUTTON
This button operates only in DOLBY
PRO LOGIC and HALL modes. In
these modes, the output signal from
the surround speakers is delayed
slightly from that of the front speakers.
Select appropriate delay time to
achieve the best surround-sound
effect. For Dolby Surround sound, we
recommend a 20ms delay. The time is
changed as below, when the button is
pressed in succession.
DOLBY PRO LOGIC
HALL MODE
9. INPUT FUNCTION
SELECTOR
Press the button to select the desired
input function. The available buttons
are CD, TUNER, TAPE 1, TAPE 2,
TV/AUX, VCR 1, VCR 2, and PHONO.
10. CENTER LEVEL
UP/DOWN BUTTONS
Use these buttons to adjust the sound
level of the center speaker to that of the
front speakers. These buttons work only
05 ms 10 ms 15 ms 20 ms 25 ms 30 ms
15 ms 20 ms 25 ms 30 ms
in DOLBY PRO LOGIC and DOLBY 3
STEREO mode. These buttons do not
work in PHANTOM.
11. CENTER MODE BUTTON
Selects the center mode (see page 14).
12. TEST TONE BUTTON
Generates test sounds in all channels
(Left, Center, Right and Surround) in
succession.
13. REAR LEVEL
UP/DOWN BUTTONS
These buttons operate only in DOLBY
PRO LOGIC and HALL mode. Use
these buttons to adjust the sound
level of the surround speakers. Set
the MASTER VOLUME control at the
desired level and press the up or
down button until you get the opti-
mum surround effect at your listening
position.
14. MASTER VOLUME
BUTTONS
Adjust the overall (front, center, and
rear) volume level.
15. DISPLAY BUTTON
Press once and the display dims,
press again and it turns off. Press a
third time and it goes on.
16. SLEEP BUTTON
Sets the receiver to automatically turn
off after 10, 20, 30, 60, or 90 minutes.
Each time the button is pressed, the
setting is advanced as below.
The display will dim when the sleep
function has been set.
17. MUTE BUTTON
Press this button to silence the
speakers temporarily. The volume
indicator blinks. Press again to
restore the same listening level as
before.
18. BATTERY
COMPARTMENT
This battery case is provided as the
power source for the commander. To
remove the cover, press it down with
your thumb and pull it toward the
back side. Two UM-3, size “AA” or R6
1.5V dry batteries are used. When
loading the batteries, make sure that
the polarity is correct. Remove the
batteries from the case if the remote
commander will not be used for a
long time.
10 min 20 min 30 min 60 min 90 min OFF
JSR655om (a) qx 7/28/98 9:54 AM Page 19

18
This unit is designed for trouble-free operation. Most problems users’ encounter are due to operating errors. So if you have a problem, first check this list for a possible
solution. If the problem persists, consult your authorized JBL service center.
If the problem is... Make sure that the:
No lights illuminate when Power switch is pressed. • Unit is plugged into a live outlet.
No sound is heard. • Speaker selector is set to the desired speakers.
• Correct source button has been pressed.
• Volume is turned up.
• Speakers are connected properly.
Dolby Surround does not work on center and rear channels. • Correct surround mode is selected.
• Rear and Center levels are turned up.
Selecting video component produces sound but no picture. • Video cables are connected properly.
The TV picture does not match the sound. • Video sources are properly connected to receiver.
• Video/Antenna Switch on TV is set to Video.
No output from one or more channels. • Cables are not defective: check/replace speaker or phono cables.
• The signal source is operating and providing proper signal output to the JSR655.
No center channel output. • Dolby surround or movie mode is turned on.
• “Phantom” mode is not active.
Tuner sound has a large amount of interference. • The antenna is properly connected.
OR, The “Stereo” display is not fully illuminated. • The antenna is properly located.
OR, Tuner sound distorts and/or volume level is too low. • The antenna is set in the proper direction.
• The antenna is adequate to receive the desired station.
Tuner is intermittent or continuously buzzing or hissing. • The unit is away from fluorescent lights, TVs, motors and other electrical appliances.
Stations cannot be preset. • After pressing the Memory button, the Preset button is pressed while the “Memory” light is still flashing.
Phono sound is too faint, has hum, ringing, or howl. • Turntable cartridge is moving magnet type, or step-up transformer is used.
• Ground wire from turntable has been connected to ground terminal on receiver.
• Cable from turntable is away from power cords and speaker cables.
• Turntable is away from speakers.
• Turntable is on a stable surface.
Troubleshooting
JSR655om (a) qx 7/28/98 9:54 AM Page 20

19
Stereo Mode
Continuous Average Power 120 Watts x 2, 8 Ohms
Five Channel Surround Mode
Continuous Average Power
Front L&R channels 100 Watts x 2, 8 Ohms
Center channel 100 Watts, 8 Ohms
Rear channels 40 Watts x 2, 8 Ohms
Amplifier Section
High-Instantaneous Current Capability
(HCC): ±30 Amps
Negative Feedback: 26dB
Frequency Response @ 1W (+0/-3dB): 0.5Hz - 150kHz
Slew Rate: 80 Volts/µSec
Rise Time: 1.8µSec
Transient Intermodulation Distortion (TIM): Unmeasurable
Preamplifier Section
Signal-to-Noise Ratio (ref. 1 Volt, A-Wtd)
Phono (MM): 74dB
CD: 92dB
Video: 84dB
Input Sensitivity/Impedance
Phono (MM): 2,5mV/47kΩ125pF
Video, CD, Tape: 150mV/22kΩ
Phono Overload: 140mV
RIAA EQ Accuracy (20Hz-20kHz): ±1.0dB
Tone Control Range
Bass @ 100Hz: ±10dB
Treble @ 10kHz: ±10dB
Loudness Contour
100Hz/10kHz: +6dB/+3dB
Tuner Section: FM
Usable Sensitivity, Mono (dBf): 11.2
50dB Quieting Sensitivity, Stereo (dBf): 37.2
Signal-to-Noise Ratio
@ 65dBf, mono/stereo: 74dB/70dB
Capture Ratio: 2.0dB
Selectivity, Adjacent/Alternate Channel: 5dB/65dB
IF Rejection: 100dB
AM Rejection @ 45dBf: 55dB
Stereo Separation @ 1kHz, 65dBf: 45dB
THD @ 1kHz, 65dBf, mono/stereo (%): .2/.3
Tuner Section: AM
Sensitivity, External Antenna: 25µV
Alternate Channel Selectivity: 55dB
Image Rejection: 35dB
IF Rejection: 60dB
Dimensions (WxHxD)
inches 175⁄16 x 47⁄8x 1515⁄16
mm: 440 x 125 x 380
Weight (lbs/kgs): 23.59 / 10.7
Depth measurement includes knobs, buttons and antennas.
Height measurement includes feet.
All features and specifications are subject to change without notice.
Specifications
Declaration of Conformity
We, JBL Europe A/S
Kongevejen 194B
DK-3460 Birkerød
DENMARK
declare in own responsibility, that the product described
in this owner’s manual is in compliance with technical
standards:
EN 60 065/1994
EN 55 013/6.1990
EN 55 020/6.1988
EN 60 555-2-3/1987/88
Steen Michaelsen
JBL Europe A/S
Birkerød. DENMARK. 1/97
JSR655om (a) qx 7/28/98 9:54 AM Page 21
