User's Manual
M8NF

Table of contents
Maintenance 3
Important safety instructions for installation 3
Important safety instructions for use 3
Use of the equipment 3
Technical Data 4
Connection 5
Installation 6
Installation with support 6
Installation without support 6
Door Positioning 6
Programming 7
Radio Manual Porgramming 7
Total Reset 7
Safety devices programming 8
RadioBand3 / RadioSens3 Transmitter Programming in RSEC3 Receiver 8
Adjust the sensibility and inhibition point 8
Maneuver programming 9
Programming the door maneuver without RadioSens3 system 9
Programming the door maneuver with RadioSens3 system 10
Notes 11
Regulatory Data 12
EU Declaration of conformity 12
jcmtechnologies
2

Maintenance
Important safety instructions for installation
Disconnect the power supply whenever you proceed to the installation or repair
of the control panel.
•The panel must be installed while the power is disconnected.
•Before installing the panel, remove all unnecessary ropes or chains and disable any equipment such as
locks that is not necessary for the automatic operation.
•Before installing the panel, check that the door is in good mechanical condition, correctly balanced and
that it opens and closes correctly.
•Install the manual unlocking device at a height lower than 1.8m.
•Install any permanent control next to the door away from any moving part and at a minimum height of
1.5m.
•For permanently connected equipment, an easily accessible power disconnection device must be incor-
porated into the wiring. It is recommended that this be of the emergency switch type.
•If the control panel is supplied without emergency stop button, this will be incorporated in the installation,
connecting it to the STOP terminal.
•For correct use of the security edge, this must never be activated when the door is fully closed. It is wise to
install the ends of run before activating the edge.
•This equipment can only be handled by a specialist fitter, by maintenance staff or by a suitably trained
operator.
•To connect the power supply and motor wiring, 2.5 mm2 section terminals must be used.
•Use protective goggles when handling the equipment.
•Fuses must only be handled when the appliance is disconnected from the mains.
•The instructions for using this equipment must remain in the possession of the user.
•European door normative EN 12453 and EN 12445 specify the following minimum protection and
door safety levels:
- for single-family dwellings, prevent the door from making contact with any object or limit the force of con-
tact (e.g. safety band), and in the case of automatic closing, it is necessary to complement this with a pres-
ence detector (e.g. photocell).
- for communal and public installations, prevent the door from making contact with any object or limit the
force of contact (e.g. safety band), and complement this with a presence detector (e.g. Photocell).
Important safety instructions for use
•Do not allow children to play with the door controls.
•Keep the remote controls out of the reach of children.
•Watch the door movement and keep people away until the door is fully open or closed.
•Precaution when operating the manual unlocking device, as the door may suddenly fall due to the bad
condition of the springs or door unbalance. Details on how to use the manual unlocking device must be
provided by the manufacturer or the device installer.
•Examine the installation frequently, especially the cables, springs and supports, to detect signs of wear,
damage or unbalance. Do not use the door if repair work or adjustments are required, as this may cause
damage.
Use of the equipment
Designed for automation of garage doors, in accordance with the general description. Not guaranteed for other uses. The man-
ufacturer reserves the right to alter equipment specifications without prior notification.
jcmtechnologies
3

Technical Data
Parameter Value
Frequency 868,35 MHz
Codification High security rolling code
Memory 27 codes (expandable to 500 codes with memory
card)
Power supply 230Vac ±10%
Maximum motor power 750W / 1200W (intensive use / residential use)
Standby / operating consumption 23mA / 43mA
Motor fuses 6A
Optional cards RSEC3 + MEM 500 + V-XPAN + TL-CARD-V
Free voltage output 2 outputs
12Vdc output 1 fix (100mA) + 1 configurable (100mA)
Manoeuvre time 1 second – 6 minutes
Operating temperature -20ºCto +55ºC
Watertighness IP32
Size 180 x 152 x 88mm
jcmtechnologies
4

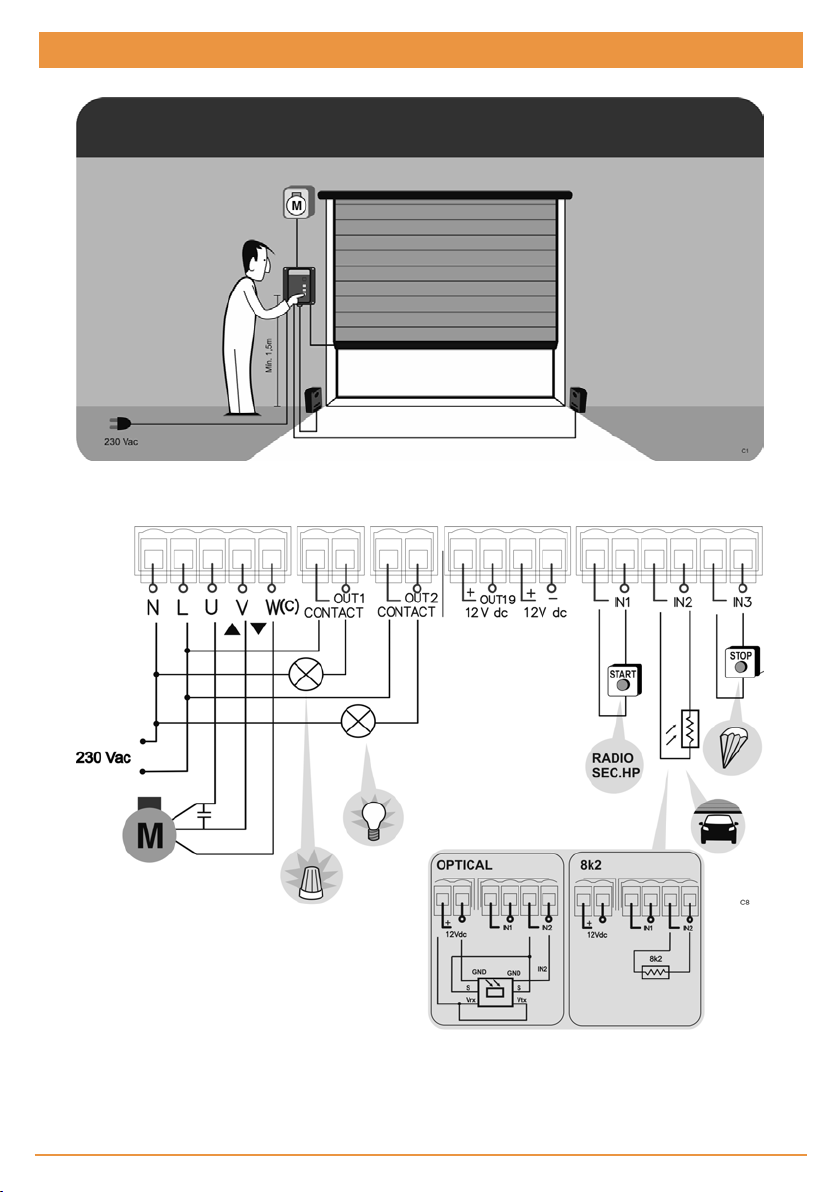

Connection
jcmtechnologies
5

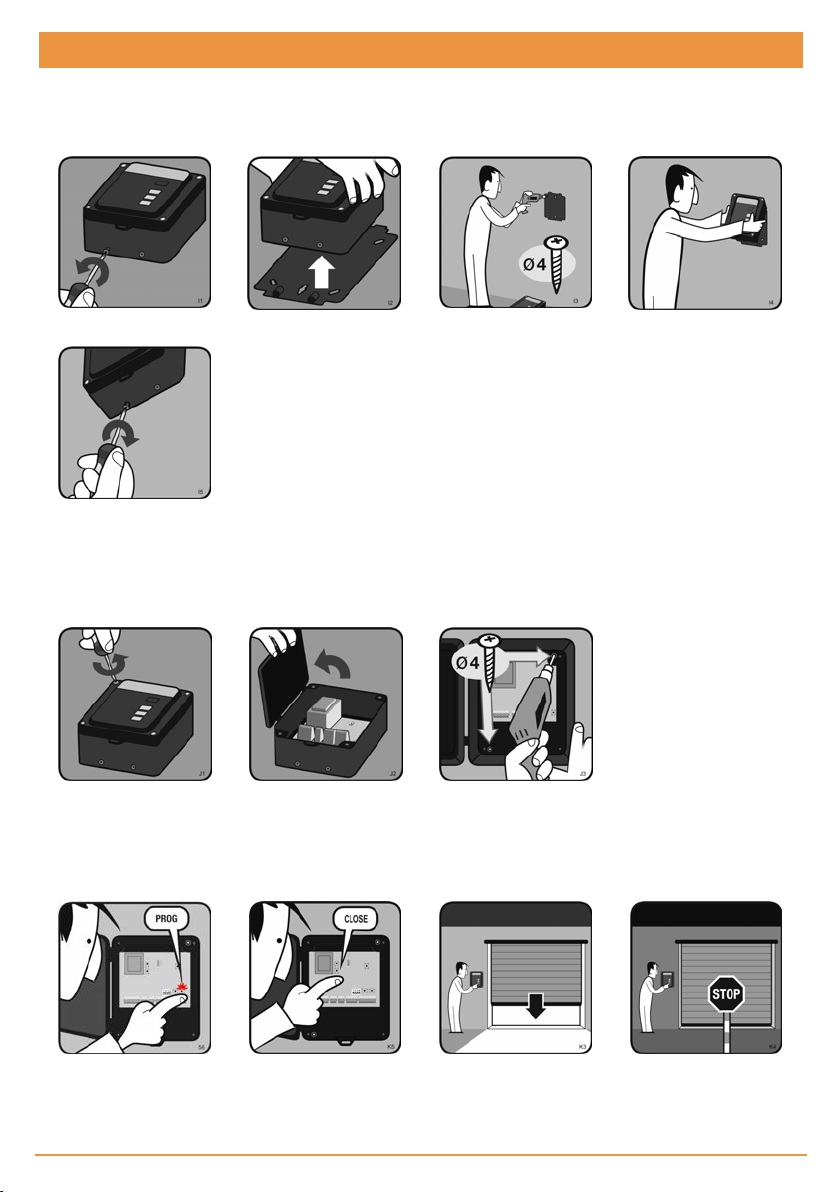

Installation
Installation with support
UNSCREW EXTRACT SUPPORT DRILL WALL HANG CONTROL PANEL
SCREW
Installation without support
UNSCREW OPEN TOP DRILL WALL
Door Positioning
DOOR OPENED PRESS CLOSE DOOR CLOSES DOOR CLOSED
jcmtechnologies
6

Programming
Radio Manual Porgramming
OPEN TOP
PRESS RPROG
PUSHBUTTON LED TURNS ON PRESS TRANSMITTER
PRESS RPROG
PUSHBUTTON LED TURNS OFF
Total Reset
OPEN TOP
PRESS PROG
PUSHBUTTON BRIDGE MR SEVERAL BEEPS
END RESET
PRESS PROG
PUSHBUTTON LED TRUNS OFF
jcmtechnologies
7

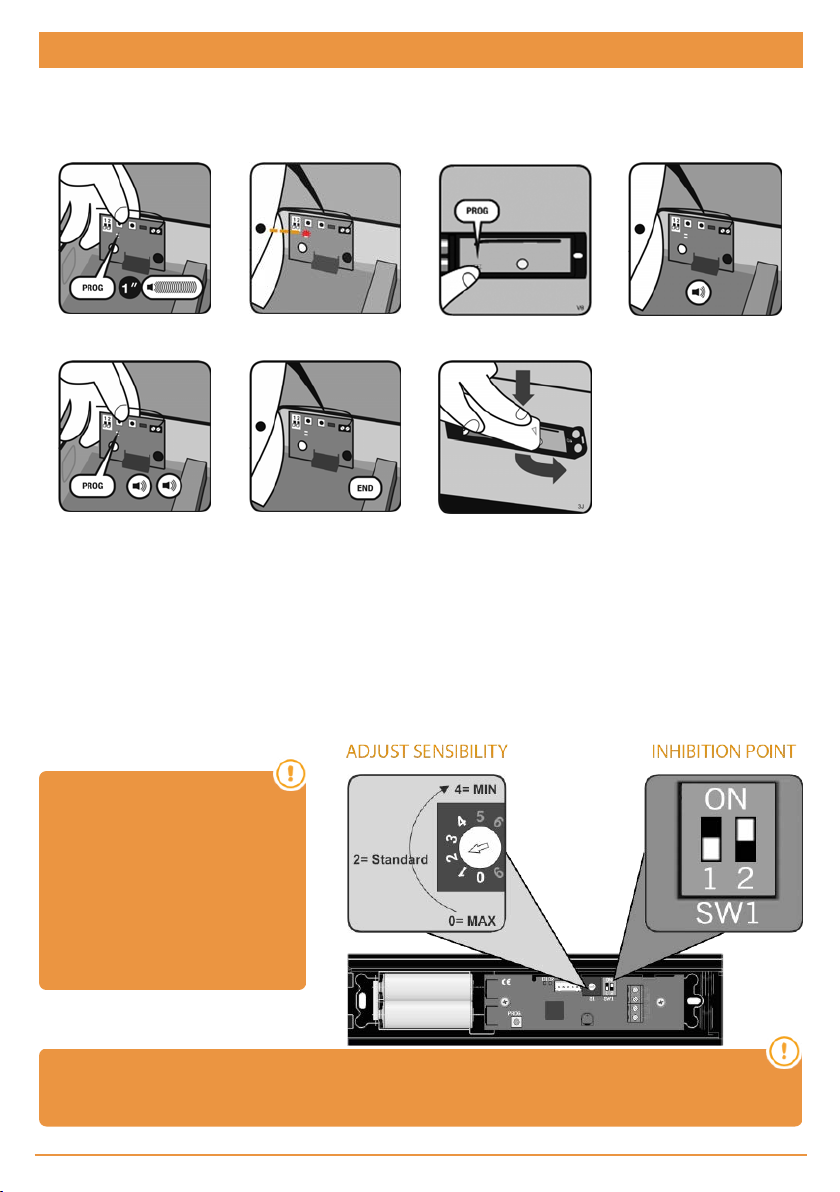

Safety devices programming
RadioBand3 / RadioSens3 Transmitter Programming in RSEC3 Receiver
PRESS PROG BUTTON OF
THE PLUGABLE CARD
RSEC3 LED TURNS ON
PRESS PROG
TRANSMITTER
ONE BEEP AND
PROGRAMMED
PRESS RPROG BUTTON
LED TURNS OFF AND END
PROG
SLIDE THE COVER TO
CLOSE
Adjust the sensibility and inhibition point
In order to adapt the operation of the system to the irregular conditions of the floor, the equipment can be inhibited the lasts
4cm at the end of the travel of the door. In the inhibition zone, obstacles will not be detected
Setting the inhibition point is optional. In case it is desired, it can be fixed in two ways: automatically or manually.
If the inhibition point is set automatically, put the transmitter switch SW1: 2 to ON. During the programming of the maneuver
the equipment will automatically detect the ground and set the inhibition point automatically.
If the inhibition point is set manually, proceed as defined in the control manual section: Maneuver programming: Programming
the door maneuver with RadioSens3 system.
On the RadioSens3 transmitter,
the sensitivity can be adjusted. If
sensitivity is modified, the Radi-
oSens3 transmitter must be repro-
grammed. You must require the
entire system to comply with the
safety standards to which it is sub-
ject.
Attention: Only one system (RadioBand3 or RadioSense3) can be programmed in the RSEC3
receiver.
jcmtechnologies
8

Maneuver programming
Programming the door maneuver without RadioSens3 system
DOOR CLOSED
PRESS RPROG
PUSHBUTTON LED TURNS ON
PRESS START
PUSHBUTTON
DOOR OPENS 2 SECONDS DOOR CLOSES DOOR STOPS AUTO DOOR OPENS AUTO
DOOR STOPS AUTO AUTOCLOSE TIME
PRESS START
PUSHBUTTON DOOR CLOSES
DOOR STOPS AUTO LED TURNS OFF END PROGRAMMING
jcmtechnologies
9

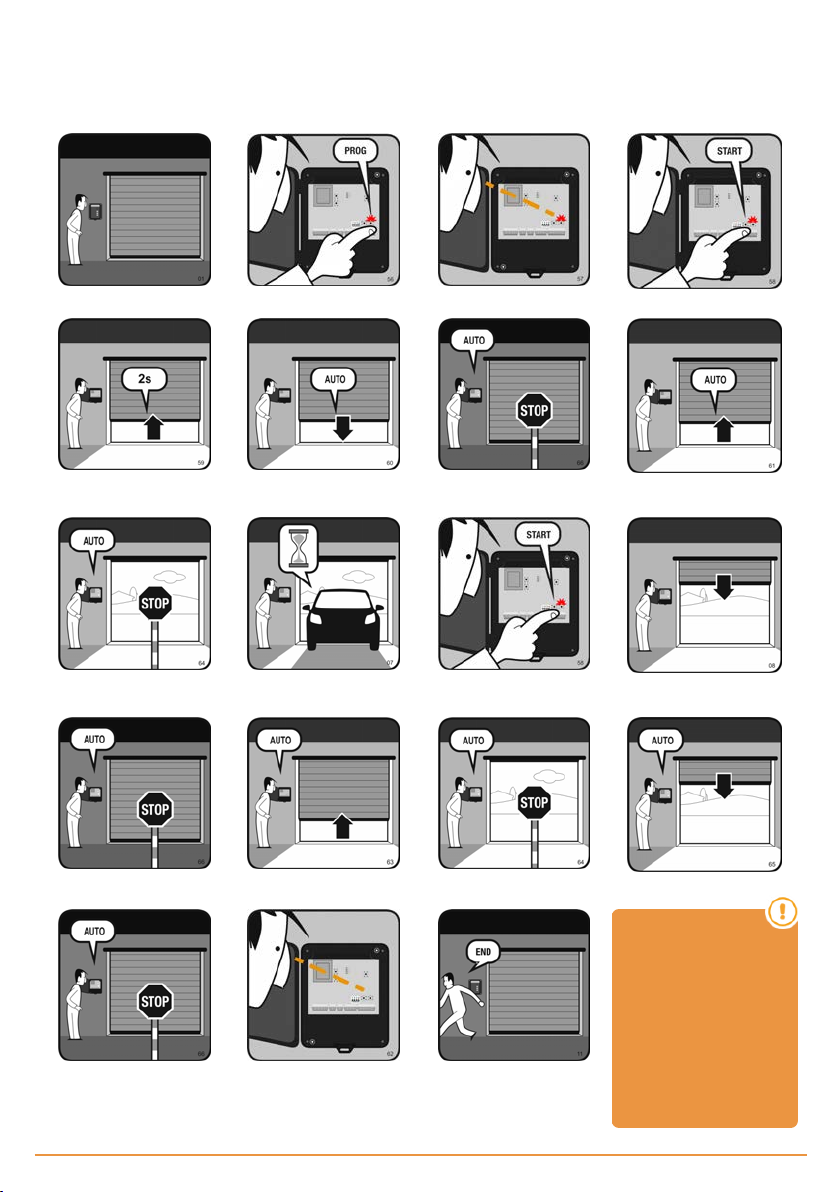

Programming the door maneuver with RadioSens3 system
DOOR CLOSED
PRESS RPROG
PUSHBUTTON LED TURNS ON
PRESS START
PUSHBUTTON
DOOR OPENS 2 SECONDS DOOR CLOSES DOOR STOPS AUTO DOOR OPENS AUTO
DOOR STOPS AUTO AUTOCLOSE TIME
PRESS START
PUSHBUTTON DOOR CLOSES
DOOR STOPS AUTO DOOR OPENS AUTO DOOR STOPS AUTO
DOOR CLOSES AUTO
*INHIBITION ZONE:
DOOR STOPS AUTO LED TURNS OFF END PROGRAMMING
*INHIBITION ZONE:
Optionally press START to
set inhibition point. From this
point to the closing edge, the
safety device will be inhib-
ited. The inhibition zone must
comply with the safety stand-
ards, it must be less than
40mm from the floor.
jcmtechnologies
10

Notes
jcmtechnologies
11

Regulatory Data
EU Declaration of conformity
JCM Technologies hereby declares that the product M8NF complies with the relevant fundamental requirements of the RED
Directive 2014/53/EU, as well as with the Machine Directive 2006/42/EC whenever its usage is foreseen; and with the
2011/65/EU RoHS Directive.
See website www.jcm-tech.com/declarations/
JCM TECHNOLOGIES, SA
C/COSTA D'EN PARATGE, 6B
08500 VIC (BARCELONA)
SPAIN
