Jenn-Air JS42NXFXDW00 User manual

JENN-AIR®SIDE BY SIDE BUILT-IN REFRIGERATOR
REFRIGERADOR EMPOTRADO
DE DOS PUERTAS JENN-AIR®
RÉFRIGÉRATEUR ENCASTRÉ CÔTE À CÔTE JENN-AIR®
W10231368A
INSTALLATION GUIDE
For questions about features, operation/performance, parts, accessories, or service, call:
1-800-JENNAIR (1-800-536-6247) or visit our website at www.jennair.com.
In Canada, call: 1-800-807-6777, or visit our website at www.jennair.ca.
MANUAL DE INSTALACIÓN
Si tiene preguntas respecto a las características, funcionamiento, rendimiento, partes, accesorios o servicio técnico, llame al:
1-800-JENNAIR (1-800-536-6247) o visite nuestro sitio de internet: www.jennair.com.
En Canadá, llame al: 1-800-807-6777, o visite nuestro sitio de internet: www.jennair.ca.
GUIDE D’INSTALLATION
Au Canada, pour assistance, installation ou service, composez le 1-800-807-6777 ou visitez notre site web à www.jennair.ca.
Table of Contents/Índice/Table des matières ......................................................................................2

2
TABLE OF CONTENTS
REFRIGERATOR SAFETY........................................................................... 3
MODELS....................................................................................................... 4
Pro-Style®and Euro-Style Door Handle Kits............................................ 4
INSTALLATION REQUIREMENTS ............................................................. 5
Tools and Parts......................................................................................... 5
Location Requirements............................................................................. 5
Electrical Requirements............................................................................ 6
Water Supply Requirements..................................................................... 7
Product Dimensions ................................................................................. 7
Tipping Radius .......................................................................................... 8
Door Swing Dimensions ........................................................................... 8
Cabinet and Panel Installation Options.................................................... 8
Fully Integrated Installation Requirements ............................................... 9
Custom Overlay Panels ..........................................................................10
Overlay Panel Dimensions......................................................................10
INSTALLATION INSTRUCTIONS ............................................................. 11
Unpack the Refrigerator ......................................................................... 11
Move the Refrigerator into House .......................................................... 11
Install Anti-Tip Boards ............................................................................ 11
Connect the Water Supply ..................................................................... 12
Plug in Refrigerator................................................................................. 13
Move Refrigerator to Final Location....................................................... 14
Level and Align Refrigerator ................................................................... 14
Install Refrigerator and Overlay Panels .................................................. 15
Install Handles ........................................................................................ 19
Install Base Grille .................................................................................... 19
Complete Installation.............................................................................. 20
Water System Preparation ..................................................................... 20
ÍNDICE
SEGURIDAD DEL REFRIGERADOR........................................................21
MODELOS.................................................................................................. 22
Juegos de manijas para puertas Euro-Style y Pro-Style®......................22
REQUISITOS DE INSTALACIÓN..............................................................23
Piezas y herramientas.............................................................................23
Requisitos de ubicación .........................................................................23
Requisitos eléctricos...............................................................................24
Requisitos del suministro de agua ......................................................... 25
Medidas del producto............................................................................. 25
Arco de vuelco ........................................................................................26
Medidas de oscilación de las puertas....................................................26
Opciones para la instalación del armario y los paneles.........................27
Requisitos para la instalación completamente incorporada..................27
Paneles recubiertos a la medida ............................................................28
Dimensiones del panel recubierto..........................................................29
INSTRUCCIONES DE INSTALACIÓN...................................................... 29
Desempaque el refrigerador................................................................... 29
Cómo hacer entrar el refrigerador en la casa ........................................ 30
Cómo instalar los tableros antivuelco .................................................... 30
Conexión del suministro de agua........................................................... 31
Cómo enchufar el refrigerador ............................................................... 32
Cómo mover el refrigerador a su ubicación final................................... 33
Nivelación y alineamiento del refrigerador............................................. 33
Instalación del refrigerador y los paneles recubiertos ........................... 34
Instalación de las manijas....................................................................... 38
Instalación de la rejilla de la base........................................................... 38
Cómo terminar la instalación.................................................................. 39
Preparación del sistema de agua........................................................... 39
TABLE DES MATIÈRES
SÉCURITÉ DU RÉFRIGÉRATEUR ...........................................................40
MODÈLES .................................................................................................. 41
Ensembles de poignées de porte Pro-Style®et Euro-Style...................41
EXIGENCES D’INSTALLATION................................................................42
Outillage et pièces ..................................................................................42
Exigences d'emplacement .....................................................................42
Spécifications électriques ......................................................................43
Spécifications de l’alimentation en eau..................................................44
Dimensions du produit............................................................................ 44
Rayon de basculement...........................................................................45
Dimensions pour le pivotement des portes ...........................................45
Options d’installation du placard et du panneau ................................... 46
Exigences d’une installation intégrée.....................................................46
Panneaux décoratifs sur mesure............................................................47
Dimensions des panneaux décoratifs ....................................................48
INSTRUCTIONS D’INSTALLATION ......................................................... 48
Déballage du réfrigérateur...................................................................... 48
Faire entrer le réfrigérateur dans le domicile.......................................... 49
Installation de planches antibasculement.............................................. 49
Raccordement à l'alimentation en eau................................................... 50
Brancher le réfrigérateur......................................................................... 51
Déplacement du réfrigérateur à son emplacement définitif................... 52
Réglage de l'aplomb et alignement du réfrigérateur.............................. 52
Installation du réfrigérateur et des panneaux décoratifs ....................... 53
Installation des poignées........................................................................ 58
Installation de la grille de la base ........................................................... 58
Achever l’installation............................................................................... 59
Préparation du système d’eau ............................................................... 59

3
REFRIGERATOR SAFETY
You can be killed or seriously injured if you don't immediately
You can be killed or seriously injured if you don't follow
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can
happen if the instructions are not followed.
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety
messages.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word “DANGER” or “WARNING.”
These words mean:
follow instructions.
instructions.
DANGER
WARNING
WARNING
Tip Over Hazard
Refrigerator is top heavy and tips easily when not
completely installed.
Keep doors taped closed until refrigerator is
completely installed.
Use two or more people to move and install
refrigerator.
Failure to do so can result in death or serious injury.

4
MODELS
Integrated Design
Features custom-made panels and custom hardware provided by
the cabinetmaker for a seamless appearance designed to blend
with existing kitchen cabinetry.
Base Model Numbers: JS42NXFXDW, J48NXFXDW
Pro-Style®Stainless Design
Features stainless steel wrapped doors and Pro-Style®handles
with diamond-etched grip.
Base Model Numbers: JS42NXFXDW, J48NXFXDW
Kit Model Numbers: JPK42SNXWPS, JPK48SNXWPS
Pro-Style®and Euro-Style Door Handle Kits
These handle kits can be ordered to use on custom wood overlay
panels.
All factory parts are available through your Jenn-Air dealer or by
calling Jenn-Air at 1-800-JENNAIR (1-800-536-6247). In Canada,
call 1-800-807-6777.
Follow the kit instructions for installing the door handles.
Pro-Style®Stainless Steel - W10250643
Euro-Style Stainless Steel - W10250637

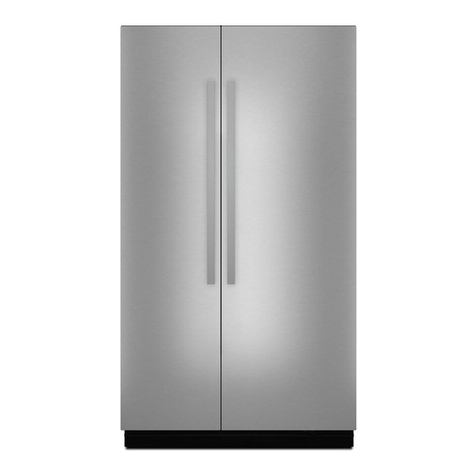

Euro-Style Stainless Design
Features stainless steel wrapped doors and new Euro-style
handles designed to compliment the Jenn-Air Euro kitchen suite or
enhance any kitchen decor.
Base Model Numbers: JS42NXFXDW, J48NXFXDW
Kit Model Number: JPK42SNXWES, JPK48SNXWES

5
INSTALLATION REQUIREMENTS
Tools and Parts
IMPORTANT:
■Installer: Leave Installation Instructions with the homeowner.
■Homeowner: Keep Installation Instructions for future
reference. Save these Installation Instructions for the local
electrical inspector’s use.
TOOLS NEEDED:
Gather the required tools and parts before starting installation.
Read and follow the instructions provided with any tools listed
here.
PARTS NEEDED:
■Six #8 x 3" (7.6 cm) wood screws (longer screws may be needed)
■One or two 2" x 4" x 32" (5 cm x 10 cm x 81 cm) wood board(s)
■Integrated design - consult a qualified cabinetmaker or
carpenter to make the custom wood panels. See “Integrated
Series Custom Overlay Panels” for more information.
Stainless Steel design - the panel kit is shipped with the
refrigerator.
■Flexible, codes approved water supply tubing, a ferrule, a
union and a ¹⁄₄" (6.35 mm) compression fitting.
Location Requirements
IMPORTANT:
■Observe all governing codes and ordinances.
■It is recommended that you do not install the refrigerator near
an oven, radiator, or other heat source.
■Do not install in a location where the temperature will fall
below 55°F (13°C).
■Floor must support the refrigerator weight, more than 600 lbs
(272 kg), door panels and contents of the refrigerator.
■Ceiling height must allow for side tipping radius. See “Tipping
Radius.”
■Location should permit door to open fully. See “Door Swing
Dimensions.”
■Location must permit top grille removal. See “Opening
Dimensions.”
Opening Dimensions
■A solid soffit or wall cabinet must be installed 84" (213.4 cm)
above the floor. If the solid soffit is higher than 84" (213.4 cm)
or one is not available, then the refrigerator must be braced.
If the anti-tip boards are needed, they must be attached to the
rear wall studs so that there is 84" (213.4 cm) from the bottom
of the anti-tip board to the floor. See “Install Anti-Tip Boards”
for more information.
■For a fully integrated installation, a minimum of 6" (15.24 cm)
of open space above the refrigerator is required. See “Fully
Integrated Installation.” Anti-tip boards are required. See
“Install Anti-Tip Boards” for more information.
■The width of the opening, from side to side, must be as
specified for your model, for at least 2" (5.08 cm) back from
the face of the cabinet. If your opening does not meet this
requirement, you will need to make modifications.
■A grounded 3 prong electrical outlet should be placed within
4" (10.2 cm) of the right side cabinets or end panel. See
“Electrical Requirements” for more information.
■Cordless drill
■Drill bits
■Two adjustable
wrenches
■Phillips screwdriver
■Small level
■Appliance dolly
■³⁄₃₂" Allen wrench
(panel kits only)
■¹¹⁄₃₂" nut driver
■³⁄₈" and ¹⁄₂" open-end wrenches
■⁵⁄₃₂" and ³⁄₁₆" Allen wrench
■¹⁄₄" and ⁵⁄₁₆" socket drivers
■Tape measure
■Utility knife
■Tape (painters)
WARNING
Explosion Hazard
Keep flammable materials and vapors, such as
gasoline, away from refrigerator.
Failure to do so can result in death, explosion, or fire.

6
■The water shutoff should be located in the base cabinet on
either side of the refrigerator or some other easily accessible
area. If the water shutoff valve is not in the cabinets, the
plumbing for the water line can come through the floor. See
“Water Supply Requirements” for more information.
IMPORTANT:
■Flooring under refrigerator must be at same level as the
room. Face of cabinetry must be plumb.
■The width of the opening (Width A), must be as specified
for your model, for at least 2" (5.08 cm) back from the face
of the cabinet. If your opening does not meet this
requirement, you will need to make modifications.
Electrical Requirements
Before you move your refrigerator into its final location, it is
important to make sure you have the proper electrical connection.
Recommended Grounding Method
A 115 Volt, 60 Hz., AC only, 15- or 20-amp fused, grounded
electrical supply is required. It is recommended that a separate
circuit serving only your refrigerator be provided. Use an outlet
that cannot be turned off by a switch. Do not use an
extension cord.
IMPORTANT: If this product is connected to a GFCI (Ground Fault
Circuit Interrupter) protected outlet, nuisance tripping of the
power supply may occur, resulting in loss of cooling. Food quality
and flavor may be affected. If nuisance tripping has occurred, and
if the condition of the food appears poor, dispose of it.
NOTE: Before performing any type of installation, cleaning, or
removing a light bulb, remove the top grille and turn the master
power switch to OFF or disconnect power at the circuit breaker
box.
When you are finished, turn ON the master power switch or
reconnect power at the circuit breaker box. Then reset the control
to the desired setting.
Model Width A (as shown above)
42
48 42" (106.7 cm) 48" (121.9 cm)
Installation Type Depth B (as shown above)
Standard Flush
(new installation) 25" (63.5 cm) minimum
Retrofit Installations 24" (60.9 cm) minimum
80" - 90"
(203-229 cm) 4"
(10.2 cm)
84" (213.4 cm)
to bottom of solid soffit
1"
(2.54 cm)
77"
(196 cm)
6"
(15.2 cm)
6"
(15.2 cm)
A
Width
(see chart following)
B
Electrical Shock Hazard
Plug into a grounded 3 prong outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can result in death,
fire, or electrical shock.
WARNING

7
Water Supply Requirements
■All installations must meet local plumbing code requirements.
■The water supply line must come up through the floor in the
gray shaded area shown.
■The water shutoff should be located in the base cabinet on
either side of the refrigerator or some other easily accessible
area. The right-hand side is recommended.
NOTE: There is not enough clearance to achieve a flush
installation if a water shutoff valve is located in the wall behind
the refrigerator.
■A ¹⁄₂" (12.7 mm) hole for plumbing should be drilled at least 6"
(15.2 cm) from the right or left hand side cabinet or panel. On
the floor, the hole should be no more than 1" (2.54 cm) away
from the back wall. See “Connect the Water Supply.”
■If additional tubing is needed, use copper tubing and check
for leaks. Install the copper tubing only in areas where the
household temperatures will remain above freezing.
■Do not use a piercing-type or ³⁄₁₆" (4.76 mm) saddle valve
which reduces water flow and clogs more easily.
NOTE: Your refrigerator dealer has a kit available with a ¹⁄₄"
(6.35 mm) saddle-type shutoff valve, a union, and copper
tubing. Before purchasing, make sure a saddle-type valve
complies with your local plumbing codes.
Water Pressure
A cold water supply with water pressure between 30 and 120 psi
(207 and 827 kPa) is required to operate the water dispenser and
ice maker. If you have questions about your water pressure, call a
licensed, qualified plumber.
Reverse Osmosis Water Supply
IMPORTANT: The pressure of the water supply coming out of a
reverse osmosis system going to the water inlet valve of the
refrigerator needs to be between 30 and 120 psi
(207 and 827 kPa).
If a reverse osmosis water filtration system is connected to your
cold water supply, the water pressure to the reverse osmosis
system needs to be a minimum of 40 to 60 psi (276 to 414 kPa).
If the water pressure to the reverse osmosis system is less than
40 to 60 psi (276 to 414 kPa):
■Check to see whether the sediment filter in the reverse
osmosis system is blocked. Replace the filter if necessary.
■Allow the storage tank on the reverse osmosis system to refill
after heavy usage.
■If your refrigerator has a water filter, it may further reduce the
water pressure when used in conjunction with a reverse
osmosis system. Remove the water filter cartridge.
If you have questions about your water pressure, call a licensed,
qualified plumber.
Product Dimensions
IMPORTANT:
■The depth from the front face of the doors to the back of the
refrigerator cabinet is 24" (60.96 cm) without panels.
■The power cord is 84" (213 cm) long.
■The water supply line is located at the front of the refrigerator.
Top View
Front View
■Width dimensions were measured from hinge to hinge.
1"
(2.54 cm) 6"
(15.2 cm)
6"
(15.2 cm)
6"
(15.2 cm)
Model A
42 41³⁄₄" (106 cm)
48 47³⁄₄" (121.3 cm)
Model Width A (hinge edge to hinge edge)
42 41³⁄₄" (106 cm)
48 47³⁄₄" (121.3 cm)
A
24"
(61.0 cm)
*84"
(213.4 cm)
A
(see chart following)

8
Tipping Radius
Be sure there is adequate ceiling height to stand the refrigerator
upright when it is moved into place.
■The dolly wheel height must be added to the tipping radius
when a dolly is used.
■If needed, the tipping radius can be reduced. See “Reduce
Tipping Radius.”
Side Tipping Radius
The side tipping radius varies depending upon the width of the
model. Use the chart provided to determine the side tipping
radius.
NOTE: Tip on side only.
Door Swing Dimensions
The location must permit both doors to open to a minimum of 90°.
Allow 4¹⁄₂" (11.4 cm) minimum space between the side of the
refrigerator and a corner wall.
NOTE: More clearance may be required if you are using overlay
panels, custom handles, or extended handles.
Cabinet and Panel Installation Options
Cabinet Depth - 25" (63.5 cm)
Framed Cabinetry
Top View - Overlay
Top View - Inset
Frameless Cabinetry
Model Tipping Radius A
42
48 91³⁄₈" (232.1 cm) 94³⁄₈" (239.7 cm)
Model A B C D
42 40³⁄₄"
(103.5 cm) 39³⁄₄" (101.0 cm) 45³⁄₈" (115.3 cm) 46³⁄₄" (118.8 cm)
48 43¹⁄₄"
(109.9 cm) 42" (106.7 cm) 48⁵⁄₈" (123.5 cm)
50¹⁄₄"
(127.6 cm)
A
90˚
110˚
110˚
90˚
BA C D
A. Refrigerator door
B. Overlay panel
C. Side trim
D. Adjacent cabinet
E. Grille bracket
A. Refrigerator door
B. Overlay panel
C. Side trim
D. Adjacent cabinet
E. Grille bracket
A. Refrigerator door
B. Overlay panel
C. Side trim
D. Adjacent cabinet
E. Grille bracket
A B
E
D
C
A B
E
D
C
A B
E
D
C

9
Cabinet Depth - 24" (60.9 cm)
Framed Cabinetry
Top View
Frameless Cabinetry
Top View
Fully Integrated Installation Requirements
The refrigerator can be installed fully integrated if the adjacent
cabinetry meets the airflow venting requirements critical to
refrigerator performance.
IMPORTANT:
■Both Standard and Fully Integrated installations can be
achieved with either a 24" (60.9 cm) or 25" (63.5 cm) deep
opening.
■A full height grille is used to achieve a fully integrated
installation. Use the integrated bracket (provided) to attach the
full height grille.
NOTE: A top grille filler is not required with a full height grille.
Integrated Grille Bracket
Fully Integrated Installation - Side View
Airflow Venting Requirements
Fully integrated installations require a minimum of 6" (15.24 cm) of
open space above the refrigerator. This space must not be
blocked in any way, including soffits.
Option 1 - Open to Ceiling
A. Refrigerator door
B. Overlay panel
C. Side trim
D. Adjacent cabinet
E. Grille bracket
A. Refrigerator door
B. Overlay panel
C. Side trim
D. Adjacent Cabinet
E. Grille bracket
E
D
C
A B
E
D
C
A B
A. False front (optional)
B. Airflow
C. Full height grille
D. Door panel
A
B
C
D
6" (15.24 cm)
min.

10
Option 2 - False Front (cabinet face only)
Custom Overlay Panels
Custom overlay panels allow you to blend the exterior of your
refrigerator into the overall kitchen décor, and to use custom
handles for additional design flexibility.
In some cases, your cabinet manufacturer may choose to work
with one panel routed for the different dimensions. Follow these
panel dimension and placement instructions to be sure that the
custom overlay panels will fit properly.
IMPORTANT:
■The weight of the refrigerator door overlay panel cannot
exceed 66 lbs (29.9 kg) for 48" models or 65 lbs (29.5 kg) for
42" models.
■The weight of the freezer door overlay panel cannot exceed
50 lbs (23 kg) for 48" models or 49 lbs (22.2 kg) for 42"
models.
■The weight of the top grille overlay panel cannot exceed 8 lbs
(3.6 kg) for 48" models or 7 lbs (3.2 kg) for 42" models.
■The required thickness for all panels is ³⁄₄" (1.91 cm).
■This installation does not require filler or backer panels.
Overlay Panel Dimensions
Door Panels
Grille Panel
Integrated Installation - Full Height Grille
6" (15.24 cm)
min.
Model 42 48
Reveal ³⁄₈"¹⁄₈"³⁄₈"¹⁄₈"
A17⁹⁄₁₆"
(44.61 cm) 17¹³⁄₁₆" (45.24 cm) 20¹⁄₁₆" (50.96 cm) 20⁵⁄₁₆" (50.17 cm)
B23⁹⁄₁₆"
(59.85 cm) 23¹³⁄₁₆" (60.48 cm) 27¹⁄₁₆" (68.74 cm) 27⁵⁄₁₆" (69.37 cm)
Model 42 48
Reveal ³⁄₈"¹⁄₈"³⁄₈"¹⁄₈"
C41¹⁄₄"
(104.76 cm) 41³⁄₄" (106.05 cm) 47¹⁄₄" (104.76 cm) 47³⁄₄" (121.29 cm)
B
A
Freezer
Door Panel
Refrigerator
Door Panel
74¹⁄₄"
(188.6 cm)
Pinch Hazard
Installation of door panels with less than a ³⁄₈" (0.95 cm) gap
between the door panel and the adjacent cabinet increases
the risk of potential pinching.
CAUTION
C
6⁵⁄₈"
(16.83 cm)
Top Grille Panel

11
Standard Installation - Flush Grille
IMPORTANT: The grille panel height, shown in the Standard
Installation Flush Grille graphic, allows for an air gap critical to
refrigerator performance.
INSTALLATION INSTRUCTIONS
Unpack the Refrigerator
IMPORTANT:
■Do not remove the film covering until the refrigerator is in its
operating location.
■All four leveling legs must contact the floor to support and
stabilize the full weight of the refrigerator.
■Keep the cardboard shipping piece or plywood under the
refrigerator until it is installed in the operating location.
1. Remove and save the literature package bag taped to the side
of the refrigerator and the parts bag behind the grille. Remove
the four brackets (two on each side) that attach the shipping
base to the refrigerator bottom.
NOTE: Do not remove tape and door bracing until the
refrigerator is in its final location.
2. If necessary, reduce the tipping radius. See “Tipping Radius”
for ceiling height requirements.
Move the Refrigerator into House
1. Place an appliance dolly under the left side of the refrigerator
as shown. Place the corner posts from the packing materials
over the trims as appropriate. Slowly tighten the strap.
2. Place pieces of the shipping carton on the floor when rolling
the dolly and refrigerator into the house. Move the refrigerator
close to the built-in opening.
3. Place top of cardboard carton or plywood under refrigerator.
4. Stand the refrigerator up. First, place the left bottom edge of
the refrigerator on the floor, stand the refrigerator upright and
then lower the right-hand side of the refrigerator to the floor.
5. Reassemble the trim and top grille after the dolly has been
removed from the refrigerator.
Install Anti-Tip Boards
IMPORTANT:
■If a solid soffit is not available, an anti-tip board must be
installed.
■It is recommended that board(s) be installed before the
refrigerator is installed.
■Board(s) must be long enough to fully cover the width of the
compressor cover.
■Locate the board(s) so the bottom surface(s) of the board(s)
is(are) 84" (213 cm) from the floor.
■During installation, raise the refrigerator up so there is
¹⁄₄" (6.35 mm) maximum between the top of the refrigerator
and the bottom of the anti-tip board(s). Do not crush the
compressor cover when raising the rear leveling legs.
Model 42 48
Reveal ³⁄₈"¹⁄₈"³⁄₈"¹⁄₈"
D41¹⁄₄"
(104.76 cm) 41³⁄₄" (106.05 cm) 47¹⁄₄" (104.76 cm) 47³⁄₄" (121.29 cm)
E41¹⁄₄"
(104.76 cm) 41³⁄₄" (106.05 cm) 47¹⁄₄" (104.76 cm) 47³⁄₄" (121.29 cm)
E
5³⁄₄"
(14.55 cm)
Top Grille Panel
D
1" (2.54 cm)
Top Grille Filler
WARNING
Tip Over Hazard
Refrigerator is top heavy and tips easily when not
completely installed.
Keep doors taped closed until refrigerator is
completely installed.
Use two or more people to move and install
refrigerator.
Failure to do so can result in death or serious injury.
WARNING
Tip Over Hazard
Refrigerator is top heavy and tips easily when not
completely installed.
Keep doors taped closed until refrigerator is
completely installed.
Use two or more people to move and install
refrigerator.
Failure to do so can result in death or serious injury.

12
To Install Anti-tip Boards
1. Mark the stud locations on rear wall 80" to 90" (203 cm to
229 cm) above floor.
2. Securely attach one or two 2" x 4" x 32" (5 cm x 10 cm x
81 cm) boards to wall studs behind refrigerator. Use six
#8 x 3" (7.6 cm) (or longer) wood screws. The wood screws
must be screwed into the studs at least 1½" (3.8 cm). The
board(s) must overlap the compressor cover.
Connect the Water Supply
Read all directions before you begin.
IMPORTANT: If you turn the refrigerator on before the water line is
connected, turn the ice maker OFF.
Connect to Water Line
Parts Needed:
■Minimum 7 ft (2.13 m) flexible, codes approved water
supply line
Style 1 - Shutoff Valve Connection
NOTE: If your water line connection does not look like Style 1, see
“Style 2 - Copper Line Connection.”
1. Unplug refrigerator or disconnect power supply.
IMPORTANT: Before attaching the tubing to shutoff valve, flush
the main water supply line to remove particles and air in the water
line. Allow enough flow so that water becomes clear. Flushing the
water line may help avoid filters and/or water valves from
becoming clogged.
2. Connect the flexible, codes approved water supply line to the
water shutoff valve by threading the provided nut onto the
shutoff valve as shown.
3. Place the end of the tubing into a bucket, and turn shutoff
valve ON.
4. Check for leaks. Tighten any nuts or connections (including
connections at the valve) that leak.
Style 2 - Copper Line Connection
NOTE: If there is a water supply line that meets the specifications
in “Water Supply Requirement” proceed to “Connecting to
Refrigerator.” If not, use the following instructions to connect to
the household cold water supply.
1. Unplug refrigerator or disconnect power.
2. Turn OFF main water supply. Turn ON nearest faucet long
enough to clear line of water.
3. Locate a ½" to 1¹⁄₄" (1.25 cm to 3.18 cm) vertical cold water
pipe near the refrigerator.
IMPORTANT:
■Make sure it is a cold water pipe.
■Horizontal pipe will work, but drill on the top side of the
pipe, not the bottom. This will help keep water away from
the drill and normal sediment from collecting in the valve.
4. Determine the length of copper tubing you need. Measure
from the connection on the lower left rear of refrigerator to the
water pipe. Add 7 ft (2.1 m) to allow for cleaning. Use ¹⁄₄"
(6.35 mm) O.D. (outside diameter) copper tubing. Be sure both
ends of copper tubing are cut square.
5. Using a cordless drill, drill a ¹⁄₄" (6.35 mm) hole in the cold
water pipe you have selected.
A. Center board ¹⁄₄ " (6.35 mm) max. above refrigerator
B. Two 2" x 4" x 32" (5 cm x 10 cm x 81 cm) boards
C. Attach to studs with six #8 x 3" (7.6 cm) screws
D. Compressor cover
E. Distance from bottom of anti-tip board to floor
BA
C
2" (5 cm)
D
¹⁄₄" (6 mm)
max.
84"
(213.4 cm)
E
A. Bulb
B. Nut
C. Water tubing
A. Cold water pipe
B. Pipe clamp
C. Copper tubing
D. Compression nut
E. Compression sleeve
F. Shutoff valve
G. Packing nut
A
B
C
A
B
C
DEF
G

13
6. Fasten the shutoff valve to the cold water pipe with the pipe
clamp. Be sure the outlet end is solidly in the ¹⁄₄" (6.35 mm)
drilled hole in the water pipe and that the washer is under the
pipe clamp. Tighten the packing nut. Tighten the pipe clamp
screws slowly and evenly so washer makes a watertight seal.
Do not overtighten.
IMPORTANT: Before attaching the tubing to shutoff valve, flush
the main water supply line to remove particles and air in the water
line. Allow enough flow so that water becomes clear. Flushing the
water line may help avoid filters and/or water valves from
becoming clogged.
7. Slip the compression sleeve and compression nut on the
copper tubing as shown. Insert the end of the tubing into the
outlet end squarely as far as it will go. Screw compression nut
onto outlet end with adjustable wrench. Do not overtighten the
clamp or the sleeve. This will crush the copper tubing.
8. Turn off the shutoff valve on the water pipe. Coil the copper
tubing.
9. Connect the flexible, codes approved water supply line to the
water shutoff valve by threading the provided nut onto the
shutoff valve.
10. Place the end of the tubing into a bucket, and turn shutoff
valve ON.
11. Check for leaks around the saddle valve. Tighten any nuts or
connections (including connections at the valve) that leak.
Connect to Refrigerator
Parts Supplied:
■¹⁄₄" to ¹⁄₄" (6.35 mm to 6.35 mm) male-to-male coupling
NOTE: The flexible, codes approved water supply line can
connect to the supply valve through the floor or through the side
cabinets, as indicated by the gray boxes above.
1. Unplug the refrigerator or disconnect power.
2. Connect the 7 ft (2.13 m) flexible codes approved water tube
to the water supply valve.
3. Flush the main water supply line to remove particles and air in
the water line. Allow enough flow so that water becomes clear.
4. Tape the 7 ft (2.13 m) flexible codes approved water supply
line to the floor, 7" (17.78 cm) from the left side of the
refrigerator. Tape along the length of the tubing, which will
allow it to pass beneath the refrigerator without interference.
NOTE: Allow a minimum of 26" (66.04 cm) of flexible codes
approved water supply line to be loose at the front of the
refrigerator for connecting to the refrigerator.
5. Connect the 7 ft (2.13 m) flexible codes approved water
supply line to the refrigerator.
NOTE: If the main water shutoff valve is behind the
refrigerator, a secondary water shutoff valve may be installed
in line with the water supply line at the front of the product.
6. Turn on the water supply valve and check all connections for
leaks.
7. Plug in the refrigerator or reconnect power.
8. Flush the water system. See “Water System Preparation.”
NOTE: Allow 24 hours to produce the first batch of ice.
Discard the first three batches of ice produced. Allow 3 days
to completely fill ice container.
Plug in Refrigerator
1. Set control switch at top of cabinet to the OFF position.
2. Plug into a grounded 3 prong outlet.
1"
(2.54 cm)
7"
(17.78 cm)
A. Household water line
B. Nut (purchased)
C. Ferrule (purchased)
D. Coupling
E. Bulb
F. Nut
G. Refrigerator water tubing
ABCD
EFG
Electrical Shock Hazard
Plug into a grounded 3 prong outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can result in death,
fire, or electrical shock.
WARNING

14
Move Refrigerator to Final Location
IMPORTANT:
■To avoid floor damage, make sure levelers are raised (not
touching floor) and refrigerator is on rollers before moving.
■Use the installation block, attached to the door hinge, as a
reference to make sure the refrigerator is pushed back far
enough into the opening, so that when the panels are installed
they will be flush with the adjacent cabinets.
■After the refrigerator is leveled and aligned, remove the
installation block from the door hinge and use it to check the
spacing between the panels and adjacent cabinets.
NOTE: The installation block is designed to provide accurate
spacing for ³⁄₄" (1.9 cm), ³⁄₈" (9.53 mm) and ¹⁄₈" (3.18 mm).
1. Place top of cardboard carton or plywood under refrigerator.
Remove dolly.
2. Move the refrigerator straight back and evenly into the
opening. Be sure that the water tubing is not kinked and the
power supply cord is on top of the refrigerator.
NOTE: If the power supply cord is behind the refrigerator, it
will not install properly.
3. Make sure the installation block is flush with the adjacent
cabinets.
NOTE: To achieve a flush installation, it is critical to verify a ³⁄₄"
(1.9 cm) depth from the front face of the adjacent cabinetry to
the refrigerator.
Level and Align Refrigerator
IMPORTANT: All four leveling legs must contact the floor to
support and stabilize the full weight of refrigerator. Rollers are for
moving the refrigerator, not for permanent support.
After moving the refrigerator to its final location:
1. Use a ⁵⁄₁₆" socket driver to turn the leveling bolts clockwise to
extend the legs to the floor as shown. The rollers should be off
the floor.
2. Adjust the leveling legs to level and align the refrigerator from
left to right and front to back so that the refrigerator is level
and aligned with the cabinets.
A. Adjacent cabinet or wall
B. Installation block
C. Face of refrigerator
WARNING
Tip Over Hazard
Refrigerator is top heavy and tips easily when not
completely installed.
Keep doors taped closed until refrigerator is
completely installed.
Use two or more people to move and install
refrigerator.
Failure to do so can result in death or serious injury.
¹⁄₈"
(3.18 mm)
³⁄₈"
(9.53 mm)
³⁄₄"
(1.9 cm)
B
C
A
³⁄₄" (1.9 cm)
A. Rear leveling bolt
B. Front leveling bolt
WARNING
Tip Over Hazard
Refrigerator is top heavy and tips easily when not
completely installed.
Keep doors taped closed until refrigerator is
completely installed.
Use two or more people to move and install
refrigerator.
Failure to do so can result in death or serious injury.
A B
A
B

15
3. Continue adjusting all of the leveling legs to raise the
refrigerator until the top is within at least ¹⁄₄" (6.35 mm) of the
top soffit.
NOTE: If an anti-tip board has been used, adjust the leveling
legs until the top of the refrigerator is within ¹⁄₄" (6.35 mm) of
the bottom of the anti-tip board as shown. Do not crush the
compressor cover.
IMPORTANT: Adjust in small increments to keep from
damaging the cabinet trim and causing problems with the
door alignment or top grille fit. To avoid damage to the cabinet
or leveling legs, do not apply more than 50 inch-pounds
(5.65 Nm) of torque to the leveling bolts. The leveling legs can
be extended to a maximum of 1¹⁄₄" (3.18 cm) below the rollers.
4. After leveling the refrigerator, again use a straight edge or
4 foot level across the front of the refrigerator installation
blocks to the cabinets to check that the refrigerator is still
flush.
Install Refrigerator and Overlay Panels
IMPORTANT: Jenn-Air is not responsible for the removal or
addition of molding or overlay panels that would not allow access
to the refrigerator for service.
Install Refrigerator to Adjacent Cabinets
1. Open the refrigerator and freezer doors to locate the cabinet
brackets on each side.
2. Using the bracket holes as a template, predrill a ¹⁄₈" deep pilot
hole into the adjacent cabinet.
3. Using two round head screws (provided) for each bracket,
anchor the refrigerator to the adjacent cabinets.
4. Repeat steps 2 and 3 to anchor the other side of the
refrigerator to the adjacent cabinets.
Install Cabinet Side Trims
Install cabinet side trims to hide the brackets fastening the
refrigerator to the adjacent cabinets.
1. Open both doors to a 90° angle.
2. With the lip edge of the trim toward the back wall, insert the
cabinet side trim between the side of the refrigerator and the
adjacent cabinetry.
NOTE: Keep the top edge of the trim piece flush with the top
of the refrigerator. Installing the trim higher than the
refrigerator top could cause damage to the trim when the door
is opened.
3. Slide the trim toward the back until it snaps into place.
A. Center board ¹⁄₄ " (6.35 mm) max. above refrigerator
B. Two 2" x 4" x 32" (5 cm x 10 cm x 81 cm) boards
C. Attach to studs with six #8 x 3" (7.6 cm) screws
D. Compressor cover
E. Distance from bottom of anti-tip board to floor
BA
C
2" (5 cm)
D
¹⁄₄" (6 mm)
max.
84"
(213.4 cm)
E
A. Cabinet side trim
B. Freezer door
A
B

16
Install Top Grille Filler (standard installation only)
IMPORTANT: The grille panel height allows the necessary airflow
for refrigerator performance. The top grille filler hides the upper
compartment cover behind the top grille. If you choose to modify
the recommended grille panel dimensions, performance will be
compromised.
Custom Wood Panel Models
1. In the custom made (1" x width of grille panel) wood filler
piece, drill a hole ¹¹⁄₁₆" from each edge.
NOTE: Make sure the hole is centered in the 1" thickness of
the wood piece.
2. Using slotted hex head screws (provided), fasten an “L”
bracket to each end of the wood filler piece.
3. Using hex head blunt screws (provided), attach the “L”
brackets to the top grille mounting plates.
4. Adjust the “L” brackets, so that the wood filler piece is flush
with the bottom of the soffit. Completely tighten the screws.
Side View
Panel Kit Models
1. Align top grille filler (provided in the door kit) with the bottom
edge of the soffit. Use as a template, and mark where to drill
the holes.
2. Using the slotted hex head screws (provided), attach the top
grille filler to the soffit.
Side View
Drilling Templates (custom wood panels only)
IMPORTANT: The template can be used for either a ³⁄₈" (0.95 cm)
or a ¹⁄₈"(0.32 cm) reveal installation.
■The drilling templates are double-sided.
■On the template, locate the diagram of your refrigerator. Then,
follow the letters and colored arrows to correctly place the
drilling template on the panels.
■The drilling holes are precut into the template.
A. Custom wood filler
B. “L” bracket
C. Grille mounting plate
A. Top grille filler
B. Soffit
C. Airflow
D. Grille panel
E. Door panel
A
B
C
B
C
D
E
A
A. Top grille filler
B. Hex head screw (provided)
A. Soffit
B. Airflow
C. Grille panel
D. Door panel
WARNING
Excessive Weight Hazard
Use two or more people to move and install panels.
Failure to do so can result in back or other injury.
A
B
A
B
C
D

17
Prepare Custom Overlay Panels
IMPORTANT:
■The process for installing overlay panels on the refrigerator is
the same for both custom panels and panel kits.
■The drilling templates are used only for custom wood overlay
panels.
■The panels included in the panel kits are predrilled for the
mounting brackets only. See “Complete Installation” later in
this section, for instructions on drilling additional holes in the
door panels.
■The film covering on stainless steel door panels must be
removed before installing brackets.
1. Place panels on a firm, flat surface with the front facing down.
2. Using the templates (provided), predrill a ¹⁄₈" deep pilot hole
into the wood rails bordering the doors and top grille panels.
Follow the instructions printed on the template.
3. Using the installation block as a guide for depth, screw the
door studs (provided) into the predrilled door panel (two door
studs per door).
4. Insert hex head pointed screws (provided) into the wood at the
top of the door panels where they were predrilled.
NOTE: It is critical to use the ⁵⁄₈" screw, the longest length
provided, to attach the bracket to the top of the door panel.
These hex head pointed screws are used only to attach this
mounting bracket.
5. Attach a mounting bracket to the top edge of each door panel
by placing the large end of the keyhole slot over the screws
and sliding the bracket so that the screws are centered in the
slots.
NOTE: Start with the screws in the center of the slots as
shown, then move the door panel, as necessary, to align.
6. Using the slotted hex head screws provided, attach a
mounting bracket to each side of the grille panel.
NOTES:
■See the Parts Provided insert sheet to select the brackets
designated for your installation.
■Use the Integrated Grille brackets for an Integrated
Installation with a full height grille.
■Use the Standard Grille brackets for a Standard
Installation with a flush grille, as shown.
7. Using round head screws (provided), attach the grille trim
piece to the bottom of the grill panel.
Remove Trim Pieces
1. Remove all tape and door bracing from the refrigerator and
freezer doors.
2. Open the refrigerator and freezer doors.
3. Remove the hinge cover pieces from the top and bottom of
the door to expose the holes in the hinges.
NOTE: It is not necessary to remove the hinge side trims as
they will not interfere with the installation.
A. Door stud
B. Installation block
A. Door panel B. Mounting bracket
A
B
AB
A. Top grille brackets
B. Grille trim piece
A. Hinge cover pieces
B. Handle-side door trim
A
B
B
B
A
A
A

18
Install Door Panels
1. Lower the panel mounting bracket onto the adjustment pins at
the top of the door.
2. Slide the studs, on the back side of the door panel, into the
“J” pockets in the front of the door.
3. Repeat steps 1 and 2 to install the second door panel.
4. Using slotted hex head screws (provided), attach the
mounting bracket (factory installed), located at the bottom of
the refrigerator and freezer doors, to the respective door
panels. Do not fully tighten the screw.
Install Top Grille Panel
Flush Grille - Standard Installation
1. Hook the panel brackets onto the mounting bolts extending
from the top of the refrigerator.
2. Pull the grille panel down slightly to lock into place.
Full Height Grille - Integrated Installation
1. Align the bracket with the mounting posts.
2. Push the grille panel forward until the bracket snaps into
place.
Door Swing Adjustment
It may be necessary to adjust the swing of the door. Make sure the
refrigerator door(s) can open freely. If the door(s) opens too wide,
install the door stop pin (provided).
1. Hold the door open to a position that is less than 90°.
2. Insert the door stop pin into the top hinge in the hole shown.
3. Using a ⁵⁄₃₂" Allen wrench, tighten the door stop pin.
A. Door panel
B. Mounting bracket
C. Adjustment pins
A. Bottom hinge
B. Mounting bracket
A
B
C
A B
A. Top grille panel
B. Cabinet sides
A. Door stop pin hole
B BA
A

19
Complete Installation
1. Use the installation block to measure the gaps between the
overlay panels and adjacent cabinets.
■Stainless steel panels require a ³⁄₈" (0.95 cm) gap between
the stainless panel and the cabinets and a ¹⁄₈"(0.32 cm)
gap between the freezer and refrigerator door, and the
doors and top grille.
2. Adjust the panel to achieve the required spacing, or to align.
IMPORTANT: If adjustments are needed, adjust the panel not
the door.
■Slide the overlay panel from side to side in the keyhole
slot.
■Use an Allen wrench to raise or lower the adjustment pins
which allows the door panel to swivel.
3. Predrill a ¹⁄₈" deep pilot hole the door panel through the open
holes in both the bottom and top hinges.
4. Using slotted hex head screws (provided), attach the top and
bottom hinges to the door panels. Fully tighten all door panel
screws.
5. Using slotted hex head screws (provided) for each side, attach
the door panels to the hinge-side door trims.
6. Using Phillips head flat screws (provided), install the handle
side door trim.
7. Completely tighten the screws attaching the mounting
brackets, located at the bottom of the doors, to the overlay
panels.
8. Reinstall the top door trim and hinge cover.
9. Snap the adjustment pin cover (provided) into place.
Install Handles
(Panel Kit Models Only)
IMPORTANT: Install the handles after the door panels have been
installed.
Tools Needed: ³⁄₃₂" Allen wrench
1. Locate the holes in the door panels where the handle
mounting studs are to be installed.
2. Fasten the handle mounting studs to the door panels.
3. Install the handles to the handle mounting studs and tighten
the setscrews.
NOTE: Depending on the handle, the setscrews may be either
a separate part, or a component of the mounting stud.
Install Base Grille
There are two pieces to the base grille to allow for a custom fit: the
base grille itself and the skirt. The skirt can be added to the base
grille in order to extend it all the way to the floor.
1. To see whether the skirt is needed, place the base grille into
position. Do not attach the base grille to the refrigerator.
Measure the distance between the bottom of the base grille
and the floor. The gap must be a minimum of ¹⁄₂" (1.27 cm) in
order to add the skirt.
NOTE: If the gap measures less than ¹⁄₂" (1.27 cm), skip
steps 3 and 4 of the instructions, and install the base grille
only.
2. Remove the film from the base grille.
3. Snap the skirt onto the base grille.
A. Adjacent cabinet
B. Installation block
C. Overlay panel on door
A. Door panel
B. Mounting bracket
C. Adjustment pins
A. Top hinge
B. Mounting bracket
C. Holes for screws
D. Adjustment pins
B
A
C
A
B
C
BA
DC
A. Base grille
B. Skirt
A
B

20
4. Trim the skirt by scoring the proper “V” groove with a utility
knife. Break the skirt at the score line.
5. Using the two screws, attach the base grille assembly to the
refrigerator as shown.
NOTE: Drive in the right side screw first.
Complete Installation
1. Turn the water supply line valve to the “Open” position.
2. Turn the refrigerator switch to the ON position. See “Power
On/Off Switch” in the Use & Care Guide for instructions. Wait
a few minutes. Check the water line connections for leaks.
3. Remove all boxes, parts packages and packing materials from
the interior of the refrigerator. See the “Cleaning” section in
the Use & Care Guide for instructions. Remove the film and
cardboard from the grille and doors or door frame, depending
on your model.
4. Install the shelves and bins in the refrigerator and freezer
compartments.
5. The controls are preset at the factory to the midpoint setting.
Check that the compressor is operating properly and that all
the lights are working.
6. Flush the water system before use. See “Water System
Preparation.”
To get the most efficient use from your new built-in refrigerator,
read the Use & Care Guide. Keep Installation Instructions and Use
& Care Guide near the built-in refrigerator for easy reference.
Water System Preparation
Please read before using the water system.
Immediately after installation, follow the steps below to make sure
that the water system is properly cleaned.
1. Open the freezer door and turn off the ice maker. For Style 1,
lift up the wire shutoff arm as shown. For Style 2, move the
switch to the OFF (right) setting as shown. The On/Off switch
is located on the top right side of the freezer compartment.
Style 1 – Non-Dispenser Models
Style 2 – Dispenser Models
NOTE: If your model has a base grille filter system, make sure the
base grille filter is properly installed and the cap is in the horizontal
position.
2. Use a sturdy container to depress and hold the water
dispenser lever for 5 seconds, then release it for 5 seconds.
Repeat until water begins to flow. Once water begins to flow,
continue depressing and releasing the dispenser lever
(5 seconds on, 5 seconds off) for an additional 2 minutes. This
will flush air from the filter and water dispensing system.
Additional flushing may be required in some households.
NOTE: As air is cleared from the system, water may spurt out
of the dispenser.
3. Open the freezer door and turn on the ice maker. For Style 1,
lower the wire shutoff arm. For Style 2, move the switch to the
ON (left) position.
■Allow 24 hours to produce the first batch of ice.
■Discard the first three batches of ice produced.
■Depending on your model, you may want to select the
maximum ice feature to increase the production of ice.
A. “V” groove
A. Screws (2)
A
A
Do not use with water that is microbiologically unsafe or
of unknown quality without adequate disinfection before
or after the system. Systems certified for cyst reduction
may be used on disinfected waters that may contain
filterable cysts.
