Jenn-Air W11260097A User manual

INSTALLATION INSTRUCTIONS 24" (59.5 CM)
INDOOR/OUTDOOR ELECTRIC WARMING
DRAWER
INSTRUCTIONS D’INSTALLATION DU TIROIR-
RÉCHAUD POUR USAGE INTÉRIEUR/
EXTÉRIEURDE 24 PO (59,5CM)
Table of Contents / Table des matières
IMPORTANT:
Save for local electrical inspector’s use.
IMPORTANT :
Conserver ces instructions à l’usage de l’inspecteur des installations électriques local.
W11260097A
WARMING DRAWER SAFETY.......................................................2
INSTALLATION REQUIREMENTS.................................................3
Tools and Parts.............................................................................3
Location Requirements................................................................3
Electrical Requirements ..............................................................6
INSTALLATION INSTRUCTIONS...................................................6
Install Warming Drawer ................................................................6
Complete Installation ...................................................................7
SÉCURITÉ DU TIROIR-RÉCHAUD...............................................8
EXIGENCES D’INSTALLATION .....................................................9
Outils et pièces.............................................................................9
Exigences d’emplacement...........................................................9
Spécications électriques .........................................................12
INSTRUCTIONS D’INSTALLATION.............................................12
Installation du tiroir-réchaud ......................................................12
Terminer l’installation..................................................................13

2
WARMING DRAWER SAFETY

3
INSTALLATION REQUIREMENTS
Tools and Parts
Gather the required tools and parts before starting installation.
Read and follow the instructions provided with any tools listed
here.
Tools needed
■Phillips screwdriver
■Flat-blade screwdriver
■Measuring tape
■Level
■Drill
■1/8" (3.5 cm) hole saw
Parts Supplied
■Two 19 x 3.5 mm screws
Check local codes. Check existing electrical supply. See
“Electrical Requirements.”
It is recommended that all electrical connections be made by a
licensed, qualied electrical installer.
Location Requirements
IMPORTANT: Observe all governing codes and ordinances.
■Cutout dimensions that are shown must be used. Given
dimensions provide minimum clearance with warming
drawer.
■Recessed installation area must provide complete enclosure
around the recessed portion of the warming drawer.
■Grounded electrical supply is required. See “Electrical
Requirements” section.
■Electrical supply outlet should be located in the rear wall
on the upper right-hand side of the cutout or in an adjacent
cabinet. The outlet must be recessed. If the electrical outlet
is located in an adjacent cabinet, a 1/8" (3.5 cm) minimum
diameter hole should have been drilled in the back of the
cutout or support surface to pass the power supply cord
through to the outlet.
■Warming drawer support surface must be solid, level, and
ush with bottom of cabinet cutout.
■215/8" (55.0 cm) minimum cabinet depth.
For best performance results make sure the warming drawer is
leveled before completing installation. There is no way to level
the warming drawer after it has been installed. If the installation
is not level, the door may slide open or not seal tightly, allowing
heat to escape.
NOTE: If installing the warming drawer below another product,
refer to that product’s literature for any installation requirements.
Product Dimensions
A
D
B
E
C
A. 215/8" (55.0 cm) oven depth
B. 21/16" (55.4 cm) recessed width
C. 59/16" (14.1 cm) recessed height
D. 237/16" (59.5 cm) overall width
E. 49/16" (11.7 cm) drawer front height

4
Clearance Dimensions
Warming Drawer Installed Below Oven
NOTES:
■If installed with an oven, no separator between them.
■Warming drawer can be installed under a single oven.
■The warming drawer cannot be leveled after being installed.
For outdoor installation, follow the cutout dimensions for a single warming drawer. Install the outdoor warming drawer in a permanent
xture.
Front view
B
A
C
D
A. 2215/16" (58.2 cm) cutout height for both oven and
warming drawer
B. 31" (78.7 cm) minimum/recommended height
from oor
C. 215/8" (55.0 cm) cutout width
D. 235/8" (60.0 cm)minimum cabinet width

5
Clearance Dimensions - Flush Installation
Warming Drawer Installed Below Oven
A Width of ush inset cutout (minimum) 23/16" (60.2 cm)
B Height of ush inset cutout (minimum) 23/4" (60.3 cm)
C Bottom of cutout to oor (minimum) If installed under model JMC6224 5" (12.7 cm)
If installed under any other model 31" (78.7 cm)
D Width of opening (minimum) 215/8" (55.0 mm) for JJD3024HM
E Depth of cutout (minimum) 227/16" (57.05 cm) for JJD3024HM
221/2" (57.13 cm) for JJD3024HL
F Depth to Side Cleat 13/16" (20.5 mm) for JJD3024HM
27/32" (21.3 mm) for JJD3024HL
g Recommended outlet location
Flush Installation Requirements
A 229/16" (57.3 cm) minimum cutout depth is required.
These dimensions will result in a 1/8" (3 mm) reveal on all sides of the warming drawer.
*The front face of the cleats and platforms will be visible and should be treated as a nished surface.
g
A
B
C
1" (25 mm)
Side Cleats*
⁷⁄₈” (22 mm)
Platform*
Front View
Cabinet
Back
E
Side View
E
Side Cleat*
Top View
D
F

6
Electrical Requirements
IMPORTANT: The warming drawer must be electrically grounded
in accordance with local codes and ordinances, or in the
absence of local codes, with the National Electrical Code, ANSI/
NFPA 70 or Canadian Electrical Code, CSA C22.1.
If codes permit and a separate ground wire is used, it is
recommended that a qualied electrical installer determine that
the ground path is adequate.
A copy of the above code standards can be obtained from:
National Fire Protection Association
1 Batterymarch Park
Quincy, MA 02169-7471
CSA International
8501 East Pleasant Valley Road
Cleveland, OH 44131-5575
■A 120 V, 60 Hz., AC only, 15 A fused, electrical circuit
is required. A time-delay fuse or circuit breaker is also
recommended. It is recommended that a separate circuit
serving only this warming drawer be provided.

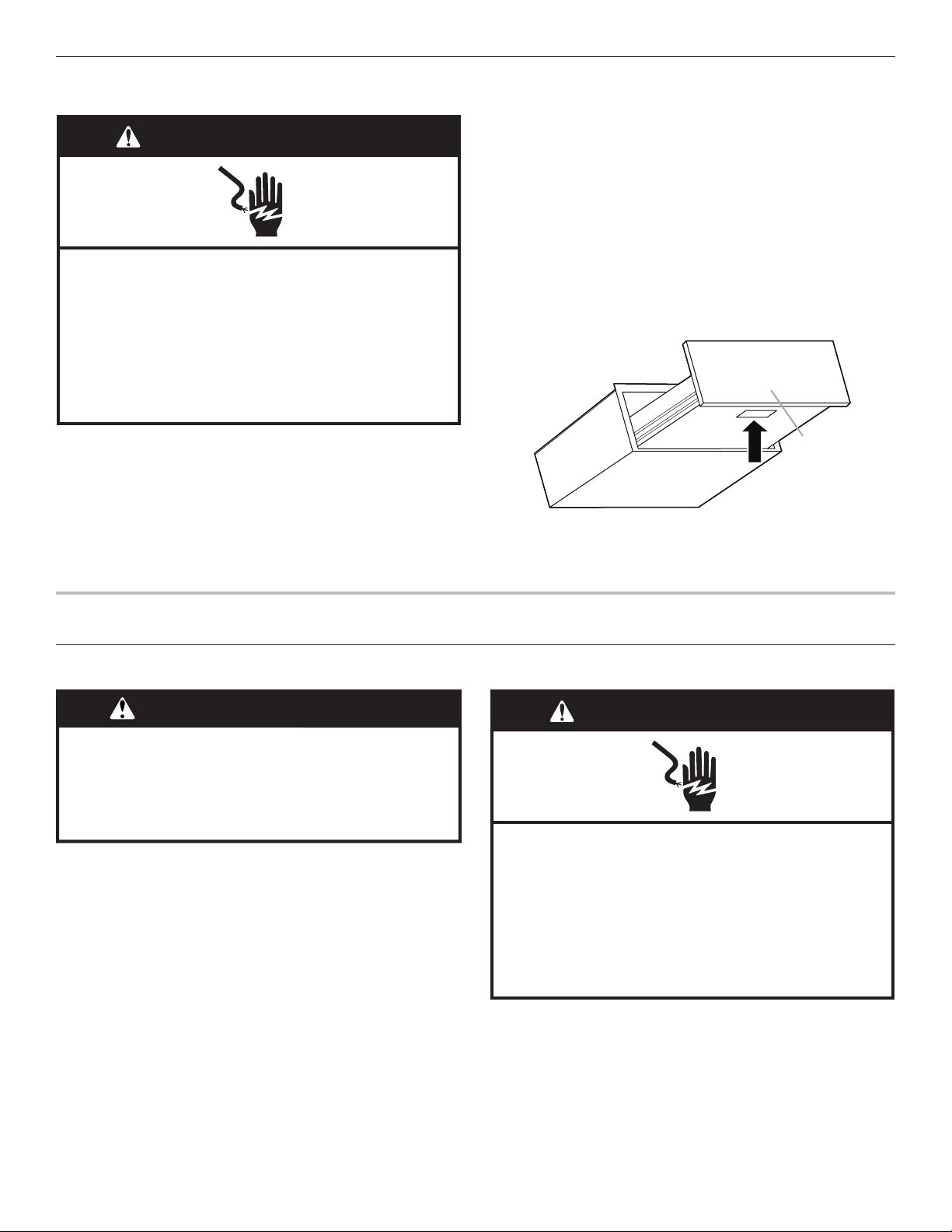

■The model/serial/rating plate is located beneath the drawer,
on the drawer. See the illustration below.
INSTALLATION INSTRUCTIONS
Install Warming Drawer
1. Turn off power supply. Using 2 or more people, move
warming drawer close to its nal location. Remove and
discard shipping materials, tape, and lm from the warming
drawer. Remove and set aside racks and other parts from
inside warming drawer.
2. Check that the warming drawer control knob is set to the
Fan position.
3. Support the warming drawer on a sturdy surface level with
the cutout opening.
4. Plug the power supply cord into the grounded 3 prong outlet.
5. Slide the warming drawer over halfway into the cutout
opening.
6. Open warming drawer and slowly push against the front
panel to slide the drawer completely into the cabinet until the
anges on the front panel meet the cabinet face.
Electrical Shock Hazard
Plug into a grounded 3 prong outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can result in death,
fire, or electrical shock.
WARNING
A. Model/serial/rating plate
WARNING
Excessive Weight Hazard
Use two or more people to move and install
warming drawer.
Failure to do so can result in back or other injury.
Electrical Shock Hazard
Plug into a grounded 3 prong outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can result in death,
fire, or electrical shock.
WARNING
A

7
7. Use the two 19 x 3.5 mm screws provided to secure the
warming drawer frame to the cabinet. Complete Installation
1. Check that all parts are now installed. If there is an extra
part, go back through the steps to see which step was
skipped.
2. Check that you have all of your tools.
3. Dispose of/recycle all packaging materials.
4. For warming drawer use and cleaning, read the Use and
Care Guide.
5. Push in and turn the control knob to 160°F (71°C) and push
the red button. The light should illuminate.
If warming drawer(s) does not operate, check the
following:
■Household fuse is intact and tight, or circuit breaker has not
tripped.
■Warming drawer is plugged into a grounded 3 prong outlet.
If you need Assistance or Service:
Please reference the “Troubleshooting” section of the Use and
Care Guide.
A
A. Two 19 x 3.5 mm screws

8
SÉCURITÉ DU TIROIR-RÉCHAUD

9
EXIGENCES D’INSTALLATION
Outils et pièces
Rassembler les outils et pièces nécessaires avant d’entreprendre
l’installation. Lire et observer les instructions fournies avec
chacun des outils de la liste ci-dessous.
Outils nécessaires
■Tournevis cruciforme
■Tournevis à lame plate
■Ruban à mesurer
■Niveau
■Perceuse
■Scie à guichet de 1 /8po (3,5cm)
Pièces fournies
■Deux vis de 19 x 3,5mm
Consulter les codes locaux. Vérier l’alimentation électrique
existante. Consulter les “Spécications électriques”.
Il est recommandé de faire réaliser tous les raccordements
électriques par un électricien qualié agréé.
Exigences d’emplacement
IMPORTANT: Observer les dispositions de tous les codes et
règlements en vigueur.
■Il est nécessaire d’utiliser les dimensions de l’ouverture à
découper indiquées. Ces dimensions prennent en compte
les dégagements de séparation minimums à respecter.
■L’espace d’installation dans un encastrement doit permettre
la formation d’une enceinte complète autour de la partie
encastrée du tiroir-réchaud.
■Une source d’électricité avec liaison à la terre est nécessaire.
Voir la section “Spécications électriques”.
■La prise électrique doit être située dans le mur arrière du
côté droit de l’ouverture ou dans une armoire adjacente.
La prise doit être encastrée. Si la prise électrique est située
dans une armoire adjacente, un trou de 1 /8po (3,5cm)
de diamètre minimum doit avoir été percé à l’arrière de
l’ouverture ou de la surface de support pour faire passer
lecordon d’alimentation.
■La surface de support du tiroir-réchaud doit être robuste,
horizontale et en afeurement avec le bas de l’ouverture
découpée dans l’armoire.
■Profondeur minimale de l’armoire: 21 5/8po (55,0cm).
Pour le meilleur rendement, vérier que le tiroir-réchaud est
d’aplomb avant d’achever l’installation. Il est impossible
de régler l’aplomb du tiroir-réchaud après son installation.
Sil’installation n’est pas d’aplomb, la porte risque de s’ouvrir
ou de ne pas fermer hermétiquement, ce qui laissera la chaleur
s’échapper.
REMARQUE: Si le tiroir-réchaud est installé en dessous d’un
autre produit, consulter la documentation de ce produit pour
connaître les exigences d’installation.
Dimensions du produit
A
D
B
E
C
A. Profondeur: 21 5/8po (55,0cm)
B. Largeur de l’encastrement: 21/16po (55,4cm)
C. Hauteur de l’encastrement: 59/16po (14,1cm)
D. Largeur totale: 237/16po(59,5cm)
E. Hauteur de l’avant du tiroir: 49/16po (11,7cm)

10
Dimensions d’espacement
Installation du tiroir-réchaud sous un four
REMARQUES:
■S’il est installé avec un four, ne pas laisser d’espace entre
lesdeux éléments.
■Le tiroir-réchaud peut être installé sous un four simple.
■Il est impossible de régler l’aplomb du tiroir-réchaud après
son installation.
Pour une installation à l’extérieur, suivre les dimensions de coupe pour un tiroir-réchaud simple. Installer le tiroir-réchaud d’extérieur
sur un dispositif permanent.
Vue de face
B
A
C
D
A. Hauteur de la découpe pour le four et le tiroir-
réchaud: 2215/16po (58,2cm)
B. Hauteur minimum recommandée à partir du
plancher: 31po (78,7cm)
C. Largeur de la découpe: 21 5/8po(55,0cm)
D. Largeur minimale de l’armoire: 235/8po (60,0cm)
