Jensen JMS7010 User manual

JMS7010
Installation and Operation Manual
Waterproof AM/FM/RBDS/WB/CDP/Sirius/iPod Ready Marine Radio

JMS7010
ii
CONTENTS
System Features ................................................................................................. 1
Safety Information .............................................................................................. 2
Installation........................................................................................................... 3
Wiring................................................................................................................... 4
Basic Operation .................................................................................................. 5
Tuner Operation.................................................................................................. 8
CD/MP3/USB Playback ..................................................................................... 10
Satellite Radio Operation ................................................................................. 11
iPod Operation .................................................................................................. 13
Care and Maintenance...................................................................................... 15
Troubleshooting................................................................................................ 15
Specifications ................................................................................................... 16

JMS7010
1
SYSTEM FEATURES
Features of the Jensen JMS7010 Marine radio include:
• Waterproof Face/Control Panel (IPX5)
• AM/FM US/EURO Tuner with 30 Presets (12 AM, 18 FM)
• RBDS (Radio Broadcast Data Service)
• SIRIUS Radio Ready
• Single In-Dash CD Player
• MP3/WMA Playback Capable
• iPod Ready
• Weatherband Tuner
• Pre-set Equalizer - 5 settings (Flat, Rock, Pop, Classical)
• Electronic Bass, Treble, Balance and Fader Controls
• Output Power 50W x 4
•Clock
• CD Door Open Alarm
• Low Vessel Battery Warning
• Wired Marine Remote Control Ready
• 4-Channel Pre-amp Line Level Outputs
• 2-Wire Power Non-Volatile Memory and Interior Power Clock/Time Support
• Auxiliary Audio Input

JMS7010
2
SAFETY INFORMATION
When Boating
Keep the volume level Iow enough to be aware of your surroundings.
Protect from Water
Do not submerge the product directly in water, as this can cause electrical shorts, fire or other
damage.
Protect from High Temperatures
Exposure to direct sunlight for an extended period of time can produce very high temperatures
inside your vessel. Give the unit time to cool down before starting playback.
Do not mount radio within close proximity of engine compartment.
Use the Proper Power Supply
This product is designed to operate with a 12 volt DC negative ground battery system.
Protect the Disc Mechanism
Avoid inserting any foreign objects into the disc slot. Misuse may cause malfunction or
permanent damage due to the precise mechanism of this unit. Do not keep the CD door open
for long periods of time. EXPOSING THE UNIT TO WATER WITH THE CD DOOR OPEN
WILL CAUSE DAMAGE OR MALFUNCTION.
CAUTION: THIS MOBILE CD PLAYER IS A CLASS I LASER PRODUCT. THIS UNIT USES A
VISIBLE/INVISIBLE LASER BEAM WHICH COULD CAUSE HAZARDOUS RADIATION IF
EXPOSED DIRECTLY. BE SURE TO OPERATE THE MOBILE CD PLAYER AS
INSTRUCTED.
USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OR PROCEDURES OTHER
THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION
EXPOSURE.
DO NOT OPEN COVERS AND DO NOT REPAIR BY YOURSELF. PLEASE REFER
SERVICING TO A QUALIFIED TECHNICIAN.
WARNING:
• DO NOT OPEN, DISASSEMBLE OR ALTER THE UNIT IN ANY WAY. Doing so may
result in fire, electric shock or product damage.
• USE THE CORRECT AMPERE RATING WHEN REPLACING FUSE. Failure to do so
may result in fire, electric shock or product damage.
• DO NOT INSTALL IN LOCATIONS THAT MIGHT HINDER VESSEL OPERATION. Doing
so may obstruct vision or hamper movement which can result in a serious accident.
• INSTALL THE WIRING SO THAT IT IS NOT CRIMPED OR PINCHED BY SCREWS OR
SHARP METAL EDGES. Route the cables away from moving parts or sharp pointed
edges. This will prevent crimping and damage to the wiring. If the wiring must pass
through a metal hole, be sure to use a rubber grommet to prevent the wire's insulation
from being cut by the metal edge of the hole. It is also recommended to apply sealing
caulk to any opening that may potentially allow water to enter.
• Be sure to choose a location that is flat and has clearance above the unit to prevent any
damage, as well as allow for ventilation.
• Before drilling any holes, carefully inspect the area underneath and behind the mounting
surface where the devices will be mounted to make sure it will not interfere with existing
wires, fuel lines, the fuel tank or any other objects that could be damaged.
• Always disconnect the vessel negative battery terminal to prevent accidental shorting
during installation.
Disc Notes
Depending on the recording status, conditions of the disc, and the equipment used for
recording, some CD-Rs/CD-RWs may not play on this unit. For more reliable playback, please
adhere to the following recommendations:
• Use CD-RWs with speed 1x to 4x and write with speed 1x to 2x.
• Use CD-Rs with speed 1x to 8x and write with speed 1x to 2x.
• Do not play a CD-RW which has been written more than 5 times.
Compatible Disc Types
NOTE: CD-R and CD-RW discs will not play unless the recording session is closed and
the CD is finalized.
Disc Maintenance
• A dirty or defective disc may cause sound dropouts while playing. Before playing, wipe
the disc using a clean cloth, working from the center hole towards the outside edge.
Never use benzene, thinners, cleaning fluids, anti-static liquids or any other solvent.
• Be sure to use only round CDs for this unit and do not use any special shape CDs. Use of
special shape CDs may cause the unit to malfunction.
• Do not stick paper or tape on the disc. Do not use CDs with labels or stickers attached or
that have sticky residue from removed stickers.
• Do not expose discs to direct sunlight or heat sources.
NOTE: A disc may become scratched (although not enough to make it unusable)
depending on how you handle it and other conditions in the usage environment. These
scratches are not an indication of a problem with the player.
Disc Type Logo Diameter/
Playable Sides Playback Time
Audio CD 12 cm single side 74 minutes
REWRITABLE
RECORDABLE
Insert label Do not bend. Never touch
the under side
of the disc.
Wipe clean from
the center to the
edge.
side up.

JMS7010
3
INSTALLATION
This unit is designed for installation in vessels with an existing standard size DIN radio
opening.
Before You Begin
1. Disconnect Battery
Before you begin, always disconnect the battery negative terminal.
2. Remove Transport Screw
Please remove the shipping screw before installation. If the screw is left in place, the CD
mechanism will not operate.
Important Notes
• Before final installation, test the wiring connections to make sure the unit is connected
properly and the system works.
• Use only the parts included with the unit to ensure proper installation. The use of
unauthorized parts can cause malfunctions.
• Consult with your nearest dealer if installation requires the drilling of holes or other
modifications to your vessel.
• Install the unit where it does not interfere with steering and cannot injure passengers if
there is a sudden or emergency stop or sharp turn.
• Avoid installing the unit where it will be subject to high temperatures from direct sunlight
or hot air, or where it would be subject to excessive dust, dirt or vibration.
• Install the unit within 30° of the horizontal plane.
DIN Front Mount
1. Check the dashboard opening size by sliding the radio into it. If the opening is not large
enough, carefully cut or file as necessary until the radio easily slides into the opening.
Check that there will be sufficient space behind the dashboard for the radio chassis. Use
the included drilling template to prepare the opening on a new mounting surface.
2. Place the radio in front of the dashboard opening so the wiring can be brought through the
DIN opening.
3. Follow the wiring diagram carefully and make certain all connections are secure and
insulated with crimp connectors or electrical tape to ensure proper operation.
4. After completing the wiring connections, turn the unit on to confirm operation (vessel
accessory switch must be on). If the unit does not operate, recheck all wiring until the
problem is corrected. Once proper operation is achieved, turn the accessory switch off
and proceed with final mounting of the chassis.
5. Carefully slide the radio into the dashboard making sure it is right-side-up.
6. Attach one end of the Perforated Support Strap (supplied) to the Rear Support Stud on
the rear of the chassis using the M5 Mounting Nut provided. Fasten the other end of the
perforated strap to a secure part of the dashboard either above or below the radio using
the screw and plain washer provided. Bend the strap, as necessary, to position it.
CAUTION: The perforated rear support strap must be used in the installation of the
radio. Installation without the strap may result in damage to the radio or the
mounting surface and void the manufacturer’s warranty.
7. Install the six #6 Stainless Steel Mounting Screws through the front of the radio into the
dashboard.
CAUTION: Radio must be secured using all 6 mounting points. Failure to do so may
result in damage to the radio or dashboard.
8. Test radio operation by referring to the operating instructions for the unit.
Reconnect Battery
When wiring is complete, reconnect the battery negative terminal.
#6 ROUND HEAD STAINLESS STEEL
MOUNTING SCREW (6-PLCS.)
MINIMUM SCREW LENGTH 1 1/2"
STANDARD SIZE DIN
REAR SUPPORT STUD
M5 MOUNTING NUT
PERFORATED REAR
SUPPORT STRAP
USED TO SECURE TO
SUB DASH STRUCTURE

JMS7010
4

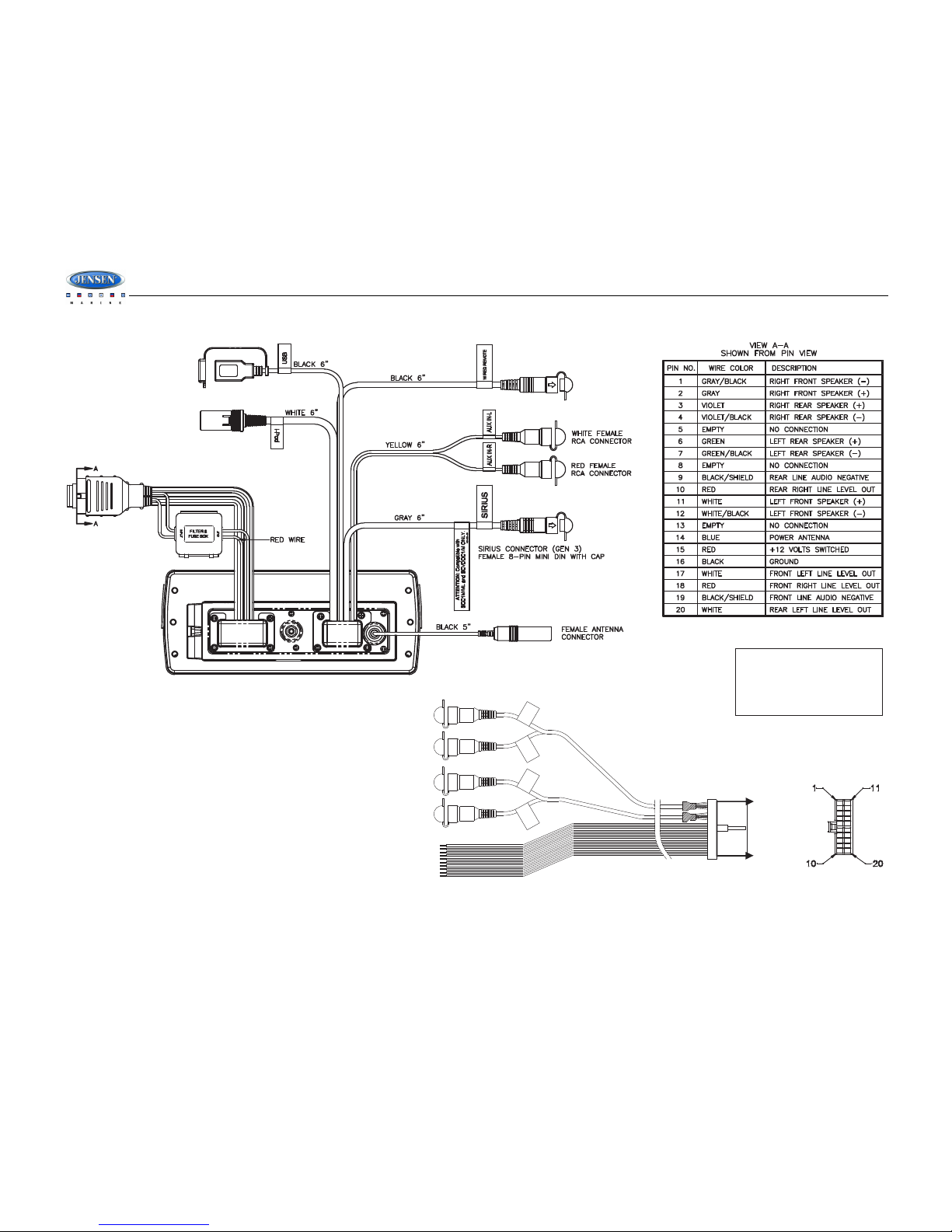

WIRING
10.22 inches
10.22 inches
LINE OUT
RED
WHITE
RED
WHITE
GRAY
GRAY
BROWN
BROWN
(REAR)
(FRONT)
LINE OUT
20 PIN AUDIO OUTPUT WIRE
MALE
A
A
WARNING!
Do not connect the RED +DC
wire to the battery. This wire
MUST be connected to a +12
volts switched power source.

JMS7010
5
BASIC OPERATION
Power On/Off
Press the Jensen POWER button (17) to turn the unit on or off. The unit will resume at the last
mode selected (Tuner, Auxiliary, etc.).
Volume Control
To increase the volume, press the VOLUME + button (1a). To decrease the volume, press the
VOLUME - button (1b). While adjusting the volume, the LCD displays a bar graph and
numerical representation of the level.
The maximum volume setting is 40.
Mute
Press the MUTE button (13) to mute the audio output. Press MUTE again to restore the audio
output to the previous level.
Mode
Press the MODE button (4) to select a different mode of operation, as indicated on the display
panel. Available modes include the following: Tuner (AM/FM) > SAT (Sirius) > iPod > CD >
USB > Auxiliary. Tuner is the default source when a prior source is no longer available.
NOTE: CD, iPod, USB or Sirius (SAT) mode will be skipped if the module is not installed.
NOTE: Sirius (SAT) mode will be skipped when the Region menu option is set to
“EURO”.
Reset
The reset button (23), located inside the CD door, should be activated for the following
reasons:
• initial installation of the unit when all wiring is completed
• function buttons do not operate
• error symbol on the display
Use a ball point pen or thin metal object to press the RESET button (23). This may be
necessary should the unit display an error code.
Front Panel
Important Notes
• Always operate the unit with the front panel door closed.
• When closing the front panel door, do not apply pressure to the OPEN slide button (on the
front of the unit under the “JENSEN” logo).
• Do not force front panel door operation when opening or closing.
• Do not touch the door open detection switch (24).
Front Panel Door Alarm
To prevent damage to the unit by entry of water or debris through the CD opening, the front
panel door should only be opened for a short period of time during CD loading or ejecting. If the
front panel door is left open for longer than 30 seconds, a beep tone will sound. Close the door
to resume normal playback.
3
2
45
11
24
6
13
714
8
16
915 10
12
17
1a
1b
22
18
20
21
19
23
RESET

JMS7010
6
Audio Menu
Press the AUDIO button (3) to access the audio menu. You can navigate through the audio
menu items by pressing the AUDIO button repeatedly. Once the desired menu item appears
on the display, adjust that option using the VOLUME +/- buttons (1) within 5 seconds. The unit
will automatically exit the audio menu after five seconds of inactivity. The following menu items
can be adjusted.
Bass Level
Use the VOLUME +/- buttons (1) to adjust the Bass level range from “-7” to “+7”.
Treble Level
Use the VOLUME +/- buttons (1) to adjust the Treble level range from “-7” to “+7”.
Balance
Adjusting Balance controls the relative level between the left and right speakers in each pair.
Use the VOLUME +/- buttons (1) to adjust the Balance between the left and right speakers
from “Left 12” to “Right 12”.
Fader
Adjusting Fade controls the relative level between the front and rear speaker pairs. Use the
VOLUME +/- buttons (1) to adjust the Fader between the rear and front speakers from “Rear
12” to “Front 12”.
System Menu
1. Press and hold the PTY/CAT/MENU button (2) for more than 2 seconds to enter the sys-
tem menu. The first menu item, “Key Beep”, will appear on the display.
2. Press the TUNE/TRK |<< / >>| (18, 19) button repeatedly to navigate the system menu.
3. Press the INFO/ENTER button (16) to select the desired item.
4. Press the INFO/ENTER button again to adjust the selected menu item.
The following items can be adjusted:
• Key Beep (Click / Beep / Off): Turn the audible beep On/Off (heard when functions/
buttons are selected).
• LCD Backlight (1-10): Adjust LCD brightness.
• LCD Contrast (1-10): Adjust LCD contrast.
• Tuning Region (USA / EURO): Set frequency spacing for various regions.
• Power-Off Clock (1-10 / Off)
• Clock Format (12Hour / 24Hour): Select 12 or 24 hour display mode.
• Set Clock (HH : MM):
• Press the INFO/ENTER button (16) to view the clock set screen.
• Press the INFO/ENTER button to move to the next digit.
• Press the TUNE/TRK |<< / >>| (18, 19) buttons to adjust the selected digit.
• Preset-Only Tuning (On / Off)
• Sirius Satellite Radio (only appears when SIRIUS tuner is connected and in SIRIUS
mode)
• Clock Autoset (On / Off)
• Time Zone1 (Atlantic / Eastern / Central / Mountain / Pacific / Alaska
• Daylight Saving Time (Observed / Not Observed)
• Clear Skipped Channels (Yes / No)
• Skipped Channels: List of Channels (Skipped / Visible)
• Set Lock Code: _ _ _ _
• Locked Channels: List of Channels (Locked / Unlocked)
• Enable Song Seek (Yes / No)
• Edit Favorite Songs: List of Favorite Songs (Enable / Disable / Delete)
• iPod Auto-Select (On / Off): Choose “On” to automatically detect and playback iPod when
connected or “Off” to use the MODE button (4) to select the iPod source.
• Battery Alarm (Off / On): When On, if the battery supply voltage drops below 10.8V,
indicating a possible problem with the vessel’s battery charging system, the radio will
issue a low battery display warning and an audio beep once per minute. The warning and
sound will continue until the unit is turned off or the voltage is restored to more than 10.8
Volts.
• Battery Auto-Off (Off / On)
• Reset System Defaults <ENTER>: Press the INFO/ENTER button (16) to return the
JMS7010 to factory default set up values.
• Update Firmware <ENTER>: Press the INFO/ENTER button (16) to apply recent software
updates.
Equalizer
Press the EQ/LOUD button (11) to choose one of the following pre-defined bass and treble
curves: USER > FLAT > ROCK > CLASSICAL > POP.
Loudness
Press and hold the EQ/LOUD button (11) to toggle loudness on/off. When listening to music at
low volumes, this feature will boost the bass and treble ranges to compensate for the
characteristics of human hearing.
Auxiliary Input
To access an auxiliary device:
1. Connect the portable audio player to the AUX IN cables on the back of the radio.
2. Press the MODE button (4) to select “Auxiliary” mode. The rear AUX IN audio source will
play by default until a device is inserted into the front jack.
3. Press MODE again to cancel “Auxiliary” mode and go to the next mode.
NOTE: The front AUX IN jack will override the rear auxiliary audio inputs.
Liquid Crystal Display (LCD)
The current frequency and activated functions are shown on the LCD panel (21).
NOTE: LCD panels may take longer to respond when subjected to cold temperatures for
an extended period of time. In addition, the visibility of the characters on the LCD may
decrease slightly. The LCD display will return to normal when the temperature increases
to a normal range.

JMS7010
7
Setting the Clock
To set the clock to display the current time, turn the vessel ignition on and turn the radio on.
Enter the system menu and adjust the clock by selecting the “Set Clock” menu item.
• Press the INFO/ENTER button (16) to view the clock set screen.
• Press the INFO/ENTER button to move to the next digit.
• Press the TUNE/TRK |<< / >>| (18, 19) buttons to adjust the selected digit.
When no adjustment is made for five seconds, the time will become set and normal operation
will resume.
Optionally, the clock can be set automatically in Sirius equipped radios by turning on the Clock
Autoset feature and selecting the correct Time Zone and Daylight Saving Time options. These
settings are accessed through the “Sirius Satellite Radio” menu under the System Menu.
Scroll
When the information is too long to be displayed on the LCD, press the DISP/SCROLL button
(12) to view the entire title. The information will scroll twice and then return to abbreviated text.

JMS7010
8
TUNER OPERATION
Select a Band
Press the BAND/WB button (15) to change between three FM bands and two AM bands.
Press and hold the BAND/WB button to access the Weatherband (WB).
Manual Tuning
Press the TUNE/TRK >>| or |<< buttons (19, 18) to seek stations up/down step by step.
Auto Seek Tuning
Press and hold the TUNE/TRK >>| or |<< buttons (19, 18) to automatically seek the next or
previous strong station.
NOTE: Seek tuning is not available for weather band channels. Use the up or down
tuning buttons to manually select any of the seven available weather band channels.
Preset Stations
Six numbered preset buttons store and recall stations for each band.
Store a Station
Select a band (if needed), then select a station. Press and hold a preset button (5-10) for two
seconds. The preset number will appear on the LCD.
Recall a Station
Select a band (if needed). Press a preset button (5-10) to select the corresponding stored
station.
NOTE: Preset buttons are pre-assigned frequencies in weather band mode.
Automatically Store / Preset Scan (AS/PS)
Automatically Store
Select an AM or FM band. Press and hold the AS/PS/FAV button (14) for more than 2 seconds
to automatically select 18 strong stations (12 for AM). “Storing Presets” appears on the screen
and the new stations replace any stations already stored.
Preset Scan
Select a band. Press AS/PS/FAV (14) to scan stations stored in the current band. The unit will
pause for 5 seconds at each preset station. Press AS/PS/FAV again to stop scanning when the
desired station is reached.
RBDS Operation
This unit is equipped to display RBDS (Radio Broadcast Data Service) information when
broadcast by the radio station.
NOTE: Radio stations broadcasting RBDS may not be available in your listening area.
In FM radio mode, press the PTY/CAT/MENU button (2) to list the following Program Type
(PTY) options: ANY / News / Information / Sports / Talk / Rock / Classic Rock / Adult Hits / Soft
Rock / Top 40 / Country / Oldies / Soft / Nostalgia / Jazz / Classical / Rhythm and Blues / Soft
Rhythm & Blues / Foreign Language / Religious Music / Religious Talk / Personality / Public /
College / Weather / Emergency Test / ALARM! ALARM!
To search for stations in a PTY category:
1. Press the PTY/CAT/MENU button (2) to view the current PTY category.
2. Press the TUNE/TRK >>| or |<< buttons (19, 18) to move through the list of available
categories and select the program type you wish to search.
3. After selecting the desired PTY, press the PTY/CAT/MENU button (2) to search the band
for broadcasts of this type. “PTY Search” is displayed while the tuner is searching.
NOTE: Performing a PTY search on “ANY” will Seek Tune and stop on any station
broadcasting RBDS, regardless of the program type.
3
2
45
11
24
6
13
714
8
16
915 10
12
17
1a
1b
22
18
20
21
19
23
RESET

JMS7010
9
Weather Band Operation
What is the NOAA Weather Radio/Weatheradio Canada?
NOAA (National Oceanic and Atmospheric Administration) is a nationwide system that
broadcasts local weather emergency information 24 hours a day via the National Weather
Service (NWS) network. The U.S. network has more than 530 stations covering the 50 states
as well as the adjacent costal waters, Puerto Rico, the U.S. Virgin Islands and the U.S. Pacific
Territories. Each local area has its own transmitting station and there are a total of seven
broadcasting frequencies used. A similar system is available in Canada under the Weatheradio
Canada service administered by Environment Canada.
Tuning to Weatherband
Press and hold the BAND/WB button (15) to access the Weatherband. The indication "WB"
will appear on the display panel, along with the current number and channel indication: "WB-1",
“WB-2", "WB-3", "WB-4", "WB-5", "WB-6" or "WB-7". The seven frequencies are shown in the
following table:
The above table also shows which preset button will access the frequency. Note that one
frequency cannot be accessed using a preset button. The frequency can only be reached
using the tuning controls.
Use the TUNE/TRK >>| or |<< buttons (19, 18) or the preset buttons to tune to each of the
seven channels until you find the weatherband station broadcasting in your area.
How many stations can I expect to receive?
Since the broadcasts are local weather and information, the transmission power is usually very
low (much less than standard AM or FM stations) so you will usually receive only one station
unless you are on the edge of two or more broadcast signals. The most you will receive will be
two or three, and that is rare.
Is it possible I won't receive any stations?
Depending on where you are located, there is a possibility you will receive only a very weak
signal or none at all. Also, similar to AM and FM signals, weatherband signals are subject to
surrounding conditions, weather, obstructions of the signal by hills or mountains, etc.
Table 1: WB Frequencies
Frequency (MHz) Preset
162.400 2
162.425 4
162.450 5
162.475 3
162.500 6
162.525 -
162.550 1

JMS7010
10
CD/MP3/USB PLAYBACK
Digital File Playback
If the user inserts a data disc or connects a USB mass storage device, the radio automatically
powers on, if necessary, and switches to digital file playback mode and selects that physical
media. The bottom left corner of the LCD displays the name of the source. Changing modes or
turning off the radio pauses playback. Playback will resume exactly where paused when
returning to digital file playback mode.
Inserting and Ejecting a Disc
Insert a disc, label-side up, into the disc slot (22). The unit will automatically draw the disc in
and play the first track on the disc, whether the power was turned on or not.
Press the eject button (20) to stop disc play and eject the disc. The unit does not have to be
on to eject the disc. Disc will retract if not removed.
Inserting a USB Device
The wired USB connector is at the rear of the radio. Insert a USB device to switch to USB
mode and begin playback.
Controlling File Playback
Selecting Tracks
Press the TUNE/TRK >>| (19) or TUNE/TRK |<< button (18) to advance to the next track/file.
The selected track number will appear on the display. Press and hold the TUNE/TRK >>| or
|<< button to fast forward or fast reverse. Playback resumes when the button is released.
Play/Pause Disc Playback
Press the MUTE/>|| button (24) to suspend playback. “Pause” is displayed on the screen.
Press the MUTE/>|| button again to resume play.
Previewing Tracks
Press the 2/INT button (6) to play the first 10 seconds of each track in the current folder
sequentially. Press 2/INT again to stop Intro Scan and resume normal play at the current track.
Repeat Play
• Press the 1/RPT button (8) during disc play to repeat the current track.
• Press 1/RPT again to stop repeat play.
Random Play
• Press the 3/RDM button (5) during disc play to play all tracks in the current folder in
random, shuffled order.
• Press 3/RDM again to stop random play.
Folder Navigation (MP3 Only)
• Press the PTY/CAT/MENU button (2) to view a list of all songs in the current folder.
• Press the PTY/CAT/MENU button again to navigate up through the file structure.
• Press the >>| / UP (19) and |<< / DN (18) buttons to navigate the list.
• Press the INFO/ENTER button (16) to play the highlighted song or view files in the
selected folder. Continue pressing INFO/ENTER until the desired file is selected.
The unit will automatically exit the folder navigation menu after 5 seconds of inactivity.
MP3 Specifications
Notes on MP3 Playback
• Any directory that does not include an MP3 file is skipped
• Maximum number of folders: 512 (including skipped directories)
• Maximum number of folder levels: 12
• Maximum number of MP3 files: 999
• Maximum number of characters for MP3 file name and folder name: 32
• Sampling frequency: 16KHz, 22.05KHz, 24KHz, 32KHz, 44.1KHz, 48KHz
• Bit rates: maximum 384 Kbps
• Maximum number of Characters of ID3 Tag:
• ID3 Tag version 1.0: 32
• ID3 Tag version 2.x: 32
File Playing Order
Files will be continually played sequentially within the current folder. To play songs in another
folder, press the PTY/CAT/MENU button (2) twice to move up a folder level. Press the >>| / UP
(19) and |<< / DN (18) buttons to navigate the list and then press the INFO/ENTER button (16)
to access the selected song or folder.
You can set the order in which MP3/WMA are to be played by writing them onto a medium such
as a CD-R with their file names beginning with play sequence numbers such as "01" to "99".
3
2
45
11
24
6
13
714
8
16
915 10
12
17
1a
1b
22
18
20
21
19
23
RESET

JMS7010
11
SATELLITE RADIO OPERATION
Switching to Sirius Satellite Radio
(Requires optional Sirius tuner)
Press the MODE button (4) as many times as necessary to change the mode to Sirius radio
mode.
Accessing your Sirius RADIO ID
To display your Sirius radio ID, use the TUNE/TRK |<< button to tune to channel “000”. The
screen will display “Sirius ID” with the SID displayed in the middle of the LCD screen. The
Sirius radio ID is 12 characters long.
Selecting a Band
In Sirius mode, press the BAND/WB button (15) to access the Sirius user-preset channel
groups in the following order: SR1, SR2, SR3.
Category Tuning
1. Press the PTY/CAT/MENU button (2) to access Category mode.
2. While in category mode, press 5/CAT- OR 6/CAT+ buttons (9, 10) to choose a category.
3. Press the TUNE/TRK |<< / >>| buttons (18, 19) to choose desired channels in that
category. (The current channel number within the chosen category will always be the
default first channel tuned.)
4. Press the PTY/CAT/MENU button to return to channel tuning mode.
Channel Up/Down Tuning
Press the TUNE/TRK |<< / >>| buttons (18, 19) to search for a channel. Press and hold the
TUNE/TRK buttons to fast search.
Direct Tuning Mode
1. Press and hold the INFO/ENTER button (16) to enter direct tuning mode.
2. Press TUNE/TRK |<< / >>| buttons (18, 19) to change the first of three digits for the
desired channel in the direct entry screen.
3. Press the INFO/ENTER button to confirm the entered digit and move to the second digit
field.
4. Press TUNE/TRK |<< / >>| buttons to select the second digit.
5. Press the INFO/ENTER button to confirm the entered digit and move to the third digit
field.
6. Press TUNE/TRK |<< / >>| buttons to select the third digit.
7. Press the INFO/ENTER button to confirm the three digit channel and tune to the selected
channel.
Storing Preset Channels
The preset buttons (5-10) can be used to store 6 channels, allowing convenient access to your
favorite channels.
Programming Channels
1. Select the channel you want to store in memory.
2. Press and hold a preset button (5-10) until the corresponding preset button number
appears.
3. Repeat steps 1 and 2 to program additional channels.
Preset Recall
Press one of the six preset buttons (5-10) to directly select a preset channel stored in the
current band.
Preset Scan
Press AS/PS/FAV button (14) to scan stations stored in all three user-preset channel groups
(SR1, SR2 and SR3). The unit will pause for 10 seconds at each preset station. Press AS/PS
again to stop scanning when the desired station is reached.
Preset Tuning
In Preset Tuning Mode, you can use the TUNE/TRK |<< / >>| buttons (18, 19) to access all 18
preset stations in sequential order. Access preset tuning mode through the system menu. Set
Preset-Only Tuning to “ON.”
Alternate Display Mode
Press the DISP/SCROLL button (12) to change the display information between single and
dual line text display. In dual line mode, both artist and title are available for viewing.
Press and hold the DISP/SCROLL button to scroll the Artist/Song Title information.
While in category tuning list mode, press the DISP/SCROLL button in sequence to change the
display information from Channel Name, Artist, and Song Title.
3
2
45
11
24
6
13
714
8
16
915 10
12
17
1a
1b
22
18
20
21
19
23
RESET

JMS7010
12
Satellite Signal Strength
The display will indicate satellite reception strength as shown below.
Channel Lock
Access Channel Lock through the System Menu under the “Sirius Satellite Radio” menu. See
“System Menu” on page 6.
1. Select “Set Lock Code.”
2. No channels can be locked with the default 0000 code. To set the lock code:
a. Press the TUNE/TRK |<< / >>| (18, 19) buttons to enter the first digit of the default
code.
b. Press the INFO/ENTER button to move to the next digit.
c. Repeat above steps to enter all 4 digits of the default code.
d. Press the TUNE/TRK |<< / >>| (18, 19) buttons to enter the first digit of the new
code.
e. Press the INFO/ENTER button to move to the next digit.
f. Repeat above steps to enter all 4 digits.
g. Repeat above steps to confirm the new code.
8. After setting a new four digit code, you can lock channels by entering the “Locked
Channels” menu.
9. Upon entering the Locked Channels list, you will be prompted to enter your four digit
code.
a. Press the TUNE/TRK |<< / >>| (18, 19) buttons to enter the first digit.
b. Press the INFO/ENTER button to move to the next digit.
c. Repeat above steps to enter all 4 digits.
4. After entering the code, you can navigate the list using the TUNE/TRK |<< / >>| buttons to
highlight the channels.
5. Press the INFO/ENTER button (16) to Lock (indicated by a icon) or Unlock ( ) the
selected channel.
Favorites (Song/Artist Seek)
This feature lets you store and search for up to 15 Artist/Song combinations on Sirius Satellite
Radio. To enable favorites notification, turn Enable Song Seek on under the “Sirius Satellite
Radio” menu on the System Menu. See “System Menu” on page 6.
1. Select “Enable Song Seek.”
2. Press the INFO/ENTER button (16) to turn the option “on”.
Select/Set Favorite Song or Artist
1. While the current song is playing, press and hold the AS/PS/FAV button (14).
2. Press the INFO/ENTER button (16) to select the Artist to be stored or press the AS/PS/
FAV button to select the Song to be stored.
Next time the stored artist or song is played on Sirius Satellite Radio, you will be notified with
an alert and can then choose to tune to the channel playing the Song or Artist.
Remove Favorite Song or Artist
The list of stored Artists/Songs can be managed through the System Menu under the “Sirius
Satellite Radio” menu. See “System Menu” on page 6.
1. Select “Remove Favorites”.
2. Select items to be removed from notification list.
Signal Strength Strength Display
No Signal
Weak
Good
Excellent

JMS7010
13
iPod OPERATION
This unit is equipped with an iPod ready function that will allow you to control your iPod (if
compatible) using the control panel buttons. The following iPod versions are supported:
• iPod Nano (1G, 2G, 3G, 4G and 5G)
• iPod 5G
• iPod Classic
• iPhone, iPhone 3G, iPhone 3GS
• iPod Touch
• iPod Touch 2G
NOTE: Earlier model iPods are not supported because they do not implement the USB
control protocol. Also, the iPod Shuffle is not supported because it does not utilize the
30-pin Apple iPod Connector. These unsupported iPod models may be connected to the
radio using one of the Auxiliary Inputs.
NOTE: iPod and iPod Cable sold separately.
Accessing iPod Mode
To enter iPod mode from any other source, press the MODE
button (4) until “iPod” appears on the lower left corner of the
display. If the user connects an iPod containing no songs,
the radio will display a message stating “No Songs” when it
enters iPod mode.
Turning the iPod On/Off
The iPod power turns on automatically when an iPod is
connected to the 30-pin iPod cable, as long as the vessel
ignition is turned on. You can turn the iPod off by
disconnecting it from the cable or by turning the ignition off.
When the ignition is turned off, the iPod will pause and then
enter sleep mode after 2 minutes. While the iPod is
connected, the power cannot be turned on or off from the iPod itself.
NOTE: The iPod will continuously recharge when connected to the unit, as long as the
vessel ignition is turned on.
Controlling Playback
Pausing Playback
During playback, press the MUTE/>|| button (24) to pause the iPod player. “Pause” will appear
on the LCD. Press MUTE/>|| again to resume playback.
Repeat Play
During playback, press the 1/RPT button (8) to repeat the current song. “RPT” will appear on
the LCD. Press 1/RPT again to stop repeat playback.
Intro Play
During playback, press the 2/INT button (6) to play the first ten seconds of each song. “INT” will
appear on the LCD. Press 2/INT again to stop intro playback.
Random Play
During playback, press the 3/RDM button (5) to play all songs in the current category in
random order. Random play will begin once the current song has finished playing. “RDM” will
appear on the LCD. Press 3/RDM again to stop random playback.
Selecting Tracks
During playback, press the TUNE/TRK |<< / >>| buttons (18, 19) to play the previous or next
track in the current category. Press the TUNE/TRK |<< button (18) once to play the song from
the start position or press TUNE/TRK |<< twice to play the previous track. Pressing the TUNE/
TRK |<< button (18) during the first 2 seconds of a track will play the previous track. After 2
seconds, this action return to the beginning of the current track.
Press and hold the TUNE/TRK |<< / >>| button (18, 19) to fast reverse/forward the song.
NOTE: If you press and hold the TUNE/TRK |<< / >>| button to change the current song
to the previous/next song, you will exit fast reverse/forward mode.
iPhone
iPod
HEAD UNIT
13 Din iPod Ready Cable
iPod Cable
iPod
3
2
45
11
24
6
13
714
8
16
915 10
12
17
1a
1b
22
18
20
21
19
23
RESET

JMS7010
14
Playlist Search
Press the PTY/CAT/MENU button (2) to access Playlist selection mode. While in Category
mode, press the TUNE/TRK |<< / >>| buttons (18, 19) to choose file search by Playlist, Artist,
Album, Genre, Song, Audiobook or Podcast. Press the INFO/ENTER button (16) to select the
search mode. Use the TUNE/TRK |<< / >>| buttons to search the available files on the iPod.
Press the INFO/ENTER button to play the selected song or file.
Alternate Display Mode
Press the DISP/SCROLL button (12) to change the display information between single and
double line text display.

JMS7010
15
CARE AND MAINTENANCE
• If liquids (coffee, soda, etc.) are spilled on the radio, wipe it dry immediately. Some liquids
contain minerals that can corrode the electronic circuits.
• Keep the product away from dust and dirt, which can cause premature wear of parts.
• Handle the product gently and carefully. Dropping it can damage circuit boards and
cases, and can cause the product to work improperly.
• Wipe the product with a dampened cloth occasionally to keep it looking new. Do not use
harsh chemicals, cleaning solvents, or strong detergents to clean the product.
• Use and store the product only in normal temperature environments. High temperature
can shorten the life of electronic devices, damage batteries, and distort or melt plastic
parts.
Ignition
The most common source of noise in reception is the ignition system. This is a result of the
radio being placed close to the ignition system (engine). This type of noise can be easily
detected because it will vary in intensity of pitch with the speed of the engine.
Usually, the ignition noise can be suppressed considerably by using a radio suppression type
high voltage ignition wire and suppressor resistor in the ignition system. (Most vessels employ
this wire and resistor but it may be necessary to check them for correct operation.) Another
method of suppression is the use of additional noise suppressors. These can be obtained from
most professional mobile electronics retailers.
Interference
Radio reception in a moving environment is very different from reception in a stationary
environment (home). It is very important to understand the difference.
AM reception will deteriorate when passing under a bridge or when passing under high voltage
lines. Although AM is subject to environmental noise, it has the ability to be received at great
distance. This is because broadcasting signals follow the curvature of the earth and are
reflected back by the upper atmosphere.
TROUBLESHOOTING
Symptom Cause Solution
No power The vessel’s +12V switched
power source is not on
If the radio power supply is prop-
erly connected to the vessel’s
+12V switched power source ter-
minal, switch to “on” position
The fuse is blown Replace the fuse
Disc cannot be loaded or
ejected
Presence of CD disc inside
the player
Remove the disc in the player and
insert the new one
If disc will not eject, press the
RESET button
Disc error Inserting the disc in upside
down
Insert the compact disc with the
label facing upward
Compact disc is extremely
dirty or disc is defective
Clean the disc or try to play a new
one
Condensation Leave the player off for an hour or
so, then try again
No sound Volume is too low or system
is muted
Adjust volume to audible level
Wiring is not properly con-
nected
Check wiring connections
The operation keys do
not work
Front panel not properly
closed
Close front panel
The built-in microcomputer
is not operating properly
Press the RESET button
CD sound skips The installation angle is
more than 30 degrees
Adjust the installation angle to
less than 30 degrees
The disc is dirty or defec-
tive.
Clean the disc and try to play
again or use new disc
Cannot tune to radio sta-
tion, auto-seek does not
work
The antenna cable is not
connected
Check antenna cable
The signals are too weak Select a station manually

JMS7010
16
SPECIFICATIONS
CD
Signal to Noise Ratio. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . > 75 dB
Channel Separation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . : More than 50 dB
Frequency Response . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . : 20 Hz - 20 kHz
FM Radio
Frequency Coverage (USA) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87.5 to 107.9 MHz
Frequency Coverage (Europe) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87.5 to 108 MHz
Sensitivity (S/N=30dB) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4µV
Image Rejection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . >45 dB
Stereo Separation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . >25 dB
AM/MW
Frequency Range (USA). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 530-1710 kHz
Frequency Range (Europe). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 522-1620 kHz
Sensitivity (S/N=20dB) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36 dB
General
Operating Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .DC 12 Volts
Grounding System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Negative Ground
Speaker Impedance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-8 ohms per channel
Tone Controls:
Bass (at 100 Hz) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . : ±10 dB
Treble (at 10 kHz). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . : ±10 dB
Power Output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50W x 4
Current Drain. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 Ampere (max.)
Idle/Standby Current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75mA/0mA
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80 (W) x 183 (D) x 58 (H)

JMS7010
17

ASA Electronics Corporation
www.asaelectronics.com
www.jensenmarinedirect.com
© 2010 ASA Electronics Corporation
v.051910
