JETWAY NF9V User manual

Technical Manual
Of
Intel Bay Trail Series CPU
Based Mini-ITX M/B
NO.G03-NF9V-F
Revision: 1.0
Release date: March 6, 2015
Trademark:
* Specifications and Information contained in this documentation are furnished for information use only, and are
subject to change at any time without notice, and should not be construed as a commitment by manufacturer.

ii
Environmental Protection Announcement
Do not dispose this electronic device into the trash while discarding. To minimize
pollution and ensure environment protection of mother earth, please recycle.

iii
ENVIRONMENTAL SAFETY INSTRUCTION ....................................................................... iv
USER’S NOTICE .................................................................................................................. v
MANUAL REVISION INFORMATION ................................................................................... v
ITEM CHECKLIST................................................................................................................ v
CHAPTER 1 INTRODUCTION OF THE MOTHERBOARD
1-1 FEATURE OF MOTHERBOARD ............................................................................ 1
1-2 SPECIFICATION .................................................................................................... 2
1-3 LAYOUT DIAGRAM ............................................................................................... 3
CHAPTER 2 HARDWARE INSTALLATION
2-1 JUMPER SETTING................................................................................................. 8
2-2 CONNECTORS AND HEADERS ............................................................................ 13
2-2-1 CONNECTORS ......................................................................................... 13
2-2-2 HEADERS................................................................................................. 16
CHAPTER 3 INTRODUCING BIOS
3-1 ENTERING SETUP................................................................................................. 26
3-2 BIOS MENU SCREEN............................................................................................ 27
3-3 FUNCTION KEYS................................................................................................... 27
3-4 GETTING HELP...................................................................................................... 28
3-5 MEMU BARS.......................................................................................................... 28
3-6 MAIN MENU ........................................................................................................... 29
3-7 ADVANCED MENU ................................................................................................ 30
3-8 CHIPSET MENU..................................................................................................... 40
3-9 SECURITY MENU .................................................................................................. 43
3-10 BOOT MENU.......................................................................................................... 44
3-11 SAVE & EXIT MENU .............................................................................................. 45
TABLE OF CONTENT

iv
Environmental Safety Instruction
 Avoid the dusty, humidity and temperature extremes. Do not place the product in
any area where it may become wet.
 0 to 60 centigrade is the suitable temperature. (The figure comes from the request
of the main chipset)
 Generally speaking, dramatic changes in temperature may lead to contact
malfunction and crackles due to constant thermal expansion and contraction from
the welding spots’ that connect components and PCB. Computer should go
through an adaptive phase before it boots when it is moved from a cold
environment to a warmer one to avoid condensation phenomenon. These water
drops attached on PCB or the surface of the components can bring about
phenomena as minor as computer instability resulted from corrosion and oxidation
from components and PCB or as major as short circuit that can burn the
components. Suggest starting the computer until the temperature goes up.
 The increasing temperature of the capacitor may decrease the life of computer.
Using the close case may decrease the life of other device because the higher
temperature in the inner of the case.
 Attention to the heat sink when you over-clocking. The higher temperature may
decrease the life of the device and burned the capacitor.

v
USER’S NOTICE
COPYRIGHT OF THIS MANUAL BELONGS TO THE MANUFACTURER. NO PART OF THIS MANUAL,
INCLUDING THE PRODUCTS AND SOFTWARE DESCRIBED IN IT MAY BE REPRODUCED, TRANSMITTED
OR TRANSLATED INTO ANY LANGUAGE IN ANY FORM OR BY ANY MEANS WITHOUT WRITTEN
PERMISSION OF THE MANUFACTURER.
THIS MANUAL CONTAINS ALL INFORMATION REQUIRED TO USE THIS MOTHER-BOARD SERIES AND WE
DO ASSURE THIS MANUAL MEETS USER’S REQUIREMENT BUT WILL CHANGE, CORRECT ANY TIME
WITHOUT NOTICE. MANUFACTURER PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY
KIND, AND WILL NOT BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTIAL OR CONSEQUENTIAL
DAMAGES (INCLUDING DAMANGES FOR LOSS OF PROFIT, LOSS OF BUSINESS, LOSS OF USE OF DATA,
INTERRUPTION OF BUSINESS AND THE LIKE).
PRODUCTS AND CORPORATE NAMES APPEARING IN THIS MANUAL MAY OR MAY NOT BE
REGISTERED TRADEMARKS OR COPYRIGHTS OF THEIR RESPECTIVE COMPANIES, AND THEY ARE
USED ONLY FOR IDENTIFICATION OR EXPLANATION AND TO THE OWNER’S BENEFIT, WITHOUT
INTENT TO INFRINGE.
Manual Revision Information
Reversion Revision History Date
1.0 First Edition March 16, 2015
Item Checklist
 Motherboard
 User’s Manual
 CD for motherboard utilities
 Cable(s)

1
Chapter 1
Introduction of the Motherboard
1-1 Feature of Motherboard
 Onboard Intel® Bay Trail Series Processor, with low power consumption never
denies high performance
 Support 1* DDR3L 1066/1333 MHz SO-DIMM, up to 8GB
 Support full-size Mini-PCIE connector
 Support m-SATA connector
 Support 1 * SATAII port
 4 * RJ45 ports for External COM interface&2* Internal COM header
 Support USB 3.0 data transport demand
 Support LVDS & VGA dual display output
 Touch Panel Control IC integrated on board (Optional)
 Support CPU Over-Temperature protection
 Support CPU Over-Current/Under Voltage protection
 Support DRAM Over-Current/Under Voltage protection
 Amplifier implement to support 3W Speaker
 Support CPU/System Smart FAN
 Compliance with ErP standard
 Support Watchdog function

2
1-2 Specification
Spec Description
Design  6 layers; PCB size: 17x 17 cm
Embedded CPU  Integrated with Intel® Bay Trail-D/M/I series CPU
Memory Slot  1 * DDR3L SODIMM Slot for un-buffered DDR3L 1066/1333 M
Hz
SDRAM, expandable to 8GB in total
Expansion Slot  1* Full-size Mini-PCIE slot
 1* PCIE x1 slot
LAN Chip
 Integrated with Realtek RTL8111G PCI-E Gigabit LAN chip
 Support Fast Ethernet LAN function of providing
10/100/1000Mbps Ethernet data transfer rate
Storage  1* SATAII port
 1* Mini-SATA slot
BIOS  AMI 64MB Flash ROM
Rear I/O
 1* 12V system DC Jack power-in connector
 1* PS/2 keyboard & mouse port
 1* USB 3.0 port
 3* USB 2.0 port
 1* RJ-45 LAN port
 1* RJ-11 cash Drawer port
 4* RJ-45 COM port for Console
Internal I/O
 1* 2-Pin DC 12V system power-in connector
 1* 2-Pin DC 12V power-out connector
 1* SATA Power-out connector
 1* CPU FAN header
 2* SYSFAN header
 1* Front panel audio header
 1* SPDIF Out header
 1* LAN LED activity header

3
 1* Front panel header
 1* Power LED & speaker header
 1* SPEAK_CON header
 1* MIC header
 1* Line-out header
 2* Serial port header (COM5/6,COM6 supports RS422/485
function)
 1* Parallel port header
 2* USB 2.0 header (Expansible to 4* USB 2.0 ports)
 1* GPIO_CON header
 1* SMBUS header
 1* VGA port header
 1* Touch panel I/F header (Optional)
 1* LVDS header
 1* LVDS inverter header
1-3 Layout Diagram

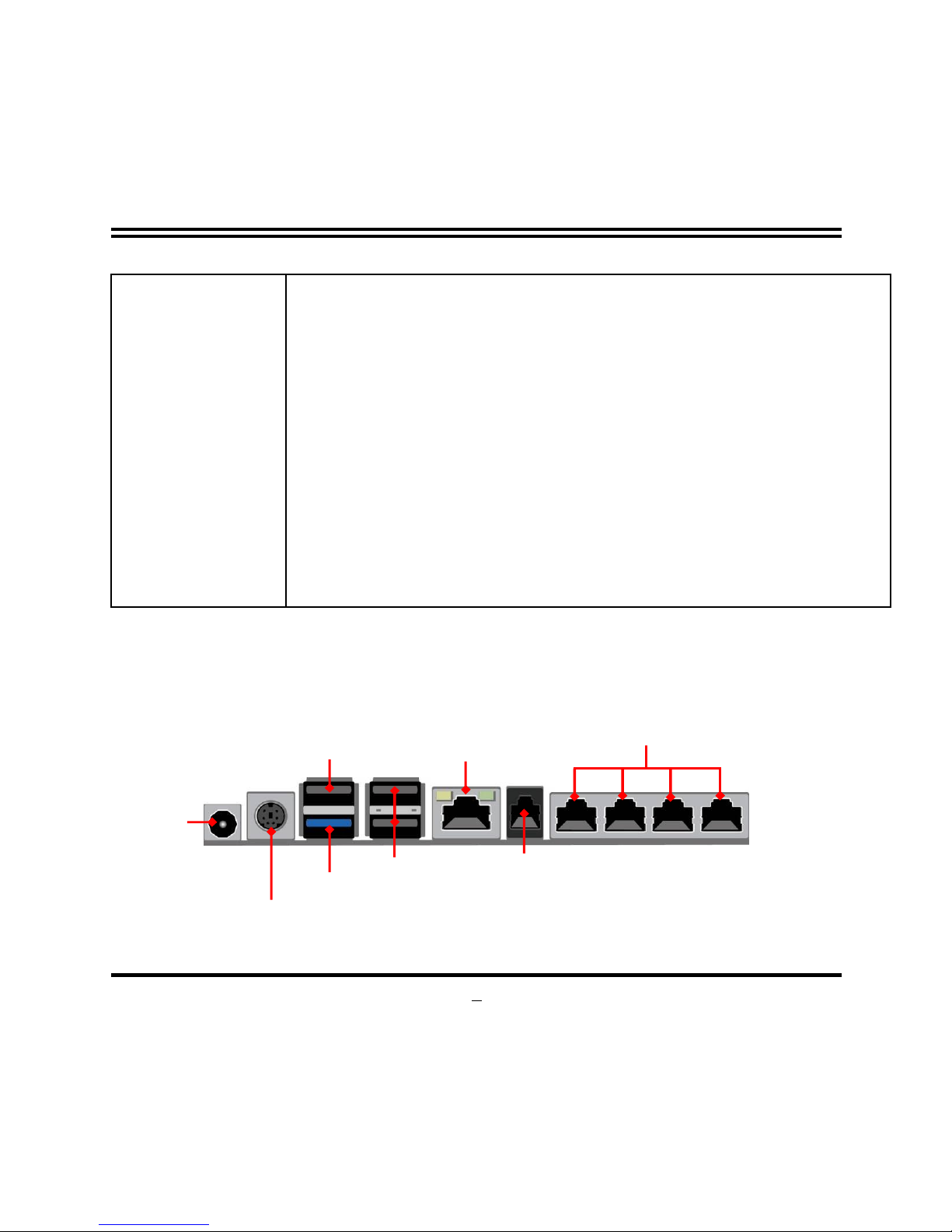

Rear IO Panel Diagram:
USB 2.0 Ports
RJ-45 COM Ports
RJ-11 Cash Drawer Port
RJ-45 LAN Port
USB 2.0 Port
USB 3.0 Port
12V
DC Power-in
Connector
PS/2 KB &MS Port

4

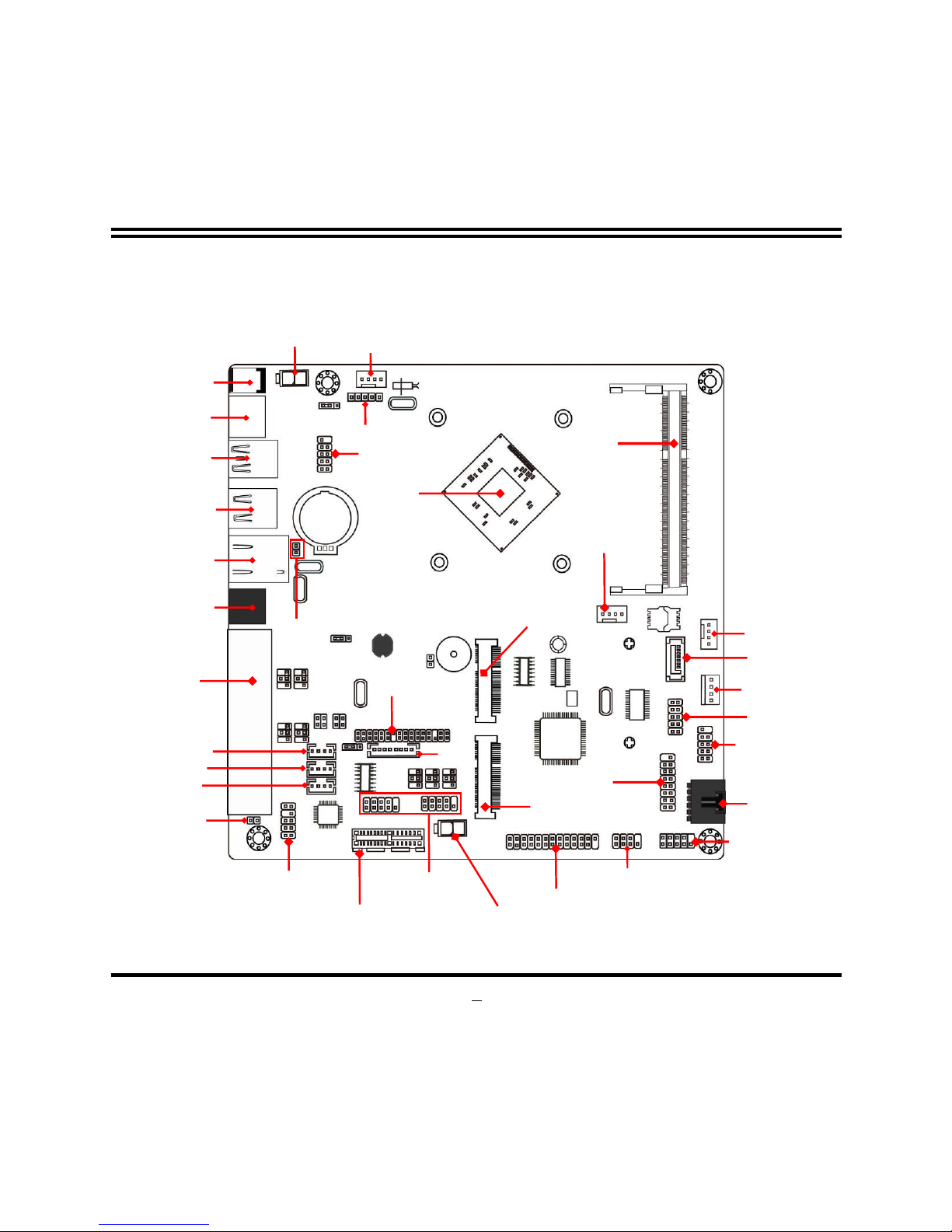

Motherboard Internal Diagram
Note: 1. The module should be DDR3L 1.35V SODIMM and not exceeding 8GB total capacity.
2. Touch I/F header is only optional by order.
Intel CPU
PCI Express x1 Slot
CPUFAN Header
Front Panel
Audio Header
Front Panel Header
LVDS
Inverter
GPIO Header
SATA Hard Disk
Power-Out Connector
LVDS Header
SATAII Port
SYSFAN1 Header
LAN_LED1
Header
*DDR3L SODIMM Slot
(SODIMM1)
Parallel Port Header
SMBUS Header
Power LED Header
& Speaker Header
Full-size
Mini-PCIE Slot (MPE)
DC12V
Power-in Connector
USB 3.0 Port
Over USB 2.0 Port
USB 2.0 Ports
RJ-45 LAN Port
Line-Out Header
Front Panel
USB 2.0 Header
PS/2
KB & MS Port
RJ-11
Cash Drawer Port
RJ-45
COM Ports
Internal 12V
Power Connector
HDMI_SPDIF
Header
Serial Port Headers
(COM5/6)
SPEAK_CON Head
er
MIC Header
VGA Port
Header
Mini-SATA Port
MON_PWR
12V Power Connector
*Touch I/F
Header
(Optional)
SYSFAN2 Header
Front Panel
USB 2.0 Header

5
Jumper Position:
JPME
JPCOM2
SYSFAN-DET
JPCOM3
JPCOM1
JPCOM4
JBAT_MERTC
AT-MODE
JPLCD
JPCOM6
JPLED
JPCOM5
JPRJ11

6
Jumper
Jumper Name Description
JBAT_MERTC
Pin 1-3: Clear ME Function Setting
Pin 2-4: CMOS RAM Clear Function Setting
4-Pin Block
AT_COPEN Pin 1-3: ATX Mode & AT Mode Select
Pin 2-4: Case Open Message Display Function
4-Pin Block
JPME ME Security Measure Function Select 2-Pin Block
JPLED INVERTER Back Light 5V/12V Select 3-Pin Block
JPLCD LVDS PVCC 3.3V/5V /12V Select 4-Pin Block
SYSFAN_DET
SYSFAN1/SYSFAN2 Smart Fan Support Select
3-Pin Block
JPRJ11 RJ11 Cash Drawer Voltage 12V/24V Select 3-Pin Block
JPCOM1 COM1 Port Pin5 GND/5V/12V Function Select 4-Pin Block
JPCOM2 COM2 Port Pin5 GND/5V/12V Function Select 4-Pin Block
JPCOM3 COM3 Port Pin5 GND/5V/12V Function Select 4-Pin Block
JPCOM4 COM4 Port Pin5 GND/5V/12V Function Select 4-Pin Block
JPCOM5 COM5 Header Pin9 RS232/5V/12V Select 4-Pin Block
JPCOM6 COM6 Header Pin9 RS232/5V/12V Select 4-Pin Block
Connectors
Connector Name
DCIN DC 12V System Power–in Connector
ATX2P Internal DC 12V System Power–in Connector
MON_PWR DC 12V Power–out Connector
SATA1 SATAII Port Connector
SATAPW SATA Power out Connector
CPUFAN CPUFAN Connector
SYSFAN1/SYSFAN2
SYSFAN Connector X2
PS2 PS/2 Keyboard & Mouse Combo Port Connector
USB1(Top) /USB2 USB 2.0 Port Connector X3

7
USB1(Bottom) USB 3.0 Port Connector
LAN RJ-45 LAN Port Connector
RJ-11 RJ-11 Cash Drawer Port Connector
COM RJ-45 COM Port Connector for Console x4
Headers
Header Name Description
FP_AUDIO Front Panel Audio Header 9-pin Block
SPDIF SPDIF Out Header 2-pin Block
LAN_LED1 LAN Activity LED Header 2-pin Block
JW_FP
Front Panel Header(PWR LED/
HDD LED/Power Button /Reset)
9-pin Block
SPK-LED Power LED & Speaker Header 7-pin Block
SPEAK_CON 3W Speaker Header 4-pin Block
MIC MIC Port Header 4-pin Block
LINTOUT Line-out Port Header 4-pin Block
COM5/6 Serial Port Header X2 9-pin Block
LPT Parallel Port Header 25-pin Block
FP_USB1/ FP_USB2 USB 2.0 Header X2 9-pin Block
GPIO_CON GPIO Header 10-pin Block
SMBUS SMBUS Header 5-pin Block
VGA1 VGA Port Header 15-pin Block
*TOUCH (Optional) Touch Panel I/F Header 5-pin Block
INVERTER LVDS Inverter 8-pin Block
LVDS LVDS Header 30-pin Block

8
Chapter 2
Hardware Installation
2-1 Jumper Setting

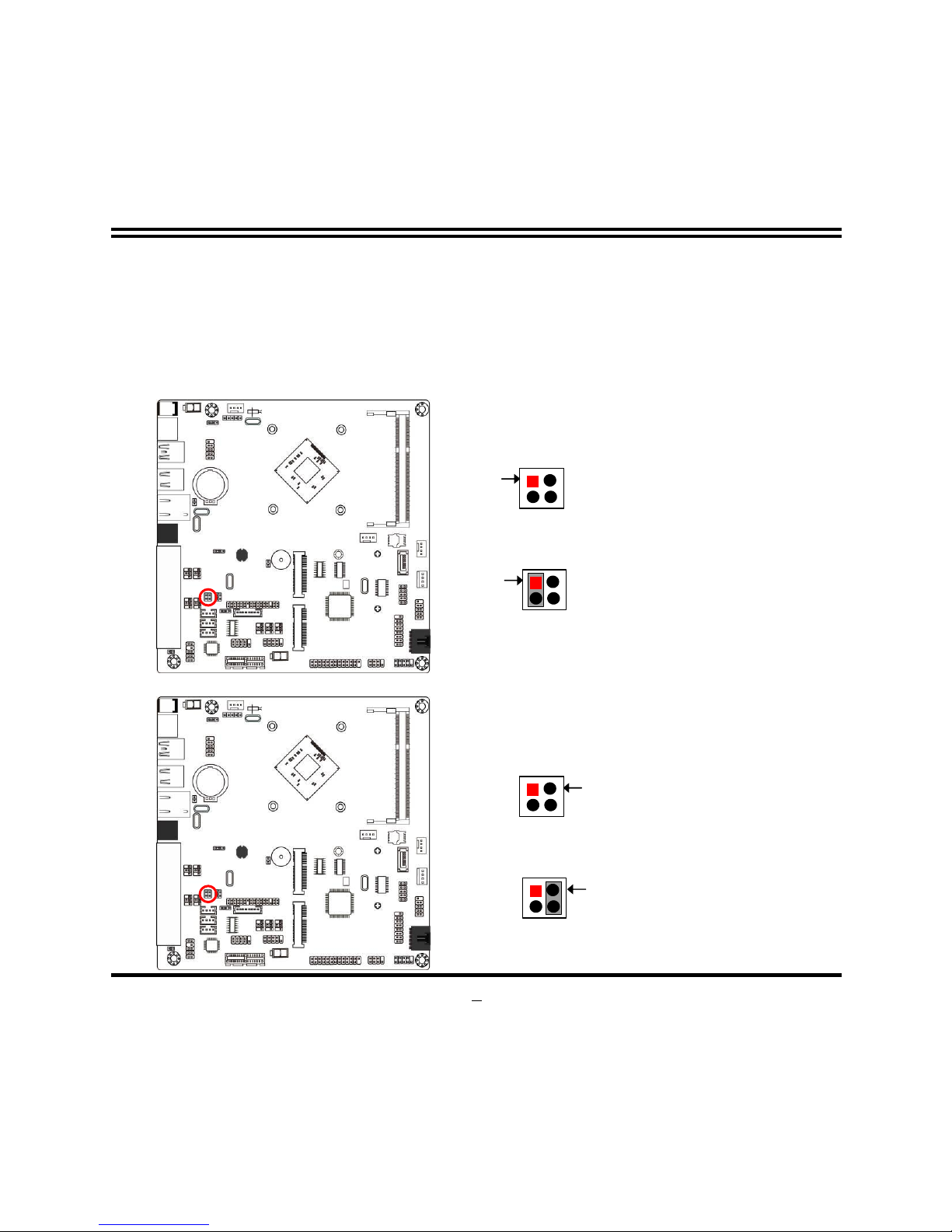

Pin 1 & 3 of JBAT_MERTC (4-pin): Clear ME Function Setting
JBAT_MERTC(Pin 1&3)
→ Clear ME
1-3 Close: Clear ME.
1-3 Open: Normal(Default);
2
4
Pin 1
3
Pin 1
3
2
4
Pin 2 & 4 of JBAT_MERTC (4-pin): Clear CMOS Setting
JBAT_MERTC(Pin 2&4) → Clear CMOS
2-4 Close: Clear CMOS(One Touch).
2-4 Open: Normal(Default);
4
3
3
4
Pin2
1
1
Pin2

9

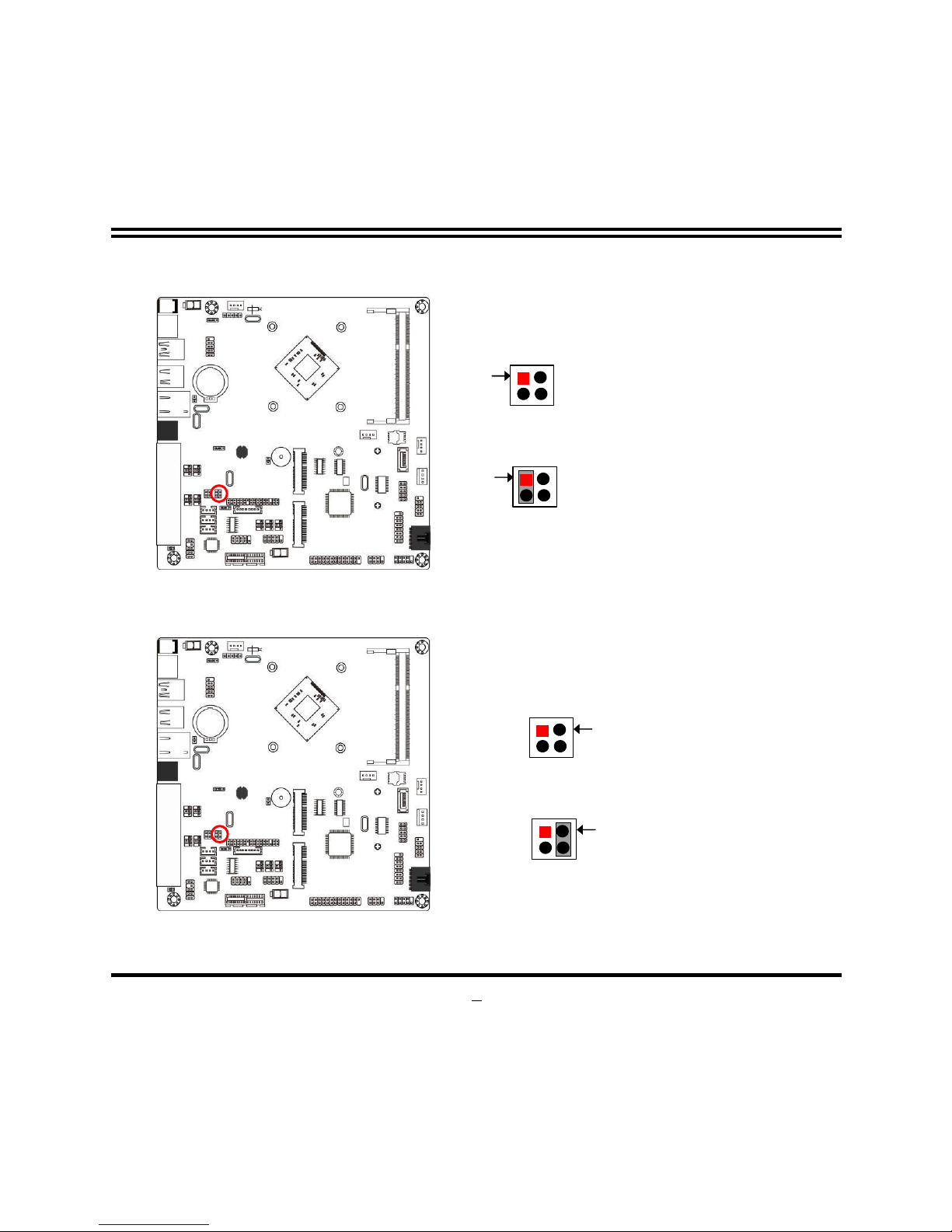

Pin 1 & 3 of AT_COPEN (4-pin): AT Mode Function Select
AT_
COPEN(Pin 1&3) → AT Mode Select
1-3 Close: AT Mode Selected.
1-3 Open: ATX Mode Selected(Default);
2
4
Pin 1
3
Pin 1
3
2
4
*ATX Mode Selected: Press power button to power on after power input ready;
AT Mode Selected: Directly power on as power input ready.
Pin 2 & 4 of AT_COPEN (4-pin): Case Open Message Display Function Select
AT_
COPEN(Pin 2&4) → Case Open Function Select
2-4 Close: Case Open Function Selected (One Touch).
2-4 Open: Normal(Default);
4
3
3
4
1
1
Pin2
Pin2
Pin 2-4 Close: When Case open function pin short to GND, the Case open function
was detected. When Used, needs to enter BIOS and enable ‘Case Open Detect’

10
function. In this case if your case is removed, next time when you restart your computer,
a message will be displayed on screen to inform you of this.
JPME (2-pin): ME Security Measure Function Select
1-2 Closed:Disable Security Measures in
the Flash Descriptor(Override).
JPME
1-2 Open:Enable Security Measures
in the Flash Descriptor(Default) ;
1
2
2

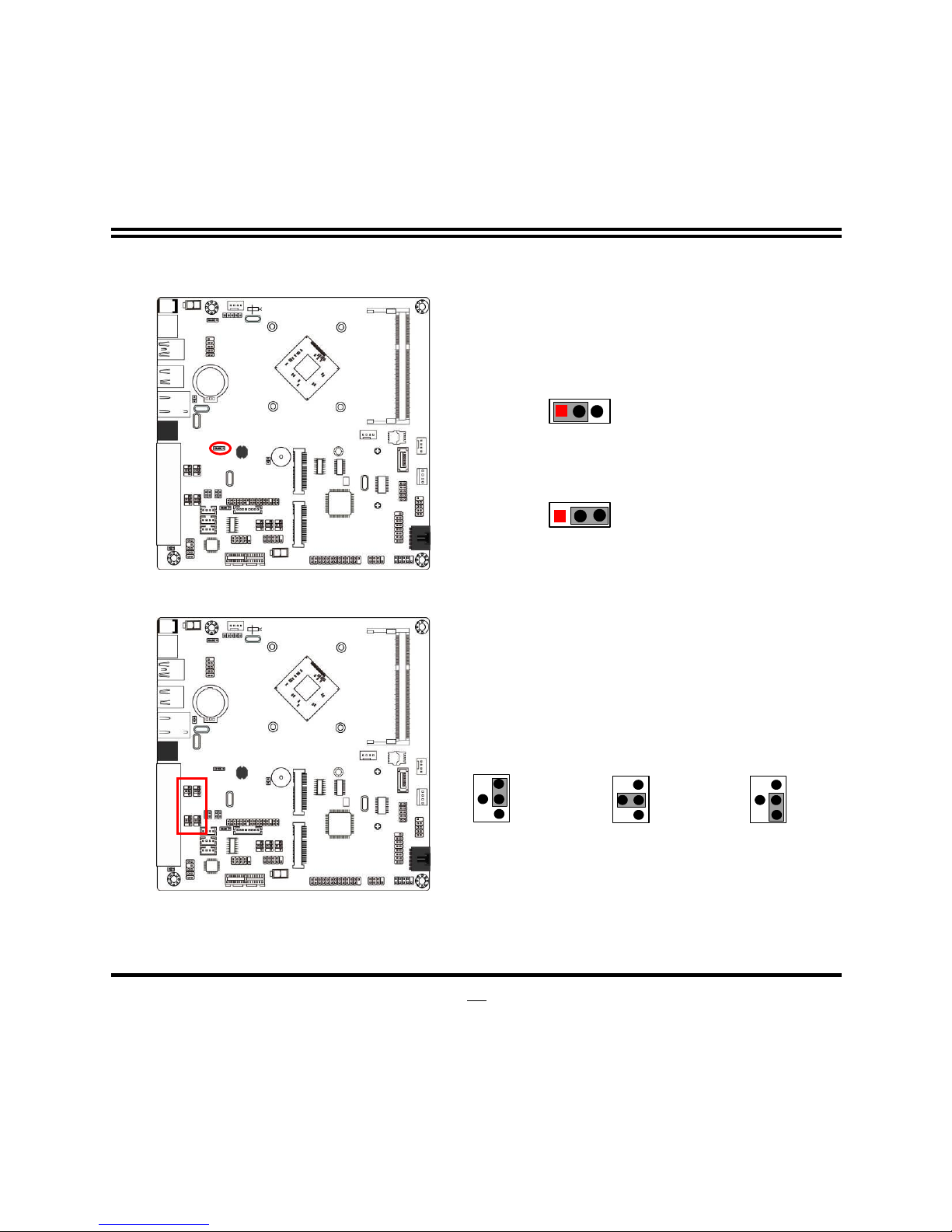

JPLED (3-pin): INVERTER Back Light VCC 5V/12V Select
2-3 Close: INVERTER Back Light 12V Selected.
JPLED → INVERTER Back Light VCC
1-2 Close: INVERTER Back Light 5V Selected(Default);
1
3
1
3

11
JPLCD (4-pin): LCD Back Light VCC 3.3V/5V/12V Select
JPLCD→LCD Back Light Voltage
6
4
2
3
1
5
1
2
4
6
3
5
2
4
6
1
3
5
2-4 Closed:
VCC=3.3V
(Default);
3-4 Closed:
VCC= 5V;
4-6 Closed:
VCC= 12V.

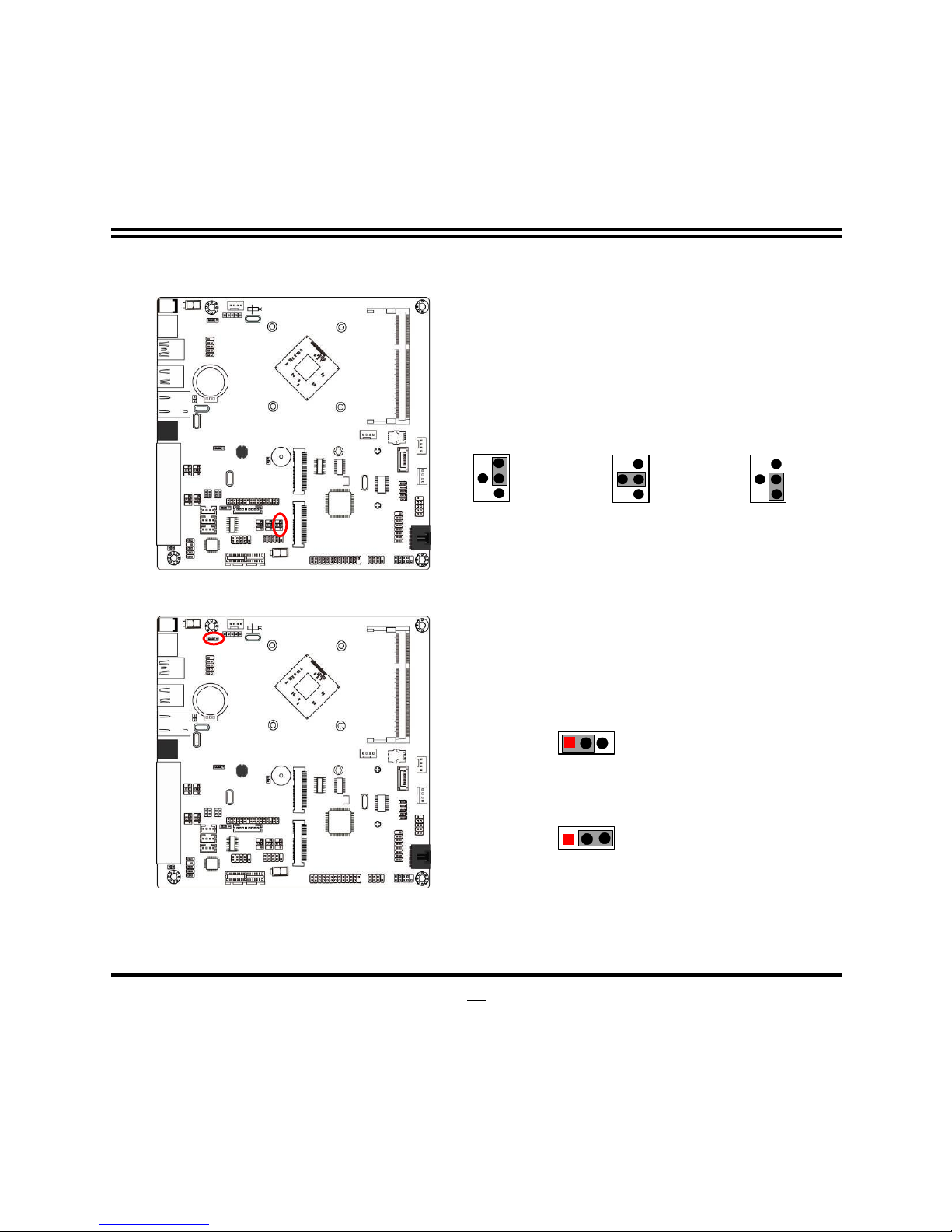

SYSFAN_DET (3-pin): SYSFAN1/SYSFAN2 Smart Fan Select
SYSFAN DET
→ SYSFAN1/2 Smart Fan Select
1
3
1
3
1-2 Close: SYSFAN1 Smart Fan Function Selected(Default);
2-3 Closed: SYSFAN2 Smart Fan Function Selected.

12
JPRJ11 (3-pin): RJ11 Cash Drawer Voltage 12V/24V Select
JPRJ11
→ RJ11 Cash Drawer Port
1
3
1
3
1-2 Close:RJ11 Cash Drawer Voltage=12V(Default);
2-3 Close: RJ11 Cash Drawer Voltage=24V.
JPCOM1/JPCOM 2/JPCOM3/JPCOM4 (4-pin):RJ45 COM1/2/3/4 Port Pin-5 Signal
Select
JPCOMP1
→ COM1 Port Pin-5
JPCOMP2 → COM2 Port Pin-5
JPCOMP3 → COM3 Port Pin-5
JPCOMP4 → COM4 Port Pin-5
6
4
2
3
1
5
1
2
4
6
3
5
2
4
6
1
3
5
2-4 Closed:
Pin5=GND(Default);
3-4 Closed:
Pin5=VCC;
4-6 Closed:
Pin5= 12V.

13
JPCOM5/ JPCOM6 (4-pin): COM5/ COM6Header Pin9 Function Select
JCOMP5
→ COM5 Header Pin-9
JCOMP6 → COM6 Header Pin-9
6
4
2
3
1
5
1
2
4
6
3
5
2
4
6
1
3
5
2-4 Closed:
RI=RS232(Default);
3-4 Closed:
RI= 5V;
4-6 Closed:
RI= 12V.
2-2 Connectors and Headers
2-2-1 Connectors
(1) Rear I/O Connectors
USB 2.0 Ports
RJ-45 COM Port
RJ-11 Cash Drawer Port
RJ-45 LAN Port
USB 2.0 Port
USB 3.0 Port
12V
DC Power-in
Connector
PS/2 KB &MS Port

14
(2) ATX2P (2-pin Block): DC 12V Power-in Connector
Pin1
Pin.
Definition
1 GND
2 +12V DC_IN
(3) MON_PWR(2-pin Block): DC 12V Power-out Connector
Pin1
Pin.
Definition
1 GND
2 +12V

15
(4) SATA1(7-Pin Block) : SATAII Port connector
SATA1 port is high-speed SATAII ports that support 3GB/s transfer rate.
Pin No. Definition
1 GND
2 TXP
3 TXN
4 GND
5 RXN
6 RXP
7 GND
(5) SATAPW(4-pin): SATA Power Out Connector
Pin 1
+5V
GND
+12V
GND
