Jide PURE L Reference manual

Jidé s.a. –Rue des Meuneries 11 –B-4650 HERVE (Belgique) –Tél. [phone] –Fax [phone] –www.jide.be - [e-mail]
PURE (EN) June 2018
MANUAL FOR INSTALLATION, USE AND
MAINTENANCE
PURE L and PURE XL
Congratulations!
You have chosen an appliance of the Jidé range and we would like to thank you for it. We
are convinced that it will bring you warmth and comfort. In order to derive the greatest
benefit from your fireplace, we greatly stress the importance of following the instructions
and recommendations given in this notice.

Jidé s.a. –Rue des Meuneries 11 –B-4650 HERVE (Belgique) –Tél. [phone] –Fax [phone] –www.jide.be - [e-mail]
PURE (EN) June 2018
2
TABLE OF CONTENTS
INTRODUCTION ...................................................................................................................................... 3
General............................................................................................................................................................ 3
Technical characteristics and compliance .......................................................................................................... 4
Additional parts –Identification plate............................................................................................................... 7
USER NOTICE .......................................................................................................................................... 8
Starting a fire ................................................................................................................................................... 8
Combustion ..................................................................................................................................................... 9
The wood –Choice and usage......................................................................................................................... 11
INSTALLATION NOTICE.......................................................................................................................... 13
Preparation –Arrangements........................................................................................................................... 13
Fitting ............................................................................................................................................................ 15

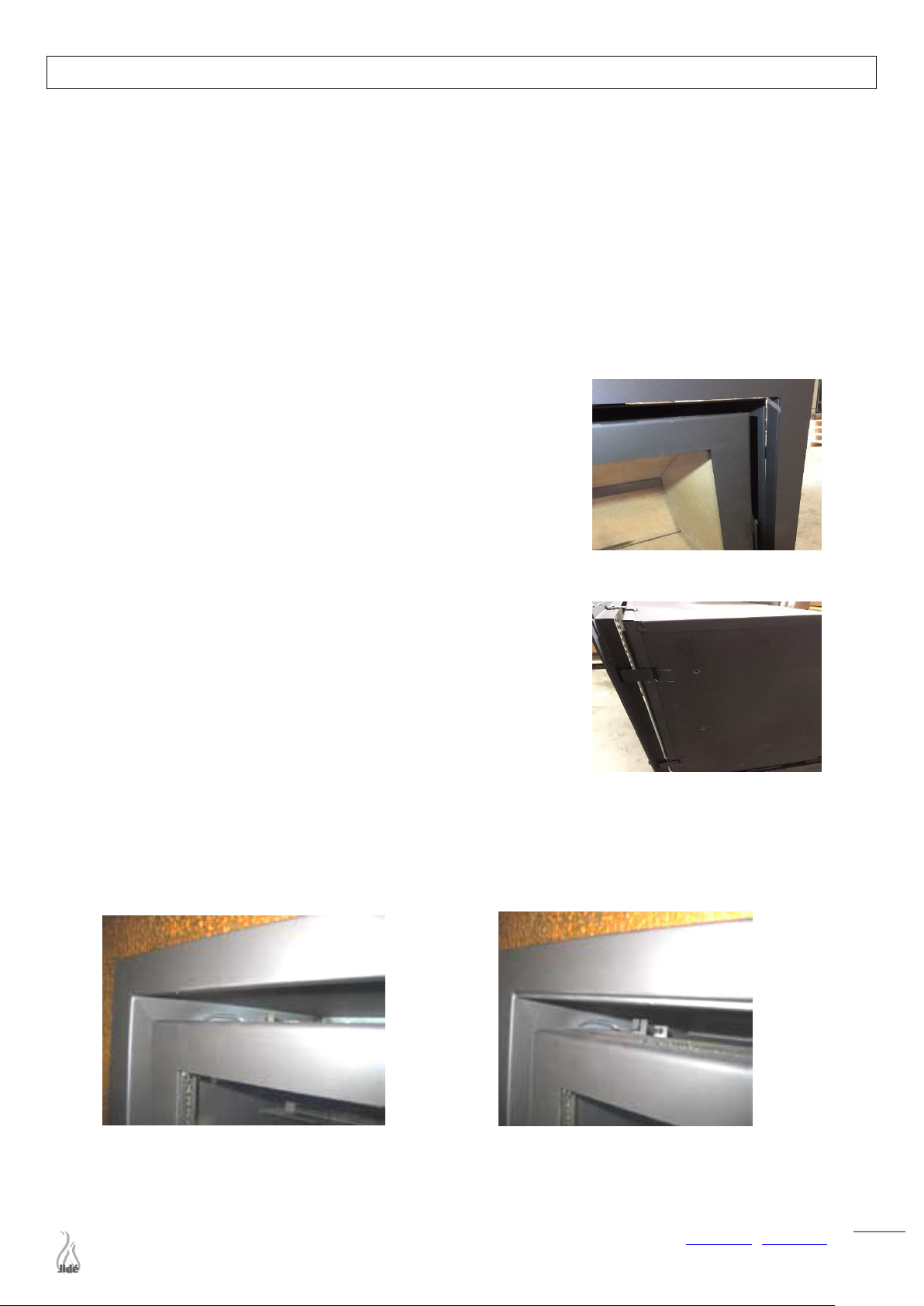

Fitting of the finishing frame (option)...................................................................................................................................... 15
Fitting of the chimney connection ........................................................................................................................................... 16
Fitting of the connection for the convection air (option) ........................................................................................................ 16
Fitting of the combustion air intake......................................................................................................................................... 17
Electrical connection ...................................................................................................................................... 18
Vermiculite removing ..................................................................................................................................... 19
Ventilation access..................................................................................................................................................................... 19
Manual setting air inlet access................................................................................................................................................. 20
MAINTENANCE OF THE FIREPLACE ........................................................................................................ 21
Cleaning –Chimney sweeping......................................................................................................................... 21
TROUBLESHOOTING.............................................................................................................................. 23
Causes - Advice .............................................................................................................................................. 23
DECLARATION OF CONFORMITY JIDÉ .................................................................................................... 25
CE MARKING ........................................................................................................................................ 26
PRODUCT FICHE –EU 2015/1186........................................................................................................... 27
WARRANTY .......................................................................................................................................... 28
Warranty agreement...................................................................................................................................... 28

Jidé s.a. –Rue des Meuneries 11 –B-4650 HERVE (Belgique) –Tél. [phone] –Fax [phone] –www.jide.be - [e-mail]
PURE (EN) June 2018
3
INTRODUCTION
General
To obtain optimum operation of your fireplace in complete safety, we recommend having it
installed by a specialist who will do the work professionally.
The responsibility of Jidé relates to the supply of the appliance. The installation is the
responsibility of the owner who must have it done according to the requirements of this
notice, and in accordance with the applicable regulations and standards of the different
countries governing the installation, insulation and connection of closed wood-burning
fireplaces, in new and old constructions, as well as smoke flues. The appliance may not be
modified as it could present a real danger and will invalidate the warranty.
A list of our dealers-installers is available on our site www.jide.be/en.
Before using your fireplace for the first time and in order to guarantee its good usage and
operation over time, we suggest you carefully read these instructions for use in order to
familiarise yourself with its various functions and characteristics.
Before starting your first fire, please ensure that no material required for the installation is
in the fireplace.
The paint has not been cured and will consequently harden when used for the first time,
causing the release of smoke and odours. We advise you to make a very strong fire and then
ventilate the room well.
The PURE L and XL range with manual adjustment.
PURE L 67
PURE L 90
PURE XL 77
PURE XL 16/9

Jidé s.a. –Rue des Meuneries 11 –B-4650 HERVE (Belgique) –Tél. [phone] –Fax [phone] –www.jide.be - [e-mail]
PURE (EN) June 2018
4
Technical characteristics and compliance
Combining ecology and economy, Jidé has created the Pure range which has 2 combustion
air inlets.
The primary air arrives under the grate and the stainless steel canals to foster fire-lighting in
the fireplace.
The preheated secondary air creates post-combustion by reburning the gases, and this
greatly improves the efficiency.
The preheated tertiary air has a “turbo” effect, sweeping the glass from top to bottom to
keep it clean and creates a sufficient supply to feed the fire without primary air.
Ecological solution: cleaner emissions, less dust and CO
Economic: greatly reduced wood consumption.

Jidé s.a. –Rue des Meuneries 11 –B-4650 HERVE (Belgique) –Tél. [phone] –Fax [phone] –www.jide.be - [e-mail]
PURE (EN) June 2018
5
Characteristics of the PURE
You may face two specific cases:
1No possibility or necessity of an external combustion air inlet: Remove the air box front
side, which allows to take combustion air in the room. Leave also the back air inlet open.
2We connect the outside air intake.
-either from behind via the buselot
-either from below (blow the cover - be careful not to damage the control
mechanism) and plug the rear entrance.
In both cases, keep the face of the air box.

Jidé s.a. –Rue des Meuneries 11 –B-4650 HERVE (Belgique) –Tél. [phone] –Fax [phone] –www.jide.be - [e-mail]
PURE (EN) June 2018
6
Jidé subjects its ranges of inserts to tests in approved laboratories so that they meet the
requirements of the European EN standards on safety and efficiency while limiting
CO emissions.
Test results according to the standards: EN 13229:2001 - EN 13229/A1:2003 –
EN 13229/A2:2004
PURE L 67
Nominal power: 9-12 kW
Nominal efficiency: 80,2 %
CO emissions: 0,08 %
Fuel: wood
PURE L 90
Nominal power: 11-13 kW
Nominal efficiency: 80,2 %
CO emissions: 0,08 %
Fuel: wood
PURE XL 77
Nominal power: 11-13 kW
Nominal efficiency: 80,2 %
CO emissions: 0,08 %
Fuel: wood
PURE XL 16/9
Nominal power: 12-14 kW
Nominal efficiency: 80,2 %
CO emissions: 0,08 %
Fuel: wood

Jidé s.a. –Rue des Meuneries 11 –B-4650 HERVE (Belgique) –Tél. [phone] –Fax [phone] –www.jide.be - [e-mail]
PURE (EN) June 2018
7
Additional parts –Identification plate
In addition to the fireplace, the packaging contains the following elements:
- A poker;
- A cold handle;
- A glove;
- A speed controller to regulate ventilation (for fireplaces with ventilation);
- A short stainless steel duct 45° right-angled for the smoke link;
- A plate and a fixing screw (to fill the air inlet on the back in case of connection from
the bottom);
- A paint spray for eventual retouching. Attention: before using the fireplace, make
sure to get the spray out and to keep it away with a minimum distance of 2 m.
- On the packaging, instructions for use with identification plate.
All the Jidé fireplaces are registered as soon as they leave production, according to the
information contained on a plaque that accompanies this notice, stating in particular the
power, efficiency and CO emissions of the appliance.
This plaque must be kept and will enable your appliance to be identified in our files
(traceability) if necessary. We advise you to paste it on this user and installation notice or on
your invoice.

Jidé s.a. –Rue des Meuneries 11 –B-4650 HERVE (Belgique) –Tél. [phone] –Fax [phone] –www.jide.be - [e-mail]
PURE (EN) June 2018
8
USER NOTICE
Starting a fire
Before lighting, remove ashes especially on the stainless steel canals.
Do not exceed the maximum loading authorized.
IMPORTANT actions before starting your fire:
1For the correct use of the appliance, the door must be opened slightly for 15 minutes -
the time necessary to reach a sufficient temperature in the fireplace.
2When the window is hot, please close the door. Combustion air inlet is regulated by the
automatic thermostat to obtain reduced wood consumption with respect to the heat
recovered. When the fireplace is hot, fans start automatically. For devices with manual
thermostat, you have to reduce the air inlet according to the wished heat.
CAUTION
-For good performance do not remove completely the ashes of the stove.
-When the fire needs a reloading, set the speed controller on minimum. Open slightly
the door in order to avoid reverse flow of smokes in the room. After loading, do not
forget to position ventilation on the desired position.
-If you have a device with ventilation, never make it work without ventilation!
In case of momentary power failure, reduce the load and keep a medium heat.
Devices without ventilation MUST be decompressed in opening the two hot air outlet
and fixing 2 ducts of at least 1 meter (on the right and left side of the fireplace).
-The fireplace is designed to a door-closed use, after starting the fire. Reload when only
glowing embers remain.
-We advise you to use fire starter cube which facilitate a quicker and cleaner wood
combustion.
-Do not use inflammable liquid products.

Jidé s.a. –Rue des Meuneries 11 –B-4650 HERVE (Belgique) –Tél. [phone] –Fax [phone] –www.jide.be - [e-mail]
PURE (EN) June 2018
9
Combustion
Combustion air
Combustion air is settled by a manual control, which regulate the working speed of your
fireplace, after started.
Convection air
Originally, your appliance operates with ventilation controlled by a speed controller and an
airstat. Depending on the chosen position, the speed controller determines the forced hot
air flow outside your fireplace (maximum power heating is reached with ventilation on the
highest level).
The airstat (on the left side of the device) is an accessory which turns on and off ventilation
according to temperature sensor. This ventilation turns on once the fireplace has reached a
certain temperature. Ventilation must always turn when the fireplace is hot, otherwise the
fans will be degraded. Hot air outlet will allow a hot convection air distribution in the room
of the fireplace or in another room. If you have this type of installation, it is essential to take
advice from your approved installer.
There is an option "stop air" which fosters the hot convection air distribution through other
holes, by filling the convection air outlet on the top of the fireplace.
Appliances without ventilation MUST have 2 hot air outlets with a finishing grid (not
included). These 2 hot air outlets must be plugged to at least 1 meter flexible diameter 125
mm.

Jidé s.a. –Rue des Meuneries 11 –B-4650 HERVE (Belgique) –Tél. [phone] –Fax [phone] –www.jide.be - [e-mail]
PURE (EN) June 2018
10
The chimney
The smoke produced by the wood combustion is removed through the chimney flue.
The draft of the chimney reduces the pressure in the fireplace, which removes a part of the
smoke and supplies the combustion.
- A good draft will result in a high temperature difference between the inside of the
chimney and the outside of the house.
- Excessive draft will not achieve a sufficient temperature for good combustion.
- Too low draft will result in a risk of backflow, soiling of the glass and fouling of the flue.
An approved chimney sweep should be consulted for any questions regarding the good use
and maintenance of the chimney.
General recommendations
- In the same way, if overloaded your fireplace will not provide any additional comfort
and will lead to a reduction of efficiency, a pointless increase in the consumption of
wood, a loss of heat and abnormal wear of your fireplace.
- Certain weather conditions (strong wind, fog) may affect the combustion and draft of
the chimney and the air intake will have to be adjusted.
- When removing the ashes, pay attention to the persistent presence of embers.
- In case of a chimney fire, the door must be closed and the combustion air intake control
must be kept to a minimum.
- NEVER use flammable liquid products (ex: methanol) to light the fire or reactivate the
fire!

Jidé s.a. –Rue des Meuneries 11 –B-4650 HERVE (Belgique) –Tél. [phone] –Fax [phone] –www.jide.be - [e-mail]
PURE (EN) June 2018
11
The wood –Choice and usage
The Jidé fireplaces are designed to burn hard wood logs only.
The quality of wood is important.
“Green” wood contains a lot of water (approx. 50 %).
“Dry” wood, kept outside for 24 months covered and well ventilated, still contains 15 %
water.
Damp wood is more difficult to consume, presents a lower calorific power and pollutes the
environment.
The humid fumes have the disadvantages of reducing the draft and the formation of tar in
the flue and on cold surfaces. (the window for example).
Split wood presents better combustion and will improve the operation of your fireplace.
The calorific value of wood depends on its type, and the volume of wood required for the
same quantity of heat differs according to this choice. Thus, the “hard” wood varieties such
as beech, oak, whose density is high, will require a lower quantity than other low density
species:
Density
Hornbeam ........................................................................................ 400 –500 kg per m³
Oak................................................................................................... 380 –480 kg per m³
Beech ............................................................................................... 350 –450 kg per m³
Birch................................................................................................. 300 –400 kg per m³
Poplar .............................................................................................. 250 –350 kg per m³
Ideal rate : 15 %
Energy efficiency
Moisture level

Jidé s.a. –Rue des Meuneries 11 –B-4650 HERVE (Belgique) –Tél. [phone] –Fax [phone] –www.jide.be - [e-mail]
PURE (EN) June 2018
12
Loading of the fireplace with wood:
PURE L 67................................................................3 kg (maximum) of dry wood per hour
PURE L 90.............................................................3,5 kg (maximum) of dry wood per hour
PURE XL 77 ..........................................................3,5 kg (maximum) of dry wood per hour
PURE XL 16/9 .......................................................... 4 kg (maximum) of dry wood per hour
CAUTION
**************************************************************************
The overloading of wood of your stove may have some consequences and the damage
hereafter will obviously not be covered by the warranty:
Deformation of the baffle;
Bleaching of the glass;
Degradation of the vermiculite;
Accentuated noise of the ventilator;
Deterioration of the automatic thermostat and of the airstat;
Excessive dilation of the door being able to involve a deformation of this one.
***************************************************************************
Moreover, we recommend you:
Not to burn resinous or treated wood (e.g. painted wood) or any other material containing
toxic products harmful to the environment, or which are aggressive for the components of
the fireplace.
To burn only heating wood, your fireplace is not designed to be used as an incinerator.
Not to overcome the calorific value of wood. Pay attention to the calorific value of
compressed logs. Half a compressed log at a time.

Jidé s.a. –Rue des Meuneries 11 –B-4650 HERVE (Belgique) –Tél. [phone] –Fax [phone] –www.jide.be - [e-mail]
PURE (EN) June 2018
13
INSTALLATION NOTICE
Preparation –Arrangements
It is important to check the fireplace upon receipt and to ensure the absence of any damage
during transport.
Dimensions of the recess
The recess, i.e. the volume around the fireplace, has to contain the appliance while providing
an additional space of at least 5 mm (on the left and right sides, and above the fireplace) in
order to accommodate expansion. It is forbidden to macerate against and on the fireplace.
Ventilation around the fireplace
It is advised to ventilate the recess with an air inlet in the base and air outlet at the top in
order to reduce the temperature of the walls and to recover the temperature in your home.
Insulation of the fireplace
The materials used must be non-inflammable. The temperature of smoke to the chimney
being able to reach 300° to 400°, this one could cause a combustion of not isolated
combustible materials. Provide high-temperature insulation around the fireplace to protect
certain materials. In this case we advise protecting the back, the sides and the top of the
appliance. If no insulation has been provided, it is recommended keeping a distance of 35 cm
from inflammable materials and 15 cm from non-inflammable materials and to ventilate the
recess.
Your installer can advise you regarding the protection to be provided. Still with regard to
protection, your installer can also provide a floor plate in front of the insert in order to guard
against the ejection of embers.
Fireplace base
We recommend placing the fireplace on a solid, flat surface made of non-combustible
material, with sufficient strength to support the weight of the fireplace and the chimney flue.
Radiation from the fireplace
The fireplace emits heat by radiation through the window and by air convection. It is thus
essential to provide non-inflammable materials in the distribution zone.

Jidé s.a. –Rue des Meuneries 11 –B-4650 HERVE (Belgique) –Tél. [phone] –Fax [phone] –www.jide.be - [e-mail]
PURE (EN) June 2018
14

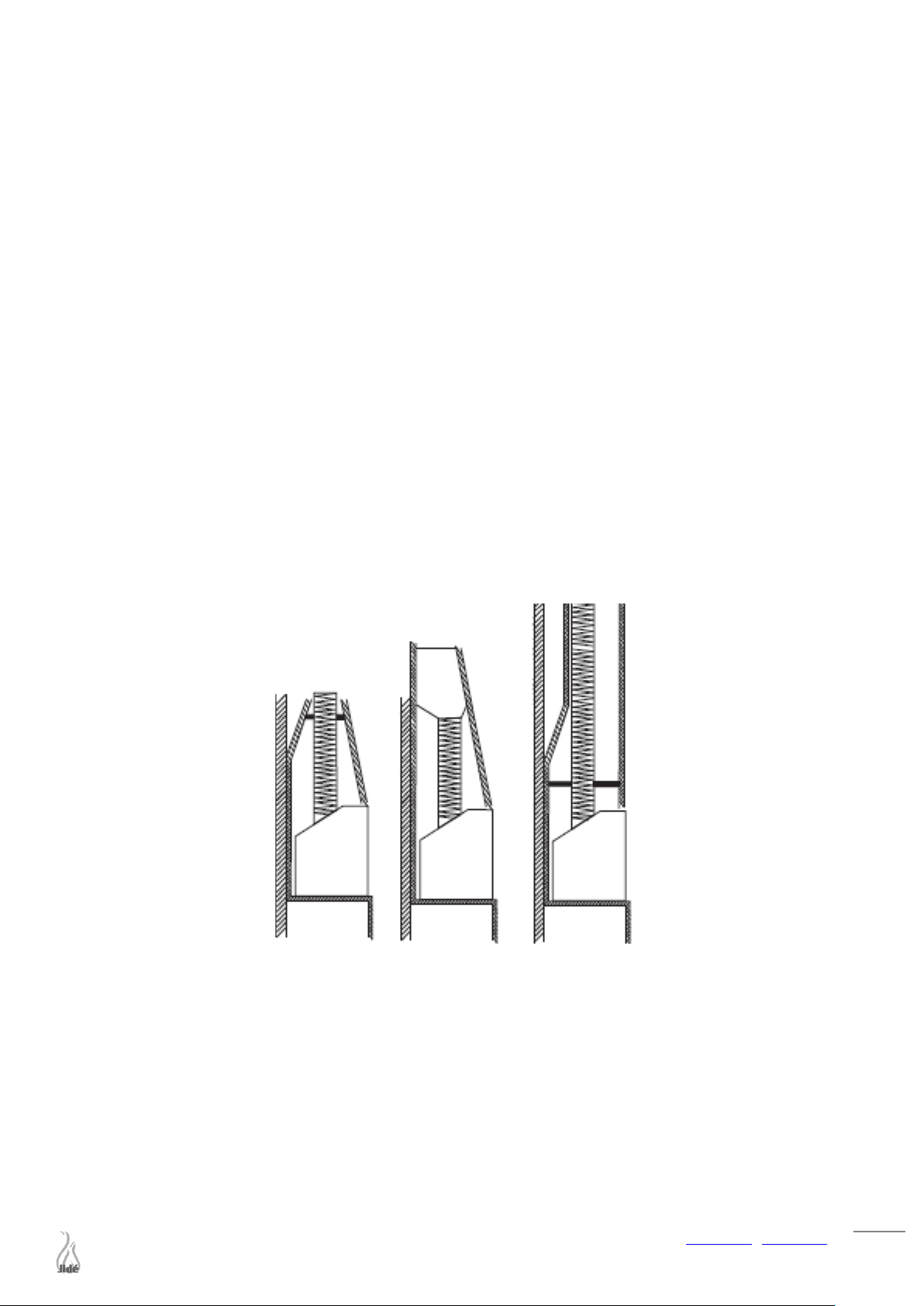

Sealed connection
To ensure a sealed connection, appropriate to the desired installation and the good
operation of your fireplace, please consult your installer who will give you with the necessary
information.
The section of the flue must be similar if possible to the one of the stove. If the section of the
flue is much more important than the one of the stove, it is advised to tube the chimney on
all its height and to insure the sealing of connection. It is necessary to be vigilant on the state
of the existing flue and more still on connection of the flexible device to the existing flue. A
bad connection can be the cause of disasters. Do use only pipes stainless appropriate to this
use.
It is mandatory to put from the device at least 1 m hard or flexible pipe, in steel or in stainless
steel, to connect the smoke exit.
The chimney must have a normal pulling i.e. that with its power maximum, the depression
will have to range between 12 and 20 Pa.

Jidé s.a. –Rue des Meuneries 11 –B-4650 HERVE (Belgique) –Tél. [phone] –Fax [phone] –www.jide.be - [e-mail]
PURE (EN) June 2018
15
Fitting
Fitting of the finishing frame (option)
The fireplace must be aligned with respects to the plane of the masonry to enable the
correct attachment of the frame.
A three and a four-sided frame are available as options.
The finishing frame clips onto the appliance with spring supports.
1Place the frame on the appliance, with the back of the
frame inside the fireplace.
2The clips are located outside the body.
3Right fitting Wrong fitting

Jidé s.a. –Rue des Meuneries 11 –B-4650 HERVE (Belgique) –Tél. [phone] –Fax [phone] –www.jide.be - [e-mail]
PURE (EN) June 2018
16
Fitting of the chimney connection
Ensure the good seal of the connection. Your appliance is supplied with a short stainless steel
duct 45° right-angled for the chimney connection. It fits onto the appliance.
When the duct is placed on the appliance, fold back the 2 safety clamps.
Fitting of the connection for the convection air (option)
Your appliance has 2 hot air openings for the convection
1 Remove the disk 2 Fix the duct with three
self-boring screws
Appliances without ventilation MUST have 2 hot air outlets with a finishing grid (not
included). These 2 hot air outlets must be plugged to at least 1 meter flexible diameter 125
mm.

Jidé s.a. –Rue des Meuneries 11 –B-4650 HERVE (Belgique) –Tél. [phone] –Fax [phone] –www.jide.be - [e-mail]
PURE (EN) June 2018
17

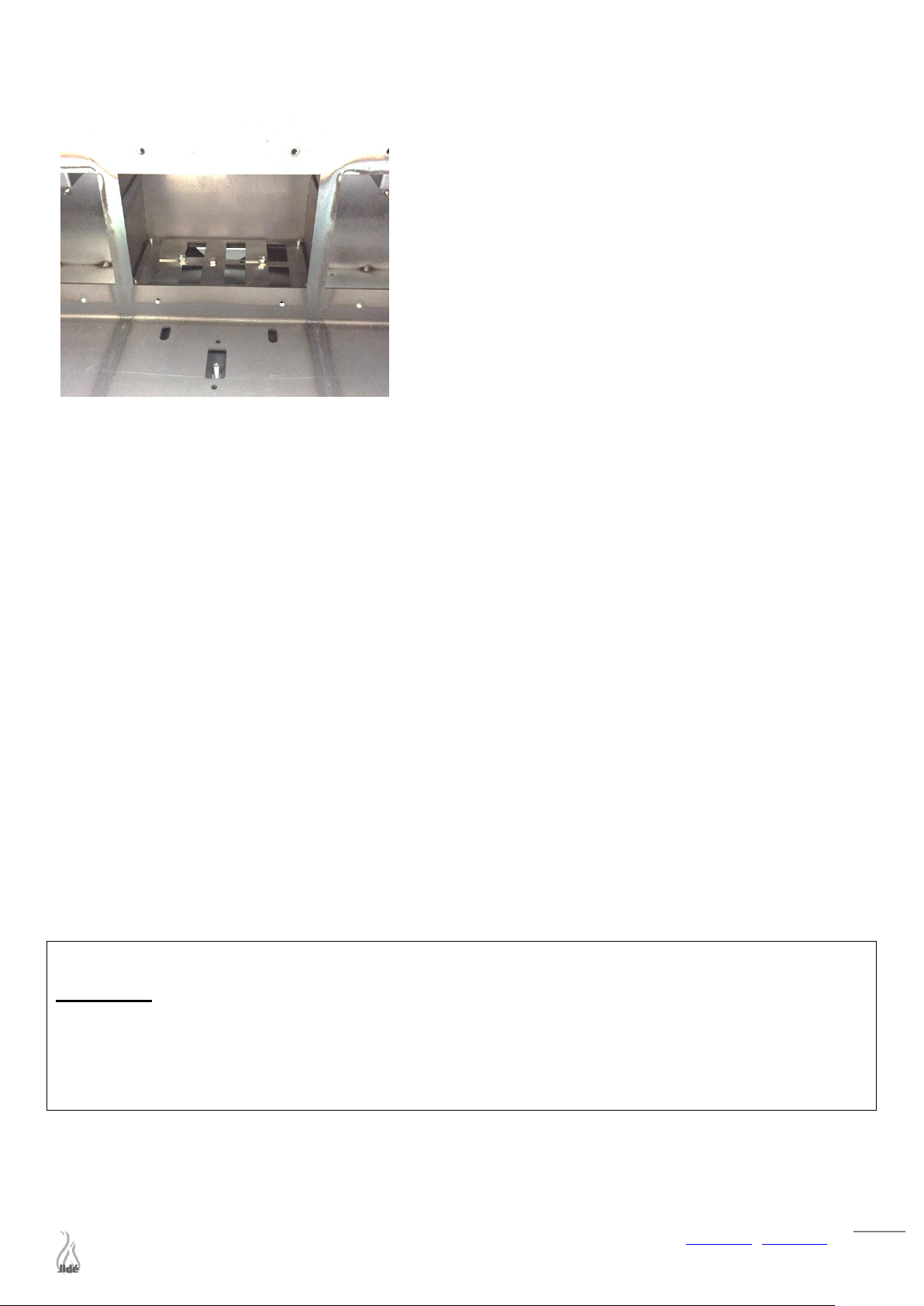

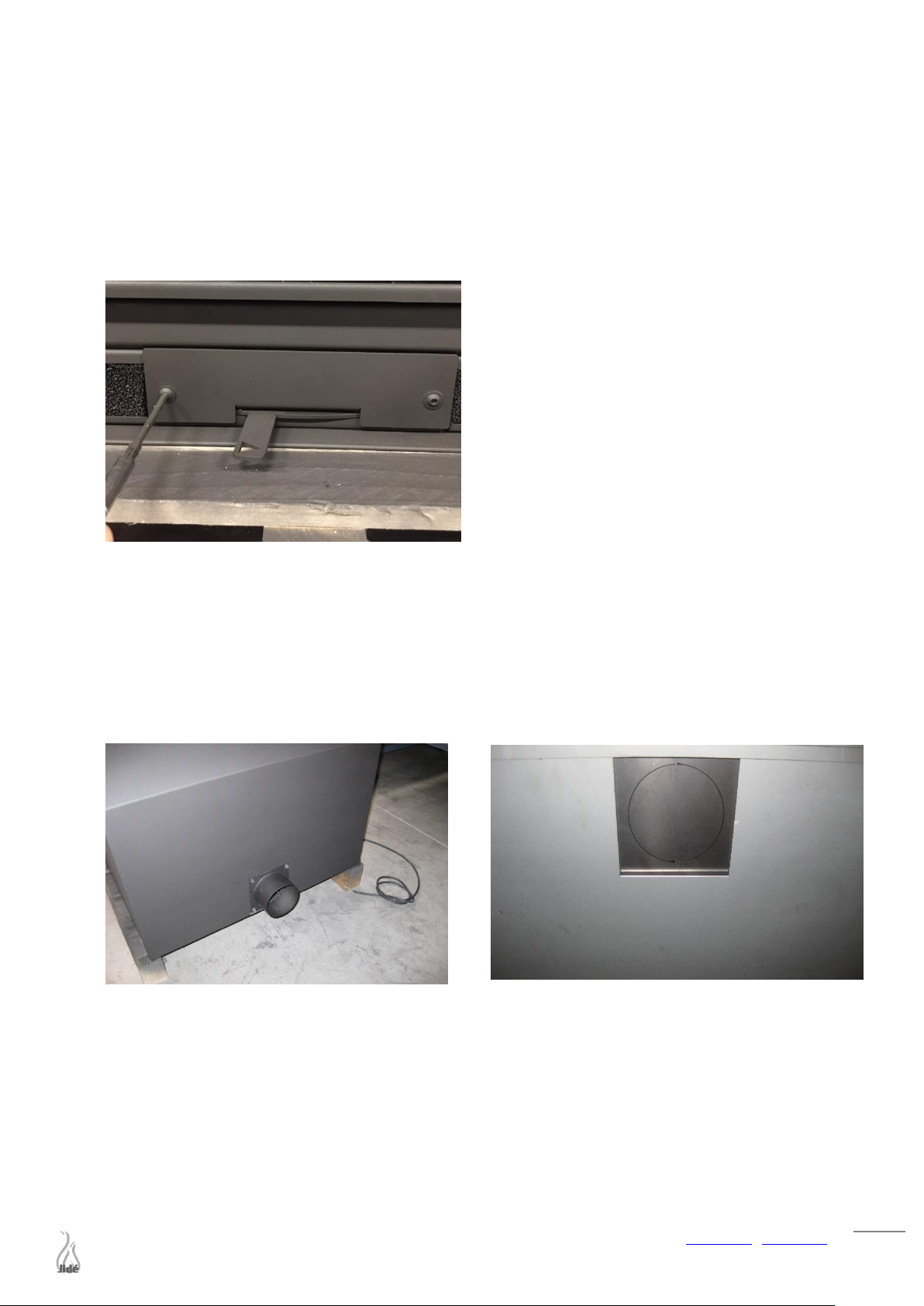

Fitting of the combustion air intake
You may face two specific cases:
1No possibility or necessity of an external combustion air inlet:
Remove the air box front side, which allows to take combustion air in the room and
leave also the back air inlet open.
2The outside air intake is connected either from the rear via the buselot or from below
(blow the cover and plug the rear entrance). In this case, keep the front face of the air
box.
Back face Below

Jidé s.a. –Rue des Meuneries 11 –B-4650 HERVE (Belgique) –Tél. [phone] –Fax [phone] –www.jide.be - [e-mail]
PURE (EN) June 2018
18
Electrical connection
Your appliance is equipped with fans controlled by a speed controller.
This is the diagram for their electrical connection.
Attention: disconnect the power before working on the electrical.
1Speed controller (with a 1,5 ampere fuse)
2Airstat (thermal contact)
3Fan of 140 m³/h (power: 24 W)
4Fan of 140 m³/h (power: 24 W)
Pure L 67 L 90 XL 77 XL 16/9

Jidé s.a. –Rue des Meuneries 11 –B-4650 HERVE (Belgique) –Tél. [phone] –Fax [phone] –www.jide.be - [e-mail]
PURE (EN) June 2018
19

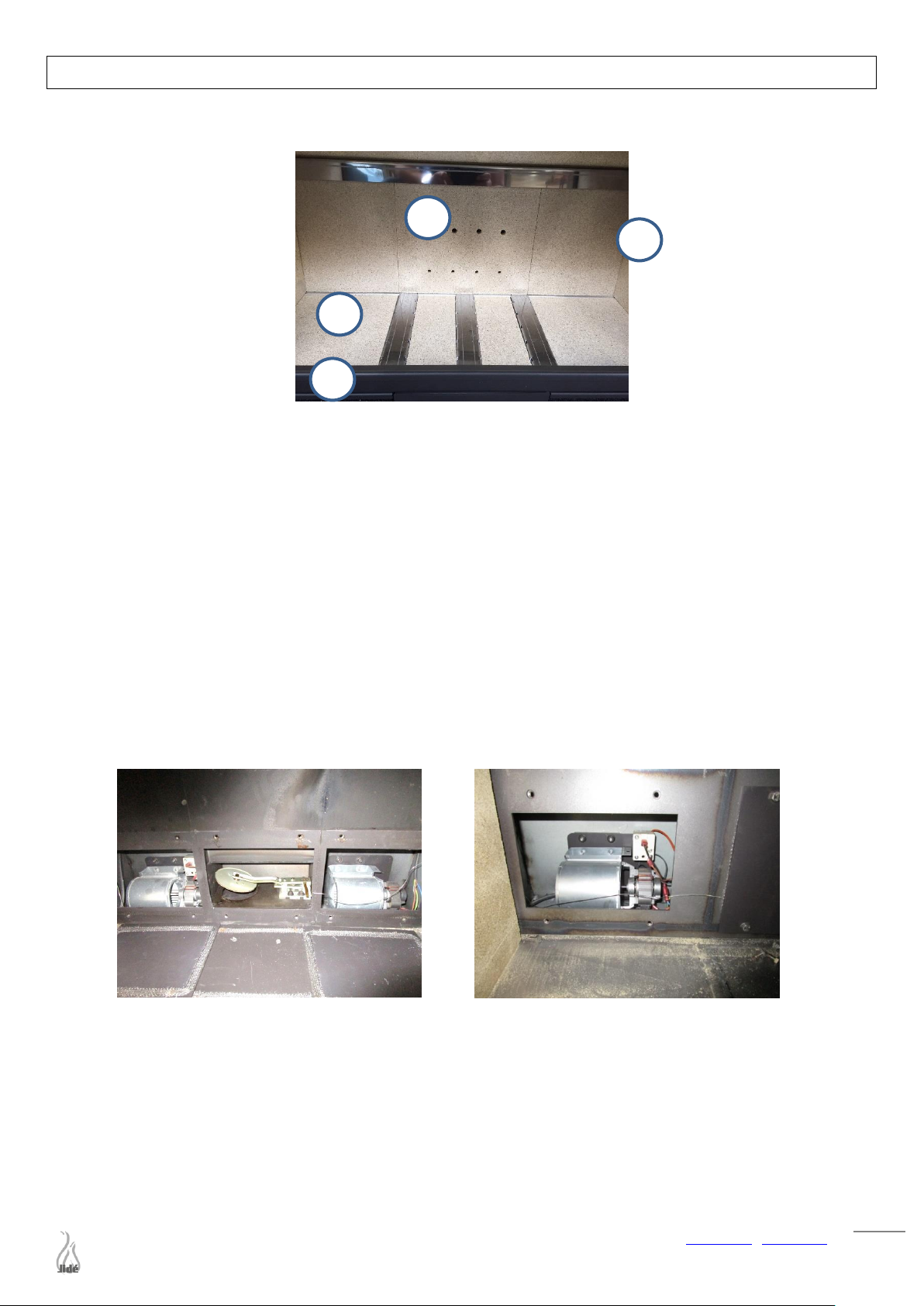

Vermiculite removing
Before removing, make sure power supply is cut.
1 Remove the stop embers
2 Remove the right side of vermiculite and the vermiculite baffle
3 Remove the bottom vermiculite
4 Remove the back vermiculite
5 Unscrew and remove the back plates
Ventilation access
Integrated ventilation and airstat access for Pure L 67 L 90 XL 77 XL 16/9
Unscrew and remove Remove the fans
right and left plates
You have now the possibility to clean the fan. Proceed with caution. Dust turbine blades
carefully with the help of a brush. Reinstall everything.
Attention, if you fold a turbine blade, you will risk an unbalance which will lead to an
abnormal noise from the fan.
1
2
3
4

Jidé s.a. –Rue des Meuneries 11 –B-4650 HERVE (Belgique) –Tél. [phone] –Fax [phone] –www.jide.be - [e-mail]
PURE (EN) June 2018
20
Manual setting air inlet access
CAUTION: We could not be held responsible for an improper installation. These
must be very neat and made according to standards. Complementary products
used for the installation must be conform to local regulations.
