INSTALLATION GUIDE
for the
SB-J-WRUP/10TW1
SKU# 94607 & 94609
2007 & Up Jeep Wrangler Unlimited
Thank you for choosing a JL Audio Stealthbox® for your automotive sound system.
With proper installation, your new vehicle-specific enclosed subwoofer system
will deliver years of listening pleasure.
We strongly recommend that you have your new Stealthbox® installed by your
authorized JL Audio dealer. The installation professionals employed by your
dealer have the necessary tools and experience to disassemble and reassemble
your vehicle properly. If you prefer to perform your own installation, please read
this installation guide completely before beginning the process.
If you choose to perform the installation yourself, it is absolutely vital
that the Stealthbox®be properly mounted to the vehicle according to
these instructions. Failure to mount the enclosure properly presents two
problems:
1) The sub-bass performance will suffer due to the movement of the
enclosure caused by the force exerted by the woofer(s).
2) A loose enclosure presents a serious safety hazard in the event of a
collision or sudden deceleration.
INSTALLATION
DIFFICULTY:
ESTIMATED TIME:
1 HOUR
Enclosure Type: Sealed
Driver Type: 10T W1
Nominal Impedance: 4 ohms
Continuous Power Handling: 300 watts (RMS method)
Continued on Next Page
25
OUT
OF
SB-J-WRUP/10TW1 INSTR_SKU# 011388

INCLUDED HARDWARE
3/8” Nylon Washer Black
Continued on Next Page
Page 2 • JL Audio, Inc., 2016
SB-J-WRUP/10TW1 INSTR_SKU# 011388

POWER RECOMMENDATION
JL Audio recommends high quality ampliers such as the JL Audio XD300/1v2. The diagram below shows the recommended crossover settings for the XD300/1v2 For a detailed description of the
amplier settings, consult the owner’s manual for the amplier. If another amplier is being used, please reference this illustration and use similar settings on that amplier.
CONNECTIONS
Using quality power, signal, and speaker wire is essential in ensuring the performance of your Stealthbox®. JL Audio recommends using a 4 AWG power kit such as the XD-PCS4-1B for your
Stealthbox® amplier. Other kits are available should you be using more than one amplier. Signal wire such as the JL Audio Premium Audio Interconnect Cables should be used to provide signal for
both channels of the amplier. JL Audio recommends using 12AWG speaker wire for subwoofers such as our XC-BCS12-25.
Continued on Next Page
Page 3 • JL Audio, Inc., 2016
SB-J-WRUP/10TW1 INSTR_SKU# 011388

Page 4 • JL Audio, Inc., 2016 Continued on Next Page
STEP 8
Connect speaker cable to the terminal cup on
the Stealthbox®, and place the enclosure into
position between the Front and Rear Brackets.
Route the speaker cable as necessary.
STEP 7
Align both Rear Brackets perpendicular to the
rail, as shown.
STEP 6
Pull the carpet down from the side of the
vehicle. Slide a Rear Bracket over the Flange
Head Bolt, under the rail, as shown. Secure
with an M8 1.25 Hex Flange Lock Nut, and hand
tighten. Repeat for the second hole.
STEP 5
Slide a 3/8 “ Flat Washer and a 3/8” Nylon
Washer over an M8 x 30 mm 1.25 Flange Head
Bolt (substitute an M8 x 45 mm 1.25 Flange
Head Bolt for vehicles with hard top), and
thread the assembly through one of the holes
indicated in the previous step. Repeat for the
second hole.
STEP 4
Locate the two indicated holes at the top of
the side rail.
STEP 3
Slide the Front Bracket over the factory stud,
followed by the seat belt bracket and nut, as
shown. Hand tighten.
STEP 2
Fold the rear seat down, remove the nut at
the base of the seat belt bracket, and slide the
bracket off of the stud.
STEP 1
Empty the cargo area of the vehicle.
SB-J-WRUP/10TW1 INSTR_SKU# 011388

Page 5 • JL Audio, Inc., 2016
MID/HIGH FREQUENCY DRIVER FITMENT
A variety of JL Audio coaxial and component systems will t in the factory speaker locations of you vehicle.
Front Speaker Size / Location: 6-1/2”- Front Doors
Fits JL Audio Models: TR650-CXi, TR650-CSi, C2-650x, C2-650,
C3-650, C5-650x, C5-650, & ZR650-CSi
Rear Speaker Size / Location: 6-1/2”- Roll Bar
Fits JL Audio Models: TR650-CXi, TR650-CSi, C2-650x, C2-650,
C3-650, C5-650x, C5-650, & ZR650-CSi
All specifications are subject to change without notice. “JL Audio®” and the JL Audio logo, and “Stealthbox” and the Stealthbox logo are registered trademarks of JL Audio, Inc. “Ahead of the
Curve”, its respective logo, and“How we play” are trademarks of JL Audio, Inc.
Printed in USA • ©2016 JL Audio, Inc. • For more detailed information please visit us online at www.jlaudio.com.
[phone]
www.jlaudio.com
JLA-SKU# 011388 • ver. 09.16.2016 • 10369 NORTH COMMERCE PARKWAY • MIRAMAR, FLORIDA • 33025 • USA
CONGRATULATIONS!
You have completed the installation for this model! Enjoy your new Stealthbox®!
How we play.™
SB-J-WRUP/10TW1 INSTR_SKU# 011388

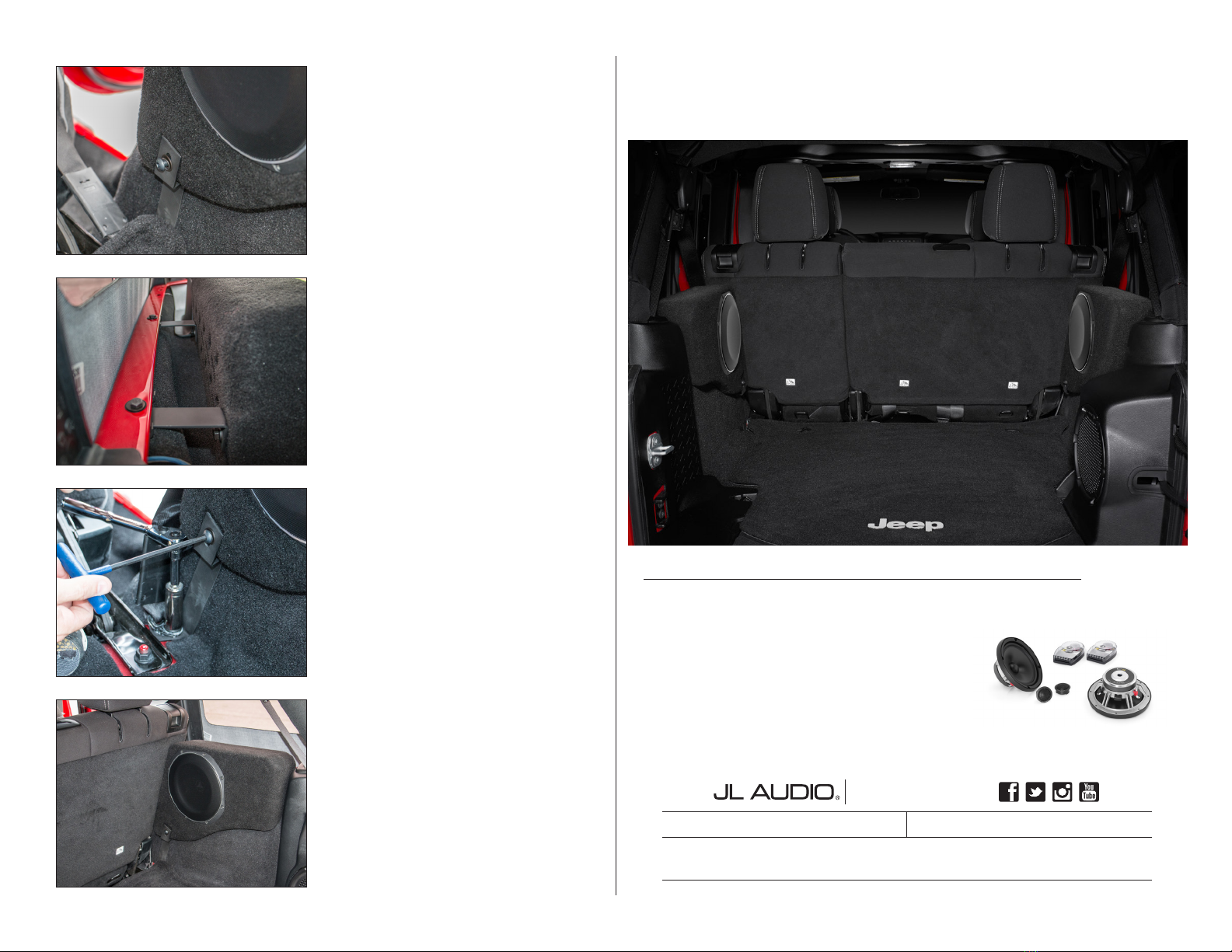

STEP 12
Fold the rear seat back up.
ST E P 11
With the enclosure aligned, fully tighten the
3/8 - 16 x 1” Button Head Bolt and the factory
seat belt nut. Then fully tighten both of the
3/8 - 16 x 1” Hex Head Bolts and M8 1.25 Hex
Flange Lock Nuts.
STEP 10
Align the threaded inserts on the back of the
enclosure with the holes in the Rear Brackets.
Slide a 3/8” Serrated Spring Washer and a 3/8
Flat Washer over a 3/8 - 16 x 1” Hex Head Bolt,
thread the assembly through the Rear Bracket
and into the threaded insert, and hand tighten.
Repeat for the second bracket.
STEP 9
Align the threaded insert on the front of the
enclosure with the hole in the Front Bracket.
Slide a 3/8” Serrated Spring Washer and a 3/8”
Flat Washer over a 3/8 - 16 x 1” Button Head
Bolt, thread the assembly through the Front
Bracket and into the threaded insert, and hand
tighten.
