Jl audio M-swmcpv3-1.315 User manual

Installation Instructions for

M-SWMCPv3-1.315 • M-SWMCPv3-1.660 • M-SWMCPv3-1.900

M-SWMCPv3-2.000 • M-SWMCPv3-2.250

M-SWMCPv3-2.375 • M-SWMCPv3-2.500

PIPE MOUNTING FIXTURES (SWIVEL)

FOR ETXv3 ENCLOSED SPEAKER SYSTEMS

IMPORTANT: Swivel mounting xtures should only be

attached to horizontal pipes. ETXv3 enclosures should

only be mounted directly above (12 O’clock position) or

directly below (6 O’clock position) a horizontal pipe.

NOTE: The M-SWMCPv3-2.000 fixture and

M770-ETXv3-SG-WH Enclosed Speaker

System are used in this manual for illustrative

purposes only. The fixture installation steps

are the same for all ETXv3 Enclosed Speaker

Systems and all M-SWMCPv3 Swivel-Mount

Fixtures listed on front cover.

WARNING: Do not mount enclosures to a horizontal

pipe in any position other than directly above or directly

below.

WARNING: Never attach swivel mounting xtures to

vertical or angled pipes.

IMPORTANT WARNING

WARNING

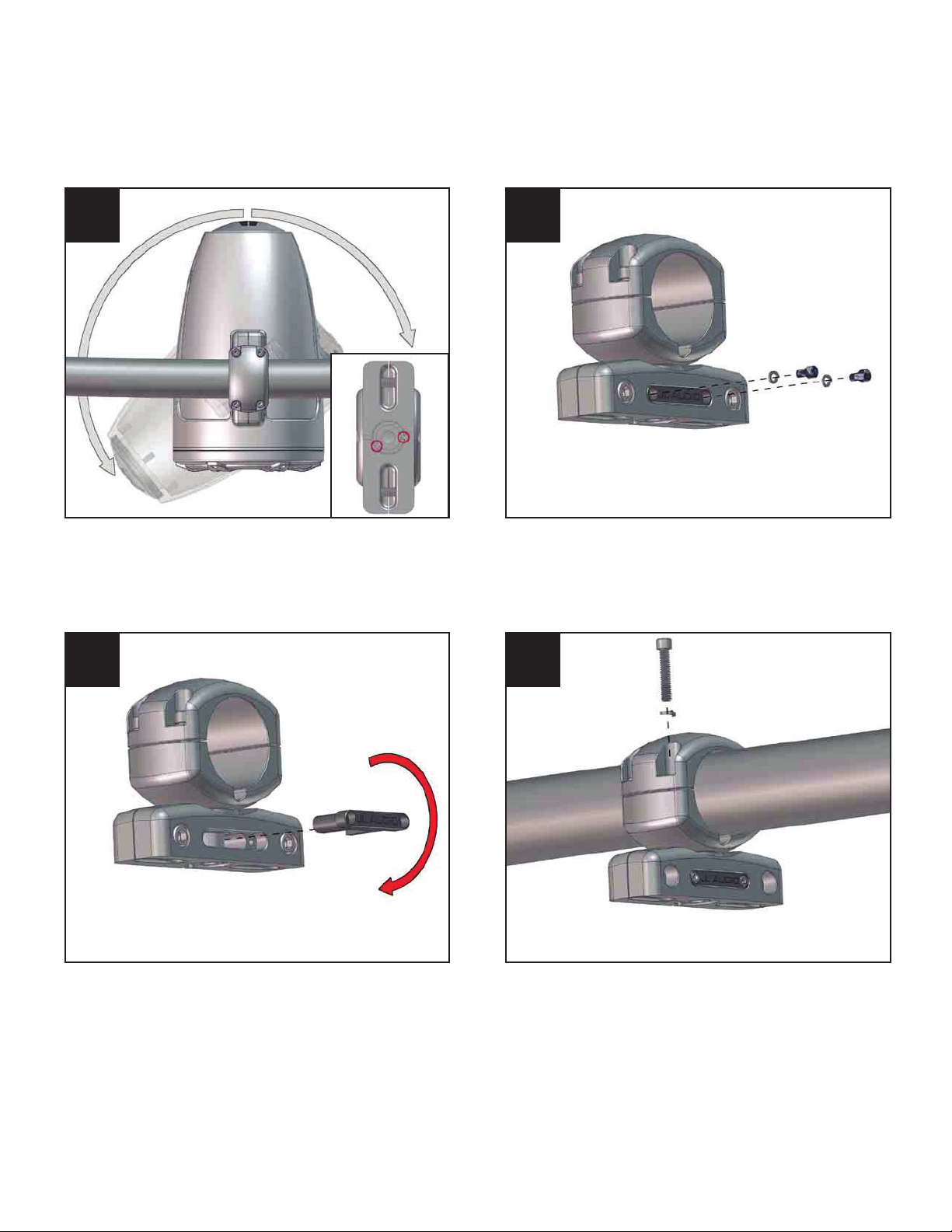

Compress the base and two upper halves of the xture

together while pushing the fork out through the small

pin holes on the opposite side. Flip the fork, and

reinstall, along with the two #8 - 32 x 3/8” machine

screws and lock washers.

In applications that require the logo to be inverted,

remove the two #8 -32 x 3/8” machine screws and lock

washers.

Determine the speaker mounting location, and

temporarily secure the xture around the pipe by hand

tightening the four 1/4 - 20 x 1-1/4” machine screws and

1/4” lock washers.

Be sure the indicated stopping points are on opposite

sides of the xture as shown. e enclosure can rotate

up to 205.5 degrees in the clockwise direction, and 128.5

degrees in the counter-clockwise direction.

128.5 205.5

-O-

-----

-e-

Adjust the angle of the xture until level, mark the

location for the speaker cable hole. Remove the xture

assembly, and drill a 1/2” hole on the mark.

Remove the four 1/4 - 20 x 1-1/4” machine screws and

1/4” lock washers to separate the two upper halves of

the xture. Pass the speaker cable exiting the enclosure

through the opening on the underside of the xture.

For applications where the cable cannot be routed

through the pipe, the cable can be passed through one of

the openings on the side of the xture.

Apply Loctite® red thread-locking compound

(included) to two 5/16” - 18 x 1-1/4” machine screws

(included), thread them into the base of the xture, and

push down on the xture to ensure no gap while fully

tightening.

Have a helper support the enclosure during this step.

Use the supplied butt connectors to connect the red (+)

and black (-) speaker cable exiting the ETXv3 enclosure

to the speaker cable exiting the pipe. e green and white

wires will not be used in this application.

Align the two upper halves of the xture around the pipe.

Hand-tighten four 1/4 - 20 x 1-1/4” machine screws with

1/4” lock washers into the xture. DO NOT TIGHTEN

FULLY AT THIS POINT.

Slide the excess speaker cable and the butt connectors

into the opening in the pipe as you raise the enclosure to

ush the xture to the pipe.

Remove one of the 1/4 - 20 x 1-1/4” machine screws

and 1/4” lock washers at a time. Apply Loctite® red

thread-locking compound (included), reinstall, and fully

tighten. Repeat the same process for the other three

screws. (Continued on reverse.)

Remove adhesive backing and install the JL Audio logo

badge (Sport Grille Models Only).

If a dierent speaker angle is desired, remove the speaker

mounting screws and washers.

Rotate the enclosure to the desired angle, install the

5/16 - 18 x 1/2” set screw into the base of the xture, and

fully tighten.

Rotate the speaker to the desired angle. Reinstall the

speaker and speaker mounting screws and washers.

Hand-tighten the screws in a criss-cross pattern.

o-,.

For best adhesion, it is recommended to clean the inside

of the aluminum cap with acetone (not included), prior

to attaching it to the speaker enclosure. Apply a circular

bead of silicone adhesive (included) to the inside of the

aluminum logo cap, about 1/2-inch (13 mm) from the

outer edge.

Align the aluminum logo cap to the desired angle of

rotation, and press it onto the back of the enclosure.

Apply masking tape (not included) to hold the cap in

place until the silicone cures (at least 24 hours).
