JLL S400 Product guide

Thank you for choosing to purchase our home electrical treadmill.
This manual includes instructions on how to operate the treadmill and issues which will require
your attention.
An unexpected incident will occur if the treadmill is used in an improper manner. So please read
this book thoroughly and carefully before operating this treadmill.
Electrical Treadmill Manual Book
JLL S400
www.jlltness.co.uk www.jllelectronics.co.uk

Index
2www.jlltness.co.uk www.jllelectronics.co.uk
Safety Instructions
Connect with the ground Instructions 4
Voltage information 4
User Safety Instructions 4
Exercise Safety Precautions 4
Facility Safety Precautions 5
Safety key 5
Warning stickers 6
4
Assembly
Preparing site 7
Diagram 7
Content listing 8
Electrical power requirements 8
S400 Assembly 9
Fold/Unfold the treadmill 10
Setup options 10
Conguration 11
Testing the treadmill operation 11

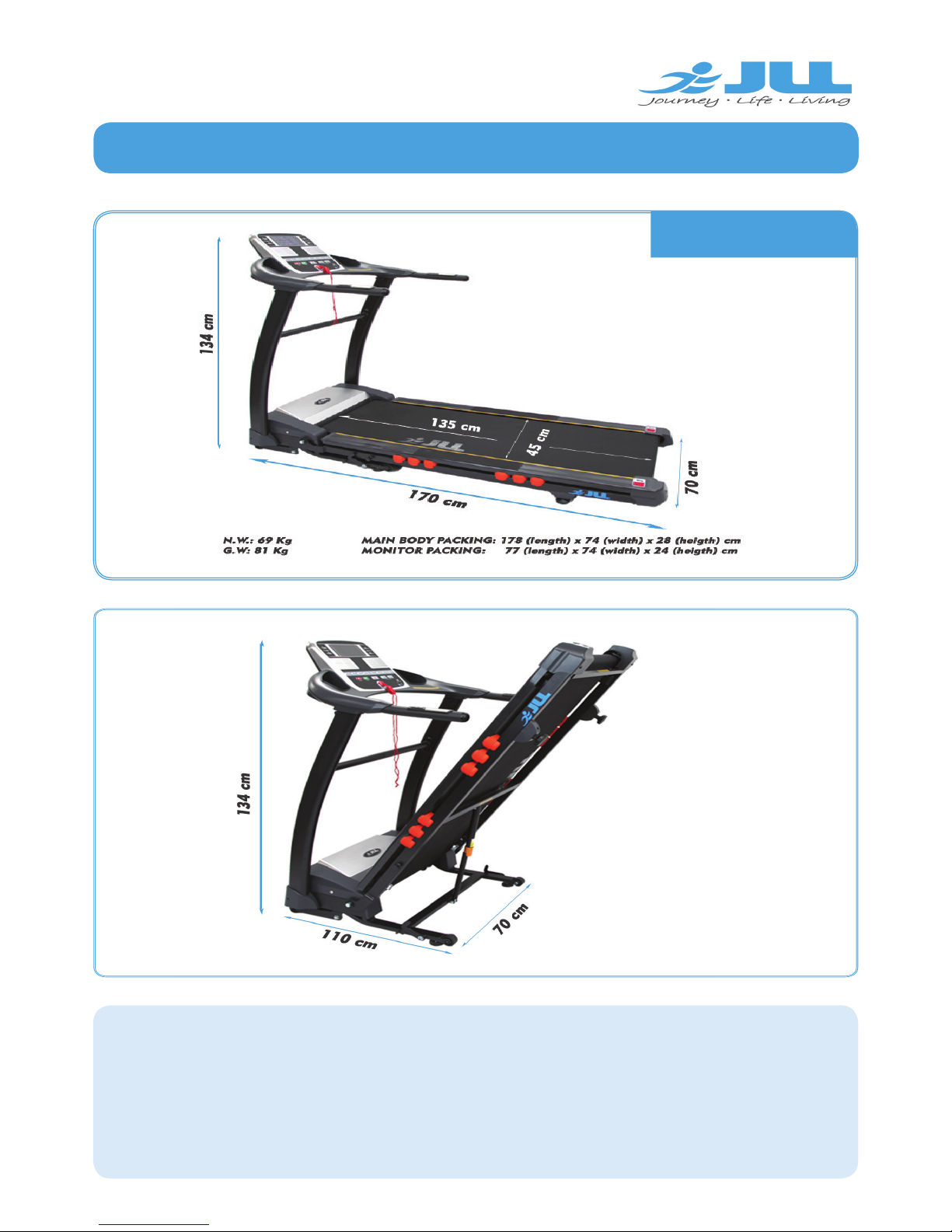

Specications S400 12
7
Operation

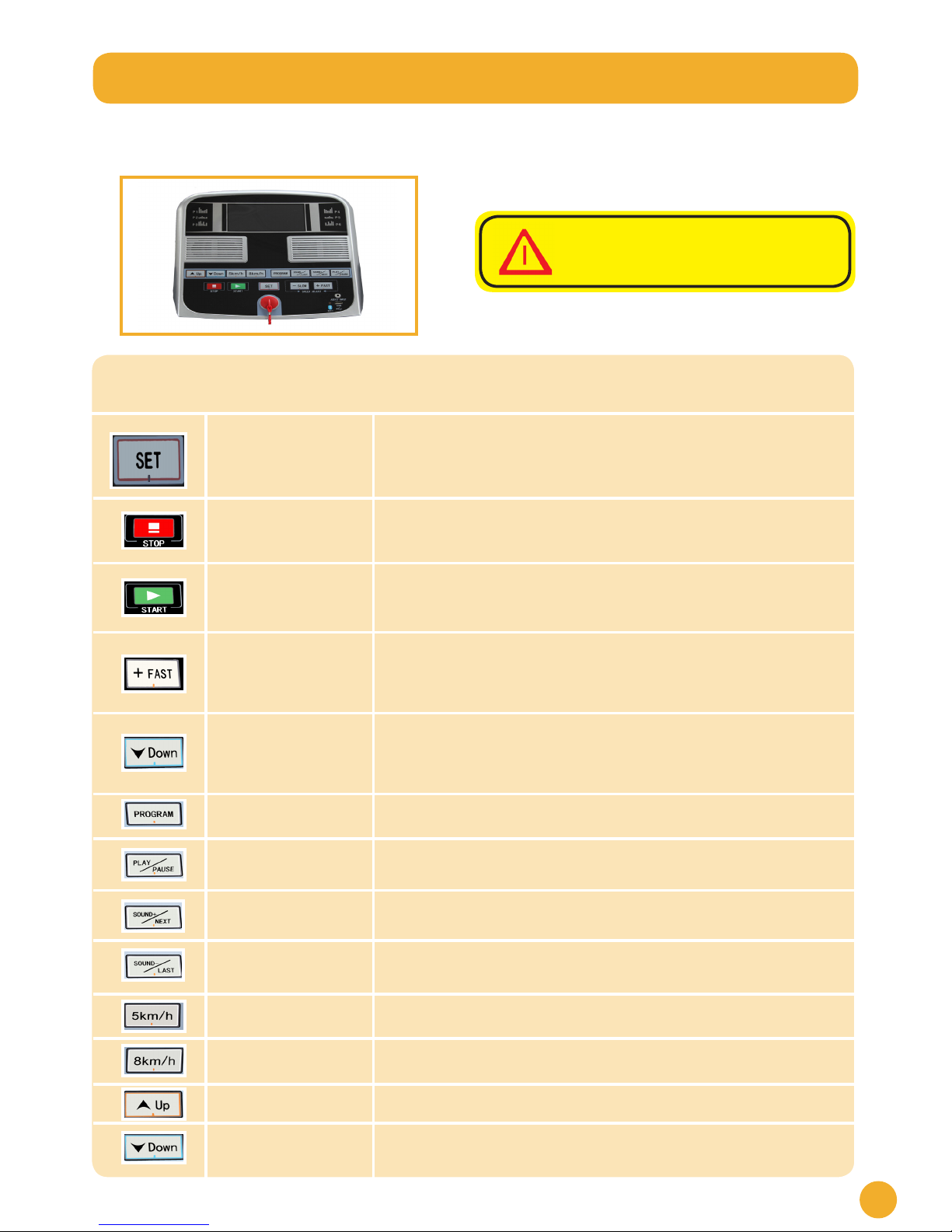

User control symbols used 13
Setup 14
Starting the Treadmill 15
Contact heart rate indicator 15
Stopping the treadmill 15
Data readouts 15
Entertainment 16
Quick operation guide 17
Program choices (Speed and Incline) 17

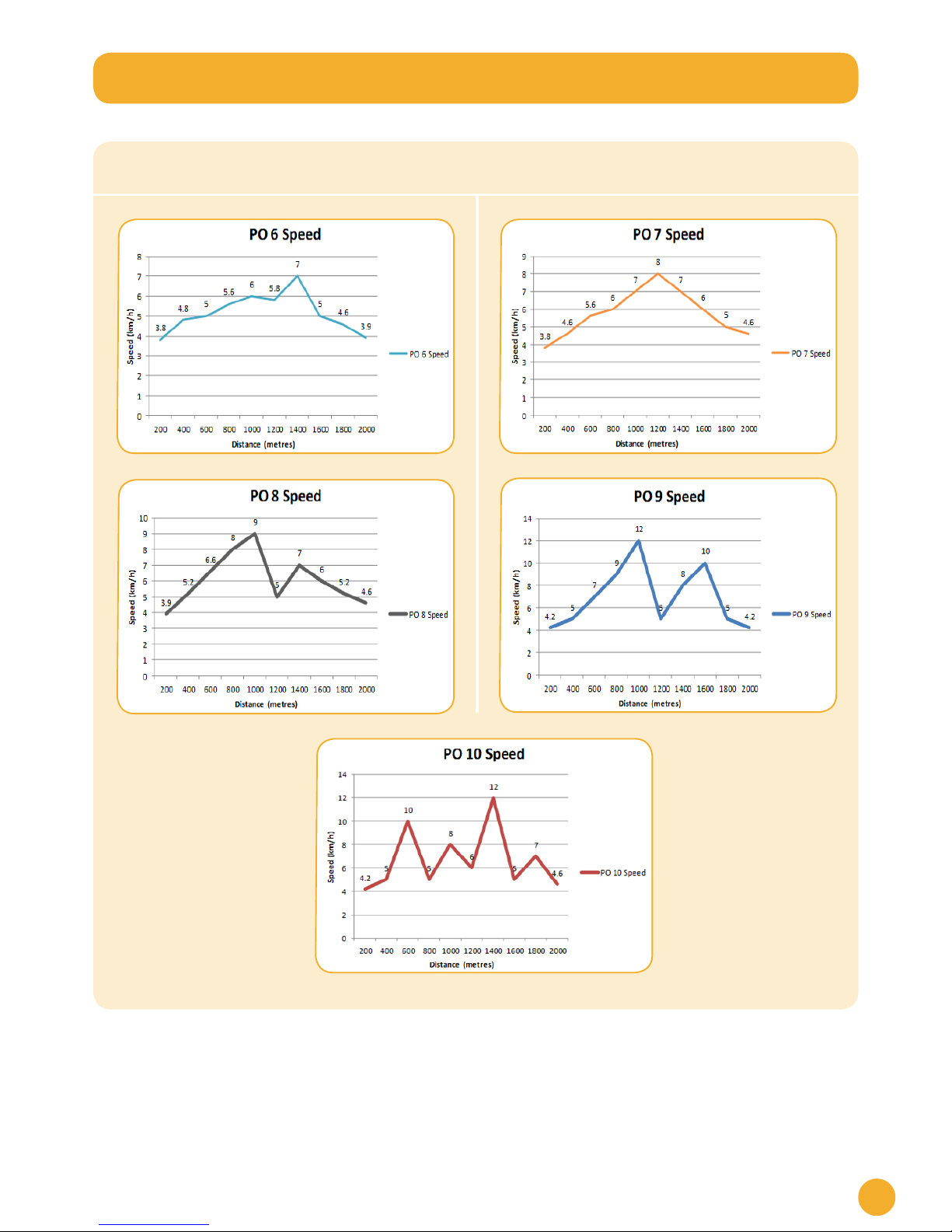

Program choices (Speed) 19
Program choices (Incline) 20
Table with the different running programmes 21
Heart rate control program 21
Set up personal programmes 22
Set up pre-set programmes 22
13

Maintenance
Preventive maintenance activities 23
Warning 23
Other preventive maintenance 23
• Treadmill cleaning 24
• Treadmill balance 24
• 5 steps to lubricate the JLL S400 treadmill 24
• Treadmill lubrication 25
• Adjust running belt 25
• Adjust motor belt 26
Customer Service
Contacting service 27
Return material 27
Damaged parts 27
• Apparent damage 27
• Concealed damage 27
3
23
27
www.jlltness.co.uk www.jllelectronics.co.uk

Safety Instructions
Important
Voltage Information
Before plugging the pow-
er cable into an electrical
outlet, verify that the
voltage requirements for the site
match the voltage of the treadmill
that has been received. The power
requirements for the unit include
an earthed, dedicated circuit, rated
for one of the following. The usu-
al voltage for United Kingdom is
220 VAC, 50 Hz.
Shock and electrocution hazard.
• Connect unit to an earthed
outlet.
• Do not use voltage adapter or
extension cable.
• Unplug unit and let sit 10
minutes before cleaning or
performing maintenance.
• Electrical charge can remain in
unit after unplugging.
• Keep water and liquids away
from electrical parts.
Warning
Connect with
the Ground Instructions
This treadmill must be
earthed and plugged into
an appropriate electrical
outlet that is properly installed
and earthed in accordance with all
local codes and ordinances.
This treadmill is for use on
an earthed, dedicated circuit.
Make sure that the treadmill is
connected to an outlet having
the same conguration as the
plug. Do not use a ground plug
adapter to adapt the power cable
to a non-grounded outlet.
During use:
• Do not use for stretching and do not attach straps or
other devices.
• Do not allow children aged 12 or younger to be on or
near machine.
• Stop exercise if you feel faint, dizzy, or have pain.
• Use the handrails for support and to maintain
balance.
• Change speed in small increments for safety.
• Keep all body parts, clothing, and accessories, clear
of moving parts.
• Wait until running belt comes to a complete stop
before getting off.
• DO NOT jump on to a moving running belt.
User safety
precautions
Exercise safety precautions
• Use sport clothes and gym shoes.
• Check your shoes regularly and see if there is any
dust or hard particles attached which may cause
unnecessary damage.
• People with long hair should remember to tie it back.
• This model should only be used at home, DO NOT
use for commercial purposes.
Please pay attention to the following instructions before operating this treadmill.
Prior to use:
• Install the treadmill according to the manual book.
• Consult your doctor before beginning any exercise
program.
• Read instructions.
• Read and understand warning labels.
• Read and understand emergency stop procedures.
• Maximum user weight is 120 kg, 18.8 St or 264 lb.
• Inspect unit. If damaged, DO NOT USE.
• Conrm whether every bolt and screw is locked
tightly together.
• Place your feet on the side frames when starting or
stopping the treadmill.
4www.jlltness.co.ukwww.jllelectronics.co.uk

Facility Safety Precautions
• Connect the treadmill to a properly earthed outlet only.
• DO NOT operate electrically powered treadmills in damp or wet locations.
• Clip the safety key onto the clothing.
• Use caution when getting on or off the treadmill.
• Keep the running belt clean and dry at all times.
• After each use, wait until the treadmill comes to a complete stop and is level. Then, switch it off
and unplug it. Next remove the emergency stop key from the treadmill.
• Check the treadmill for worn or loose components before each use. DO NOT use until worn or
damaged parts are replaced.
• Maintain regularly. Refer to “Preventive Maintenance” section.
• DO NOT use the treadmill if: (1) the cable is damaged; (2) the treadmill is not working
adequately or (3) the treadmill has been dropped or damaged. Look for service from a
qualiedtechnician.
• DO NOT place the cable near heated surfaces or sharp edges.
• DO NOT use the running machine outdoors.
• DO NOT use the treadmill for 2 or more people running at the same time.
• Read and understand the Manual Book completely before using the treadmill.
• Ensure all users wear proper footwear on JLL equipment.
• Set up and operate the treadmill on a level surface. DO NOT operate in recessed areas or on
plush carpet.
• As far as possible provide the following clearances: 0.5 m at each side and 2.0 m at the back.
Be sure your treadmill is clear of walls, equipment and other hard surfaces.
• DO NOT try repairs, electrical or mechanical. Seek qualied repair personnel.
Contact JLL Customer Service at 0800 6123 988.
• DO NOT modify the treadmill in any way.
• All the data displayed by the monitor is for reference purposes only.
• Pets must be kept away from the treadmill, whether it is active or not.
Safety Key
The safety key works as an emergency stop. In case of
falling off the treadmill, the safety key will be pulled
out and the power will be switched off at once. Be sure
the string is free of knots and has enough loose for you to
workout comfortably with the safety key in place. Before using the
running machine, clip the safety key to your clothing.
1. Conrmthatthesafetykeyisinplaceinthebottomof
the console. The treadmill will not start without the key in its
place.
2. Check the safety clamp does not fall off in an emergency
situation. Carefully step backward until the key pulls out of the
console. If the safety clip falls off your clothing, clamp the key
again to your clothing and repeat this step until the safety clip
is properly attached to your clothes.
3. Ensure the safety clip is secured to your clothing at all times during use.
4. After use, remove the safety key from the treadmill.
5. Store the safety clip on the storage tab located on the left or right side of the handrail.
5
www.jlltness.co.ukwww.jllelectronics.co.uk

Warning stickers
Warning stickers indicate a potentially hazardous situation which, if not avoided, could result in
death or serious injury.
Carefully read and understand the following caution and warning labels before using the unit.
Caution stickers indicate a potentially hazardous situation, which if not avoided, may result in
minor or moderate injury.
6www.jlltness.co.ukwww.jllelectronics.co.uk
The plug of this treadmill must be
earthed. Do not use this treadmill
if the plug is not earthed!!!
WARNING: Press the lock with your
foot to unfold the treadmill.
Children must be away
from here!
Warning:
1. Do not leave the treadmill
before ensuring the
machine has been locked
tightly and properly. Keep
children away from the
folded machine.
2. Please do not fold the
treadmill when the lock
cannot tighten the machine
properly. If this problem
occurs, please contact our
service department.
Starting the treadmill
standing on the belt is
strictly prohibited!
WARNING:
It is strictly forbidden to
touch any moving parts of
the treadmill!!!
Warning:
Please remove this securing device
afternishingassembly.
Usingyourfootrmly
push against the
cylinder to release
the folding mechanism.
WARNING: Remove safety key when
not in use and store out of
reach of children.
Keep small children and pets away
from the treadmill.

Assembly
7
www.jlltness.co.uk www.jllelectronics.co.uk
Console
Safety key
Fast / Slow speed button
Heart sensor
Handrail
Motor cover
Running Belt
Side frames/rails
Rear adjuster
Pad adjuster
Up-down leg
Vertical frame

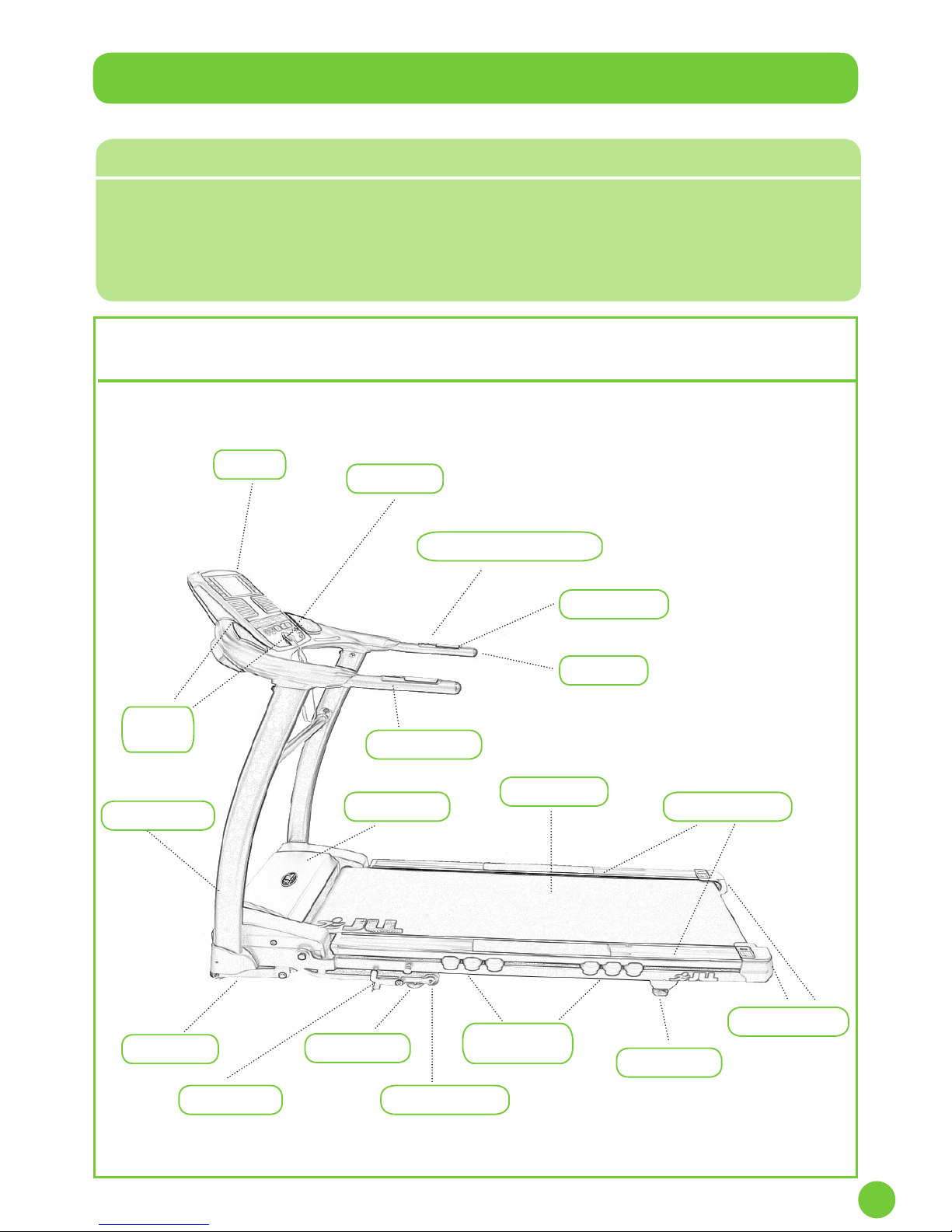

Diagram
Item
holder
Transport wheels
Preparing Site
Before assembling, verify the choosing site meets
the following criteria:
• Area is well illuminate and well ventilated
• Surfaced is levelled.
• Free area for access to unit and emergency
dismount. If it is possible keep the following
clearances: 0.5 m at each side and 2.0 m at
the back.
• Place the treadmill in a normal environment
with a relative humidity range of 30-75%. DO
NOT place close to steam room, sauna, indoor
pool or outdoor.
Rubber shock
absorption
Incline button
Pad adjuster
Secure lock

8
See content listing and diagram below for carton
contents. See Customer Service for contact
information if any parts are missing.
Electrical Power Requirements
220VAC 50Hz
Content listing
ITEM QUANTITY DESCRIPTION
1 1 Manual book
21Powerd cord
31Auxiliary cable
4 1 Installation tools
51Fuse
62 Vertical frames
71Safety key
82 Frame cover
9 1 Lubrication oil
10 1Support crossbar
11 1 Console
12 1Running deck
Installation tools
QUANTITY DESCRIPTION
2Black arc washer
(M8)
2Black at washer
(M8)
2
+ 2 spares
Silver split lock
washer (M8)
6 Silver at washer
(M8)
2Split lock washer
(M10)
2 Flat washer (M10)
2Tapping screw (ST 4
x 20)
12 Black Allen head bolts
(M8 x 15)
2Black Allen head bolts
(M10 x 50)
1Screwdriver
1Allen key (M6)
• At least two people must lift,
move or assemble it.
• Use safe lifting methods.
Warning: Heavy equipment.
www.jlltness.co.uk www.jllelectronics.co.uk
1
3
5
4
6
7
9
11
12
1. Before starting the machine,
place your feet on the side
frames located on each side
of the running belt. NOTE: DO
NOT stand on running belt.
2. After the belt starts moving,
you can start walking on the
running belt and enjoy the run!
Warning: Falling hazard.
When starting unit.
8
2
10

9
• Connect unit to an earthed outlet.
• Do not use voltage adapter or
extension cable.
Shock and electrocution hazard.

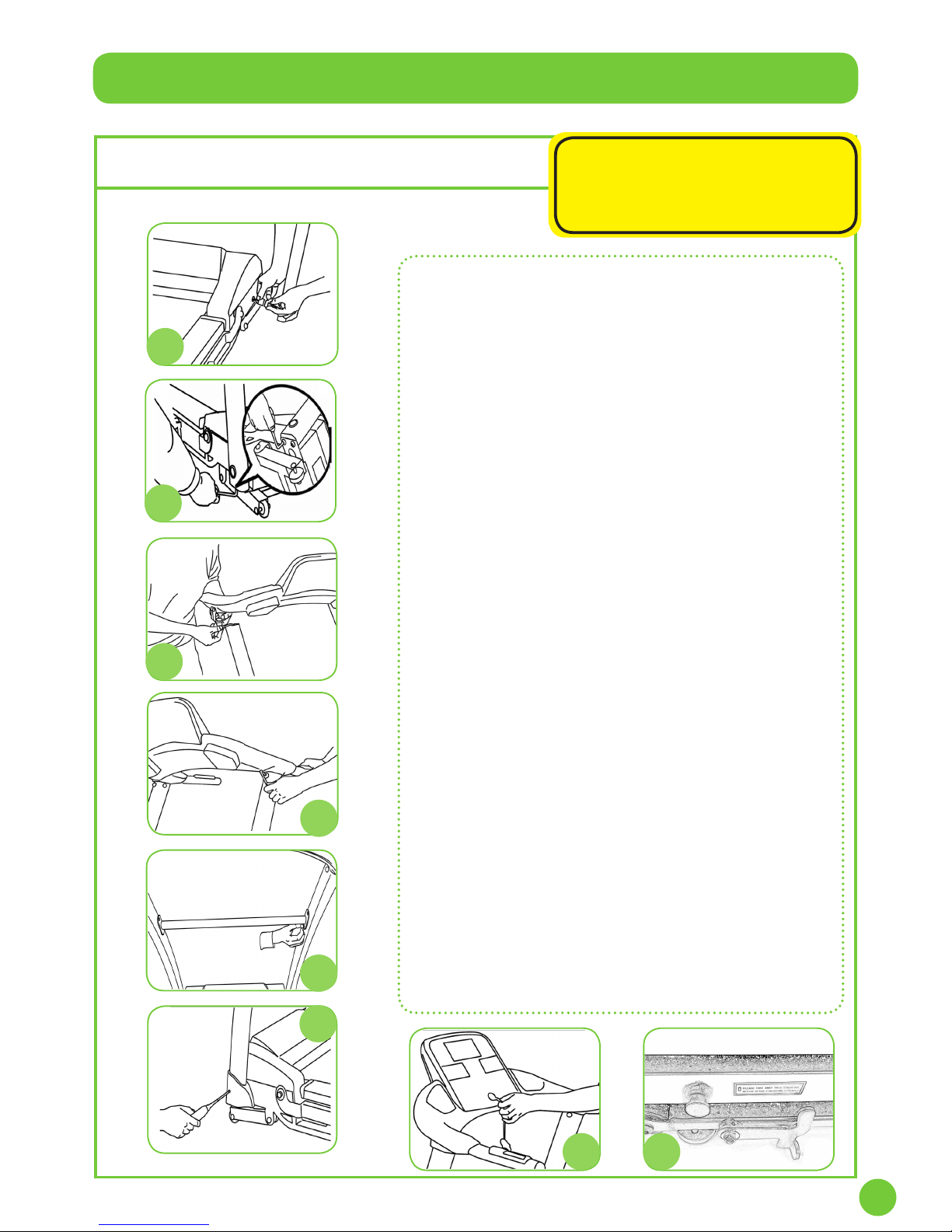

S400 Assembly
1
2
4
5
6
7
10
The treadmill has been assembled and tested at the
factory, so you shouldn’t have any problem putting
all the parts together. Components are designed
to t together, and only basic tools are required for the
assembly process. Inside the box you will nd a tool pack
(Allen key, screwdriver, nuts and bolts) which will make
easy-peasy to assemble the treadmill. All you need to
do is add the console unit to a running deck by a pair of
frames.
Follow this easy steps:
1. Connect the cable placed on the right hand side of the
running deck with the vertical frame bar.
2. Screw the running deck to the two vertical frames:
• Use 1 black allen head bolt (M10x50), 1 split lock
washer (M10) and 1 at washer (M10) to tight the
bolts at the bottom side of each vertical frame.
• Use 2 black allen head bolts (M8x15) and 2 silver at
washers (M8) to tight the bolts under each vertical
frame.
3. Insert the console into the upper end of the vertical
frame bars.
4. Connect the control wire on the right hand side of the
console and the handrail through the plastic clip
provided, then push the excess wire into the handrail
frame. DO NOT squeeze the wire.
5. Screw the console to the vertical frame bar. Use 2 black
allen head bolts (M8x15), 1 black arc washers (M8) and
1 black at washers (M8) for each side. NOTE: You may
have to loose the bolts at the bottom of the vertical frame
to help introduce the console into the vertical frame bars.
6. Fasten the support crossbar on the vertical frames. Use 2
black allen head bolts (M8x15) and 2 silver at washers
(M8) on each side.
7. Install the 2 frame covers at the bottom of each vertical
frame. Use the 2 tapping screw (ST 4x20).
8. Adjust the pad under the running deck and keep the
treadmill in a horizontal position.
9. Level the treadmill.
10. Insert the safety key.
11. Set the secure lock on both sides of the running deck.
12. Plug the treadmill into the wall outlet and start
enjoying the exercise!
www.jlltness.co.uk www.jllelectronics.co.uk
11

10
Set up options
Insert the safety key into the corresponding socket.
1. Without anyone on the treadmill,
plug the power cable.
2. Switch on the treadmill. Power
switch is under the front end of
the machine. The control panel will
light up and all the gures in the
window will go to ZERO.
3. Introduce the weight that you can
see ashing on the right side of the
screen using the SPEED button.
4. Press the START button and the
motor will work at the speed
of 0.3 km/h.
5. Press the FAST and SLOW
button to increase or decrease the
speed.
6. Press the UP and DOWN button to
increase or decrease the incline.
7. Press the STOP button to stop the
machine.
8. Put the music with MP3
format into a USB ash drive
and insert it into the USB
socket. On the treadmill press PLAY/
PAUSE to play the music. Change
the track with SOUND-/LAST
and SOUND+/NEXT buttons. For
adjusting the volume, press and
hold SOUND-/LAST or SOUND+/
NEXT buttons.
Use the following
instructions to
set up the units settings
Time display range 0:00 - 99:59
Distance range 0 - 9.999 km.
Total distance memory
Pulse display range 50 - 230 ppm
Calorie display range 0 - 999 Kcal
Maximum user weight 120 kg, 18.8 St or 264 lb.
Programmes 15 automatic programmes
Incline range 20 levels (= 12%)
Speed range 0.3 - 16 km/h
(0.18 - 10 mph)
Speed direct choice 5 and 8 km/h
Speaker High-delity stereo speaker
Music MP3, USB audio interface and
Bluetooth connection
Fold/Unfold the treadmill
Fold: Before fold the treadmill. Remove the
secure locks place on both sides of the running
deck. Hold the end of the running deck, by the
side frames/rails, and lift it until the machine gets
an upright position and you hear a click from the
security lock clasp.
Unfold: Press the security lock clasp with your
foot. Push the running deck down, holding it by the
side frames. The running deck will go down slowly
thanks to the hydraulic system. Fasten the secure
locks place on both sides of the running deck.
www.jlltness.co.uk www.jllelectronics.co.uk
• Stand on the side frames.
• Do not stand on running belt.
When starting unit.

11
www.jlltness.co.uk www.jllelectronics.co.uk
Conguration
LCD brightness adjustment
1. In STANDBY mode, press START and
then quickly press STOP. The speed
display window will be ashing.
2. Adjust the brightness of the LCD screen
using FAST/SLOW button.
3. Press START to save the adjustments.
• Stand on the side frames.
• Do not stand on running
belt.
Warning: Falling hazard.
When starting unit.
User controls
1 Stop button
2 Start button
3 Set button
4 Safety key
5 Slow button
6 Fast button
7 Play/Pause button
8 Sound+/Next button
9 Sound-/Last button
10 Program button
11 LCD screen
12 Easy speed button
13 Easy speed button
14 Down incline (button)
15 Up incline (button)
16 USB / Headphone
17 Item holder
18 Speakers
Use the following instructions to test
the full speed of the treadmill and to
check the belt for proper operation.
JLL recommends that the treadmill is
unplugged or the on/off power (I/O) is
switched off (O) when not in use.
1. Without anyone on the machine,
plug the treadmill. Ensure the
power cord is not being pinched
under the front of the treadmill.
2. Locate the on/off (I/O) power
switch under the front end of the
treadmill (image above). Switch
it to the on position (I). The
control panel will light up.
3. The weight digits will ash. Adjust
the weight using the SPEED button
located on the handrail.
4. Press START button and the motor
will work at the speed of 0.3 km/h.
Check if the monitor is working
normally.
5. Observe the belt to see if it is
running properly; it should be
centred in the middle of the
deck. If you have problems with
the running belt operation, see
Adjust Running Belt in the
Preventive Maintenance chapter.
6. Press the FAST and SLOW
button to check whether they are
working. Run the treadmill
through its full speed range.
First press the FAST button
until the treadmill reaches its
highest speed. Then press the
SLOW button until the treadmill is
back to 0.3 km/h.
7. Press the STOP button and check if
the machine stops working.
Testing the
Treadmill Operation

12 www.jlltness.co.uk www.jllelectronics.co.uk
Specications S400:
Store Foldable and easy transport
Packing Main body: 178 cm (70.1”) x 74 cm (29.1”) x 28 cm (11.0”)
Monitor: 77 cm (30.3”) x 74 cm (29.1”) x 24 cm (9.5”)
Occupying area 170 cm (70”) x 70 cm (27.6”) x 134 cm (52.7”)
Folded area 110 cm (43.3”) x 70 cm (27.6”) x 134 cm (52.7”)
Running area 135 cm (53.1”) x 45 cm (17.7”)
Weight of product 69 kg or 11 St or 152 lb.
Shipping weight 81 kg (when delivered) or 12.7 St or 178.6 lb.
Maximum user weight 120 kg, 18.8 st, 264 lb
Power rating 220 VAC 50 Hz
Horse-power Continuous power: 2.5 HP (1800W), Peak Power: 4.5 HP (3350W)
Motor DC motor (Direct Current Motor)
Controller Digital micro-computer controller
Incline range 0 - 20 levels (= 0 - 12%)
Speed range 0.3 - 16 km/h (0.18 - 10 mph)
Quick buttons Quick Speed Choice: 5 and 8 km/h
Programmes 15 running programmes, pause workout memory function, heart rate
control program, weight setting program, total distance shown
Console features Blue LCD: time, speed, distance, heart rate, calories and incline
Safety Emergency stop key, smooth start/stop function, safety handrail with
speed and incline buttons, shock absorption system, secure lock
Item holder Yes
Fan No
Entertainment USB audio interface, high powered speakers. MP3 connection. Bluetooth
wireless connection

Operation
Read and understand all instructions and warnings before using the treadmill. Understand all the safety
procedure located in the Safety chapter.
13
User Control Symbols Used
Program
Play/Pause
Sound+/Next
Sound-/Last
Quick speed
Quick speed
Increase incline
Decrease incline
Set up
Stop
Start
Speed up
Slow speed
Press SET to establish the parameters
Press STOP once to stop the running belt, end the workout
session, and start the Workout Review. Press STOP again
to exit to Set up options
Press START once to start the running belt
Adjust speed up
Adjust slow speed
Press PROGRAM to set the wanted exercise
Press START once to play the music.
Press PAUSE to stop it.
Adjust volume up / Change song.
Adjust volume down / Change song.
Set the speed at 5 km/h
Set the speed at 8 km/h
Adjust the incline up.
Adjust the incline down.
www.jlltness.co.uk www.jllelectronics.co.uk
Before starting any exercise
program consult your physician.

Set up parameter
The treadmill should be completely
stopped.
1. Press SET button and all the
numbers in the display area
will become ZERO, except WEIGHT.
2. Press SET button several times to
change different settings and the
number in the display area will ick.
• 2 times to change TIME.
• 3 times to change SPEED.
• 4 times to change DISTANCE.
• 5 times to change HEART RATE.
• 6 times to change INCLINE.
3. Press FAST or SLOW button to
rectify the numbers.
4. Press START button to start or STOP
button to cancel.
Pause/Stop
During the treadmill workout, press
the STOP button once for stopping the
treadmill and keep the data recorded so
far. If you press the STOP button again,
all the digits on the display area will
return to ZERO.
Quick easy speed
On the right hand side of the screen,
there are 4 buttons of speed. Press
START and then any of them to change
automatically the speed.
5: 5 km/h
8: 8 km/h
Exit set up mode
Press the STOP button to exit
Setup options.
Setup
Total
distance shown
Treadmill in STANDBY mode and all data
in the window are ZERO.
1. Press SET to show set data.
2. Press SET again and hold the
button for 8 - 10 seconds to show
the total distance.
Time
Speed
Distance
Incline
Heart Rate
Console display
14 www.jlltness.co.uk www.jllelectronics.co.uk
Set up incline
Before or during the treadmill workout,
press the UP/DOWN incline button on
the console or using the incline buttons
on the handrail.
Calories / Weight

15
Data Readouts
As you exercise, the treadmill keeps
track of the following data:
Time: The total time you have
been working out or time
remaining. Display time as
hours:minutes.
Speed: Your current speed,
displayed in km/h.
Distance: The total accumulated
distance, in kilometres, during your
workout.
Calories: The total accumulated
calories burned during your workout.
Pulse: Your current heart rate.
Heart rate will appear when a
signal is introduced. Use the hand
sensors to display of heart rate.
Weight: Your current weight, dis-
played in kg.
Incline: Your current incline, dis-
played in %.
Starting the Treadmill
Maximum user weight
is up to 120 kg, 18.8 St or 264 lb.
1. Switch on the treadmill.
2. Set up your weight to calculate calories burned.
3. Place each of your feet on the side frames located on
each side of the running belt.
4. Clip the safety key onto your clothing and carefully
test the safety key to ensure it will activate in case of
an emergency. See Safety Key in the Safety Chapter
(p. 4) for proper testing of the safety key. Be sure the
string is free of knots and has enough slack for you to
run comfortably with the safety key in place.
5. Press START button.
6. Hold the handrails while you step onto the
running belt and begin walking.
7. Press the SLOW or FAST buttons to change the
treadmill speed at any time. The left display will show
the current speed.
8. Press the STOP key at any time to stop the
running belt.
If the safety key is removed during a
workout, the drive motor power shuts off immediately,
causing the belt to stop.
When a workout is complete, the belt slows down to
stop and a workout review is displayed until you press the
STOP button. The treadmill returns to STANDBY mode.
Stopping the Treadmill
Press STOP once to end the
workout session. The treadmill will
smoothly stop and the accumulated
data will be displayed.
Press STOP again to exit.
Emergency dismount:
If you experience pain, feel faint or
need to stop your treadmill in an emer-
gency situation.
1. Hold handrails for support.
2. Step onto the side frames.
3. Pull the safety key off the
console.
Safety key function:
The safety key functions as the emer-
gency stop. In an emergency situation,
remove the safety key from the tread-
mill and the running belt will stop.
www.jlltness.co.uk www.jllelectronics.co.uk
Contact Heart Rate Indicator
Lightly hold the hand sensors on the handlebar ensuring
that hands are clean. A heart rate will display. Factors that
interfere with heart rate signal:
• Hand lotions, oils or body powder
• Excessive dirt
• Excessive movement
NOTE: Calories and Heart Rate share the same window on
the LCD screen. Calories are always shown on the display,
but for the heart rate you have to hold hand sensors on the
handlebar for display.

16 www.jlltness.co.uk www.jllelectronics.co.uk
USB audio control
To use an USB port you should have all
music les in MP3 format.
1. Connect USB drive into the USB audio interface control. It
will play automatically.
2. Press SOUND+/NEXT to change to the next song. Press
and hold it to increase the volume.
3. Press SOUND-/LAST to change to the previous song. Press
and hold it to decrease the volume.
Bluetooth audio instruction
Turn on the Bluetooth function of the phone.
1. Click on SEARCH DEVICE.
2. Search for HUIKANG MUSIC device name and click on it for
connection.
3. The console will make a sound “beep”, and light shows red.
4. Open the music player software on the phone.
5. Press PLAY button to listen to the music.
6. Press SOUND+/NEXT to change to the next song. Press and
hold it to increase the volume.
7. Press SOUND-/LAST to change to the previous song. Press
and hold it to decrease the volume.
Entertainment
Play iPhone/iPod/MP3 music
All music les should be in MP3 format. Leave the iPod/iPhone/
MP3 on the desired folder, the treadmill does not have the
option of move through those different folders.
1. Connect iPod/iPhone/MP3 into the headphone connection
using an auxiliary cable.
2. Place iPod/iPhone/MP3 onto the tray.
3. Operate from your own device to change the song and the
volume.
NOTE: There is no iPod/iPhone pin connection.
The iPod/iPhone will not be charge while connected.

17
Quick Operation Guide
Maximum user weight is 120 kg, 18.8 St or 264 lb.
1. Place your feet on the side frames located on
each side of the running belt.
2. Clip the safety key onto your clothing and
test it as described under Safety Key in the
Safety Chapter (page 5).
3. Press START button.
4. Hold the handrails while you step onto the
running belt and begin walking.
5. Press the QUICK SPEED buttons to change
the running speed at 5 or 8 km/h.
6. Press the SLOW or FAST keys to change the
running speed at any time. The left display
will show the current speed.
7. Press the STOP key at any time to stop the
running belt.
• Stand on the side frames of
the running belt.
• Do not stand on the running
belt.
Warning: Falling hazard.
When starting unit
www.jlltness.co.uk www.jllelectronics.co.uk

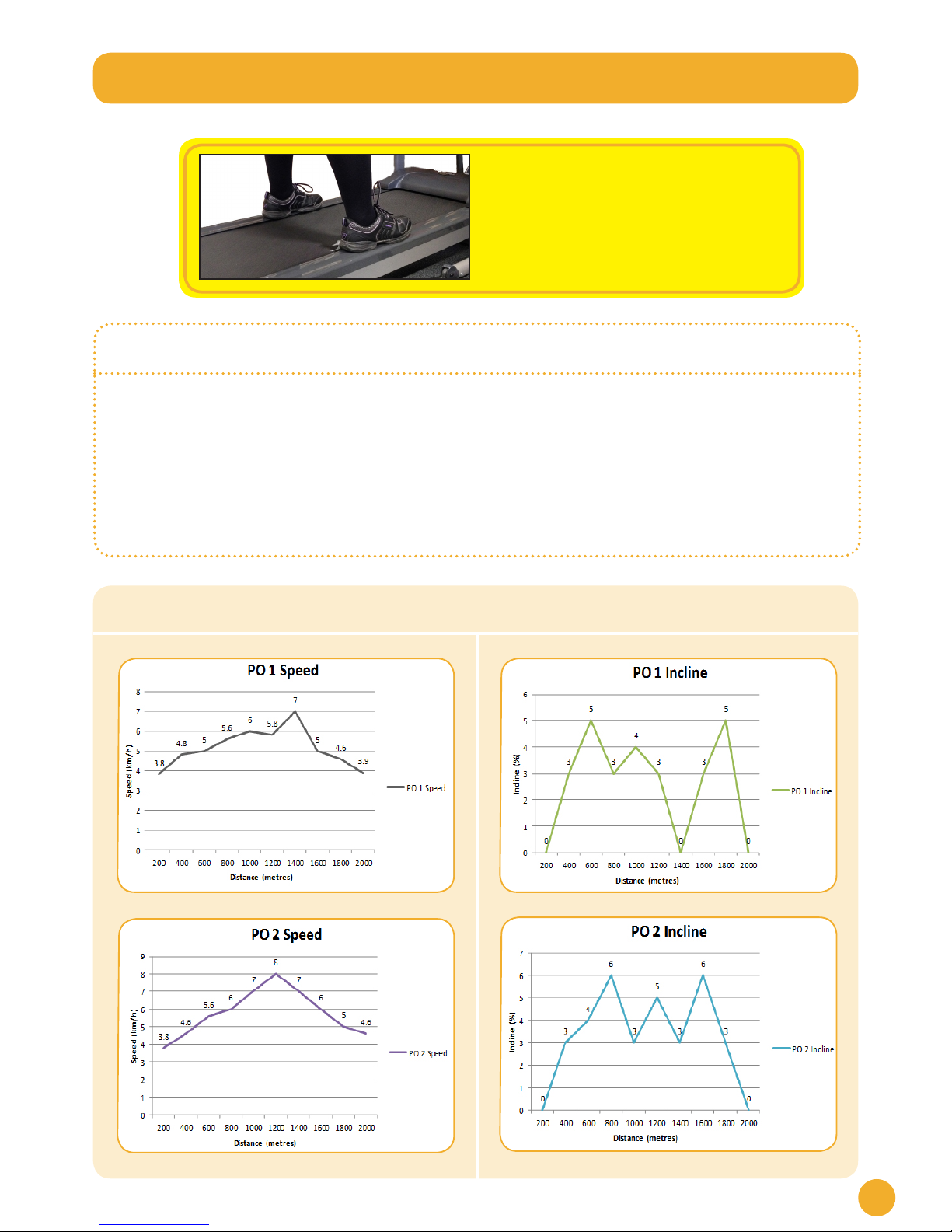

Program choices (Speed and Incline) Incline and speed will change every 200 metres.

18 www.jlltness.co.uk www.jllelectronics.co.uk

19
www.jlltness.co.uk www.jllelectronics.co.uk
Program choices (Speed) The speed will change every 200 metres.

Program choices (Incline) The incline will change every 200 metres.
www.jlltness.co.uk www.jllelectronics.co.uk
20
