JML Garden Groom "PRO" User manual

Garden Groom &
Volume Bag
Instruction Manual
Safety Hedge Trimmer
“PRO”
Problem Action
Machine start -Check the machine is plugged in to a live supply.
- Check that the waste container or volume bag extension tube
-Check that you are pressing both main switch and
front switch, ensuring safety switch has released main switches.
Contact dealer.
-
Machine does not collect -Check waste container is not full.
-Check volume bag hose (accessory) is not blocked.
-Check exhaust is not blocked.
Note: The percentage of collection will vary
on the condition and type of hedge being cut.
Damage to static or rotary blade -Unplug the machine immediately.
-Contact the supplier
won't
is correctly attached and the main switch powerlight is on.
Remove and refit to be sure.
JML
Model no. GG20
Input Voltage 230V~
50Hz
Rated Power (Watts) 500W
No Load Speed (rpm) 2900/min
Class II Appliance
Complies with European and British safety and EMC regulations
Noise levels : Sound pressure level: 82 dB(A),Sound Power Level:
97 dB(A),Vibration level is 4.04 m/s2.
CONTAINS NO USER SERVICEABLE PARTS
Defects
Please retain your receipt! If this product is, or becomes defective, please return it to the place
of purchase along with your till receipt.
Contacting Us
If you experience any difficulties in using this product, please write to us at the address below.
JML House, Regis Road, London, NW5 3EG, [email protected]#j`Freephone 0800 781 7831
Shop online at www.JMLdirect.com
Product Code: V0734, ©JohnMillsLtd/LH/05.09/AL/A

WARNING: Before operating the Garden Groom,
read this manual and follow all safety and
Operating Instructions.
SAVE THIS MANUAL FOR FUTURE REFERENCE
Safe use of Your Garden Groom PRO
2
WARNING: When using electric hedge trimmers, basic
safety precautions should always be followed to reduce the
risk of fire, electric shock, and personal injury, including the
following:
Polarized Appliance Connections - To reduce the risk of
electric shock, this appliance has a polarized plug (one blade
is wider than the other) and will require the use of a polarized
extension cord. The appliance plug will fit into a polarized
extension cord only one way. If the plug does not fit fully into
the extension cord, reverse the plug. If the plug still does not
fit, obtain a correct polarized extension cord. Apolarized
extension cord will require the use of a polarized wall outlet.
This plug will fit into the polarized wall outlet only one way. If
the plug does not fit fully into the wall outlet, reverse the plug.
If the plug still does not fit, contact a qualified electrician to
install the proper wall outlet. Do not change the equipment
plug, extension cord receptacle, or extension cord plug in
any way.
For all hedge trimmers:
1) Avoid Dangerous Environment - Don't use hedge trimmers
in damp or wet locations.
2) Don't Use In Rain.
3) Keep Children Away - All visitors should be kept at a
distance from work area.
4) Dress Properly - Do not wear loose clothing or jewelry.
They can be caught in moving parts. Use of rubber gloves
and substantial footwear is recommended when working
outdoors. Wear protective hair covering to contain long hair.
5) Use Safety Glasses - Always use face or dust mask if
operation is dusty.
6) Ground Fault Circuit Interrupter (GFCI) protection should
be provided on the circuit(s) or outlet(s) to be used for the
hedge trimmer. Receptacles are available having built-in
GFCI protection and may be used for this measure of safety.
7) Use Right Appliance - Do not use appliance for any job
except that for which it is intended.
8) Warning - To reduce the risk of electric shock, use only
with an extension cord intended for outdoor use, shuch as
SW-A, SOW-A, STW-A, STOW-A, SJW-A, SJOW-A, SJTW-A
or SJTOW-A.
9) Extension Cord - Make sure your extension cord is in
good condition. When using an extension cord, be sure to
use one heavy enough to carry the current your product will
draw. An undersized extension cord will cause a drop in line
voltage resulting in loss of power and overheating. Table 1
shows the correct size to use depending on cord length and
nameplate ampere rating. If in doubt, use the next heavier
gauge. The smaller the gauge number, the heavier the cord.
To reduce the risk of disconnection of hedge trimmer cord
from the extension cord during operating, please make a
knot as shown in Figure 1.
10) Avoid unintentional Starting - Don't carry plugged-in
hedge trimmer with finger on switch. Be sure switch is
off when plugging in.
11) Don't Abuse Cord - Never carry hedge trimmer by
cord or yank it to disconnect from receptacle. Keep
cord from heat, oil, and sharp edges.
12) Danger - Risk of Cut - Keep Hands Away From
Blades - Keep both hands on handles when power is
on.
13) Don't Force Hedge Trimmer - It will do the job better
and with less likelihood of a risk of injury at the rate for
which it was designed.
14) Don't Overreach - Keep proper footing and balance
at all times.
15) Stay Alert - Watch what you are doing. Use
common sense. Do not operate hedge trimmer when
you are tired.
16) Disconnect Hedge Trimmer - Disconnect the hedge
trimmer from the power supply when not in use or
when changing accessories.
17) Store Idle Hedge Trimmer Indoors - When not in
use, hedge trimmer should be stored indoors in dry, and
high or locked-up place - out of reach of children.
18) Maintain Hedge Trimmer With Care -
Follow instructions for changing accessories.
trimmer cord periodically, and if damaged,
have it repaired by an authorized electrician. Inspect
extension cords periodically and replace if damaged.
Keep handles dry, clean, and free from oil and grease.
19) Check Damaged Parts - Before further use of the
hedge trimmer, a guard or other part that is damaged
should be carefully checked to determine that it will
operate properly and perform its intended function.
Check for alignment of moving parts, binding of moving
parts, breakage of parts, mounting, and any other
condition that may affect its operation. If a guard or other
part is damaged, immediately discontiue use of the
Garden Groom, contact dealer or go to
www.gardengroom.com
20) Wear proper apparel, keep both hands on the
grasping surfaces and keep supply cord away from
the cutting area.
21) The max. diameter of stems intended to be cut with
this hedge trimmer is 0.8”.
22) When operating the trimmer, keep extension cord
behind trimmer. Never drape it over hedge being
trimmed.
Interlock
TExhaust

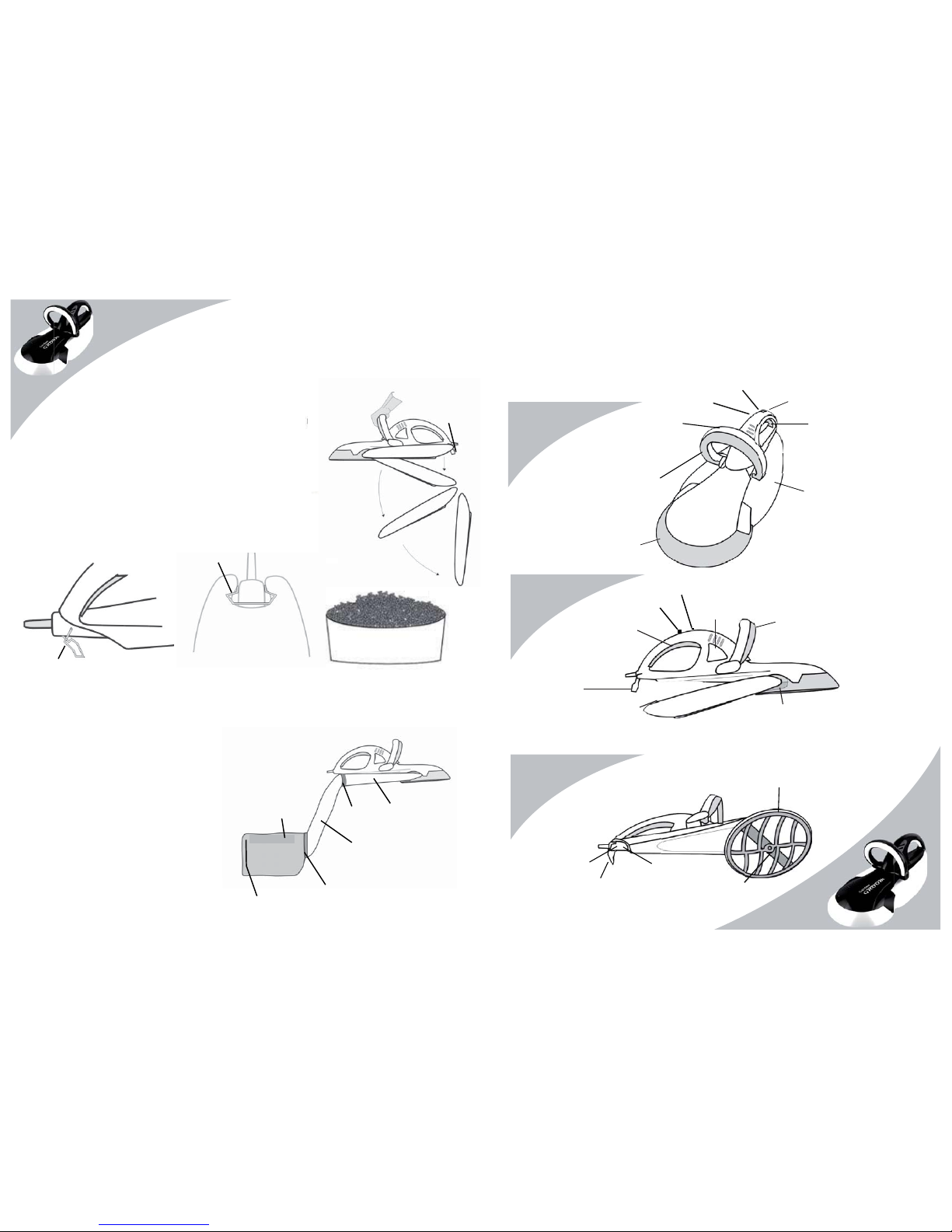

Fig.1 - VOLUME BAG
Fig.2 - EXTENSION TUBE
Fig.3 - ATTACHING EXTENSION TUBE
T
Interlock Peg
t
11
Inlet
Outle
Extension tube
(OOK
,OOP
:IP
ZIP
6OLUME
"AG
&LEXIBLE
(OSE
)NTERLOCK3WITCH0EG
%XTENSION
4UBE
)NLET
Interlock Switch
Retaining
Clip
Interlock
Peg
Extension
Tube
Exhaust
Safety Switch
Main switch
power light
Inspect hedge

3
Table 1
Figure 1
10
Your Volume Bag Attachment
Check the assembly for damage and ensure all the component
parts are in perfect condition and firmly connected together
before proceeding
.
.
Attach the extension tube (Fig. 2) to your Garden Groom
as illustrated (Fig. 3), by offering the inlet of the tube to the
exhaust of the Groom. Lift the back of the tube up to the
underside of the machine, ensuring the interlock peg is
aligned with the interlock switch, in the same way as the
waste container.
Secure the tube with the retaining clip.
Plug your Garden Groom into the main electrical supply
and switch on.
Your Garden Groom should now be ready for use. If however
it does not operate, check the interlock peg is correctly aligned
with the switch and the retaining clip is firmly in place and the
Use of your Volume Bag Attachment
Start up the Groom in the normal manor by operating the
safety switch, main switch and front handle.
The flexible hose and volume bag will inflate, providing
a clear passage for the debris to flow from the Groom exhaust
to the bag.
As progress is made, to avoid any restriction of movement
and strain on the tube/hose coupling, grab the hose and
occasionally pull the bag along in advance of the cutting
location.
.
During use, minor kinking of the hose is acceptable; however,
ensure the tube is not twisted, as this will restrict the flow of
waste material.
It will be necessary to periodically shake the debris down
the hose to ensure smooth conveyance of material into the
volume bag.
When the bag is sufficiently full, unzip the flap at the rear and
pour the shredded material into an appropriate receptacle or onto
a compost area.
Working from a platform
When working from a platform always ensure it is stable on solid
ground and never overreach.
Take care when positioning the platform there is sufficient freedom
of movement for the power cable and flexible tube
Always ensure the position of the platform, bag and hose do not
cause a potential tripping hazard or create any restriction of
movement during the hedge trimming operation.
Storage
Ensure the tube, hose and bag are completely free of waste
material before storing away.
Store in a dry clear place free of hazards that could cause
damage to any of the component parts.
Safety
Check periodically there are no breaks or damage to the volume
bag assembly.
The Garden Groom should never be used without the extension
tube or hose in position.
Never insert your hand up the extension tube.
Warning
Always unplug your Garden Groom from the main electrical
supply before carrying out any maintenance.
Damage
The three component parts of the Volume Bag Attachment have
been designed for easy detachment. If the extension tube is
damaged simply detach the hose by untying the hook & loop.
If the hose is damaged unzip the coupling at the bag
and untie the extension tube. For volume bag damage
simply unzip the hose.
The volume bag is supplied with the extension hose pushed
inside the exhaust end.
Preparing your volume bag
Connect the outlet of the extension tube to the flexible hose
using the hook & loop band. Lay the hose, extension tube and bag
out in a straight line adjacent to the hedge to be trimmed, positioning
the bag behind the anticipated direction of progress. Ensure the
hose is not twisted and the bag is sitting square on its flat base.
main switch powerlight is on. If the problem persists,
refer to Troubleshooting page at the back of the Garden Groom
manual.

.

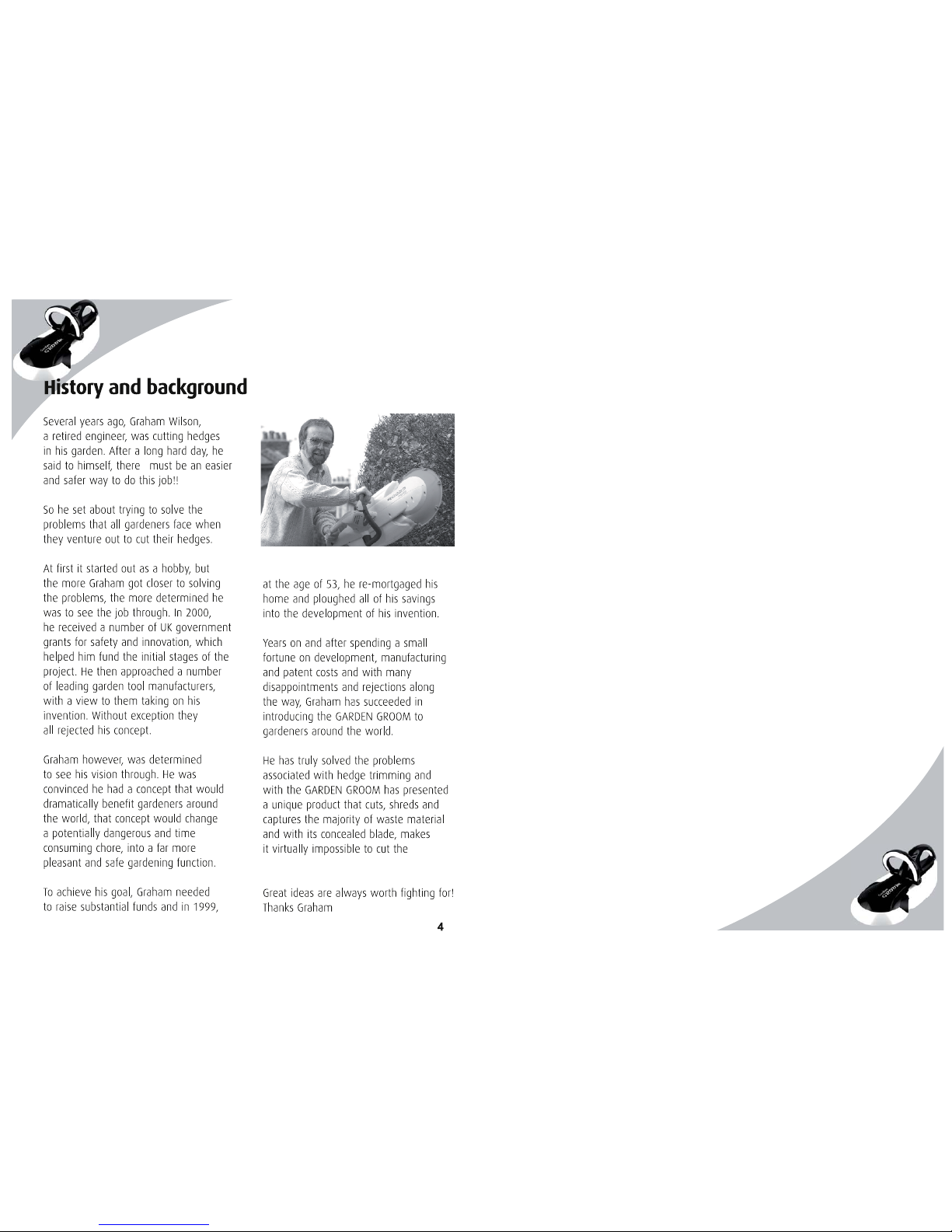

Graham Wilson - Inventor and Chairman of Garden Groom
9
Garden Groom Volume Bag
Attachment and Use Section
power cord.

,OCATIONOFRATINGPLATEANDSWITCHES
5
5. EMPTYING CONTAINER
For speed of operation, simply hold the Garden Groom by
the front handle, unclip and withdraw the container from the
main body and deposit the waste material into an appropriate
receptacle. To re-engage, push the front of the container
over the exhaust, raise the rear of the container, ensuring
alignment with clip, push clip forward with palm of hand
to lock. Note: The interlock peg MUST be connected to
the interlock switch and the main switch powerlight is lit
Fig.1 Fig.2
6. VOLUME BAG ATTACHMENT
For larger areas of hedge growth, a volume
bag attachment has been developed.
hose and volume bag attachment
and is fitted in the same manner
as the standard container.
TIP: It is necessary to periodically
shake the debris down the hose
to ensure smooth conveyance of waste
material into the volume bag. When ,
.
Container
Clip
8
Fig.3
#ONTAINER#LIP
#ONTAINER#LIP
#ONTAINER
#LIP



It has a specially refined extension
tube, fixed to an exhaust
unzip the rear panel of the bag and
empty into chosen receptacle.
full
%XTENSION4UBE
(OOK
,OOP
&LEXIBLE
%XTENSION
(OSE
:IP
:IP
7ASTE
6OLUME
"AG
"ACK
(ANDLE
-AIN
3WITCH
7ASTE
#ONTAINER
(EAD
&RONT
(ANDLE
&RONT
3WITCH
&RONT
3WITCH
2ATING
0LATE
-AIN
3WITCH
#ONTAINER
#LIP
)NTERLOCK
0EG
%XHAUST
3TATIC
"LADE
2OTARY
"LADE
)NTERLOCK
3WITCH
#ONTAINER
#LIP
4ERMINAL
#OVER
for the machine to function.
3AFETY
3WITCH
-AIN3WITCH
0OWERLIGHT
3AFETY
3WITCH
-AIN3WITCH
0OWERLIGHT

1. SWITCH ARRANGEMENT
2. HORIZONTAL TRIMMING (Top of Hedges)
Move the Garden Groom in a sweeping
pendulum motion from side to side. The at
underside of the Garden Groom provides
fl
anatural guide, so the most inexperienced
gardener can achieve excellent
r
results
.

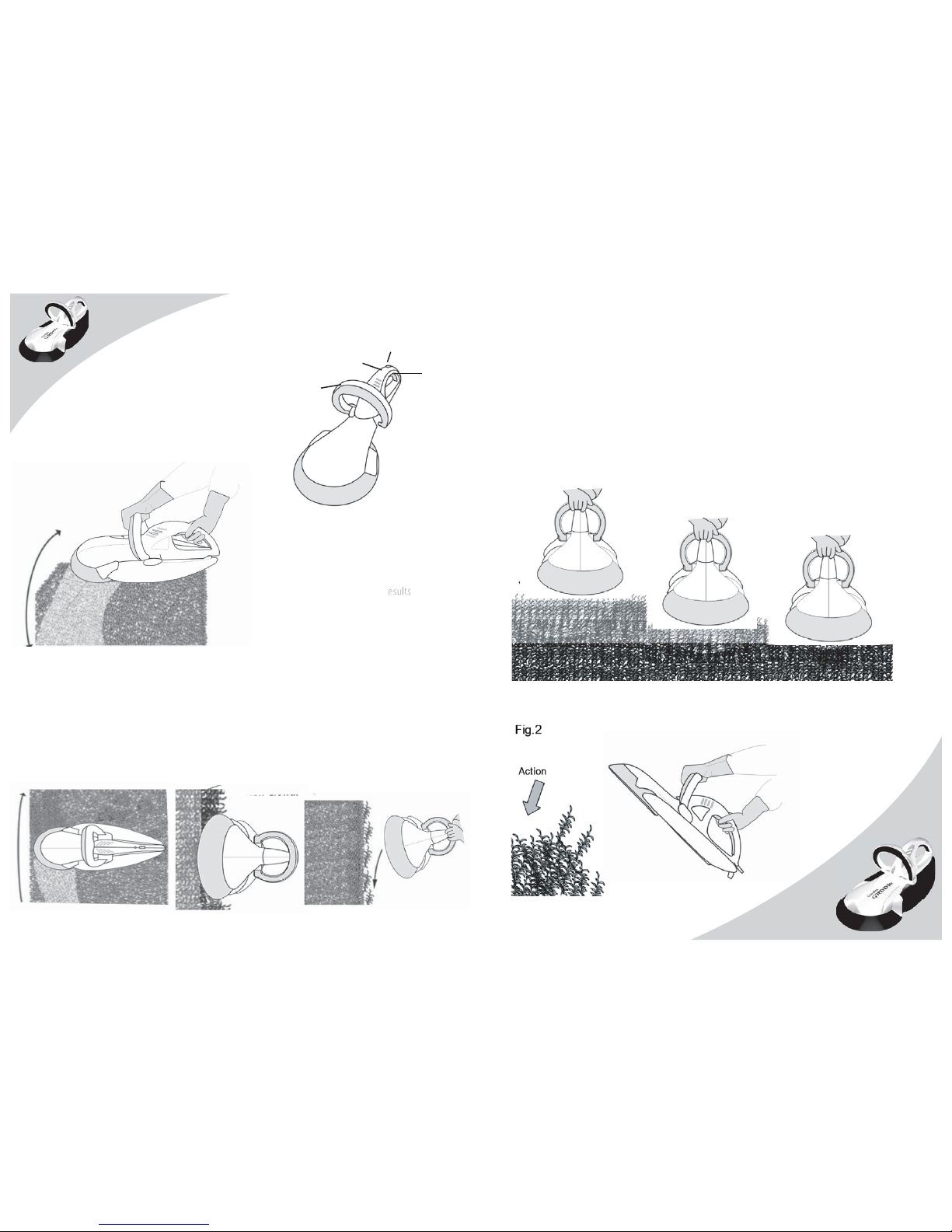

Use of your Garden Groom PRO
Fig.1 Fig.2 Fig.3
3. VERTICAL TRIMMING (Side of Hedge)
Move the Garden Groom in a vertical sweeping action, ensuring the flat underside of the machine
is level with the surface of the hedge. Tip: For a tighter professional finish, bury the head of the
machine into the hedge, to the desired depth, working the machine upwards. See fig.2 (below).
To trim long stalks growing parallel with the surface of the hedge, move the head down in the
opposite direction to the growth (fig 3).
Please note: The capture rate of material is reduced using this angle of cut.
6
Note: Either the main collection bag or the volume bag
must be attached for the Garden Groom to operate. 4. TRIMMING EXTRA LONG GROWTH
The Garden Groom has been designed to trim
hedge growth of 6” in length or less. However it
will trim exceptionally long growth, but this
operation will inevitably result in a lower rate
of capture (on vertical cuts only), due to the
sheer dynamics and volume of material to be
managed.
To trim exceptionally long growth (within
the recommended cutting diameters),
we advise the following techniques:
Trim the growth in several stages
(see fig.1 below) layering down,
until you arrive at the desired level.
1st
Desired
Level
In some circumstances you may wish to adopt a vertical technique (see fig.2 below),
bringing the Garden Groom down onto the growth in a vertical action.
7
Main
Switch
Front
Switch
Safety
Switch
Main switch
power light
managed
Ist Pass
2nd Pass
3rd and
final
pass
To operate the main switch and front switch,
you must first push forward the safety switch
&IG
The Garden Groom is designed to cut up
to 0.8” diameter of growth. Use on thicker
material may result in damage to the
machine
