jobmate JM18FL Installation manual

SAFETY AND OPERATING MANUAL
18 V
CORDLESS LI-ION FLOOR LIGHT
JM18FL

2
CORDLESS FLASHLIGHT
SAFETY WARNINGS
WARNING: Be sure to read and
understand all instructions in this manual
before using this flashlight.
Failure to follow all instructions may result in
electric shock, fire and/or serious personal
injury.
1. Please read and observe all safety warnings
and instructions enclosed with the battery
or the power tool, with which the battery
was provided.
2. Handle the cordless flashlight with care. The
cordless flashlight generates intense heat,
which leads to increased danger of fire and
explosion.
3. Do not work with the cordless flashlight in
hazardous areas.
4. Do not direct the light beam at persons or
animals and do not stare into the light beam
yourself.
5. Do not cover off the lamp head while
operating the cordless flashlight. The lamp
head heats up during operation and can cause
burns when the heat accumulates.
6. Do not stare into the light beam for longer
periods. The optical radiation can be harmful
for your eyes.
7. Use the cordless flashlight only with
specifically designated battery pack. Use of
any other battery packs may create a risk of
injury and fire.
SAFETY WARNINGS FOR
BATTERY PACK
a) Do not dismantle, open or shred cells or
battery pack.
b) Do not short-circuit a battery pack. Do not
store battery packs haphazardly in a box or
drawer where they may short-circuit each
other or be short-circuited by conductive
materials. When battery pack is not in use,
keep it away from other metal objects, like
paper clips, coins, keys, nails, screws or
other small metal objects, that can make a
connection from one terminal to another.
Shorting the battery terminals together may
cause burns or a fire.
c) Do not expose battery pack to heat or fire.
Avoid storage in direct sunlight.
d) Do not subject battery pack to mechanical
shock.
e) In the event of battery leaking, do not allow
the liquid to come into contact with the skin
or eyes. If contact has been made, wash
the affected area with copious amounts of
water and seek medical advice.
f) Seek medical advice immediately if a cell or
battery pack has been swallowed.
g) Keep battery pack clean and dry.
h) Wipe the battery pack terminals with a
clean dry cloth if they become dirty.
i) Battery pack needs to be charged before
use. Always refer to this instruction and use
the correct charging procedure.
j) Do not maintain battery pack on charge
when not in use.
k) After extended periods of storage, it may
be necessary to charge and discharge
the battery pack several times to obtain
maximum performance.
l) Battery pack gives its best performance
when it is operated at normal room
temperature (20°C ± 5°C).
m) When disposing of battery packs, keep
battery packs of different electrochemical
systems separate from each other.
n) Recharge only with the charger specified by
manufacturer. Do not use any charger other
than that specifically provided for use with
the equipment. A charger that is suitable for
one type of battery pack may create a risk of
fire when used with another battery pack.
o) Do not use any battery pack which is not
designed for use with the equipment.
p) Keep battery pack out of the reach of
children.
q) Retain the original product literature for
future reference.
r) Remove the battery from the equipment
when not in use.
s) Dispose of properly.
SAVE THESE INSTRUCTIONS
GENERAL SAFETY
WARNINGS FOR YOUR
BATTERY CHARGER
WARNING: Read all safety warnings
and all instructions. Failure to follow the
warnings and instructions may result in electric
shock, fire and/or serious injury.
Save all warnings and instructions for future
reference.

3
- This appliance is not intended for use by
persons (including children) with reduced
physical, sensory or mental capabilities, or
lack of experience and knowledge, unless they
have been given supervision or instruction
concerning use of the appliance by a person
responsible for their safety.
- Children should be supervised to ensure that
they do not play with the appliance.
If the supply cord is damaged, it must be
replaced by the manufacturer, its service
agent or similarly qualified persons in order to
avoid a hazard.
ADDITIONAL SAFETY
INSTRUCTIONS FOR YOUR
BATTERY CHARGER
1. Before charging, read the instructions.
2. For charge Li-ion battery pack only.
3. If the supply cord is damaged, it must be
replaced by the manufacturer, its service
agent or similarly qualified persons in order to
avoid a hazard.
4. The battery terminal not connected to the
chassis has to be connected first. The other
connection is to be made to the chassis,
remote from the battery and fuel line. The
battery charger is then to be connected to the
supply mains.
5. After charging, disconnect the battery
charger from the supply mains. Then remove
the chassis connection and then the battery
connection.
6. Do not charge a leaking battery.
7. Do not use chargers for works other than
those for which they are designed.
8. Before charging, ensure your charger is
matching the local AC supply.
9. The charging device must be protected from
moisture.
10.Do not use the charging device in the open.
11. Do not short out the contacts of battery or
charger.
12. Respect the polarity “+/-“ when charging.
13.Do not open the unit and keep out of the reach
of children.
14.Do not charge the batteries of other
manufactures or ill-suited models.
15. Ensure that the connection between the
battery charger and battery is correctly
positioned and is not obstructed by foreign
bodies.
16.Keep battery charger’s slots are free of
foreign objects and protect against dirt and
humidity. Store in a dry and frost-free place.
17. When charging batteries, ensure that the
battery charger is in a well-ventilated area
and away from inflammable materials.
Batteries can get hot during charging.
Do not overcharge any batteries. Ensure
that batteries and chargers are not left
unsupervised during charging.
18.Do not recharge non-rechargeable batteries,
as they can overheat and break.
19.Longer life and better performance can be
obtained if the battery pack is charged when
the air temperature is between 18oC and
24oC. Do not charge the battery pack in air
temperatures below 4.5oC, or above 40.5oC.
This is important as it can prevent serious
damage to the battery pack.
20.Charge only battery pack of the same model
provided by manufacturer and of models
recommended by manufacturer.

4
SYMBOLS
Li-ion battery. This product has
been marked with a symbol
relating to ‘separate collection’
for all battery packs and battery
pack. It will then be recycled or
dismantled in order to reduce
the impact on the environment.
Battery packs can be hazardous
for the environment and for
human health since they contain
hazardous substances.
Read the operator’s manual.
Fuse T 2A time lag fuse with rated
current of 2A
Positive terminal
Negative terminal
Double insulation (For charger)
ABN: Australian Business Number. By this number,
business information such as entity type, status,
business location etc. can be found at website
http://abr.business.gov.au.
ABN of Positec Australia Pty Limited is 14 101 682 357
To reduce the risk of injury, user must
read instruction manual
Warning
For indoor use only (For charger)
RCM marking
Do not expose to rain or water
Do not burn
Li-I on

5
1
2
3
6
8
4
7
5

6
COMPONENT LIST
1. Handle sleeve
2. Handle
3. Adjusting knob
4. Hook
5. Bracket seat
6. Rubber pad
7. Bracket
8. On / off switch
Not all the accessories illustrated or described are included in standard delivery.
ACCESSORIES
Battery 1
charger 1
We recommend that you purchase your accessories from the same store that sold you the tool. Refer to the
accessory packaging for further details. Store personnel can assist you and offer advice.
TECHNICAL DATA
Rated voltage 18V Max*
Rated wattage 20W
Charger voltage
100-240V~50/60Hz
Working time 2h
Lumen 1600/1000/600 LM
Machine weight 1.93KG
Charging time 1hr
Charger input 100-240V~50/60Hz
Charger output 10.8~20V 1.5A
Battery capacity 1.5Ah Li-Ion battery

7
OPERATING INSTRUCTIONS
NOTE: Before using the tool, read the instruction book
carefully.
INTENDED USE
The machine is intended for lighting.
BEFORE PUTTING INTO OPERATION
A) CHARGING THE BATTERY PACK (SEE FIG. A)
a) The battery in your new tool is not charged when it leaves
the plant. Therefore it must be full charged before using the
first time.
b) Do not use any charger other than that specifically
provided for use with the equipment.
c) If the battery pack is very hot you must remove your
battery pack from the charger and
allow time for the battery to cool down before recharging.
d) Please charge the battery to reach full or no less than half
charge before storage. If the tool
will not be used for long periods of time, charge the battery
every 3-6 months.
CHARGING PROCEDURE
1) Plug the charger into an appropriate outlet.
2) Place the battery pack into the charger
3) When charging is completed, unplug the charger and
remove the battery pack.
WARNING! When battery charge runs out after
continuously use or exposure to direct sunlight
or heat, allow time for the tool to cool down before re-
charging to achieve the full charge.
CHARGING INDICATOR
This charger is designed to detect some problems that can
arise with battery packs. Indicator lights indicate problems
(see table below). If this occurs, insert a new battery pack to
determine if the charger is OK. If the new battery charges
correctly, then the original pack is defective and should be
returned to a service center or recycling service center.
If the new battery pack displays the same problem as
the original Battery Pack, have the charger tested at an
authorized service center.
Light ON/OFF flash Status
Red on Charging
Red flash - - - - - Defective battery
Green on Fully charged
Green flash - - - - - Hot/cold delay
Fig.A
Fig.B
Fig.C
Fig.D
Fig.E
Fig.F
Fig.G
Fig.H

8
REMOVING& INSTALL ING THE BATTERY PACK (SEE FIG
B,C)
Depress the Battery Pack Release Button firmly first and
then slide the Battery Pack out from your tool.
Slide the fully charged Battery Pack onto the tool with
sufficient force until it clicks into position.
OPERATION
1. ON / OFF SWITCH(SEE FIG D)
Press on/off switch, the Floor Light will come on.
Press on/off switch for in Gear III , the Floor Light will be
switched off.

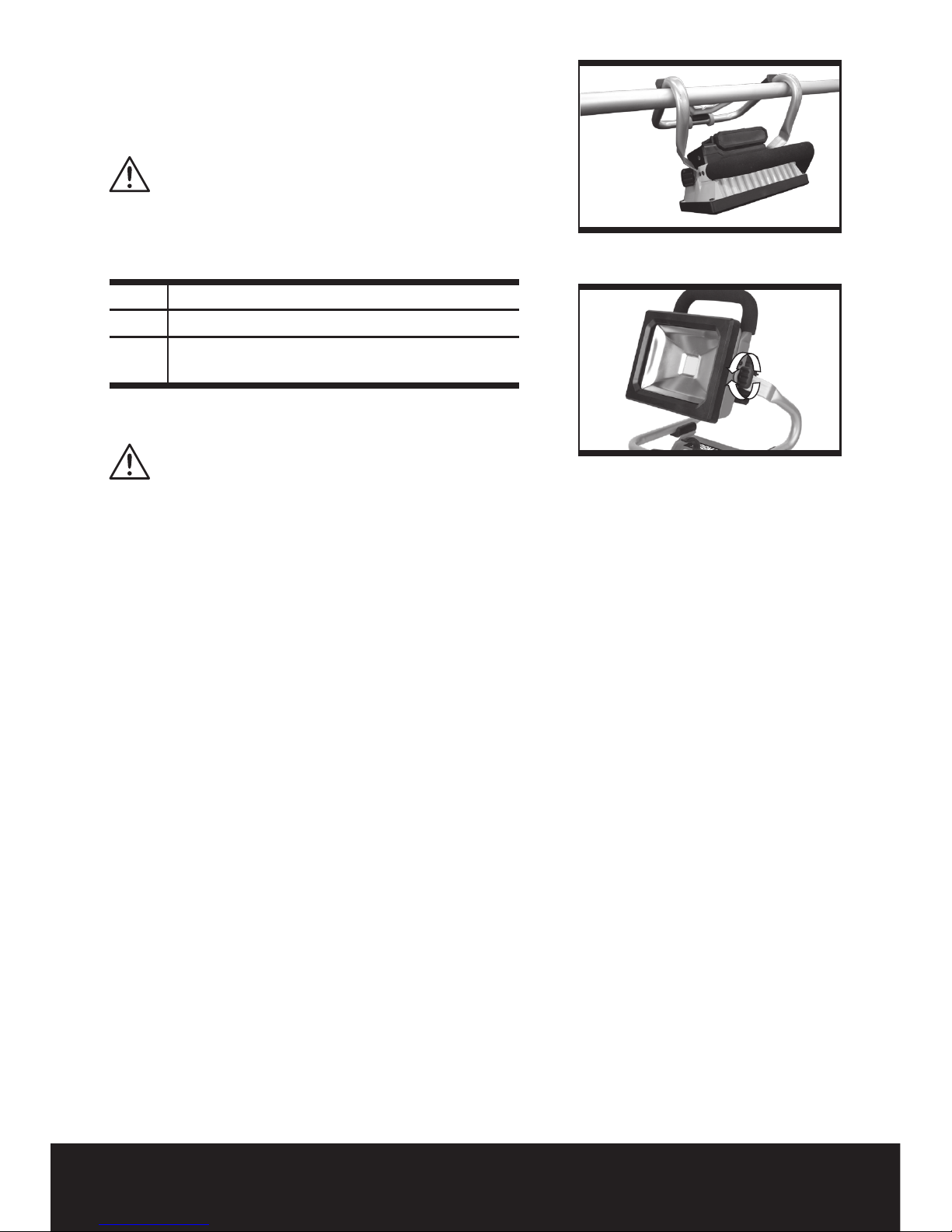

2. PLACING THE LIGHT(SEE FIG E, F)
Place the work light securely in case of falling object hazard.
Use the hook and the bracket to set the light in place. You can
also use a screw to make the work light fixed on bench.
WARNING! Do not hang the work light on any
electrical power cord!
Fig.A
Fig.B
Fig.C
Fig.D
Fig.E
Fig.F
Fig.G
Fig.H

9
3. ADJUSTING THE HEAD OF WORK LIGHT (SEE FIG F,G)
The head of work light can be set in a variety of positions.
Loose the adjusting knob to make the head of work light in
place, then tighten the adjusting knob to fix the head of work
light.
WARNING! Do not put hands or fingers between
adjustable head and bracket when positioning the
work light!
4. GEAR ADJUSTMENT (SEE FIG H)
The light has three gears.
Gear I Press on/off switch, the worksite light will come on.
Gear II Press on/off switch again, the light will be brighter.
Gear III
Press on/off switch the third time, the light will be
the brightest.
NOTE: If you press the on/off switch in Gear III, the light will be
shut off immediately.
WARNING: Do not direct the light beam into your
eyes.
MAINTENANCE AND SERVICING
We recommend that you purchase your accessories listed
in the above list from the same store that sold you the tool.
Refer to the accessory packaging for further details. Store
personnel can assist you and offer advice.
TROUBLESHOOTING
Symptom: The tool suddenly turns off during operation.
Possible Causes:
(1) Battery temperature too high
(2) Low battery capacity
Possible Solution:
(1) Cool down a little while and then use again, or change the
battery pack.
(2) Charge the battery pack.
Fig.A
Fig.B
Fig.C
Fig.D
Fig.E
Fig.F
Fig.G
Fig.H

10
WARRANTY
This product is warranted for a 2-year period for
home domestic use from the date of the original
purchase. If found to be defective in materials
or workmanship, the tool or the offending faulty
component will be replaced free of charge with
another of the same item. A small freight charge
may apply.
The warranty replacement unit only made available
by returning the tool to the place of purchase with a
confirmed register receipt.
Proof of purchase is essential.
We reserve the right to reject any claim where
the purchase cannot be verified.
This warranty does not include damage or defects
to the tool caused by or resulting from abuse,
accidents, alterations or commercial or business use.
