Jobsite CT3270 User manual

6.5HP LOG SPLITTER - CT3270
INSTRUCTION MANUAL
IMPORTANT:
These instructions accompanying the product are the original instructions. This
document is part of the product, keep it for the life of the product passing it on to
any subsequent holder of the product. Read all these instructions before
assembling, operating or maintaining this product.
Cannon Tools Limited
Address: 20 Station Road, Rowley Regis, West Midlands, B65 0JU.U.K.

1
EC DECLARATION OF CONFORMITY
We CANNON TOOLS LTD
20 Station road, Rowley Regis, West Midlands,B65 0JU.U.K.
Declare that the following machine complies with the appropriate basic safety
and health requirements of the EC Directive based on its design and type, as
brought into circulation by us.
In case of alteration of the machine, not agreed upon by us, this declaration will
lose its validity.
Product description: 6.5HP LOG SPLITTER
Model: CT3270
Applicable EC Directives:
EC Machinery Directive 2006/42/EC
EC Directive of Electromagnetic Compatibility 2014/30/EU
Harmonized standards
EN 609-1:2017, EN 55012:2007+A1:2009
20 Station Road, Rowley Regis, West Midlands, B65 0JU.U.K.
Mr. Gurcharan Tony Singh Sanghera
Managing Director
CANNON TOOLS LTD
2021-02-07

2
1. SPECIFICATION
Max Splitting Force: 12 Ton
Max Splitting Size: 520(L )x 300(D)mm
Cylinder Diameter: 3”
Travel Time: 29S
Gear pump: 2.1GPM
Hydraulic cylinder diameter: 3”
Hydraulic oil No.: SHELL Tellus 22
MOBIL DTE 11
ARAL Vitam GF 22
BP Energol HLP-HM 22
Hydraulic Tank capacity: 8L
Engine type: 6.5HP LONCIN Engine
Displacement: 196cm3
Max. Power；4100W
Rated speed: 3600rpm
Bore x Stroke: 68 x 54mm
Compression ratio: 8.5:1
2. IMPORTANT SAFETY INFORMATION
WARNING! READ THIS MANUL CAREFULLY! Serious injury or
death can result if safety instructions are not followed.
Engine is shipped without oil.
-Before starting engine, fill with SAE 10W-30 motor oil.-See engine
manual for engine oil capacity.
Hydraulic Oil Tank is shipped without oil.
-When add oil,Verify oil level is 1 from top of hydraulic reservoir (not
including fill neck).
Closely inspect all log splitter components.
-If you have damaged components then contact the seller.
Important safety Rules

3
WARNING
1). Read this manual completely.
-Serious injury or death can result if safety instructions are
not followed.Everyone who operates the log Splitter must
read and completely understand all safety rules, operating
instructions,and maintenance instructions, and maintenance
instructions.
-You must be 16 or older to operate this machine. Keep
untrained people away.
-Shut engine off before leaving log splitter unattended.

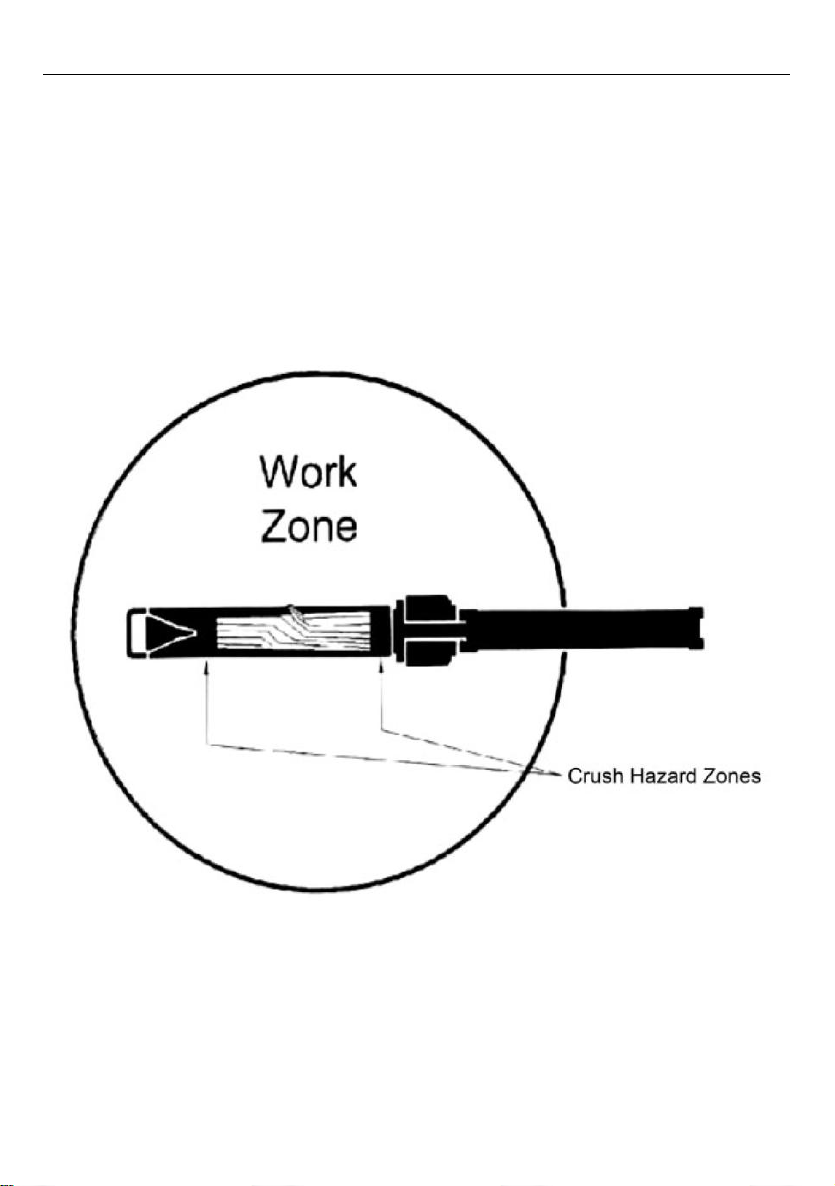

2). Crush Hazard.
-Wedge can cut through skin and break hones.Keep both
hands away from wedge and end plate.
-Serious accidents can happen when other people are
allowed inside the work zone. Keep everyone else out of the
work zone while operating control valve.
-Do not wear loose clothing. It can get tangled in moving
parts of log splitter.
-Only use the log splitter in daylight so you can see what you
are doing.
3). Flying objects.
-Pieces of log may fly out while splitting. Wear safety
glasses. Serious eye injury can occur.
4). Skin injection hazard.
-High pressure fluid can inject under skin resulting in serious
injury including amputation.
-Make sure all fitting are tight before applying pressure.
Relieve system pressure before servicing.
-Do not check for leaks with hand.Instead, use a piece of
cardboard to check for leaks.
-If skin injection happens, seek immediate"Surgical
Treatment".

4
5). Risk of fire and explosion
-Hot exhaust fumes from engine can cause fire. Gasoline is
highly flammable and explosive.You can be burned or
seriously injured when handling fuel.
-Position muffler at least 7 feet from combustible objects.
-Before adding fuel, stop the engine and keep heat, sparks,
and flame away.Do not add fuel when engine is running or
still hot. No smoking near engine.
-Do not pump fuel directly into engine at gas station. Static
charge can build and ignite fuel. Use a fuel container to
transfer gas to the engine. Wipe up fuel spills immediately.
-Only store and handle fuel outdoors. Gasoline vapors can
ignite if they collect inside an enclosure. Explosion can result.
-Do not change or add to exhaust systems.Fire can result
-Do not change ore add fuel tanks or fuel lines. Fire can
result.
-Before each use,check fuel tank and fuel lines for leaks. Any
fuel leak is afire hazard.Fix any fuel leaks before starting
engine.
-During transportation take precautions to make sure
machine will not tip over and cause a fuel leak fire hazard.
6). Breathing hazard.
Poisonous fumes from engine can kill you. Do not operate
indoors even if Ventilated.For outdoor use only.
7). Hot muffler.
You can be burned by muffler. Do not touch.
Operating Precautions
1. NEVER use inside a home or garage, EVEN IF doors and windows are open.
Only use OUTSIDE and far away from windows, doors, and vents.
Engine exhaust contains carbon monoxide. This is a
poison you cannot see or smell.

5
2. Keep children away from the equipment, especially while it is operating.
3. DO NOT OPERATE WITH ANY GUARD DISABLED, DAMAGED, OR
REMOVED. Keep guards in place and in good working order.
4. Wear ANSI-approved safety goggles under full face shield, heavy-duty work
gloves and steel-toe work boots during use.
5. Keep clear of moving parts and log during operation. Crushing hazard.
6. Do not split wood containing foreign objects (nails, for example).
7. Do not use Splitter on logs longer than 520mm or with a diameter greater than
300mm.
8. Hold the rounded, bark side of logs when loading or positioning, never the ends.
Do not place hands or any body parts between a log and any part of the Log Splitter.
9. Do not load or unload logs while the splitter wedge is moving.
10. Do not split logs across the grain. Doing so will damage the Log Splitter and
could cause pieces of log to be thrown, injuring the operator or bystanders.
11. Do not split more than one log at a time. A piece of log can unexpectedly be
thrown from the machine, causing severe personal injury.
12. Keep bystanders away during operation.
13. Stay alert, watch what you are doing and use common sense when operating
this piece of equipment. Do not use while tired or under the influence of drugs,
alcohol or medication.
14. Do not overreach. Keep proper footing and balance at all times. This enables
better control of the equipment in unexpected situations.
15. Use this equipment with both hands only. Using equipment with only one hand
can easily result in loss of control.
16. Do not operate the equipment with known leaks in the engine’s fuel system.
17. When spills of fuel or oil occur, they must be cleaned up immediately. Dispose of
fluids and cleaning materials as per any local, state, or federal codes and regulations.
Store oil rags in a bottom-ventilated, covered, metal container.

6
3. TECHNICAL DESCRIPTION

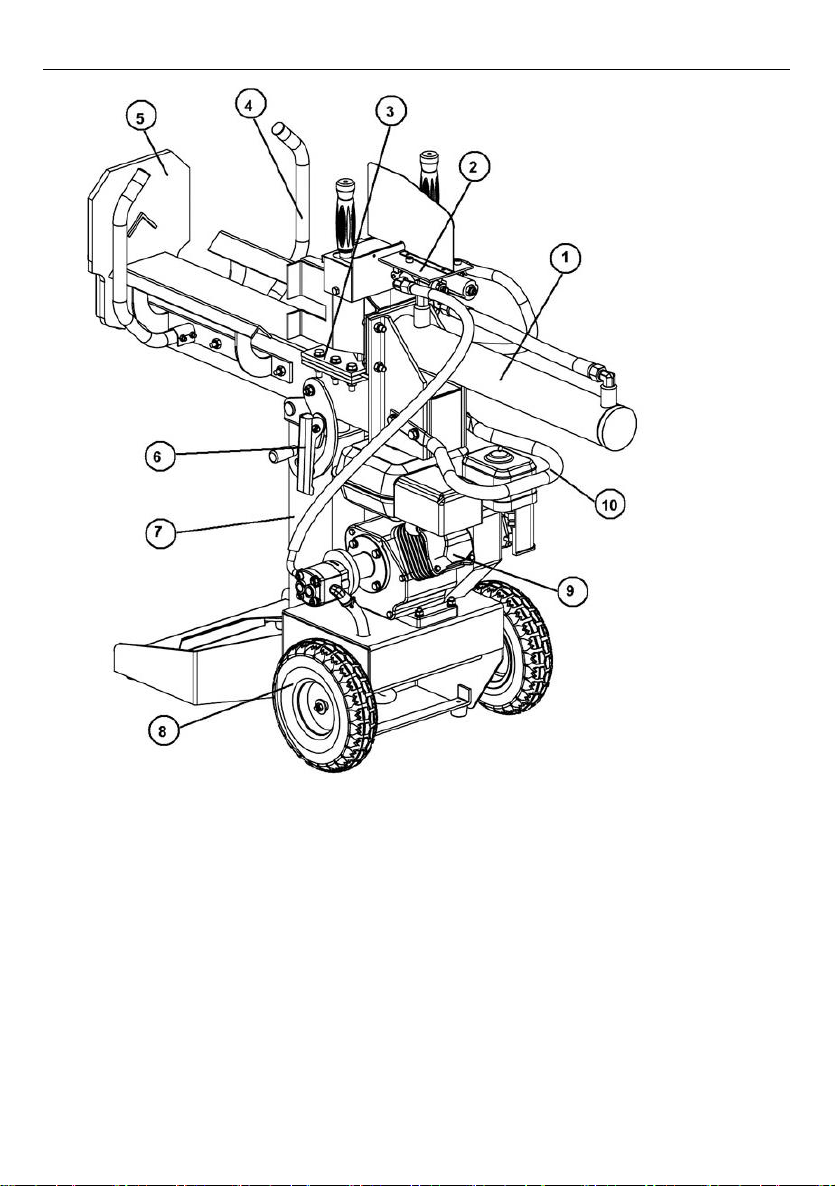

1. Hydraulic Cylinder 2. Control Valve Handle
3. Wedge 4.Log Guide &Guard
5. Beam 6.Lock Assemble
7.Main Body 8. Wheel
9.Engine Assemble 10.Handle

7

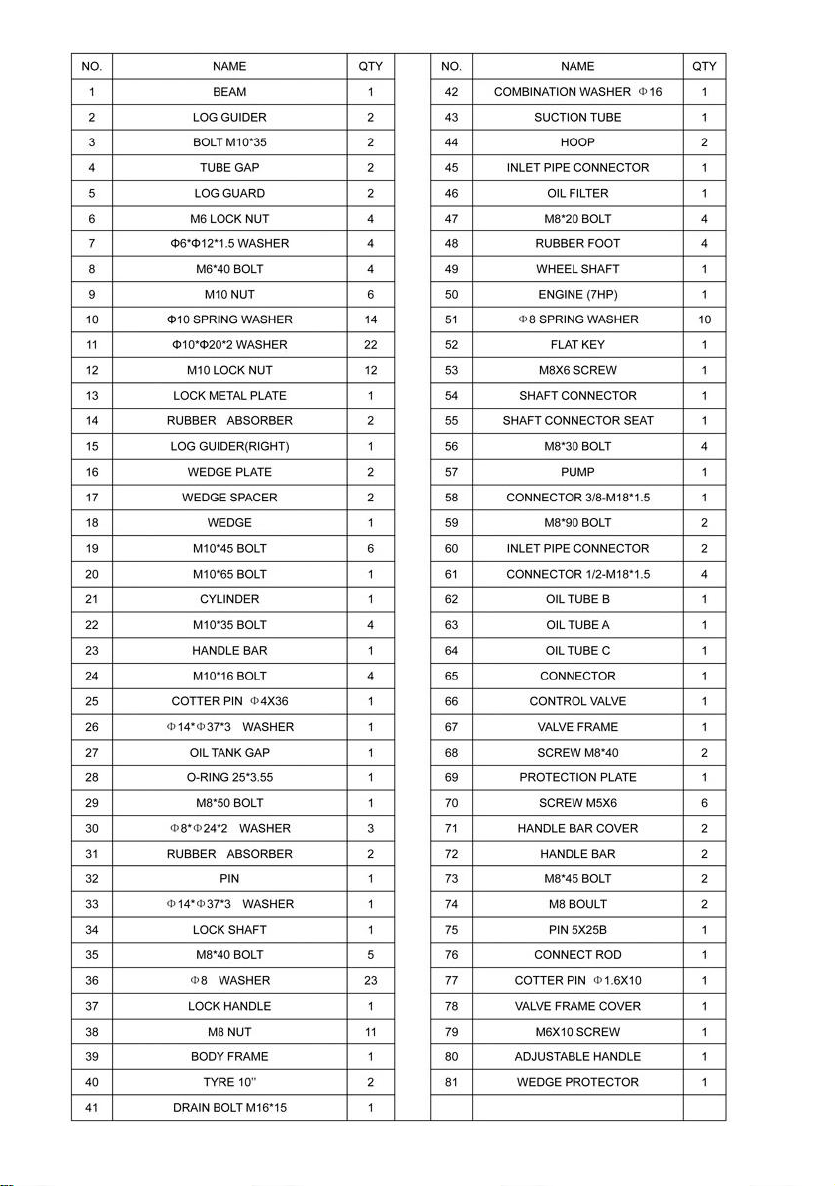

4. UNPACKING AND CHECKING

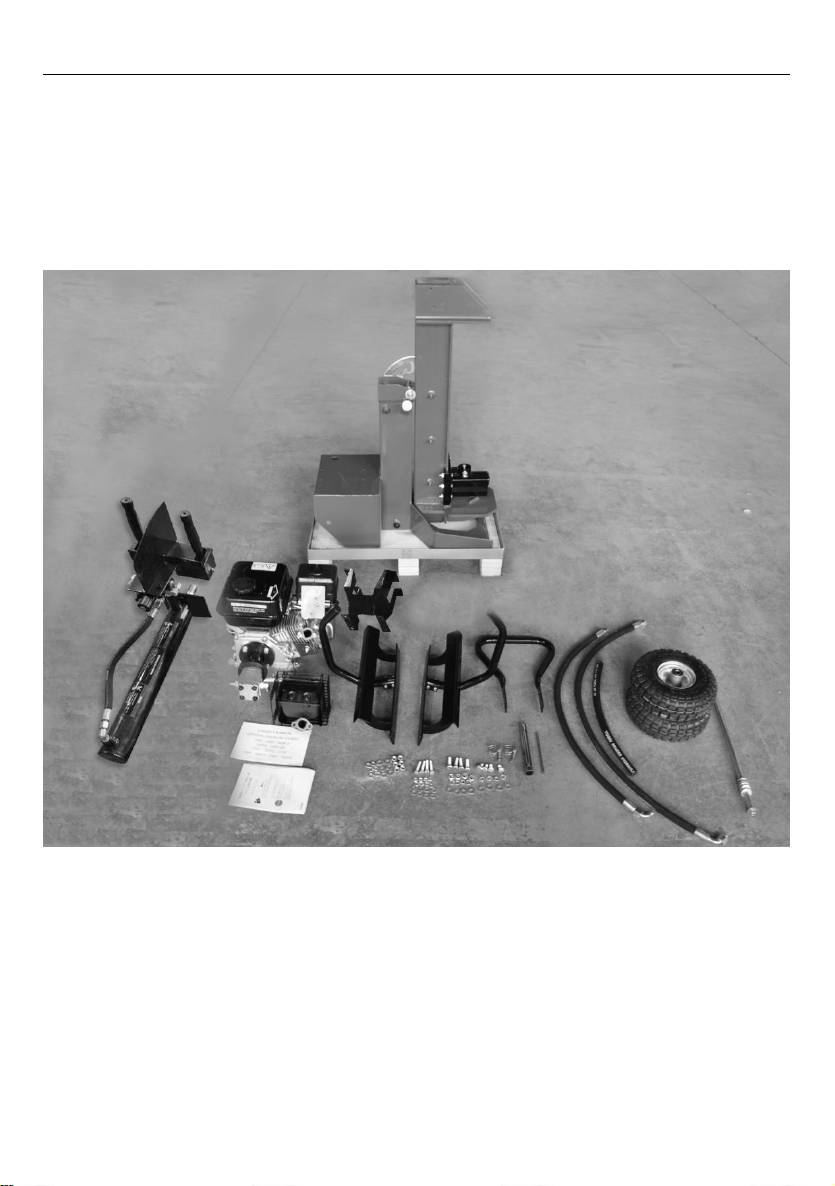

Carefully remove the product from the packaging and examine it for any sign of
damage that may have happened during shipping. Lay the contents out and
check them against the parts shown below. If any part is damaged or missing;
please contact the seller and do not attempt to use the product.

8
5. ASSEMBLY
STEP 1: LOCK & HANDLE ASSEMBLY

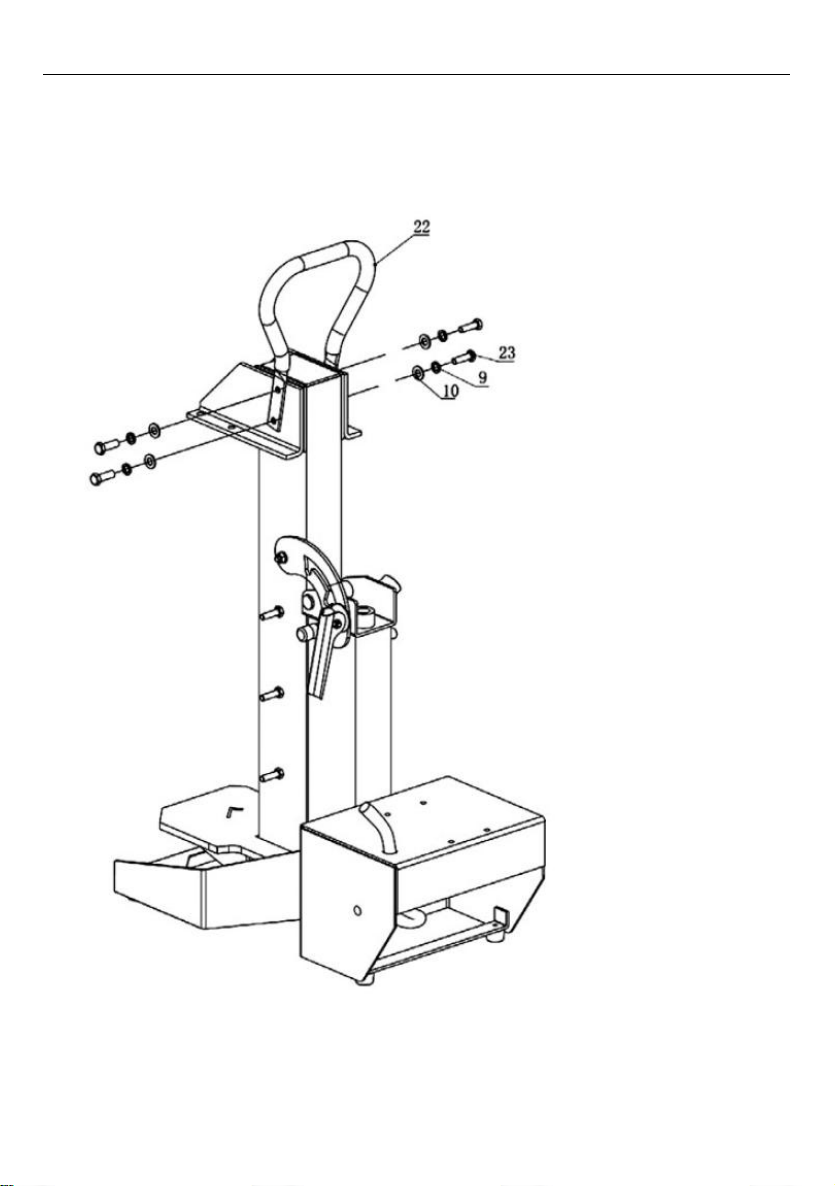

1. Fix the handle(#22) on the end of the beam with bolt (#23), spring washer (#9)
and washer (#10).

9
STEP 2: WHEEL & CYLINDER ASSEMBLY
1. Adjust the beam to a horizontal position and fix it with lock system.
2. Assemble the cylinder and wedge protector to the beam by using Hex Bolt
(#21), Spring Washer (#9) , Flat Washer (#10) and Nut (#11).
3. Assemble 2pcs wheels (#39) to the main body by using wheel shaft(#48), Flat
Washer (#29)and Nut (#37).

10
STEP 3: LOG GUIDE & ENGINE ASSEMBLY
1. Assemble the Left and Right Log Guide (#2&#14) by using Nuts (#8), Spring
Washer (#9) and Flat Washer (#10).
2. Assemble the Log guard (#4) by using Nuts (#5), Flat Washer (#6) and
Bolt(#7).

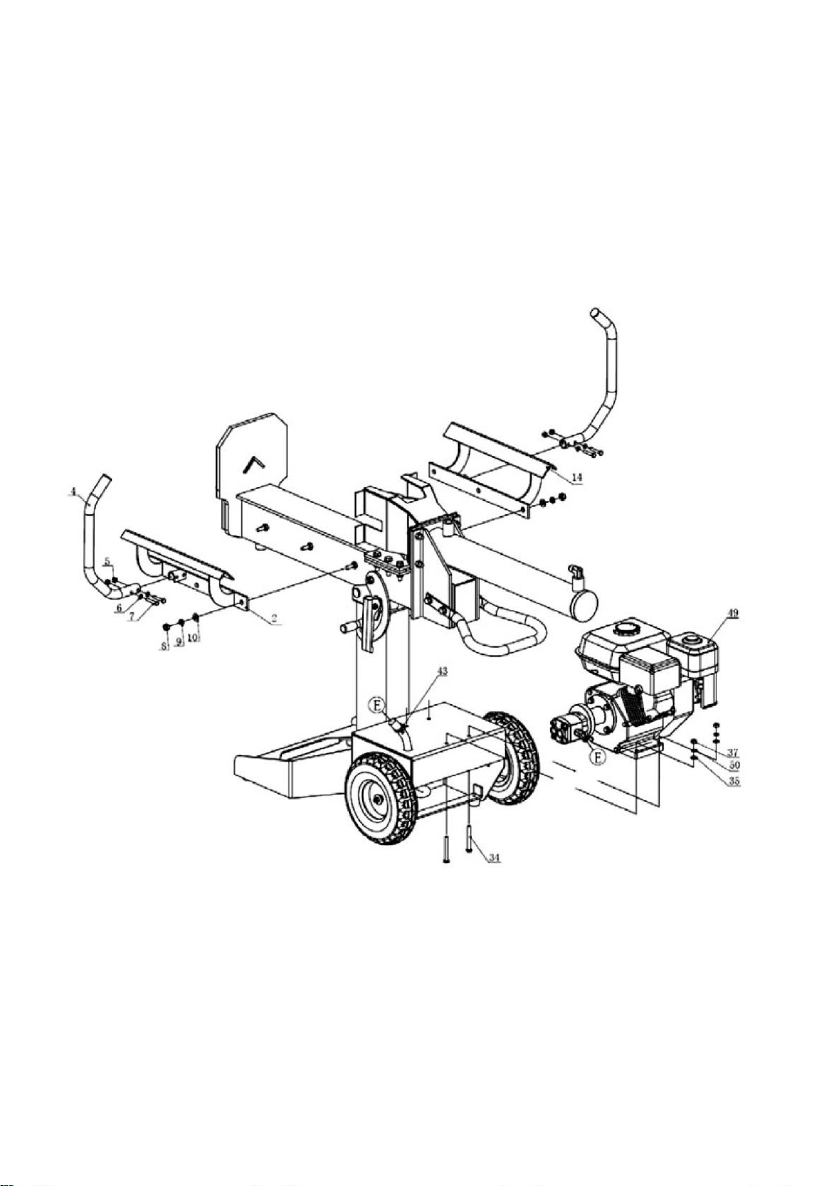

3. 3.Fix the Engine Assembly to the main body by using Bolts(#34), Flat Washer
(#35), Spring Washer (#50)and Nuts (#37).

11
STEP 4: ASSEMBLY HYDRAULIC HOSES

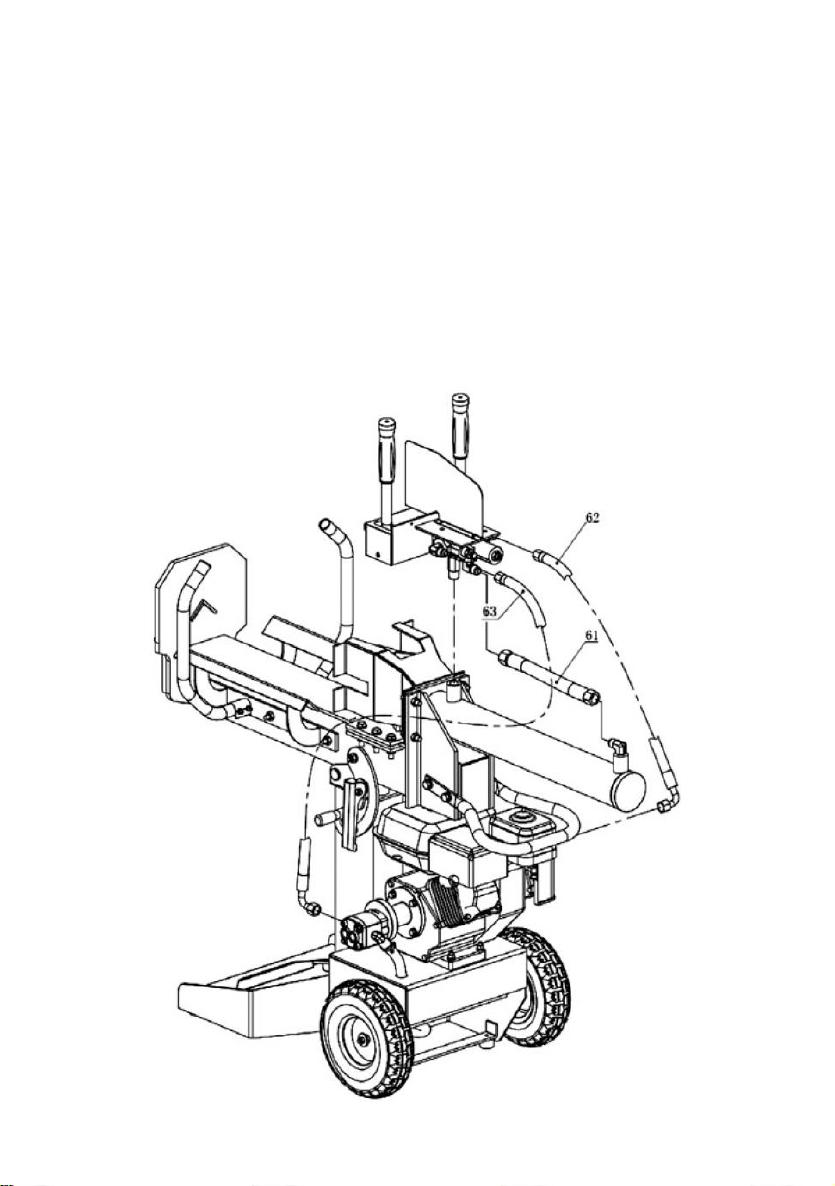

1. Attached the hydraulic hosed (#63). Using one high pressure hose (#63)
which will assemble to the control valve and engine gear pump. Fix one end to
the control valve input joint (already fixed at factory) and another end to the
Engine Gear Pump.
2. Using the other hydraulic hose(#62) which will assemble to the control valve
and oil tank. Fix one end to the control valve output joint (already fixed at factory)
and another end to the oil tank.
3. Then assemble the Oil Pipe to the gear pump, fix it by clamp (#43).
4. Connected the control valve and the cylinder with oil pipe (#61).

12
6. OPERATION INSTRUCTIONS
Proper Operation of the Log splitter
1.) Load a log onto the beam and against the wedge.
2.) Serious accidents can happen when other people are allowed inside the work
zone.Keep everyone else out of the work zone while operating control valve.
3.) Push control valve handle FORWARD by two hands to split log.
4.)Push control valve handle BACKWARD by two hands to return wedge to its
original position.
5.) Clear the split wood from the work zone.

13
7. MAINTENANCE AND STORAGE
Before performing maintenance, the log splitter must be placed in maintenance
mode.
1. Turn off engine.
2. Move the control valve handle forward and backward to relieve hydraulic
pressure.
After performing maintenance, make sure all guards, shields, and safety features
are put back in place.Failure to follow this warning can result in serious injury.
Refer to the engine owner's manual for engine maintenance.
What
When
How
Hoses
Each use
Inspect for exposed wire mesh and leaks.
Replace all worn or damaged hoses before
starting engine.
Hydraulic fittings
Each use
Inspect for cracks and leaks. Replace all
damaged fitting before starting engine.
Nuts and Bolts
Each use
Check for loose bolts
Beam
Each use
Apply grease to beam surface
Moving Parts
Each use
Clear debris
Caution! Residual Hydraulic Energy
Residual energy must be released from the the pressurized hydraulic fluid before
any maintenance or repair work is done on the firewood processor.Hydraulic fluid
can remain highly pressurized even while the processor’s Engine is off. Escaping
pressurized hydraulic fluid can penetrate skin and cause serious injury.
To release residual hydraulic energy:
1. Shut off Engine.
2. Move control valves back and forth, from one limit of travel to the other, at
least four times.
3. Hold valve for three seconds at each limit of travel.

14
8. TROUBLESHOOTING
Problem
Cylinder rod will not move
SOLUTION: A, D, E, H, J
Slow cylinder shaft speed when extending or
retracting
SOLUTION: A, B,C, H, I, K,L
Wood will not split or splits extremely slowly
SOLUTION: A,B,C, F,I, K
Engine bogs down during splitting
SOLUTION: G,L
Engine stalls under low load condition
SOLUTION: D, E, L, M
Cause
Solution
A-Insufficient oil to pump
Check oil level in oil tank
B-Air in oil
Check oil level in oil tank
C-Excessive pump inlet vacuum
Check pump inlet hose for blockage or
kinks
D-Blocked hydraulic lines
Flush and clean the splitter hydraulic
system
E-Blocked control valve
Flush and clean the splitter hydraulic
system
F-Low control valve setting
Adjust control valve with a pressure
gauge
G-High control valve setting
Adjust control valve with a pressure
gauge
H-Damaged control valve
Return control valve for authorized repair
I-Internal control valve leak
Return control valve for authorized repair
J-Internal cylinder leak
Return control valve for authorized repair
K-Internally damaged cylinder
Return control valve for authorized repair
L-Engine Control out of adjustment
Adjust idle control nuts
L-Engine Control out of adjustment
Use shorter log length (520mm or less)
to allow engine to speed up before
contact.

15
9. DISPOSAL
At the end of the machine's working life, or when it can no longer be repaired,
ensure that it is disposed of according to national regulations.
Contact your local authority for details of collection schemes in your area.
In all circumstances:
Do not dispose of this tool with domestic waste.
Do not incinerate.

16
10. EXPANDED VIEW

17

CANNON TOOLS LTD
Add: 20 station road, Rowley Regis, west midlands,B65 0JU.U.K.
Made in China
