Jobsite CT5592 User manual

1500W 450MM ELECTRIC TILLER
CT5592
ORIGINAL INSTRUCTIONS
Cannon Tools Limited
Address: 20 Station Road, Rowley Regis, West Midlands, B65 0JU.U.K.
SAVE THESE INSTRUCTIONS AND PRECAUTIONS.

1
EC DECLARATION OF CONFORMITY
We CANNON TOOLS LTD
20 Station road, Rowley Regis, West Midlands,B65 0JU.U.K.
Declare that the following machine complies with the appropriate basic safety and
health requirements of the EC Directive based on its design and type, as brought
into circulation by us.
In case of alteration of the machine, not agreed upon by us, this declaration will
lose its validity.
Product description: 1500W 450MM ELECTRIC TILLER
Model: CT5592
Applicable EC Directives:
EC Machinery Directive 2006/42/EC
EC Directive of Electromagnetic Compatibility 2014/30/EU
EC Noise Directive 2000/14/EC & 2005/88/EC
Harmonized standards
EN 60335-1:2012+A11+A13, EN ISO 12100:2010,
EN 709:1997+A4, EN 62233:2008,
EN 55014-1:2017, EN 55014-2:2015,
EN IEC 61000-3-2:2019, EN 61000-3-3:2013
20 Station Road, Rowley Regis, West Midlands, B65 0JU.U.K.
Mr. Gurcharan Tony Singh Sanghera
Managing Director
CANNON TOOLS LTD
2021-02-01

2
1. SPECIFICATION
Main Voltage: 230~240V/50HZ
Power lnput: 1500 W
No load speed: 409min-1
Working width: max. 450mm(17.7")
Working depth: max.220mm(8.7")
LPA sound pressure level：80.4 dB(A) KPA =3 dB(A)
LWA Sound power level: 91.57 dB(A)
KWA = 1.28 dB(A)
Vibration left hand: 0.968 m/s2
Vibration right hand: 0.947 m/s2
K uncertainty: 1.5 m/s2
Protection class : ll
Protection type: IPX4
2. IMPORTANT SAFETY INFORMATION
Please read all instructions carefully.
Retain instructions for future reference.
Separate and count all parts and hardware.
Read through each step carefully and follow the proper order.
We recommend that,where possible, all items are assembled near to the
area in which they will be placed in use, to avoid moving the product
unnecessarily once assembled.
Always place the product on a flat, steady and stable surface.
Keep all small parts and packaging materials for this product away from
babies and children as they potentially pose a serious choking hazard.

3
General safety instructions
1. The machine is designed for digging small to mid-sized gardens and
flowerbeds.Be sure to observe the restrictions in the additional safety
instructions.
2. The equipment is allowed to be used only for its prescribed purpose.
3. This implement can cause serious injuries if it is not properly used.Please
read these Operating Instructions carefully and familiarize yourself with all the
control elements before operating this implement. Keep these Operating
Instructions in a readily accessible place so that this information is always at your
disposal.
Operating the implement:
WARNING! The implement can cause serious injuries. How to avoid accidents
and injuries:
Preparations:
· Never allow children and people who are not familiar with these Operating
Instructions to use the implement.Local regulations may stipulate a mini-mum
age for operators.
. This appliance is not intended for use by persons(including children) with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge,unless they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety.
. Never start up the implement while other people,but especially children and
domestic pets, are in the vicinity.
. Check the area on which the implement is to be used.Remove all stones, sticks,
wire and other foreign bodies that could be caught up and flung out.
. Always wear appropriate protective work clothes and firm shoes with nonslip
soles, strong long trousers, ear defenders and goggles. Never operate the
implement while bare footed or when wearing open sandals.
. Never operate the implement if it is damaged, incomplete or has been modified
without the consent of the manufacturer. Never work with damaged or missing
protective devices (e.g. starting lever, unlocking knob, impact protector).
. Never disengage protective devices (e.g. by tying the starting lever).
.Children must be supervised in order to ensure that they do not play with the

4
equipment.
. Before starting the equipment, ensure that no objects or branches are pushed
into the blade opening, that the equipment is standing stably and that the
workspace is tidy and not blocked. Check the condition of your extension cable
and the connecting cable of your equipment. Use the necessary protective
equipment.
. If your equipment vibrates or emits unusual noises when switched on ，
disconnect the plug from the socket and check the cutting cylinder. Ensure that
no remains of chopped matter are blocking the cutting cylinder or jammed
between the blades.
. If the blades no longer dig correctly or if the motor is overloaded, check all the
parts of your equipment and replace the worn parts. If a more extensive re-pair is
required , contact a customer service centre.
Use:
. CAUTION -A very sharp tool.Avoid cutting your fingers or toes. While working
always keep your feet and fingers well away from the cutting cylinder and the
ejector opening. There is the danger of serious injury!
. Do not operate the implement while it is raining, in poor weather conditions and
when the surrounding area and lawn are wet.Operate the implement only during
daylight hours or with bright lighting.
. Do not operate the implement if you are tired or are lacking in concentration and
after having drunk alcohol or taken medicine. Always take a work break in due
time. Approach the work with common sense.
. Familiarize yourself with the terrain and remain focused on the potential
hazards that you could miss on account of the motor noise.
. Always maintain a secure footing while working,especially on a slope, never up
and down! Be particularly careful when changing the travelling direction. Do not
work on very steep slopes.
. Always guide the implement at a walking pace with both hands on the handle.
Be especially careful when you turn the implement around or draw it towards you.
Danger of stumbling!
. Start or actuate the starting lever with care and in conformity with the directions
in these instructions.
. Do not tilt the implement when starting, other than it has to be lifted. In this case

5
tilt the implement only to the extent that is absolutely necessary and always lift
the implement on the side that is opposite to the operator.
. Do not operate the implement in the vicinity of inflammable liquids or gases as
this could give rise to the danger of a fire or explosion.
Work intervals:
. After the implement has been turned off, the cutting cylinder will continue to
rotate for a few seconds.Keep hands and feet well away.
. Only shift working depth when the implement is completely still standing.
. Only remove plant parts and soil when the implement is standing completely
still.
. Switch off the power when the implement is to be transported，lifted or tilted and
when traversing other surfaces than soil.
. Never leave the implement unattended at the place of work.
. Always switch off the implement and disconnect the power plug:
- Whenever you leave the implement
- Before you clean the ejector opening or unblock or unclog the implement
- When the implement is not being used
- During all maintenance and cleaning work
- When the power cable is damaged or has become tangled
- When the implement hits an obstruction during work or when unusual
vibrations arise.Establish the cause and see if the implement has been
damaged.
. Do not repair it yourself! Have the implement repaired by an authorised
workshop!
. Store the implement in a dry place well out of reach of children.
CAUTION! The following states how to avoid damage to the implement and any
resulting harm to people:
Take care of your implement
. Switch off the power when the implement is to be carried across steps.
. Inspect the implement each time before it is to be used. Never operate the
implement if safety devices (e.g. impact protector，parts of the cutting facility or
bolts are missing, worn out or damaged.Check especially the power cable and

6
starting lever for damage.To avoid imbalance, all tools and bolts must be
exchanged as complete sets.
. Only use spare parts and accessories that have been supplied or
recommended by the manufacturer.
. Ensure that all nuts, bolts and screws are firmly tightened and that the
implement is in a safe working state.
. Never try to repair the implement yourself, other than you have been trained
accordingly. All work that has not been listed in these Instructions must only be
carried out by professional technicians.
. Treat the implement with the greatest care.Always keep the tool clean for better
and safer work.Follow the maintenance instructions.
. Never overload the implement. Always work within the specified capacity range.
Do not use low-power machines for heavy-duty work. Do not operate the
implement for purposes for which it is not intended.
Electrical safety:
CAUTION! The following states how to avoid accidents and injuries due to
electric shock:
. Before each use, carry out a visual inspection of the power and extension
cables for signs of dam-age or ageing.
. If the power cable for this equipment is damaged, it must be replaced by the
qualified person in order to prevent hazards.
. Keep the power cable well away from the cutting tools. Should the power cable
become damaged during work,then instantly disconnect the power cable from
the mains.
DO NOT touch the power cable before it has been disconnected from the mains.
. Keep the extension cables away from the teeth.The teeth may damage the
cables and result in contact with live parts.
. Check that the mains voltage is the same as indicated on the rating plate.
. Wherever possible connect the implement to a power socket with a residual-
current circuit break-er that has a rated current of not more than 30 mA.- Avoid
body contact with earthed parts (e.g. metal fences, metal posts).
. Only use approved extension cables of the type H05Vv-F or H05RN-F with a
maximum length of 75 m and which have been approved for open-air use.The
stranded cord diameter of the extension cable must be at least 2.5 mm2. Always

7
unreel a cable drum to its full length so that the entire cable can be checked for
damage.
. Use the envisaged cable suspension when attaching an extension cable.
. Never pull the cable to disconnect the plug from the socket. Protect the cable
from heat,oil and sharp edges.
. If the connecting cable is damaged, first disconnect the extension cable from
the socket.You can then disconnect the connecting cable of the equipment.
. If the power cable for this equipment is damaged, it must be replaced by the
professional technicians in order to prevent hazards.
Residual risks
Even if you use this electric power tool in accordance with instructions,
certain residual risks cannot be ruled out.The following hazards may arise
in connection with the equipment's construction and layout:
1. Damage to hearing if no suitable ear protection is used.
2. Health damage caused by hand-arm vibrations if the equipment is used over
a prolonged period or is not properly guided and maintained.
3. Even when all safety measures are taken,some remaining hazards which are
not yet evident may still be present.
4. Remaining hazards can be minimized by following the instructions in Safety
Precautions, Proper Use and in the entire operating manual.
5. Injuries caused by the rotating blade.
6. Health risks caused by electricity. When incorrect or damaged mains cables
are used. Follows instructions in the manual Electrical Connections.
Warning! This electric tool generates an electromagnetic field during
operation.This field can impair active or passive medical implants under certain
conditions. In order to prevent the risk of serious or deadly injuries,we
recommend that persons with medical implants consult with their physician and
the manufacturer of the medical implant prior to operating the electric tool.

8
3. TECHNICAL DESCRIPTION

9
Device Description (Fig.1-2)
1. Handle 2. Power cord
3. Frame tubing 4. lower bar
5. Machine frame 6. Blade roller
7. Wheel 8. wheel cap
8. Carriage bolt 10.Wing nut (plastic)
11.Cable clip 12. Safety release catch
13.On/Off switch 14. Wheel suspension
15.washer (pre-assembled) 16. Split pin (pre-assembled)
17.Lock pin 18.Screw M8
19.Nut M8 20. Drive shaft

10
4. UNPACKING AND CHECKING
Carefully remove the product from the packaging and examine it for any sign of
damage that may have happened during shipping. Lay the contents out and
check them against the parts shown below. If any part is damaged or missing;
please contact the seller and do not attempt to use the product.

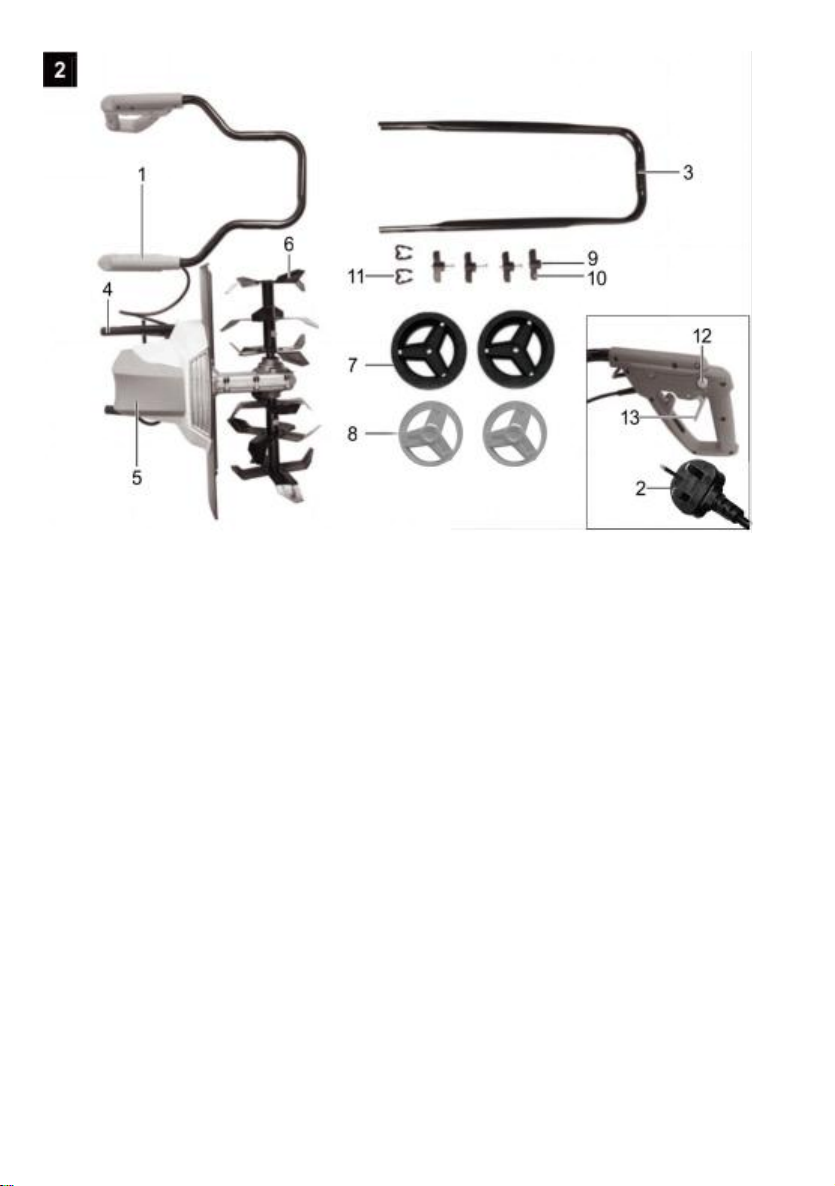

Scope of delivery (Fig. 2)
1x Handle (1)
1x Machine frame (5)
1x Frame tubing(3)
4x Carriage bolt (9)
4x Wing nut (plastic) (10)
2x Cable clip (11)
2x Wheel (7)
2x Wheel cap (8)
5. BEFORE STARTING THE EQUIPMENT

11
Before you connect the equipment to the mains supply make sure that the data
on the rating plate are identical to the mains data.
Warning!
Always pull the power plug before making adjustments to the equipment.
The Electric Tiller is delivered unassembled. The handles and the driving device
must be assembled and mounted before using the Electric Tiller.Follow the
operating instructions step-by-step and use the pictures provided as a visual
guide to easily assemble the machine.
Montage (fig. 3-9)
Important!
You must fully assemble the appliance before using it for the first time!

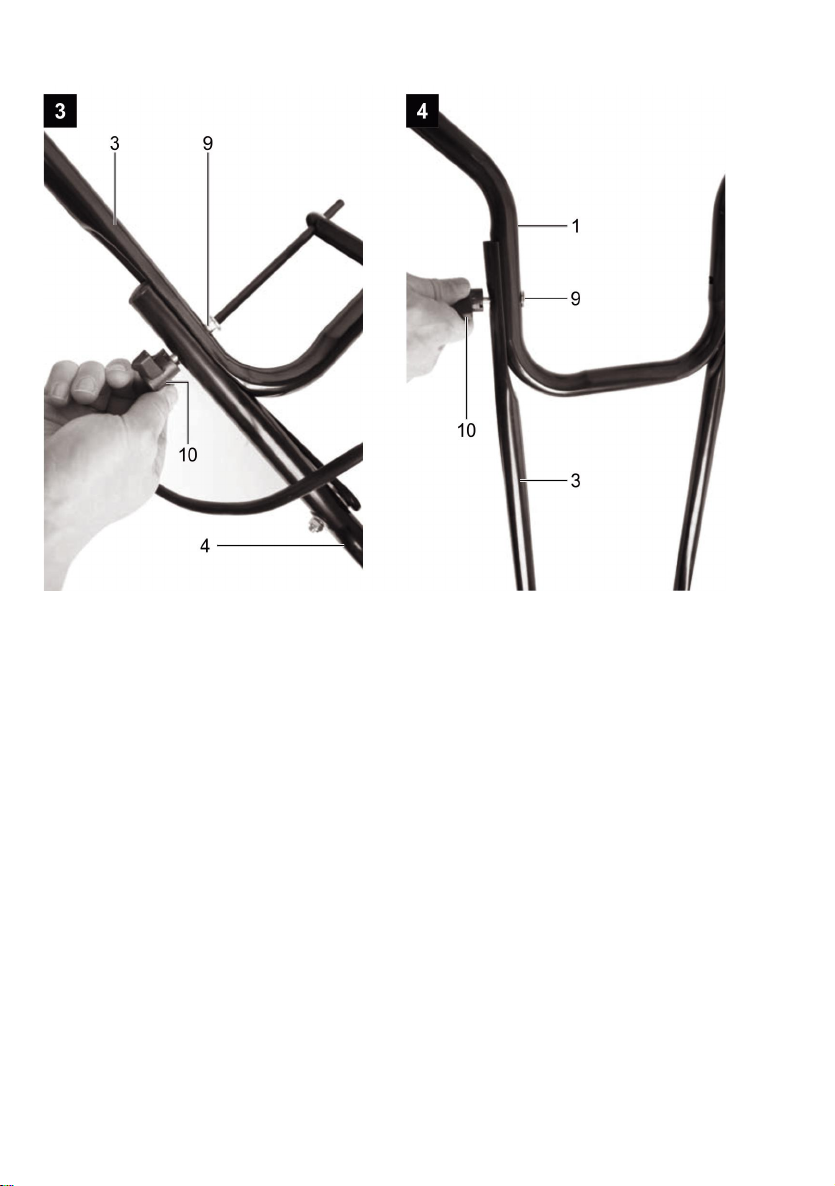

. Connect the bar (3) and the handle (1) to the lower bars (4) using the wing nut
(10) and lock screw (9). (fig. 3,4)
Laying the power cord (fig. 5,6)
Mount the cable and the cable guide (11) on the low-er right bar (4) and (in the
working direction)bar (3)by pushing them on.
Install the transport aid (fig.8,9)
Remove the pre-assembled split pin (16) and the washer (15).Place the wheel (7)
on the wheel holder(14).Secure it with the washer (15) and the split pin(16).Then
mount the wheel cap (8). (Assembly is identical on both sides)

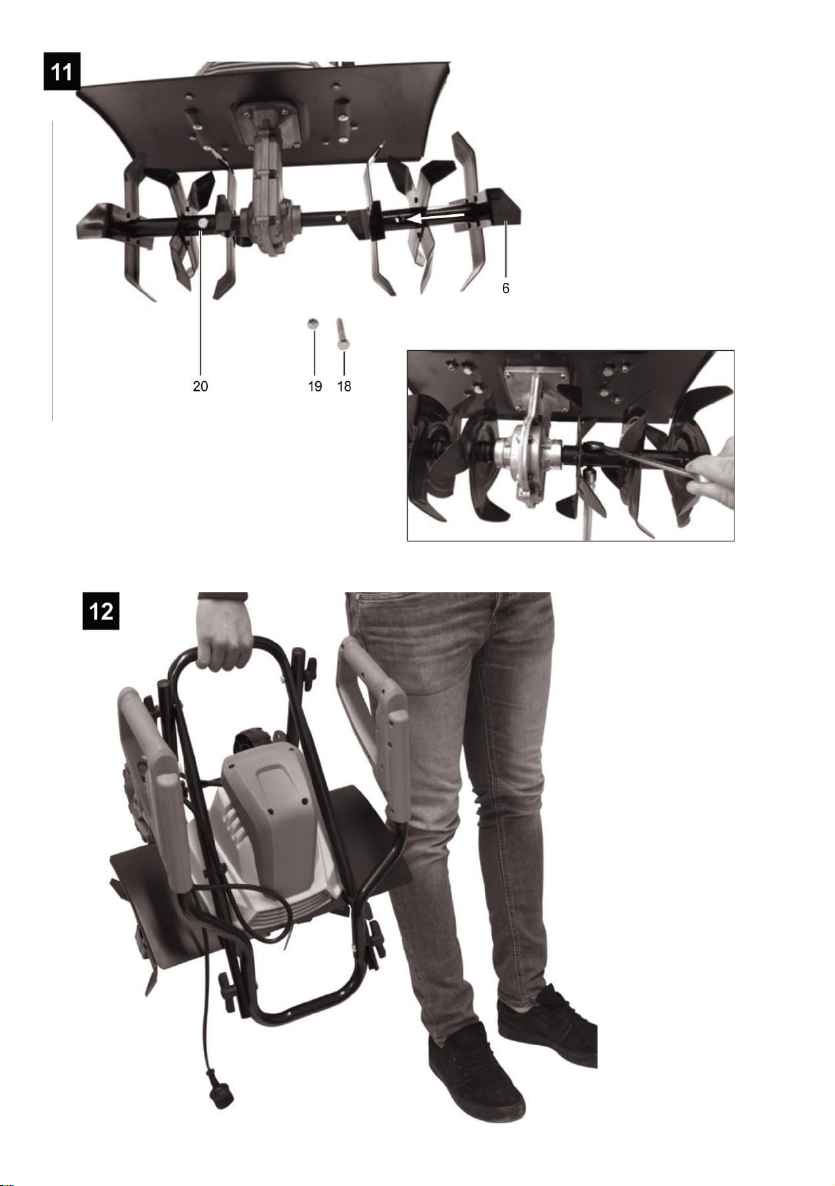

Blade roller installing / uninstalling (fig. 11)
Push the blade roller (6) on the drive shaft (20) of the machine. The blade roller
(6) can be mounted left or right side. Be sure that the holes of the blade roller(6)
and the drive shaft (20) are aligned.
Now the M8 screw (18) is pushed through and secured with the M8 locking nut
(19).
Tighten the lock nut(19) hand-tight using a fork wrench or ratchet with socket (the
tools are not included).
For uninstall: Proceed in reverse order.

12

13

14

15

16
6.OPERATION
Start and stop the implement (fig. 7)
To prevent an accidental start-up of the implement,the throttle handle (1) is
equipped with a safety re-lease switch (12) which must be pressed before the
On/Off switch (13) can be pressed. If the On/Off switch (13) is released, the
equipment switches off.Repeat this process several times so that you are sure
that the machine functions properly. Before you perform any repair or
maintenance work on the machine, ensure that the cutting unit is not rotating and
that the power supply is disconnected.Always ensure that a safe distance
(provided by the long handles) is maintained between the user and the housing.
The safety distance between housing and user given by the handle (1) must
always be observed.Be especially careful when digging and changing direction
on slopes and inclines.
Maintain a solid footing and wear sturdy,non-slip foot wear and long trousers.
Always dig along the incline (not up and down). For safety reasons, the Electric
Tiller may not be used to dig up inclines whose gradient exceeds 15 degrees.
Use special caution when backing up and pulling the implement (tripping
hazard)!
Tips for proper working
Always guide the machine slowly and wisely forward.Dig up the area in straight
lines.Let the tracks overlap slightly to not miss any stripes to dig. Only use the
machine to dig up already loosened soil.
Transport and storage (fig. 10,12)
Always pull out the power cord before transporting!Pull the lock pin (17).You can
now move the wheels(7) to the lower position.Make sure that the lock pin(17)
engages again in the lower position. (fig. 10)Attention! The wheels must be fixed
in the upper position during operation!
For storage or transport in a limited space, proceed as follows:
Open the wing nuts (10)until you can fold the handles forward. Attention! Danger
of crushing your fingers.Now you can transport your machine with the trans-port
handle (3). So you can storage the machine too.

17
7. ELECTRICAL CONNECTION
The electrical motor installed is connected and ready for operation. The
connection complies with the applicable VDE and DIN provisions.The customer's
mains connection as well as the extension cable used must also comply with
these regulations.
Damaged electrical connection cable
The insulation on electrical connection cables is often damaged.
This may have the following causes:
. Passage points，where connection cables are passed through windows or
doors.
. Kinks where the connection cable has been improperly fastened or routed.
- Places where the connection cables have been cut due to being driven over.
. Insulation damage due to being ripped out of the wall outlet.
. Cracks due to the insulation ageing.
Such damaged electrical connection cables must not be used and are
life-threatening due to the insulation damage.
Check the electrical connection cables for damage regularly. Make sure that the
connection cable does not hang on the power network during the
inspection.Electrical connection cables must comply with the applicable VDE and
DIN provisions.Only use connection cables with the marking ,,H05VV-F".
The printing of the type designation on the connection cable is mandatory.
AC motor
. The mains voltage must be 230-240V/50Hz
. Extension cables up to 25 m in length must have a cross section of at least
1.5 mm2, above 25 mat least 2.5 mm2
. The mains connection is protected with a 16 A slow-blow fuse.
Connections and repairs of electrical equipment may only be carried out by an
electrician.
Please provide the following information in the event of any enquiries:
. Type of current for the motor.
. Machine data - type plate.
. Motor data - type plate.

18
8.CLEANING AND MAINTENANCE
Danger!
Always pull out the mains power plug before starting any cleaning work.
cleaning
- Keep all safety devices, air vents and the motor housing free of dirt and dust as
far as possible.Wipe the equipment with a clean cloth or blow it with compressed
air at low pressure.
. We recommend that you clean the device immediately each time you have
finished using it.
. Clean the equipment regularly with a moist cloth and some soft soap. Do not
use cleaning agents or solvents; these could attack the plastic parts of the
equipment.Ensure that no water can seep into the device.The ingress of water
into an electric tool increases the risk of an electric shock.
Carbon brushes
In case of excessive sparking,have the carbon brushes checked only by a
qualified electrician.
Danger! The carbon brushes should not be replaced by anyone but a qualified
electrician.
Maintenance
. A worn out or damaged cutting unit should be re-placed by an expert.
. Take care that all fastening elements (screws,nuts, etc.) are firmly tightened，so
that you can work safely with the Electric Tiller.
. Store the Electric Tiller in a dry place.
. For longer life, all screw-fastened parts, such as wheels and axles should be
cleaned and subsequently oiled.
. Regular servicing of the implement not only secures longer endurance and
performance.
. At the end of the season, carry out a general check of the Electric Tiller,and
remove all residue collected. Before the start of every season, it is absolutely
necessary to check the state of the machine.

19
9. STORAGE
Store the device and its accessories in a dark, dry and frost-proof place that is
inaccessible to children.The optimum storage temperature is between 5 and
30OC.
Store the electrical tool in its original packaging.Cover the electrical tool in order
to protect it from dust and moisture. Store the operating manual with the
electrical tool.
10. ENVIRONMENT
Should your appliance need replacement after extended use, do not discard it
with the household rubbish but dispose of it in an environmentally safe way.
Waste produced by electrical machine items should not be handled like normal
household rubbish. Please recycle where recycle facilities exist. Check with your
Local Authority or retailer for recycling advice.
11. EXPLANATION OF SYMBOLS
Read instruction manual and safety instructions before starting up
and pay attention!
Wear safety goggles!
Wear ear-muffs!
Wear work gloves!
Wear robust footwear when using the device!
