1.Introduction
Safety Instructions
Read these instructions carefully before connecting the unit
Toprevent fire, short circuit or shock hazard:

Donot expose the unit to rain or moisture.

Install the unit in a dry location without infiltration or condensation of water .

Do not expose it to dripping or splashing.

Do not place objects filled with liquids, such as vases, on the apparatus.
If anyliquid should accidentally fall into the cabinet, disconnect the power plug.
To avoid any risk of overheating:
 Install the unit in a well aery location and keep a minimum distance of 15 cm around the apparatus for
sufficient ventilation
 Do not place any items such as newspapers, table-cloths, curtains,…
on the unit that might cover the ventilation holes.
 Do not place any naked flame sources, such as lighted candles, on the apparatus
 Do not install the product in a dusty place
 Use the apparatus only in moderate climates (not in tropical climates)
 Respect the minimum and maximum temperature specifications
To avoid any risk of electrical shocks:
 Connect apparatus only to socket with protective earth connection.
 Themains plug shall remain readily operable
 Pull out power plug to make the different connections of cables

To avoid electrical shock, do not open the housing of adapter .

SAT>IP (REF. 5400)
4
Maintenance
Only use a dry soft cloth to clean the cabinet.
Do not use solvent.
For repairing and servicing refer to qualified personnel.
Dispose according your local authority’s recycling processes
Product description
SAT>IP enables you to watch satellite TV on your smart phone, tablets, PC and also your
standard TV as well as smart TV.
The rack mountable SAT>IP multiswitch supports both dynamic and static operation, a
combination of these modes is also possible:
HEADEND mode: can receive signals from 4 satellite bands and multicast up to 32
channels on your private IP network to a large amount of clients.
MULTISWITCH mode: 32 clients can simultaneously watch every channel which is
available on the 4 satellite bands.
4 LNB inputs for Quattro or Quad LNB. If the LNB is not already powered use our ref. 9930 for
Quattro and Quad LNB
4 trunk outputs for cascading multiple server units
Streams satellite TV (SD and HD) and radio over IP
Configuration with build-in webserver

SAT>IP (REF. 5400)
5
Accessories
Power Inserter >> REF. 9930/9930UK
For use with Quad LNB or Quattro LNB
9930
INPUTS
-
4
FREQUENCY RANGE
MHz
5 –2150
INSERTION LOSS
dB
< 1,5
ISOLATION BETWEEN PORTS
dB
> 35
RETURN LOSS
dB
> 10
CONTROL SIGNALS
VDC
Switchable: 13/18/
13+ tone/18+tone
ADDED POWERSUPPLY ADAPTER
-
20V –1A
DIMENSIONS
mm
158 x 102 x 51
2.Installation of the Hardware

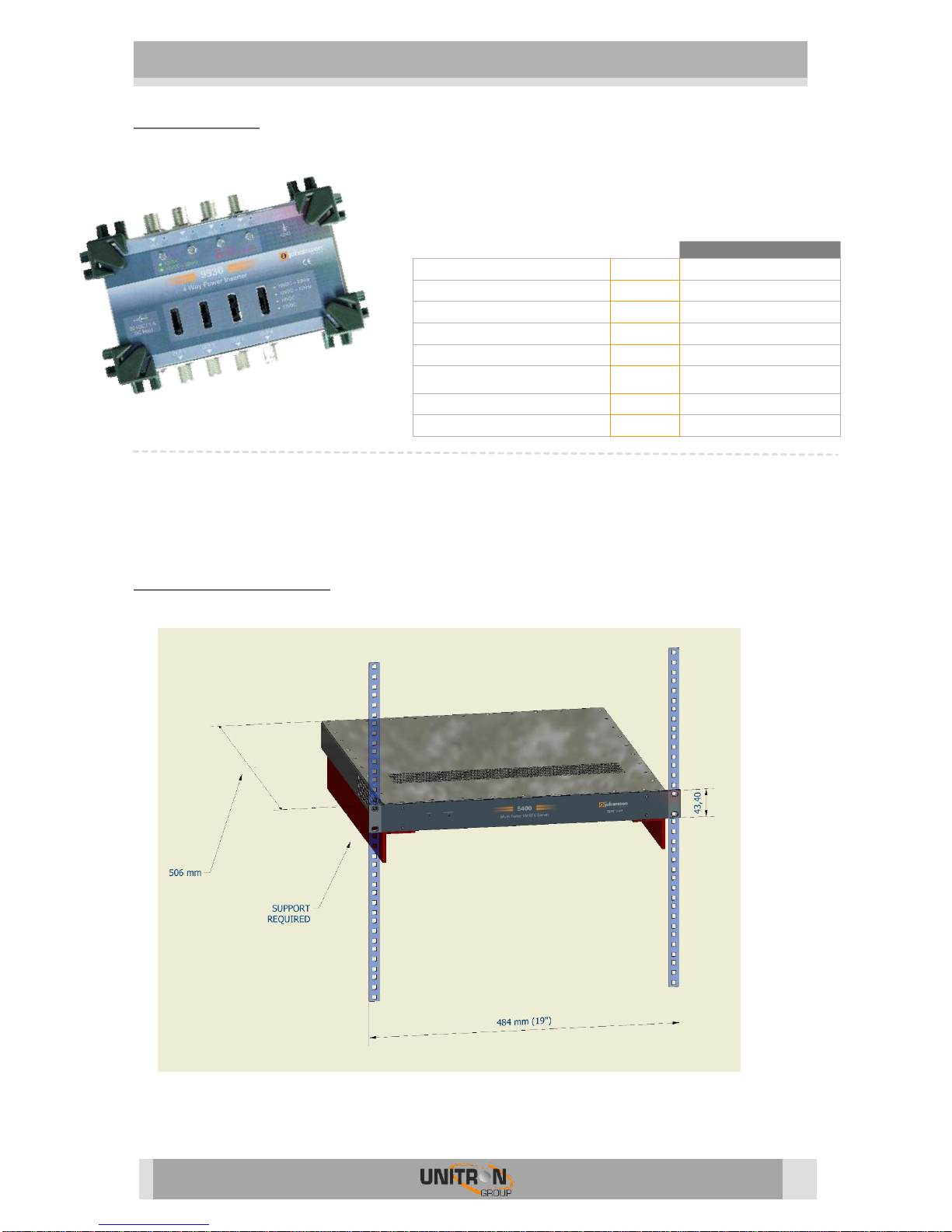

19” Rack mounting

SAT>IP (REF. 5400)
6
Standard configuration
Software needed
For your computer
For your smartphone or tablet
VLC Media Player
www.videolan.org
HD+
www.hd-plus-app.de
DVB Viewer Life
www.satip.info/products/Windows
Elgato SAT>IP app for IOS
Itunes.apple.com/fr/app/elgato-sat-ip/id490084846?|=en&mt=8
Elgato SAT>IP app for android
play.google.com and search for “Elgato SAT>IP”

SAT>IP (REF. 5400)
7
3.How to set up the 5400?
Minimal system requirements
The WebGUI is supported by the following web browsers
(and newer versions of these browsers):
Chrome 4
Safari 3.1
Firefox 3.6
Explorer 8
Opera 10.6
When using a different browser, we cannot guarantee a correct functioning of the interface.
Starting up the device
When first connecting the device, be sure to follow this procedure!
Power up the device in a rack with your network, using an RJ-45 Ethernet cable. A DHCP-server should
be available. This is for instance available from your (wireless) router.
Wait until the “Device Ready” LED on the 5400 starts blinking!
The module will obtain an IP address from your router. It is important that your PC is NOT set with a
manual IP address to work with the 5400.
Note : the 5400 can also work with static IP-addresses, if required.
How to set your PC to obtain an automatic IP address is explained in the following procedure (for
Microsoft Windows 7®)

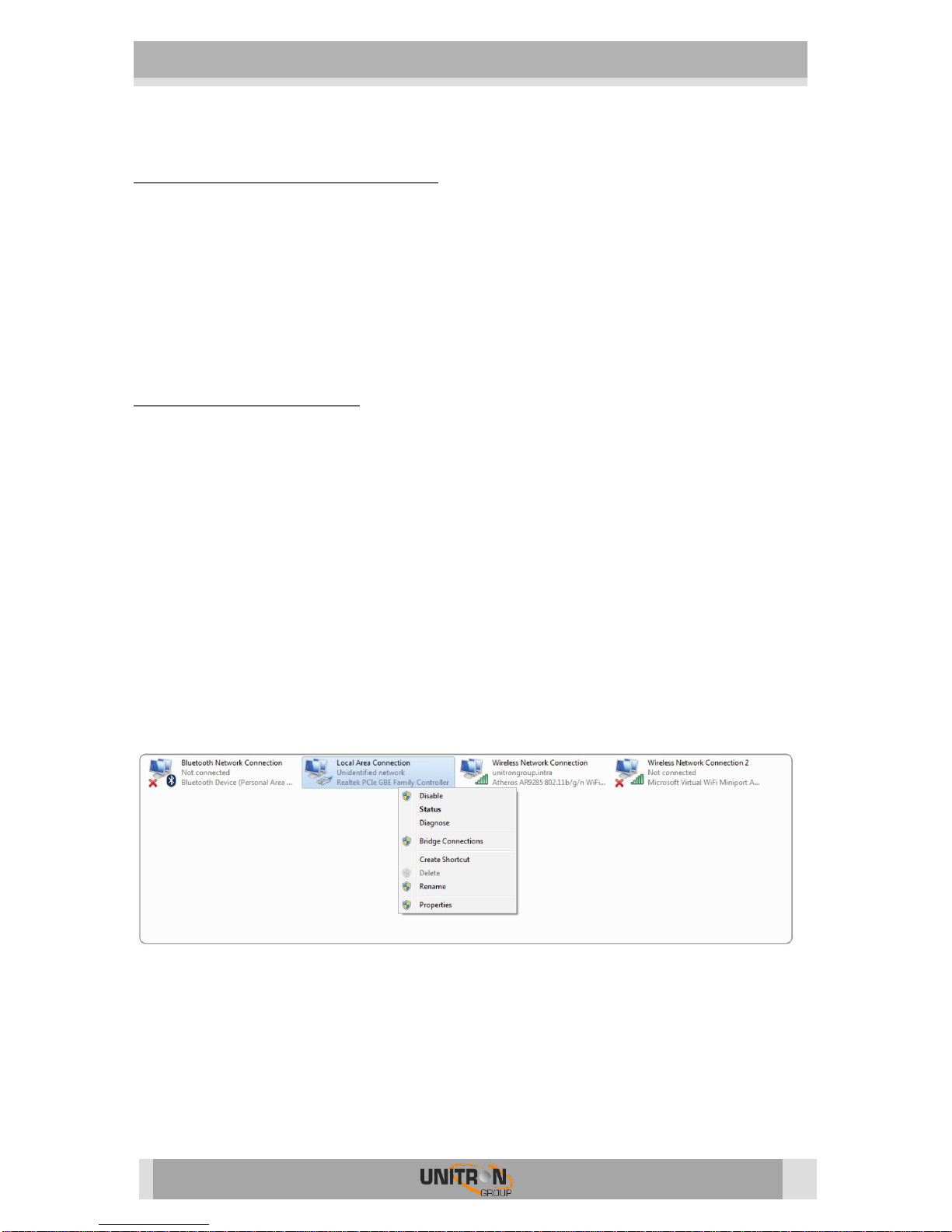

Navigate to the Control Panel:
Start Control PanelNetwork & sharing CenterChange adaptor Settings

SAT>IP (REF. 5400)
8

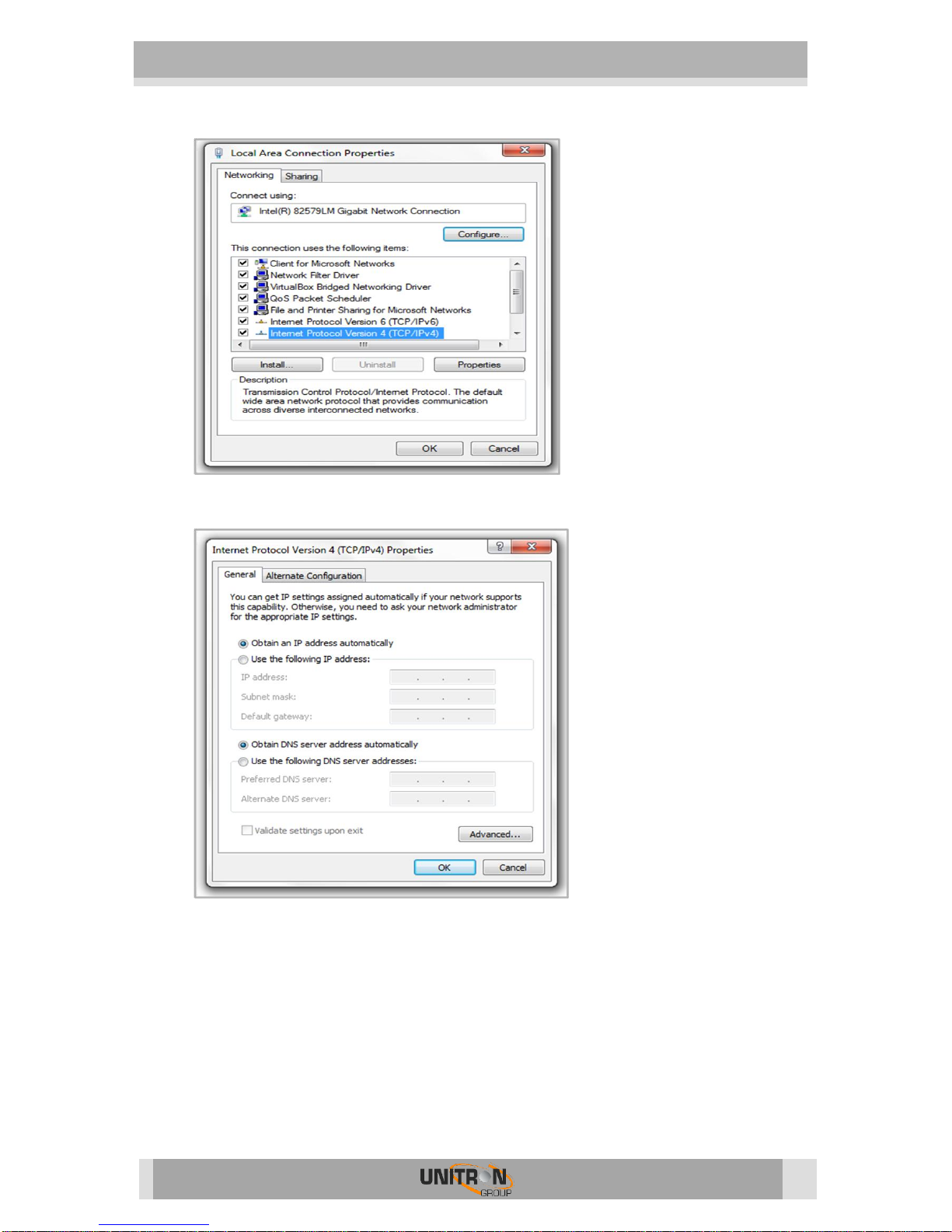

Right-click on the Local Area Connections and choose Properties.
Double click on Internet Protocol Version 4 (TCP/IPv4) to enter the IP settings of your adaptor
Make sure the ‘Obtain an IP address automatically’ checkbox is selected.
Click OK to save the settings.

SAT>IP (REF. 5400)
9
Logging into the device
Navigate to the Network Panel:

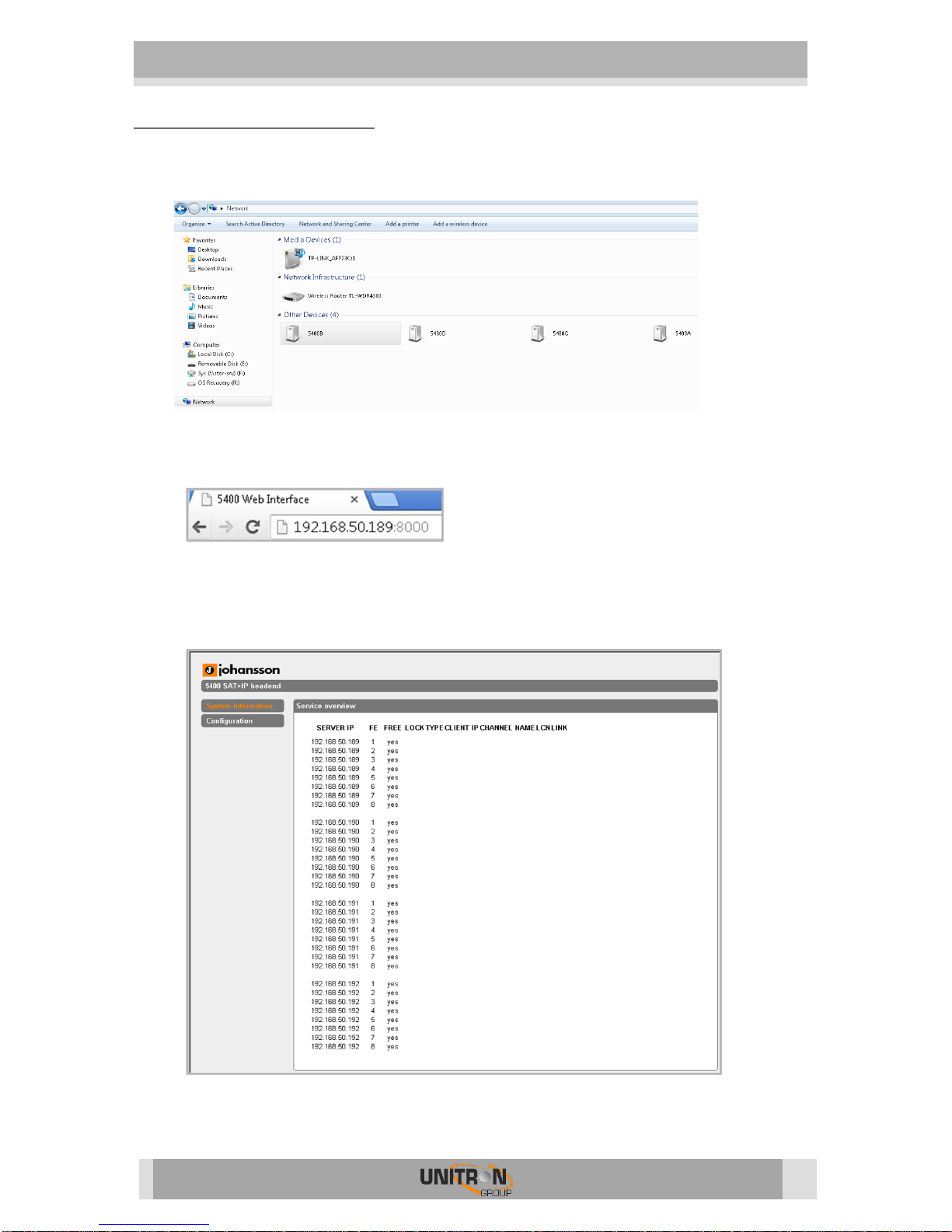

Start ComputerNetwork Other Devices Double click on 1 of the 5400 servers
Or if you know the IP address of the 5400, open your web browser and surf to:
1 of the 4 IP addresses of the server:8000
You will now enter the Web-GUI. Go to the Configuration Global settings
Change the Server name 5400A/B/C/D to another name. Be sure to choose a logical name and don’t
forget this name!
