John Bean Spacesaver 9000 Series User manual

READ THIS INSTRUCTION MANUAL THOROUGHLY BEFORE
INSTALLING, OPERATING, SERVICING OR MAINTAINING
THE LIFT. SAVE THIS MANUAL.
NOV 2007 REV.B
INSTALLATION
and OPERATION
MANUAL
6-1653
SPACESAVER
9000 SERIES
SPACESAVER
9000 SERIES
309 EXCHANGE AVENUE, CONWAY, ARKANSAS, 72032
TEL: [phone] FAX: [phone]

2 of 31
TABLE OF CONTENTS PAGE
1IMPORTANT SAFETY INSTRUCTIONS........................................................................3
2SAFETY WARNING DECALS...........................................................................................5
3SPECIFICATIONS...............................................................................................................6
4CONTENTS...........................................................................................................................7
5TOOLS REQUIRED FOR INSTALLATION:..................................................................8
6INSTALLATION INSTRUCTIONS...................................................................................8
6.1 BAY LAYOUT................................................................................................................9
6.2 UNPACKING PROCEDURE.....................................................................................10
6.3 HYDRAULIC INSTALLATION................................................................................10
6.4 ELECTRICAL INSTALLATION..............................................................................11
6.5 MECHANICAL SAFETY INSTALLATION............................................................12
6.6 REAR TIE BAR INSTALLATION............................................................................14
6.7 LEVELLING PROCEDURE......................................................................................14
6.8 ANCHORING PROCEDURE:...................................................................................15
6.9 INSTALLATION FOR ALIGNMENT MODELS 9004, AND 9005.......................16
6.10 INSTALLATION FOR ALL MODELS.................................................................17
7OPERATING INSTRUCTIONS:......................................................................................17
7.1 RAISING THE LIFT:..................................................................................................17
7.2 LOWERING THE LIFT:............................................................................................18
8FINAL CHECK OF ASSEMBLED LIFT........................................................................19
9OPERATION TEST WITH VEHICLE............................................................................19
10 RECOMMENDED MAINTENANCE:..........................................................................20
11 PARTS MANUAL ...........................................................................................................21
11.1 SPACE SAVER ALIGNMENT...............................................................................21
11.2 SPACE SAVER ALIGNMENT MAIN FRAME ASSEMBLY - PART LIST....22
11.3 SPACE SAVER SERVICE & RUST PROOFER..................................................24
11.4 SPACE SAVER MAIN FRAME ASSEMBLY, SERVICE & RUST PROOFER25
11.5 SPACE SAVER OPTIONS......................................................................................26
11.6 SPACE SAVER - OPTIONS PART LIST..............................................................27
11.7 SPACE SAVER HYDRAULICS .............................................................................28
11.8 SPACE SAVER - HYDRAULICS PART LIST.....................................................29
11.9 9,000 LB SPACE SAVER POWER PACK.............................................................30
11.10 9,000 LB SPACE SAVER POWER PACK - PARTS LIST..................................31

3 of 31
1 IMPORTANT SAFETY INSTRUCTIONS
When using this lift, basic safety precautions should always be followed, including the following:
1. Read all instructions in this manual and on the lift thoroughly before installing, operating,
servicing or maintaining the lift.
2. Inspect lift daily. Do not operate if it malfunctions or problems have been encountered.
3. Never attempt to overload the lift. The manufacturer’s rated capacity is shown on the
identification label on the power side column. Do not override the operating controls or
the safety devices.
4. Only trained and authorized personnel should operate the lift. Do not allow customers or
bystanders to operate the lift or be in the lift area.
5. Caution! Never work under the lift unless the mechanical safety locks are engaged.
6. Always keep the lift area free of obstruction and debris. Grease and oil spills should
always be cleaned up immediately.
7. Never raise vehicle with passengers inside.
8. Before lowering check area for any obstructions.
9. To protect against the risk of fire, do not operate lift in the vicinity of opencontainers of
flammable liquids.
10. Adequate ventilation should be provided when working on internal combustion engines.
11. Never open hydraulic lines under pressure.
SAVE THESE INSTRUCTIONS

4 of 31
Installation shall be performed in accordance with ANSO/ALI ALIS, Safety Requirements for
Installation and Service of Automotive Lifts.
For additional safety instructions regarding lifting, lift types, warning labels, preparing to lift,
vehicle spotting, vehicle lifting, maintaining load stability, emergency procedures, vehicle
lowering, lift limitations, lift maintenance, good shop practices, installation, operator training
and owner/employer responsibilities, please refer to “Lifting It Right” (ALI/SM) and “Safety
Tips” (ALI/ST).
For additional instruction on general requirements for lift operation, please refer to “Automotive
Lift-Safety Requirements For Operation, Inspection and Maintenance” (ANSI/ALI ALOIM).
ATTENTION! This lift is intended for indoor installation only. It is
prohibited to install this product outdoors. Operating environment
temperature range should be 41 – 104 °F (5 – 40 °C). Failure to adhere will
result in decertification, loss of warranty, and possible damage to the
equipment.

5 of 31
2 SAFETY WARNING DECALS
Be sure the operator is aware and underastands all safety warning lables and follows them
accordingly.

6 of 31
SPACE SAVER 9000 SERIES
3 SPECIFICATIONS
Maximum Capacity: 9000 lbs. 4100kg
Overall Width: 84” 2134mm
Width Between Runways: 36” 914mm
Overall Length ”A” (9004 - 144”W/B): 221” 5613mm
Overall Length “A” (9005 - 172”W/B): 264” 6706mm
Overall Length “A” (9000 - 144”W/B): 213” 5410mm
Overall Length “A” (9006 - 172”W/B): 256” 6502mm
Max. Raised Height: 72” 1829mm
Min. Lowered Height: 8 3/4” 222mm
Lifting Time: 60 Sec.
Power Requirements (Standard): 230 Volts, 1Ph., 60Hz.
Shipping Weight (144”W/B): 3450 lbs. 1804 kg
Shipping Weight (172”W/B): 4180 lbs. 1900 kg

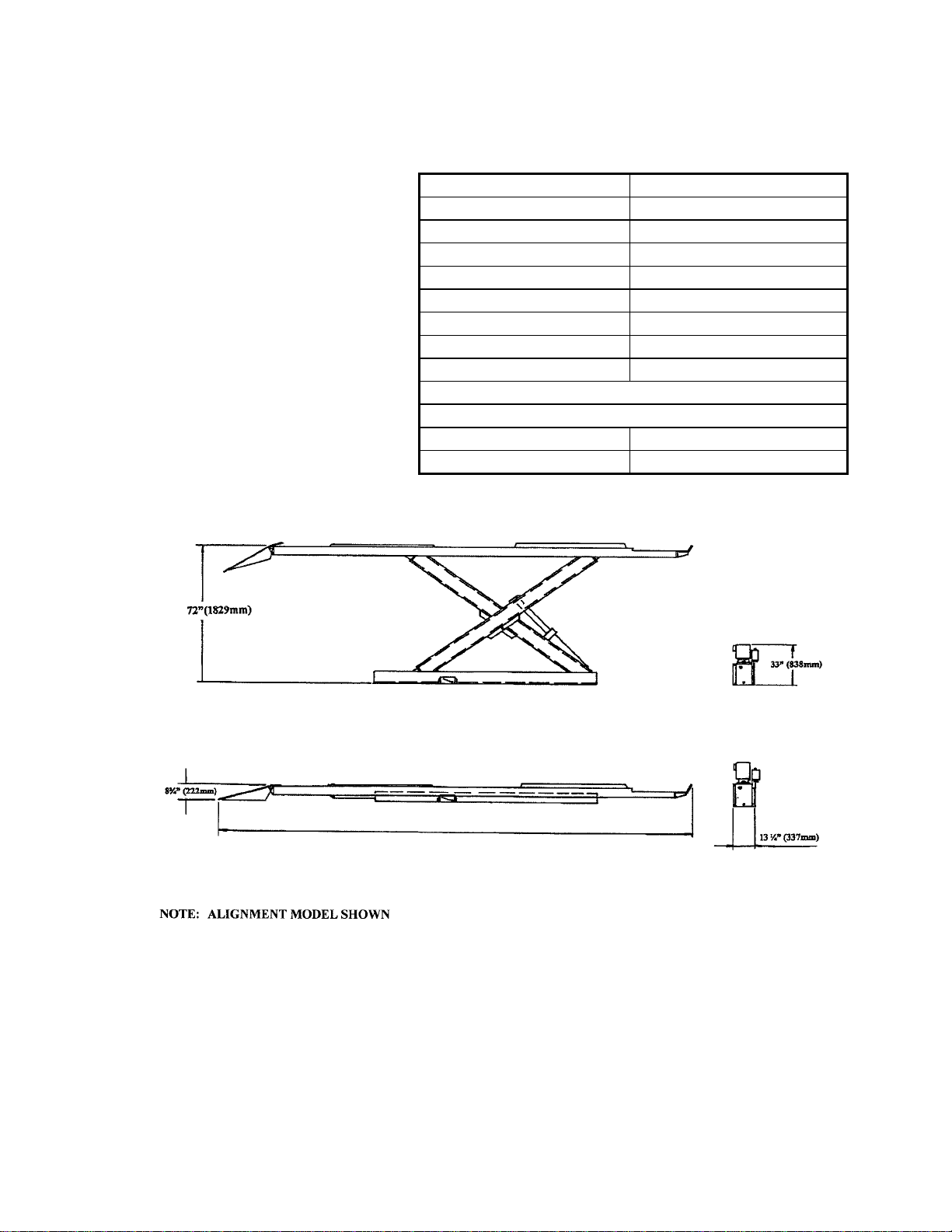

Figure 1. Lift dimensions

7 of 31
4 CONTENTS
CHECK CONTENTS OF ACCESSORY BOX WITH PACKING LIST ENCLOSED IN BOX.
The complete lift is contained in two (2) packages:
1. The main structural components are pre-assembled and packaged one on top of the other.
2. The remaining parts are packed in an accessory box.
Main Structural Components:
1pc. - Left Side Main Frame Assembly; Runway, Scissors and Base Frame
1pc. - Right Side Main Frame Assembly; Runway, Scissors and Base Frame
Note: Hydraulic lines in base frames have been factory installed
Accessory Box Contents:
1pc. - Power Pack (with flow control)
2pcs. - Approach Ramps
2pcs. - Front Wheel Stops
1pc. - Standard Rear Tie Bar
1pc. - Front Tie Bar (9000, 9005, 9006)
2pcs. - Ramp Pins
2pcs. - Safety Toe Guard
2pcs. - Safety Release Pedal
2pcs. - Mechanical Safety Release Rod
1pc. - Mechanical Safety Release Connecting Rod
2pcs. - Safety Release Tab
5pcs. - Hydraulic Line Covers
1pc. - Center Cover
1pc. - Center Hydraulic Line
3pc. - Recoil Hose
2pcs. - 3/8” Hydraulic Tubing (20’ LG.)
2pcs. - Front Levelling Leg Bracket - Inside (9004, 9005)
4pcs. - Levelling Leg Bracket - Outside (9004, 9005)
4pcs. - Locking Plunger (9004, 9005)
4pcs. - Levelling Leg (9004, 9005)
8pcs. - Shim Plate, 1/16”thk.
8pcs. - Shim Plate, 1/8”thk.
8pcs. - Shim Plate, 1/4”thk.
1pc. - Installation Hardware Kit (comes with separate packing list)
1pc. - Assembly Hardware Kit (comes with separate packing list)
1pc. - Owners Manual
1pc. - ALI manual “Lifting It Right”
1pc. - Automotive Lift Safety Tips
1pc. - Automotive Lift, Operation, Inspection, and Maintenance manual

8 of 31
5 TOOLS REQUIRED FOR INSTALLATION:
* Rotary Hammer Drill or Similar, ¼" and ½” Concrete Drill Bits
* 4' Level
* SAE Wrenches and Sockets
* Hammer (for anchor installation)
* Pry Bar (for shim installation)
* Chalk Line (for lift location)
* Tape Measure
* Side Cutters (to cut shipping straps)
* Screw Drivers
* Tube bender
* Tube cutter
* Flaring Tool (single flare) 37°JIC
* Hydraulic Fluid ISO 32 (10 weight hydraulic oil) - (20 liters / 5.3Gal.)
* 25’ hose ¼” hydraulic hose, 3/8” JIC female fitting each end
6 INSTALLATION INSTRUCTIONS
When the lift arrives on site, please read the owner’s manual completely. Check the
contents to make sure no parts are missing before starting installation. Gather all the tools listed
and make sure the installation instructions are fully understood before commencing with the
installation.
IMPORTANT: It is the user’s responsibility to provide a satisfactory installation area for
the lift. Lifts should only be installed on level concrete floors with a minimum thickness of
five (5) inches or 130 mm. Concrete must have a minimum strength of 4000 psi or 30 MPa
and should be aged thirty (30) days prior to installation. Please consult the architect,
contractor or engineer if doubt exists as to the strength and feasibility of the floor to enable
proper lift installation and operation.
It is the user’s responsibility to provide all wiring for electrical hook-up prior to installation
and to insure that the electrical installation conforms to local building codes. Where
required, it is the user’s responsibility to provide an electrical isolation switch located in
close proximity to the lift that will enable emergency stop capability and isolate electrical
power from the lift for any servicing requirements.

9 of 31
6.1 BAY LAYOUT

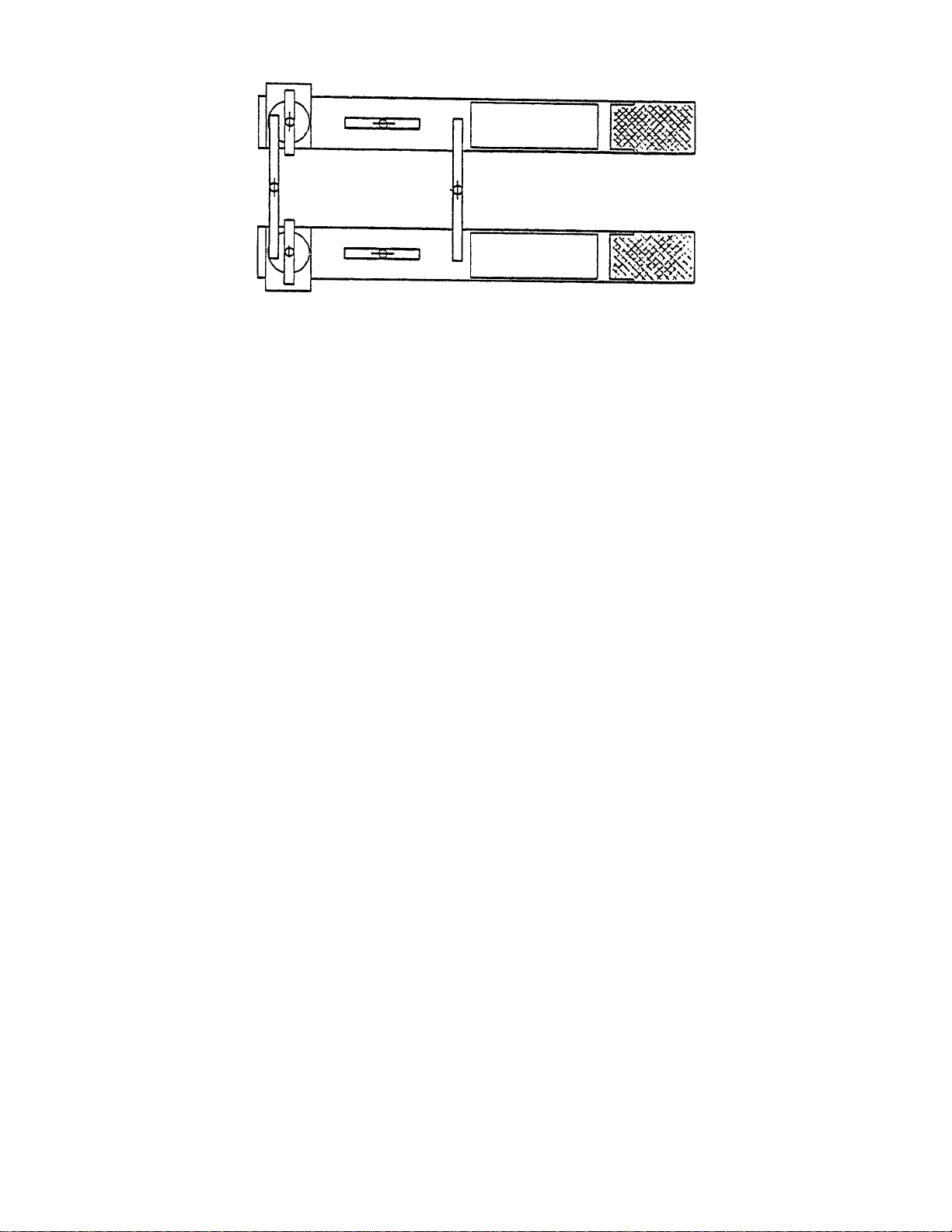

Figure 2. Typical bay layout
NOTE: Leave any additional room for any desired aisle or work area. Recommended clearance
around the lift is a minimum of three (3) feet. Ensure clearance conforms to local building and
fire codes.
Recommended overhead clearance is a minimum of twelve (12) foot ceiling providing 6 feet for
the maximum lift height and 6 feet for the supported vehicle. For vehicles taller than 6 feet it is
recommended that the user provides additional overhead clearance or a shut off mechanism to
stop the lift from raising the vehicle too high.
IMPORTANT: DO NOT UNBOLT SHIPPING CLAMPS HOLDING EACH MAIN
FRAME ASSEMBLY TOGETHER UNTIL INSTRUCTED TO DO SO.

10 of 31
1. After selecting the location best suited for your lift, draw a line parallel to the front of the
lift, approximately 72” (1829mm) back from the cabinet/work bench area. This will be
the approximate location of the front of the lift. Refer to Figure 2.
NOTE: Check the installation area for obstructions. (Overhead; light fixtures, heating ducts,
ceiling, and In-ground; floor drains, electrical, etc...)
2. Mark on the floor an outline matching the dimensions listed.
SPACE SAVER - Alignment Model 9004: 144"(3658mm) Wheel Base. 221"(5613mm) x
84"(2134mm).
9000 SERIES - Alignment Model 9005: 172"(4369mm) Wheel Base. 264"(6706mm) x
84"(2134mm).
- Service Model 9000: 144"(3658mm) Wheel Base. 213"(5410mm) x
84"(2134mm).
- Service Model 9006: 172"(4369mm) Wheel Base. 256"(6502mm) x
84"(2134mm).
3. Draw a center line down the middle of the outline starting at the front of the lift location
and ending at the rear approach ramps.
4. Draw two lines parallel to the center line 18” (457mm) on either side to locate the inside
of the baseframes.
5. Draw a line parallel to the front of the lift, 39” (991mm) back for 144”W/B models and
52” (1321mm) back for 172”W/B models. Align the front of each base frame assembly onto
this line.
6. Check the floor in the outline for the highest point using a four (4) foot level. Mark this
location, reference will be made to it later during the leveling procedure.
6.2 UNPACKING PROCEDURE
1. Cut and remove the metal banding straps that hold the accessory box (and sliding Jack
Beams if so equipped) and place in a convenient location near the installation area.
2. Cut and remove the metal banding straps surrounding the Two Main Frame Assemblies.
Position the Main Frame Assemblies in the location previously marked in the bay layout.
NOTE: To distinguish between the left and right Main Frame Assemblies the pull-out step
should be located at the front facing outward from the lift. All measurements are to be
taken from the front of the lift.
3. Check that the inside of the base frames are 18" (457mm) away from the center line at
both the front and rear of each mainframe assembly and that the front of each base frame
is on the line drawn in step 5 of the bay layout, section 4.1.
6.3 HYDRAULIC INSTALLATION
