John Lewis JLCEILHD87 User manual

87cm
Cooker hood
Stainless steel
JLCEILHD87
User guide

Cooker hood user guide
2
2

Cooker hood user guide 3
Contents
Contents 3
Introduction 4
Safety is important 4
In the box 4
Safety information 5
Important safety information 5
Warnings 5
Cautions 6
Electrical information 6
Mains supply 6
Operation 7
Controls 7
Indicators 7
Care, cleaning and servicing 8
Care and cleaning 8
Cleaning and replacing filters 8
Aluminium filters 8
Charcoal filters (not supplied) 8
Replacing lights 9
Servicing 9
Installation 10
Preparation for installation 10
Installing the cooker hood 10
Fastening the motor to the ceiling 10
Fastening the motor to a false ceiling 12
Fastening the motor separately from the cooker hood 12
Disposal 13
Disposal 13
Troubleshooting 14
Troubleshooting 14
Guarantee and service 15
Guarantee 15
Service 15
Specifications 16

Cooker hood user guide
4
Introduction
Thank you for purchasing this John Lewis cooker hood.
Please take time to read these instructions and retain for
future reference.
Safety is important
To ensure your safety and the safety of others, please read the
Safety information before you operate this product.
Keep this information in a safe place for future reference.
In the box
You will find the following:
• Cooker hood
• Remote control
• Installation kit
• User guide
Note: If any of the items listed are damaged or missing, please
contact your local John Lewis branch.

Cooker hood user guide 5
Important safety instructions - read
carefully before use
Take note of the following safety information:
Warning! To prevent fire or shock hazard,
do not expose this cooker hood to water.
Warning! Always remove the mains plug
from the wall socket when not in use or
before any service operation.
Warning! There are no user serviceable
parts on this cooker hood. Refer servicing to
qualified service personnel.
This symbol indicates that there are important
operating and maintenance instructions in the
literature accompanying this cooker hood.
This symbol indicates that dangerous voltages
constituting a risk of electric shock are present within
this cooker hood.
Important safety information
It is most important that this guide should be retained with the
cooker hood for future reference. Should you move house and
leave the appliance, always ensure that this guide is supplied
with the cooker hood in order that the new owner can get to
know the functionality and the relevant warnings.
These warnings have been provided in the interest of safety.
You MUST read them carefully before installation or use. If you
are unsure of the meanings of these warnings contact the John
Lewis branch from which you purchased the cooker hood.
To avoid accidents to property or people it is important to
follow the instructions given. Failure to do so removes any
liability from John Lewis.
Warnings
• Any installation work must be undertaken by a qualified
electrician or competent person.
• This is a class II electrical appliance and therefore no
earthing cable is required.
• If the cooker hood is installed for use above a gas appliance,
the provision for ventilation must be in accordance with the
Gas Safety Codes of Practice, the Gas Safety (Installation
& Use) Regulations, the Building Regulations issued by the
Department of the Environment and, where applicable, the
Building Standards (Scotland) (Consolidated) Regulations
issued by the Scottish Development Department.
• Do not install this cooker hood above a cooker with a high-
level grill.
• Keep all packaging well away from children. There is risk of
suffocation.
• If the room where the cooker hood is to be used contains
a fuel burning appliance (such as a gas or oil fired central
heating boiler), the boiler’s flue must be a room sealed or
balanced flue type. Alternatively, you should make sure that
there is adequate air inlet into the room at all times so that
fumes from the boiler are not drawn back into the room by
the cooker hood.
• The ducting system for this cooker hood must not be
connected to an existing ventilation system which is being
used for any other purpose.
• Do not allow the power cord to be crushed or bent
excessively.
• Do not pull or twist the power cord.
• Do not let the power cord touch or pass over the hob or
other hot surface.
• Do not hold the power cord or plug with wet hands.
• Never use a damaged power cord or plug, or a loose mains
socket.
• Do not sprinkle, spray or throw water onto the cooker
hood.
Safety information

Cooker hood user guide
6
Cautions
• This cooker hood is designed for domestic use only.
• This cooker hood is designed to be operated by adults. This
cooker hood is not intended for use by children or persons
with reduced physical, sensory or mental capabilities or lack
of experience and knowledge, unless they are supervised or
instructed concerning use of the cooker hood in a safe way
and understand the hazards involved.
• Children should not be allowed to tamper with the controls
or play with the cooker hood.
• Do not leave frying pans unattended during use, as
overheated fats and oils may catch fire.
• Do not flambé under this cooker hood.
• Do not leave naked flames under the cooker hood.
• The cooker hood may become hot when used with
cooking appliances.
• Make sure foreign objects do not get into the cooker hood
or obstruct the motor.
• Do not insert any sharp tools into the exhaust holes or the
air discharge.
• Do not use the cooker hood without filters fitted.
• Clean or replace the filters regularly to avoid oil build up.
• Do not remove or replace the filters while the cooker hood
is operating.
• Replacement filters should be bought from authorised
dealers.
• Do not use abrasive cleaning materials or scouring pads
when cleaning the cooker hood.
Electrical information
Mains supply
Should the power supply cable need to be replaced, this
must be carried out by an approved service engineer. John
Lewis declines any liability should this safety measure not be
observed.
Before switching on, make sure the electricity supply voltage is
the same as that indicated on the cooker hood’s rating plate.
The cooker hood must be installed by a qualified electrician or
competent person.
Warning! The appliance should not be
connected to the electrical supply by means
of an extension cable.

Cooker hood user guide 7
Operation

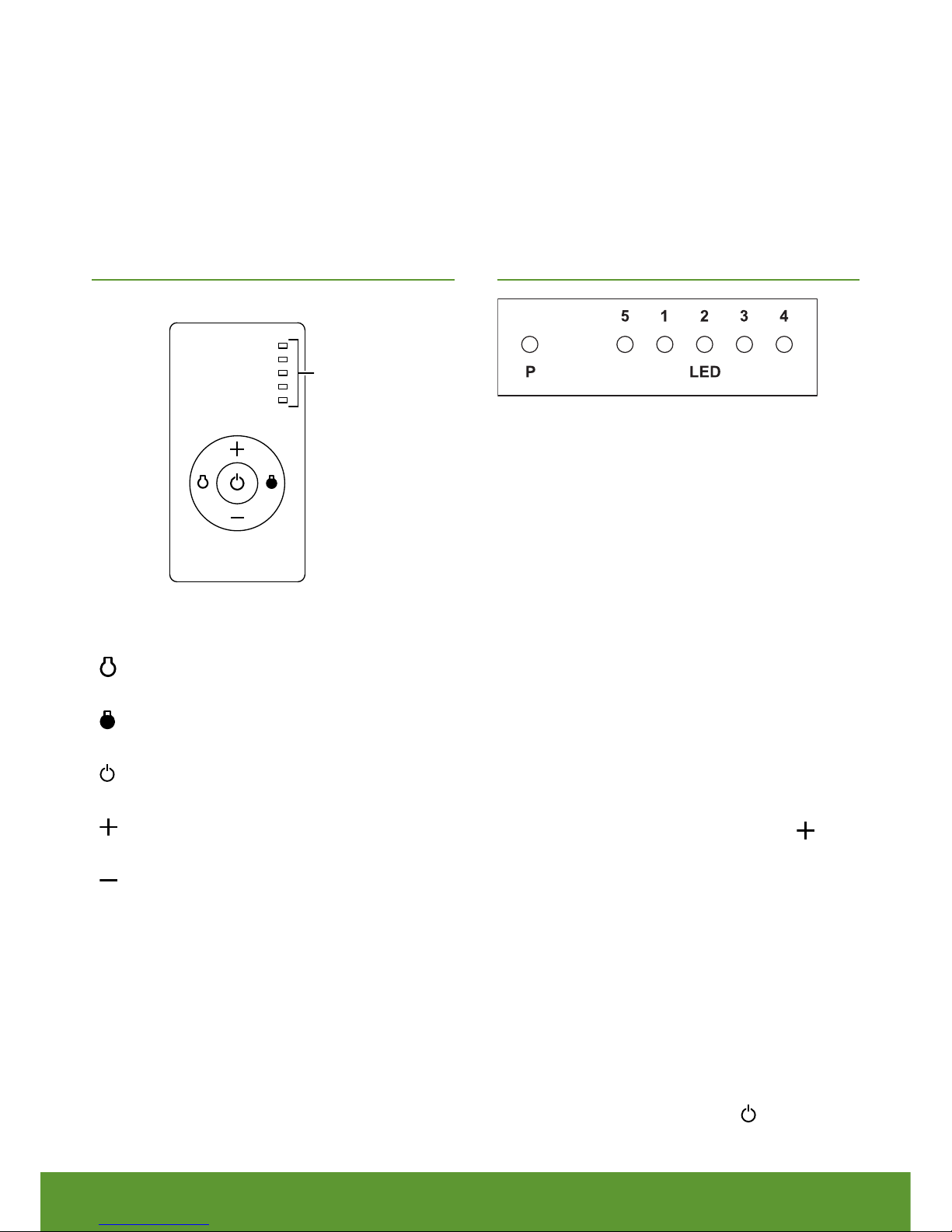

Remote Control
Fan speed
indicator
lights
The controls are:
Light Off. Press this button to switch off the LED
lights in the cooker hood.
Light On. Press this button to switch on the LED
lights in the cooker hood.
Motor On/Off. Press this button to switch the fan
motor on or off.
Increase Fan speed Setting. Press this button to
increase the fan speed.
Reduce Fan Speed Setting. Press this button to
reduce the fan speed.
The fan speed indicator lights display the same information as
the LED indicators.
Note: For regular cooking, we recommend using fan setting 1
or 2. If you are frying or cooking other dishes which generate
a large amount of smoke or steam, we recommend using fan
setting 3 or intensive speed.
LED Indicators
The safety switch (P) is used to switch off the fan motor if the
remote control is not available or has no power.
The LED indicators are:
5 See Programming the Remote Control.
1 Speed Setting 1.
2 Speed Setting 2. When the fan motor is switched
on, it starts at speed setting 2.
3 Speed Setting 3.
4 Intensive Speed. This LED flashes when this speed
setting is selected. The fan will operate at this speed
for 5 minutes (or until you manually reduce the
speed setting) and then return to speed setting 3.
If the LED indicators flash for 30 seconds when the cooker
hood is switched off, the anti-grease filters need to be washed.
This will occur after 100 hours of operation. To reset the
counter after cleaning the filters, press and hold the button
until the LED indicators stop flashing.
Note: See page 8 for more information on cleaning filters.
Programming the Remote Control
The remote control supplied with the cooker hood is already
programmed for use with the cooker hood.
To programme another remote control:
1. Press and hold button Pfor 4 seconds until LED
indicator 5on the cooker hood lights up.
2. Press the Motor On/Off button ( ). LED indicator
5will switch off.

Cooker hood user guide
8
Care, cleaning and servicing
Note: Switch off and unplug the cooker hood before carrying
out any cleaning or maintenance work.
Care and cleaning
Clean the interior and exterior casing using a cloth with water
and mild (neutral) detergent.
Do not use abrasive cleaning materials or scouring pads when
cleaning the cooker hood as this may damage the stainless
steel finish.
Cleaning and replacing filters
This cooker hood is supplied with aluminium filters.
Aluminium filters
Aluminium filters are designed to absorb grease and dust
during cooking. They should be removed and cleaned at least
once a month, or more often if you regularly fry food.
To clean the aluminium filters:

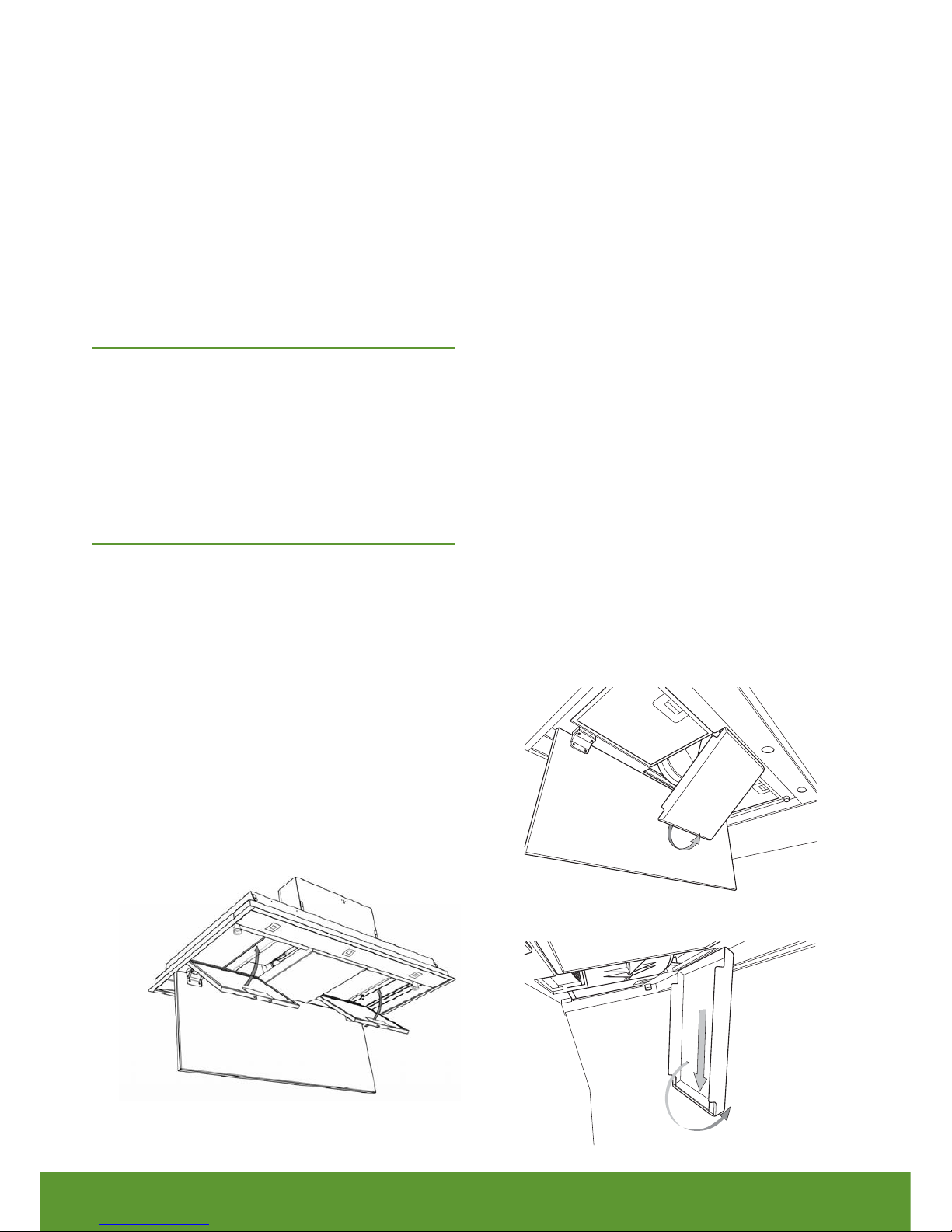

1 Open the bottom panel.
2 Remove the anti-grease filters (A), holding them by the
handles.
A
3 Wash the filters in warm, soapy water or in a dishwasher
and dry them.
4 Replace the filters in the cooker hood and make sure they
are locked in position.
5 Close the bottom panel.
The filters may discolour after a few washes. This is normal
and does not mean they have to be replaced.
Charcoal filters (not supplied)
Charcoal filters are designed to absorb grease, dust and
unwanted odours during cooking. They are only required
when the cooker hood is used for recirculating (i.e. when it is
not ducted out). They cannot be washed or re-used and they
must be replaced at least every four months.
1 Open the bottom panel.
2 Remove the engine protection panel (B and C).
C
B

Cooker hood user guide 9

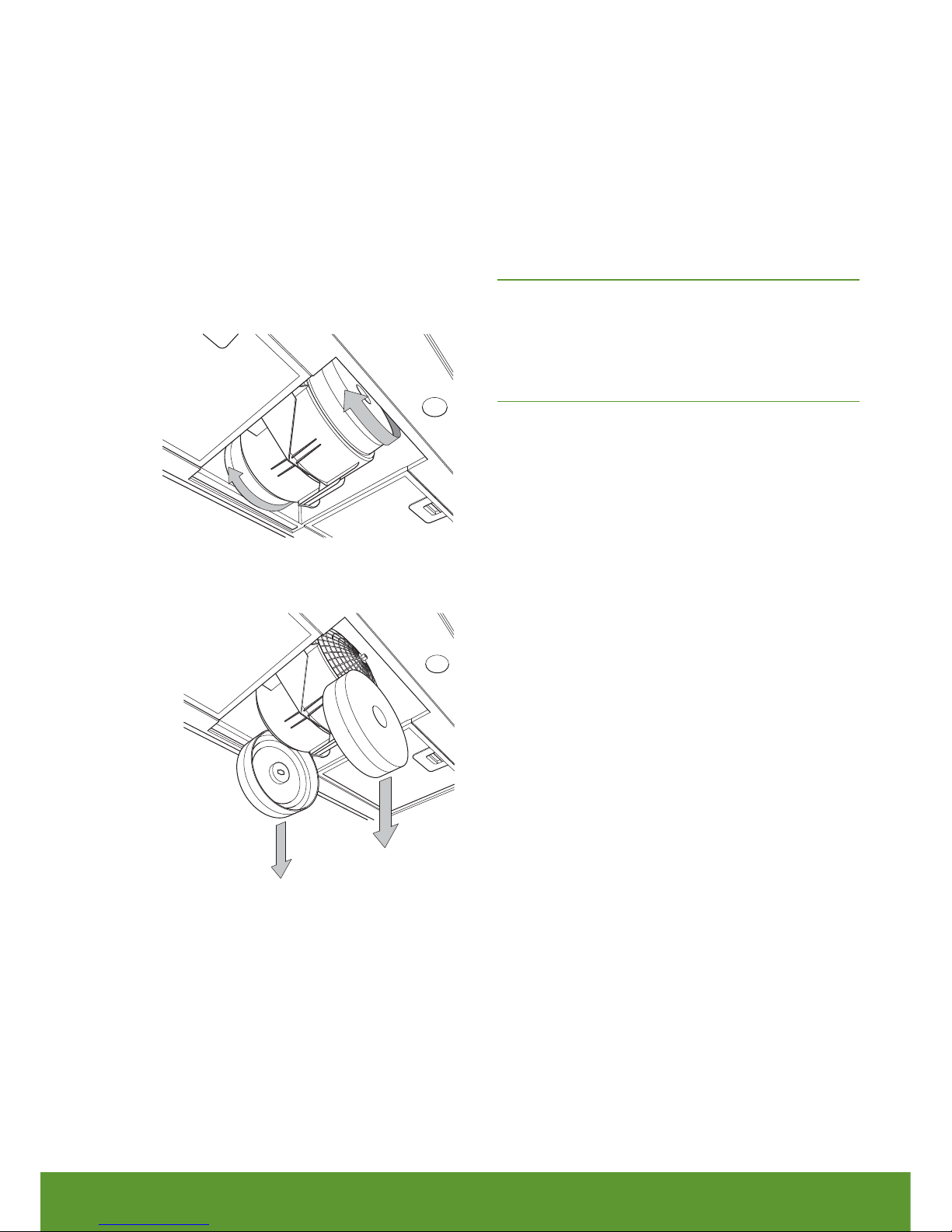

3 Rotate the filters through 90° to unlock them (D).
4 Unhook the filters and remove them (E).
Replacing lights
Your cooker hood is fitted with LEDs. They should only be
replaced by an authorised service engineer.
Servicing
This cooker hood should only be serviced by an authorised
service engineer, and only genuine spare parts should be used.
Under no circumstances should you attempt to repair the
cooker hood yourself. Repairs carried out by inexperienced
persons may cause injury or serious malfunction.
D
E
To fit charcoal filters:
1 Insert the filters and turn them 90°until they are locked in
position.
2 Slot the engine protection panel into position.
3 Close the bottom panel.
Replacement filters can be obtained from www.johnlewis.com.

Cooker hood user guide
10
Preparation for installation
Note: Before installing the cooker hood, make sure that the
surface it is to be fixed to is strong enough to hold it.
The cooker hood must be mounted so that the minimum
distance between the filters and the gas or electric hob are
65cm for electric hobs and 75cm for gas hobs. Please ensure
you check with your hob instruction manual before installing.
For most efficient operation, we recommend that the cooker
hood is installed 200 - 210cm from the floor.
The ducting system for this cooker hood must not be
connected to an existing ventilation system which is being used
for any other purpose.
We recommend an air exhaust tube which is the same
diameter as the air exhaust outlet hole. If a two-part air
exhaust tube is used, the upper part must be placed outside
the lower part.
Before beginning installation, remove the filters (see page 8).
This will make the unit easier to handle during installation.
The cooker hood must be fitted by a qualified electrician or
competent person according to the relevant regulations.
Measurements in mm.
Installing the cooker hood
The cooker hood is provided with all the necessary fastenings,
suitable for most surfaces.
The cooker hood can be installed with the motor fastened
directly to either the:
• ceiling (if the distance between the ceiling and false ceiling is
between 247 and 318mm)
• false ceiling (if the distance between the ceiling and false
ceiling is more than 318mm)
The motor can also be fastened up to 7m away from the
cooker hood. If this is done, the cooker hood can only be used
in exhausting mode and the air outlet must not be mounted
on the side. of the exhaust fitting when it is mounted vertically.
Fastening the motor to the ceiling
1 Measure the distance between the hood and the ceiling
(A).
2 Adjust the separators to the required height (B).
Note: Minimum height = 164mm; maximum height = 235mm.
Installation
A
390
790
35
840
480
–1140
510
870
247
–1170

Cooker hood user guide 11
3 Measure and mark the holes for the cooker hood (B).
4 Attach the separators to the ceiling (C).
5 Insert the exhaust hose through the separator (D).
B
C
6 Align the cooker hood with the separators (E).
7 Securely fasten the cooker hood to the separators (F).
8 Connect the other end of the exhaust hose to the flue or
outflow.
9 Connect your cooker hood to the electrical supply.
10 Insert the filters, as described on page 8.
Your cooker hood is now ready for use.
D
E
G

Cooker hood user guide
12

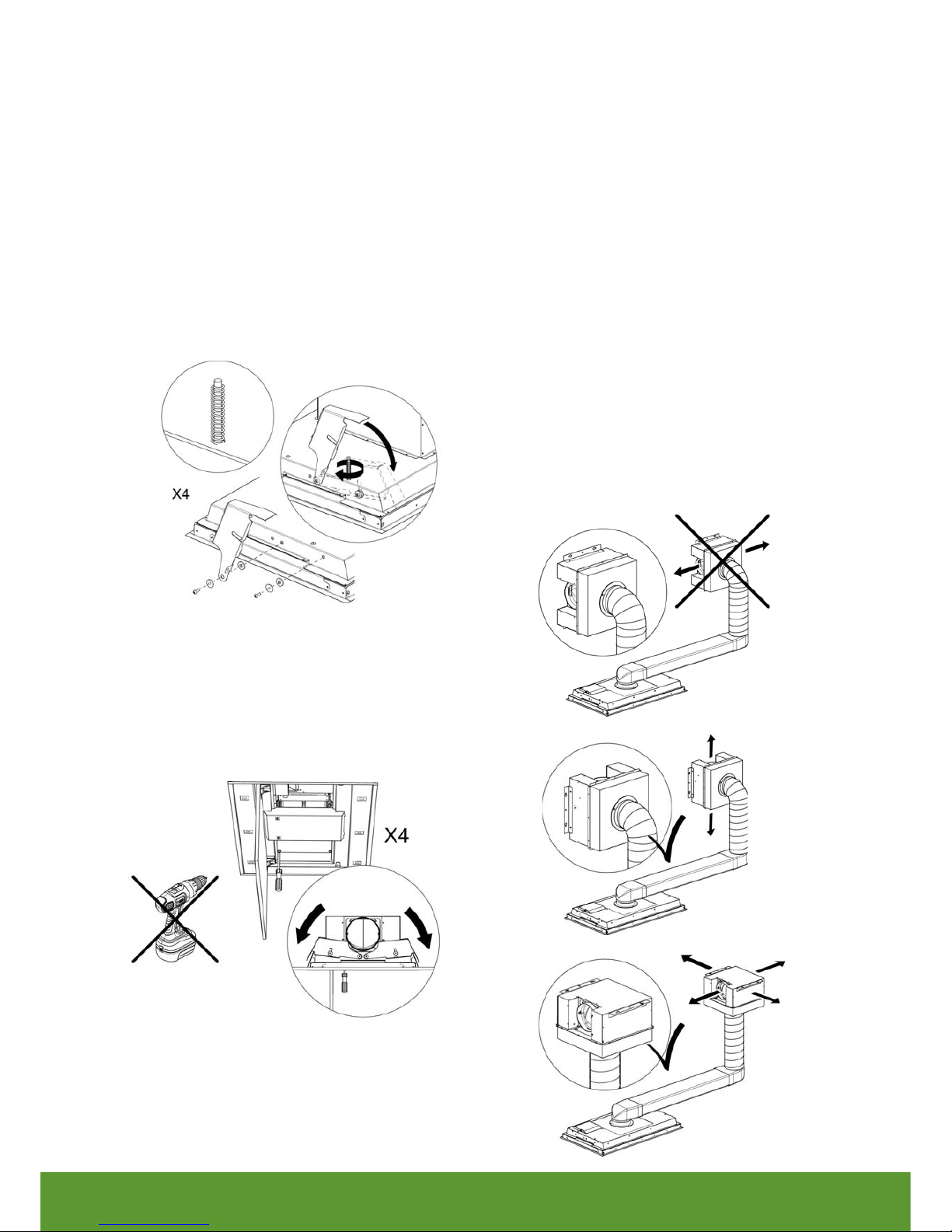

Fastening the motor to a false ceiling
1 Insert the four screw/springs in the false ceiling (H).
2 Fit the clips to the cooker hood (H).
3 Lift the cooker hood into the hole in the false ceiling and
snap the clips on the cooker hood closed (H).
4 Insert the four internal screws in the cooker hood (I) and
screw them hand tight.
Note: Do not use a drill or overtighten the screws.
5. Close the clips (I).
6 Connect the other end of the exhaust hose to the flue or
outflow.
7 Connect your cooker hood to the electrical supply.
8 Insert the filters, as described on page 8.
Your cooker hood is now ready for use.
Fastening the motor separately from the
cooker hood
Note: The motor must be fastened no more than 7m away
from the cooker hood. If this is done, the cooker hood can
only be used in exhausting mode and the air outlet must
not be mounted on the side of the exhaust fitting when it is
mounted vertically.
H
I

Cooker hood user guide 13
Disposal
This symbol indicates that this product should not be
treated as normal household waste and it should be recycled.
John Lewis do not operate instore take back, but as members
of the Distributor Take Back scheme have funded the
development and upgrade of recycling facilities across the UK.
Please take it to your nearest collection facility or for further
details contact your local council or visit www.recycle-more.
co.uk.
Disposal

Cooker hood user guide
14
To assist in locating possible faults use the help guide below:
Troubleshooting
Problem Cause Correction
Cooker hood not operating effectively
The cooker hood is not working
effectively.
The fan speed is too low. Select a higher fan speed.
The filter needs cleaning or replacing. Clean or replace the filter.
The air discharge outlet may be blocked. Check the air discharge outlet and clear any
blockages.
Oil or fat collects on the filter. The filter needs cleaning or replacing. Clean or replace the filter.
Cooker hood will not operate
The cooker hood has switched
off unexpectedly during
operation.
The cooker hood has overheated. Switch off the cooker hood and wait until it
has cooled down.
The cooker hood is too close to the hob. Re-site the cooker hood at the correct height.
No electric current is reaching the cooker
hood.
Check that the power is still on.
Replace the fuse. If you are unsure how to
replace a fuse consult a qualified electrician.
The cooker hood will not start. The cooker hood is not plugged in or the
power is off.
Check that the plug is firmly pushed in and the
power is on.
No electric current is reaching the cooker
hood.
Check that the power is still on.
Replace the fuse. If you are unsure how to
replace a fuse consult a qualified electrician.
If none of the above suggestions resolve the problem please contact your local John Lewis branch. Never attempt to repair the
cooker hood yourself.
Troubleshooting

Cooker hood user guide 15
Guarantee and service
Guarantee
Your cooker hood comes with a three year guarantee against
mechanical breakdown through normal use. The guarantee
does not cover you against faults caused by accidental damage
or misuse. Your original receipt acts as your guarantee so
please make sure you retain it throughout the guarantee
period. For further details visit johnlewis.com/customer-
services.
Service
This product should only be repaired or serviced by an
authorised service engineer and only genuine approved spare
parts should be used.
If a fault occurs which you cannot resolve through following the
advice and information contained within this User Guide, the
next step is to contact us on 0330 100 3637. You will be given
details for your local service engineer.
When you contact your local service engineer you will need to
give the following details:
• Your name, address and post code
• Your telephone number
• Clear and concise details of fault
• The purchase date as found on your receipt
• The model and serial number of the cooker hood. So that
you always have these numbers at hand, we recommend
you make a note of them here:
Mod : .......................................
S.N : .......................................
Note: If you call out an engineer to a fault or to repair a fault
caused by incorrect use or installation, a charge will be made
even if the cooker hood is under guarantee.

Cooker hood user guide
16
Specifications
Specifications of the cooker hood that you have just purchased may vary from the information in this table due to technical
innovations.
Type Ceiling Hood
Dimensions 870 mm wide x 510 mm deep x 247 mm high
Motor Type Centrifugal extractor fan with condenser, double suction
Extraction Rate (per hour) 258 - 553 m3 (886 m3 Int.)
Number of Speeds 3 + intensive
Noise Level 46 - 63db (72db Int.)
Motor Wattage 350w
Washable Metal Filters Yes

Cooker hood user guide 17

Contact Details
John Lewis Partnership
171 Victoria Street
London SW1E 5NN
Please retain these instructions for further reference
