Instruction Manual
JLHDA918
100cm Cooker hood

2
Instruction Manual
JLHDA918
100cm Cooker hood
Contents
3Introduction
3Safety is important
3In the box
4Safety information
4Important safety information
4Warnings
5Cautions
5Electrical information
6Remote control
6Programming the remote
control
7LED indicators
8Care and cleaning
8Cleaning and replacing
aluminium lters
9Cleaning and replacing
charcoal lters
10 Installation
10 Installing the cooker hood
11 Fastening the motor to the
ceiling (exhausting mode)
12 Fastening the motor to a false
ceiling (exhausting mode)
13 Fastening the motor to the
ceiling (ltering mode)
14 Fastening the motor
separately from the cooker
hood
15 Guarantee
15 Service
15 Disposal
16 Troubleshooting
16 Replacing lights
17 Specications

3
Instruction Manual
JLHDA918
100cm Cooker hood
Introduction
Thank you for purchasing this JLHDA918 cooker hood.
Please read the instructions and warnings carefully before use to ensure safe
and satisfactory operation of this appliance.
Safety is important
To ensure your safety and the safety of others, please read the Safety
information before you operate this product.
Keep this information in a safe place for future reference.
In the box
You will nd the following:
– Cooker hood
– Remote control
– Installation kit
– User guide
It is most important that this instruction leaet be retained with the product
for future reference. These warnings have been provided in the interest of
safety. You MUST read them carefully before using the appliance. If you are
unsure of the meanings of these warnings contact the John Lewis branch
from which you purchased this appliance or our Technical Support centre
on 0330 123 0106.
This symbol indicates that there are important operating and maintenance
instructions in the literature accompanying this cooker hood.
This symbol indicates that dangerous voltages constituting a risk of electric
shock are present within this cooker hood.

4
Instruction Manual
JLHDA918
100cm Cooker hood
Safety information
Take note of the following safety information:
Warning! To prevent re or shock hazard, do not expose this cooker hood
to rain or moisture.
Warning! Always remove the mains plug from the wall socket when not in
use or before any service operation.
Warning! There are no user serviceable parts on this cooker hood. Refer
servicing to qualied service personnel.
Important safety information
It is most important that this instruction leaet be retained with the product
for future reference. Should you move house and leave the appliance,
always ensure that this guide is supplied with the cooker hood in order that
the new owner can get to know the functionality and the relevant warnings.
To avoid accidents to property or people it is important to follow the
instructions given. Failure to do so removes any liability from John Lewis.
Warnings
– Any installation work must be undertaken by a qualied electrician or
competent person.
– This is a class I electrical appliance and must therefore be correctly
earthed.
– If the cooker hood is installed for use above a gas appliance, the
provision for ventilation must be in accordance with the Gas Safety
Codes of Practice, the Gas Safety (Installation & Use) Regulations, the
Building Regulations issued by the Department of the Environment
and, where applicable, the Building Standards (Scotland) (Consolidated)
Regulations issued by the Scottish Development Department.
– Do not install this cooker hood above a cooker with a high-level grill.
– Keep all packaging well away from children. There is risk of suffocation.
– If the room where the cooker hood is to be used contains a fuel
burning appliance (such as a gas or oil red central heating boiler), the
boiler’s ue must be a room sealed or balanced ue type. Alternatively,
you should make sure that there is adequate air inlet into the room
at all times so that fumes from the boiler are not drawn back into the
room by the cooker hood.
– The ducting system for this cooker hood must not be connected to an
existing ventilation system which is being used for any other purpose.
– Do not allow the power cord to be crushed or bent excessively.
– Do not let the power cord touch or pass over the hob or other hot
surface.
– Do not hold the power cord or plug with wet hands.
– Never use a damaged power cord or plug, or a loose mains socket.

5
Cautions
– This cooker hood is designed for domestic use only.
– This cooker hood is designed to be operated by adults. Children should
not be allowed to tamper with the controls or play with the cooker
hood.
– Do not leave frying pans unattended during use, as overheated fats and
oils may catch re.
– Do not do ambé cooking under this cooker hood.
– Do not leave naked ames under the cooker hood.
– Make sure foreign objects do not get into the cooker hood or obstruct
the motor.
– Do not use the cooker hood without lters tted.
– Clean or replace the lters regularly to avoid oil build up.
– Do not replace the lters while the cooker hood is operating.
– Replacement lters should be bought from authorised dealers.
– Do not use abrasive cleaning materials or scouring pads when cleaning
the cooker hood.
Electrical information
Warning! This cooker hood MUST BE EARTHED. When connecting the
cooker hood to the electricity supply make sure that the mains socket is
earthed.
Should the power supply cable need to be replaced, this must be carried
out by an approved service engineer. John Lewis declines any liability should
this safety measure not be observed.
Before switching on, make sure the electricity supply voltage is the same as
that indicated on the cooker hood’s rating plate. The cooker hood must be
installed by a qualied electrician or competent person.
Warning! The appliance should not be connected to the electrical supply
by means of an extension cable.
Instruction Manual
JLHDA918
100cm Cooker hood

6
Instruction Manual
JLHDA918
100cm Cooker hood
Remote Control
The controls are:
Light Off. Press this button to switch off the LED
lights in the cooker hood.
Light On. Press this button to switch on the LED
lights in the cooker hood.
Motor On/Off. Press this button to switch the fan
motor on or off.
Increase Fan Speed Setting. Press this button to
increase the fan speed.
Reduce Fan Speed Setting. Press this button to
reduce the fan speed.
For regular cooking we recommend using fan speed 1 or 2. If you are frying,
or cooking dishes which generate a large amount of smoke or steam, we
recommend using fan speed 3 or intensive speed.
Programming the Remote Control
The remote control supplied with the cooker hood is already programmed
for use with the cooker hood.
To programme another remote control:
1. Press and hold button Pfor 4 seconds until LED indicator 5 on the
cooker hood lights up.
2. Press the Motor On/Off button ( ). LED indicator 5 will switch
off.

7
Instruction Manual
JLHDA918
100cm Cooker hood
LED Indicators
The safety switch (P) is used to switch off the fan motor if the remote
control is not available or has no power.
The LED indicators are:
5See Programming the Remote Control.
1Speed Setting 1.
2Speed Setting 2. When the fan motor is switched
on, it starts at speed setting 2.
3Speed Setting 3.
4Intensive Speed. This LED ashes when this speed
setting is selected. The fan will operate at this speed
for 5 minutes (or until you manually reduce the
speed setting) and then return to speed setting 3.
If the LED indicators ash for 30 seconds when the cooker hood is
switched off, the anti-grease lters need to be washed. To reset the counter
after cleaning the lters, press and hold the button on the remote
control until the LED indicators stop ashing.
Note: See page 8 for more information on cleaning lters.

8
Instruction Manual
JLHDA918
100cm Cooker hood
Care and cleaning
Note: Switch off and unplug the cooker hood before carrying out any
cleaning or maintenance work.
Clean the interior and exterior casing using a cloth with water and mild
(neutral) detergent.
Do not use abrasive cleaning materials or scouring pads when cleaning the
cooker hood as this may damage the stainless steel nish.
Cleaning and replacing aluminium lters
This cooker hood is supplied with aluminium lters.
Aluminium lters are designed to absorb grease and dust during cooking.
They should be removed and cleaned once a month, or more often if you
regularly fry food. The grease collected by the lters can catch re and it is
extremely important to clean the lters regularly.
If all the fan speed indicator lights (see page 6) light up for 30 seconds when
the cooker hood is switched off, this indicates that the aluminium lters
require cleaning.
To clean the aluminium lter:
1. Open the bottom panel
2. Remove the anti-grease lters (A), holding them by the handles.
3. Wash the lter in warm soapy water or in a dishwasher and dry them.
4. Replace the lters in the cooker hood and make sure that they are
locked in position.
5. Close the bottom panel.
The lters may discolour after a few washes. This is normal and does not
mean that they have to be replaced.
Once the lters have been cleaned, with the cooker hood switched off hold
down the button until the ventilation indicator lights go out.
A

9
Instruction Manual
JLHDA918
100cm Cooker hood
Cleaning and replacing charcoal lters
Note: This cooker hood is not supplied with charcoal lters. Charcoal lters
can be obtained from www.johnlewis.com.
Charcoal lters are designed to absorb grease, dust and unwanted odours
during cooking. They are only required when the cooker hood is used for
recirculating (i.e. when it is not ducted out).
Non-regenerable charcoal lters must be replaced at least every four
months.
To replace the charcoal lters:
1. Open the bottom panel.
2. Remove the engine protection panel (A and B).
3. Rotate the lters through 90° to unlock them (C).
4. Unhook the lters and remove them (D).
5. Insert the lters and turn them 90° until they are locked in position.
6. Slot the engine protection panel into position.
7. Close the bottom panel.
A
C
D
B

10
Instruction Manual
JLHDA918
100cm Cooker hood
Installation
Notes:
– Before installing the cooker hood, make sure that the surface it is to be
xed to is strong enough to hold it.
– The cooker hood must not be mounted above a cooker tted with a
top radiant plate.
– If installing this cooker hood between adjoining wall cabinets, the wall
cabinets must not overhang the hob.
– The ducting system for this cooker hood must not be connected to an
existing ventilation system which is being used for any other purpose.
– The cooker hood must be installed by a qualied electrician or
competent person according to all relevant regulations.
The cooker hood must be mounted so that the minimum distance between
the lters and the gas hob is 65cm.
Note: If the mounting instructions for the gas hob give a minimum distance
which is higher than 65cm, use the higher value as the minimum distance
between the lters and the gas hob.
We recommend an air exhaust tube which is the same diameter as the air
exhaust outlet hole. If a two-part air exhaust tube is used, the upper part
must be placed outside the lower part.
Before beginning installation, remove the lters (see page 8). This will make
the unit easier to handle during installation.
Installing the cooker hood
The cooker hood is provided with all the necessary fastenings, suitable for
most surfaces.
The cooker hood can be installed in either of the following modes:
– exhausting - fumes are extracted from the kitchen via a ue (not
provided) joined to the exhaust ue connector,
– ltering - fumes are passed through charcoal lters to be puried and
recycled in the kitchen.
The cooker hood can be installed with the motor fastened directly to either
the:
– ceiling (if the distance between the ceiling and false ceiling is between
200mm and 270mm)
– false ceiling.
The motor can also be fastened up to 7m away from the cooker hood. If
this is done, the cooker hood can only be used in exhausting mode and the
air outlet must not be mounted on the side of the exhaust tting when it is
mounted vertically.

11
Instruction Manual
JLHDA918
100cm Cooker hood
Fastening the motor to the ceiling (exhausting mode)
1. Measure and mark the holes for the cooker hood (A).
2. Measure the distance between the hood and the ceiling (B).
3. Adjust the separators to the required height (B).
Note: Minimum height = 165mm; maximum height = 235mm.
4. Attach the separators to the ceiling (C).
5. Lift the cooker hood into position (D).
6. Insert the exhaust hose through the separator (E).
7. Securely fasten the cooker hood to the separators (F).
8. Connect the other end of the exhaust hose to the ue or outow.
9. Connect your cooker hood to the electrical supply.
10. Insert the lters as described on page 8.
Your cooker hood is now ready for use.
A
B
C
D E F

12
Instruction Manual
JLHDA918
100cm Cooker hood
Fastening the motor to a false ceiling (exhausting mode)
1. Insert the four screw/springs in the false ceiling (A).
2. Fit the clips to the cooker hood (A).
3. Lift the cooker hood into the hole in the false ceiling and snap the clips
on the cooker hood closed (A).
4. Insert the four internal screws in the cooker hood (B) and screw them
hand tight.
Note: Do not use a drill or overtighten the screws.
5. Close the clips (B).
6. Connect the other end of the exhaust hose to the ue or outow.
7. Connect your cooker hood to the electrical supply.
8. Insert the lters as described on page 8.
Your cooker hood is now ready for use.
A
B

13
Instruction Manual
JLHDA918
100cm Cooker hood
Fastening the motor to the ceiling (ltering mode)

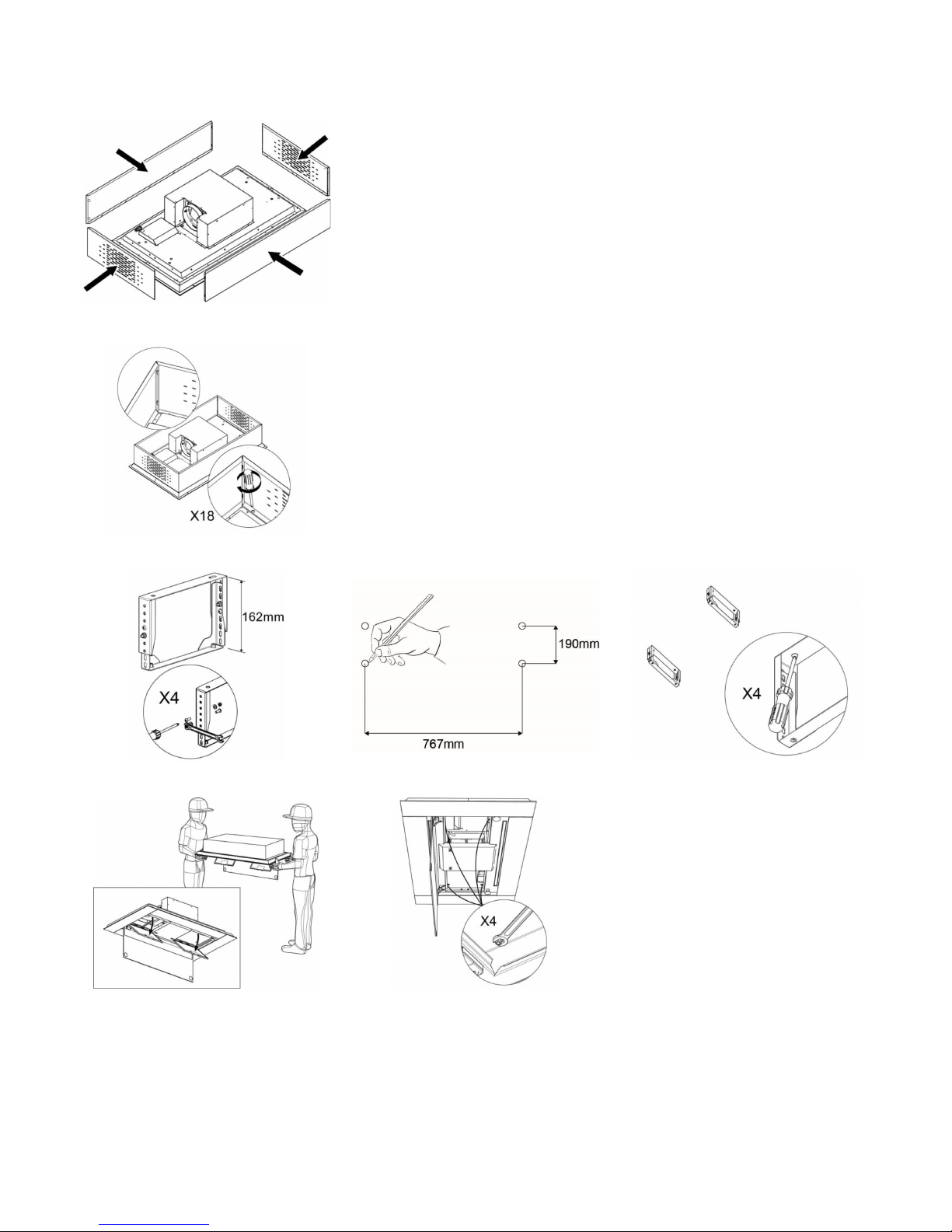

1. Assemble the box containing the four inox walls and xing them
manually by folding the inox tabs (A).
2. Attach the box to the cooker hood using the screws provided (B).
3. Adjust the height of the mounting brackets to 162mm (C).
4. Measure and mark the holes for the cooker hood (D).
5. Attach the separators to the ceiling (E).
6. Lift the cooker hood into position (F).
7. Securely fasten the cooker hood to the separators (G).
8. Connect your cooker hood to the electrical supply.
9. Insert the lters as described on page 9.
Your cooker hood is now ready for use.
A
B
C
F
D E
G

14
Instruction Manual
JLHDA918
100cm Cooker hood
Fastening the motor separately from the cooker hood
Note: The motor must be fastened no more than 7m away from the
cooker hood. If this is done, the cooker hood can only be used in
exhausting mode and the air outlet must not be mounted on the side of
the exhaust tting when it is mounted vertically.
A
B
C

15
Instruction Manual
JLHDA918
100cm Cooker hood
Guarantee
Your cooker hood comes with a two year guarantee against mechanical
breakdown through normal use. The guarantee does not cover you against
faults caused by accidental damage or misuse. Your original receipt acts as
your guarantee so please make sure you retain it throughout the guarantee
period. For further details visit johnlewis.com/customerservices.
Service
This product should only be repaired or serviced by an authorised service
engineer and only genuine approved spare parts should be used.
Under no circumstances should you attempt to repair the cooker hood
yourself. Repairs carried out by inexperienced persons may cause injury or
serious malfunction.
If a fault occurs which you cannot resolve through following the advice and
information contained within this User Guide, the next step is to contact us
on 0330 100 3637. You will be given details for your local service engineer.
When you contact your local service engineer you will need to give the
following details:
– Your name, address and post code
– Your telephone number
– Clear and concise details of the fault
– The purchase date as found on your receipt
– The model and serial number of the cooker hood. So that you always
have these numbers at hand, we recommend you make a note of them
here:
Model: ...........................................................................
Serial No.: ....................................................................
Note: If you call out an engineer to a fault or to repair a fault caused by
incorrect use or installation, a charge will be made even if the cooker hood
is under guarantee.
Disposal
This symbol indicates that this product should not be treated as normal
household waste and it should be recycled. John Lewis do not operate
instore take back, but as members of the Distributor Take Back scheme
have funded the development and upgrade of recycling facilities across the
UK. Please take it to your nearest collection facility or for further details
contact your local council or visit www.recycle-more.co.uk.

16
Instruction Manual
JLHDA918
100cm Cooker hood
Troubleshooting
To assist in locating possible faults use the help guide below:
Problem Cause Correction
Cooker hood not operating effectively
The cooker hood is not
working effectively
The fan speed is too low. Select a higher fan speed.
The lter needs cleaning or
replacing.
Clean or replace the lter.
The air discharge outlet may
be blocked.
Check the air discharge outlet
and clear any blockages.
Oil or fat collects on the
lter.
The lter needs cleaning or
replacing.
Clean or replace the lter.
Cooker hood will not operate
The cooker hood has
switched off unexpectedly
during operation.
The cooker hood has
overheated.
Switch off the cooker hood and
wait until it has cooled down.
The cooker hood is too
close to the hob.
Re-site the cooker hood at the
correct height.
No electric current is
reaching the cooker hood.
Check that the power is still on.
Replace the fuse. If you are
unsure how to replace a fuse
consult a qualied electrician.
The cooker hood will not
start.
The cooker hood is not
plugged in or the power
is off.
Check that the plug is rmly
pushed in and the power is on.
No electric current is
reaching the cooker hood.
Check that the power is still on.
Replace the fuse. If you are
unsure how to replace a fuse
consult a qualied electrician.
If none of the above suggestions resolve the problem please contact your
nearest John Lewis branch. Never attempt to repair the cooker hood
yourself.
Replacing light bulbs
Your cooker hood is tted with LED light bulbs. They should only be
replaced by an authorised service engineer.

17
Instruction Manual
JLHDA918
100cm Cooker hood
Type Cooker Hood
Dimensions 1000mm wide x 600mm high
Extraction Rate (per hour) 258 - 866 m3/h
Number of Speeds 3 + Intensive
Maximum Noise Level 72 db
Motor Power 350W
Washable Metal Filters Yes
Additional Features Remote control
LED strip lights
Specications
Specications of the cooker hood that you have just purchased may vary
from the information in this table due to technical innovations.

18
John Lewis Partnership
171 Victoria Street
London
SW1E 5NN
johnlewis.com
Please retain these instructions for future reference
