Johnson Controls Duct R-410A Owner's manual

R-410A
LOW AMBIENT DAMPER KIT
(LADK-XXXC-1 AND VADK-XXXC-1)
AIR-COOLED SELF-CONTAINED UNITS
DSH/DSV MODELS, B/C STYLES
INDOOR PACKAGED EQUIPMENT
INSTALLATION AND OPERATION Supersedes: 145.10-IOM4 (418) Form 145.10-IOM4 (219)
Issue Date:
February 27, 2019

2
FORM 145.10-IOM4
ISSUE DATE: 2/27/2019
This equipment is a relatively complicated apparatus.
During rigging, installation, operation, maintenance,
or service, individuals may be exposed to certain com-
ponents or conditions including, but not limited to:
heavy objects, refrigerants, materials under pressure,
rotating components, and both high and low voltage.
Each of these items has the potential, if misused or
handled improperly, to cause bodily injury or death. It
is the obligation and responsibility of rigging, instal-
lation, and operating/service personnel to identify and
recognize these inherent hazards, protect themselves,
and proceed safely in completing their tasks. Failure
to comply with any of these requirements could result
in serious damage to the equipment and the property in
IMPORTANT!
READ BEFORE PROCEEDING!
GENERAL SAFETY GUIDELINES
which it is situated, as well as severe personal injury or
death to themselves and people at the site.
This document is intended for use by owner-authorized
rigging, installation, and operating/service personnel. It
is expected that these individuals possess independent
training that will enable them to perform their assigned
tasks properly and safely. It is essential that, prior to
performing any task on this equipment, this individual
shall have read and understood the on-product labels,
this document and any referenced materials. This in-
dividual shall also be familiar with and comply with
all applicable industry and governmental standards and
regulations pertaining to the task in question.
SAFETY SYMBOLS
The following symbols are used in this document to alert the reader to specific situations:
Indicates a possible hazardous situation
which will result in death or serious injury
if proper care is not taken.
Indicates a potentially hazardous situa-
tion which will result in possible injuries
or damage to equipment if proper care is
not taken.
Identies a hazard which could lead to
damage to the machine, damage to other
equipment and/or environmental pollu-
tion if proper care is not taken or instruc-
tions and are not followed.
Highlights additional information useful
to the technician in completing the work
being performed properly.
External wiring, unless specied as an optional connection in the manufacturer’s product line, is
not to be connected inside the control cabinet. Devices such as relays, switches, transducers and
controls and any external wiring must not be installed inside the micro panel. All wiring must be in
accordance with manufacturer’s published specications and must be performed only by a qualied
electrician. The manufacturer will NOT be responsible for damage/problems resulting from improper
connections to the controls or application of improper control signals. Failure to follow this warn-
ing will void the manufacturer’s warranty and cause serious damage to property or personal injury.

3
FORM 145.10-IOM4
ISSUE DATE: 2/27/2019
MANUAL DESCRIPTION FORM NUMBER
System 450 Series Modular Control Systems with Standard Control Modules Technical Bulletin LIT-12011459
DSV060C-300C, C Generation, Vertical Air-Cooled Self-Contained Installation, Operation, and
Maintenance Manual 145.29-IOM3
DSH024C-120C, C Generation, Horizontal Air-Cooled Self-Contained Installation, Operation, and
Maintenance Manual 145.32.IOM5
CHANGEABILITY OF THIS DOCUMENT
In complying with policy for continuous product im-
provement, the information contained in this document
is subject to change without notice. There is no com-
mitment to update or provide current information au-
tomatically to the manual or product owner. Updated
manuals, if applicable, can be obtained by contacting
the nearest Service office.
It is the responsibility of rigging, lifting, and operating/
service personnel to verify the applicability of these
documents to the equipment. If there is any question
regarding the applicability of these documents, rig-
ging, lifting, and operating/service personnel should
verify whether the equipment has been modified and
if current literature is available from the owner of
the equipment prior to performing any work on the
equipment.
CHANGE BARS
Revisions made to this document are indicated with a
line along the left or right hand column in the area the
revision was made. These revisions are to technical in-
formation and any other changes in spelling, grammar
or formatting are not included.
ASSOCIATED LITERATURE

4
FORM 145.10-IOM4
ISSUE DATE: 2/27/2019
HORIZONTAL UNIT NOMENCLATURE
MISCELLANEOUS
OPTIONS
A = None
D = Condensate
Overflow Switch
CONTROL OPTIONS
M = Simplicity Microprocessor Controls
S = Smart Equipment (SE) Microprocessor Controls
N = SE Microprocessor Controls with BACnet®
REFRIGERANT CIRCUIT
OPTIONS
A = None
B = Hot Gas Bypass
PRODUCT CATEGORY
DS = Integral Air-Cooled
Packaged A/C, R-410A
PRODUCT IDENTIFIER
H = Horizontal, Ceiling Mounted
DESIGN SERIES
C = Current
VOLTAGE
2 = 208/230-60-3
4 = 460-60-3
5 = 575-60-3
NOMINAL CAPACITY
024 = 2 Ton
036 = 3 Ton
048 = 4 Ton
060 = 5 Ton
096 = 8 Ton
120 = 10 Ton
OUTDOOR FAN OPTIONS
1 = Standard
2 = High Static
3 = Standard with Low Ambient
Control VFD***
4 = High Static with Low Ambient
Control VFD***
INDOOR AIRSIDE OPTIONS
A = Standard AirsideCoil
C = Corrosion Protective Coating
D = Stainless Steel Drain Pan
F = Coated Coil with Stainless Steel Drain Pan
HEATING OPTIONS
0 = None
INDOOR FAN OPTIONS
1 = Standard*
2 = High Static*
3 = Standard with VFD (VAV)**
4 = High Static with VFD (VAV)**
5 = Standard with VFD Discrete Speeds**
6 = High Static with VFD Discrete Speeds**
*Evaporator and condenser motor VFD available only on 8 tons and up. Evaporator motor without VFD available only on 2, 3, 4, and 5 tons.
**Evaporator motor VFD standard on 8 tons and up.
***Condenser and motor VFD available only on 8 tons and up.
CABINET CONFIGURATION
P = Single Package (Standard)
S = Factory-Split (Charged R-410A)
N = Factory-Split (Nitrogen Charge Only)
OUTDOOR AIRSIDE OPTIONS
A = Standard Airside Coil
C = Corrosion Protective Coating
1, 2 3 4, 5, 6 7 8 9 10 11 12 13 14 15 16 17
DS H 120 C 2 S 1 P A A 1 A 0 A

5
FORM 145.10-IOM4
ISSUE DATE: 2/27/2019
VERTICAL UNIT NOMENCLATURE
MISCELLANEOUS
OPTIONS
A = None
D = Condensate
Overflow Switch
CONTROL OPTIONS
S = Smart Equipment (SE) Microprocessor Controls
N = SE Microprocessor Controls with BACNet®
REFRIGERANT CIRCUIT
OPTIONS
A = None
B = Hot Gas Bypass
PRODUCT CATEGORY
DS = Integral Air-Cooled
Packaged A/C, R-410A
PRODUCT IDENTIFIER
V = Vertical, Free Standing
DESIGN SERIES
C = Current
VOLTAGE
2 = 208/230-60-3
4 = 460-60-3
5 = 575-60-3
NOMINAL CAPACITY
060 = 5 Ton
096 = 8 Ton
120 = 10 Ton
144 = 12 Ton
180 = 15 Ton
240 = 20 Ton
300 = 25 Ton OUTDOOR FAN OPTIONS
1 = Standard
2 = High Static
3 = Standard with Low Ambient
Control VFD***
4 = High Static with Low Ambient
Control VFD***
INDOOR AIRSIDE OPTIONS
A = Standard Airside Coil
C = Corrosion Protective Coating
D = Stainless Steel Drain Pan
F = Coated Coil with Stainless Steel Drain Pan
HEATING OPTIONS
0 = None
INDOOR FAN OPTIONS
1 = Standard*
2 = High Static*
3 = Standard with VFD (VAV)**
4 = High Static with VFD (VAV)**
5 = Standard with VFD Discrete Speeds**
6 = High Static with VFD Discrete Speeds**
*Evaporator motor without VFD available only on 5 ton
**Evaporator motor VFD standard on 8 tons and up. Condenser and motor VFD available only on 8 tons and up.
***Condenser VFD not available in 575V
SUPPLY AIR DISCHARGE CONFIGURATION
V= Top Vertical Supply/Rear Return Air
H = Front Horizontal Supply/Rear Return Air
G = Top Vertical Supply/Front Return Air
F = Rear Horizontal Supply/Front Return Air
OUTDOOR AIRSIDE OPTIONS
A = Standard Airside Coil
C = Corrosion Protective Coating
1, 2 3 4, 5, 6 7 8 9 10 11 12 13 14 15 16 17
DS V 120 C 2 S 1 H A A 1 A 0 A

6
FORM 145.10-IOM4
ISSUE DATE: 2/27/2019
TABLE OF CONTENTS
SECTION 1 - INSTALLATION ..................................................................................................................................7
General Information..........................................................................................................................................7
Damper Installation ..........................................................................................................................................7
Pressure Control Panel Installation and Wiring................................................................................................9
Pressure Transducer Installation.................................................................................................................... 11
Damper Actuator Installation and Wiring ........................................................................................................ 11
Replacing P352P Controller with C450 Controller..........................................................................................14
SECTION 2 - OPERATION .....................................................................................................................................15
Single Stage Wiring Interconnection ..............................................................................................................15
Dual Stage Wiring Interconnection.................................................................................................................16
Sequence of Operation: Functional Check.....................................................................................................17
Damper Schematics .......................................................................................................................................18
LIST OF FIGURES
LIST OF TABLES

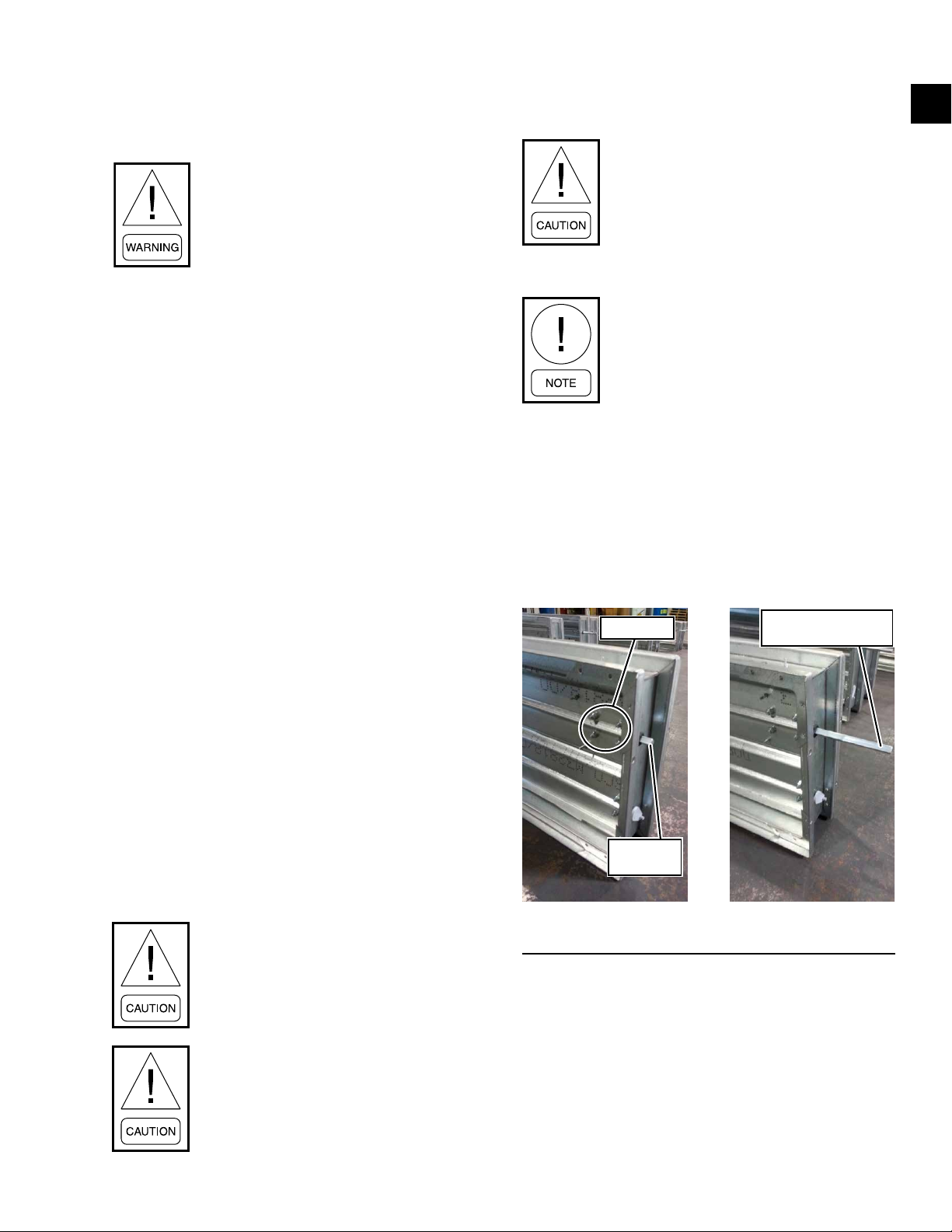

FIGURE 1 - Slide Out Damper Rod........................................................................................................................... 7

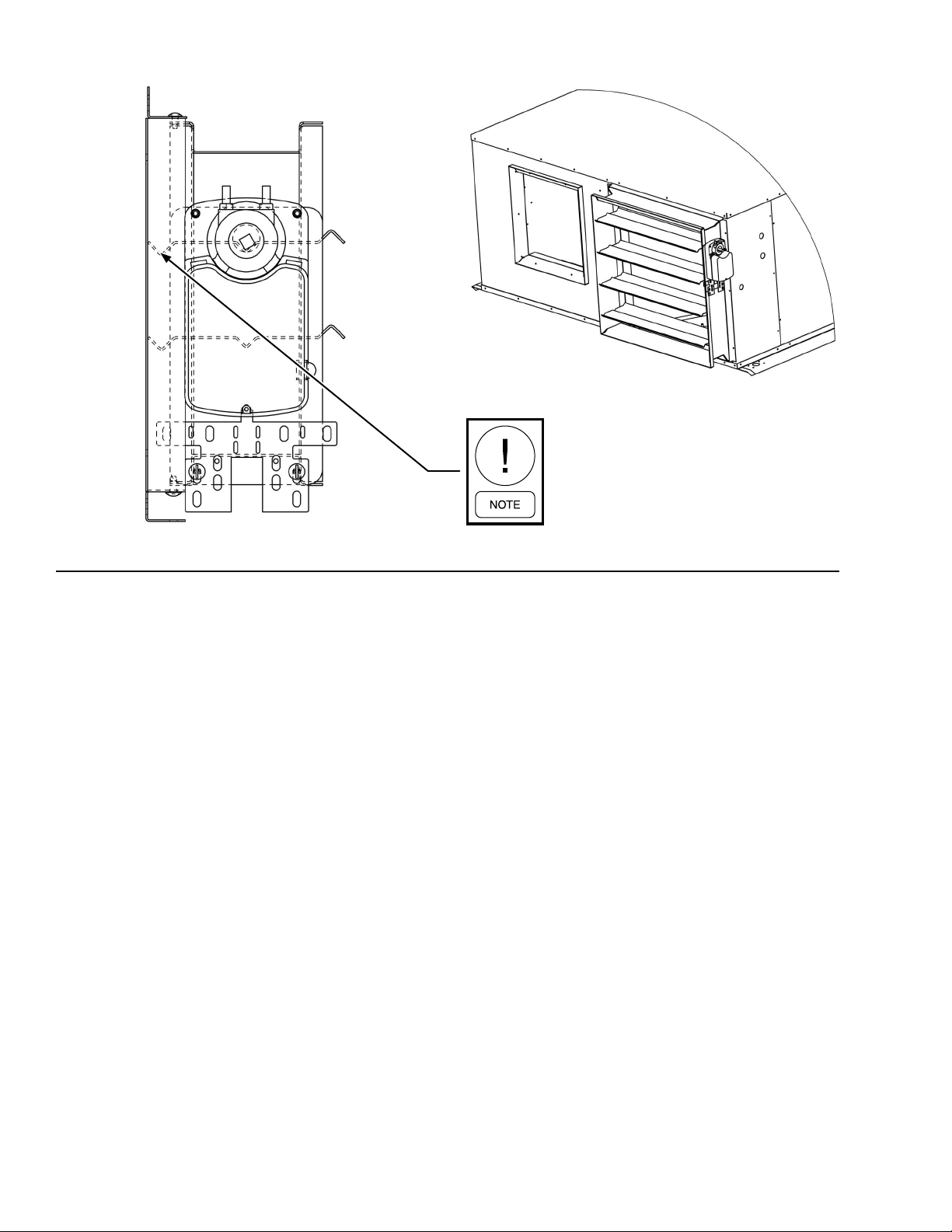

FIGURE 2 - Horizontal Unit Damper ......................................................................................................................... 8

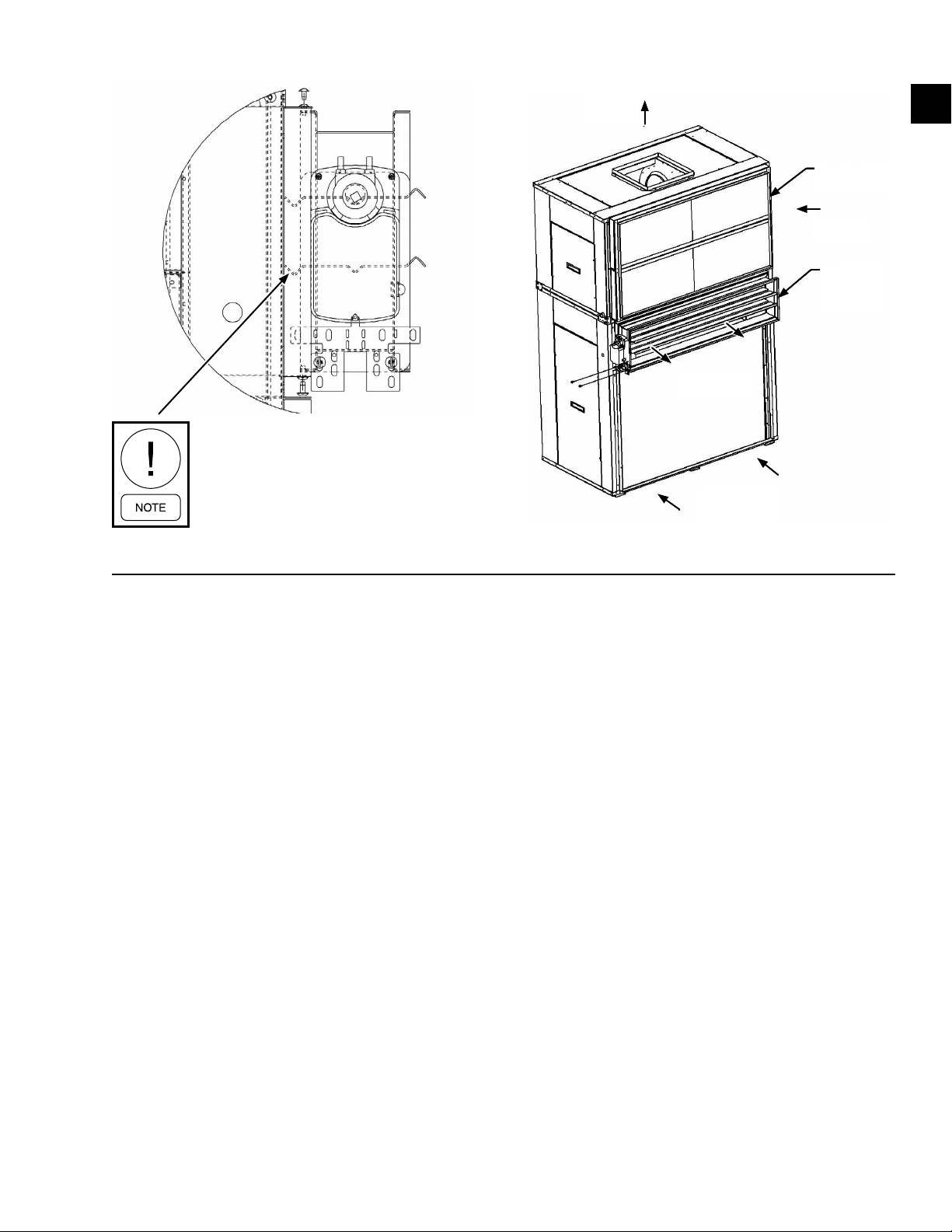

FIGURE 3 - Vertical Unit Damper.............................................................................................................................. 9
FIGURE 4 - DSH Unit: Pressure Control Panel Mounting and Wiring..................................................................... 10
FIGURE 5 - DSV Unit: Pressure Control Panel Mounting and Wiring..................................................................... 11

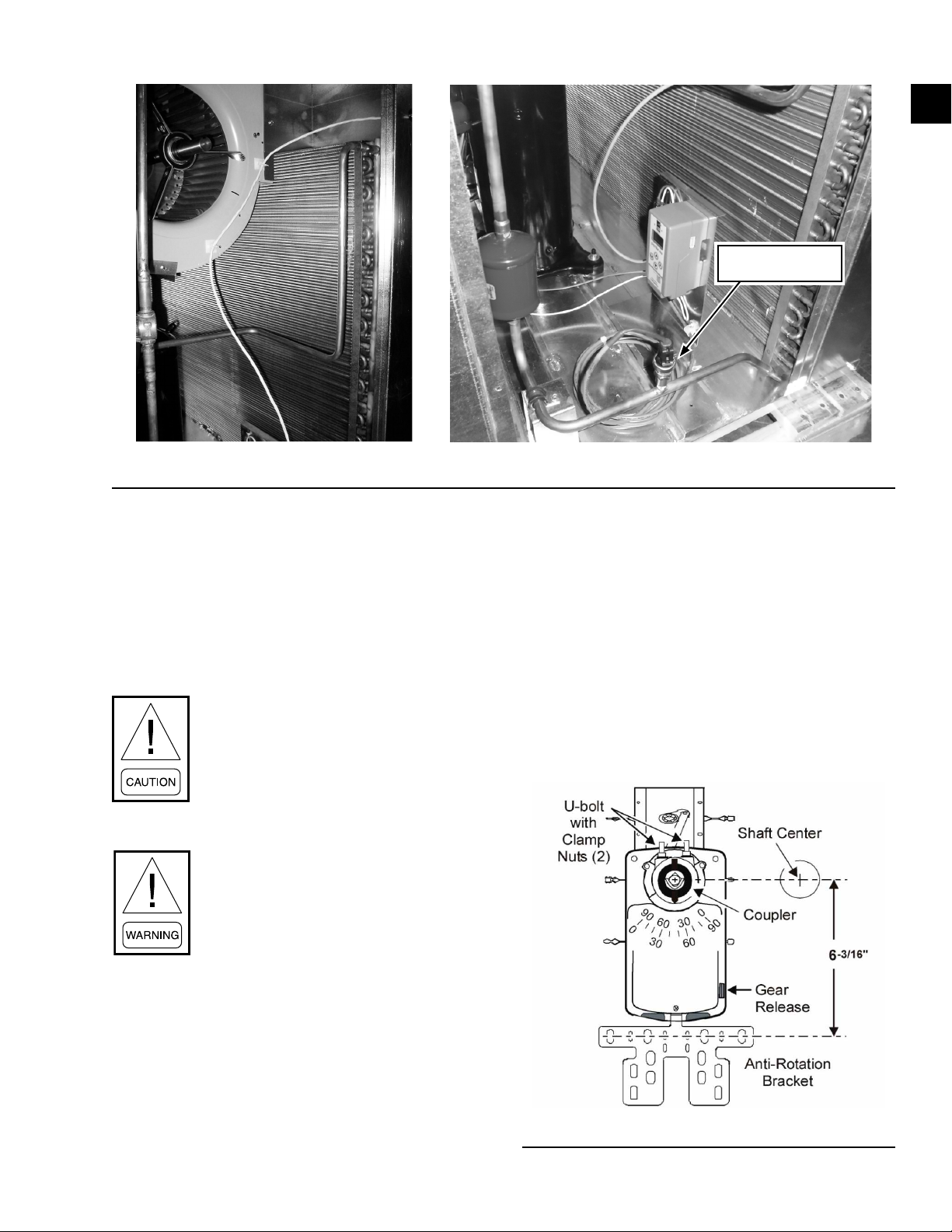

FIGURE 6 - Damper Actuator.................................................................................................................................. 11
FIGURE 7 - Removing the Actuator Cover.............................................................................................................. 12
FIGURE 8 - Connecting Cable to Terminals............................................................................................................ 12
FIGURE 9 - Actuator Rotation For Jumper W1 Setpoint ......................................................................................... 13
FIGURE 10 - Secure Cable with Routing Hardware................................................................................................ 13
FIGURE 11 - Old/New Controller Comparison ........................................................................................................ 14
FIGURE 12 - Single Compressor Application.......................................................................................................... 15
FIGURE 13 - Dual Compressor Application ............................................................................................................ 16
FIGURE 14 - LADK/VADK C450 Controller Reverse Acting ................................................................................... 17
FIGURE 15 - Wiring Terminal Details for C450 Controller with Analog Outputs...................................................... 17

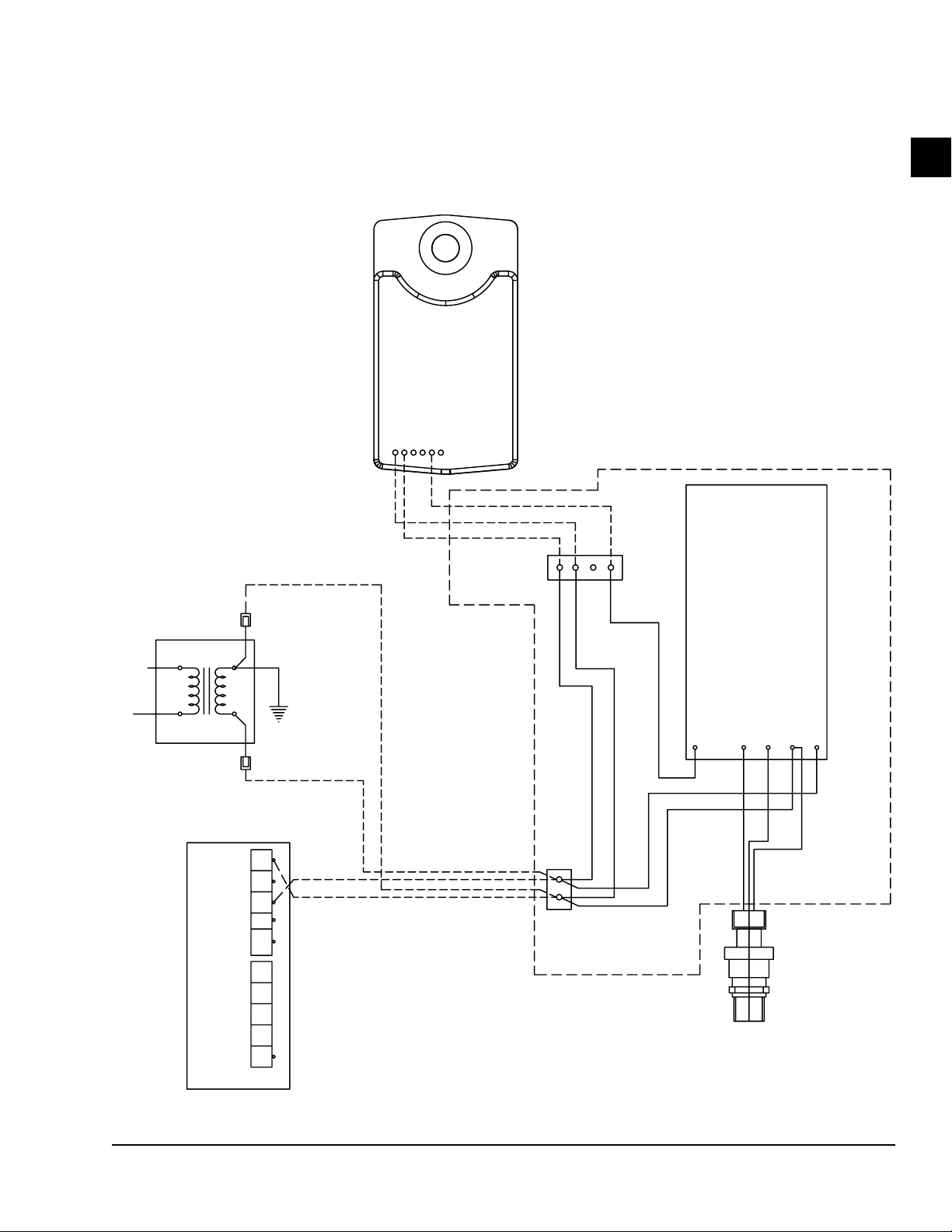

FIGURE 16 - DSH Unit Damper Actuator Schematic.............................................................................................. 18

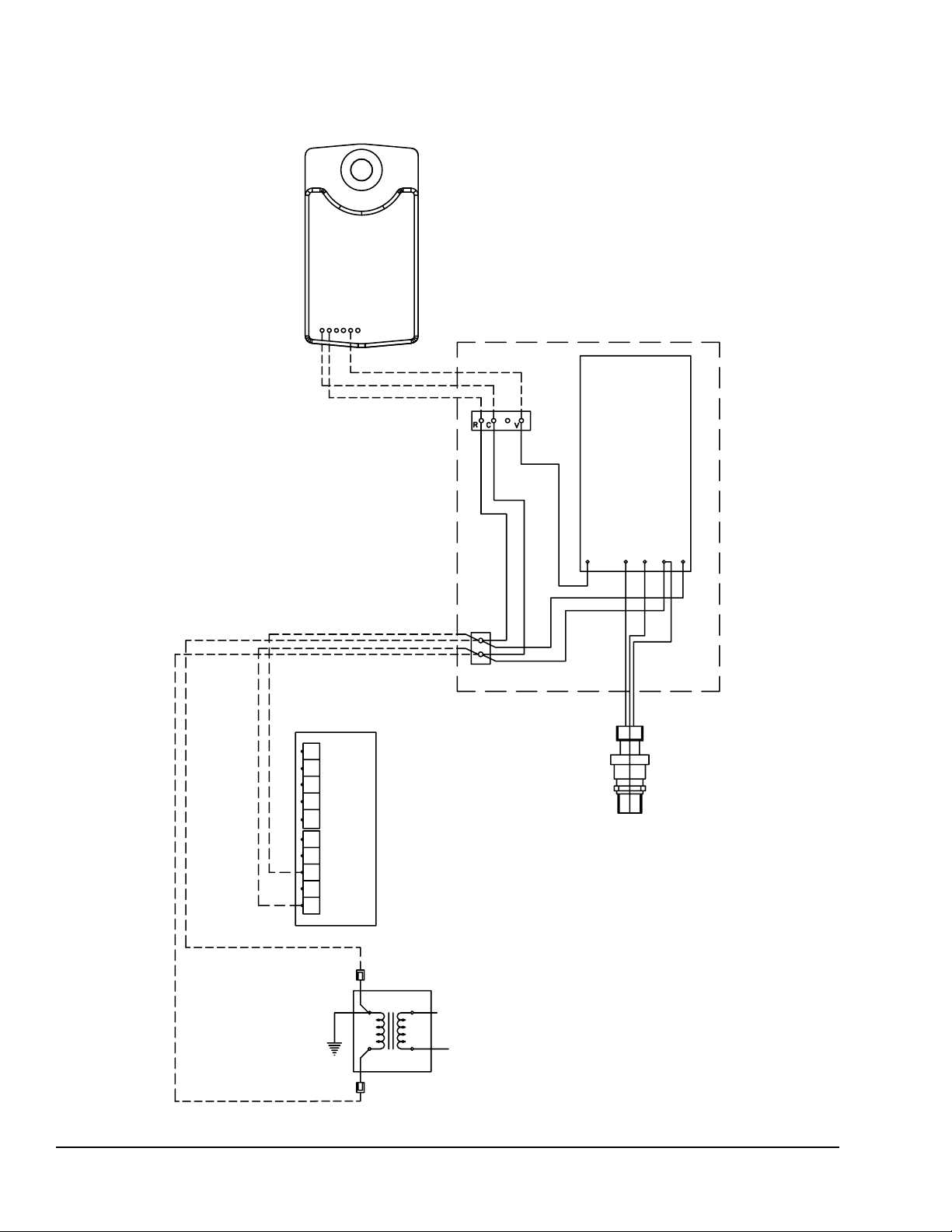

FIGURE 17 - DSV Unit Damper Actuator Schematic .............................................................................................. 19
TABLE 1 - Actuator Rotation for Jumper W1 Setpoint ............................................................................................13
TABLE 2 - C450 Controller Settings for Low Ambient Damper Kits........................................................................ 14

7
FORM 145.10-IOM4
ISSUE DATE: 2/27/2019
1
GENERAL INFORMATION
Before installing this accessory kit, turn
off electrical power to the equipment.
Failure to do so could result in electrical
shock, leading to component damage,
injury, or death.
If DSH/DSV unit operation is required at outdoor air
temperatures (OATs) between 50.0°F and 0.0°F (mini-
mum), install the optional low ambient damper kit to
maintain acceptable condensing pressure.
From the Commission > Standard menu on the Smart
Equipment controller (SEC), ensure the parameter CL-
GOATCUTOUT-EN is set to NO. This enables the unit
to operate when outdoor temperatures are below 45.0°F
(factory default).
In horizontal DSH units, install the damper directly
over the intake duct connection. In vertical DSV units,
install the damper over the exhaust duct connection.
Determine the damper actuator position by the refrig-
erant pressure. Depending on the output signal from a
proportional pressure control module, the direct-cou-
pled, electric damper actuator motor drives the damper
open or closed. A pressure transducer senses the high-
side refrigerant pressure through a service access port
that is located on the liquid refrigerant line leaving the
condenser. The pressure controller panel, complete
with terminal connection blocks for wiring, is attached
to a field-installed mounting bracket.
The low ambient damper kit provides all appropriate
mounting hardware for the pressure control module and
the damper actuator motor. The condenser corner panel
contains a routing hole near the damper actuator's mount-
ing location that enables installation of the plenum-rated
cable between the motor and the C450 controller.
On dual compressor units, the transducer
MUST be connected to the rst stage cir-
cuit liquid line tting. Connection to the
second stage refrigerant circuit can result
in system malfunction.
Prior to securing the damper to the unit,
ensure the damper blades do not interfere
with unit when fully open!
When installing the transducer, observe
all regulations governing the handling
and containment of hazardous or regulat-
ed materials (refrigerants or lubricants).
DAMPER INSTALLATION
FOR ALL DAMPERS: To avoid shipping
damage, the damper rod is recessed inside
damper and must be pulled out.
For damper information, refer to the DSV Installation,
Operation, and Maintenance (IOM) manual (145.29-
IOM3) or DSH IOM manual (145.32-IOM5).
1. Loosen the four nuts as shown in Figure 1 below.
2. Slide out the damper rod approximately 3.5 inch-
es from the damper as shown in Figure 1.
3. Tighten the four nuts as shown in Figure 1.
Four nuts
Damper
Rod
Slide Out Damper
Rod 3.5 inches
LD26852 LD26853
FIGURE 1 - SLIDE OUT DAMPER ROD
DSH Horizontal Units (B/C Style)
1. Attach the two long, horizontal anges from the
LADK low ambient damper kit using the original
holes and screws. These flanges reduce the intake
opening height to match the damper dimensions.
2. Re-attach one of the original vertical anges as
close as possible to the edge of the corner post
(approximately 1/8 inch from corner post's edge).
SECTION 1 - INSTALLATION

8
FORM 145.10-IOM4
ISSUE DATE: 2/27/2019
SECTION 1 - INSTALLATION
When damper blades are fully open, en-
sure they do not contact the unit.
LD26854 LD26855
FIGURE 2 - HORIZONTAL UNIT DAMPER
3. Position the damper casing between the two hori-
zontal ange surfaces, and butt the damper's drive
end against the vertical ange at the unit's cor-
ner. Ensure that the damper is orientated with the
drive shaft at the top of unit (see Figure 2 on page
8).
4. Position the damper blades to fully open and
check that there is no interference with unit. If the
damper blades contact the unit, adjust the damper
slightly away from the unit.
5. Secure the damper using the self-drilling screws
provided. Drive the screws through the holes in
the anges and into the metal damper casing.
6. Attach the remaining vertical ange opposite the
drive end of the casing.
7. Ensure that the damper assembly rotates freely,
with little or no resistance, by rotating the drive
shaft by hand.
DSV Vertical Units (B/C Style)
1. Locate the pilot holes at the condenser exhaust,
and line up the two vertical and two horizontal
duct anges accordingly. The VADK low ambi-
ent damper kit includes the factory-supplied duct
anges.
2. Secure the anges using self-drilling sheet metal
screws. Ensure the horizontal anges are ush
with the condenser exhaust opening.
3. Position the damper casing inside the anges and
secure with screws (see Figure 3 on page 9).
4. Position the damper blades to fully open and
check that there is no interference with the unit.
If the damper blades contact the unit, adjust the
damper slightly away from the unit.
5. Secure the damper using the self-drilling screws
provided. Drive the screws through the holes in
the anges and into the metal damper casing.
6. Attach the remaining vertical ange opposite the
drive end of the casing.
7. Ensure that the damper assembly rotates freely,
with little or no resistance, by rotating the drive
shaft by hand.

9
SECTION 1 - INSTALLATION
FORM 145.10-IOM4
ISSUE DATE: 2/27/2019
1
Supply
Air
Return Air
Filters
Return
Air
Low
Ambient
Damper
Condenser
Discharge
Condenser
Intake
When damper blades are fully open, en-
sure they do not contact the unit.
LD26857 LD26858
FIGURE 3 - VERTICAL UNIT DAMPER
1. Mount the pressure control panel in the compres-
sor/condenser section immediately behind the
compressor side access panel (see Figure 4 on
page 10 and Figure 5 on page 11). In hori-
zontal DSH units, mount the pressure control pan-
el to the interior base pan. In vertical DSV units,
mount the panel to the base rails. Fasten the panel
bracket to the vertical ange of the interior base
pan (recommended) or to the horizontal surface
of the pan using the provided self-drilling screws.
2. Using the pre-terminated two-wire harness (red
and white) from the kit, connect the pressure con-
trol panel to the microprocessor board's R and C
terminals that are located in the main electrical
panel of the condensing unit. The harness must be
fed through the electrical routing hole.
• On horizontal DSH units, the hole is located
at the intake end of the condenser coil (see
Figure 4 on page 10).
• On vertical DSV units, the hole is located at
the low voltage end of the electrical panel
(see Figure 5 on page 11).
3. Route the harness across the blower section of the
unit. For horizontal DSH units, route the harness
into the back of the electrical panel via the low
voltage entrance hole.
4. Using the self-adhesive mounts provided, secure
the harness. This ensures that the wiring is kept
well clear of the belt-driven blower and motor as-
sembly.
5. On the microprocessor board, connect the red
harness lead to the R terminal and the white har-
ness lead to the C terminal (see Figure 12 on page
15 and Figure 13 on page 16).
6. Within the compressor compartment, secure the
harness to the existing compressor wiring. Route
the terminated ends to the 2-pole terminal block
on the pressure control panel. Attach the termi-
nated harness ends to the appropriate terminals
(red-to-red and white-to-white).
PRESSURE CONTROL PANEL INSTALLATION AND WIRING

10
FORM 145.10-IOM4
ISSUE DATE: 2/27/2019
SECTION 1 - INSTALLATION
Screws
Pressure
Transducer
LD26859 LD26861
LD26860
FIGURE 4 - DSH UNIT: PRESSURE CONTROL PANEL MOUNTING AND WIRING

11
SECTION 1 - INSTALLATION
FORM 145.10-IOM4
ISSUE DATE: 2/27/2019
1
Pressure
Transducer
LD26862 LD26863
FIGURE 5 - DSV UNIT: PRESSURE CONTROL PANEL MOUNTING AND WIRING
PRESSURE TRANSDUCER INSTALLATION
For transducer information, refer to the DSV IOM manu-
al (145.29-IOM3) or DSH IOM manual (145.32-IOM5).
1. Mount the compact P499 or P599 transducer di-
rectly to the liquid refrigerant pressure port. This
port is incorporated into the refrigerant shutoff
valve (as illustrated with DSH single stage units
in Figure 4 on page 10).
On dual compressor units, the transducer
MUST be connected to the rst stage cir-
cuit liquid line tting. Connection to the
second stage refrigerant circuit can result
in system malfunction.
2. Hand thread the transducer onto the pressure port.
Wear gloves for protection. Seat the trans-
ducer as quickly as possible to minimize
release of liquid refrigerant.
3. To avoid damaging the transducer, tighten the
connection using the wrench ats provided
4. The connecting harness for the pressure trans-
ducer is pre-wired to the pressure control panel.
The sensor end of the harness is equipped with a
polarized plug connection. Insert the plug into the
end of the transducer and ensure that the locking
tab on the plug is engaged.
5. Perform a leak test on the refrigerant port connec-
tion before putting the system into operation.
DAMPER ACTUATOR INSTALLATION AND
WIRING
1. Press and hold the gear release lever, and rotate
the drive coupler according to the steps below.
Release the gear lever.
a. For horizontal LADK kits, rotate fully coun-
terclockwise (CCW).
b. For vertical VADK kits, rotate fully clock-
wise (CW) .
LD26864
FIGURE 6 - DAMPER ACTUATOR

12
FORM 145.10-IOM4
ISSUE DATE: 2/27/2019
SECTION 1 - INSTALLATION
2. Fully close the damper actuator by turning the
drive shaft CCW (LADK kit) or CW (VADK kit).
3. Insert the tab on the anti-rotation bracket into the
slot located on the bottom of the damper actuator.
Slide the damper actuator onto the damper drive
shaft.
4. Position the anti-rotation bracket 6-3/16 inches
below the drive shaft center (see Figure 6 on page
11.
5. Use the holes in the anti-rotation bracket as a
guide, and secure the bracket to the damper actua-
tor casing using the self-drilling screws provided.
(Do not drive screws near the center of the damper
actuator casing. Use the outermost holes in the an-
ti-rotation bracket.)
6. Adjust the anti-rotation bracket as necessary to
position the tab midway into the slot at the bottom
of the damper actuator.
The tab on the anti-rotation bracket must
t midway into the actuator slot to prevent
damper actuator binding and premature
wear.
LD26865
FIGURE 7 - REMOVING THE ACTUATOR COVER
7. Hold the damper actuator in place, and evenly
hand tighten both clamp nuts onto the U-bolt. En-
sure the damper drive shaft remains in the fully
closed position while tightening the clamp nuts.
Secure the U-bolt to the damper drive shaft.
8. Press and hold the gear release. To verify that the
damper actuator rotates freely throughout the range,
rotate the drive coupler and drive shaft from fully
closed to fully open according to the steps below.
a. For horizontal LADK kits, rotate fully CW.
b. For vertical VADK kits, rotate fully CCW .
9. Loosen the damper actuator cover screw using a
#1 Phillips screwdriver, and remove the damper ac-
tuator cover. Push the plastic plug, adjacent to the
actuator terminal block, out of the conduit opening.
10. Use the #1 Phillips screwdriver to punch a center
hole through the plug, and reinsert the plug into
the opening.
A plenum-rated connection cable is provided, pre-
wired to the pressure control panel, for supply of
24 VAC power and 0–10 VDC signal voltage. The
cable is routed to the damper actuator through a
7/8-inch knock-out in the unit corner post.
11. Remove the knock-out, and insert the plastic
bushing provided in the low ambient damper kit.
Pull a sufcient length of cable through the bush-
ing to reach the connection terminal block at the
bottom of the actuator.
12. Push the cable through the hole in the plastic
conduit plug (enlarge if necessary), strip approxi-
mately 1 inch of the outer cable sheath, and con-
nect the wires to the following terminals:
• White = Terminal 1
• Red = Terminal 2
• Black = Terminal 5
• Green (if applicable) = not used
13. Secure the cable with a large nylon wire tie (pro-
vided) to prevent the cable from being acciden-
tally pulled from the damper actuator housing (see
Figure 8 on page 12).
LD26866
FIGURE 8 - CONNECTING CABLE TO TERMINALS

13
SECTION 1 - INSTALLATION
FORM 145.10-IOM4
ISSUE DATE: 2/27/2019
1
14. Verify the M9108 damper actuator is congured
correctly for either CW or CCW rotation. See Ta-
ble 1 on page 13 for jumper location and con-
guration table.
Jumper W1 is factory set for CW rotation.
TABLE 1 - ACTUATOR ROTATION FOR JUMPER
W1 SETPOINT
LOW AMBIENT
KIT # UNIT MODEL JUMPER W1 SETTING
LADK-XXXC-1 DSH024-120B/C RA (CCW)
VADK-XXXC-1 DSV060-300B/C DA (CW)
CCW = Counterclockwise CW = Clockwise
Jumper W1
Direct Acting (DA)
Reverse Acting (RA)
Rotation Direction with
Increasing Signal
Factory Set
(CW) DA (CCW) RA
LD26868
FIGURE 9 - ACTUATOR ROTATION FOR JUMPER
W1 SETPOINT
15. Re-attach the damper actuator cover and tighten
the cover screw.
16. To avoid accidental damage or contact with mov-
ing components, secure the cable with the provid-
ed cable routing hardware.
LD26867
FIGURE 10 - SECURE CABLE WITH ROUTING
HARDWARE
17. Check that damper blades can fully open without
contacting unit. If the damper blades are unable
to fully open, reposition the damper slightly away
from the unit.

14
FORM 145.10-IOM4
ISSUE DATE: 2/27/2019
SECTION 1 - INSTALLATION
REPLACING P352P CONTROLLER WITH
C450 CONTROLLER
Replace the P352P controller (p/n P352PN-4C) used
with previous generation low ambient damper kits
(LADK-XXXB-1 and VADK-XXXB-1) with the C450
controller (p/n C450CPN-4) by taking the following
steps:
1. Wire the new controller to the proper terminals.
2. Set the parameters as indicated in Table 2 on page
14.
TABLE 2 - C450 CONTROLLER SETTINGS FOR
LOW AMBIENT DAMPER KITS
PARAMETER SETTING
Sn-1 P750
SP1 360
EP1 260
OSP1 0
OEP1 100
I-C1 0
UP-R1 1
bNb1 0
SNF OFF
NOTE: For details on how to set the parameters, see the System
450 Series Modular Control Systems with Standard Control Mod-
ules Technical Bulletin (LIT-12011459 via QuickLIT's LIT Number
Search)
M9108
Actuator
PRESSURE CONTROL PANEL
P352P
Controller
PRESSURE CONTROL PANEL
C450CPN-4
Controller
M9108
Actuator
24V AC
SUPPLIED
BY UNIT
24V AC
SUPPLIED
BY UNIT
BLACK
WHITE
RED
BLACK
RCV
RED
WHITE
VISN VDCC
BLACK
WHITE
RED
R
WHA-P399
WIRING HARNESS
P499/P598
TRANSDUCER
R
C
BLACK
RC V
RED
WHITE
5VSN1 C
BLACK
WHITE
RED
WHA-P399
WIRING HARNESS
P499/P598
TRANSDUCER
R
C
24VA01
BLACK
WHITE
RED
13 6542 13 6542
P352P C450
LD26875
FIGURE 11 - OLD/NEW CONTROLLER COMPARISON

15
SECTION 2 - OPERATION
FORM 145.10-IOM4
ISSUE DATE: 2/27/2019
2
SECTION 2 - OPERATION
SINGLE STAGE WIRING INTERCONNECTION
This applies to DSH024–060B/C and DSV060B/C models.
PRESSURE CONTROL PANEL
C450CPN-4
Controller
M9108 Actuator
BLACK
RC V
RED
WHITE
5V
SN1 C
BLACK
WHITE
RED
WHA-PKD3-200C
WIRING HARNESS
P499/P598 TRANSDUCER
R
C
24VA01
BLACK
WHITE
RED
123456
RED
WHITE
LADK-WHA-03
WHO20
WHO20
LADK-WHA-01
Option 2: Power Supply Connection
from SE Controller Unit
WHITE
RED
Option 1: Power Supply Connection
from Simplicity Lite Unit
X2H2
X1H1
TRF
ISOLATED MALE
1/4-INCH Q.C.
ISOLATED MALE
1/4-INCH Q.C.
G
W1 Y1
OCC
XRSD C
MB
LD26869
FIGURE 12 - SINGLE COMPRESSOR APPLICATION

16
FORM 145.10-IOM4
ISSUE DATE: 2/27/2019
SECTION 1 - INSTALLATION
DUAL STAGE WIRING INTERCONNECTION
This applies to DSH096–120B/C and DSV096–300B/C models.
PRESSURE CONTROL PANEL
C450CPN-4
Controller
M9108 Actuator
BLACK
RC V
RED
WHITE
5VSN1C
BLACK
WHITE
RED
WHA-PKD3-200C
WIRING HARNESS
P499/P598 TRANSDUCER
R
C
24VA01
BLACK
WHITE
RED
123456
RED
WHITE
LADK-WHA-03
WHO20
WHO20
LADK-WHA-01
Option 2: Power Supply Connectionfrom SE Controller Unit
WHITE
RED
Option 1: Power Supply Connection from Simplicity 1A Unit
X2 H2
X1 H1
TRF
ISOLATED MALE
1/4-INCH Q.C.
ISOLATED MALE
1/4-INCH Q.C.
G
W1 Y1
OCC
XRSD C
MB
WHITE
RED
W2 Y2
LD26870
FIGURE 13 - DUAL COMPRESSOR APPLICATION

17
SECTION 1 - INSTALLATION
FORM 145.10-IOM4
ISSUE DATE: 2/27/2019
2
SEQUENCE OF OPERATION: FUNCTIONAL
CHECK
This condensing pressure control package is designed
to maintain a minimum refrigerant liquid pressure of
260 psig, which is sufficient to ensure proper expan-
sion valve operation under all normal conditions. The
electronic proportional control module generates a 0 to
10 VDC output signal based on sensed pressure. This
output signal modulates the condenser air volume, from
0–100%, via an electrically motorized intake damper.
The C450 controller is factory configured for reverse
acting mode. The analog signal output increases as
the sensed pressure drops. Dashed areas in Figure 14
on page 17 show throttling range possibilities from
minimum to maximum.
LD26871
FIGURE 14 - LADK/VADK C450 CONTROLLER
REVERSE ACTING
LD26872
FIGURE 15 - WIRING TERMINAL DETAILS FOR C450 CONTROLLER WITH ANALOG OUTPUTS
The control setpoint is factory set at 360 psig with a
100 psi throttling range.
If outdoor air temperature (OAT) and system load re-
sult in a condensing pressure above 360 psig, the output
signal is 0 volts. At a signal voltage of 0, the damper
actuator motor drives the damper 100% open.
At refrigerant pressures below 260 psig, the control
output signal is 10 VDC, driving the damper actuator
100% closed.
In practical operation, the condenser intake damper is
fully closed whenever sensed refrigerant pressure is
below 260 psig. This normally occurs during an ex-
tended system OFF interval, especially during periods
of moderate to low OA temperatures. Upon compres-
sor start, the pressure in the system increases until it
reaches the 260 psig minimum throttling range. The
damper only begins to modulate at pressures above
260 psig, ensuring that the actual operating condensing
pressure is always greater than this minimum value.
(C450CPN-4)

18
FORM 145.10-IOM4
ISSUE DATE: 2/27/2019
SECTION 1 - INSTALLATION
DAMPER SCHEMATICS
FIGURE 16 - DSH UNIT DAMPER ACTUATOR SCHEMATIC
Condenser
Discharge
Low Ambient
Damper
Condenser
Intake
Electric Damper
Actuator (M9108)
M9108
Anti-Rotation
Bracket
C
A
B
KIT # UNIT
MODEL A B C
LADK-036C-1 DSH024B/C
DSH036B/C 25.875 in. 5.0 in. 23.625 in.
LADK-060C-1 DSH048B/C
DSH060B/C 27.875 in. 5.0 in. 26.625 in.
LADK-100C-1 DSH096B/C 48.0 in. 5.0 in. 29.25 in.
LADK-120C-1 DSH120B/C 60.75 in. 5.0 in. 29.125 in.
LD26873

19
SECTION 1 - INSTALLATION
FORM 145.10-IOM4
ISSUE DATE: 2/27/2019
2
KIT # UNIT MODEL A B C
VADK-060C-1 DSV060B/C 47.375 in. 5.0 in. 11.875 in.
VADK-120C-1 DSV096B/C & DSV120B/C 66.375 in. 5.0 in. 14.125 in.
VADK-144C-1 DSV144B/C & DSV180B 77.5 in. 5.0 in. 14.125 in.
VADK-180C-1 DSV180C 81.5 in. 5.0 in. 12.125 in.
VADK-240C-1 DSV240B/C 85.5 in. 5.0 in. 12.875 in.
VADK-300C-1 DSV300B/C 103.5 in. 5.0 in. 12.875 in.
Return Air
Filters
Low Ambient
Damper
Condenser
Intake
Anti-Rotation
Bracket
C
A
B
Supply
Air
Return
Air
Condenser
Discharge
Electric
Damper Motor
LD26874
FIGURE 17 - DSV UNIT DAMPER ACTUATOR SCHEMATIC

© 2019 Johnson Controls | 100 JCI Way, York, Pennsylvania USA 17406-8469 | www.johnsoncontrols.com
Subject to change without notice. | Form 145.10-IOM4 (219) | Supersedes: 145.10-IOM4 (418) | All rights reserved.
