JOMISE T863 User manual

T863
User Manual
Notice: To avoid product loss caused by improper operation, please read the safety
information of all operating instructions in this manual before using this product.
123
45678
9 10 11 12 13
14 15 16 17
18 19 20 21
Version: V1.0

CONTENT
123
45678
9 10 11 12 13
14 15 16 17
18 19 20 21
PRECAUTIONS 1
SPECIFICATION 2
PACKAGE CONTENTS 3
INSTALLATION 4-11
PRODUCT OVERVIEW 12-13
SETTINGS 14-20
TROUBLE SHOOTING 21
CUSTOMER SUPPORT

PRECAUTIONS
● Please read this manual carefully before operation and
keep it for future reference. It will be helpful should you
encounter any operational problem.
● Improper installation will void the manufacturer's warranty.
The installation instructions do not apply to all types of
vehicles and are written as guidelines to assist in installing the
system.
● Consult an experienced technician if you are not comfort-
able installing the product.
● Please make sure to read and understand call local laws
and regulations regarding cameras and their use in a vehicle.
Laws vary by state.
● Do not obscure the view of the road ahead or impede the
deployment of any airbags in the event of an accident.
● When not in use, please disconnect the car adaptor from
both the12/24V DC outlet in your vehicle and the device itself.
● Only clean the device with a soft dry cloth, for tough dirt,
apply some neutral detergent diluted in 5 to 6 parts water to a
soft cloth.
● Note that alcohol, thinner, benzene, etc could cause
damage to the paint or coatings.
● Avoid making contact with the Lens as damage may be
caused.
● The video recordings made by this Digital Video Recorder
are intended for personal use only.
● Whilst driving, do not adjust the controls of your device as
this is a distraction to driving.
11 2 3
45678
9 10 11 12 13
14 15 16 17
18 19 20 21

SPECIFICATION
123
45678
9 10 11 12 13
14 15 16 17
18 19 20 21
Item Name 12″ Stream Media Mirror Dash Camera
Model JOMISE T863
Screen Size 12″ IPS Touch Screen
Display Resolution 1480 x 320P
Recording Resolution
Front Camera: 1920 x 1080P
In-car Camera: 1920 x 1080P
Lens
Rear Camera: 1920 x 1080P
Front Camera: F1.8 170°
Recording Format MOV
Photo Format JPG
Memory Card Micro SD card 32G~128G U1
Storage Temperature -40℉~176℉
Operating Temperature -4℉~158℉
Product Weight
Item Dimension
3.76 lb
11.4 x 2.8 x 1.2 (in)
Input DC 12V - 24V
DC 5V - 2.5A
In-car Camera: F2.0 140°
Rear Camera: F1.8 150°
Output

PACKAGE CONTENTS
JOMISE T863 Mirror Dash Cam
Rear Camera
Cable (32ft) x 1
T863
GPS Receiver x 1 Fixed Straps x 4 Cleaning Cloth x 1
1 2 3
45678
9 10 11 12 13
14 15 16 17
18 19 20 21
Front Camera x 1 Rear Camera x 1 In-car Camera x 1
Car Charger x 1
3 in 1
Type-C Connector x 1
Front Camera Cable x 1
Mount Bracket x 1
( Outside of vehicle ) Mount Bracket x 1 ( Inside of vehicle )
User Manual x 1

INSTALLATION
WARNING
● Please MAKE SURE to connect all cameras and wires BEFORE power
ON the Mirror Screen, otherwise, the camera cannot work properly.
● Please follow the instructions below for the first-time installation of the
Stream Media Mirror Dash Camera. lt is designed to be fitted to the
existing rear-view mirror using the straps.
Insert Micro SD Card
Insert the Micro SD Card into the stream media mirror dash camera,
taking care that the gold contacts are facing towards the backside of the
stream media mirror dash camera. Push the memory card until it clicks
into the slot.
123
45678
9 10 11 12 13
14 15 16 17
18 19 20 21

INSTALLATION
Insert Micro SD Card
● Use the edge of a small coin ( or similar object ) to push the memory
card into slot if required. Take care that the card has clicked into slot, a
second push inwards will release the memory card.
● Do not remove or insert the memory card when the Mirror Dash Cam
is turned on. This may damage the memory card.
● Take care when removing the SD card from the Mirror Dash Cam
when it is installed in the vehicle. Due to the card slot mechanism, the
card will spring from the slot when released.
● Periodically reformat the memory card. Every 2-3 weeks we
recommend that you reformat the memory card. This will wipe any files
from the card and set it up afresh for continued use with your Mirror
Dash Cam.
● Of course, you should only do this after you've downloaded any files
from the SD card that you may want to keep, as formatting the card will
remove all content.
● Format your memory card using the Mirror Dash Cam. This will make
sure that the card is structured specifically for your camera.
● Press to enter into the setting and choose the Format Card option
to follow the on-screen instructions accordingly.
Notice:
123
45 6 7 8
9 10 11 12 13
14 15 16 17
18 19 20 21

INSTALLATION
Mount the Mirror Dash Cam
Step 1: Attach the upper end of the straps to the retaining hooks on the
top of the rear-view mirror.
Step 2: Extend the straps around the back of the rear-view mirror and
attach them to the bottom retaining hooks.
Notice:
● The straps have been designed so they can be cut down to give
further size options, as required.
● The straps should be a tight fit when fitted, thus ensuring the Stream
Media Mirror Dash Camera is securely fitted to the existing rear-view
mirror.
123
4 5 6 7 8
9 10 11 12 13
14 15 16 17
18 19 20 21

▼ Uncover the 3M tape protective film and lens protective film of the
front camera and the in-car camera.
▼ Attach the front camera and the in-car camera to a suitable position
on the front windshield.
INSTALLATION
Front/In-car Camera Installation
123
4567 8
9 10 11 12 13
14 15 16 17
18 19 20 21

INSTALLATION
Rear Camera Installation
Use the provided double-sided tape or screws to fix rear camera. The
angle can be adjusted, so be sure to find a perfect viewing angle for
your camera before fix it.
▼ Install inside the car
Please choose type 1 bracket to mount the rear camera if you'd like to
install it inside your vehicle.
Please choose type 2 bracket to mount the rear camera if you'd like to
install it outside your vehicle
▼ Install outside the vehicle
123
45678
9 10 11 12 13
14 15 16 17
18 19 20 21

INSTALLATION
Rear Camera Installation
● Make the connection first and ensure the machine work well before
installing.
● Keep away with the driving operation and the active part of the car.
Do not get caught by screws or seat gaps.
● When drilling holes in car, please do not break the vibrator, tank and
wires.
● Before attaching the double-sided tape, please remove stain or oil
with alcohol cleaner from the surface.
● When temperature is low, please warm up the mounting surface with
dryer, in order to improve the adhesion before sticking.
● The provided 3M sticker cannot be reused, or the adhesion will not
be strong enough.
● Do not disassemble or change any part of this product, this will not
be covered by warranty.
Notice:
123
45678
9 10 11 12 13
14 15 16 17
18 19 20 21

INSTALLATION
Wiring Images
123
45678
910 11 12 13
14 15 16 17
18 19 20 21
Front Camera
32.8ft rear camera extension cable
3 in 1
Type-C Connector
Car Charger
GPS Receiver
Connect the red trigger wire
to the positive of the reversing lamp.
In-car Camera
Rear Camera
NOTICE: The Mini USB interface on the right is used to connect the car charger, and the Type-C
interface on the left is used to connect the 3-in-1 connector.

INSTALLATION

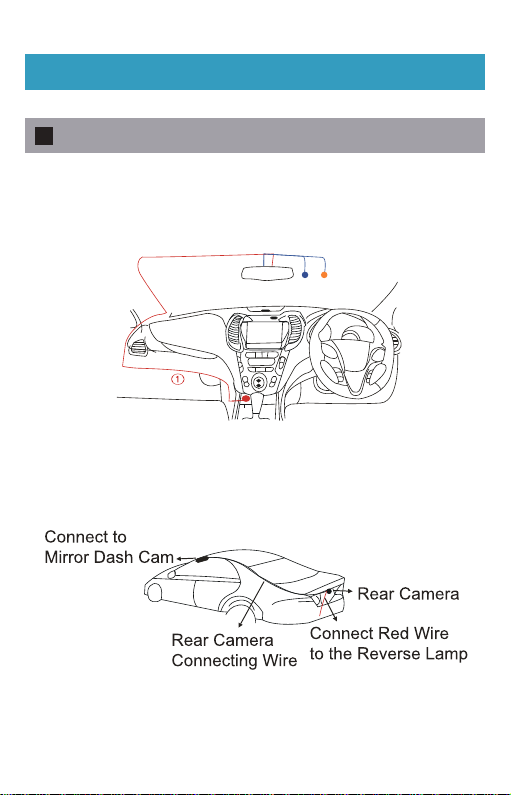

Wire Layout in the Vehicle
Step 1: The car charger is connected to the cigar socket.
Step 2: Plug the front camera and the in-car camera into the 3-in-1
Type-C connector and install the front camera and the in-car camera at
a suitable position on the front windshield.
Step 3: Connect the rear camera cable to the 3-in-1 Type-C connector, and
hide the rear camera cable inside the vehicle.
123
45678
9 10 11 12 13
14 15 16 17
18 19 20 21
① ②

PRODUCT OVERVIEW
Appearance Description
①Screen
②Speaker
③ Strap Retaining Hooks
④ Power Button
⑤ Reset Hole
⑥ 3 in 1 Type-C Port
⑦ GPS Port
⑧ Micro SD Card Slot
⑨ Power Supply Port
⑩ Front Camera
In-car Camera
123
45678
9 10 11 12 13
14 15 16 17
18 19 20 21

Rear Camera


N
0 mph
12:25
2021-04-16Fri
1
BL
02:36
PRODUCT OVERVIEW
⑨
⑩
①Recording
②Date & Time
④ File Playback
③ Settings
⑤ Start / Stop Recording
⑥ Snapshot
⑦ Image Switch
⑧ Lock / Unlock
⑨ Speed
⑩ Driving Direction
Screen Brightness Adjustment
Notice: You need to pause recording before entering into settings.
123
45678
9 10 11 12 13
14 15 16 17
18 19 20 21

SETTINGS
● Loop Recording: Set the video recording loop time.
- 1 minute
- 2 minutes
- 3 minutes
● Sound Record: Turn on/off audio recording.
● Auto-Rec: After starting the automatic recording, if there is no
interactive operation, it will automatically enter the recording mode.
● Event Sycle: After the Event Cycle is enabled, when the locked video
file reaches 20% of the memory card capacity, subsequent locked
videos will overwrite the oldest locked video to save, thereby maintain-
ing the healthy capacity of the memory card.
● Video Time Lapse: Set the time-lapse recording of the vehicle (This
feature requires a hard-wired kit to activate).
- Timelapse Power Off: Turn on/off the time-lapse recording function.
- Lapse Recording Time: 12Hours/24Hours(After setting for 24 hours, it
will record uninterruptedly throughout the day).
- Lapse Recording FPS: 1 FPS/2 FPS/5 FPS(The number of frames
shot per second can be set, and when playback of the time-lapse video
is like a fast-forward playback of the video).
123
45678
9 10 11 12 13
14 15 16 17
18 19 20 21
12:25
2021-04-16Fri
Loop Recording 1min
1min
Sound Record
Auto-Rec
Event Sycle
ON
ON
ON
12:25
2021-04-16Fri
Video Time Lapse
Beep
Mirroring Front View
Mirroring Rear View
ON
ON
OFF

SETTINGS
● Beep: Turn on/off the key voice.
● Mirroring Front View: Turn on/off the mirror view of the front
camera.
● Mirroring Rear View: Turn on/off the mirror view of the rear camera.
● LCD Power Saver: Set the screen saver time.
- Off
- 1 min
- 2 min
- 3 min
● G-Sensor sensitivity: Select the sensitivity of the G-Sensor or turn it
off. The locked files will not be overwritten. Please copy important locked
files to your computer for storage, and format the SD card regularly.
- Off
- High
- Middle
- Low
● Mirroring Room View: Turn on/off the mirror view of the in-car camera.
● Clock Settings: Set the current time and date. This function allows for
manual time setting if GPS is not available. Once a GPS signal is received
the time and date will update automatically.
● Date & Time Hidden: Hide the time and date display in the recording
interface.
● Language: Set the language, the default is English.
123
45678
9 10 11 12 13
14 15 16 17
18 19 20 21
12:25
2021-04-16Fri
Mirroring Room View
Clock Settings
Date & Time Hidden
Language
ON
OFF
English
12:25
2021-04-16Fri
LCD Power Saver
G-Sensor sensitivity
Parking Monitoring
Volume
Off
Middle
Off

SETTINGS
● Parking Monitoring: Start the parking guard function (according to
the preset G-Sensor sensitivity, the emergency video recording is
automatically started after the vehicle is shaken, this function requires a
hard-wired kit to be used normally).
- Off
- High
- Middle (Recommend preset levels).
- Low
● Volume: Set the volume.
123
45678
9 10 11 12 13
14 15 16 17
18 19 20 21
12:25
2021-04-16Fri
GPS Status
Time Zone Select
Speed Unit
GPS Display
GMT-8:00
MPH
ON
● GSP Status: Show the Longitude, Latitude, and other GPS
information.
● Time Zone Select: Select the time zone of your location. The system
will set a date and time according to the GPS location.
● Speed Unit:
- MPH
- KM/H
● GPS Display: Turn on/off the display of GPS information on the

SETTINGS
● Time Format: Set the 12-Hours/24-Hours time display format
according to usage habits.
● Reverse Line: To display the reversing guideline, you need to
connect the trigger wire (red wire) at the end of the rearview camera to
the positive pole of the reverse lamp.
● Reversing Line Correction: You can adjust the reversing guideline
according to the actual environment.
● Reset Setup: Restore the initial settings.
● Format SD-Card: Clear all Micro SD card data files (please save
important video files in advance and format the Micro SD card regularly)
● FW Version: View the firmware version information.
123
45678
9 10 11 12 13
14 15 16 17
18 19 20 21
12:25
2021-04-16Fri
Time Format
Reverse Line
Reversing Line Correction
Reset Setup
ON
24-Hour
12:25
2021-04-16Fri
Format SD-Card
FW Version 20210621_V0.1

Brightness Adjustmen
SETTINGS
Touch the pointed area first, a scrollbar will come out, then slide to left or
right(+/-)to adjust the brightness.
123
45678
9 10 11 12 13
14 15 16 17
18 19 20 21
