Jonsered MRT6 Guide
Spare parts
Ersatzteile
Pièces détachées
Reserve onderdelen
Repuestos
Reservdelar
IPL, MRT6, 96091002100, 2010-10
MRT6
2
REPAIR PARTS
TILLER - - MODEL NUMBER MRT6 (96091002100), PRODUCT NUMBER 960 91 00-21
HANDLE ASSEMBLY
KEY PART
NO. NO. DESCRIPTION
17 532 10 92-29 Lock, Handle
18 873 68 06-00 Nut, Crownlock 3/8-16 unc
19 819 13 16-11 Washer 13/32 x 1 x 11 Ga.
20 532 10 92-28 Lever, Lock, Handle
21 532 42 05-24 Handle
22 532 16 51-97 Clip Cable
23 532 08 67-77 Screw, Hex Washer Hd. Slotted
#10-24 x 1/2
24 532 00 94-84 Clip
25 873 97 05-00 Nut Lock Hex Flange
26 532 11 06-75 Cable, Clutch
27 873 90 04-00 Nut Hex Flange 1/4-20 unc
31 532 15 06-96 Bolt, Pivot
KEY PART
NO. NO. DESCRIPTION
1 532 18 94-82 Control, Throttle
2 532 14 14-06 Grip, Handle
3 532 11 06-73 Grommet Handle
4 532 12 72-54 Bar Assembly, Control
5 532 12 47-17 Cap Vinyl
6 532 18 84-03 Panel, Control
7 532 11 06-41 Bushing Split
8 817 72 04-08 Screw 1/4-20 x 1/2
9 872 01 05-20 Bolt 5/16-18 x 2.50
10 532 11 06-46 Grip, Handle
11 532 12 47-88 Clip, Hairpin
12 532 08 13-28 Bolt, Shoulder
13 532 18 74-97 Handle, Shift
14 532 10 93-13 Grommet, Rubber
15 532 11 07-02 Rod, Shift
16 872 11 06-08 Bolt, Carriage 3/8-16 x 1 Gr. 5 NOTE: All component dimensions given in U.S. inches.
1 inch = 25.4 mm
8
9
7
6
3
4
26
5
3
1
27
25
26
24
23 22
15
11
10
12
14
13
21
19
31
17
16
11
18
20
2
2
handle_assy_3a
3
KEY PART
NO. NO. DESCRIPTION
3 873 22 06-00 Nut, Hex 3/8-16
4 532 43 24-20 Shield, Inner Belt Guard RT
5 532 16 43-29 Pin Spirol Flared
6 532 11 01-11 Lever, Shift
7 872 11 04-04 Bolt, Carriage 1/4-20 x 1/2 Gr. 5
8 532 00 87-00 Plate, Shift Indicator
9 532 08 67-77 Screw, Hex, Washer Head, Slotted
#10-24 x 1/2
10 532 00 94-84 Clip
12 873 51 04-00 Nut, Keps Hex 1/4-20 unc
13 823 23 05-06 Screw, Set, Hex 5/16-18 x 3/8
14 532 15 61-17 Spacer, Split
15 819 11 11-16 Washer 11/32 x 11/16 x 16 Ga.
16 532 14 51-02 Sheave, Transmission
19 812 00 00-28 Retainer, Ring
21 532 11 06-52 Spacer, Split 0.327 x 0.42 x 2.09
22 874 77 05-08 Bolt, Fin Hex 5/16-24 unf x 1/2
23 532 00 50-15 Tire
532 12 72-59 Rim
532 12 47-18 Tire Valve
24 532 12 68-75 Rivet, Drilled
25 532 12 47-88 Clip, Hairpin
26 532 40 72-86 Guard, Belt
REPAIR PARTS
TILLER - - MODEL NUMBER MRT6 (96091002100), PRODUCT NUMBER 960 91 00-21
MAINFRAME, LEFT SIDE
KEY PART
NO. NO. DESCRIPTION
27 532 13 28-01 Belt, V
28 532 10 46-79 Pulley, Idler
29 812 00 00-32 Ring, Klip
30 532 15 92-29 Bracket, Idler
31 532 10 23-84 Bolt, Hex 5/16-16 x 12
32 532 10 21-41 Shaft, Idler Arm
33 874 76 06-16 Bolt, Hex 3/8-16 x 1
34 532 10 23-83 Counterweight, L. H.
36 532 10 23-31 Bracket, Reinforcement, L. H.
37 532 13 08-12 Sheave, Engine
38 874 76 05-44 Bolt, Fin Hex 5/16-18 unc x 2-3/4
39 532 14 00-62 Cap, Plunger Blk
40 532 17 04-88 Screw Hex Wsh Slt #10-24 x 1/2
44 873 80 05-00 Nut Lock Hex w/Ins 5/16-18 unc PL
65 873 97 05-00 Nut Lock Hex Flange
66 819 13 13-12 Washer 13/32 x 13/16 x 12 Ga.
67 874 76 05-24 Bolt, Hex 5/16-18 x 1-1/2
68 873 51 06-00 Nut, Keps 3/8-16 unc
69 532 16 41-73 Keeper Belt Engine
NOTE: All component dimensions given in U.S. inches.
1 inch = 25.4 mm
68
65
68
65
67 34 31
30
28 3
40 26 15
66
44
40
27
19
16
38
4
21
14
32
69
69
33
36
13
37
39
6
5
8
12
7
9
10
29
22
mainframe_left_25
24
23
25
4
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
REPAIR PARTS
TILLER - - MODEL NUMBER MRT6 (96091002100), PRODUCT NUMBER 960 91 00-21
MAINFRAME, RIGHT SIDE
2 873 97 05-00 Locknut, Hex, Flange 5/16-18
5 532 10 23-32 Bracket, Reinforcement
7 532 10 21-73 Counter Weight, R.H.
10 874 76 05-24 Bolt, Hex 5/16-18 x 1-1/2
11 532 12 47-88 Clip, Hairpin
12 532 12 68-75 Rivet, Drilled
13 532 00 05-15 Tire
532 12 72-59 Rim
532 12 47-18 Tire Valve
15 - - - - - - - - Engine, Briggs & Stratton
Model No. 121002-1423-B8 (Order
parts from Engine Manufacturer)
44 873 51 06-00 Nut, Keps 3/8-16 unc
MAINFRAME?RIGHT??R
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
For engine service and replacement parts, call the toll free
number for your engine manufacturer listed below:
Briggs & Stratton 1-800-233-3723
5
KEY PART
NO. NO. DESCRIPTION
NOTE: All component dimensions given in U.S. inches.
1 inch = 25.4 mm
1 532 18 85-54 Transmission Assembly
(Includes Key Nos. 2-53)
2 532 18 84-82 Gearcase, L.H. w/Bearing
(Includes Key No. 4)
3 532 43 10-22 Gasket, Gearcase
4 532 00 50-20 Bearing, Needle
5 532 00 13-70 Washer, Thrust 5/8 x 1.10 x 1/32
6 532 13 73-35 Pinion, Input
7 532 14 51-01 Shaft, Input
8 532 12 47-92 Bearing, Needle
9 532 15 44-67 Washer, Seal
10 532 12 46-97 Ball, Steel
11 532 10 03-71 Spring, Shift, Fork
12 532 10 61-60 O-Ring
13 532 14 21-45 Arm, Shift
14 532 00 83-53 Fork, Shift
15 812 00 00-39 Ring, Klip
16 532 15 44-66 Shaft, Shift
18 532 00 43-58 Washer
19 812 00 00-40 Ring, Klip
20 532 10 21-14 Gear, Assembly, Reverse Idler
(Includes Key Nos. 21 and 22)
21 532 10 21-15 Gear, Reverse Idler
22 532 00 68-03 Bearing, Needle
23 532 10 21-11 Shaft, Reverse Idler
24 810 04 07-00 Washer, Lock 7/16
25 873 61 07-00 Nut, Hex 7/16-20
27 532 14 30-09 Bearing, Shaft, Ground Drive L.H.
28 532 10 63-90 Spacer 0.765 x 1.125 x 1.23
29 532 10 21-34 Chain #35-50 Pitch
REPAIR PARTS
TILLER - - MODEL NUMBER MRT6 (96091002100), PRODUCT NUMBER 960 91 00-21
TRANSMISSION
KEY PART
NO. NO. DESCRIPTION
30 532 15 07-37 Ground Shaft Assembly
31 532 14 30-08 Bearing, Shaft, Ground Drive R.H.
32 532 10 63-88 Spacer 0.70 x 1.00 x 1.150
33 532 10 21-21 Sprocket and Gear Assembly
34 532 10 21-12 Shaft, Reduction (2nd)
35 532 10 21-01 Screw, Whiz, Lock 5/16-18 x 3-1/2
36 532 15 43-55 Sprocket Assembly w/Bearing
(Includes Key Nos. 37 and 38)
37 532 12 47-91 Bearing, Needle
38 532 15 43-56 Sprocket, Tine
39 532 10 53-45 Gear, Cluster, Red 1st & 2nd
40 532 10 53-46 Gear, Reverse
41 532 00 83-58 Shaft, Reduction (1st)
42 532 00 42-20 Washer, Thrust
43 532 10 61-46 Spacer 1.01 x 1.75 x 0.760
44 532 15 52-36 Seal Asm, Oil
48 532 18 84-85 Gearcase, R.H. w/Bearing
(Includes Key No. 8)
49 532 43 14-85 Shaft, Tine
50 532 10 61-47 Chain, Roller #50-50 Pitch
51 817 72 04-08 Screw 1/4-20 x 1/2
52 873 22 05-00 Nut, Hex 5/16-18
53 532 16 51-40 Kit, Bearing
58 532 17 95-20 Bolt Shoulder 1/4-20 unc x .875
60 532 18 32-26 Fitting Grease
62 532 43 10-15 Spacer 1.015 x 1.50 x .650
- - 532 00 60-66 Grease, Plastilube #1
TRANSMISSION?
6
22 874 93 06-32 Bolt, Hex 3/8-16 x 2
23 532 00 44-40 Hinge
24 872 14 04-04 Bolt, Carriage 1/4-20 x 1/2 Gr. 5
25 532 12 47-17 Cap, Vinyl
26 532 10 92-27 Pad, Idler
27 532 19 57-94 Shield, Leveling
28 532 12 05-88 Pin, Hinge
29 532 40 43-64 Shield, Side
30 873 97 05-00 Nut Lock Flange
32 873 22 04-00 Nut Fin Hex 1/4-20 unc
33 810 04 04-00 Washer Lock Hvy Helical 1/4
35 872 11 05-05 Bolt Carr. 5/16-18 x 5/8
37 873 80 05-00 Nut Lock Hex w/Ins 5/16-18 unc
38 873 51 05-00 Nut, Keps 5/16-18 unc
KEY PART
NO. NO. DESCRIPTION KEY PART
NO. NO. DESCRIPTION
1 873 90 05-00 Nut, Lock Hex Flange 5/16-18
2 532 19 57-97 Shield, Side, Outer L. H.
3 532 00 83-93 Pin, Stake, Depth
4 812 00 00-35 Ring, Klip
5 532 18 08-47 Bolt, Rdhd Sqnk 5/16-18 x 3/4
6 532 00 83-94 Spring
7 532 00 83-92 Bracket, Latch
8 532 10 92-30 Spring, Depth Stake
9 532 19 58-10 Shield, Tine
13 872 11 05-10 Bolt, Carriage 5/16-18 x 1-1/4
14 532 12 43-11 Bracket, Shield Tine
15 532 19 57-96 Shield, Side, Outer R.H.
16 873 90 04-00 Nut, Hex Flange 1/4-20 unc
18 872 04 04-10 Bolt, Carriage 1/4-20 x 1-1/4 Gr.
19 532 10 27-01 Grip
20 873 22 06-00 Nut, Hex 3/8-16
21 532 10 21-56 Stake, Depth NOTE: All component dimensions given in U.S. inches.
1 inch = 25.4 mm
REPAIR PARTS
TILLER - - MODEL NUMBER MRT6 (96091002100), PRODUCT NUMBER 960 91 00-21
TINE SHIELD
TINE?SHIELD??IN?R
7
KEY PART
NO. NO. DESCRIPTION KEY PART
NO. NO. DESCRIPTION
1 532 00 44-59 Tine, Outer, L.H.
2 532 13 26-73 Clevis Pin
3 532 00 65-54 Tine, Inner, L.H.
4 532 12 46-60 Retainer, Spring Zinc
5 532 13 27-27 Assembly, Hub and Plate, L.H.
8 874 61 06-16 Bolt, Hex 3/8-24 x 1
9 532 00 44-60 Tine, Outer, R.H.
10 532 13 27-28 Assembly, Hub and Plate, R.H.
11 532 00 65-55 Tine, Inner, R.H.
34 873 54 06-00 Nut Crownlock 3/8-24
NOTE: All component dimensions given in U.S. inches.
1 inch = 25.4 mm
REPAIR PARTS
TILLER - - MODEL NUMBER MRT6 (96091002100), PRODUCT NUMBER 960 91 00-21
TINE ASSEMBLY
2
11
11
10
9
9
4
4
5
34
3
3
1
2
1
1
1
9
9
8
tine_ipb_1
8
side_views_126
1 532 43 72-20 Decal, CNSL
2 532 43 72-21 Decal, CNTRL PNL
3 532 19 66-22 Decal, Control Tine
5 532 15 98-77 Decal, Hand Placement
6 532 10 21-80 Decal, Shift Indicator
7 532 14 54-37 Decal, Euro CE
8 532 43 53-35 Decal, Engine B&S
9 532 17 65-57 Decal, Warning, Rotating Tines
10 532 41 76-82 Decal, Engine
12 532 15 78-01 Decal
13 532 43 72-17 Decal, Belt Guard
- - 532 43 73-61 Manual, Operator's (EURO)
- - 532 43 73-62 Manual, Operator's (SCAN)
- - 532 43 73-63 Manual, Operator's (EBLOC)
- - 532 43 73-64 Manual, Operator's (BALTIC)
KEY PART
NO. NO. DESCRIPTION
3
2
6
9
REPAIR PARTS
TILLER - - MODEL NUMBER MRT6 (96091002100), PRODUCT NUMBER 960 91 00-21
DECALS
5
1
7
8
10
13
12
9
07.20.10 JA
Table of contents
Other Jonsered Tiller manuals
Jonsered

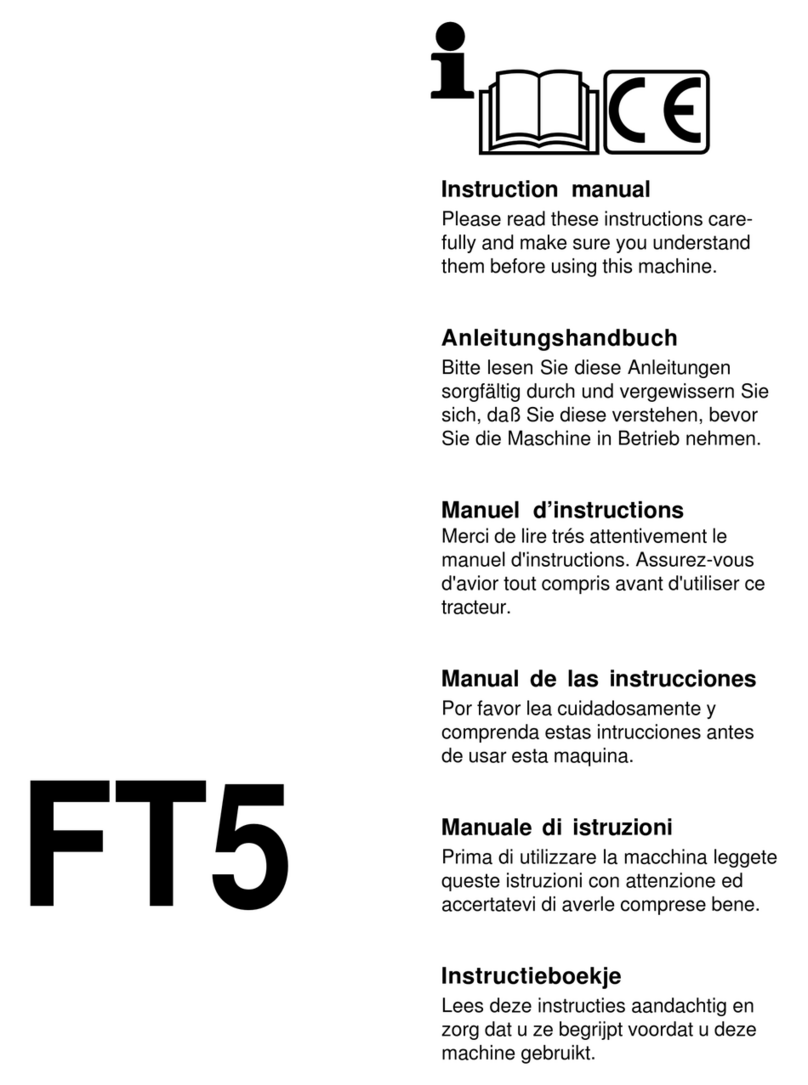

Jonsered FT5 User manual
Jonsered
Jonsered ANLEITUNGSHANDBUCH CT2105 R User manual
Jonsered
Jonsered ca 150 User manual
Jonsered

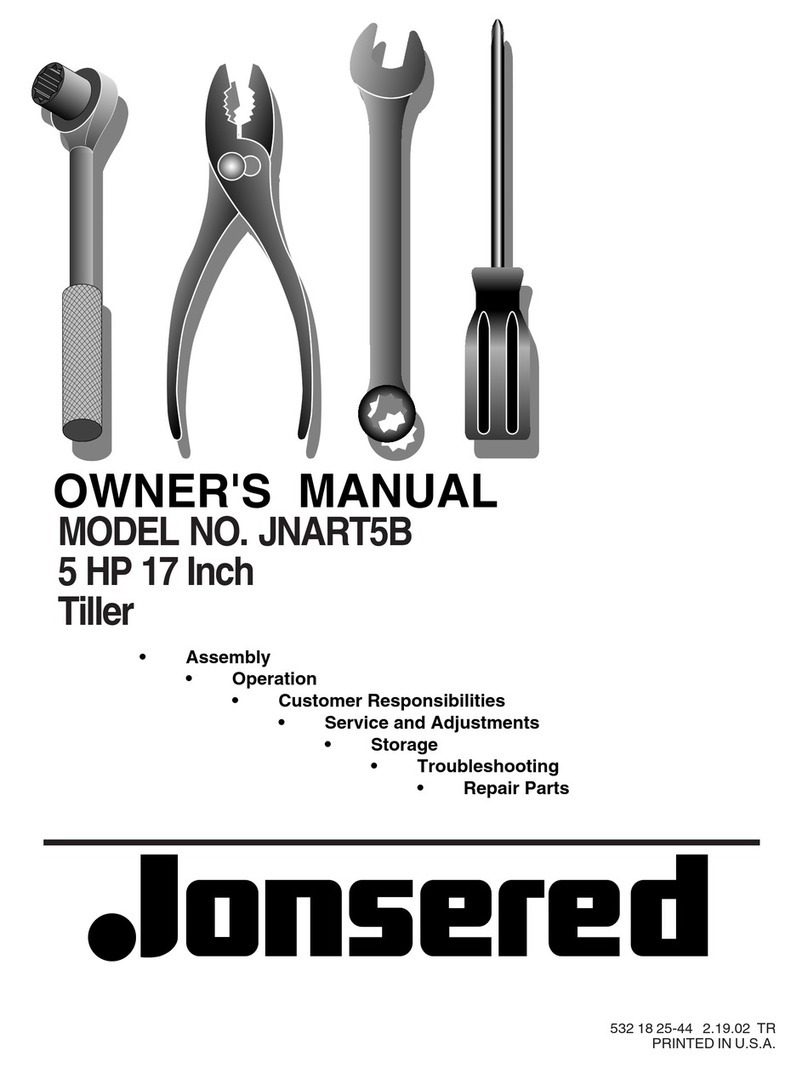

Jonsered JNART5B User manual
Jonsered

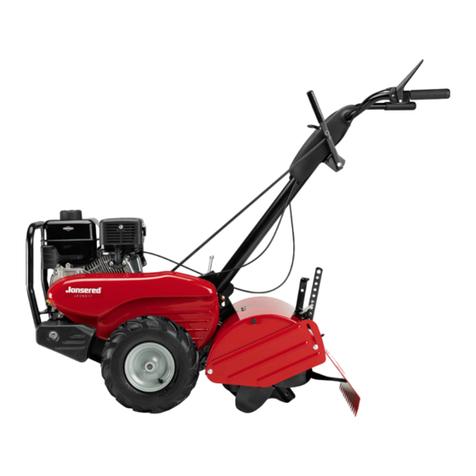

Jonsered J208D17 User manual
Jonsered

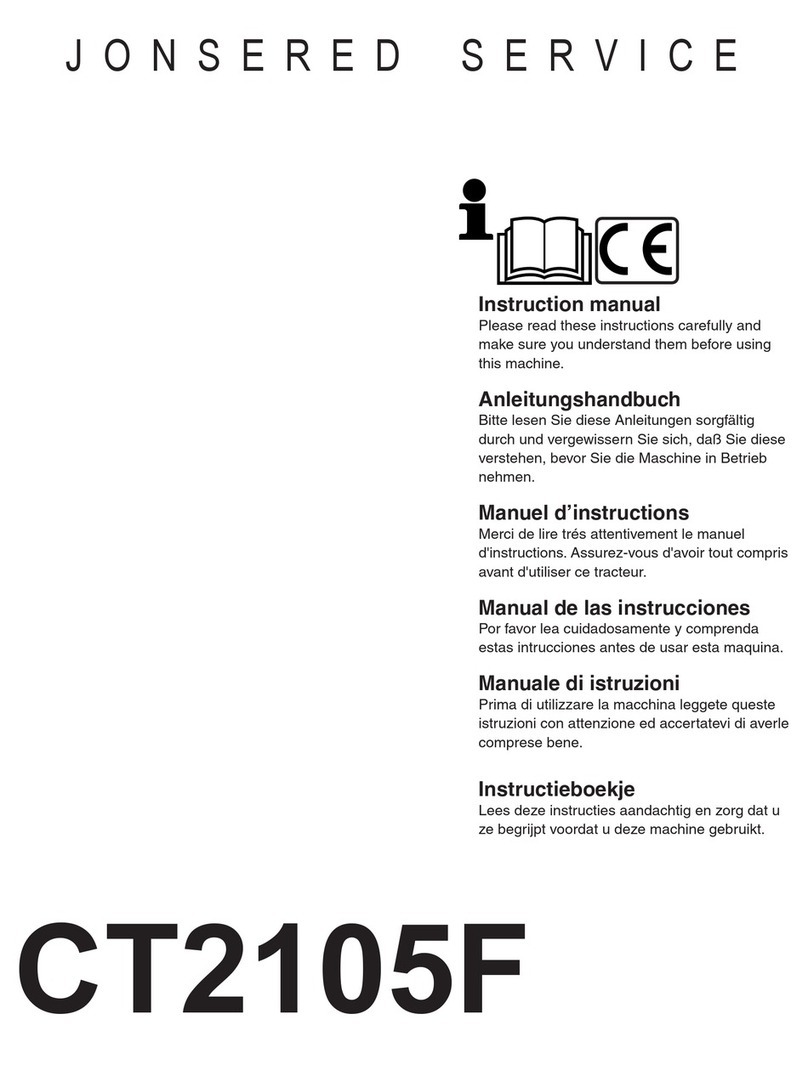

Jonsered CT2105F User manual
Jonsered
Jonsered J208D17 User manual
Jonsered
Jonsered ANLEITUNGSHANDBUCH CT2105 R User manual
Jonsered

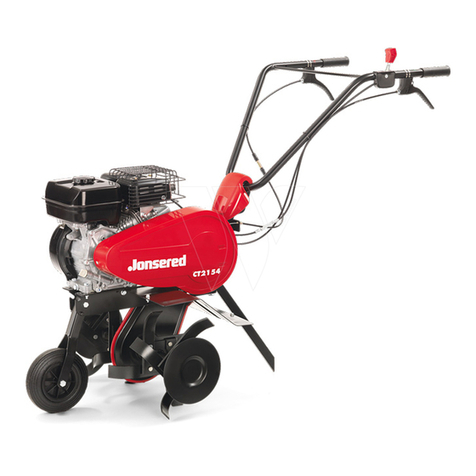

Jonsered CT2154 User manual
