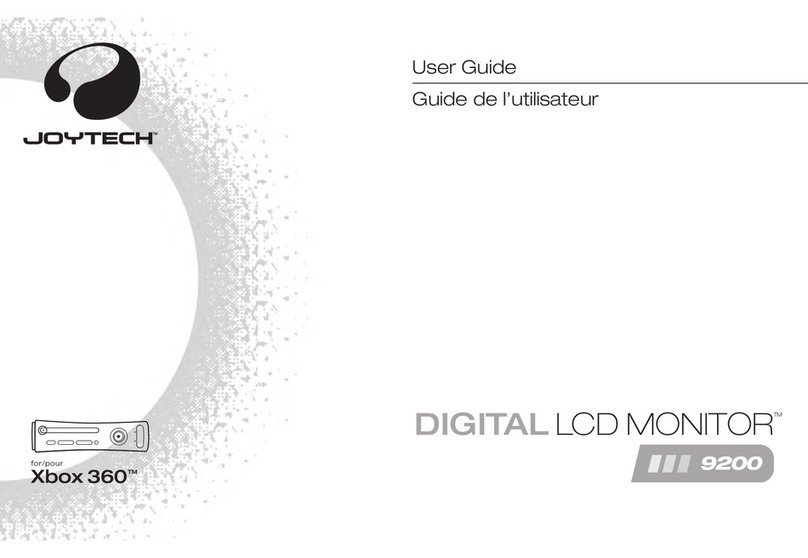

Joytech 9200 User manual

9200 DIGITAL

LCD MONITOR™

User Guide

Guide de l’utilisateur

for/pour/para

XBOX

360

for/pour/para

XBOX

360

for/pour/para

XBOX

360

Welcome

Thank you for purchasing the 9200 Digital LCD Monitor™ for the Xbox

360™ console. Before using this product please familiarize yourself

thoroughly with this user guide so you understand the setup procedure

and functions of the product.

Note: Read the Xbox 360™ console instruction manual for important

safety information and health warnings. Please retain all documents for

future reference.

Package Contents

Check you have the following items:

1) 9200 Digital LCD Monitor™

2) Monitor Mount for Xbox 360™

3) Remote Control

4) Power Adapter

5) Power Adapter Link-Cable

6) Protective Bag

7) User Guide

Part Names

1) AV Connector

2) Monitor Mount Lock

3) DC IN 12V Connector

4) (ON / Standby) Button

and LED indicator

5) Direction Button

6) Menu Button

7) Earphone Output

8) IR Receiver

Setup Procedure

1) Switch off the Xbox 360™ console

and remove the AC power cordfrom

the wall outlet

2) Disconnect all cables and accessories from the Xbox 360™ console

and remove the Xbox 360™ Faceplate.

3) Place the Xbox 360™ console on a stable and flat surface.

Note: Ensure the Monitor is not attached to the Monitor Mount

during this stage of the setup.

Slide the Monitor Mount backwards while guiding the Faceplate so it

attaches to the Xbox 360™ console. Rotate the Monitor Mount Lock so

it closes and clicks into position on the rear of the Xbox 360™.

4) Rotate the bosses on the Monitor Mount so they arein the vertical

position. Hold the Monitor and align the connections to the bosses on

the Monitor Base. Press down firmly so the Release Buttons on the rear

of the Monitor click. The Monitor is now locked on the Monitor Base.

2 ENGISH

234

567

8) Connect the Power Adapter Link-Cable

between the Power Adapter and the DC IN 12V

connector on the Monitor Mount.

9) Press the ON / Standby button on the Xbox

360™ console and then the Monitor.

Removing the Monitor from the

Monitor Base

1) Make sure the Monitor and Xbox 360™ con-

sole are switched off. Slide both of the Release

Buttons on the rear of the Monitor.

Note: Always make sure the Monitor is removed from the

Monitor Base in a linear motion. Twisting the Monitor could

cause damage.

2) While holding the Release Buttons, carefully lift the Monitor to remove

it from the Monitor Base.

Note: Attempting to attach

the Monitor to the Monitor

Base at an angle could

cause damage. Always make

sure the Monitor is connect-

ed straight and locked firmly

in position beforeuse.

5) Connect the Monitor AV

Connector to the AV port on the

rear of the Xbox 360™ console.

6) Fully insertthe Power Adapter supplied with

the Monitor into the Xbox 360™ console.

7) Fully insert the Microsoft Xbox 360™ power

supply cord into the Power Adapter.

3 ENGLISH

Monitor Settings

Set the volume using the left and right arrows on the Direction Button.

Adjust picture and sound settings by pressing the Menu Button to

display the OSD and then use the Direction Button to navigate up and

down. Adjust a highlighted setting using the left and right arrows on the

Direction Button.

Press the Menu Button again to close the OSD and save settings. The

OSD will turn off automatically and save settings if no buttons are

pressed for 10 seconds.

Remote Control

The Remote Control can access the

Monitor OSD to adjust picture and sound

settings. It can also control some movie

and music playback features of the

Xbox 360™ console.

1. POWER – Used to switch Monitor between ON

and standby mode.

2. LEFT/RIGHT - When the OSD is not displayed

the Left/Right will adjust volume

3. MUTE – Mutes the speakers in the Monitor

4. SCAN - Fast forward playback

5. NEXT – Skips to the beginning of the next track.

6. PLAY–Begins playback of movie or audio

media on Xbox 360™

7. STOP - Stops playback

8. PAUSE – Pauses and resumes media playback.

9. DVD MENU – Displays the disc menu of the DVD

video disc. The menu contents will vary depending

on the disc.

10. OPEN/ CLOSE – Opens or closes the Xbox 360™ disc tray.

11. ACTION BUTTONS (A,B,X,Y) – Selects commands on the Xbox 360™ Dashboard.

12. Monitor OSD navigation

13 MENU – Displays the Monitor on screen display

14. SRS – Toggles SRS® audio enhancement on and off

15. SCAN - Fast reverse playback

16. PREVIOUS – Skips back top the beginning of the current or previous chapter.

17. DISPLAY – Accesses the Xbox 360™ onscreen menu for Subtitles, Camera Angle, Audio

Channel Select and Zoom

18. OK - Enters the item selected on the DVD disc menu or the on-screen control panel

of the Xbox 360™.

19. Xbox 360™ Dashboard navigation controls

20. GUIDE – XBOX Guide Button displays the dashboard

SRS® Audio Technology

The Digital LCD Monitor™ features SRS® Audio Technology.SRS®

improves the audio dynamics of the stereo speakers and earphones.

Toggle SRS® on and off to hear the change in audio effect.

Monitor Display

The 9200 Digital LCD Monitor™ features RGB color definition for a

bright vibrant image suitable for both games and movies. The Monitor

supports Standard Definition (SD) video signals from the Xbox™ 360

console and is not designed for use with High Definition (HD) signals.

4 ENGISH

Prevent the Monitor and Xbox 360™ Console

from Overheating

Do not block any ventilation openings on

the Monitor or Console. Do not place

the Monitor and Console on a bed,

sofa, or other soft surface that may

block ventilation openings.

Do not operate the Monitor,

Console or both products while the

Monitor is attached to the Monitor

Base and is folded flat in the storage

position. When the Monitor or Console is

used the Monitor must be opened in a

near-vertical position so it does not block the

ventilation openings in the top of the Console.

Remote Control (Battery Replacement)

The Remote Control is powered by two LR1130 batteries (supplied).

To replace the batteries use a small cross head screwdriver to open the

panel on the underside of the Remote Control and insert new batteries

observing the correct polarity.

Troubleshooting

Should your Monitor develop a problem, please check the troubleshoot-

ing points below:

• No picture

Check the power is switched on to the Xbox 360™ Power Supply.

Check the Power Adapter is correctly fitted between the Xbox 360™

console and the Power Cord.

Check the Power Adapter Link-Cable is fitted securely.

Check that the Xbox 360™ console is switched on.

Ensure that the Monitor AV Connector is correctly fitted into

the AV port of the Xbox 360™.

Adjust the brightness and contrast settings of the Monitor.

•No Sound

Adjust the volume control and check the audio is not muted

Check there are no earphones connected to the Monitor.

•Monitor Remote Control does not work.

There is an object in the line of sight between

the Remote Control and the IR Receiver.

The distance between the Remote Control and

the IR Receiver is too far.

Check that the batteries areinserted correctly.

Replace old batteries with new ones.

5 ENGISH

Warranty

When you purchase from JOYTECH, you purchase quality. JOYTECH

offers a one (1) year replacement warranty on this product. JOYTECH

warrants to the original consumer purchaser that this product is free

from defects in either material or workmanship. If a defect covered by

this warranty occurs, JOYTECH, at its option, will repair or replace the

product at no charge. JOYTECH products are tested to withstand nor-

mal wear and tear, but are not indestructible and can be damaged if

misused. The JOYTECH warranty does not cover normal wear and tear

or abusive use. This warranty does not apply to products used for any

industrial, professional or commercial purpose. This warranty does not

apply to products that have been damaged by abuse, misuse, modifica-

tion or tampering or by any other cause not relating to either materials or

workmanship. If a replacement is necessary and your product is no

longer available, a comparable product may be substituted at JOYTECH

sole discretion.

This product is warranted as new, however it may contain factory refur-

bished components.

For technical support please consult the JOYTECH website at

www.joytech.net/support

LCD Panel Warranty Statement

The JOYTECH 12 month limited warranty reserves an allowance for

missing or faulty pixels. Due to the millions of transistors (pixels) used in

the manufacturing process of LCD TFT Monitors; it is possible to some-

times have a non-performing transistor (bright or dark pixels).

Manufacturers of LCD TFT Monitors expect this defect to occur to a lim-

ited extent. Therefore, there is no warranty for any dead pixels unless or

until the display has 5 or more dead pixels.

Battery Care

Incorrect use of batteries can result in battery leakage or explosion.

When using batteries, be sure to follow these instructions:

•Make sure that the plus and minus terminals of the batteries are

inserted in the correct directions.

•Do not mix old and new or different types of batteries.

•Do not attempt to recharge non-rechargeable type batteries.

•Remove the batteries when the product will not be used for an

extended period of time.

•If the battery has leaked, be sure to carefully remove all residue before

inserting new batteries.

CAUTION

•Do not remove this product when the console power is ON.

•Avoid placing this product near extreme temperatures or humidity.

•Do not submerse or allow this product to come into contact with

water.Use in drylocations only.

•An adult should supervise young children when using this product.

•Use of any attachment or accessorywith this product not recom-

mended or sold by JOYTECH may result in risk of fire, electrical shock

or injuryto persons or product.

•Do not clean any parts with alcohol, cleaning solutions containing

alcohol or strong abrasives. Use a soft cloth and a little water.

• Tampering with this product will invalidate your JOYTECH warranty.

IMPORTANT HEALTH WARNINGS

Photosensitive Seizure Warning

Avery small percentage of people may experience a seizure when

exposed to certain visual images, including flashing lights or patterns

that may appear in video games. Even people who have no history of

seizures or epilepsy may have an undiagnosed condition that can

ENGISH

cause these “photosensitive epileptic seizures” while watching video

games. These seizures may have a variety of symptoms, including

lightheadedness, altered vision, eye or face twitching, jerking or shaking

of arms or legs, disorientation, confusion, or momentary loss of aware-

ness. Seizures may also cause loss of consciousness or convulsions

that can lead to injury from falling down or striking nearby objects.

Immediately stop playing and consult a doctor if you experience

any of these symptoms.

Parents should watch for or ask their children about the above symp-

toms - children and teenagers are more likely than adults to experience

these seizures.

Taking the following precautions may reduce the risk of photosensitive

epileptic seizures:

•Sit further away from the screen

•Use a smaller TV screen

•Play in a well-lit room

•Do not play when you are drowsy or fatigued

If you or any of your relatives have a historyof seizures or epilepsy, con-

sult a doctor beforeplaying.

We also advise you to take regular breaks of 15 minutes every hour.

Design and specifications are subject to change without notice.

Dispose of this product or products contained in this pack in accor-

dance with local and national disposal regulations.

Not suitable for children under 3 years of age. Specifications and external appearance are subject to change without prior notice. JOYTECH is a trademark

of Take-Two Interactive Software, Inc. Microsoft, Xbox, Xbox Live, Xbox 360 and the Xbox logos are either registered trademarks or trademarks of Microsoft

Corporation in the U.S. and/or other countries.

Ne convenient pas a un enfant de moins de 3 ans. Les caractéristiques et l'apparence extérieures sont susceptibles de changer sans notification préalable.
