JRC NJT5667 Series User manual

Revision: 01
Instruction Manual
C-band 2W BUC
[NJT5667, NJT5668 & NJT5674 series]
Document Part Number: IM-T5667
Issue Date: November 28, 2011
IM-T5667 Rev.01
Copyright © 2011, New Japan Radio Co., Ltd. All rights reserved.
This instruction manual may not be reproduced, in part or in
whole, without the permission of New Japan Radio Co., Ltd.
The specifications and information regarding the products in this
instruction manual are subject to change without notice.
All statements, information, and recommendations in this
instruction manual are believed to be accurate but are presented
without warranty of any kind, express, or implied.
Users must take full responsibility for their application of any
products.
for
NJT5667/68/74 series Instruction Manual Page 1

1.
2.
3.
4.
5.
NJRC strives to produce reliable and high quality microwave components.
NJRC's microwave components are intended for specific applications and
require proper maintenance and handling. To enhance the performance
and service of NJRC's microwave components, the devices, machinery or
equipment into which they are integrated should undergo preventative
maintenance and inspection at regularly scheduled intervals. Failure to
properly maintain equipment and machinery incorporating these products
can result in catastrophic system failures.
To ensure the highest levels of reliability, NJRC products must always be
properly handled. The introduction of external contaminants (e.g. dust, oil
or cosmetics) can result in failures of microwave components.
NJRC offers a variety of microwave components intended for particular
applications. It is important that you select the proper component for your
intended application. You may contact NJRC's sales office or sales
representatives, if you are uncertain about the products listed in the
catalog and the specification sheets.
Special care is required in designing devices, machinery or equipment,
which demand high levels of reliability. This is particularly important when
designing critical components or systems whose foreseeable failure can
result in situations that could adversely affect health or safety. In
designing such critical devices, equipment or machinery, careful
consideration should be given to, amongst other things, their safety
design, fail-safe design, back-up and redundancy systems, and diffusion
design.
The products listed in the catalog and specification sheets may not be
appropriate for use in certain equipment where reliability is critical or
where the products may be subjected to extreme conditions. You should
consult our sales office or sales representatives before using the products
in any of the following types of equipment.
* Aerospace Equipment
* Equipment Used in the Deep Sea
* Power Generator Control Equipment (nuclear, steam, hydraulic)
* Life Maintenance Medical Equipment
* Fire Alarm/Intruder Detector
* Vehicle Control Equipment (automobile, airplane, railroad, ship, etc.)
* Various Safety Equipment
General Caution
IM-T5667 Rev.01
NJT5667/68/74 series Instruction Manual Page 2

6.
General Caution (continued)
NJRC's products have been designed and tested to function within
controlled environmental conditions. Do not use products under conditions
that deviate from methods or applications specified in the catalog and
specification sheets. Failure to employ NJRC's products in the proper
applications can lead to deterioration, destruction or failure of the
products. NJRC shall not be responsible for any bodily injury, fires or
accidents, property damage or any consequential damages resulting from
the misuse or misapplication of its products. PRODUCTS ARE SOLD
WITHOUT WARRANTY OF ANY OF KIND, EITHER EXPRESS OR IMPLIED,
INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTY OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
IM-T5667 Rev.01
NJT5667/68/74 series Instruction Manual Page 3

Updated instruction manual may be available from NJRC's sales group
[email protected].
Contents
This instruction manual is intended for use by trained field installers or system
engineers responsible for satellite networks.
IM-T5667 Rev.01
20 - 21
This instruction manual describes C-band 2W BUC (Model No.: NJT5667,
NJT5667F, NJT5668, NJT5668F, NJT5674N and NJT5674F) herein referred to as
"the Unit".
This instruction manual provides information and instructions for installation and
operation of the Unit.
About This Instruction Manual
1. Introduction ………………………………………………………………………………
2. Safety Instructions ……………………………………………………………………
3. Packing List ………………………………………………………………………………
12 - 15
16 - 19
6 - 9
6. Installing ……………………………………………………………………………………
11
5. Physical Description …………………………………………………………………
4. Overview ……………………………………………………………………………………
7. Specification ………………………………………………………………………………
5
10
NJT5667/68/74 series Instruction Manual Page 4

Local Oscillation
Frequency
IF
Frequency
Refefence
Frequency
Palapa C-band 2W BUC (Model No.: NJT5674N and NJT5674F) receives a
reference signal (10 MHz) and an IF signal (L‐Band: 1,065 to 1,425 MHz) input
and transmits an RF signal (Palapa C-band: 6.365 to 6.725 GHz) output.
Insat C-band 2W BUC (Model No.: NJT5668 and NJT5668F) receives a reference
signal (10 MHz) and an IF signal (L‐Band: 965 to 1,265 MHz) input and transmits
an RF signal (Insat C-band: 6.725 to 7.025 GHz) output.
Insat C-band, N-type female Interfece Connector
Insat C-band, F-type female Interfece Connector
The Unit comes in a single, weatherized housing rated for outdoor use. The Unit
has either an N-Type or a F-type female connector input, a WR137 waveguide
(CPR 137 grooved flange) output. The Unit is operated by +24 V DC power
(Range: +15 to +30 V) input.
This instruction manual is for C-band 2W BUC with followint model number:
NJT5667, NJT5667F, NJT5668, NJT5668F, NJT5674N and NJT5674F.
1. Introduction
Standard C-band 2W BUC (Model No.: NJT5667 and NJT5667F) receives a
reference signal (10 MHz) and an IF signal (L‐Band: 950 to 1,525 MHz) input and
transmits an RF signal (Standard C-band: 5.850 to 6.425 GHz) output.
IM-T5667 Rev.01
The line-up is mentioned in a chart below.
Line-up Description
Standard C-band, N-type female Interfece Connector
Standard C-band, F-type female Interfece Connector
Palapa C-band, N-type female Interfece Connector
Palapa C-band, F-type female Interfece Connector
Model
Number
NJT5668
NJT5668F
NJT5667 5.850
to 6.425 GHz 4.90 GHz 950 to 1,525 MHz
NJT5667F
6.725
to 7.025 GHz 5.76 GHz 965 to 1,265 MHz
NJT5668F
NJT5674N 6.365
to 6.725 GHz 5.30 GHz 1,065 to 1,425 MHz
NJT5674F
RF
Frequency
10 MHz
The detail of frequency for the reference, IF, RF and local oscillaton is mentioned
in a chart below.
Model Number
NJT5667
NJT5667F
NJT5674N
NJT5674F
NJT5668
NJT5667/68/74 series Instruction Manual Page 5

DANGER, WARNING, CAUTION, and NOTE statements are used throughout
this instruction manual to emphasize important and critical information. You
must read these statements to help ensure safety and to prevent product
damage. The statement are defined below.
DANGER, WARNING, CAUTION, and NOTE Statements
Use the following safety guidelines to help protect the Unit from potential damage
and to help ensure your own personal safety.
Statement Symbol Description
WARNING WARNING indicates a potentially
hazardous situation which, if not
avoided, could result in death or
serious injury.
CAUTION indicates a potentially
hazardous situation which, if not
avoided, could result in minor or
moderate injury. CAUTION may
also be used to indicate other
unsafe practices or risks of
property damage.
NOTE NOTE is used to notify of
installation, operation, or
maintenance information that is
important, but not hazard-
related.
IM-T5667 Rev.01
2. Safety Instructions
CAUTION
DANGER DANGER indicates an imminently
hazardous situation which, if not
avoided, will result in death or
serious injury.
NJT5667/68/74 series Instruction Manual Page 6

IM-T5667 Rev.01
When installing the Unit, observe the following safety guidelines.
A radiation hazard exists if the BUC is operated with its RF
signal output unterminated.
DO NOT operate the BUC without a load or termination
attached to the RF signal output.
1. Opening / Removing
2. Input Voltage
Only input a voltage within the range indicated in specified
voltage.
DO operate at the input voltage of +15 to +30 V DC power.
Symbol Description
GENERIC HAZARD
DO NOT dismantle this product.
Dismantlement may cause malfunction and electric shock.
ELECTRIC HAZARD
HOT SURFACE
2.1. Safety Statements
3. RF Radiation
NJT5667/68/74 series Instruction Manual Page 7

5. Input Level
IM-T5667 Rev.01
4. High Temperatures
DO NOT input an IF signal over the range of +13 dBm
maximum and a reference signal within the range of -5 to +5
dBm.
6. Operating Temperature.
DO NOT touch the body, especially fins, during operating the
Unit.
High touch temperatures may exist, depending on load
conditions.
Operate the Unit within the ambient temperature range of -40
to +55 degree C.
2.2. Instruction Statements
1. Mounting
DO NOT block the fins.
Normally the Unit should be mounted with long fins face up.
2. Weatherproof
The Unit is mounted outdoors must be adequately
weatherproofed.

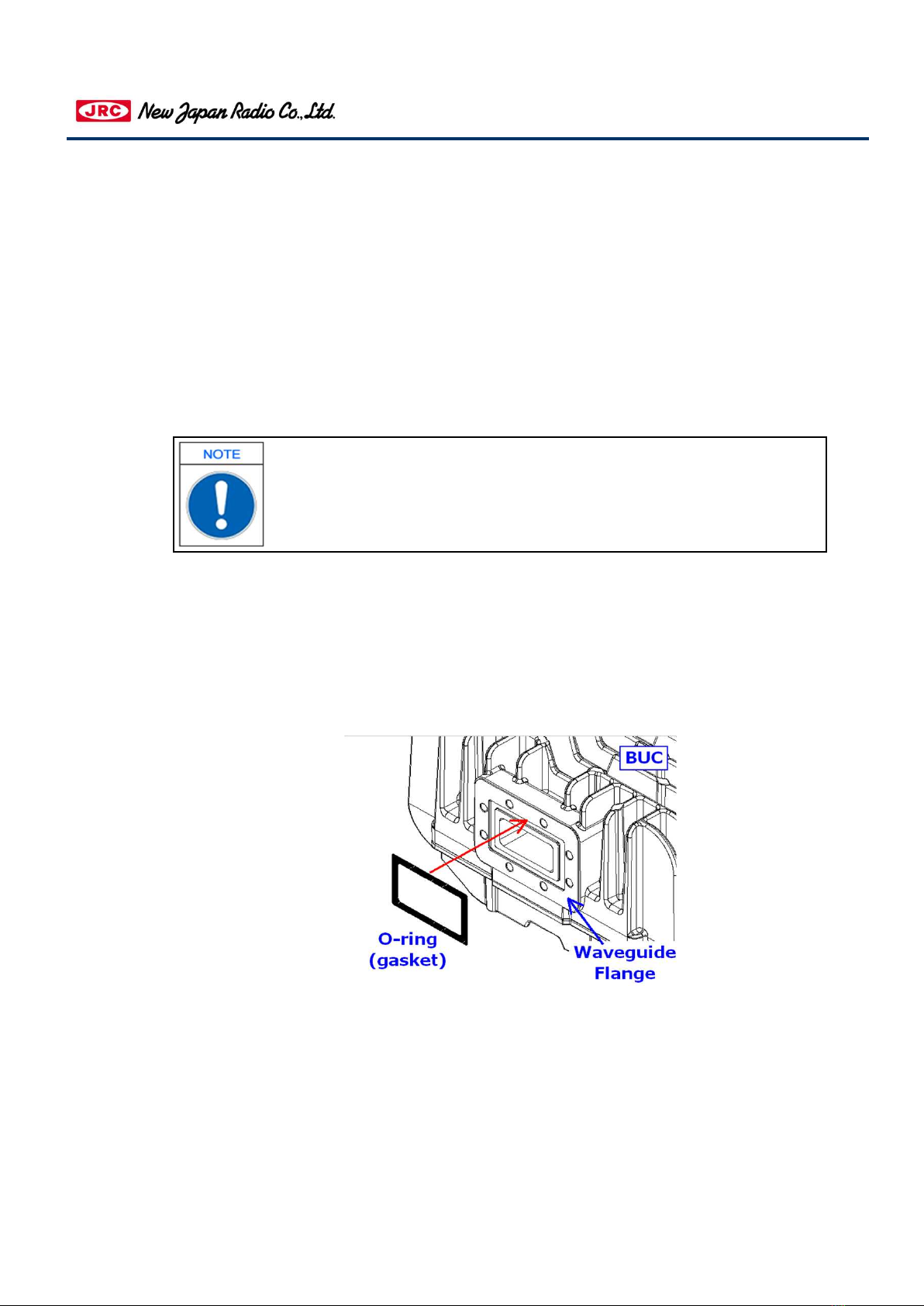

Ensure the waveguide joints are properly sealed with the
supplied o-ring (gasket).
Use self-amalgamating tape to seal connectors and cable entry
points from the connector to the cable sheath.
NJT5667/68/74 series Instruction Manual Page 8

DO NOT touch the filter in the waveguide output.
The filter is used for Receive band noise and spurious rejection.
If the filter is damaged or dirty, it may not reject a sufficient
value of false receive band.
IM-T5667 Rev.01
4. Connecter
Connect the IF cable to the input connector of both N and F-
type with 0.68 to 1.13 N・m torque.
5. Warranty
Opening or removing any component (e.g. label, and screws)
or sealed area will immediately void the warranty.
3. Waveguide
NJT5667/68/74 series Instruction Manual Page 9

Description
NJT5667, NJT5667F, NJT5668, NJT5668F, NJT5674N,
Accessory of BUC
C-band 2W BUC
OR
NJT5674F
Date sheet
Qty(1), O-ring
3. 1 sheet
1 unit
1 set
IM-T5667 Rev.01
1.
2.
QtyNo.
The Unit is shipped in a single shipping container with the following content:
3. Packing List
NJT5667/68/74 series Instruction Manual Page 10

Insat C-band, F-type female Interfece Connector
NJT5668F
Palapa C-band, F-type female Interfece Connector
NJT5668 Insat C-band, N-type female Interfece Connector
The unique features are
・High Efficiency & Low Distortion
* P1dB: +33 dBm min. over temperature
* Power Consumption: 33 W max.
・Various RF Frequency Line-up:
* Standard C-band: 5.85 to 6.425 GHz
* Palapa C-band: 6.365 to 6.725 GHz
* Insat C-band: 6.725 to 7.025 GHz
・Small Size & Light Weight
* Dimension: (L) 190.6 x (W) 160 x (H) 59 mm [7.50" x 6.30" x 2.32"]
* Weight: 1.9 kg [4.2 lbs]
・LED Indicator
・RoHS Compliance
The Unit transmits an RF singal of C-band with up to 2W (+33 dBm) linear.

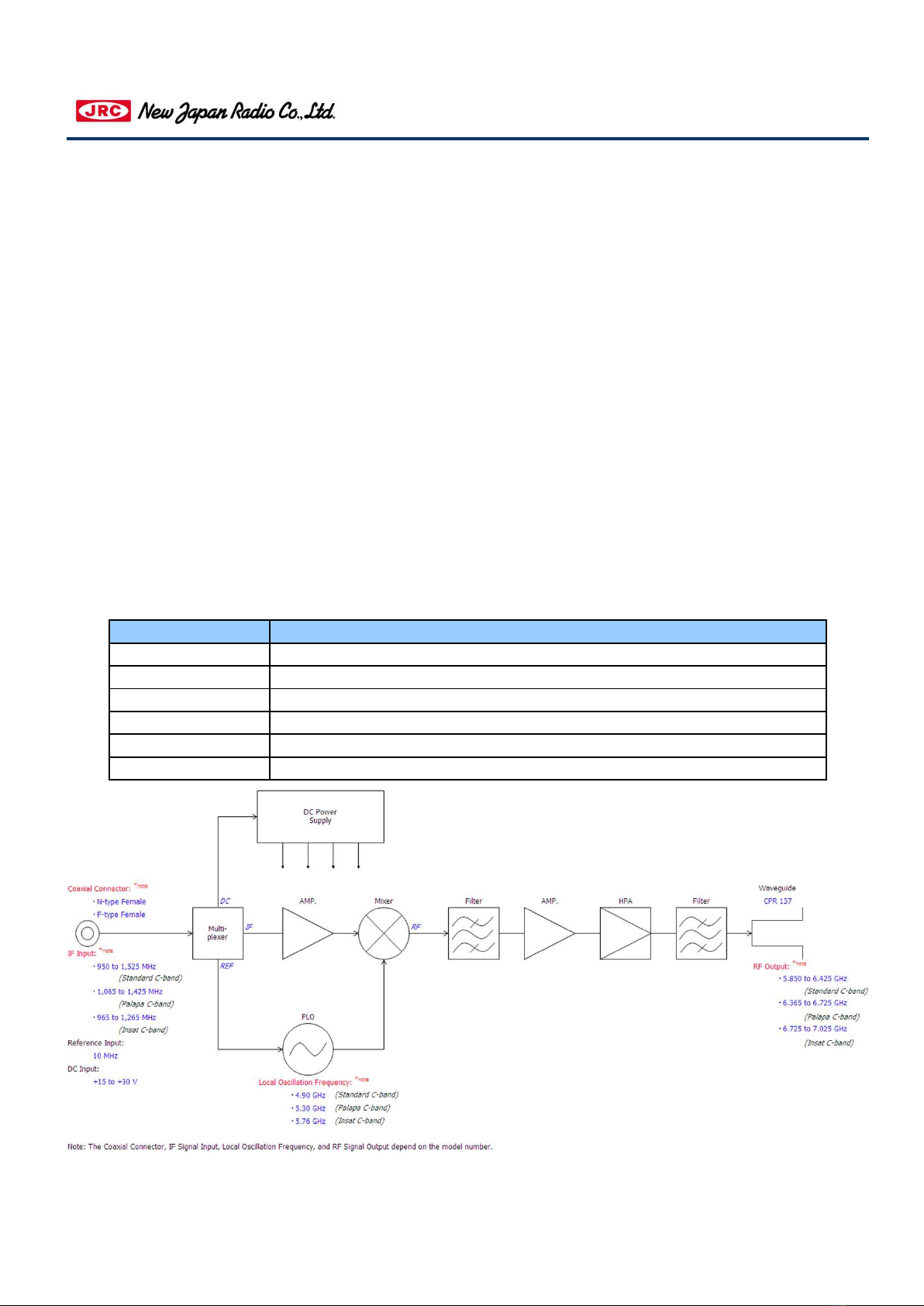

Block Diagram
IM-T5667 Rev.01
4. Overview
NJT5667F Standard C-band, F-type female Interfece Connector
NJT5674N Palapa C-band, N-type female Interfece Connector
NJT5674F
NJT5667 Standard C-band, N-type female Interfece Connector
Model Number Line-up Description
The line-up is mentioned in a chart below.
NJT5667/68/74 series Instruction Manual Page 11

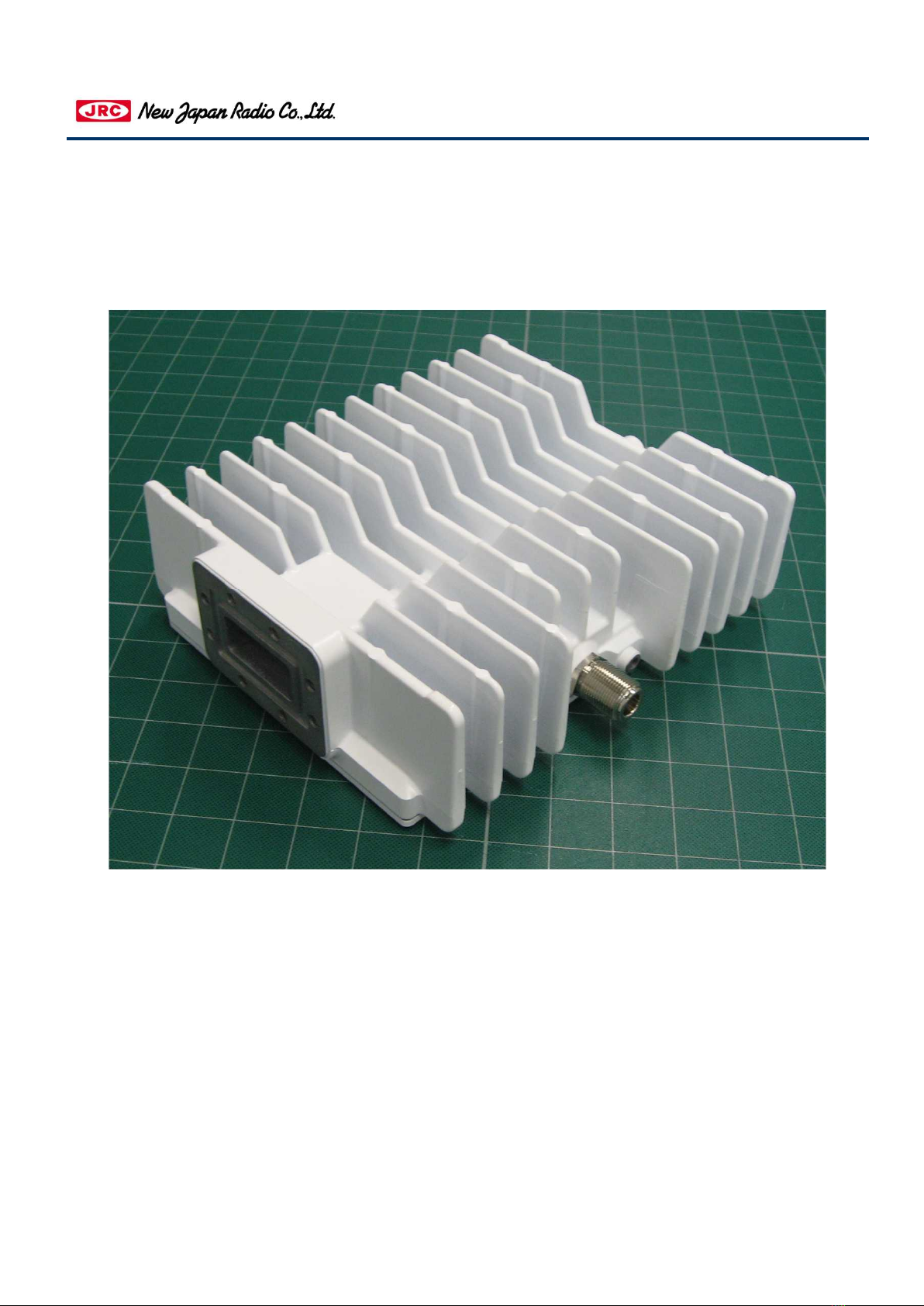

Overall Picture
(N-type Female Connector)
This section describes appearance and outline for the Unit.
IM-T5667 Rev.01
5.1. Appearance
5. Physical Description
NJT5667/68/74 series Instruction Manual Page 12

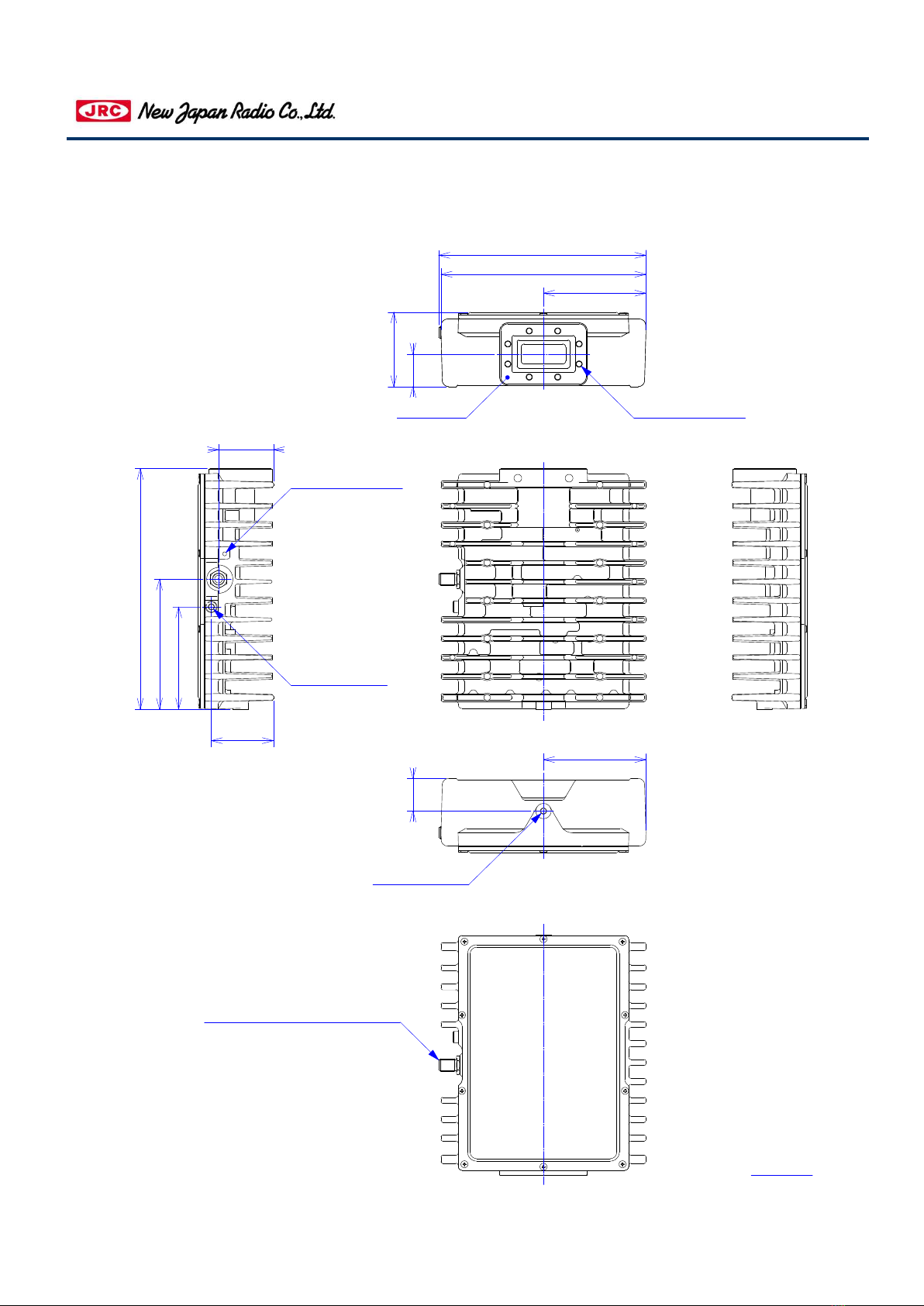

5.2.1. Outline Drawing of N-type Female Connector Model
IM-T5667 Rev.01
5.2. Outline
25 .8
80
48 .5
81
Ｌ ＥＤ Ｉ ｎ ｄ ｉ ｃ ａ ｔ ｏ ｒ
Ｎ ｏ ． １ ０－ ３ ２ＵＮ Ｆ
ｄ ｅ ｐ ｔ ｈ ６ ｍ ｉ ｎ ．
160
80
59
25 .8
８－Ｎ ｏ ． １ ０－ ３ ２ＵＮ Ｆ
ｄ ｅ ｐ ｔ ｈ ６ ｍ ｉ ｎ ．
ＤＣ Ｐ ｏｗ ｅ ｒ ： ＋ １ ５ ｔ ｏ ＋ ３ ０ ＶＤＣ
Ｎ ｏ ． １ ０－ ３ ２ＵＮ Ｆ
ｄ ｅ ｐ ｔ ｈ ６ ｍ ｉ ｎ ．
Ｕ ｎ ｉ ｔ ： ｍｍ
190 .6
42 .9
103
(166 .9)
Ｎ－ ｔ ｙ ｐ ｅ ， ｆ ｅｍ ａ ｌ ｅ ｃ ｏ ｎ ｎ ｅ ｃ ｔ ｏ ｒ
Ｉ Ｆ ／ Ｒ ｅ ｆ ． （ １ ０ＭＨ ｚ ）
Ｃ ＰＲ－ １ ３ ７Ｇ
Ground Hole
NJT5667/68/74 series Instruction Manual Page 13

5.2.2. Outline Drawing of F-type Female Connector Model
IM-T5667 Rev.01
25 .8
80
48 .5
81
Ｌ ＥＤ Ｉ ｎ ｄ ｉ ｃ ａ ｔ ｏ ｒ
Ｎ ｏ ． １ ０－ ３ ２ＵＮ Ｆ
ｄ ｅ ｐ ｔ ｈ ６ ｍ ｉ ｎ ．
160
80
59
25 .8
８－Ｎ ｏ ． １ ０－ ３ ２ＵＮ Ｆ
ｄ ｅ ｐ ｔ ｈ ６ ｍ ｉ ｎ ．
Ｎ ｏ ． １ ０－ ３ ２ＵＮ Ｆ
ｄ ｅ ｐ ｔ ｈ ６ ｍ ｉ ｎ ．
Ｕ ｎ ｉ ｔ ： ｍｍ
190 .6
42 .9
103
(161 .8)
ＤＣ Ｐ ｏｗ ｅ ｒ ： ＋ １ ５ ｔ ｏ ＋ ３ ０ ＶＤＣ
Ｆ－ ｔ ｙ ｐ ｅ ， ｆ ｅｍ ａ ｌ ｅ ｃ ｏ ｎ ｎ ｅ ｃ ｔ ｏ ｒ
Ｉ Ｆ ／ Ｒ ｅ ｆ ． （ １ ０ＭＨ ｚ ）
Ｃ ＰＲ－ １ ３ ７Ｇ
Ground Hole
NJT5667/68/74 series Instruction Manual Page 14

RED: L.O. unlocked (or no reference
signal)
N-type
OR
F-type
Female
Connector
CPR-137G
LED
Indicator
Item Description
IF / Reference
Input
and
DC Power Input
RF Output
(Waveguide)
Local Unlock Alarm GREEN: L.O. locked
Purpose
The Unit receives an IF signal and a
reference signal and is required to
supply +15 to +30 V DC power via this
connector.
The Unit transmits an RF signal via this
waveguide.
IM-T5667 Rev.01
5.3. Description of Connectors, Switches, and LEDs
Ground
Hole
M4 Threaded Hole Common chassis ground
NJT5667/68/74 series Instruction Manual Page 15

Step 1: Verify that the groove on the waveguide flange of the Unit for the
o-ring is clean.
Insert the supplied o-ring (gasket) the groove as shown in a figure
below.
This section describes basic installation for the Unit.
6. Installing
IM-T5667 Rev.01
6.1. Mounting Configuration
The Unit can be mounted with OMT or the waveguide filter of the satellite
antenna.
When mounting on the OMT or the waveguide filter, follow the following
caution:
DO NOT block the fins.
Normally the Unit should be mounted with long fins face up.
When mounting with the OMT or the waveguide filter, follow the following
steps:
Insaeting O-ring
NJT5667/68/74 series Instruction Manual Page 16

The Unit must be adequately weatherproofed to place in
outdoor.
Ensure that the waveguide joint is properly sealed with the
supplied o-ring (gasket).
IM-T5667 Rev.01
5/8"
3/4"
7/8"
Step 2: Prepare the bolts or screws of the length based on a table below,
spring washers, and flat washers for No.10-32UNF of 8 sets, before
fixing the OMT or the waveguide filter.
Secure the OMT or the waveguide filter to the Unit by fixing the
bolts or screws with 2.39 to 2.91 N・m torque as shown in a figure
below.
Insaeting O-ring
Table 7. Screw Length List
Flange Thickness of OMT or
2 - 5 mm [0.075" - 0.2"]
5 - 8.5 mm [0.2" - 0.325"]
8.5 - 11.5 mm [0.325" -
11.5 - 15 mm [0.45" -
Screw Length
1/2"
NJT5667/68/74 series Instruction Manual Page 17

Only input a voltage within the range indicated in specified
voltage.
DO operate at the input voltage of +15 to +30 V DC power at
the coaxial connecter on the Unit.
DO NOT input an IF signal over the range of +13 dBm
maximum and a reference signal within the range of -5 to +5
dBm.
Step 2:
6.2.1. Connecting Coaxical Cable.
IM-T5667 Rev.01
6.2. Connecting Modem
The Unit is connected the modem.
Step 1:
Location of Coaxial Connector
The Unit receives the reference and the IF signal and is required to supply
+15 to +30 V DC power from the modem via coaxial cable.
When connecting the coaxial cable from the modem, follow the following
steps:
Connect the coaxial cable with the N or F-type male connectors
to the coaxial connecter equipped with the Unit which is shown
in a figure below under 0.68 to 1.13 N・m torque.
Use self-amalgamating tape to seal connector and cable entry
points from the connector to the cable sheath.
Supplied the IF/Ref./DC Power via Coaxial Cable
NJT5667/68/74 series Instruction Manual Page 18

Step 1:
Fixing a ground wire from the common ground of other equipments for
grounding is proceed with the following step:
Fix the ground wire from other equipments to the ground hole
near the coaxical connector with enclosed on the Unit which is
shown in a figure below.
To reduce the risk of damage or broken by lightning surge, the
Unit should be fixed with the ground wire.
6.2.2. Fixing Ground Wire
The Unit should be common with ground of other equipments (e.g.
antenna).
Location of Ground Wire
IM-T5667 Rev.01
Fixing the Ground Wire
NJT5667/68/74 series Instruction Manual Page 19

<Standard C-band>
<Palapa C-band>
<Insat C-band>
<Standard C-band>
<Palapa C-band>
<Insat C-band>
<Standard C-band>
<Palapa C-band>
<Insat C-band>
Output Load VSWR for Non
Damage
10 MHz (sine-wave)
7.1. Electrical Specifications
4.
5. 13.05 GHz
Positive
-5 to +5 dBm @ Input port
-140 dBc/Hz max. @ 10 kHz
-120 dBc/Hz max. @ 100 Hz
Requirement for External
Reference
[Frequency]
[Input Power]
[Phase Noise]
2 : 1 max.
IM-T5667 Rev.01
-130 dBc/Hz max. @ 1 kHz
<F-type>
-100 dBc/Hz max. @ 1MHz
<N-type>
58 dB nom.
-60 dBc/Hz max. @ 100 Hz
-70 dBc/Hz max. @ 1 kHz
-80 dBc/Hz max. @ 10 kHz
-90 dBc/Hz max. @ 100 kHz
2 : 1 max.Input VSWR
Output VSWR
Input Impedance
12.
8.
6.
7. Output Power @ 1dB G.C.P.
11.
L.O. Phase Noise
Linear Gain
10.
2.
+33 dBm min. over temperature
Single, fixed L.O.
3.
Frequency Sense
7. Specification
No. Item
L.O. Frequency
Specifications
Infinite : 1
1.
5.850 to 6.425 GHz
6.365 to 6.725 GHz
6.725 to 7.025 GHz
950 to 1,525 MHz
The Unit is in compliance with the following specifications:
Conversion Type
14.
+13 dBm max.
Output Frequency Range
Input Frequency Range
Maximum IF Input Level
(without damage)
13.
9.
1,065 to 1,425 MHz
965 to 1,265 MHz
4.90 GHz
5.30 GHz
5.76 GHz
75 ohms nominal
50 ohms nominal
NJT5667/68/74 series Instruction Manual Page 20
